openstack云平台部署（脚本版）

news 来源：原创 2025/6/11 18:38:05

一.准备工作

原版请看置顶文章（此文章为写脚本自动搭建）

云平台需要两个节点，一个controller（控制节点），一个compute（计算节点）环境要求：VM虚拟机2台，镜像为centos7或7.5。

本指南使用的ip

控制节点(controller)：

一块100G的硬盘。两块网卡，两块网卡第一块网卡IP地址为192.168.100.10，第二块网卡IP地址为192.168.200.10。（编辑时用的是60G硬盘）

计算节点(compute)：

一块100G硬盘和一块50G硬盘。两块网卡第一块网卡IP地址为192.168.100.20，第二块网卡IP地址为192.168.200.20。（编辑时用的60G+20G两块硬盘）

本指南运用的镜像

1.通过百度网盘分享的文件：CentOS-7-x86_64-DVD-2009.iso
链接：https://pan.baidu.com/s/1VqYqutsstDwdt7w8g4tjjg
提取码：dy7c
2.通过百度网盘分享的文件：CentOS-7.5-x86_64-DVD-1804.iso
链接：https://pan.baidu.com/s/1pzt1_iZ0Lph69Llvo_2ILQ
提取码：37ss
3.通过百度网盘分享的文件：chinaskills_cloud_iaas.iso
链接：https://pan.baidu.com/s/1EDlE-9bH83yGmvQtifLlvw
提取码：2e16

二.配置虚拟机

1.controller控制节点

1.修改controller（控制节点）主机名

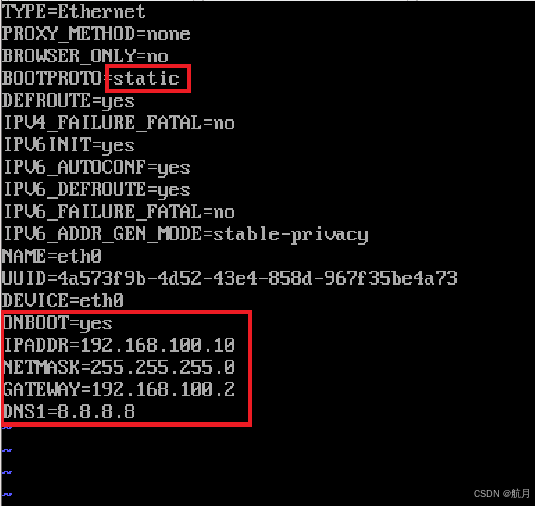

2.1修改第一块网卡

按insert进入编辑模式，编辑完后esc加冒号wq保存退出

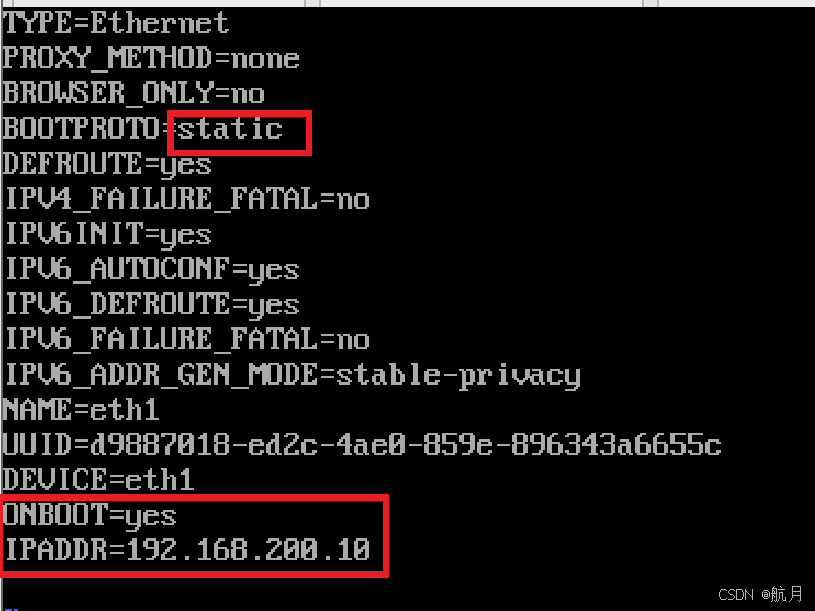

2.2修改第二块网卡

重启网卡，使网卡生效

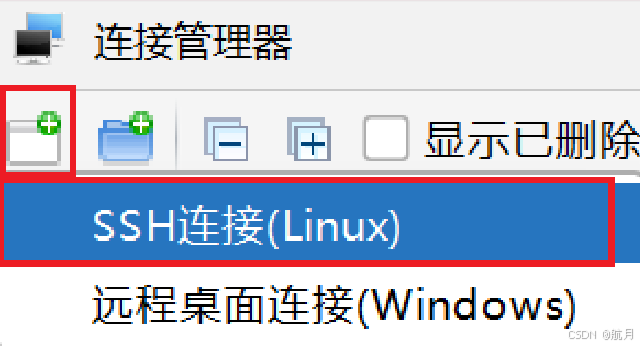

使用finalshell连接controller（为了更好的使用）

2.compute节点

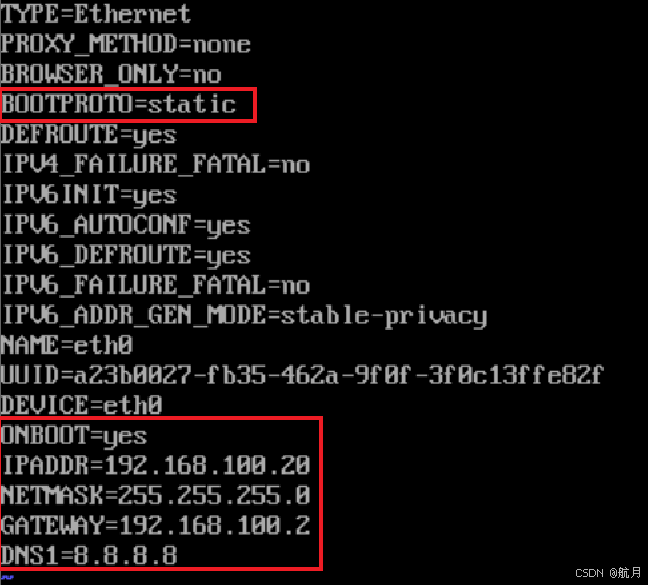

第一块网卡配置如下：

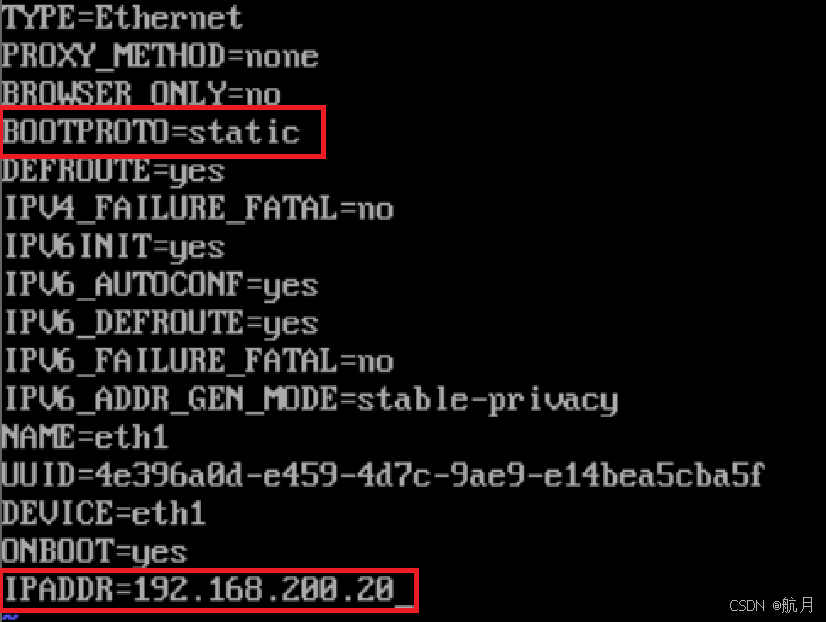

第二块网卡配置如下：

重启网卡使配置生效

三.正式开始搭建openstack云平台

controller节点配置：

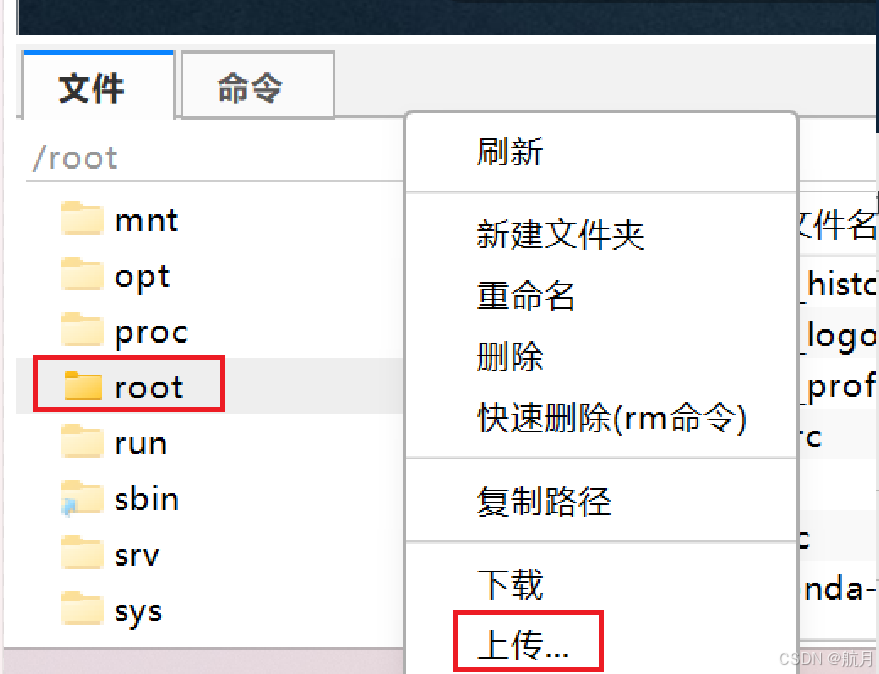

1.上传centos7镜像和iaas镜像

上传成功！

2.编写脚本

vim 1.sh

#!/bin/bash
systemctl stop firewalld
systemctl disable firewalld
setenforce 0
sed -i "s/SELINUX=enforcing/SELINUX=permissive/g" /etc/selinux/config
rm -rf /etc/yum.repos.d/*
cat > /etc/yum.repos.d/local.repo << EOF
[centos]
name=centos
baseurl=file:///opt/centos
gpgcheck=0
enabled=1

[iaas]
name=iaas
baseurl=file:///opt/openstack/iaas-repo
gpgcheck=0
enabled=1
EOF
yum install -y vim vsftpd iaas-xiandian
sed -i "s/anonymous_enable=NO/anonymous_enable=YES/g" /etc/vsftpd/vsftpd.conf
sed -i "s/anonymous_root=\/var\/ftp/anonymous_root=\/opt\/1/g" /etc/vsftpd/vsftpd.conf
systemctl restart vsftpd
systemctl enable vsftpd

6.修改脚本

[root@controller ~]# vim /etc/xiandian/openrc.sh

#--------------------system Config--------------------##
#Controller Server Manager IP. example:x.x.x.x
HOST_IP=192.168.100.10        #controller节点的IP地址

#Controller HOST Password. example:000000
HOST_PASS=000000

#Controller Server hostname. example:controller
HOST_NAME=controller

#Compute Node Manager IP. example:x.x.x.x
HOST_IP_NODE=192.168.100.20        #compute节点的IP地址

#Compute HOST Password. example:000000
HOST_PASS_NODE=000000

#Compute Node hostname. example:compute
HOST_NAME_NODE=compute

#--------------------Chrony Config-------------------##
#Controller network segment IP.  example:x.x.0.0/16(x.x.x.0/24)
network_segment_IP=192.168.100.0/24        #controller节点所在的网段

#--------------------Rabbit Config ------------------##
#user for rabbit. example:openstack
RABBIT_USER=openstack

#Password for rabbit user .example:000000
RABBIT_PASS=000000

#--------------------MySQL Config---------------------##
#Password for MySQL root user . exmaple:000000
DB_PASS=000000

#--------------------Keystone Config------------------##
#Password for Keystore admin user. exmaple:000000
DOMAIN_NAME=demo
ADMIN_PASS=000000
DEMO_PASS=000000

#Password for Mysql keystore user. exmaple:000000
KEYSTONE_DBPASS=000000

#--------------------Glance Config--------------------##
#Password for Mysql glance user. exmaple:000000
GLANCE_DBPASS=000000

#Password for Keystore glance user. exmaple:000000
GLANCE_PASS=000000

#--------------------Nova Config----------------------##
#Password for Mysql nova user. exmaple:000000
NOVA_DBPASS=000000

#Password for Keystore nova user. exmaple:000000
NOVA_PASS=000000

#--------------------Neturon Config-------------------##
#Password for Mysql neutron user. exmaple:000000
NEUTRON_DBPASS=000000

#Password for Keystore neutron user. exmaple:000000
NEUTRON_PASS=000000

#metadata secret for neutron. exmaple:000000
METADATA_SECRET=000000

#Tunnel Network Interface. example:x.x.x.x
INTERFACE_IP=192.168.100.10        #本机IP地址

#External Network Interface. example:eth1
INTERFACE_NAME=eth1

#External Network The Physical Adapter. example:provider
Physical_NAME=provider

#First Vlan ID in VLAN RANGE for VLAN Network. exmaple:101
minvlan=101

#Last Vlan ID in VLAN RANGE for VLAN Network. example:200
maxvlan=200

#--------------------Cinder Config--------------------##
#Password for Mysql cinder user. exmaple:000000
CINDER_DBPASS=000000

#Password for Keystore cinder user. exmaple:000000
CINDER_PASS=000000

#Cinder Block Disk. example:md126p3
BLOCK_DISK=sdb1        #compute节点的存储块

#--------------------Swift Config---------------------##
#Password for Keystore swift user. exmaple:000000
SWIFT_PASS=000000

#The NODE Object Disk for Swift. example:md126p4.
OBJECT_DISK=sdb2        #compute节点的存储块

#The NODE IP for Swift Storage Network. example:x.x.x.x.
STORAGE_LOCAL_NET_IP=192.168.100.20    #compute节点的IP地址

#--------------------Heat Config----------------------##
#Password for Mysql heat user. exmaple:000000
HEAT_DBPASS=000000

#Password for Keystore heat user. exmaple:000000
HEAT_PASS=000000

#--------------------Zun Config-----------------------##
#Password for Mysql Zun user. exmaple:000000
ZUN_DBPASS=000000

#Password for Keystore Zun user. exmaple:000000
ZUN_PASS=000000

#Password for Mysql Kuryr user. exmaple:000000
KURYR_DBPASS=000000

#Password for Keystore Kuryr user. exmaple:000000
KURYR_PASS=000000

#--------------------Ceilometer Config----------------##
#Password for Gnocchi ceilometer user. exmaple:000000
CEILOMETER_DBPASS=000000

#Password for Keystore ceilometer user. exmaple:000000
CEILOMETER_PASS=000000

#--------------------AODH Config----------------##
#Password for Mysql AODH user. exmaple:000000
AODH_DBPASS=000000

#Password for Keystore AODH user. exmaple:000000
AODH_PASS=000000

#--------------------Barbican Config----------------##
#Password for Mysql Barbican user. exmaple:000000
BARBICAN_DBPASS=000000

#Password for Keystore Barbican user. exmaple:000000
BARBICAN_PASS=000000

compute节点设置

编写脚本

vim 1.sh

#!/bin/bash
systemctl stop firewalld
systemctl disable firewalld
setenforce 0
sed -i "s/SELINUX=enforcing/SELINUX=permissive/g" /etc/selinux/config
rm -rf /etc/yum.repos.d/*
cat > /etc/yum.repos.d/local.repo << EOF
[centos]
name=centos
baseurl=file:///opt/centos
gpgcheck=0
enabled=1

[iaas]
name=iaas
baseurl=file:///opt/openstack/iaas-repo
gpgcheck=0
enabled=1
EOF
yum install -y vim vsftpd iaas-xiandian
fdisk /dev/sdb << EOF
n
p
1

2048

+10G
n
p
2

+5G
w
EOF

4.修改脚本
将controller节点的脚本复制至compute节点

[root@compute ~]# scp 192.168.100.10:/etc/xiandian/openrc.sh /etc/xiandian/openrc.sh
The authenticity of host '192.168.100.10 (192.168.100.10)' can't be established.
ECDSA key fingerprint is SHA256:3fUEo7XuafRBPMtY2rSnpjKOdGSrLnE68O2aZAXEp6o.
ECDSA key fingerprint is MD5:4b:73:20:24:30:ad:6a:31:86:fa:26:55:47:92:99:cc.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.100.10' (ECDSA) to the list of known hosts.
root@192.168.100.10's password:
openrc.sh                                                            100% 3820     1.9MB/s   00:00

修改openrc.sh脚本中本机Ip地址

四.刷脚本
注：刷脚本前可以快照

controller节点：

[root@controller ~]# iaas-pre-host.sh        #刷完该脚本后需要重启

[root@controller ~]# iaas-install-mysql.sh

[root@controller ~]# iaas-install-keystone.sh

[root@controller ~]# source /etc/keystone/admin-openrc.sh         #使环境生效

[root@controller ~]# iaas-install-glance.sh

[root@controller ~]# iaas-install-nova-controller.sh

[root@controller ~]# iaas-install-neutron-controller.sh

[root@controller ~]# iaas-install-dashboard.sh

compute节点：

[root@compute ~]# iaas-pre-host.sh         #刷完该脚本后需要重启

[root@compute ~]# iaas-install-nova-compute.sh

[root@compute ~]# iaas-install-neutron-compute.sh
