R5周：天气预测

news 2025/7/18 8:21:27

🍨 本文为🔗365天深度学习训练营中的学习记录博客
🍖 原作者：K同学啊

一、导入数据

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings('ignore')

from sklearn.model_selection import train_test_split
from sklearn.preprocessing import MinMaxScaler
import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Activation, Dropout
from tensorflow.keras.callbacks import EarlyStopping
from tensorflow.keras.layers import Dropout
from sklearn.metrics import classification_report, confusion_matrix
from sklearn.metrics import r2_score
from sklearn.metrics import mean_absolute_error, mean_absolute_percentage_error, mean_squared_error

data = pd.read_csv("F:/jupyter lab/DL-100-days/datasets/weather_pre/weatherAus.csv")
df   = data.copy()

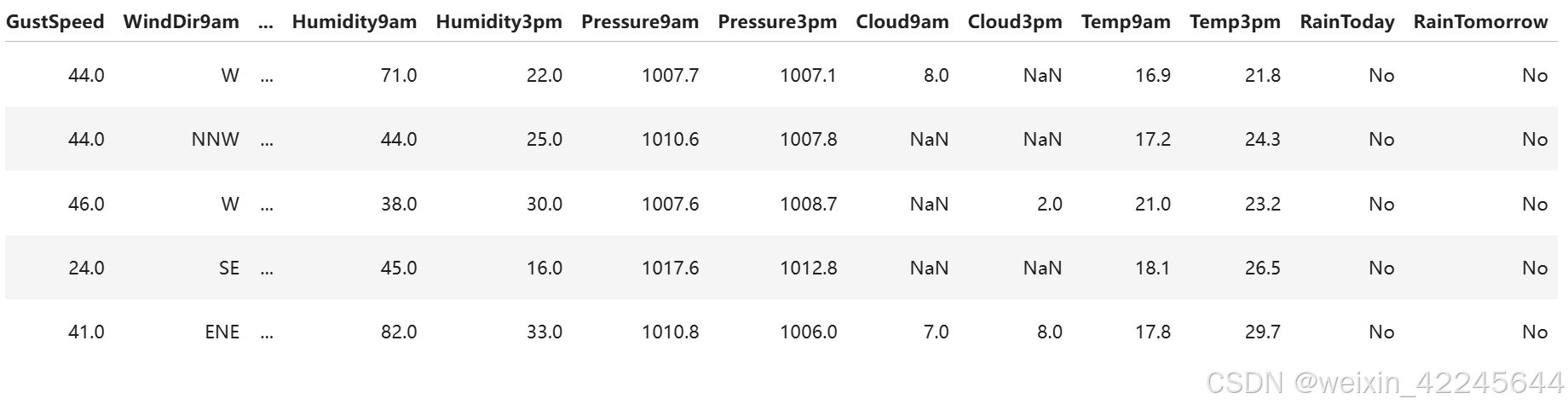

data.head()

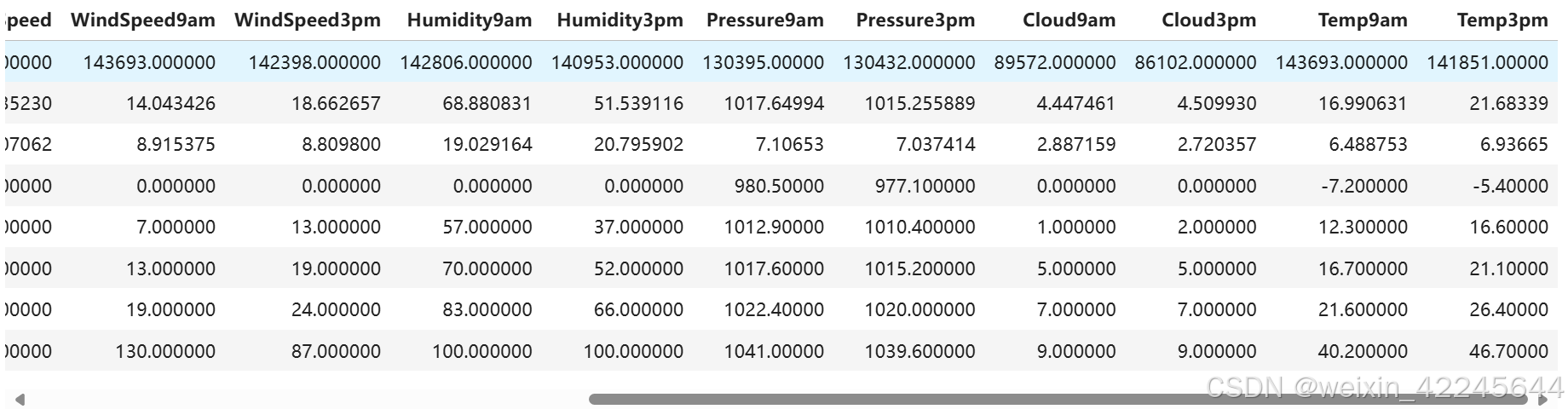

data.describe()

data.dtypes

Date              object
Location          object
MinTemp          float64
MaxTemp          float64
Rainfall         float64
Evaporation      float64
Sunshine         float64
WindGustDir       object
WindGustSpeed    float64
WindDir9am        object
WindDir3pm        object
WindSpeed9am     float64
WindSpeed3pm     float64
Humidity9am      float64
Humidity3pm      float64
Pressure9am      float64
Pressure3pm      float64
Cloud9am         float64
Cloud3pm         float64
Temp9am          float64
Temp3pm          float64
RainToday         object
RainTomorrow      object
dtype: object

#将数据转换为日期时间格式
data['Date']= pd.to_datetime(data['Date'])

data['year']= data['Date'].dt.year
data['Month']= data['Date'].dt.month
data['day']= data['Date'].dt.day

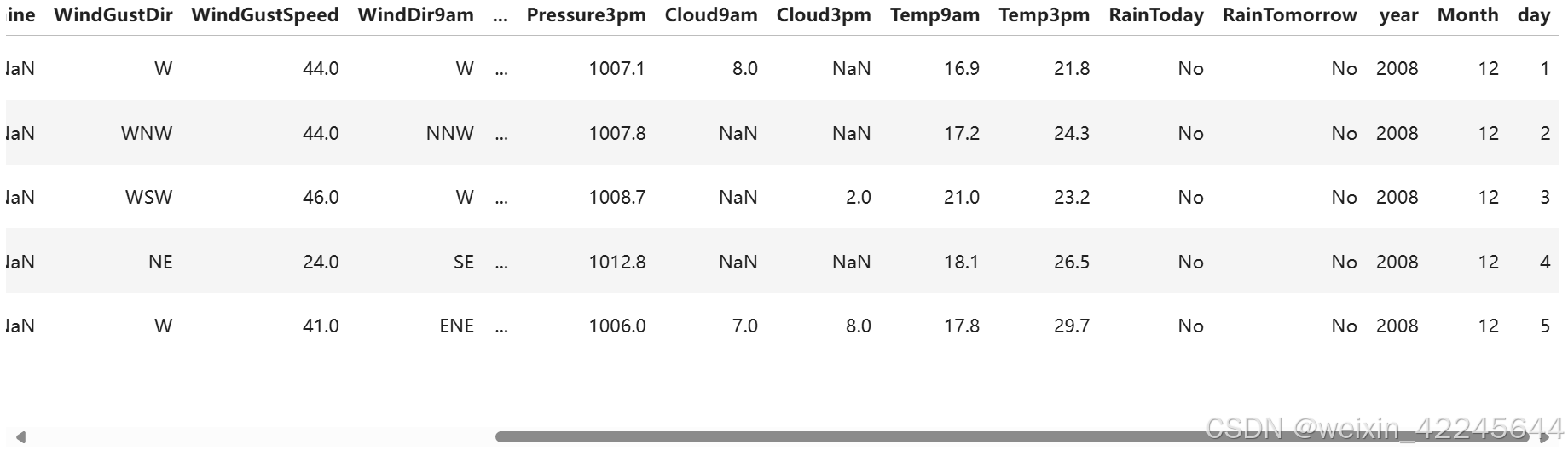

data.head()

data.drop('Date',axis=1,inplace=True)
data.columns

Index(['Location', 'MinTemp', 'MaxTemp', 'Rainfall', 'Evaporation', 'Sunshine',
       'WindGustDir', 'WindGustSpeed', 'WindDir9am', 'WindDir3pm',
       'WindSpeed9am', 'WindSpeed3pm', 'Humidity9am', 'Humidity3pm',
       'Pressure9am', 'Pressure3pm', 'Cloud9am', 'Cloud3pm', 'Temp9am',
       'Temp3pm', 'RainToday', 'RainTomorrow', 'year', 'Month', 'day'],
      dtype='object')

二、探索式数据分析（EDA）

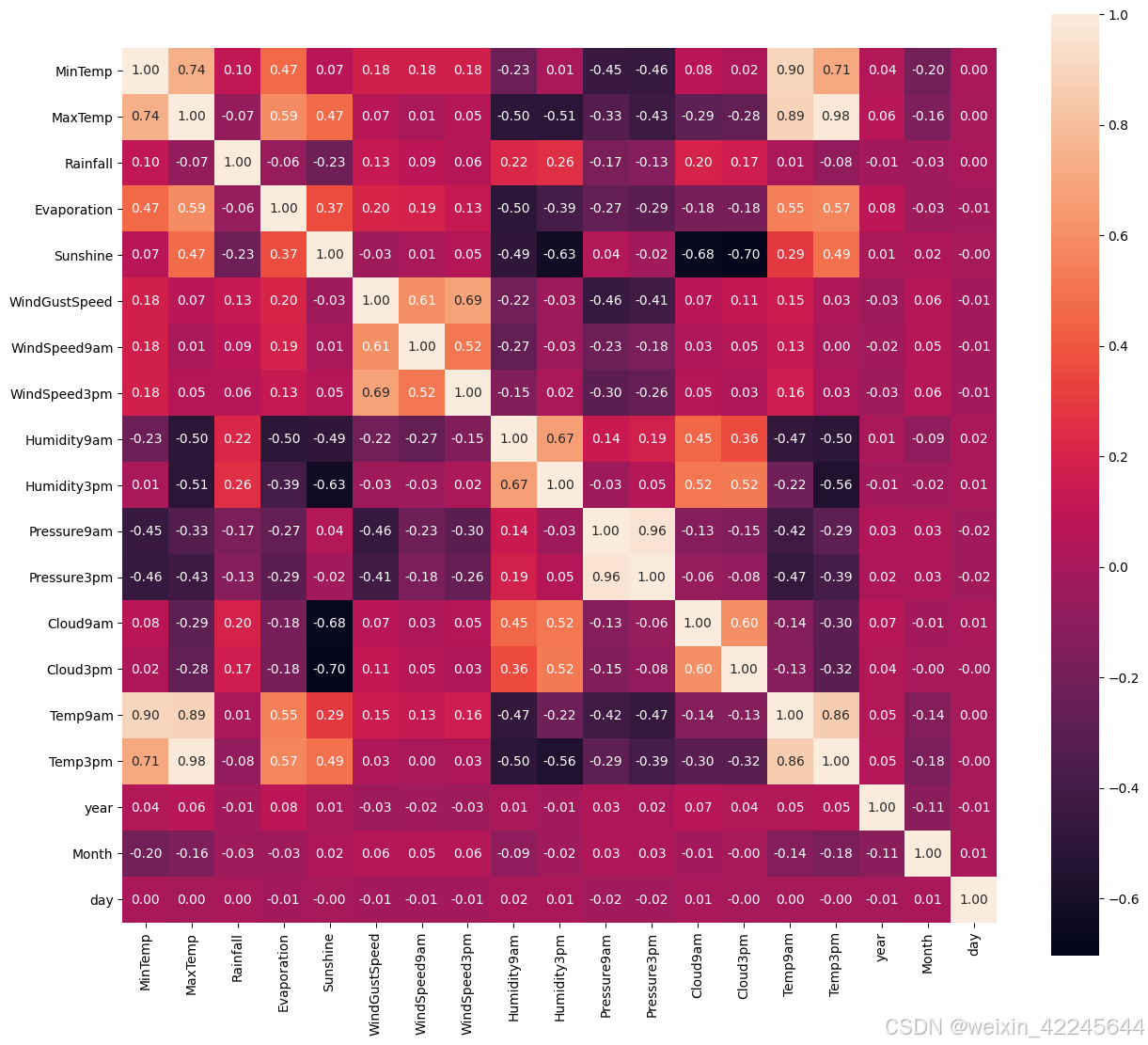

1.数据相关性探索

plt.figure(figsize=(15,13))
#data.corr()表示了data中的两个变量之间的相关性
ax=sns.heatmap(data.corr(),square=True, annot=True, fmt='.2f')
ax.set_xticklabels(ax.get_xticklabels(), rotation=90)
plt.show()

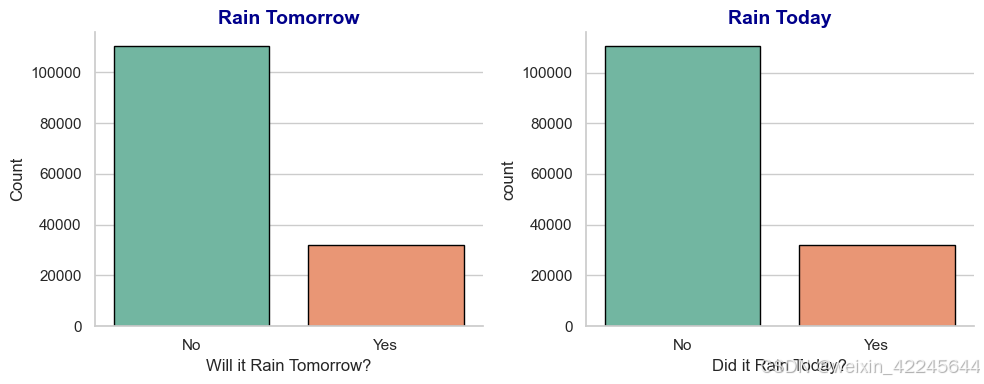

2.是否会下雨

#设置样式和调色板
sns.set(style="whitegrid",palette="Set2")

#创建一个1行2列的图像布局
fig,axes =plt.subplots(1,2,figsize=(10,4)) #图形尺寸调大(10，4)

#图表标题样式
title_font ={f'fontsize':14,'fontweight':'bold','color':'darkblue'}

#第一张图:RainTomorrow
sns.countplot(x='RainTomorrow',data=data, ax=axes[0],edgecolor='black') # 添加边框
axes[0].set_title('Rain Tomorrow',fontdict=title_font)# 设置标题
axes[0].set_xlabel('Will it Rain Tomorrow?', fontsize=12) # X轴标签
axes[0].set_ylabel('Count', fontsize=12) # Y轴标签
axes[0].tick_params(axis='x', labelsize=11)#x轴刻度字体大小
axes[0].tick_params(axis='y', labelsize=11)# Y轴刻度字体大小

#第二张图:RainToday
sns.countplot(x='RainToday',data=data,ax=axes[1],edgecolor='black') #添加边框
axes[1].set_title('Rain Today',fontdict=title_font) # 设置标题
axes[1].set_xlabel('Did it Rain Today?',fontsize=12) # X轴标签
axes[1].set_ylabel('count', fontsize=12)#Y轴标签
axes[1].tick_params(axis='x',labelsize=11)#x轴刻度字体大小
axes[1].tick_params(axis='y',labelsize=11)#Y轴刻度字体大小

sns.despine()#去除图表顶部和右侧的边框
plt.tight_layout()#调整布局，避免图形之间的重叠
plt.show()

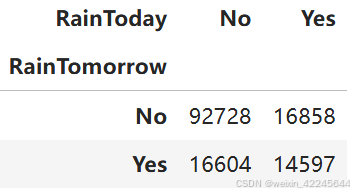

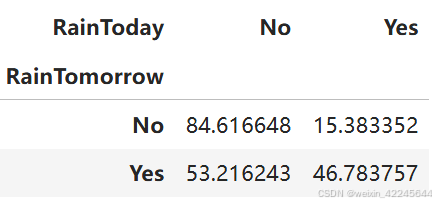

x=pd.crosstab(data['RainTomorrow'],data['RainToday'])
x

y=x/x.transpose().sum().values.reshape(2,1)*100
y

y.plot(kind="bar",figsize=(4,3),color=['#006666','#d279a6']);

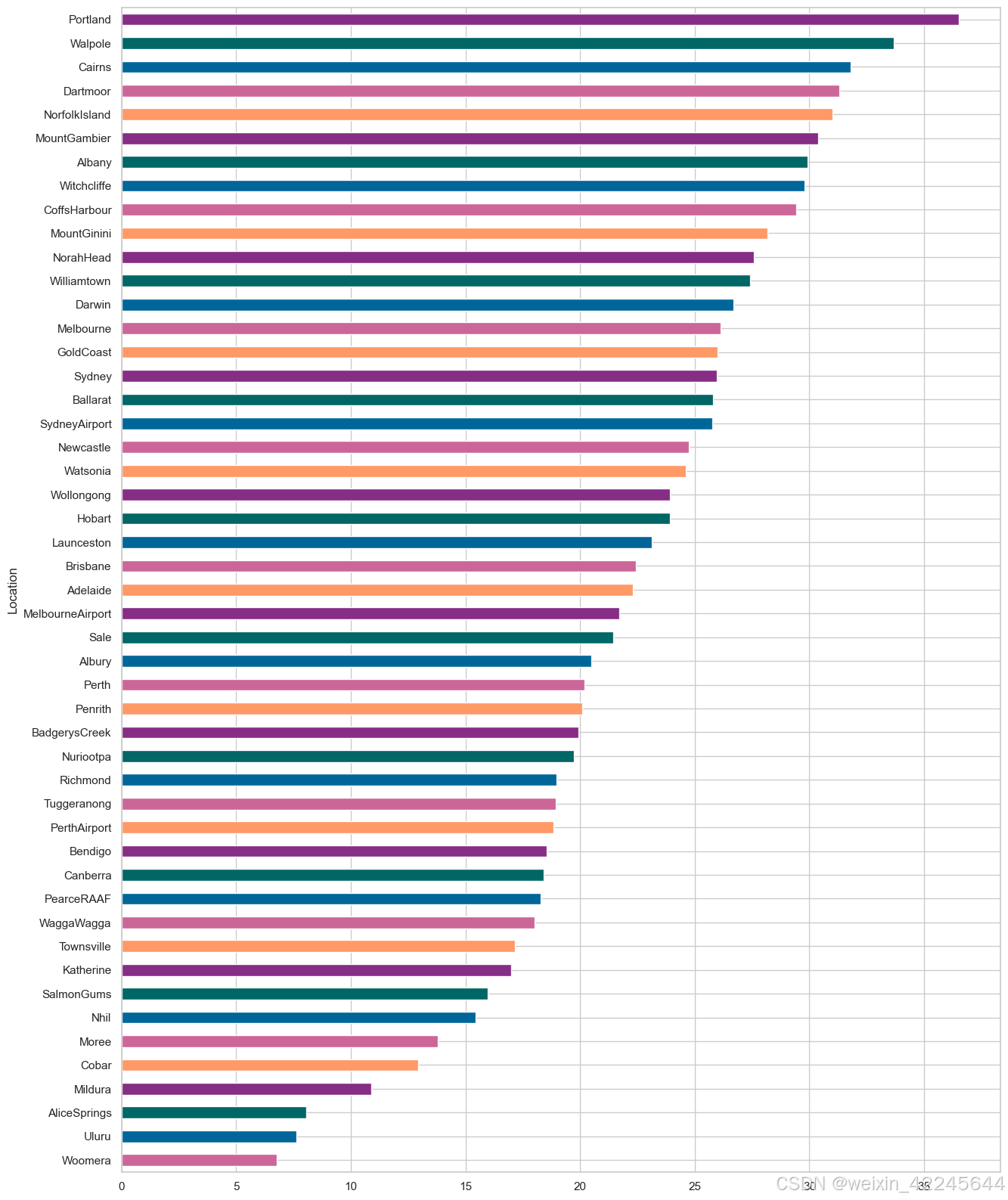

3.地理位置与下雨的关系

x=pd.crosstab(data['Location'],data['RainToday']) #获取每个城市下雨天数和非下雨天数的百分比
y=x/x.transpose().sum().values.reshape((-1,1))*100 #按每个城市的雨天百分比排序
y=y.sort_values(by='Yes',ascending=True)

color=['#cc6699','#006699','#006666','#862d86','#ff9966']
y.Yes.plot(kind="barh",figsize=(15,20),color=color)

4.湿度和压力对下雨的影响

data.columns

Index(['Location', 'MinTemp', 'MaxTemp', 'Rainfall', 'Evaporation', 'Sunshine',
       'WindGustDir', 'WindGustSpeed', 'WindDir9am', 'WindDir3pm',
       'WindSpeed9am', 'WindSpeed3pm', 'Humidity9am', 'Humidity3pm',
       'Pressure9am', 'Pressure3pm', 'Cloud9am', 'Cloud3pm', 'Temp9am',
       'Temp3pm', 'RainToday', 'RainTomorrow', 'year', 'Month', 'day'],
      dtype='object')

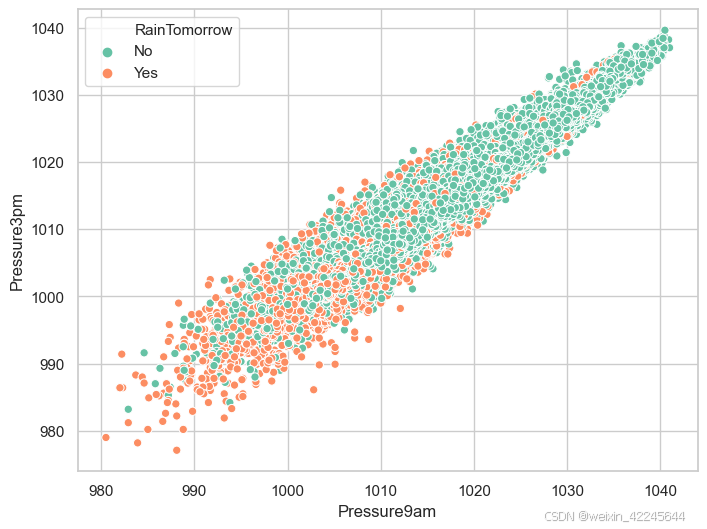

plt.figure(figsize=(8,6))
sns.scatterplot(data=data,x='Pressure9am',y='Pressure3pm',hue='RainTomorrow');

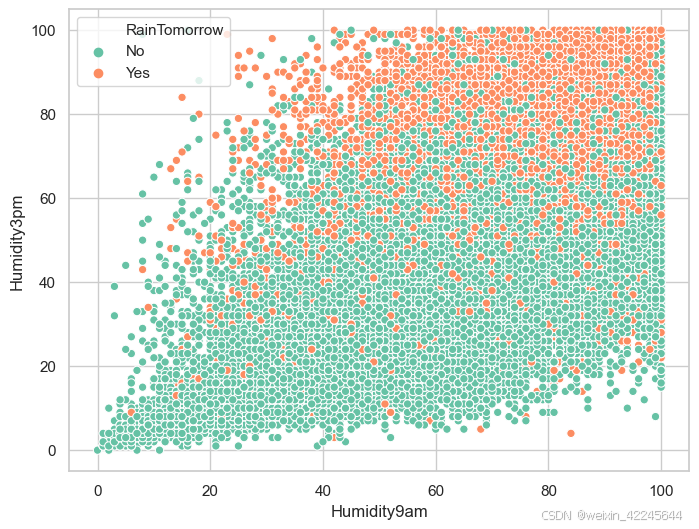

plt.figure(figsize=(8,6))
sns.scatterplot(data=data,x='Humidity9am',y='Humidity3pm',hue='RainTomorrow');

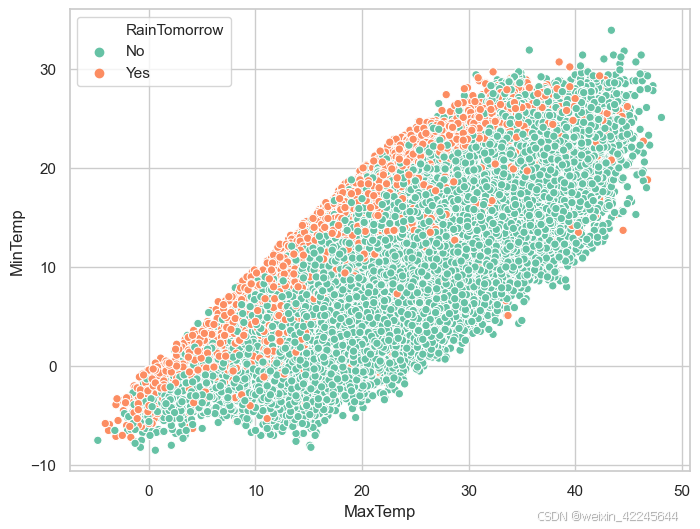

5.气温对下雨的影响

plt.figure(figsize=(8,6))
sns.scatterplot(x='MaxTemp',y='MinTemp',data=data,hue='RainTomorrow');

三、数据预处理

1.处理缺损值

#每列中缺失数据的百分比
data.isnull().sum()/data.shape[0]*100

Location          0.000000
MinTemp           1.020899
MaxTemp           0.866905
Rainfall          2.241853
Evaporation      43.166506
Sunshine         48.009762
WindGustDir       7.098859
WindGustSpeed     7.055548
WindDir9am        7.263853
WindDir3pm        2.906641
WindSpeed9am      1.214767
WindSpeed3pm      2.105046
Humidity9am       1.824557
Humidity3pm       3.098446
Pressure9am      10.356799
Pressure3pm      10.331363
Cloud9am         38.421559
Cloud3pm         40.807095
Temp9am           1.214767
Temp3pm           2.481094
RainToday         2.241853
RainTomorrow      2.245978
year              0.000000
Month             0.000000
day               0.000000
dtype: float64

Location          0.000000
MinTemp           1.020899
MaxTemp           0.866905
Rainfall          2.241853
Evaporation      43.166506
Sunshine         48.009762
WindGustDir       7.098859
WindGustSpeed     7.055548
WindDir9am        7.263853
WindDir3pm        2.906641
WindSpeed9am      1.214767
WindSpeed3pm      2.105046
Humidity9am       1.824557
Humidity3pm       3.098446
Pressure9am      10.356799
Pressure3pm      10.331363
Cloud9am         38.421559
Cloud3pm         40.807095
Temp9am           1.214767
Temp3pm           2.481094
RainToday         2.241853
RainTomorrow      2.245978
year              0.000000
Month             0.000000
day               0.000000
dtype: float64

#在该列中随机选择数进行填充
lst=['Evaporation','Sunshine','Cloud9am','Cloud3pm']
for col in lst:
    fill_list = data[col].dropna()
    data[col] = data[col].fillna(pd.Series(np.random.choice(fill_list, size=len(data.index))))

s=(data.dtypes =="object")
object_cols = list(s[s].index)
object_cols

['Location',
 'WindGustDir',
 'WindDir9am',
 'WindDir3pm',
 'RainToday',
 'RainTomorrow']

# inplace=True:直接修改原对象，不创建副本
# data[i].mode()[0]返回频率出现最高的选项，众数
for i in object_cols:
    data[i].fillna(data[i].mode()[0], inplace=True)

t=(data.dtypes == "float64")
num_cols = list(t[t].index)
num_cols

['MinTemp',
 'MaxTemp',
 'Rainfall',
 'Evaporation',
 'Sunshine',
 'WindGustSpeed',
 'WindSpeed9am',
 'WindSpeed3pm',
 'Humidity9am',
 'Humidity3pm',
 'Pressure9am',
 'Pressure3pm',
 'Cloud9am',
 'Cloud3pm',
 'Temp9am',
 'Temp3pm']

#.median(), 中位数
for i in num_cols:
    data[i].fillna(data[i].median(),inplace=True)

data.isnull().sum()

Location         0
MinTemp          0
MaxTemp          0
Rainfall         0
Evaporation      0
Sunshine         0
WindGustDir      0
WindGustSpeed    0
WindDir9am       0
WindDir3pm       0
WindSpeed9am     0
WindSpeed3pm     0
Humidity9am      0
Humidity3pm      0
Pressure9am      0
Pressure3pm      0
Cloud9am         0
Cloud3pm         0
Temp9am          0
Temp3pm          0
RainToday        0
RainTomorrow     0
year             0
Month            0
day              0
dtype: int64

2.构建数据集

from sklearn.preprocessing import LabelEncoder

label_encoder = LabelEncoder()
for i in object_cols:
    data[i]= label_encoder.fit_transform(data[i])

X = data.drop(['RainTomorrow','day'],axis=1).values
y = data['RainTomorrow'].values

X_train, X_test, y_train, y_test = train_test_split(X,y,test_size=0.25,random_state=101)

scaler =MinMaxScaler()
scaler.fit(X_train)
X_train =scaler.transform(X_train)
X_test= scaler.transform(X_test)

四、预测是否下雨

1.搭建神经网络

from tensorflow.keras.optimizers import Adam

model = Sequential()
model.add(Dense(units=24,activation='tanh',))
model.add(Dense(units=18,activation='tanh'))
model.add(Dense(units=23,activation='tanh'))
model.add(Dropout(0.5))
model.add(Dense(units=12,activation='tanh'))
model.add(Dropout(0.2))
model.add(Dense(units=1,activation='sigmoid'))

optimizer =tf.keras.optimizers.Adam(learning_rate=1e-4)

model.compile(loss='binary_crossentropy',
              optimizer=optimizer,
              metrics="accuracy")

2.模型训练

model.fit(x=X_train,
          y=y_train,
          validation_data=(X_test,y_test),
          verbose=1,
          epochs = 10,
          batch_size =32
)

Epoch 1/10
3410/3410 [==============================] - 21s 5ms/step - loss: 0.4584 - accuracy: 0.8010 - val_loss: 0.3922 - val_accuracy: 0.8279
Epoch 2/10
3410/3410 [==============================] - 16s 5ms/step - loss: 0.3952 - accuracy: 0.8324 - val_loss: 0.3782 - val_accuracy: 0.8361
Epoch 3/10
3410/3410 [==============================] - 16s 5ms/step - loss: 0.3873 - accuracy: 0.8353 - val_loss: 0.3750 - val_accuracy: 0.8388
Epoch 4/10
3410/3410 [==============================] - 16s 5ms/step - loss: 0.3828 - accuracy: 0.8378 - val_loss: 0.3744 - val_accuracy: 0.8389
Epoch 5/10
3410/3410 [==============================] - 17s 5ms/step - loss: 0.3812 - accuracy: 0.8386 - val_loss: 0.3721 - val_accuracy: 0.8400
Epoch 6/10
3410/3410 [==============================] - 17s 5ms/step - loss: 0.3796 - accuracy: 0.8390 - val_loss: 0.3716 - val_accuracy: 0.8389
Epoch 7/10
3410/3410 [==============================] - 17s 5ms/step - loss: 0.3787 - accuracy: 0.8389 - val_loss: 0.3708 - val_accuracy: 0.8399
Epoch 8/10
3410/3410 [==============================] - 17s 5ms/step - loss: 0.3779 - accuracy: 0.8393 - val_loss: 0.3708 - val_accuracy: 0.8400
Epoch 9/10
3410/3410 [==============================] - 17s 5ms/step - loss: 0.3774 - accuracy: 0.8393 - val_loss: 0.3704 - val_accuracy: 0.8403
Epoch 10/10
3410/3410 [==============================] - 18s 5ms/step - loss: 0.3770 - accuracy: 0.8394 - val_loss: 0.3700 - val_accuracy: 0.8403

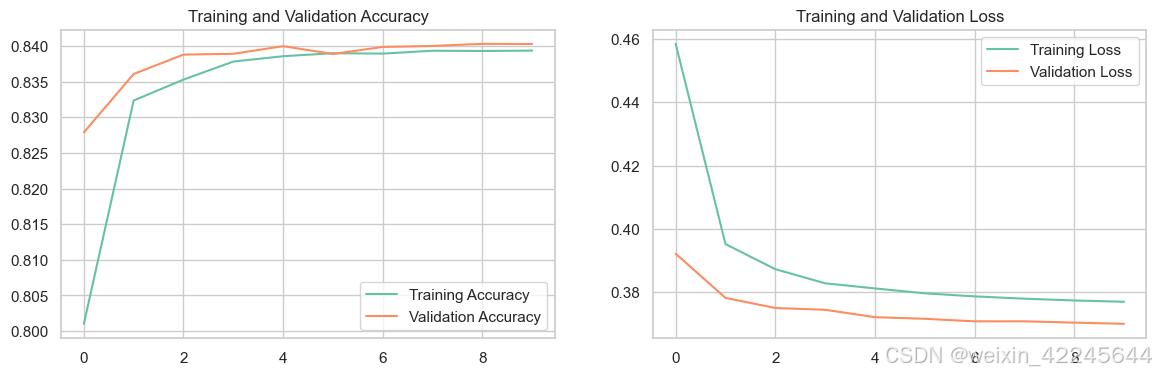

3.结果可视化

import matplotlib.pyplot as plt

acc = model.history.history['accuracy']
val_acc = model.history.history['val_accuracy']

loss = model.history.history['loss']
val_loss = model.history.history['val_loss']

epochs_range = range(10)

plt.figure(figsize=(14, 4))
plt.subplot(1, 2, 1)

plt.plot(epochs_range,acc,label='Training Accuracy')
plt.plot(epochs_range,val_acc,label='Validation Accuracy')
plt.legend(loc='lower right')
plt.title('Training and Validation Accuracy')

plt.subplot(1, 2, 2)
plt.plot(epochs_range,loss,label='Training Loss')
plt.plot(epochs_range,val_loss,label='Validation Loss')
plt.legend(loc='upper right')
plt.title('Training and Validation Loss')
plt.show()
