Android系统启动流程学习（四）应用程序进程启动过程
1 简介
想要启动一个应用程序，必须先启动应用程序进程。AMS 启动应用程序时先检查需要的进程是否存在，不存在就请求 Zygote 进程启动进程。
Zygote 启动时的 Socket 就是用来等待 AMS 的新建应用进程的请求的。
Zygote 通过 fork 自身创建应用程序进程，这样就能继承 Zygote 启动时的虚拟机实例，同事也创建了 Binder 线程池和消息循环，这样就能方便的进行 Binder 进行进程间通信以及处理消息了。
2 启动过程介绍

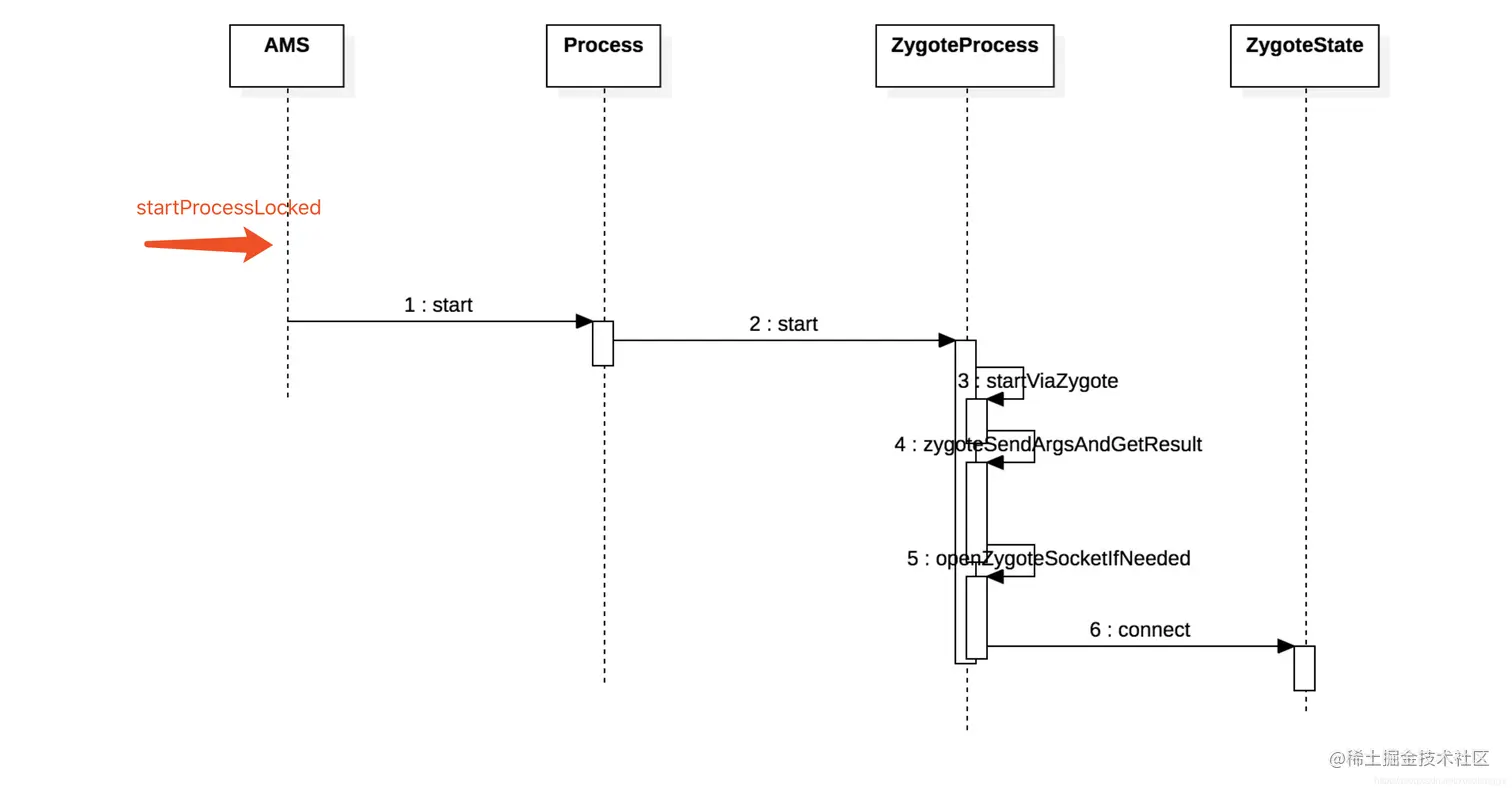

AMS 通过 startProcessLocked 方法向 Zygote 进程发送请求。
@GuardedBy("this")
private final void startProcessLocked(ProcessRecord app,
String hostingType, String hostingNameStr) {
startProcessLocked(app, hostingType, hostingNameStr, null /* abiOverride */);
}
@GuardedBy("this")
private final boolean startProcessLocked(ProcessRecord app,
String hostingType, String hostingNameStr, String abiOverride) {
return startProcessLocked(app, hostingType, hostingNameStr,
false /* disableHiddenApiChecks */, abiOverride);
}
/**
* @return {@code true} if process start is successful, false otherwise.
*/
@GuardedBy("this")
private final boolean startProcessLocked(ProcessRecord app, String hostingType,
String hostingNameStr, boolean disableHiddenApiChecks, String abiOverride) {
if (app.pendingStart) {
return true;
}
long startTime = SystemClock.elapsedRealtime();
if (app.pid > 0 && app.pid != MY_PID) {
checkTime(startTime, "startProcess: removing from pids map");
synchronized (mPidsSelfLocked) {
mPidsSelfLocked.remove(app.pid);
mHandler.removeMessages(PROC_START_TIMEOUT_MSG, app);
}
checkTime(startTime, "startProcess: done removing from pids map");
app.setPid(0);
}
if (DEBUG_PROCESSES && mProcessesOnHold.contains(app)) Slog.v(TAG_PROCESSES,
"startProcessLocked removing on hold: " + app);
mProcessesOnHold.remove(app);
checkTime(startTime, "startProcess: starting to update cpu stats");
updateCpuStats();
checkTime(startTime, "startProcess: done updating cpu stats");
try {
try {
final int userId = UserHandle.getUserId(app.uid);
AppGlobals.getPackageManager().checkPackageStartable(app.info.packageName, userId);
} catch (RemoteException e) {
throw e.rethrowAsRuntimeException();
}
int uid = app.uid; //得到创建应用程序进程的用户ID
int[] gids = null;
int mountExternal = Zygote.MOUNT_EXTERNAL_NONE;
if (!app.isolated) {
int[] permGids = null;
try {
checkTime(startTime, "startProcess: getting gids from package manager");
final IPackageManager pm = AppGlobals.getPackageManager();
permGids = pm.getPackageGids(app.info.packageName,
MATCH_DEBUG_TRIAGED_MISSING, app.userId);
StorageManagerInternal storageManagerInternal = LocalServices.getService(
StorageManagerInternal.class);
mountExternal = storageManagerInternal.getExternalStorageMountMode(uid,
app.info.packageName);
} catch (RemoteException e) {
throw e.rethrowAsRuntimeException();
}
/*
* Add shared application and profile GIDs so applications can share some
* resources like shared libraries and access user-wide resources
* 对用户组ID(gids)进行创建和赋值
*/
if (ArrayUtils.isEmpty(permGids)) {
gids = new int[3];
} else {
gids = new int[permGids.length + 3];
System.arraycopy(permGids, 0, gids, 3, permGids.length);
}
gids[0] = UserHandle.getSharedAppGid(UserHandle.getAppId(uid));
gids[1] = UserHandle.getCacheAppGid(UserHandle.getAppId(uid));
gids[2] = UserHandle.getUserGid(UserHandle.getUserId(uid));
// Replace any invalid GIDs
if (gids[0] == UserHandle.ERR_GID) gids[0] = gids[2];
if (gids[1] == UserHandle.ERR_GID) gids[1] = gids[2];
}
//...
// Start the process. It will either succeed and return a result containing
// the PID of the new process, or else throw a RuntimeException.
// 应用程序进程主线程的类名
final String entryPoint = "android.app.ActivityThread";
return startProcessLocked(hostingType, hostingNameStr, entryPoint, app, uid, gids,
runtimeFlags, mountExternal, seInfo, requiredAbi, instructionSet, invokeWith,
startTime);
} catch (RuntimeException e) {
Slog.e(TAG, "Failure starting process " + app.processName, e);
// Something went very wrong while trying to start this process; one
// common case is when the package is frozen due to an active
// upgrade. To recover, clean up any active bookkeeping related to
// starting this process. (We already invoked this method once when
// the package was initially frozen through KILL_APPLICATION_MSG, so
// it doesn't hurt to use it again.)
forceStopPackageLocked(app.info.packageName, UserHandle.getAppId(app.uid), false,
false, true, false, false, UserHandle.getUserId(app.userId), "start failure");
return false;
}
}
@GuardedBy("this")
private boolean startProcessLocked(String hostingType, String hostingNameStr, String entryPoint,
ProcessRecord app, int uid, int[] gids, int runtimeFlags, int mountExternal,
String seInfo, String requiredAbi, String instructionSet, String invokeWith,
long startTime) {
app.pendingStart = true;
app.killedByAm = false;
app.removed = false;
app.killed = false;
final long startSeq = app.startSeq = ++mProcStartSeqCounter;
app.setStartParams(uid, hostingType, hostingNameStr, seInfo, startTime);
if (mConstants.FLAG_PROCESS_START_ASYNC) {
if (DEBUG_PROCESSES) Slog.i(TAG_PROCESSES,
"Posting procStart msg for " + app.toShortString());
mProcStartHandler.post(() -> {
try {
synchronized (ActivityManagerService.this) {
final String reason = isProcStartValidLocked(app, startSeq);
if (reason != null) {
Slog.w(TAG_PROCESSES, app + " not valid anymore,"
+ " don't start process, " + reason);
app.pendingStart = false;
return;
}
app.usingWrapper = invokeWith != null
|| SystemProperties.get("wrap." + app.processName) != null;
mPendingStarts.put(startSeq, app);
}
final ProcessStartResult startResult = startProcess(app.hostingType, entryPoint,
app, app.startUid, gids, runtimeFlags, mountExternal, app.seInfo,
requiredAbi, instructionSet, invokeWith, app.startTime);
synchronized (ActivityManagerService.this) {
handleProcessStartedLocked(app, startResult, startSeq);
}
} catch (RuntimeException e) {
synchronized (ActivityManagerService.this) {
Slog.e(TAG, "Failure starting process " + app.processName, e);
mPendingStarts.remove(startSeq);
app.pendingStart = false;
forceStopPackageLocked(app.info.packageName, UserHandle.getAppId(app.uid),
false, false, true, false, false,
UserHandle.getUserId(app.userId), "start failure");
}
}
});
return true;
} else {
try {
final ProcessStartResult startResult = startProcess(hostingType, entryPoint, app,
uid, gids, runtimeFlags, mountExternal, seInfo, requiredAbi, instructionSet,
invokeWith, startTime);
handleProcessStartedLocked(app, startResult.pid, startResult.usingWrapper,
startSeq, false);
} catch (RuntimeException e) {
Slog.e(TAG, "Failure starting process " + app.processName, e);
app.pendingStart = false;
forceStopPackageLocked(app.info.packageName, UserHandle.getAppId(app.uid),
false, false, true, false, false,
UserHandle.getUserId(app.userId), "start failure");
}
return app.pid > 0;
}
}
private ProcessStartResult startProcess(String hostingType, String entryPoint,
ProcessRecord app, int uid, int[] gids, int runtimeFlags, int mountExternal,
String seInfo, String requiredAbi, String instructionSet, String invokeWith,
long startTime) {
try {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "Start proc: " +
app.processName);
checkTime(startTime, "startProcess: asking zygote to start proc");
final ProcessStartResult startResult;
if (hostingType.equals("webview_service")) {
startResult = startWebView(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, null,
new String[] {PROC_START_SEQ_IDENT + app.startSeq});
} else {
//调用startProcess方法，将此前得到的应用程序进程用户ID和用户组ID传进去，entryPoint是android.app.ActivityThread
startResult = Process.start(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, invokeWith,
new String[] {PROC_START_SEQ_IDENT + app.startSeq});
}
checkTime(startTime, "startProcess: returned from zygote!");
return startResult;
} finally {
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
}
}
查看 start 函数
public static final ProcessStartResult start(final String processClass,
final String niceName,
int uid, int gid, int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
String seInfo,
String abi,
String instructionSet,
String appDataDir,
String invokeWith,
String[] zygoteArgs) {
return zygoteProcess.start(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, zygoteArgs);
}
只调用了zygoteProcess 的 start 方法
public final Process.ProcessStartResult start(final String processClass,
final String niceName,
int uid, int gid, int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
String seInfo,
String abi,
String instructionSet,
String appDataDir,
String invokeWith,
String[] zygoteArgs) {
try {
return startViaZygote(processClass, niceName, uid, gid, gids,
runtimeFlags, mountExternal, targetSdkVersion, seInfo,
abi, instructionSet, appDataDir, invokeWith, false /* startChildZygote */,
zygoteArgs);
} catch (ZygoteStartFailedEx ex) {
Log.e(LOG_TAG,
"Starting VM process through Zygote failed");
throw new RuntimeException(
"Starting VM process through Zygote failed", ex);
}
}
private Process.ProcessStartResult startViaZygote(final String processClass,
final String niceName,
final int uid, final int gid,
final int[] gids,
int runtimeFlags, int mountExternal,
int targetSdkVersion,
String seInfo,
String abi,
String instructionSet,
String appDataDir,
String invokeWith,
boolean startChildZygote,
String[] extraArgs)
throws ZygoteStartFailedEx {
//创建字符串列表argsForZygote，并将应用进程的启动参数保存在argsForZygote中
ArrayList<String> argsForZygote = new ArrayList<String>();
// --runtime-args, --setuid=, --setgid=,
// and --setgroups= must go first
argsForZygote.add("--runtime-args");
argsForZygote.add("--setuid=" + uid);
argsForZygote.add("--setgid=" + gid);
argsForZygote.add("--runtime-flags=" + runtimeFlags);
if (mountExternal == Zygote.MOUNT_EXTERNAL_DEFAULT) {
argsForZygote.add("--mount-external-default");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_READ) {
argsForZygote.add("--mount-external-read");
} else if (mountExternal == Zygote.MOUNT_EXTERNAL_WRITE) {
argsForZygote.add("--mount-external-write");
}
argsForZygote.add("--target-sdk-version=" + targetSdkVersion);
// --setgroups is a comma-separated list
if (gids != null && gids.length > 0) {
StringBuilder sb = new StringBuilder();
sb.append("--setgroups=");
int sz = gids.length;
for (int i = 0; i < sz; i++) {
if (i != 0) {
sb.append(',');
}
sb.append(gids[i]);
}
argsForZygote.add(sb.toString());
}
if (niceName != null) {
argsForZygote.add("--nice-name=" + niceName);
}
if (seInfo != null) {
argsForZygote.add("--seinfo=" + seInfo);
}
if (instructionSet != null) {
argsForZygote.add("--instruction-set=" + instructionSet);
}
if (appDataDir != null) {
argsForZygote.add("--app-data-dir=" + appDataDir);
}
if (invokeWith != null) {
argsForZygote.add("--invoke-with");
argsForZygote.add(invokeWith);
}
if (startChildZygote) {
argsForZygote.add("--start-child-zygote");
}
argsForZygote.add(processClass);
if (extraArgs != null) {
for (String arg : extraArgs) {
argsForZygote.add(arg);
}
}
//最后调用了zygoteSendArgsAndGetResult，第一个参数调用了openZygoteSocketIfNeeded
synchronized(mLock) {
return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi), argsForZygote);
}
}
//静态内部类
private static Process.ProcessStartResult zygoteSendArgsAndGetResult(
ZygoteState zygoteState, ArrayList<String> args)
throws ZygoteStartFailedEx {
try {
// Throw early if any of the arguments are malformed. This means we can
// avoid writing a partial response to the zygote.
int sz = args.size();
for (int i = 0; i < sz; i++) {
if (args.get(i).indexOf('\n') >= 0) {
throw new ZygoteStartFailedEx("embedded newlines not allowed");
}
}
/**
* See com.android.internal.os.SystemZygoteInit.readArgumentList()
* Presently the wire format to the zygote process is:
* a) a count of arguments (argc, in essence)
* b) a number of newline-separated argument strings equal to count
*
* After the zygote process reads these it will write the pid of
* the child or -1 on failure, followed by boolean to
* indicate whether a wrapper process was used.
* 写argsForZygote的参数到ZygoteState
*/
final BufferedWriter writer = zygoteState.writer;
final DataInputStream inputStream = zygoteState.inputStream;
writer.write(Integer.toString(args.size()));
writer.newLine();
//这里应该是往socket里写入参数
for (int i = 0; i < sz; i++) {
String arg = args.get(i);
writer.write(arg);
writer.newLine();
}
writer.flush();
// Should there be a timeout on this?
Process.ProcessStartResult result = new Process.ProcessStartResult();
// Always read the entire result from the input stream to avoid leaving
// bytes in the stream for future process starts to accidentally stumble
// upon.
result.pid = inputStream.readInt();
result.usingWrapper = inputStream.readBoolean();
if (result.pid < 0) {
throw new ZygoteStartFailedEx("fork() failed");
}
return result;
} catch (IOException ex) {
zygoteState.close();
throw new ZygoteStartFailedEx(ex);
}
}
Zygote 是由openZygoteSocketIfNeeded 返回的
private ZygoteState openZygoteSocketIfNeeded(String abi) throws ZygoteStartFailedEx {
Preconditions.checkState(Thread.holdsLock(mLock), "ZygoteProcess lock not held");
if (primaryZygoteState == null || primaryZygoteState.isClosed()) {
try {
primaryZygoteState = ZygoteState.connect(mSocket); //与ZYGOTE_SOCKET建立连接"zygote"
} catch (IOException ioe) {
throw new ZygoteStartFailedEx("Error connecting to primary zygote", ioe);
}
maybeSetApiBlacklistExemptions(primaryZygoteState, false);
maybeSetHiddenApiAccessLogSampleRate(primaryZygoteState);
}
if (primaryZygoteState.matches(abi)) { //返回primaryZygoteState
return primaryZygoteState;
}
// The primary zygote didn't match. Try the secondary. 如果abi不匹配，连接名为"zygote_secondary"的socket
if (secondaryZygoteState == null || secondaryZygoteState.isClosed()) {
try {
secondaryZygoteState = ZygoteState.connect(mSecondarySocket);
} catch (IOException ioe) {
throw new ZygoteStartFailedEx("Error connecting to secondary zygote", ioe);
}
maybeSetApiBlacklistExemptions(secondaryZygoteState, false);
maybeSetHiddenApiAccessLogSampleRate(secondaryZygoteState);
}
if (secondaryZygoteState.matches(abi)) {
return secondaryZygoteState;
}
throw new ZygoteStartFailedEx("Unsupported zygote ABI: " + abi);
}
如果连接 Zygote 的主模式返回的 ZygoteState 与启动应用程序进程所需的 abi 不匹配，则使用 Zygote 的辅模式。如果辅模式也不匹配，就抛出异常。

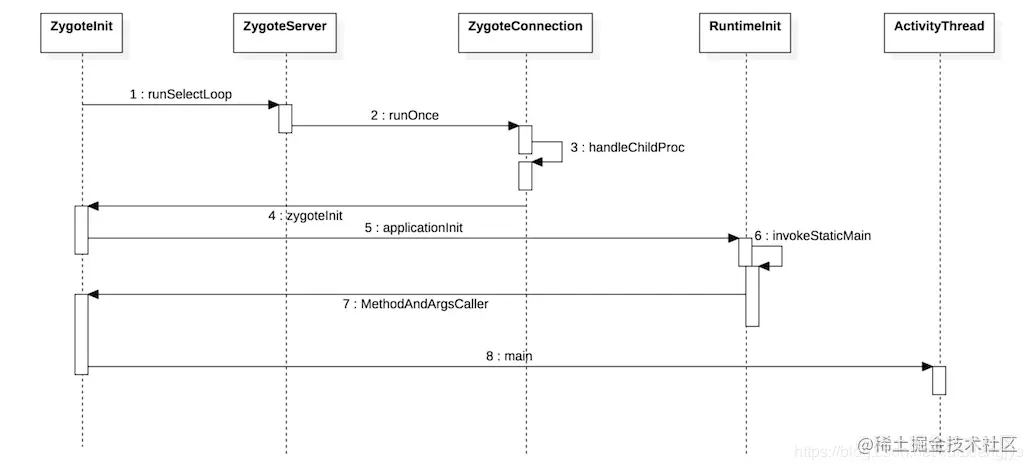

3 Zygote 接收请求并创建进程
Socket 连接成功，并匹配 ABI 后返回 ZygoteState 对象，然后把参数写入 ZygoteState 里，Zygote 收到了一个创建新进程的请求。
public static void main(String argv[]) {
ZygoteServer zygoteServer = new ZygoteServer();
//...
final Runnable caller;
try {
//...
//创建一个Server端的Socket，socketName是"zygote"
zygoteServer.registerServerSocketFromEnv(socketName);
// In some configurations, we avoid preloading resources and classes eagerly.
// In such cases, we will preload things prior to our first fork.
if (!enableLazyPreload) {
bootTimingsTraceLog.traceBegin("ZygotePreload");
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_START,
SystemClock.uptimeMillis());
preload(bootTimingsTraceLog); //预加载类和资源
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_END,
SystemClock.uptimeMillis());
bootTimingsTraceLog.traceEnd(); // ZygotePreload
} else {
Zygote.resetNicePriority();
}
//...
if (startSystemServer) {
//从SystemServer创建了一个子进程
Runnable r = forkSystemServer(abiList, socketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
Log.i(TAG, "Accepting command socket connections");
if ("1".equals(SystemProperties.get("vendor.all.setup_main.ready"))) {
SystemProperties.set("vendor.all.zygote_auto.ready", "1");
Log.d(TAG, "Android Automotive second zygote ready now.");
}
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
// 等待AMS请求创建新的应用程序进程
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
Log.e(TAG, "System zygote died with exception", ex);
throw ex;
} finally {
zygoteServer.closeServerSocket();
}
// We're in the child process and have exited the select loop. Proceed to execute the
// command.
if (caller != null) {
caller.run();
}
}
ZygoteServer 的 runSelectLoop 方法：
Runnable runSelectLoop(String abiList) {
ArrayList<FileDescriptor> fds = new ArrayList<FileDescriptor>();
ArrayList<ZygoteConnection> peers = new ArrayList<ZygoteConnection>();
while (true) {
//...
for (int i = pollFds.length - 1; i >= 0; --i) {
if ((pollFds[i].revents & POLLIN) == 0) {
continue;
}
if (i == 0) {
ZygoteConnection newPeer = acceptCommandPeer(abiList);
peers.add(newPeer);
fds.add(newPeer.getFileDesciptor());
} else {
try {
//有数据时处理
ZygoteConnection connection = peers.get(i);
final Runnable command = connection.processOneCommand(this);
//...
} catch (Exception e) {
//...
} finally {
//...
}
}
}
}
}
这个处理函数
Runnable processOneCommand(ZygoteServer zygoteServer) {
String args[];
Arguments parsedArgs = null;
FileDescriptor[] descriptors;
try {
//调用readArgumentList方法来获取应用程序进程的启动参数
args = readArgumentList();
descriptors = mSocket.getAncillaryFileDescriptors();
} catch (IOException ex) {
throw new IllegalStateException("IOException on command socket", ex);
}
//...
int pid = -1;
FileDescriptor childPipeFd = null;
FileDescriptor serverPipeFd = null;
//将readArgumentList方法返回的字符串数组args封装到Argments类型的parseArgs
parsedArgs = new Arguments(args);
//...
//创建应用程序进程
pid = Zygote.forkAndSpecialize(parsedArgs.uid, parsedArgs.gid, parsedArgs.gids,
parsedArgs.runtimeFlags, rlimits, parsedArgs.mountExternal, parsedArgs.seInfo,
parsedArgs.niceName, fdsToClose, fdsToIgnore, parsedArgs.startChildZygote,
parsedArgs.instructionSet, parsedArgs.appDataDir);
try {
if (pid == 0) { //运行在子进程
// in child
zygoteServer.setForkChild();
zygoteServer.closeServerSocket();
IoUtils.closeQuietly(serverPipeFd);
serverPipeFd = null;
//处理应用程序
return handleChildProc(parsedArgs, descriptors, childPipeFd,
parsedArgs.startChildZygote);
} else {
// In the parent. A pid < 0 indicates a failure and will be handled in
// handleParentProc.
IoUtils.closeQuietly(childPipeFd);
childPipeFd = null;
handleParentProc(pid, descriptors, serverPipeFd);
return null;
}
} finally {
IoUtils.closeQuietly(childPipeFd);
IoUtils.closeQuietly(serverPipeFd);
}
}
private Runnable handleChildProc(Arguments parsedArgs, FileDescriptor[] descriptors,
FileDescriptor pipeFd, boolean isZygote) {
/**
* By the time we get here, the native code has closed the two actual Zygote
* socket connections, and substituted /dev/null in their place. The LocalSocket
* objects still need to be closed properly.
*/
closeSocket();
if (descriptors != null) {
try {
Os.dup2(descriptors[0], STDIN_FILENO);
Os.dup2(descriptors[1], STDOUT_FILENO);
Os.dup2(descriptors[2], STDERR_FILENO);
for (FileDescriptor fd: descriptors) {
IoUtils.closeQuietly(fd);
}
} catch (ErrnoException ex) {
Log.e(TAG, "Error reopening stdio", ex);
}
}
if (parsedArgs.niceName != null) {
Process.setArgV0(parsedArgs.niceName);
}
// End of the postFork event.
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
if (parsedArgs.invokeWith != null) {
WrapperInit.execApplication(parsedArgs.invokeWith,
parsedArgs.niceName, parsedArgs.targetSdkVersion,
VMRuntime.getCurrentInstructionSet(),
pipeFd, parsedArgs.remainingArgs);
// Should not get here.
throw new IllegalStateException("WrapperInit.execApplication unexpectedly returned");
} else {
if (!isZygote) {
//调用ZygoiteInit的zygoteInit方法
return ZygoteInit.zygoteInit(parsedArgs.targetSdkVersion, parsedArgs.remainingArgs,
null /* classLoader */);
} else {
return ZygoteInit.childZygoteInit(parsedArgs.targetSdkVersion,
parsedArgs.remainingArgs, null /* classLoader */);
}
}
}
调用 ZygoteInit 的 zygoteInit 方法：
public static final Runnable zygoteInit(int targetSdkVersion, String[] argv, ClassLoader classLoader) {
if (RuntimeInit.DEBUG) {
Slog.d(RuntimeInit.TAG, "RuntimeInit: Starting application from zygote");
}
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ZygoteInit");
RuntimeInit.redirectLogStreams();
RuntimeInit.commonInit();
ZygoteInit.nativeZygoteInit(); //在新创建的应用程序进程中创建Binder线程池
return RuntimeInit.applicationInit(targetSdkVersion, argv, classLoader);
}
最后调用了 RuntimeInit 的 applicationinit 方法
protected static Runnable applicationInit(int targetSdkVersion, String[] argv,
ClassLoader classLoader) {
// If the application calls System.exit(), terminate the process
// immediately without running any shutdown hooks. It is not possible to
// shutdown an Android application gracefully. Among other things, the
// Android runtime shutdown hooks close the Binder driver, which can cause
// leftover running threads to crash before the process actually exits.
nativeSetExitWithoutCleanup(true);
// We want to be fairly aggressive about heap utilization, to avoid
// holding on to a lot of memory that isn't needed.
VMRuntime.getRuntime().setTargetHeapUtilization(0.75f);
VMRuntime.getRuntime().setTargetSdkVersion(targetSdkVersion);
final Arguments args = new Arguments(argv);
// The end of of the RuntimeInit event (see #zygoteInit).
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
// Remaining arguments are passed to the start class's static main
return findStaticMain(args.startClass, args.startArgs, classLoader);
}
protected static Runnable findStaticMain(String className, String[] argv,
ClassLoader classLoader) {
Class<?> cl;
try {
//获得android.app.ActivityThread类
cl = Class.forName(className, true, classLoader);
} catch (ClassNotFoundException ex) {
throw new RuntimeException(
"Missing class when invoking static main " + className,
ex);
}
Method m;
try {
//获得ActivityThread的main方法
m = cl.getMethod("main", new Class[] { String[].class });
} catch (NoSuchMethodException ex) {
throw new RuntimeException(
"Missing static main on " + className, ex);
} catch (SecurityException ex) {
throw new RuntimeException(
"Problem getting static main on " + className, ex);
}
int modifiers = m.getModifiers();
if (! (Modifier.isStatic(modifiers) && Modifier.isPublic(modifiers))) {
throw new RuntimeException(
"Main method is not public and static on " + className);
}
/*
* This throw gets caught in ZygoteInit.main(), which responds
* by invoking the exception's run() method. This arrangement
* clears up all the stack frames that were required in setting
* up the process.
* 把main方法传入MethodAndArgCaller，这个和Zygote调用main方法类似
*/
return new MethodAndArgsCaller(m, argv);
}
static class MethodAndArgsCaller implements Runnable {
/** method to call */
private final Method mMethod;
/** argument array */
private final String[] mArgs;
public MethodAndArgsCaller(Method method, String[] args) {
mMethod = method;
mArgs = args;
}
public void run() {
try {
//ActivytThread的main方法杯动态调用
mMethod.invoke(null, new Object[] { mArgs });
} catch (IllegalAccessException ex) {
throw new RuntimeException(ex);
} catch (InvocationTargetException ex) {
Throwable cause = ex.getCause();
if (cause instanceof RuntimeException) {
throw (RuntimeException) cause;
} else if (cause instanceof Error) {
throw (Error) cause;
}
throw new RuntimeException(ex);
}
}
}
4 Binder 线程池启动过程
当 Zygote 接收到请求并创建应用程序进程时，会启动 Binder 线程池
ZygoteInit 类的 zygoteInit 方法中-> 调用 nativeZygoteInit -> 通过 JNI 调用 nativeZygoteInit ->
com_android_internal_os_ZygoteInit_nativeZygoteInit 函数 -> 使用 gCurRuntime 调用 onZygoteInit() ->
virtual void onZygoteInit()
{
sp<ProcessState> proc = ProcessState::self();
ALOGV("App process: starting thread pool.\n");
proc->startThreadPool();
}
最后一行调用startThreadPool启动Binder线程池
void ProcessState::startThreadPool()
{
AutoMutex _l(mLock);
if (!mThreadPoolStarted) { //Binder 线程池是否已经被启动过
mThreadPoolStarted = true; //确保每次Binder线程池只被启动一次
spawnPooledThread(true); //创建线程池中的第一个主线程
}
}
void ProcessState::spawnPooledThread(bool isMain)
{
if (mThreadPoolStarted) {
String8 name = makeBinderThreadName();
ALOGV("Spawning new pooled thread, name=%s\n", name.string());
sp<Thread> t = new PoolThread(isMain);
t->run(name.string()); //启动一个新的线程
}
}
class PoolThread : public Thread //继承自Thread类
{
public:
explicit PoolThread(bool isMain)
: mIsMain(isMain)
{
}
protected:
virtual bool threadLoop()
{
//将当前线程注册到Binder驱动程序中
IPCThreadState::self()->joinThreadPool(mIsMain);
return false;
}
const bool mIsMain;
};
只需要创建当前进程的 Binder 对象，并将它注册到 ServiceManager 中就可以实现 Binder 进程间通信，而不必关心进程间是如何通过 Binder 进行通信的。
5 消息循环创建过程
应用程序进程启动后会创建消息循环
public static void main(String[] args) {
//...
//创建主线程Looper
Looper.prepareMainLooper();
//...
//创建ActivytThread线程
ActivityThread thread = new ActivityThread();
thread.attach(false, startSeq);
//判断Handler类型的sMainThreadHandler是否为null
if (sMainThreadHandler == null) {
sMainThreadHandler = thread.getHandler(); //获取H类并复制给sMainTHreadHandler
}
if (false) {
Looper.myLooper().setMessageLogging(new
LogPrinter(Log.DEBUG, "ActivityThread"));
}
// End of event ActivityThreadMain.
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
//Looper开始工作，可以开始处理Looper消息
Looper.loop();
throw new RuntimeException("Main thread loop unexpectedly exited");
}
getHandler 返回 H()类，是 ActivityThread 的内部类，用于处理主线程的消息循环。
系统应用程序进程启动完成后，创建一个消息循环，在运行应用程序进程中的应用程序可以方便的使用消息处理机制。
