vue2、vue3项目中遇到的问题总结(一)
一、由eslint命名校验引发的问题
-
问题描述: 创建
Home.vue文件，并将其name设为Home，发现底下出现红色报错，鼠标悬浮时显示Component name “Home” should always be multi-word，这是eslint的命名校验，要求组件名写成驼峰结构或者pascal中划线连接形式 -
解决问题：在项目根目录找到
vue.config.js，加上lintOnSave: false
module.exports = defineConfig({
lintOnSave: false
})
二、el-checkbox的indeterminate属性
- 代码
<el-checkbox
size="small"
:indeterminate="isIndeterminate"
v-model="checkAll"
@change="handleCheckAllChange"
>全选</el-checkbox>
indeterminate属性总结
checkAll为true则为全选
indeterminate 属性为true 为半选状态 、为false则以v-model的checkAll为主，根据用户点击选择框触发的函数修改checkAll和indeterminate值，从而改变选择框的状态（全选、半选、全不选）
三、el-table-horizontal-scroll插件
1. 使用
- 安装
npm install el-table-horizontal-scroll - 注册
import horizontalScroll from 'el-table-horizontal-scroll';
Vue.use(horizontalScroll);
- 组件中使用
<el-table
:data="tableData"
:height="470"
ref="scrollTable"
v-horizontal-scroll="'always'"
class="custom-table"
></el-table>
2. 属性
v-horizontal-scroll有两个属性值：always或hoverhover：默认，当鼠标悬停在表格上时，滚动条显示always：滚动条始终显示
四、vue2项目中使用el-tabs，标签点击路由跳转配置
（1）下载vue-router：npm install vue-router，下载elementui：npm install element-ui
（2）router/index.js文件：
import VueRouter from "vue-router";
import Vue from 'vue'
import About from '@/pages/About.vue'
Vue.use(VueRouter)
const routes=[{
path: '/home',
name: 'home',
meta: {
title: '首页'
},
// 这里两种写法
component: ()=> import('@/pages/Home.vue')
},{
path: '/about',
name: 'about',
component: About
}]
const router = new VueRouter({
mode: 'history',
routes
})
export default router
（3）main.js文件：
import Vue from 'vue'
import App from './App.vue'
import router from '@/router/index'
import ElementUI from 'element-ui'
import 'element-ui/lib/theme-chalk/index.css';
Vue.config.productionTip = false
Vue.use(ElementUI)
new Vue({
router,
render: h => h(App),
}).$mount('#app')
（4）app.vue文件：
v-model绑定的是 el-tab-pane的name属性，是哪个tab的name就跳到哪个路由
<template>
<div class="root">
<el-container>
<el-header>
<el-tabs v-model="activeName" @tab-click="changePage">
<el-tab-pane label="首页" name="/home" >
<router-link to="/home"></router-link>
</el-tab-pane>
<el-tab-pane label="about" name="/about">
<router-link to="/about"></router-link>
</el-tab-pane>
</el-tabs>
</el-header>
<el-main>
<!-- 路由出口 -->
<router-view></router-view>
</el-main>
</el-container>
</div>
</template>
<script>
export default {
name:'App',
data(){
return {
activeName: '/home'
}
},
methods: {
// 当标签切换触发，当标签切换，让路由跳转到相应界面即可
changePage(tab) {
console.log(tab, this.activeName);
this.$router.push({path: this.activeName})
}
}
}
</script>
<style >
.el-header {
/* background-color: #B3C0D1; */
color: #333;
text-align: center;
line-height: 60px;
}
.el-main {
/* background-color: #E9EEF3; */
color: #333;
text-align: center;
line-height: 160px;
}
/* 以下样式确保el-container铺满整个屏幕 */
body, .root {
height: 100vh;
margin: 0;
padding: 0;
width: 100vw;
}
.el-container {
margin-bottom: 40px;
height: 100vh;
margin: 0;
padding: 0;
width: 100vw;
}
</style>
五、Vue项目中使用echarts图表
1.vue3项目使用
1. 下载及引入Echarts
（1）下载：npm install echarts、npm install echarts vue-echarts
（2）引入
main.js文件：代码行后面带//的都是引入的相关操作
import { createApp } from 'vue'
import App from './App.vue'
import router from '@/router/index'
import { createPinia } from 'pinia'
import Echarts from 'vue-echarts' //
import * as echarts from 'echarts' //
const app=createApp(App)
const pinia=createPinia()
app.component('e-charts', Echarts) //
app.config.globalProperties.$echarts=echarts // 全局挂载
app.use(router)
.use(pinia)
.mount('#app')
2. 在vue文件中使用
<template>
<div class="home">
<e-charts class="chart" :option="option" />
</div>
</template>
<script setup name="home">
import { ref, computed } from "vue";
//模拟数据value的字段对应Y轴，name字段对应X轴
const data = ref([
{ value: 11, name: "A" },
{ value: 31, name: "B" },
{ value: 75, name: "C" },
{ value: 25, name: "D" },
{ value: 16, name: "E" },
]);
const option = computed(() => {
return {
xAxis: {
type: "category",
data: data.value.map((v) => v.name),
},
yAxis: {
type: "value",
},
series: [
{
type: "line",
data: data.value.map((v) => v.value),
},
],
};
});
// 设置定时器定时更新数据 每一秒更新一次数据
setInterval(() => {
data.value = data.value.map((item) => ({
...item,
value: Math.random() * 100,
}));
}, 1000);
</script>
<style scoped>
.chart {
height: 400px;
}
</style>
2. vue2项目使用
(1)下载：npm install echarts
(2)引入：main.js文件中
import * as echarts from 'echarts'
Vue.prototype.$echarts=echarts
(3)vue文件中使用
<template>
<!-- 放图表的容器 -->
<div id="orderline" style="width: 400px; height: 400px"></div>
</template>
<script>
export default {
name: "echart",
data() {
return {};
},
mounted() {
this.getOrderLine();
},
methods: {
getOrderLine() {
let myChart = this.$echarts.init(document.getElementById("orderline"));
myChart.setOption(
{
xAxis: {
type: "category",
data: [
"1月",
"2月",
"3月",
"4月",
"5月",
"6月",
"7月",
"8月",
"9月",
"10月",
"11月",
"12月",
],
boundaryGap: false,
nameTextStyle: {
color: "#fff",
},
axisTick: {
show: false,
},
axisLine: {
show: true,
lineStyle: {
color: "#66FFFF",
type: "solid", //设置坐标轴为实线
},
},
axisLabel: {
interval: 0,
textStyle: {
color: "#ccc",
fontSize: "12",
},
},
},
yAxis: {
type: "value",
splitLine: {
lineStyle: {
type: "dashed", //设置刻度线条为虚线
width: 1,
color: "rgba(255,255,255,0.1)",
},
show: true,
},
axisLine: {
show: false,
},
axisTick: {
show: false,
},
axisLabel: {
interval: 0,
textStyle: {
color: "rgba(255, 255, 255, 1)",
fontSize: "12",
},
},
},
lineStyle: {
color: {
//设置线条渐变
colorStops: [
{
offset: 0,
color: "#0E5FFF",
},
{
offset: 0.5,
color: "#00F2EF",
},
{
offset: 1,
color: "#0E5FFF",
},
],
},
},
series: [
{
symbol: "none",
data: [
202, 250, 100, 300, 280, 600, 300, 250, 180, 500, 400, 260,
],
type: "line",
smooth: true,
},
],
},
true
);
},
},
};
</script>
以下为饼图的配置，点开官网的示例 直接将等号右边的复制（包括{}）放入setOption中
myChart.setOption(
{
title: {
text: "Referer of a Website",
subtext: "Fake Data",
left: "center",
},
tooltip: {
// trigger: "none",
trigger: "item",
},
legend: {
orient: "vertical",
left: "left",
},
series: [
{
name: "Access From", // tooltip显示
type: "pie",
radius: "50%",
data: [
{ value: 1048, name: "Search Engine" },
{ value: 735, name: "Direct" },
{ value: 580, name: "Email" },
{ value: 484, name: "Union Ads" },
{ value: 300, name: "Video Ads" },
],
emphasis: {
itemStyle: {
shadowBlur: 10,
shadowOffsetX: 0,
shadowColor: "rgba(0, 0, 0, 0.5)",
},
},
},
],
}
);
六、背景、字体渐变问题
1. css相关属性
linear-gradient线性渐变repeating-linear-gradient重复线性渐变radial-gradient径向渐变repeating-linear-gradient重复径向渐变
2.渐变效果实现
(1)背景渐变
div {
background: linear-gradient(to bottom, red, green);
/*
linear-gradient(to bottom right, red, green);
linear-gradient(to bottom, rgb(), rgb());
linear-gradient(to right, rgba(), rgba());
linear-gradient(to bottom right, red, green);
linear-gradient(30deg, red, green);
linear-gradient(to right, red 10%, green 50%); 红色10% 绿色50%
*/
}
（2）字体渐变
.text {
font-size: 24px;
font-weight: bolder;
background-image: linear-gradient(to bottom right, red, green);
-webkit-text-fill-color: transparent; /* 使用透明色填充文本 */
-webkit-background-clip: text; /* 用文本剪辑背景，用渐变色背景作为文本颜色填充 */
}
七、vue3使用 v-clipboard:copy
1. 安装
npm install --save @soerenmartius/vue3-clipboard
2.全局导入 在main.js文件
import { createApp } from 'vue'
import App from './App.vue'
import { VueClipboard } from '@soerenmartius/vue3-clipboard'
const app = createApp(App)
app.use(VueClipboard)
app.mount('#app')
3. 组件中使用
<template>
<input v-model="value" />
<button v-clipboard="value">复制</button>
</template>
<script lang="ts">
import { defineComponent, ref } from 'vue'
export default defineComponent({
setup() {
const value = ref('lorem')
return { value }
},
})
</script>
4.处理成功、失败事件
<template>
<input v-model="value" />
<button
v-clipboard:copy="value"
v-clipboard:success="onSuccess"
v-clipboard:error="onError"
>
复制
</button>
</template>
<script lang="ts">
import { defineComponent, ref } from 'vue'
export default defineComponent({
setup() {
const value = ref('lorem')
const onSuccess = () => {
console.log('成功')
}
const onError = () => {
console.log('错误')
}
return { value, onSuccess, onError }
},
})
</script>
5. 作用
将相关组件的内容通过点击复制到剪贴板
vue3-clipboard项目官网
作用相同另一插件-useClipboard
八、将el-dialog封装成组件并调用
1. 父组件 App.vue
<template>
<div class="root">
<button @click="isShowDialog=true">点击打开对话框</button>
<childDialog
v-show="isShowDialog"
:visible.sync="isShowDialog">
</childDialog>
</div>
</template>
<script>
import childDialog from './components/childDialog.vue';
export default{
name: 'App',
data() {
return {
isShowDialog: false
}
},
components: {
childDialog
},
}
</script>
2. 子组件 childDialog.vue
<template>
<el-dialog
title="标题"
:visible.sync="visible"
fullscreen
@close="closeDialog"
></el-dialog>
</template>
<script>
export default {
name: "childDialog",
props: {
visible: {
type: Boolean,
default: false,
},
},
data() {
return {};
},
methods: {
closeDialog() {
this.$emit('update:visible', false)
}
},
};
</script>
3. 注意事项
在对话框关闭的回调里面，使用this.$emit向父组件传值，父组件.sync触发父组件的update事件，改变了isShowDialog的值。
当使用 :prop.sync=“value” 时，等价于 :prop=“value” @update:prop=“value = $event”
父组件使用:prop.sync将属性传递给子组件，并监听 update:prop 事件。子组件使用 $emit(‘update:prop’, newValue) 来更新父组件的属性。
父组件：
<childDialog
:visible.sync="isShowDialog">
</childDialog>
子组件：
this.$emit('update:visible', false)
九、vue2使用el-table+el-pagination展示数据、封装el-pagination组件
1. 基本使用
（1）el-table组件
data为表格要展示的数据，tableData.slice((currentPage-1)*pageSize, currentPage*pageSize)为当前页要展示的数据。例如当currentPage = 1，pageSize = 4，则会展示数组下标从 0 - 3 共4条数据。
arr.slice(start, end)：截取数组元素，从(start, end] 包含下标start不包含end。
<el-table
:data="
tableData.slice((currentPage - 1) * pageSize, currentPage * pageSize)"
stripe
style="width: 60%; margin: auto; margin-top: 20px"
border
>
<el-table-column prop="date" label="日期" width="180">
</el-table-column>
<el-table-column prop="name" label="姓名" width="180">
</el-table-column>
<el-table-column prop="address" label="地址"> </el-table-column>
</el-table>
（2）el-pagination组件
<el-pagination
background
layout="sizes,prev, pager, next"
:total="tableData.length"
:current-page="currentPage"
:page-sizes="[4, 6, 8]"
:page-size="pageSize"
@current-change="handleCurrentChange"
@prev-click="handlePrevClick"
@next-click="handleNextClick"
@size-change="handleSizeChange"
>
</el-pagination>
total：数据总条目数
current-page：当前页数
page-sizes：int型数组，为一页可展示条目数 可选的数组
page-size：一页可展示条目数
current-change：当前页数改变触发，参数为当前页数
prev-click：前一页，参数为当前页数
next-click：下一页，参数为当前页
size-change：pageSize一页可展示数目改变时触发，参数为一页可展示条目数

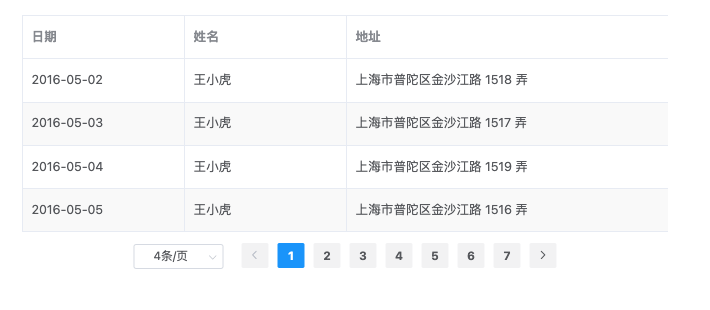

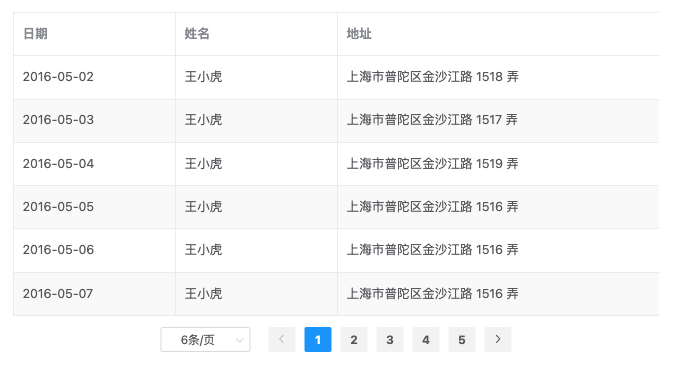

（3）完整代码及运行效果
代码：
<template>
<div class="myTable" style="position: relative">
<div class="data">
<el-table
:data="
tableData.slice((currentPage - 1) * pageSize, currentPage * pageSize)"
stripe
style="width: 60%; margin: auto; margin-top: 20px"
border
>
<el-table-column prop="date" label="日期" width="180">
</el-table-column>
<el-table-column prop="name" label="姓名" width="180">
</el-table-column>
<el-table-column prop="address" label="地址"> </el-table-column>
</el-table>
</div>
<div
class="page"
style="
margin-top: 10px;
position: absolute;
left: 50%;
transform: translateX(-50%);
"
>
<el-pagination
background
layout="sizes,prev, pager, next"
:total="tableData.length"
:current-page="currentPage"
:page-sizes="[4, 6, 8]"
:page-size="pageSize"
@current-change="handleCurrentChange"
@prev-click="handlePrevClick"
@next-click="handleNextClick"
@size-change="handleSizeChange"
>
</el-pagination>
</div>
<!-- page-size 每页显示个数,total 总条目数, page-count 总页数.current-page 当前页数, layout="prev, pager, next" -->
<!-- size-change pageSize改变触发（每页条数）,currentChange current-page改变，prev-click next- click -->
</div>
</template>
<script>
export default {
name: "myTable",
data() {
return {
currentPage: 1, // 当前页
pageSize: 4, // 每页显示的数据量
tableData: [
{
date: "2016-05-02",
name: "王小虎",
address: "上海市普陀区金沙江路 1518 弄",
},
{
date: "2016-05-03",
name: "王小虎",
address: "上海市普陀区金沙江路 1517 弄",
},
{
date: "2016-05-04",
name: "王小虎",
address: "上海市普陀区金沙江路 1519 弄",
},
{
date: "2016-05-05",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-06",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-07",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-08",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-09",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-10",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-11",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-12",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-13",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-14",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-15",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-16",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-17",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-18",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-19",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-20",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-21",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-22",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-23",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-24",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-25",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-26",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-27",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-28",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
{
date: "2016-05-29",
name: "王小虎",
address: "上海市普陀区金沙江路 1516 弄",
},
],
};
},
components: {},
methods: {
handleCurrentChange(val) {
this.currentPage = val;
},
handlePrevClick(val) {
this.currentPage = val;
},
handleNextClick(val) {
this.currentPage = val;
},
handleSizeChange(val) {
this.pageSize = val;
},
},
};
</script>
运行效果：
-
pageSize = 4
-
pageSize = 6
2. 封装el-pagination组件
（1）myPagination.vue文件
<template>
<div class="page">
<el-pagination
background
layout="sizes,prev, pager, next"
:total="totalData"
:current-page="currentPage"
:page-sizes="pageSizes"
:page-size="pageSize"
@current-change="handleCurrentChange"
@prev-click="handlePrevClick"
@next-click="handleNextClick"
@size-change="handleSizeChange"
>
</el-pagination>
</div>
</template>
<script>
export default {
name: "myPagination",
data() {
return {};
},
props: {
//总条数
totalData: {
required: true,
type: Number,
},
//当前页数
currentPage: {
type: Number,
default: 1,
},
//当前条数
pageSize: {
type: Number,
default: 10,
},
//选择每页显示的条数
pageSizes: {
type: Array,
default() {
return [10, 20, 50, 100];
},
},
},
methods: {
handleCurrentChange(val) {
this.$emit("update:currentPage", val);
},
handlePrevClick(val) {
console.log(val);
this.$emit("update:currentPage", val);
},
handleNextClick(val) {
this.$emit("update:currentPage", val);
},
handleSizeChange(val) {
this.$emit("update:pageSize", val);
},
},
};
</script>
（2） 父组件中调用
父组件的data中有要传递给子组件的数据
<myPagination
:totalData="tableData.length"
:currentPage.sync="currentPage"
:pageSizes="pageSizes"
:pageSize.sync="pageSize"
></myPagination>
