SAP FICO BU损益表

news 2025/11/16 12:23:25

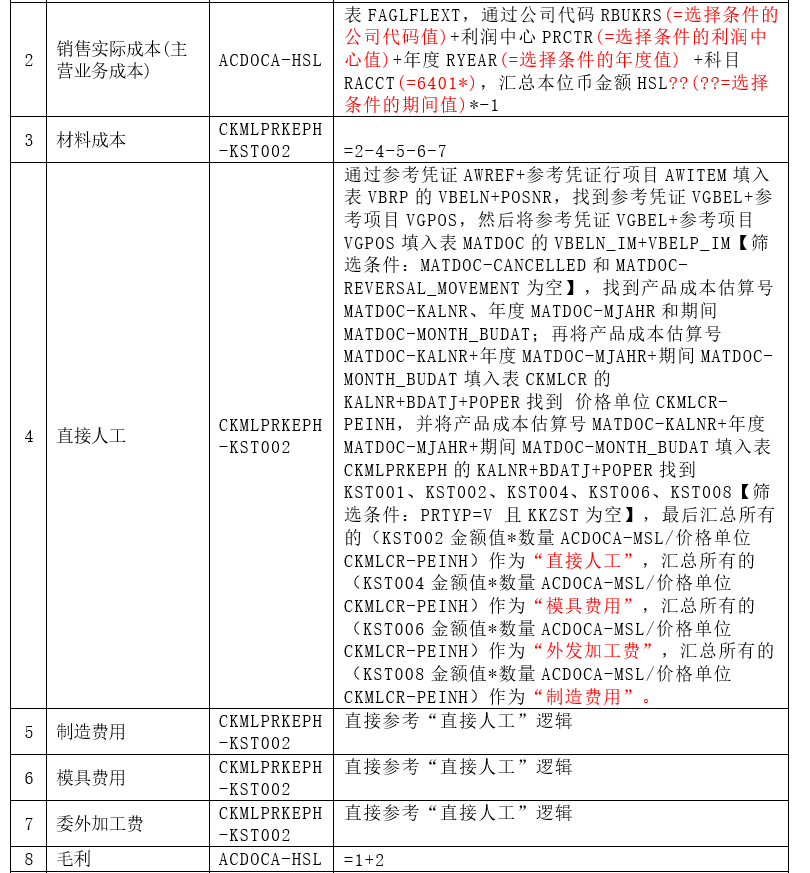

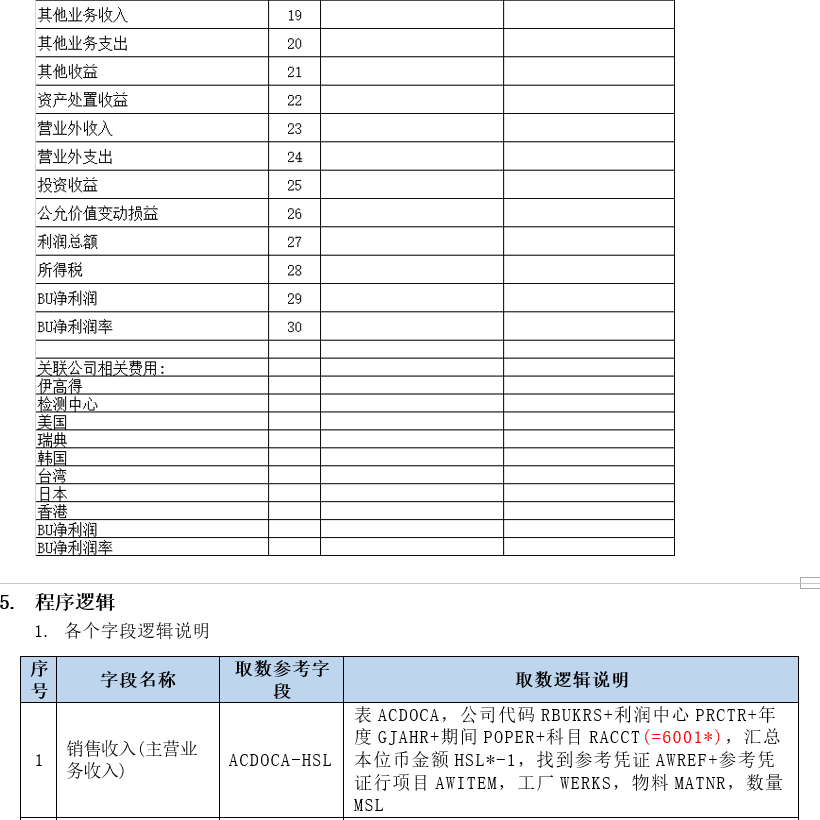

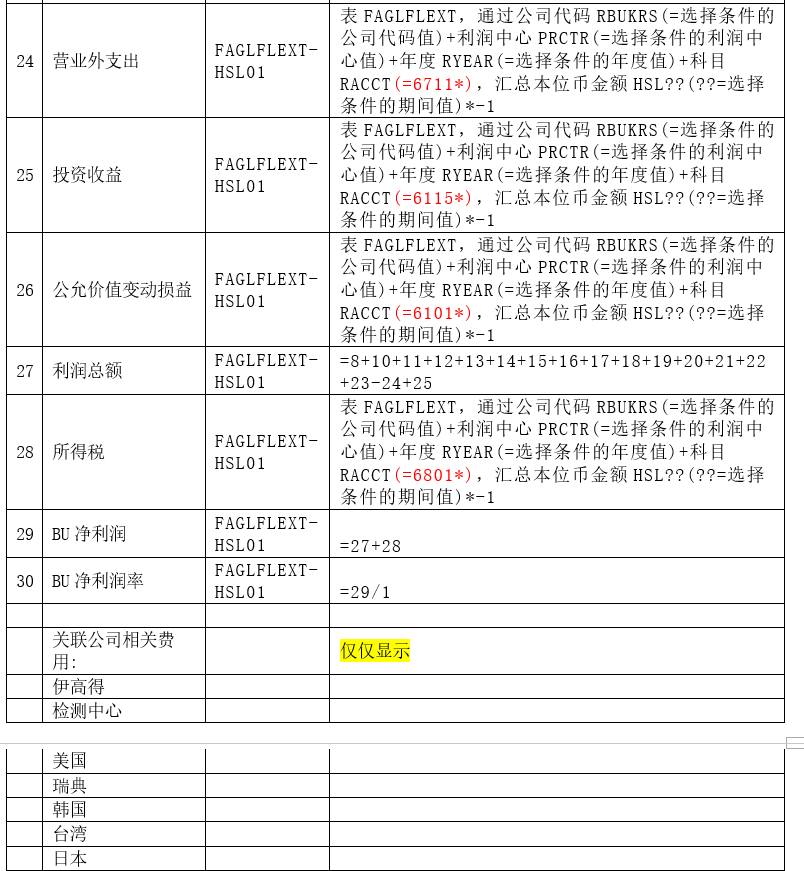

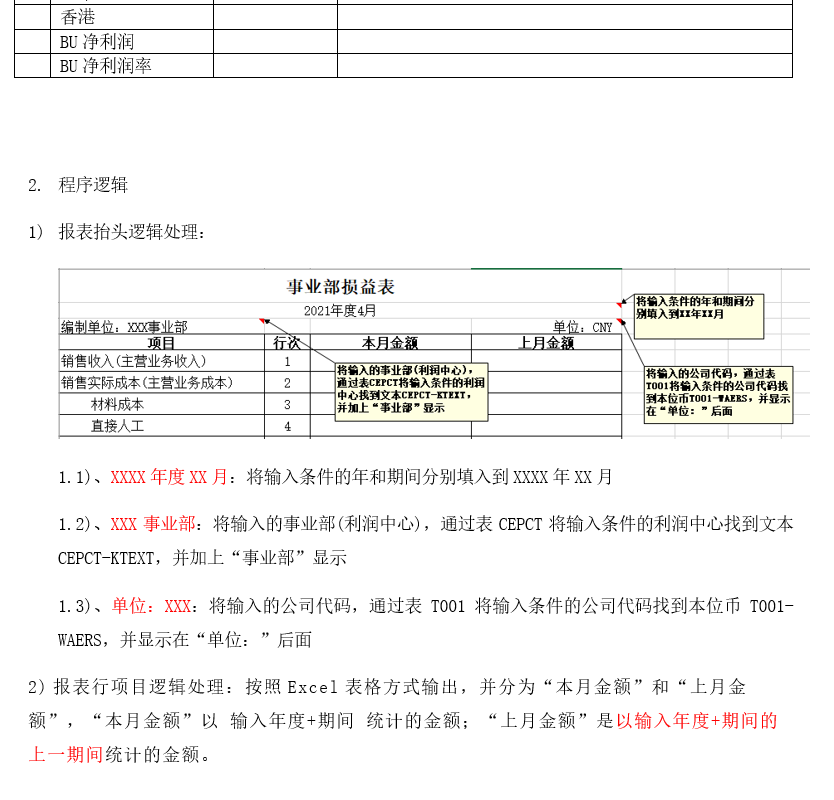

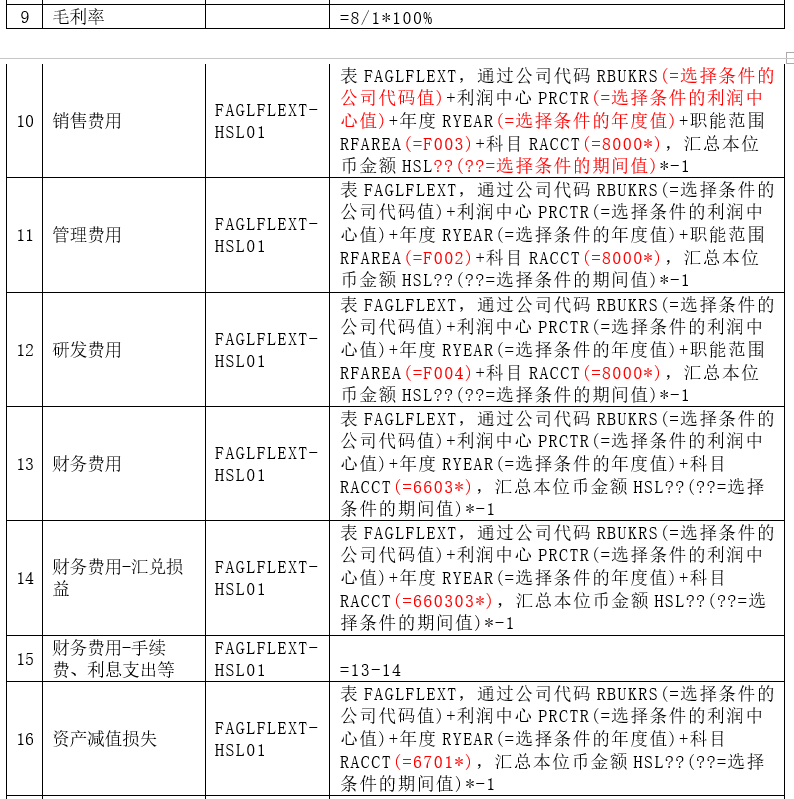

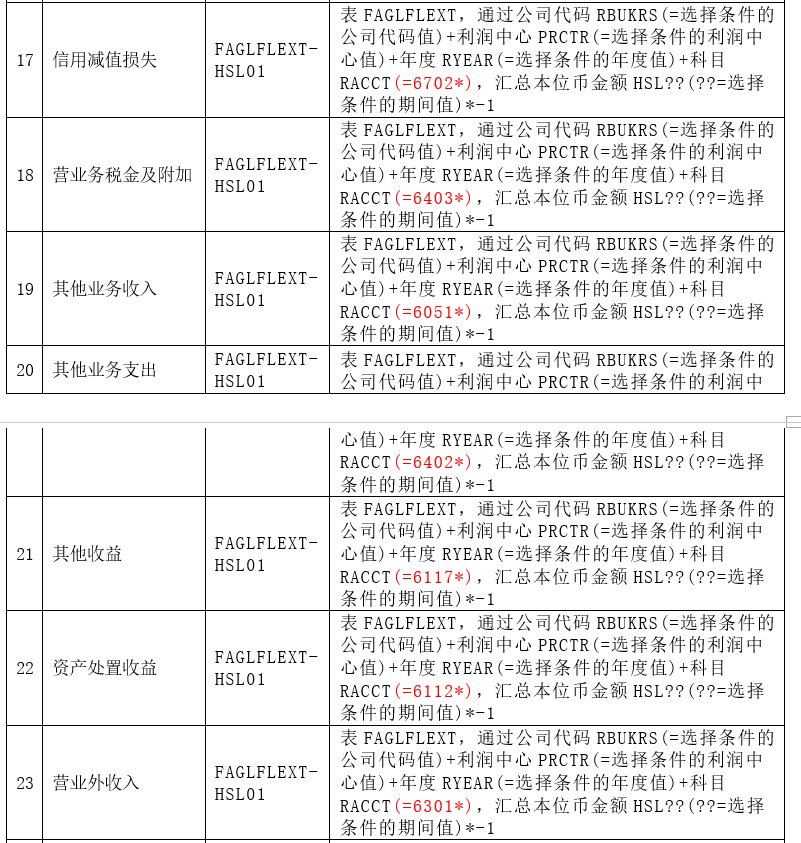

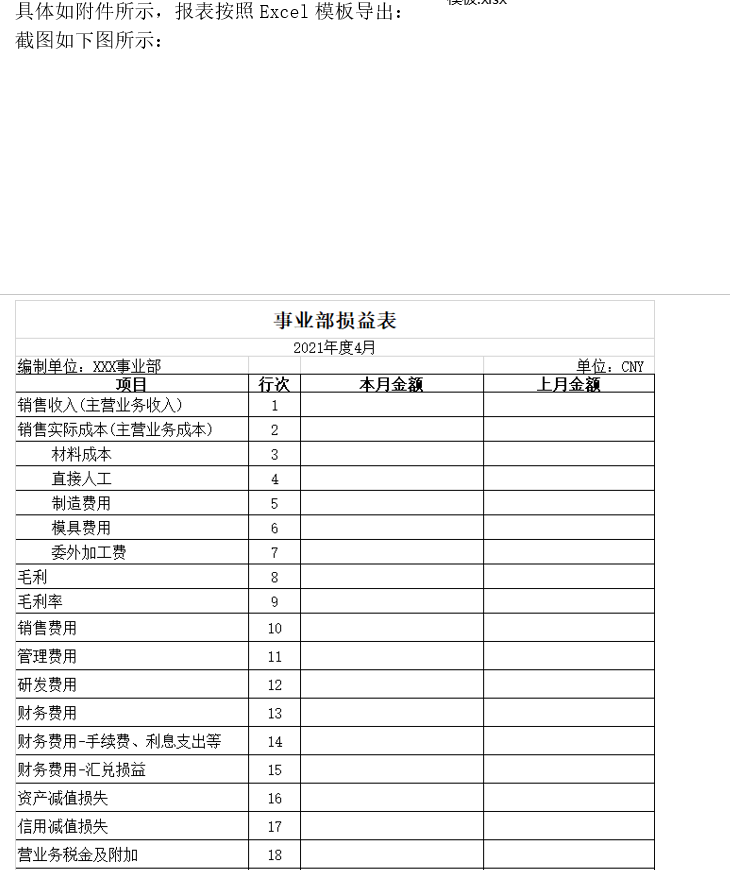

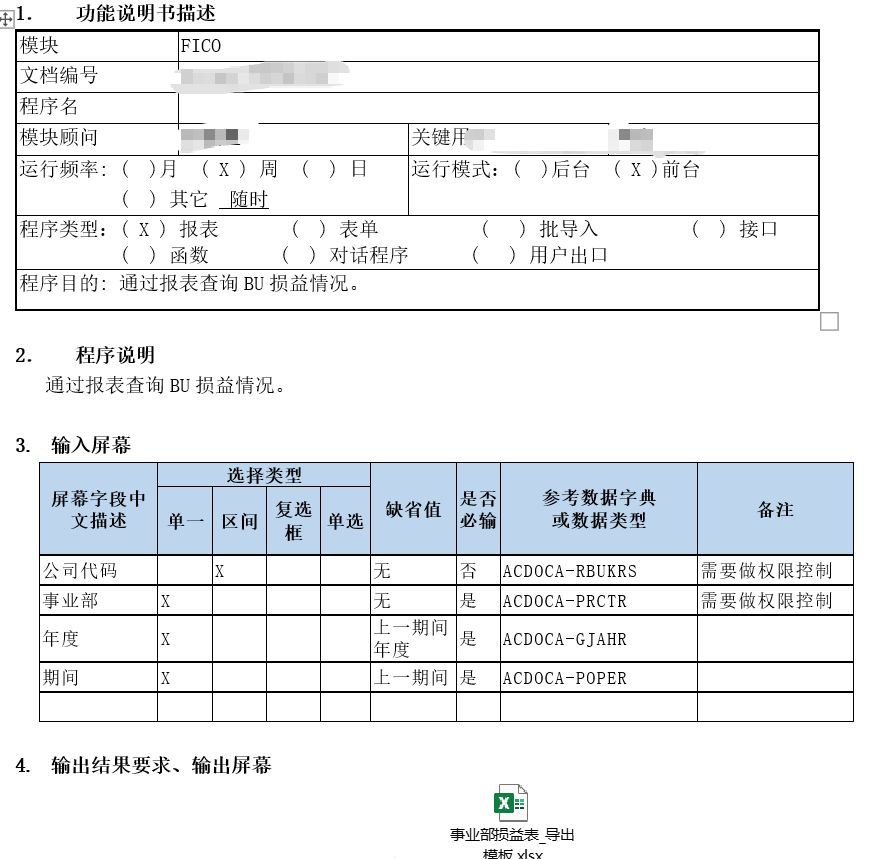

一、报表逻辑

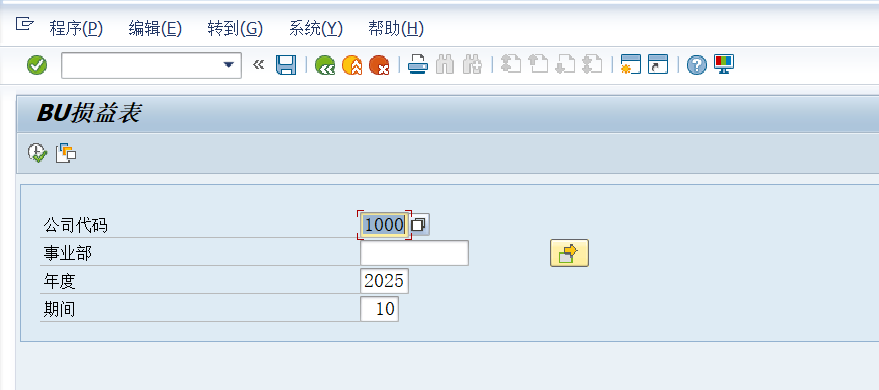

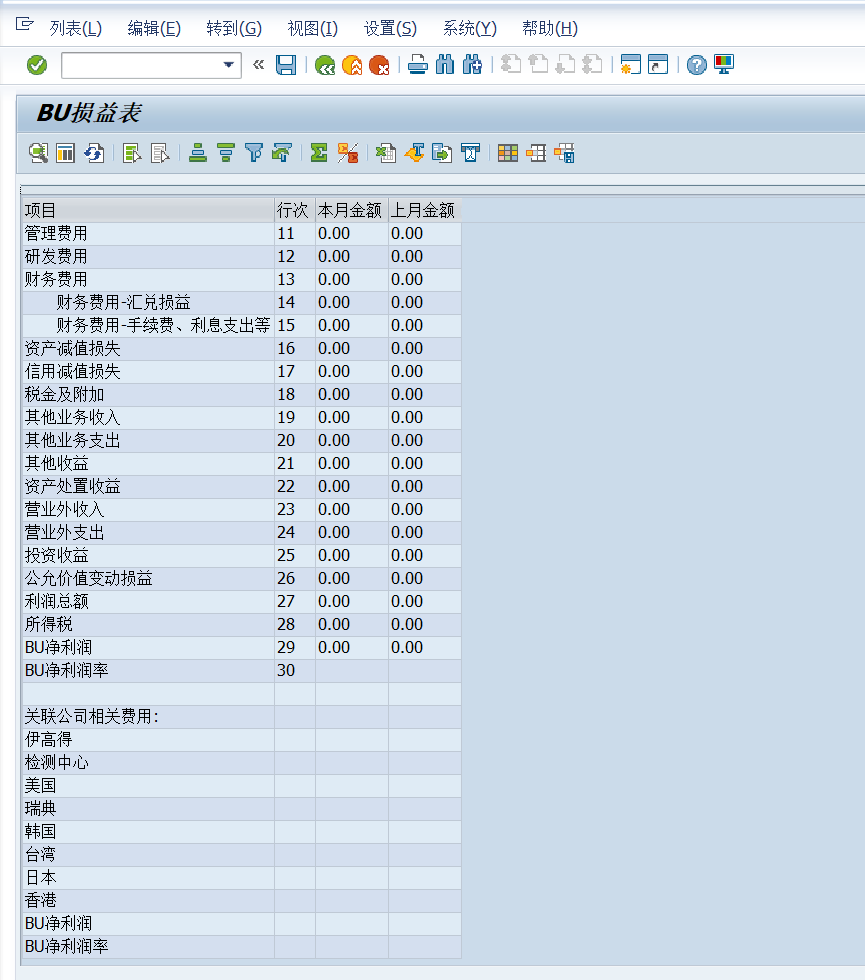

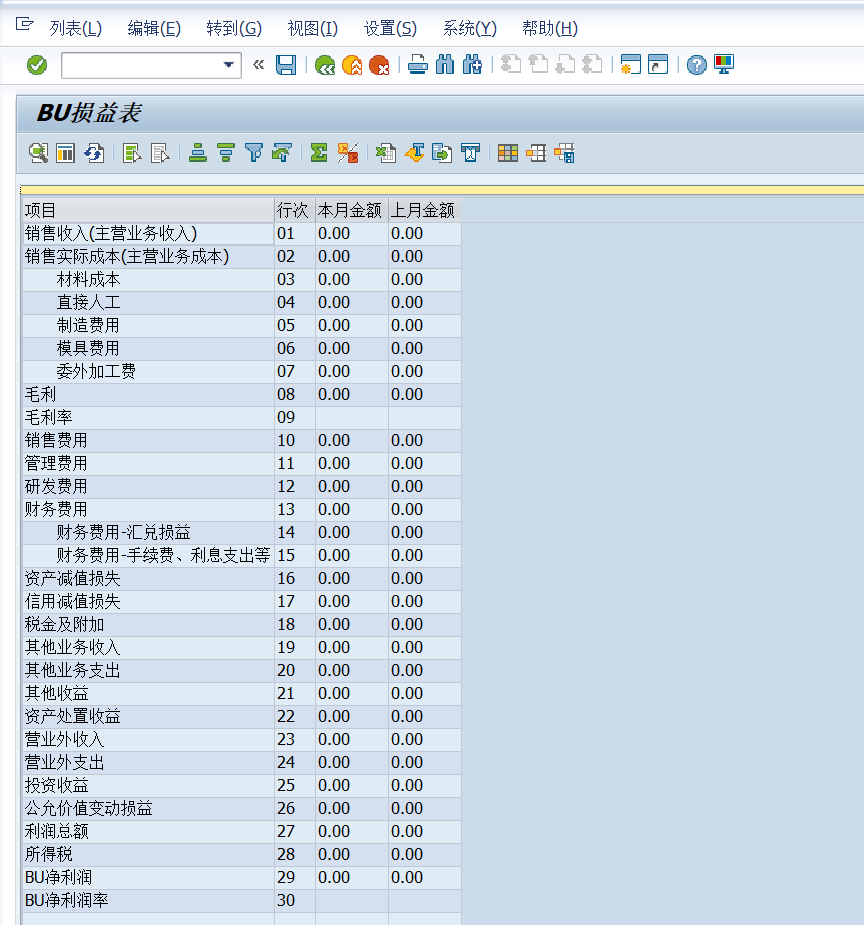

二、报表界面

三、报表逻辑

*&---------------------------------------------------------------------*
*& 程序名： ZRPFI_037
*& 创建者(公司)/日期：
*& 程序描述：
*& BU损益表
*&---------------------------------------------------------------------*
*& 版本/修改者(公司)/日期//修改描述
*&
*&---------------------------------------------------------------------*
REPORT zrpfi_037.

************************************************************************
* INCLUDES
************************************************************************
INCLUDE zrpfi_037_top.
INCLUDE zrpfi_037_scr.
INCLUDE zrpfi_037_f01.  "数据处理 & 显示
INCLUDE zrpfi_037_f02.  "下载

************************************************************************
* START-OF-SELECTION
************************************************************************
START-OF-SELECTION.
  "权限检查
  DATA: lv_message TYPE string.
  AUTHORITY-CHECK OBJECT 'F_BKPF_BUK'
               ID 'BUKRS' FIELD p_rbukrs.
  IF sy-subrc <> 0.
    lv_message = '没有该' && p_rbukrs && '公司代码权限！'.
    MESSAGE lv_message TYPE 'S' DISPLAY LIKE 'E'.
    STOP.
  ENDIF.

  LOOP AT s_prctr.
    AUTHORITY-CHECK OBJECT 'K_PCA_MD'
               ID 'KOKRS' FIELD '1000'
               ID 'PRCTR' FIELD s_prctr-low."p_prctr.
    IF sy-subrc <> 0.
      lv_message = '没有该' && s_prctr-low && '事业部权限！'.
      MESSAGE lv_message TYPE 'S' DISPLAY LIKE 'E'.
      STOP.
    ENDIF.
  ENDLOOP.

  REFRESH gt_outlist.

  PERFORM frm_build_alv.
  DO 2 TIMES.
    IF sy-index = '1'.
      gv_flag = 'B'.  "本月
      gv_gjahr = p_gjahr.
      gv_poper = p_poper.
    ELSEIF sy-index = '2'.
      gv_flag = 'S'. "上月！
      IF gv_poper = '001'.
        gv_poper = '012'.
        gv_gjahr = p_gjahr - 1.
      ELSE.
        gv_gjahr = p_gjahr.
        gv_poper = p_poper - 1.
      ENDIF.
    ENDIF.

    PERFORM frm_get_data.    "获取数据
  ENDDO.

  PERFORM frm_build_fieldcat.
  PERFORM frm_display_data.

*&---------------------------------------------------------------------*
*& 包含               ZRPFI_037_TOP
*&---------------------------------------------------------------------*
TABLES: acdoca.

TYPES: BEGIN OF ty_data,
         xssr     TYPE acdoca-hsl, "销售收入(主营业务收入)
         xssjcb   TYPE acdoca-hsl, "销售实际成本(主营业务成本)
         clcb     TYPE ckmlprkeph-kst002, "材料成本
         zjrg     TYPE ckmlprkeph-kst002, "直接人工
         zzfy     TYPE ckmlprkeph-kst002, "制造费用
         mjfy     TYPE ckmlprkeph-kst002, "模具费用
         wwjgf    TYPE ckmlprkeph-kst002, "委外加工费
         ml       TYPE acdoca-hsl,        "毛利
         mll      TYPE faglflext-hsl01, "毛利率
         mll_alv  TYPE string,          "毛利率ALV
         xsfy     TYPE faglflext-hsl01, "销售费用
         glfy     TYPE faglflext-hsl01, "管理费用
         yffy     TYPE faglflext-hsl01, "研发费用
         cwfy     TYPE faglflext-hsl01, "财务费用
         cwfyhdsy TYPE faglflext-hsl01, "财务费用-汇兑损益
         cwfysxf  TYPE faglflext-hsl01, "财务费用-手续费、利息支出等
         zcjzss   TYPE faglflext-hsl01, "资产减值损失
         xyjzss   TYPE faglflext-hsl01, "信用减值损失
         yywsj    TYPE faglflext-hsl01, "营业务税金及附加
         qtywsr   TYPE faglflext-hsl01, "其他业务收入
         qtywzc   TYPE faglflext-hsl01, "其他业务支出
         qtsy     TYPE faglflext-hsl01, "其他收益
         zcczsy   TYPE faglflext-hsl01, "资产处置收益
         yywsr    TYPE faglflext-hsl01, "营业外收入
         yywzc    TYPE faglflext-hsl01, "营业外支出
         tzsy     TYPE faglflext-hsl01, "投资收益
         gyjzbd   TYPE faglflext-hsl01, "公允价值变动损益
         lrze     TYPE faglflext-hsl01, "利润总额
         sds      TYPE faglflext-hsl01, "所得税
         jlr      TYPE faglflext-hsl01, "BU净利润
         jlrl     TYPE faglflext-hsl01, "BU净利润率
         jlrl_alv TYPE string,          "BU净利润率显示
       END OF ty_data,
       BEGIN OF ty_bb,
         bukrs TYPE t001-bukrs,
         waers TYPE t001-waers,
       END OF ty_bb.

DATA: gt_data TYPE TABLE OF ty_data,
      gs_data TYPE ty_data,
      gs_bb TYPE ty_bb,
      g_fact     TYPE isoc_factor.

TYPES:BEGIN OF ty_outlist,
        bukrs TYPE matdoc-bukrs,
        werks TYPE matdoc-werks,
        vbeln TYPE vbrp-vbeln,
        posnr TYPE vbrp-posnr,
        zjrg  TYPE ckmlprkeph-kst002, "直接人工
        zzfy  TYPE ckmlprkeph-kst002, "制造费用
        mjfy  TYPE ckmlprkeph-kst002, "模具费用
        wwjgf TYPE ckmlprkeph-kst002, "委外加工费
      END OF ty_outlist.
DATA:gt_outlist TYPE TABLE OF ty_outlist .

TYPES: BEGIN OF ty_alv,
         item  TYPE c LENGTH 20,
         line  TYPE c LENGTH 3,
         byje  TYPE c LENGTH 30,
         syje  TYPE c LENGTH 30,

       END OF ty_alv.
DATA: gt_alv TYPE TABLE OF ty_alv,
      gs_alv TYPE ty_alv.

DATA: gt_fcat TYPE lvc_t_fcat,
      gs_fcat TYPE lvc_s_fcat,
      gs_layo TYPE lvc_s_layo.

DATA: gv_flag  TYPE c,
      gv_poper TYPE acdoca-poper,
      gv_gjahr TYPE acdoca-gjahr.

DATA gv_path TYPE string.

TYPES: BEGIN OF ty_tab ,
         fkdat        TYPE vbrk-fkdat,
         zcost_lab(9) TYPE p DECIMALS 5,  "其中人工
         zcost_man(9) TYPE p DECIMALS 5,  "其中制费
         zcost_sub(9) TYPE p DECIMALS 5,  "其中转包
         zcost_mol(9) TYPE p DECIMALS 5,  "其中模具成本
       END OF ty_tab .
DATA:gt_tab TYPE TABLE OF ty_tab .

DEFINE set_field.

  gs_fcat-fieldname   = &1.     "字段名
  gs_fcat-scrtext_s   = &2.       "字段名文本
  gs_fcat-scrtext_m   = &2.
  gs_fcat-scrtext_l   = &2.
  gs_fcat-outputlen   = &3.     "输出长度
*  gs_fcat-no_zero     = 'X'.

  IF &4 = 'X' .
    gs_fcat-convexit = 'COMMA' .
  ENDIF.

  APPEND gs_fcat TO gt_fcat.
  CLEAR gs_fcat.

END-OF-DEFINITION.

DEFINE append_alv.
  CLEAR:gs_alv.
  gs_alv-item = &1.
  gs_alv-line = &2.
  APPEND gs_alv TO gt_alv.
END-OF-DEFINITION.

DEFINE set_alv.

  IF &1 = 'BY'.
    gs_alv-byje = &2.

    MODIFY gt_alv FROM gs_alv TRANSPORTING byje WHERE line = &3.
  ELSEIF &1 = 'SY'.
    gs_alv-syje = &2.

    MODIFY gt_alv FROM gs_alv TRANSPORTING syje WHERE line = &3.
  ENDIF.
  CLEAR:gs_alv.
END-OF-DEFINITION.

*&---------------------------------------------------------------------*
*& 包含               ZRPFI_037_SCR
*&---------------------------------------------------------------------*

SELECTION-SCREEN BEGIN OF BLOCK b_01 WITH FRAME TITLE TEXT-001.
*  SELECT-OPTIONS: s_rbukrs FOR acdoca-rbukrs.
  PARAMETERS: p_rbukrs TYPE acdoca-rbukrs OBLIGATORY.
  SELECT-OPTIONS: s_prctr FOR acdoca-prctr NO INTERVALS .
*  PARAMETERS: p_prctr  TYPE acdoca-prctr OBLIGATORY.
  PARAMETERS: p_gjahr  TYPE acdoca-gjahr OBLIGATORY.
  PARAMETERS: p_poper  TYPE acdoca-poper OBLIGATORY.
SELECTION-SCREEN END OF BLOCK b_01.

************************************************************************
* INITIALIZATION
************************************************************************
INITIALIZATION.

  p_gjahr = sy-datum+0(4).
  p_poper = '0' && sy-datum+4(2).

  IF p_poper = '001'.
    p_poper = '012'.
    p_gjahr = p_gjahr - 1.
  ELSE.
    p_poper = p_poper - 1.
    p_gjahr = p_gjahr.
  ENDIF.

AT SELECTION-SCREEN ON VALUE-REQUEST FOR s_prctr-low .
  PERFORM frm_search_prctr .
*&---------------------------------------------------------------------*
*& Form frm_search_prctr
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_search_prctr .
  DATA: lt_dynpfields TYPE STANDARD TABLE OF dynpread.
  lt_dynpfields = VALUE #( ( fieldname = 'P_RBUKRS' ) ) .

  IF p_rbukrs IS INITIAL.

    CALL FUNCTION 'DYNP_VALUES_READ'
      EXPORTING
        dyname     = sy-repid
        dynumb     = sy-dynnr
      TABLES
        dynpfields = lt_dynpfields.
    READ TABLE lt_dynpfields WITH KEY fieldname = 'P_RBUKRS' INTO DATA(lw_dynpfields) .
    IF NOT lw_dynpfields-fieldvalue IS INITIAL.
      DATA(lv_bukrs) = lw_dynpfields-fieldvalue.
    ELSE.
      MESSAGE '请输入公司代码!' TYPE 'S' DISPLAY LIKE 'W' .
      RETURN.
    ENDIF.
  ELSE.
    lv_bukrs = p_rbukrs .
  ENDIF.

  SELECT prctr, ktext INTO TABLE @DATA(lt_cepct)
  FROM cepct
  WHERE kokrs = @lv_bukrs AND spras = '1'.

  SORT lt_cepct BY prctr DESCENDING .

  CALL FUNCTION 'F4IF_INT_TABLE_VALUE_REQUEST'
    EXPORTING
      retfield        = 'PRCTR'
      dynpprog        = sy-repid
      dynpnr          = sy-dynnr
      dynprofield     = 'S_PRCTR-LOW'
      value_org       = 'S'
    TABLES
      value_tab       = lt_cepct
    EXCEPTIONS
      parameter_error = 1
      no_values_found = 2
      OTHERS          = 3.

ENDFORM.

*&---------------------------------------------------------------------*
*& 包含               ZRPFI_037_F01
*&---------------------------------------------------------------------*
*&---------------------------------------------------------------------*
*& Form frm_build_alv
*&---------------------------------------------------------------------*
*& text
*&---------------------------------------------------------------------*
*& -->  p1        text
*& <--  p2        text
*&---------------------------------------------------------------------*
FORM frm_build_alv .

  append_alv:
  '销售收入(主营业务收入)'        '01',
  '销售实际成本(主营业务成本)'    '02',
  '　　材料成本'                  '03',
  '　　直接人工'                  '04',
  '　　制造费用'                  '05',
  '　　模具费用'                  '06',
  '　　委外加工费'                '07',
  '毛利'                          '08',
  '毛利率'                        '09',
  '销售费用'                      '10',
  '管理费用'                          '11',
  '研发费用'                          '12',
  '财务费用'                          '13',
  '　　财务费用-汇兑损益'   '14',
  '　　财务费用-手续费、利息支出等'           '15',
  '资产减值损失'                  '16',
  '信用减值损失'                  '17',
  '税金及附加'                    '18',
  '其他业务收入'                  '19',
  '其他业务支出'                  '20',
  '其他收益'                      '21',
  '资产处置收益'                  '22',
  '营业外收入'                    '23',
  '营业外支出'                    '24',
  '投资收益'                      '25',
  '公允价值变动损益'              '26',
  '利润总额'                      '27',
  '所得税'                        '28',
  'BU净利润'                      '29',
  'BU净利润率'                    '30',
  '                        '      '  ',
  '关联公司相关费用:'             '  ',
  '伊高得'                        '  ',
  '检测中心'                      '  ',
  '美国'                          '  ',
  '瑞典'                          '  ',
  '韩国'                          '  ',
  '台湾'                          '  ',
  '日本'                          '  ',
  '香港'                          '  ',
  'BU净利润'                      '  ',
  'BU净利润率'                    '  '.
  CLEAR:gs_alv.

ENDFORM.
*&---------------
