FPGA教程系列-Vivado中FIFO的简单仿真分析

news 2025/11/13 16:11:03

FPGA教程系列-Vivado中FIFO的简单仿真分析

本着看十遍不如操作一遍的原则，对FIFO进行一个简单的仿真，加深一下印象。

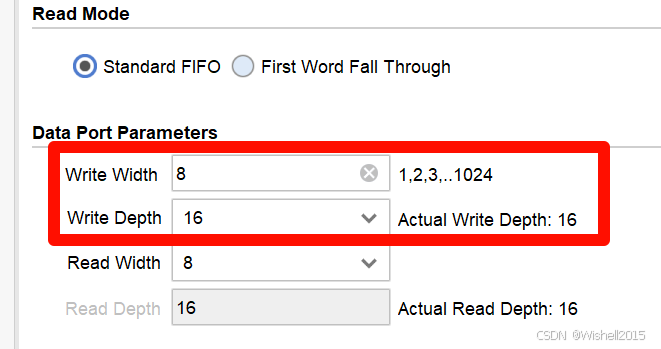

生成一个IP核：（8位，16深度，其他默认）

编写top文件：

`timescale 1ns / 1ps
module fifo_top(input i_clk,input i_rst,input[7:0] i_din,input        i_wr_en,input       i_rd_en,output      o_full,output      o_empty,output[7:0] o_dout
);
fifo_generator_0 fifo_generator_u (.clk      (i_clk),      // input wire clk.srst     (i_rst),    // input wire srst.din      (i_din),      // input wire [7 : 0] din.wr_en    (i_wr_en),  // input wire wr_en.rd_en    (i_rd_en),  // input wire rd_en.dout     (o_dout),    // output wire [7 : 0] dout.full     (o_full),    // output wire full.empty    (o_empty)  // output wire empty
);
endmodule

编写testbench：

`timescale 1ns / 1psmodule tb_fifo_top;/* ---------------- 接口 ---------------- */
logic        clk;
logic        rst;
logic [7:0]  din;
logic        wr_en;
logic        rd_en;
logic        full;
logic        empty;
logic [7:0]  dout;/* ---------------- 时钟 ---------------- */
initial beginclk = 0;forever #10 clk = ~clk;
end/* ---------------- 激励 ---------------- */
initial beginrst   = 1;wr_en = 0;rd_en = 0;din   = '0;repeat(5) @(posedge clk);rst = 0;@(posedge clk);// 1. 写满 16 字节$display("\n[%.2f ns] Write 16 bytes", $time);for (int i = 0; i < 16; i++) begin@(posedge clk);wr_en = 1;din   = i;endwr_en = 0;@(posedge clk);$display("[%.2f ns] full = %b", $time, full);// 2. 读出 16 字节$display("\n[%.2f ns] Read 16 bytes", $time);for (int i = 0; i < 16; i++) begin@(posedge clk);rd_en = 1;endrd_en = 0;@(posedge clk);$display("[%.2f ns] empty = %b", $time, empty);// 3. 交替写读 3 次$display("\n[%.2f ns] Alternating write/read", $time);repeat(3) begin@(posedge clk);wr_en = 1; din = $random; rd_en = 0;@(posedge clk);wr_en = 0; rd_en = 1;endrd_en = 0;@(posedge clk);#200;$display("\n[%.2f ns] Done", $time);$finish;
end/* ---------------- 打印读出数据 ---------------- */
always @(posedge clk) beginif (rd_en & ~empty)$display("[%.2f ns] dout = %0d", $time, dout);
end/* ---------------- 例化 DUT ---------------- */
fifo_top dut (.i_clk   (clk),.i_rst   (rst),.i_din   (din),.i_wr_en (wr_en),.i_rd_en (rd_en),.o_full  (full),.o_empty (empty),.o_dout  (dout)
);
endmodule

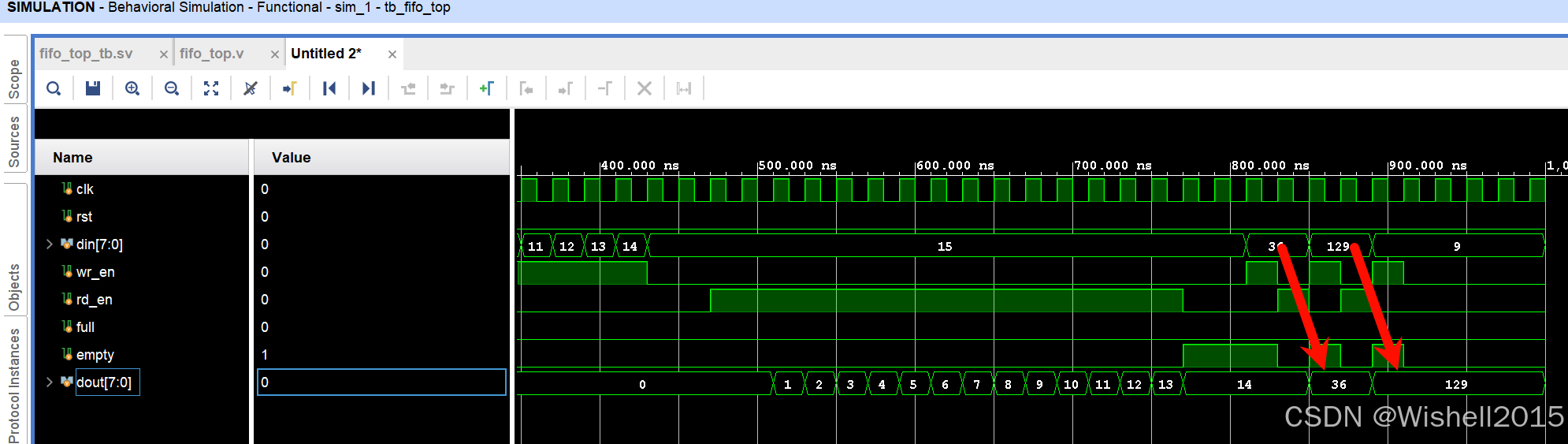

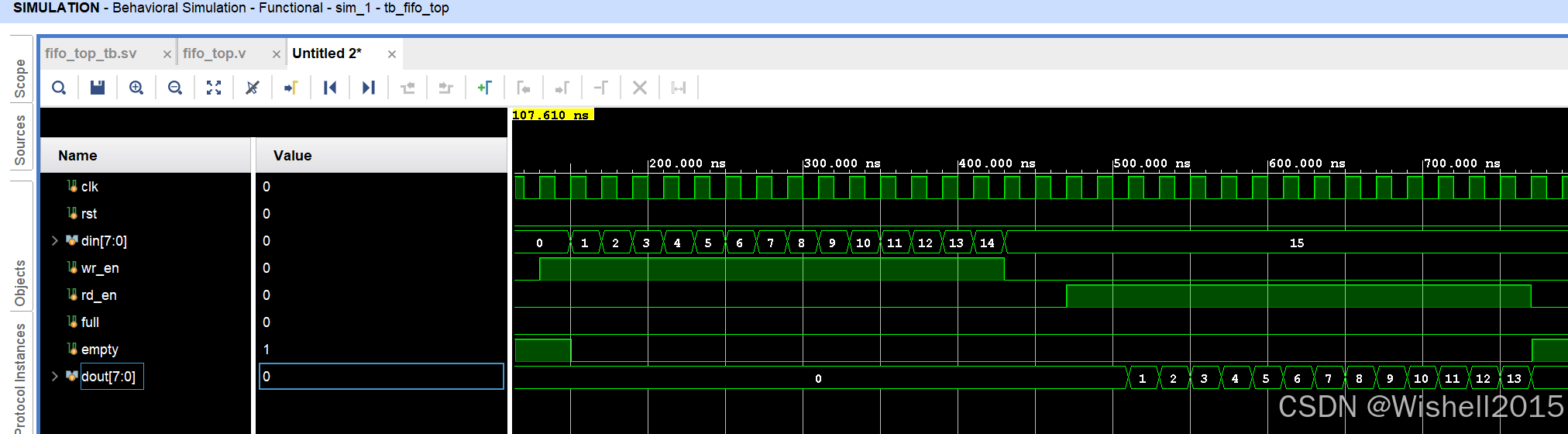

仿真分析：
