K8s网络之Ingress

news 2025/11/13 9:32:19

Ingress

Ingress是K8s中Web服务访问的入口；是基于Service，并且可以管理多个Service访问；

Ingress主要负责七层负载，将外部 HTTP/HTTPS 请求路由到集群内部的服务。它可以基于域名和路径定义规则，从而将外部请求分配到不同的服务。

  • Ingress本质是反向代理服务器；Ingress-Nginx；

  • 通过不同域名或路径，将流量转发给不同的Service；

  • Ingress是七层（应用层），Service是四层（传输层）（TCP/UDP）；

Ingress的搭建与使用

  • Ingress（应用接口）K8s自带，kubernetes中的一个对象，作用是定义请求如何转发到service的规则；

  • Ingress controller：具体实现反向代理及负载均衡的程序，对ingress定义的规则进行解析，根据配置的规则来实现请求转发，实现方式有很多，比如Nginx, Contour, Haproxy等等，需要安装使用；

安装Ingress controller

第一个办法：从网站下载适配的yaml文件（但这边网络不太行，一直下载超时）

# 部署Ingress-Nginx
wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.6.4/deploy/static/provider/cloud/deploy.yaml
# 修改镜像地址为国内镜像地址，否则镜像拉取会失败
vim deploy.yaml
# 在第439行
将image改为registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.6.3
# 教室局域网使用：192.168.57.200:8099/ingress-nginx/controller:v1.6.3
# 第536行和第585行
将registry.k8s.io/ingress-nginx/替换为registry.aliyuncs.com/google_containers/
# 教室局域网可以使用：192.168.57.200:8099/ingress-nginx/kube-webhook-certgen:v20220916-gd32f8c343

第二个办法：自己写yaml文件

apiVersion: v1
kind: Namespace
metadata:labels:app.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxname: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginxnamespace: ingress-nginx
---
apiVersion: v1
kind: ServiceAccount
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admissionnamespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginxnamespace: ingress-nginx
rules:
- apiGroups:- ""resources:- namespacesverbs:- get
- apiGroups:- ""resources:- configmaps- pods- secrets- endpointsverbs:- get- list- watch
- apiGroups:- ""resources:- servicesverbs:- get- list- watch
- apiGroups:- networking.k8s.ioresources:- ingressesverbs:- get- list- watch
- apiGroups:- networking.k8s.ioresources:- ingresses/statusverbs:- update
- apiGroups:- networking.k8s.ioresources:- ingressclassesverbs:- get- list- watch
- apiGroups:- coordination.k8s.ioresourceNames:- ingress-nginx-leaderresources:- leasesverbs:- get- update
- apiGroups:- coordination.k8s.ioresources:- leasesverbs:- create
- apiGroups:- ""resources:- eventsverbs:- create- patch
- apiGroups:- discovery.k8s.ioresources:- endpointslicesverbs:- list- watch- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admissionnamespace: ingress-nginx
rules:
- apiGroups:- ""resources:- secretsverbs:- get- create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:labels:app.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx
rules:
- apiGroups:- ""resources:- configmaps- endpoints- nodes- pods- secrets- namespacesverbs:- list- watch
- apiGroups:- coordination.k8s.ioresources:- leasesverbs:- list- watch
- apiGroups:- ""resources:- nodesverbs:- get
- apiGroups:- ""resources:- servicesverbs:- get- list- watch
- apiGroups:- networking.k8s.ioresources:- ingressesverbs:- get- list- watch
- apiGroups:- ""resources:- eventsverbs:- create- patch
- apiGroups:- networking.k8s.ioresources:- ingresses/statusverbs:- update
- apiGroups:- networking.k8s.ioresources:- ingressclassesverbs:- get- list- watch
- apiGroups:- discovery.k8s.ioresources:- endpointslicesverbs:- list- watch- get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admission
rules:
- apiGroups:- admissionregistration.k8s.ioresources:- validatingwebhookconfigurationsverbs:- get- update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginxnamespace: ingress-nginx
roleRef:apiGroup: rbac.authorization.k8s.iokind: Rolename: ingress-nginx
subjects:
- kind: ServiceAccountname: ingress-nginxnamespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admissionnamespace: ingress-nginx
roleRef:apiGroup: rbac.authorization.k8s.iokind: Rolename: ingress-nginx-admission
subjects:
- kind: ServiceAccountname: ingress-nginx-admissionnamespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:labels:app.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: ingress-nginx
subjects:
- kind: ServiceAccountname: ingress-nginxnamespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admission
roleRef:apiGroup: rbac.authorization.k8s.iokind: ClusterRolename: ingress-nginx-admission
subjects:
- kind: ServiceAccountname: ingress-nginx-admissionnamespace: ingress-nginx
---
apiVersion: v1
data:allow-snippet-annotations: "true"
kind: ConfigMap
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-controllernamespace: ingress-nginx
---
apiVersion: v1
kind: Service
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-controllernamespace: ingress-nginx
spec:externalTrafficPolicy: LocalipFamilies:- IPv4ipFamilyPolicy: SingleStackports:- appProtocol: httpname: httpport: 80protocol: TCPtargetPort: http- appProtocol: httpsname: httpsport: 443protocol: TCPtargetPort: httpsselector:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxtype: LoadBalancer
---
apiVersion: v1
kind: Service
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-controller-admissionnamespace: ingress-nginx
spec:ports:- appProtocol: httpsname: https-webhookport: 443targetPort: webhookselector:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxtype: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-controllernamespace: ingress-nginx
spec:minReadySeconds: 0revisionHistoryLimit: 10selector:matchLabels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxtemplate:metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxspec:containers:- args:- /nginx-ingress-controller- --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller- --election-id=ingress-nginx-leader- --controller-class=k8s.io/ingress-nginx- --ingress-class=nginx- --configmap=$(POD_NAMESPACE)/ingress-nginx-controller- --validating-webhook=:8443- --validating-webhook-certificate=/usr/local/certificates/cert- --validating-webhook-key=/usr/local/certificates/keyenv:- name: POD_NAMEvalueFrom:fieldRef:fieldPath: metadata.name- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespace- name: LD_PRELOADvalue: /usr/local/lib/libmimalloc.soimage: 192.168.57.200:8099/ingress-nginx/controller:v1.6.3imagePullPolicy: IfNotPresentlifecycle:preStop:exec:command:- /wait-shutdownlivenessProbe:failureThreshold: 5httpGet:path: /healthzport: 10254scheme: HTTPinitialDelaySeconds: 10periodSeconds: 10successThreshold: 1timeoutSeconds: 1name: controllerports:- containerPort: 80name: httpprotocol: TCP- containerPort: 443name: httpsprotocol: TCP- containerPort: 8443name: webhookprotocol: TCPreadinessProbe:failureThreshold: 3httpGet:path: /healthzport: 10254scheme: HTTPinitialDelaySeconds: 10periodSeconds: 10successThreshold: 1timeoutSeconds: 1resources:requests:cpu: 100mmemory: 90MisecurityContext:allowPrivilegeEscalation: truecapabilities:add:- NET_BIND_SERVICEdrop:- ALLrunAsUser: 101volumeMounts:- mountPath: /usr/local/certificates/name: webhook-certreadOnly: truednsPolicy: ClusterFirstnodeSelector:kubernetes.io/os: linuxserviceAccountName: ingress-nginxterminationGracePeriodSeconds: 300volumes:- name: webhook-certsecret:secretName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admission-createnamespace: ingress-nginx
spec:template:metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admission-createspec:containers:- args:- create- --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc- --namespace=$(POD_NAMESPACE)- --secret-name=ingress-nginx-admissionenv:- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespaceimage: 192.168.57.200:8099/ingress-nginx/kube-webhook-certgen:v20220916-gd32f8c343imagePullPolicy: IfNotPresentname: createsecurityContext:allowPrivilegeEscalation: falsenodeSelector:kubernetes.io/os: linuxrestartPolicy: OnFailuresecurityContext:fsGroup: 2000runAsNonRoot: truerunAsUser: 2000serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admission-patchnamespace: ingress-nginx
spec:template:metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admission-patchspec:containers:- args:- patch- --webhook-name=ingress-nginx-admission- --namespace=$(POD_NAMESPACE)- --patch-mutating=false- --secret-name=ingress-nginx-admission- --patch-failure-policy=Failenv:- name: POD_NAMESPACEvalueFrom:fieldRef:fieldPath: metadata.namespaceimage: 192.168.57.200:8099/ingress-nginx/kube-webhook-certgen:v20220916-gd32f8c343imagePullPolicy: IfNotPresentname: patchsecurityContext:allowPrivilegeEscalation: falsenodeSelector:kubernetes.io/os: linuxrestartPolicy: OnFailuresecurityContext:fsGroup: 2000runAsNonRoot: truerunAsUser: 2000serviceAccountName: ingress-nginx-admission
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: nginx
spec:controller: k8s.io/ingress-nginx
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:labels:app.kubernetes.io/component: admission-webhookapp.kubernetes.io/instance: ingress-nginxapp.kubernetes.io/name: ingress-nginxapp.kubernetes.io/part-of: ingress-nginxapp.kubernetes.io/version: 1.6.3name: ingress-nginx-admission
webhooks:
- admissionReviewVersions:- v1clientConfig:service:name: ingress-nginx-controller-admissionnamespace: ingress-nginxpath: /networking/v1/ingressesfailurePolicy: FailmatchPolicy: Equivalentname: validate.nginx.ingress.kubernetes.iorules:- apiGroups:- networking.k8s.ioapiVersions:- v1operations:- CREATE- UPDATEresources:- ingressessideEffects: None

# 应用yaml文件

kubectl apply -f deploy.yaml

kubectl get pod -n ingress-nginx

NAME                                                               READY    STATUS      RESTARTS     AGE

ingress-nginx-admission-create-lsbf7              0/1     Completed           0              62s

ingress-nginx-admission-patch-hrsmp            0/1     Completed           0              62s

ingress-nginx-controller-54b57b6bc-bgxg8     1/1     Running              0               62s

kubectl get svc -n ingress-nginx

NAME                                 TYPE           CLUSTER-IP       EXTERNAL-IP      PORT(S)                      AGE

ingress-nginx-controller             LoadBalancer   10.105.212.216   192.168.221.11   80:30828/TCP,443:30596/TCP   70s

ingress-nginx-controller-admission   ClusterIP      10.98.127.251    <none>           443/TCP                      70s

# 创建Nginx和Tomcat的Pod，和Service放在一个文件里

vim tomcat-nginx.yaml

apiVersion: apps/v1
kind: Deployment
metadata:name: nginx-deployment
spec:replicas: 3selector:matchLabels:app: nginx-podtemplate:metadata:labels:app: nginx-podspec:containers:- name: nginximage: 192.168.57.200:8099/library/nginx:1.21ports:- containerPort: 80---
apiVersion: apps/v1
kind: Deployment
metadata:name: tomcat-deployment
spec:replicas: 3selector:matchLabels:app: tomcat-podtemplate:metadata:labels:app: tomcat-podspec:containers:- name: tomcatimage: 192.168.57.200:8099/library/tomcat:8ports:- containerPort: 8080---
apiVersion: v1
kind: Service
metadata:name: nginx-service
spec:selector:app: nginx-podclusterIP: Nonetype: ClusterIPports:- port: 80targetPort: 80---
apiVersion: v1
kind: Service
metadata:name: tomcat-service
spec:selector:app: tomcat-podclusterIP: Nonetype: ClusterIPports:- port: 8080targetPort: 8080

 查看创建结果

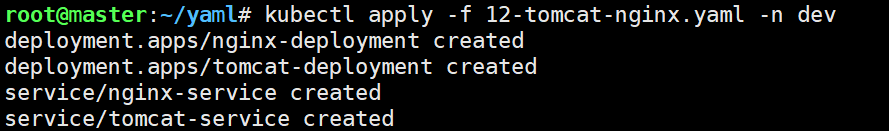

# 1.创建nginx-deployment和tomcat-deployment并创建命名空间

kubectl apply -f tomcat-nginx.yaml -n dev

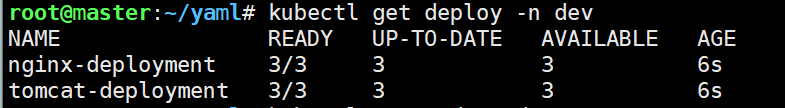

# 2.查看 deploy

kubectl get deploy -n dev

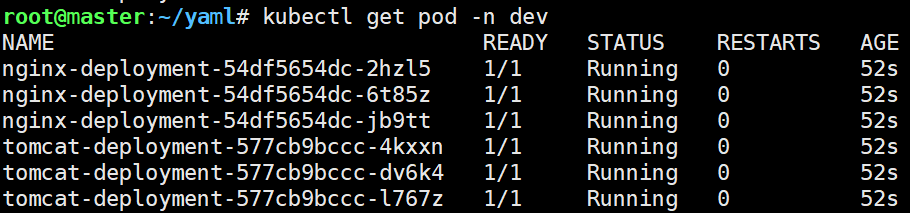

# 3.查看pod

kubectl get pod -n dev

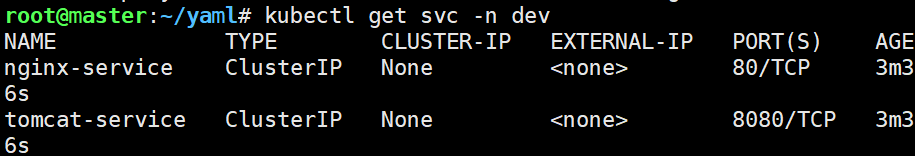

# 4.查看svc

kubectl get svc -n dev

# http代理

vim ingress-http.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:name: ingress-http
spec:# 这个很关键，如果写错会导致访问404ingressClassName: nginxrules:- host: nginx.test.comhttp:paths:- path: /pathType: Prefixbackend:service:name: nginx-serviceport:number: 80- host: tomcat.test.comhttp:paths:- path: /pathType: Prefixbackend:service:name: tomcat-serviceport:number: 8080

# 应用Ingress资源

kubectl apply -f ingress-http.yaml -n dev

# 检查 Ingress 状态

kubectl get ingress -n dev

NAME           CLASS   HOSTS                                        ADDRESS          PORTS      AGE

ingress-http   nginx   nginx.test.com,tomcat.test.com   192.168.221.11         80        4m46s

# 获取 Ingress Controller 的访问地址

kubectl get svc -n ingress-nginx

NAME                                            TYPE           CLUSTER-IP                                EXTERNAL-IP                  PORT(S)                             AGE

ingress-nginx-controller             LoadBalancer   10.105.212.216   192.168.221.11   80:30828/TCP,443:30596/TCP       33m

ingress-nginx-controller-admission   ClusterIP      10.98.127.251

      <none>                        443/TCP                              33m

在本机的C:\Windows\System32\drivers\etc\hosts添加两个域名（修改成自己的）

192.168.221.11 nginx.test.com

192.168.221.11 tomcat.test.com

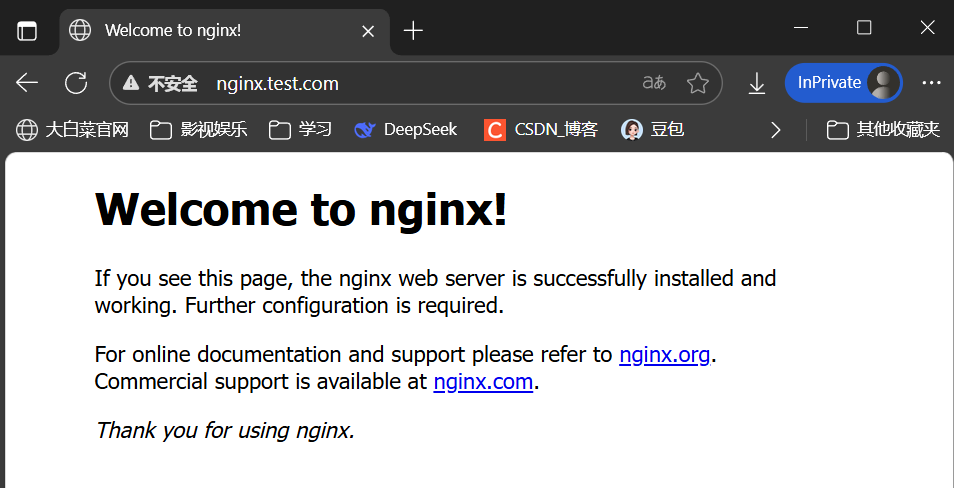

# 用域名nginx.test.com访问网页

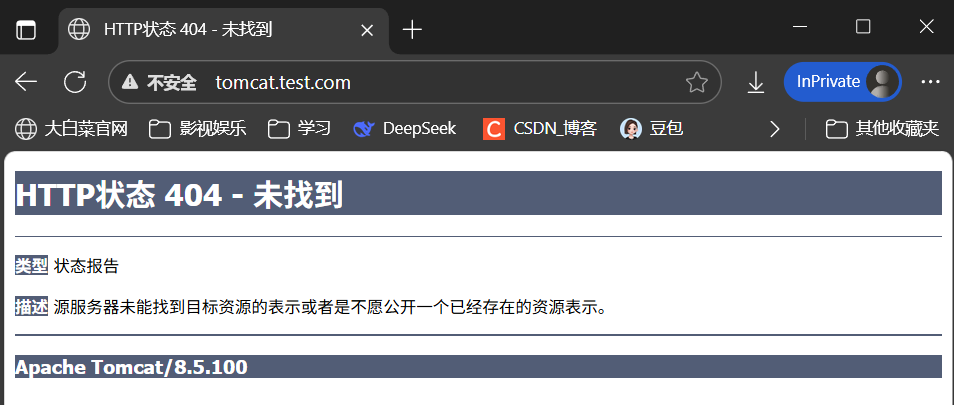

# 用域名tomcat.test.com访问网页
