（三）自然语言处理笔记——Transformer

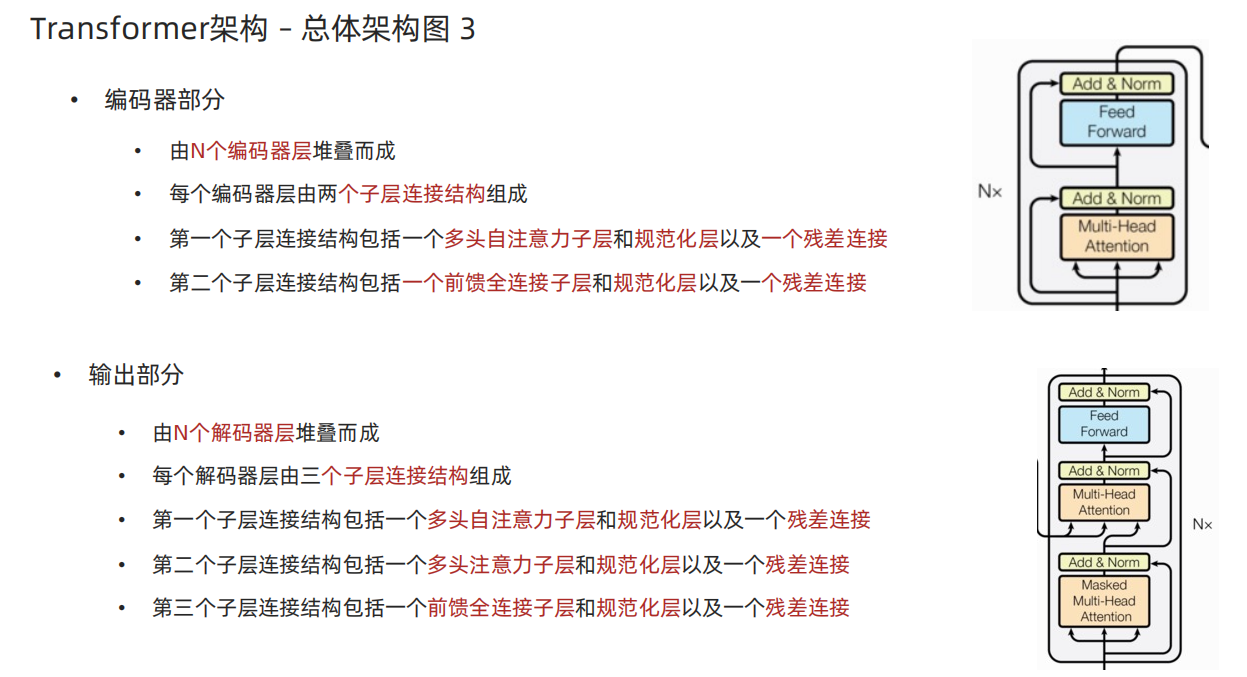

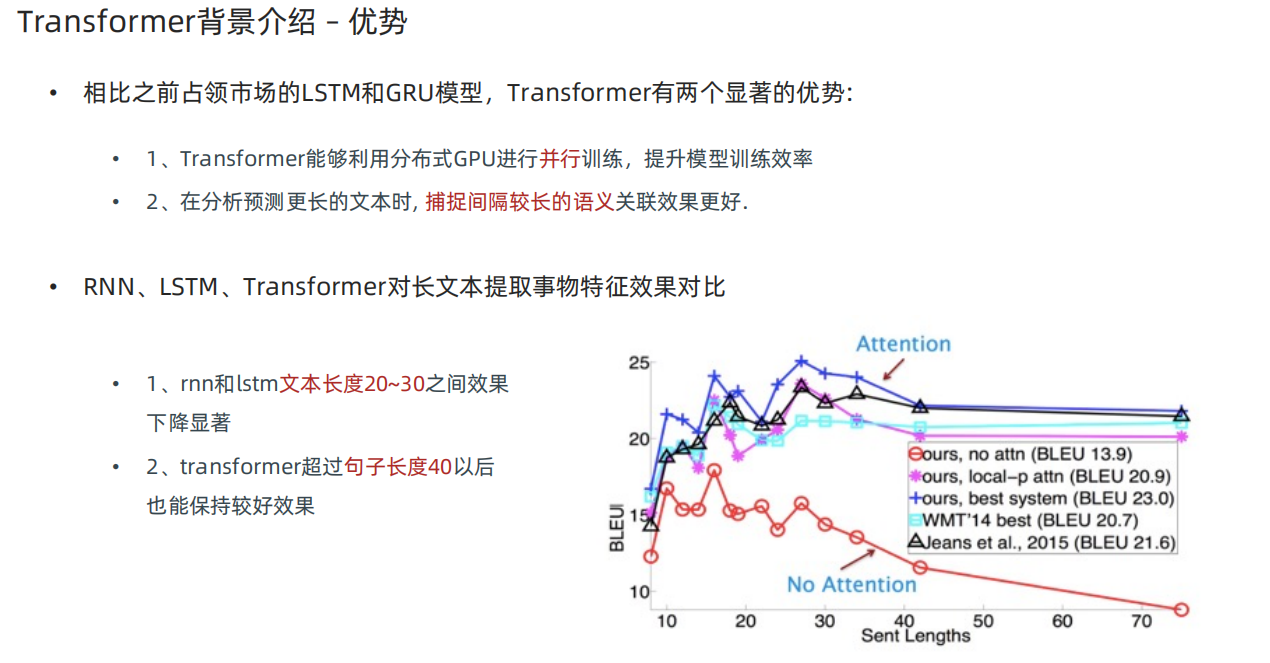

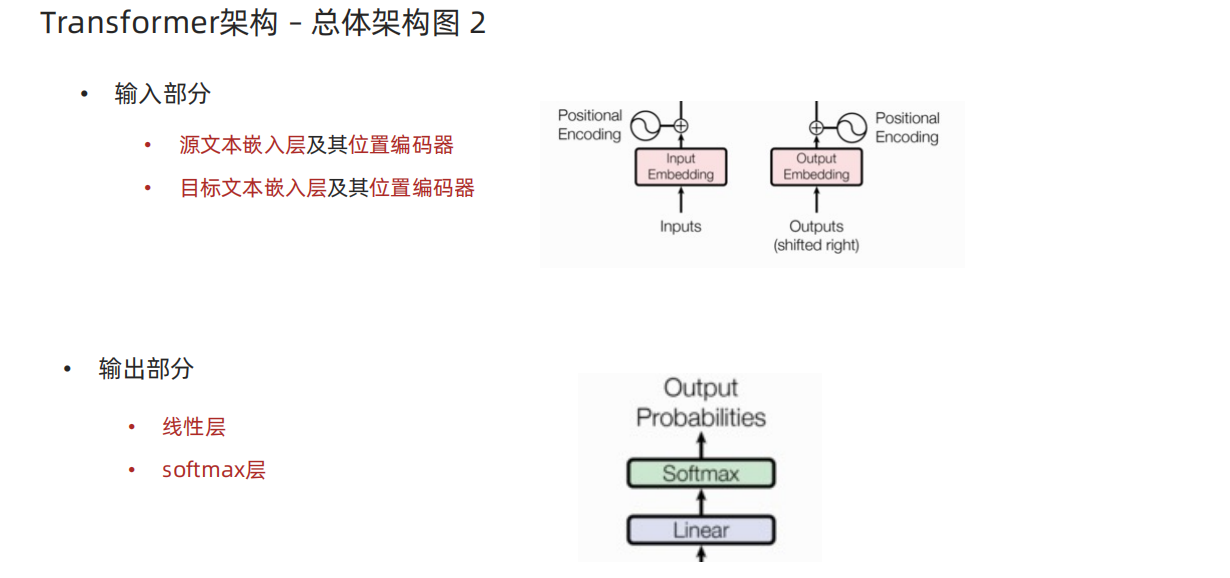

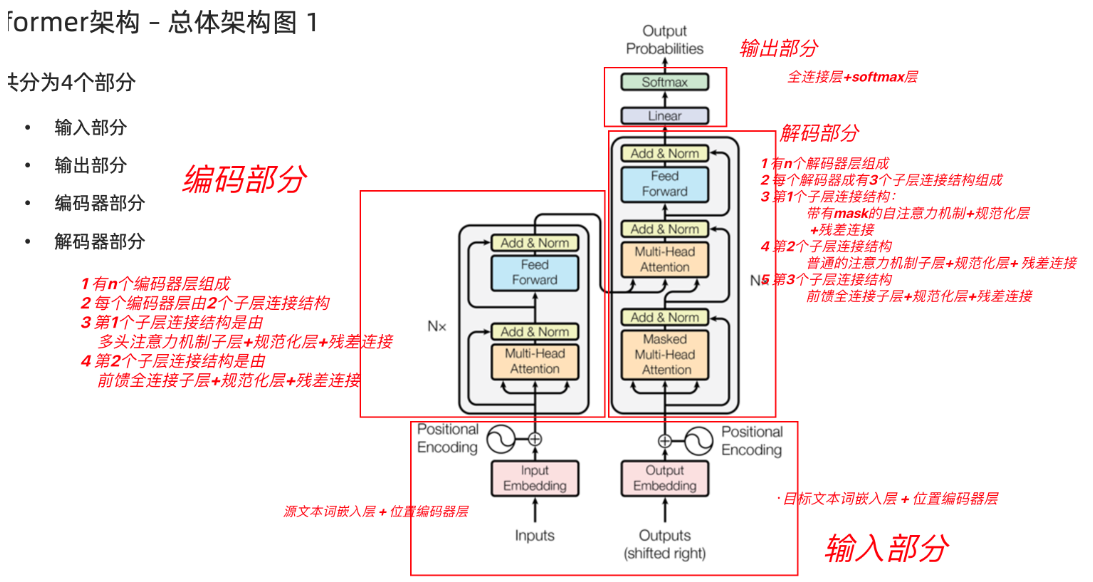

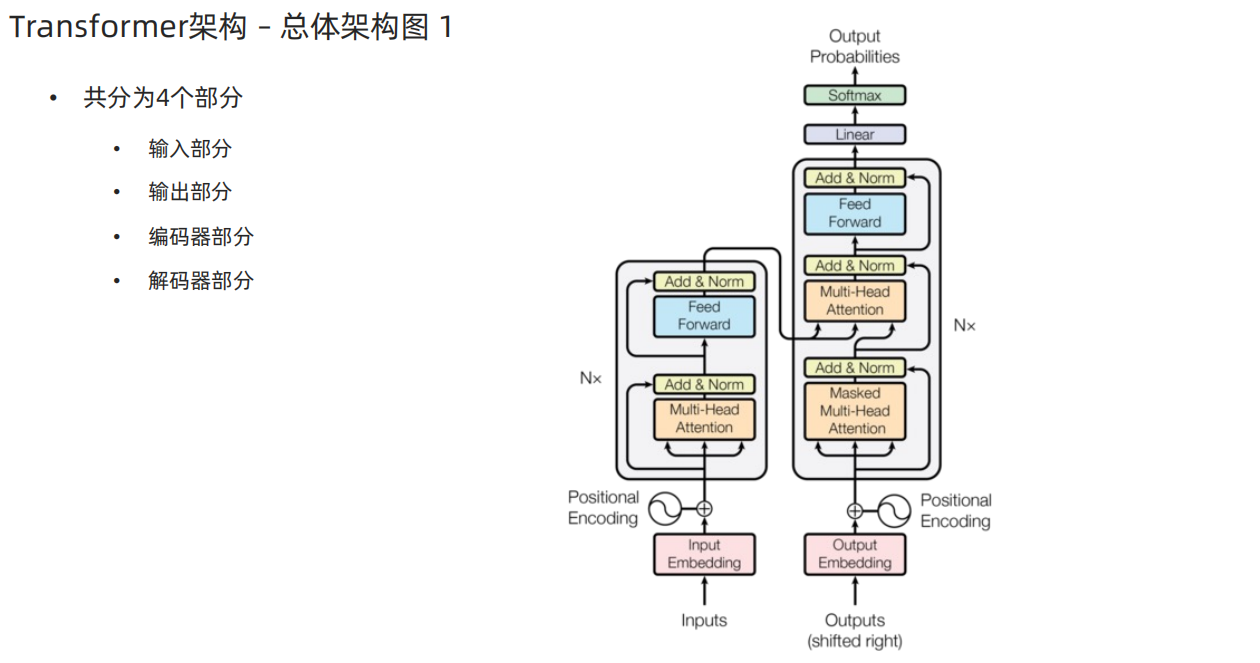

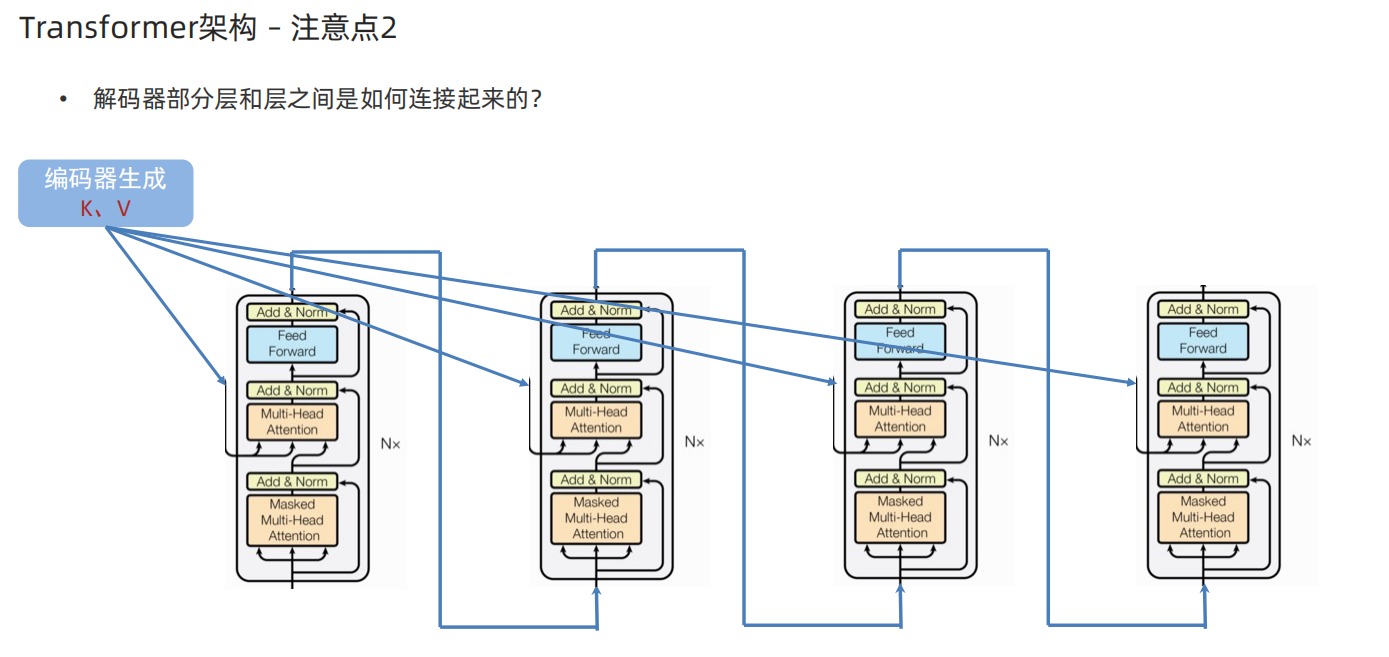

1、Transformer结构

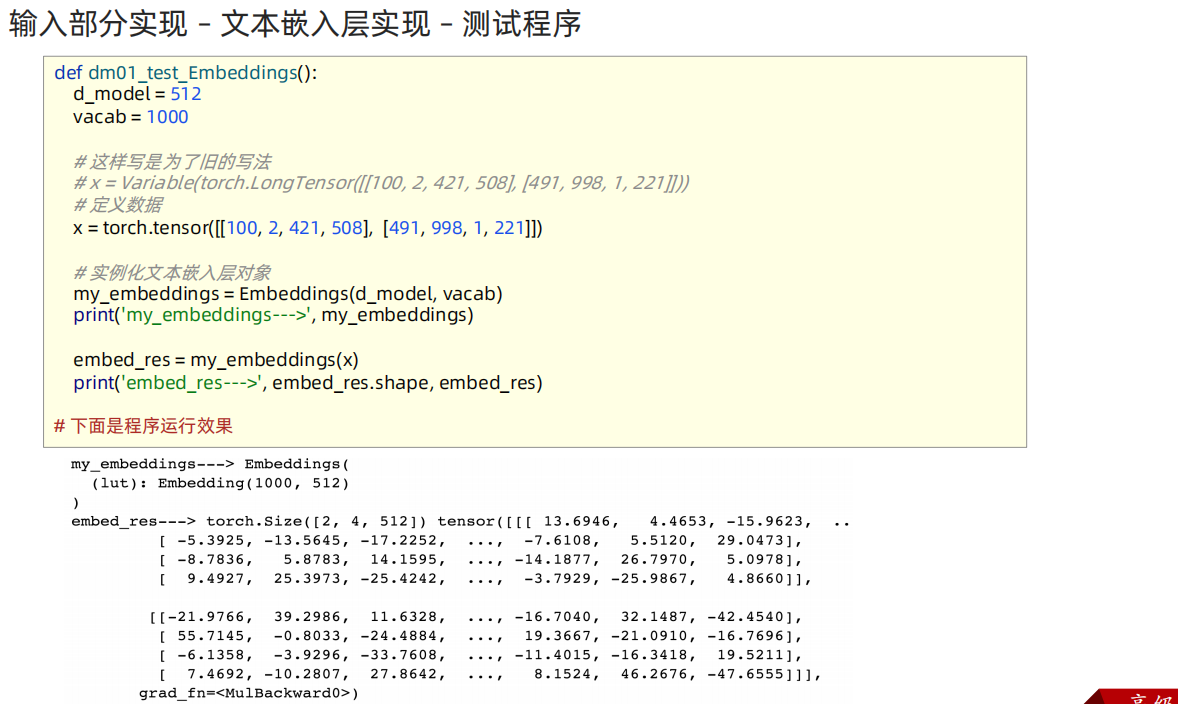

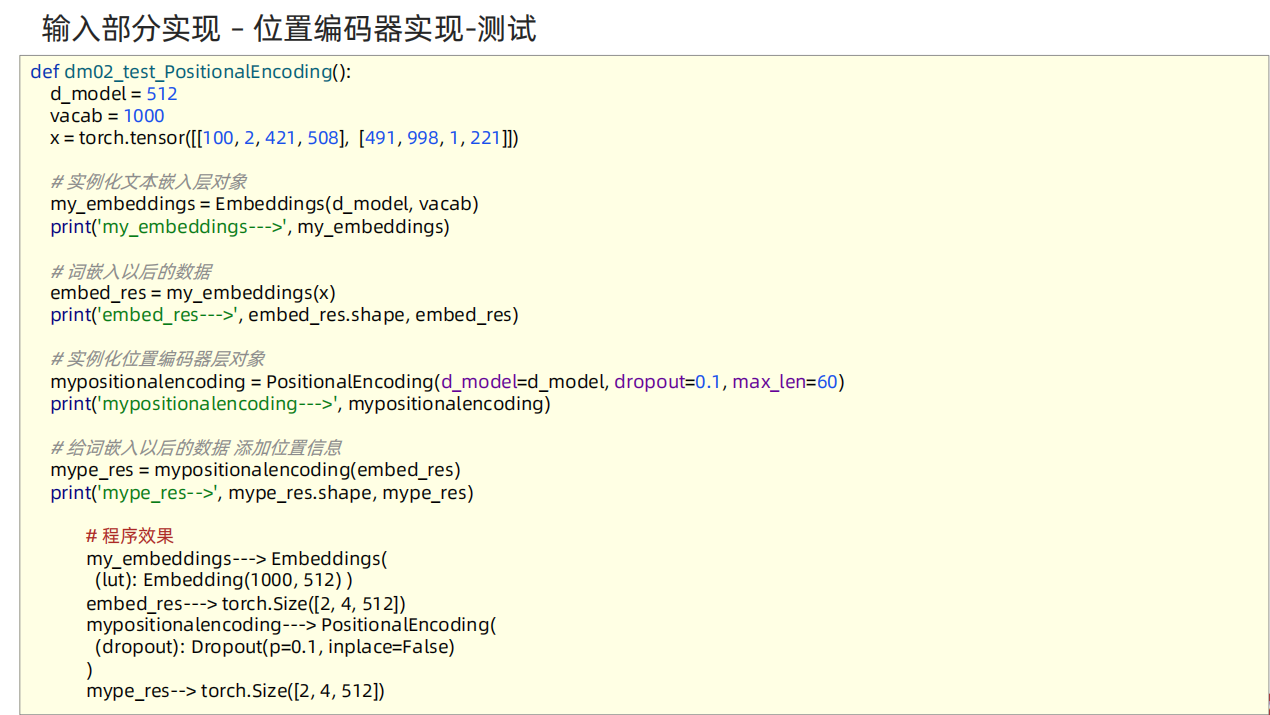

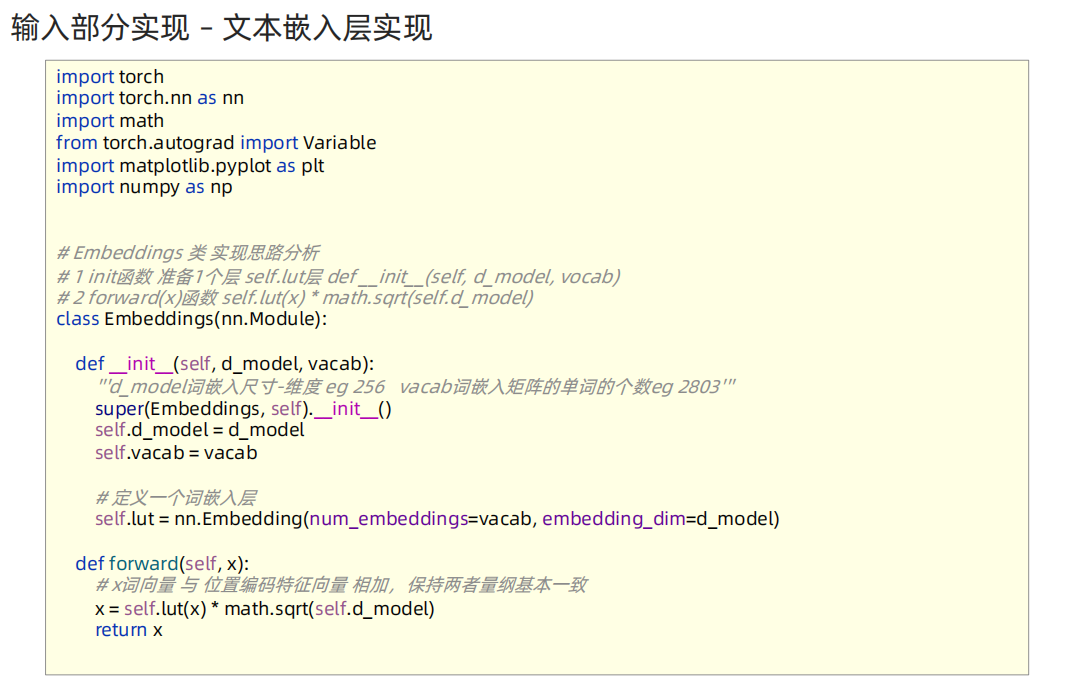

2、Transformer输入部分代码实现

import torch
import torch.nn as nn
import math
from torch.autograd import Variable
import matplotlib.pyplot as plt
import numpy as np# Embeddings 类 实现思路分析
# 1 init函数 准备1个层 self.lut层 def __init__(self, d_model, vocab)
# 2 forward(x)函数 self.lut(x) * math.sqrt(self.d_model)

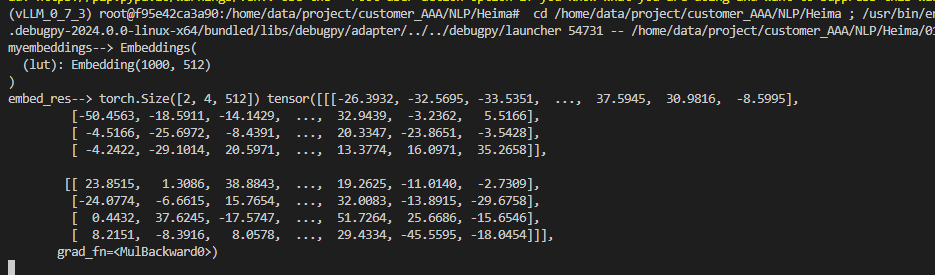

class Embeddings(nn.Module):def __init__(self, d_model, vocab):super(Embeddings, self).__init__()self.d_model = d_modelself.vocab = vocab# self.lut层self.lut = nn.Embedding(vocab, d_model)def forward(self, x):x = self.lut(x) * math.sqrt(self.d_model)return  xdef dm01_test_Embeddings():# 1 准备数据x = torch.tensor([[100, 2, 421, 508], [491, 998, 1, 221]])# 2 实例化文本词嵌入层myembeddings = Embeddings(512, 1000)   # 传入的是嵌入的维度，单词数量print('myembeddings-->', myembeddings)# 3 给模型喂数据 [2,4] ---> [2,4,512]embed_res = myembeddings(x)print('embed_res-->', embed_res.shape, embed_res)pass# 位置编码器类 PositionalEncoding 实现思路分析

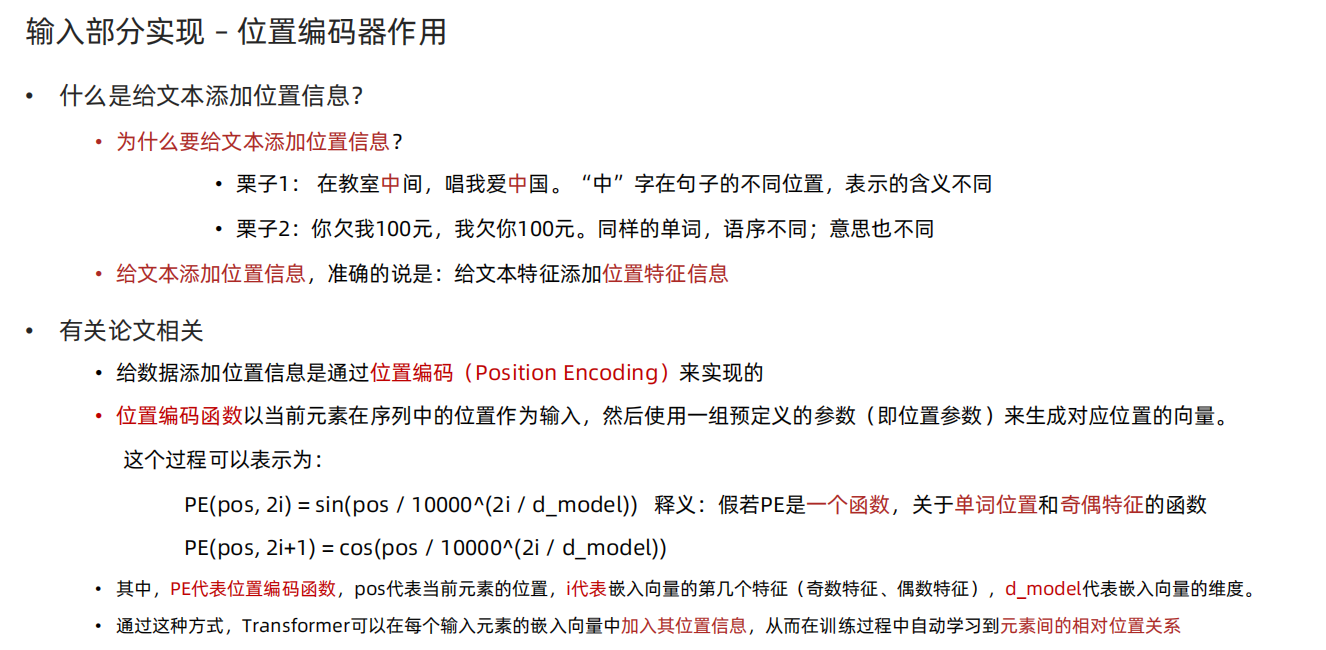

# 1 init函数  (self, d_model, dropout, max_len=5000)
#   super()函数 定义层self.dropout
#   定义位置编码矩阵pe  定义位置列-矩阵position 定义变化矩阵div_term 套公式# position = torch.arange(0, max_len).unsqueeze(1)# div_term = torch.exp(torch.arange(0, d_model, 2) * -(math.log(10000.0)/d_model))
#   位置列-矩阵*变化矩阵 阿达码积 my_matmulres, 给pe矩阵偶数列奇数列赋值 pe[:, 0::2] pe[:, 1::2]
#   pe矩阵注册到模型缓冲区 pe.unsqueeze(0)三维 self.register_buffer('pe', pe)
# 2 forward(self, x) 返回self.dropout(x)
#   给x数据添加位置特征信息 x = x + Variable( self.pe[:,:x.size()[1]], requires_grad=False)

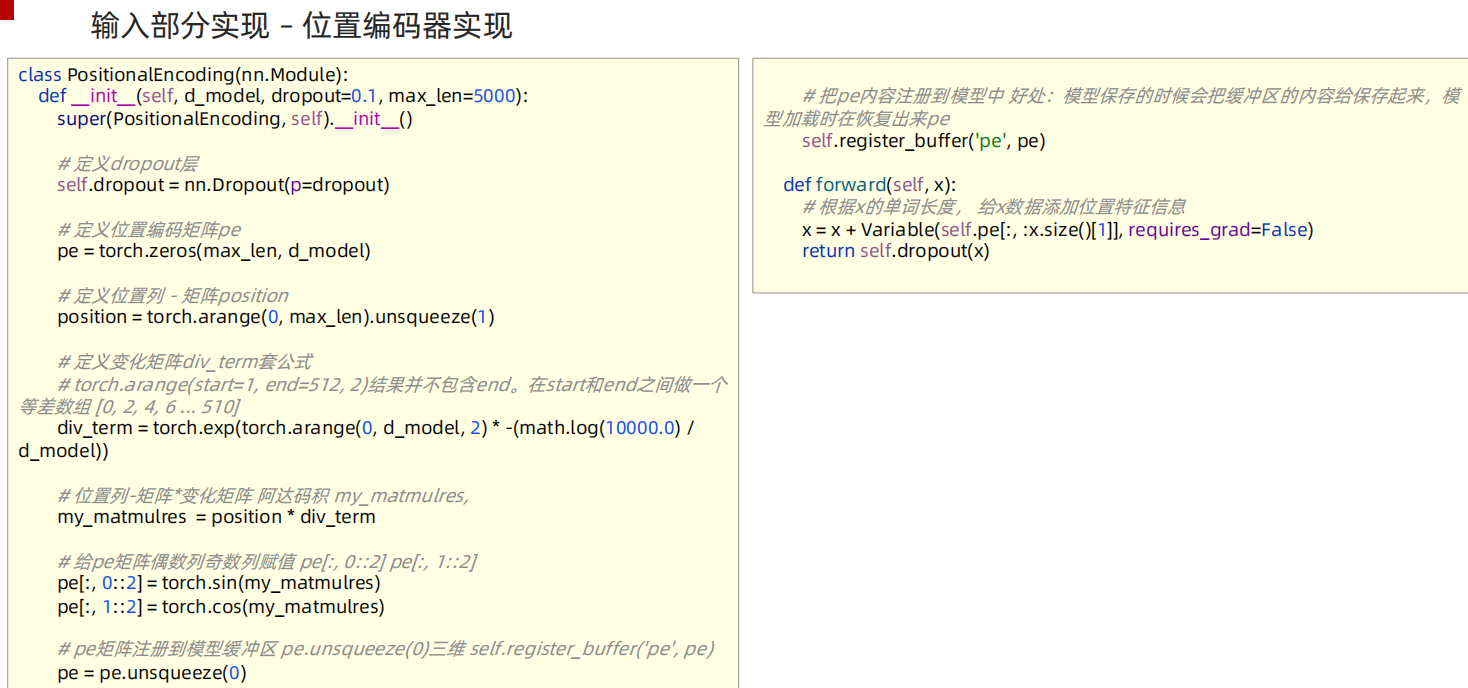

class PositionalEncoding(nn.Module):def __init__(self, d_model,  dropout=0.1, max_len=5000):super(PositionalEncoding, self).__init__()self.dropout = nn.Dropout(p=dropout)#  定义位置编码矩阵pepe = torch.zeros(max_len, d_model)# 定义位置列-矩阵position [60,1]position = torch.arange(0, max_len).unsqueeze(1)# 定义变化矩阵div_term 套公式 [1,256]div_term = torch.exp( torch.arange(0, d_model, 2) * -(math.log(10000.0) / d_model) )#   位置列-矩阵*变化矩阵 阿达码积 my_matmulres, 给pe矩阵偶数列奇数列赋值 pe[:, 0::2] pe[:, 1::2]my_matmulres = position * div_term # [60,1] * [1,256]==> [60, 256]pe[:, 0::2] = torch.sin(my_matmulres)pe[:, 1::2] = torch.cos(my_matmulres)#   pe矩阵注册到模型缓冲区 pe.unsqueeze(0)三维 self.register_buffer('pe', pe)pe = pe.unsqueeze(0) #[60, 256]--> [1,60,256]self.register_buffer('pe', pe)def forward(self, x):tmp = x.size()[1]x = x + Variable( self.pe[:, :x.size()[1]], requires_grad=False )return  xdef dm02_test_PositionalEncoding():# 1 准备数据x = torch.tensor([[100, 2, 421, 508], [491, 998, 1, 221]])# 2 实例化文本词嵌入层myembeddings = Embeddings(512, 1000)print('myembeddings-->', myembeddings)# 3 给模型喂数据 [2,4] ---> [2,4,512]embed_res = myembeddings(x)print('embed_res-->', embed_res.shape, embed_res)# 4 添加位置信息mypositionalencoding = PositionalEncoding(d_model=512,  dropout=0.1, max_len=60)print('mypositionalencoding-->', mypositionalencoding)pe_res = mypositionalencoding(embed_res)print('添加位置特征以后的x-->', pe_res.shape)if __name__ == '__main__':dm01_test_Embeddings()dm02_test_PositionalEncoding()print('输入部分 End')

import torch
import torch.nn as nn
import math
from torch.autograd import Variable
import matplotlib.pyplot as plt
import numpy as np# Embeddings 类 实现思路分析
# 1 init函数 准备1个层 self.lut层 def __init__(self, d_model, vocab)
# 2 forward(x)函数 self.lut(x) * math.sqrt(self.d_model)
class Embeddings(nn.Module):def __init__(self, d_model, vocab):super(Embeddings, self).__init__()self.d_model = d_modelself.vocab = vocab# self.lut层self.lut = nn.Embedding(vocab, d_model)def forward(self, x):x = self.lut(x) * math.sqrt(self.d_model)return  xdef dm01_test_Embeddings():# 1 准备数据x = torch.tensor([[100, 2, 421, 508], [491, 998, 1, 221]])# 2 实例化文本词嵌入层myembeddings = Embeddings(512, 1000)   # 传入的是嵌入的维度，单词数量print('myembeddings-->', myembeddings)# 3 给模型喂数据 [2,4] ---> [2,4,512]embed_res = myembeddings(x)print('embed_res-->', embed_res.shape, embed_res)pass# 位置编码器类 PositionalEncoding 实现思路分析
# 1 init函数  (self, d_model, dropout, max_len=5000)
#   super()函数 定义层self.dropout
#   定义位置编码矩阵pe  定义位置列-矩阵position 定义变化矩阵div_term 套公式# position = torch.arange(0, max_len).unsqueeze(1)# div_term = torch.exp(torch.arange(0, d_model, 2) * -(math.log(10000.0)/d_model))
#   位置列-矩阵*变化矩阵 阿达码积 my_matmulres, 给pe矩阵偶数列奇数列赋值 pe[:, 0::2] pe[:, 1::2]
#   pe矩阵注册到模型缓冲区 pe.unsqueeze(0)三维 self.register_buffer('pe', pe)
# 2 forward(self, x) 返回self.dropout(x)
#   给x数据添加位置特征信息 x = x + Variable( self.pe[:,:x.size()[1]], requires_grad=False)
class PositionalEncoding(nn.Module):def __init__(self, d_model,  dropout=0.1, max_len=5000):super(PositionalEncoding, self).__init__()self.dropout = nn.Dropout(p=dropout)#  定义位置编码矩阵pepe = torch.zeros(max_len, d_model)# 定义位置列-矩阵position [60,1]position = torch.arange(0, max_len).unsqueeze(1)# 定义变化矩阵div_term 套公式 [1,256]div_term = torch.exp( torch.arange(0, d_model, 2) * -(math.log(10000.0) / d_model) )#   位置列-矩阵*变化矩阵 阿达码积 my_matmulres, 给pe矩阵偶数列奇数列赋值 pe[:, 0::2] pe[:, 1::2]my_matmulres = position * div_term # [60,1] * [1,256]==> [60, 256]pe[:, 0::2] = torch.sin(my_matmulres)pe[:, 1::2] = torch.cos(my_matmulres)#   pe矩阵注册到模型缓冲区 pe.unsqueeze(0)三维 self.register_buffer('pe', pe)pe = pe.unsqueeze(0) #[60, 256]--> [1,60,256]self.register_buffer('pe', pe)def forward(self, x):tmp = x.size()[1]x = x + Variable( self.pe[:, :x.size()[1]], requires_grad=False )return  xdef dm02_test_PositionalEncoding():# 1 准备数据x = torch.tensor([[100, 2, 421, 508], [491, 998, 1, 221]])# 2 实例化文本词嵌入层myembeddings = Embeddings(512, 1000)print('myembeddings-->', myembeddings)# 3 给模型喂数据 [2,4] ---> [2,4,512]embed_res = myembeddings(x)print('embed_res-->', embed_res.shape, embed_res)# 4 添加位置信息mypositionalencoding = PositionalEncoding(d_model=512,  dropout=0.1, max_len=60)print('mypositionalencoding-->', mypositionalencoding)pe_res = mypositionalencoding(embed_res)print('添加位置特征以后的x-->', pe_res.shape)if __name__ == '__main__':dm01_test_Embeddings()dm02_test_PositionalEncoding()print('输入部分 End')

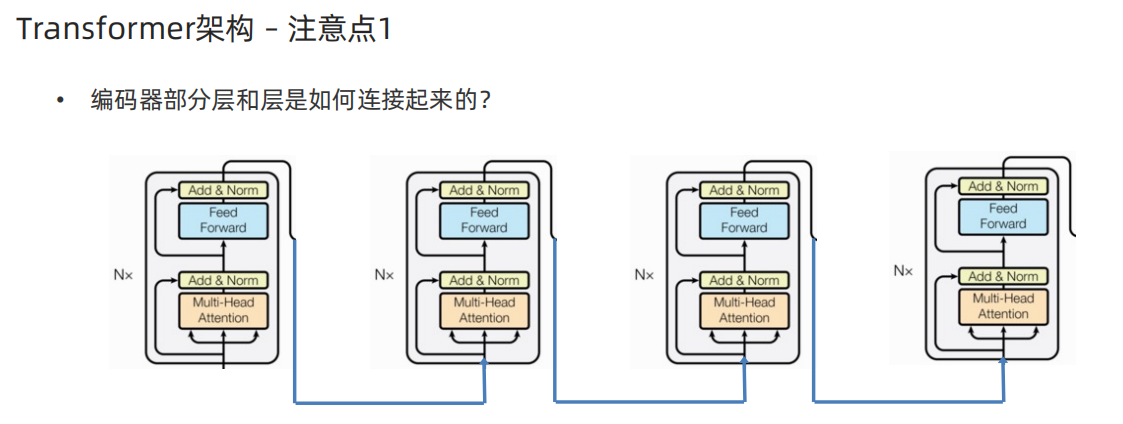

3、Transformer编码器部分

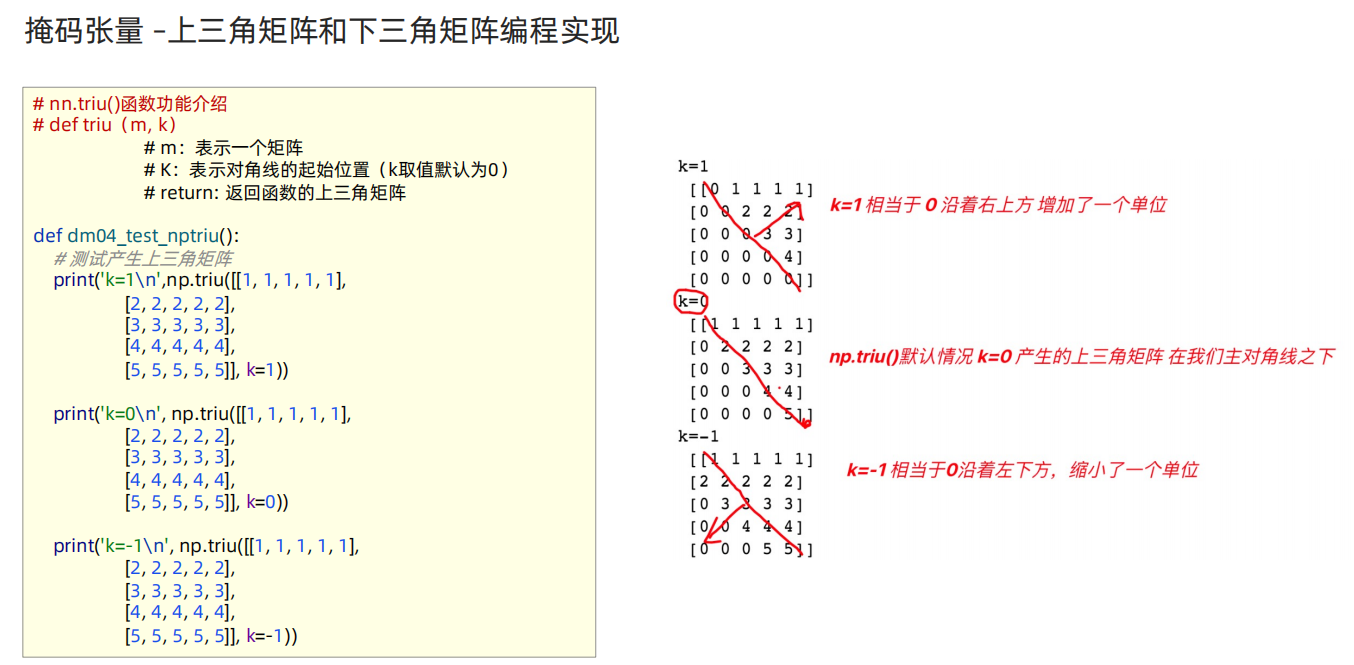

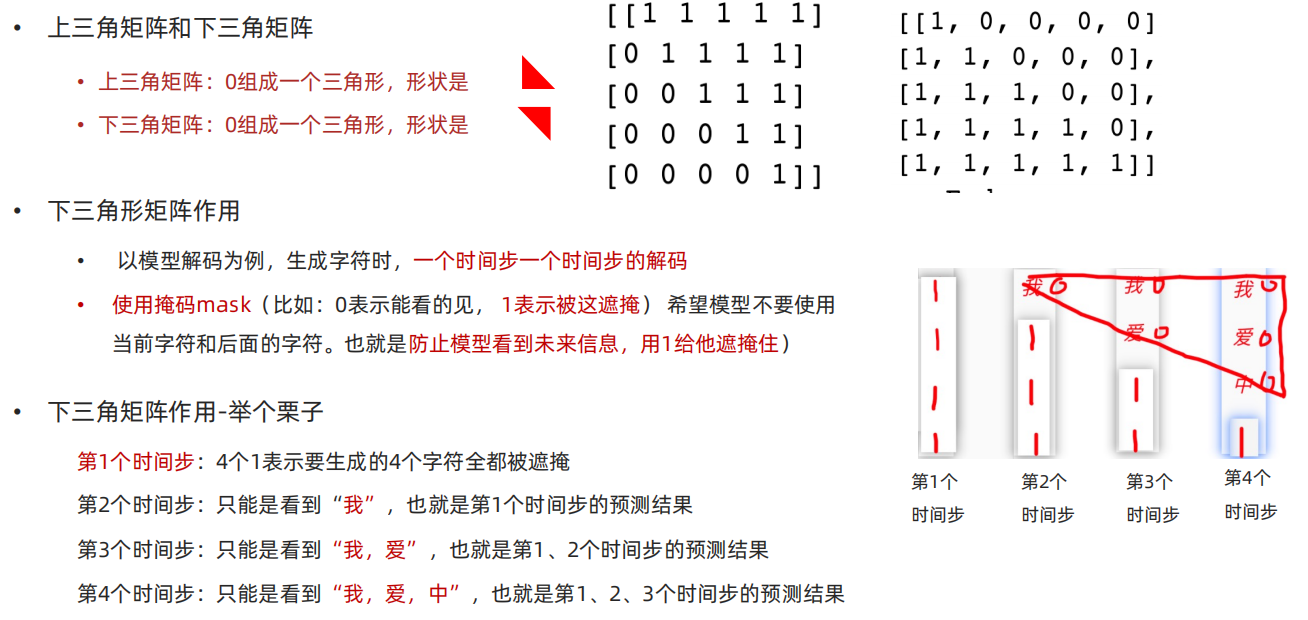

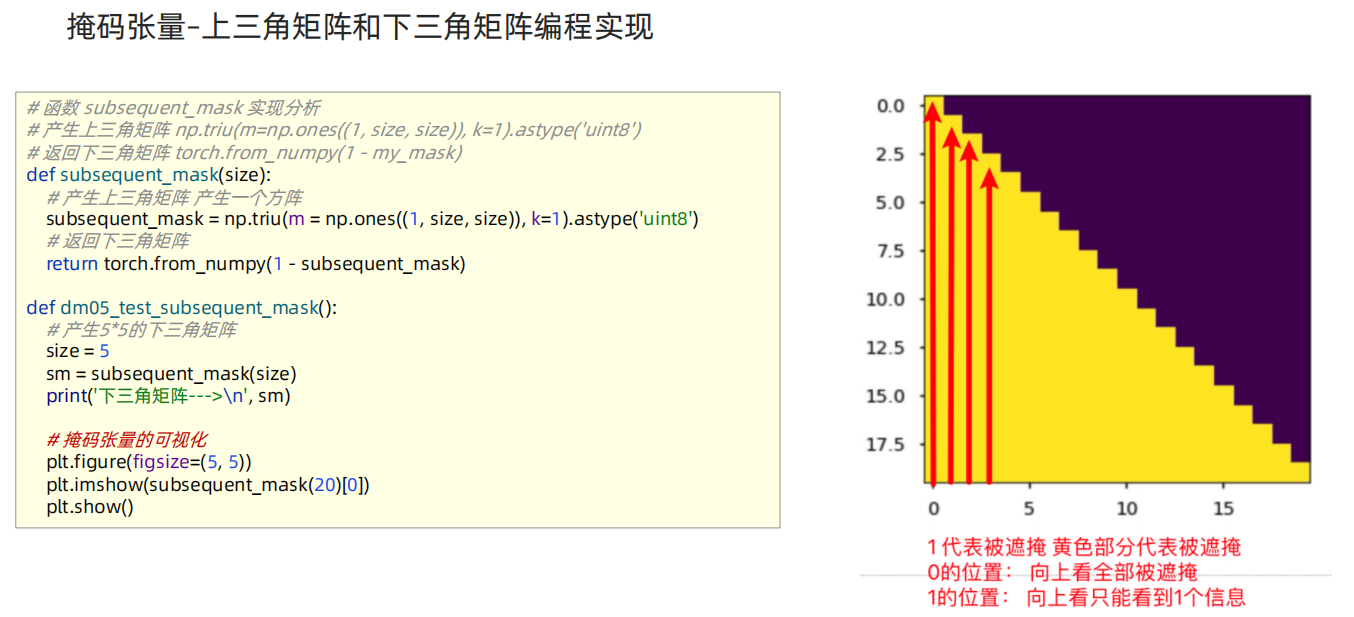

掩码张量

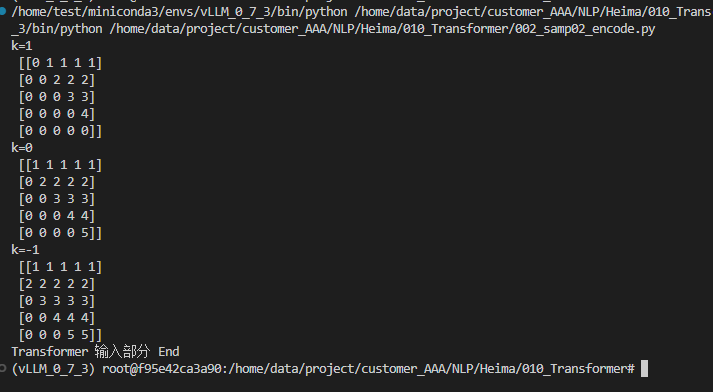

def dm01_test_nptriu():# m：表示一个矩阵# K：表示对角线的起始位置（k取值默认为0）# return: 返回函数的上三角矩阵# 测试产生上三角矩阵print('k=1\n', np.triu([[1, 1, 1, 1, 1],[2, 2, 2, 2, 2],[3, 3, 3, 3, 3],[4, 4, 4, 4, 4],[5, 5, 5, 5, 5]], k=1))print('k=0\n', np.triu([[1, 1, 1, 1, 1],[2, 2, 2, 2, 2],[3, 3, 3, 3, 3],[4, 4, 4, 4, 4],[5, 5, 5, 5, 5]], k=0))print('k=-1\n', np.triu([[1, 1, 1, 1, 1],[2, 2, 2, 2, 2],[3, 3, 3, 3, 3],[4, 4, 4, 4, 4],[5, 5, 5, 5, 5]], k=-1))pass

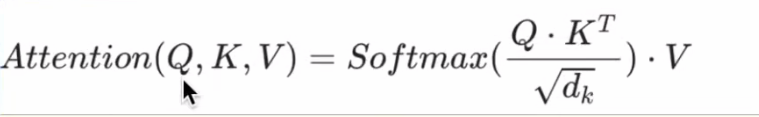

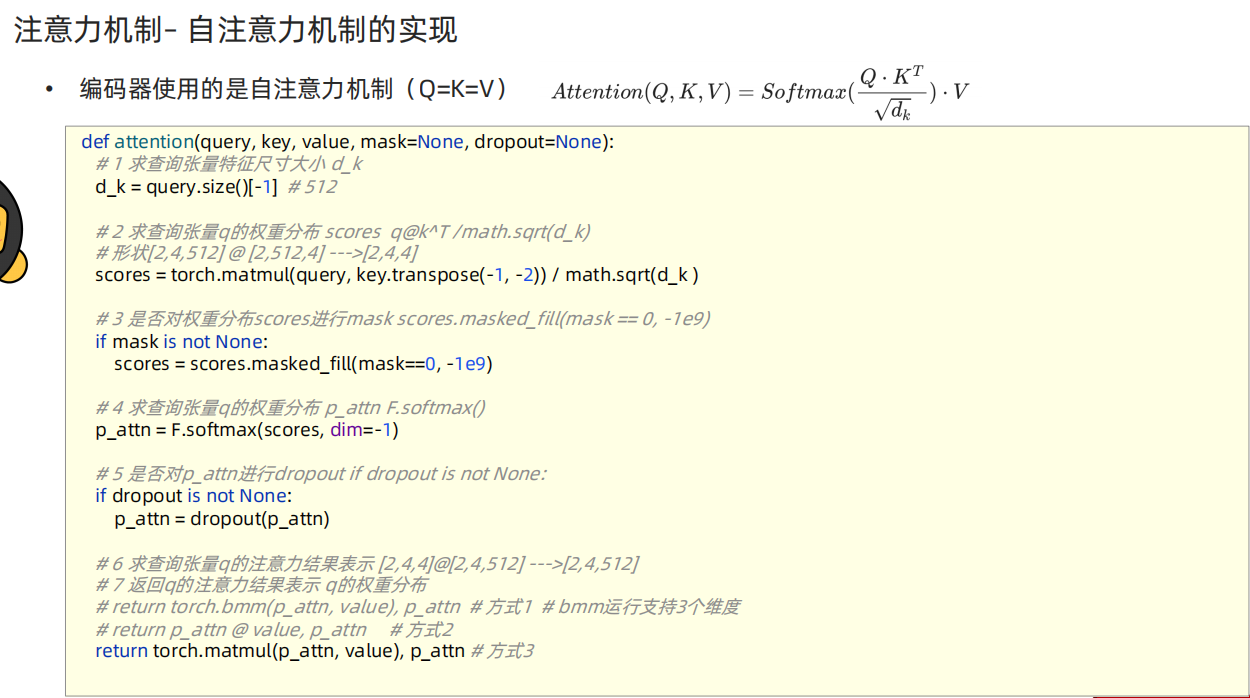

自注意力机制模块
