20251107给荣品RD-RK3588-MID开发板跑Rockchip的原厂Android13系统时适配8寸屏的CTP【使用荣品的DTS】
2025/11/7 10:15

缘起：给荣品RD-RK3588-MID开发板跑Rockchip的原厂Android13系统。
但是WIFI/BT模块的AP6275P的WIFI/BT都不能打开！
一般认为是Rockchip的Android13的mk文件语法识别识别，编译内核的时候没有加载pcie_wifi.config。
结果默认配置成为AP6256了？

在使用荣品的DTS的时候，LCD屏很容易就点亮了，但是CTP触摸屏没有反应。
调试过程/步骤：

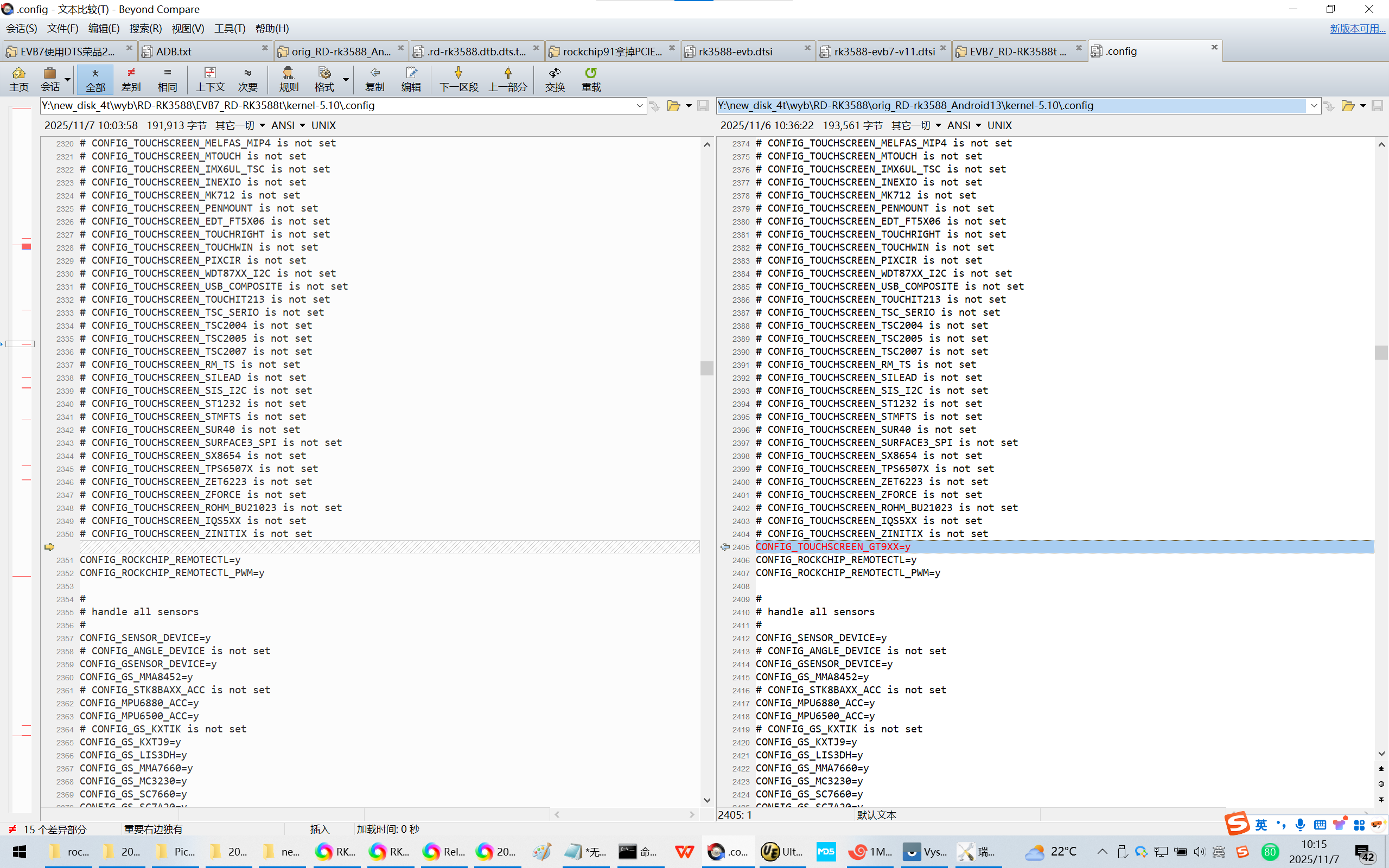

1、很容易知道没有加载gt9xx的驱动程序。
Y:\new_disk_4t\wyb\RD-RK3588\EVB7_RD-RK3588t\kernel-5.10\.config
Y:\new_disk_4t\wyb\RD-RK3588\orig_RD-rk3588_Android13\kernel-5.10\.config

# CONFIG_TOUCHSCREEN_ROHM_BU21023 is not set
# CONFIG_TOUCHSCREEN_IQS5XX is not set
# CONFIG_TOUCHSCREEN_ZINITIX is not set
CONFIG_TOUCHSCREEN_GT9XX=y
CONFIG_ROCKCHIP_REMOTECTL=y
CONFIG_ROCKCHIP_REMOTECTL_PWM=y

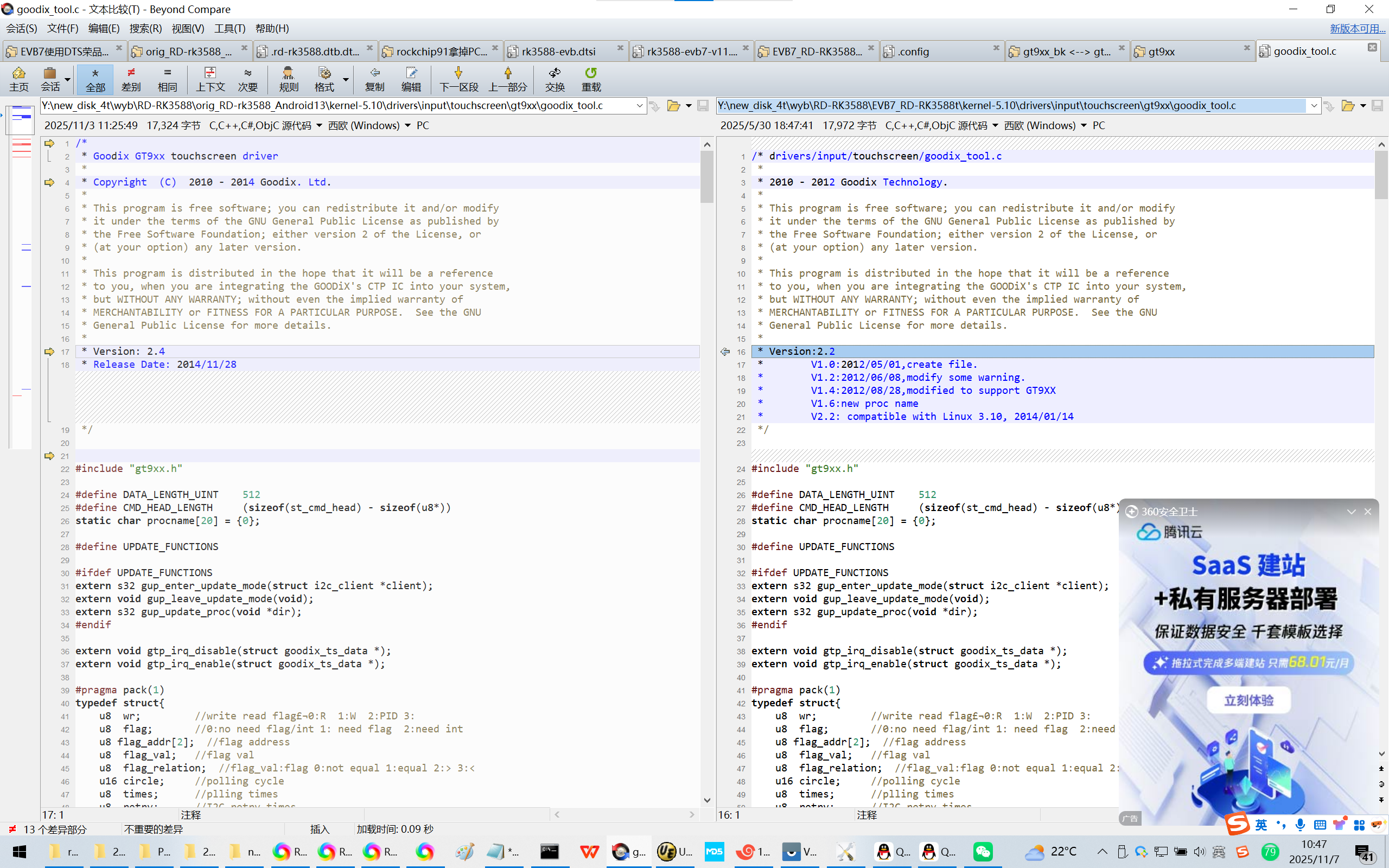

2、很容易知道，荣品将Rockchip的原厂Android13系统中kernel内核中的CTP触摸屏驱动程序V2.2版本升级成为V2.4版本了！
Y:\new_disk_4t\wyb\RD-RK3588\orig_RD-rk3588_Android13\kernel-5.10\drivers\input\touchscreen\gt9xx\goodix_tool.c
Y:\new_disk_4t\wyb\RD-RK3588\EVB7_RD-RK3588t\kernel-5.10\drivers\input\touchscreen\gt9xx\goodix_tool.c

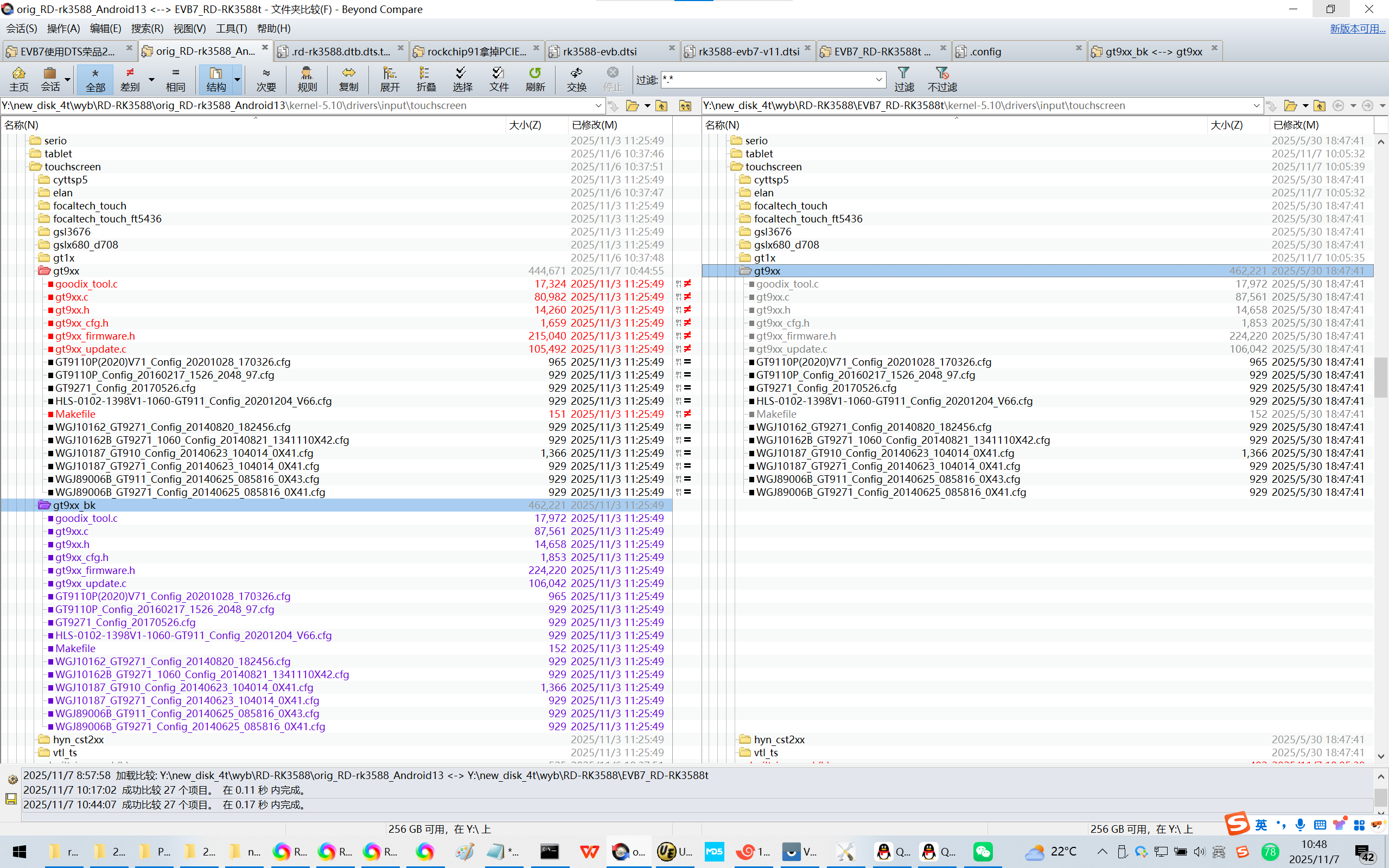

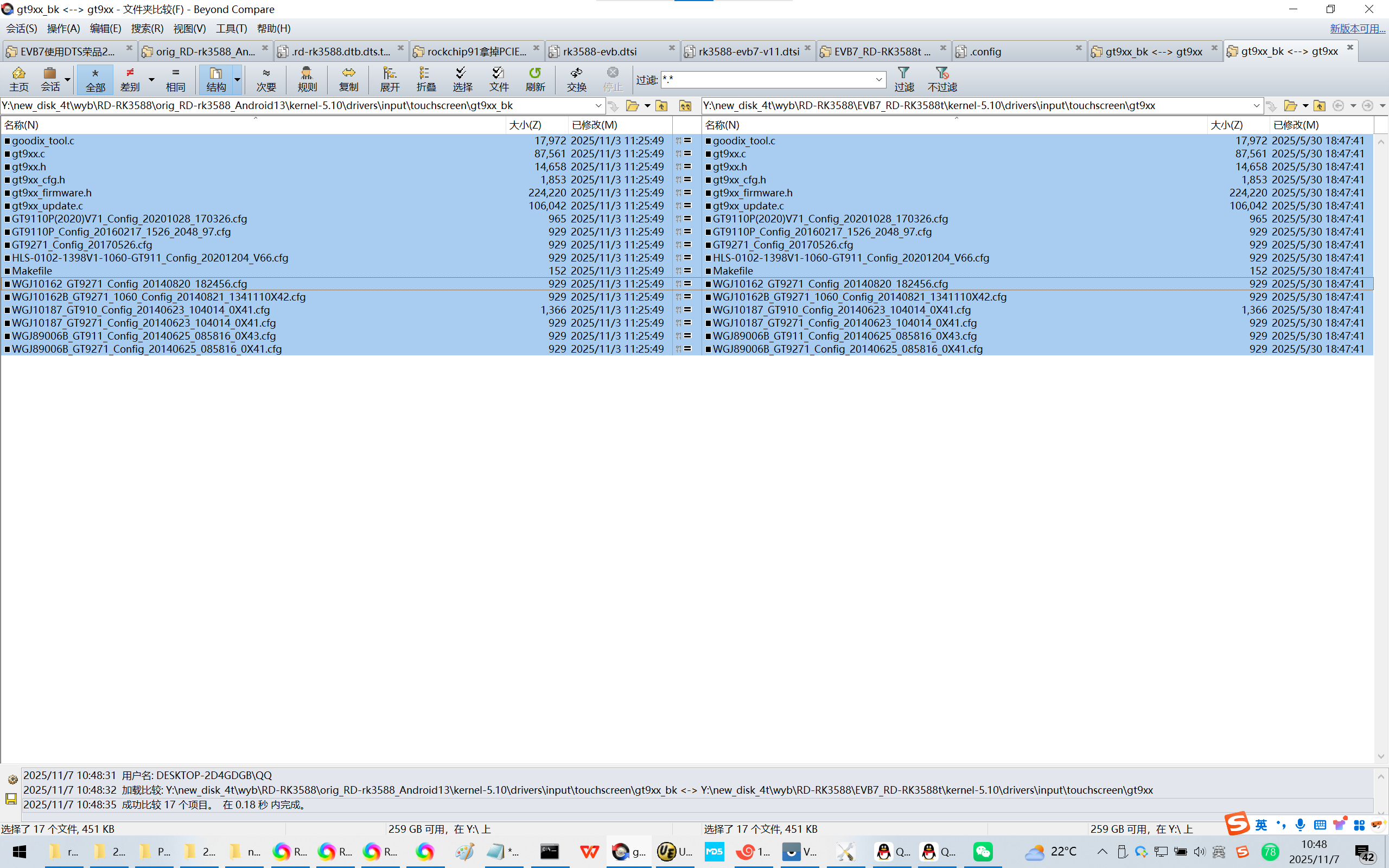

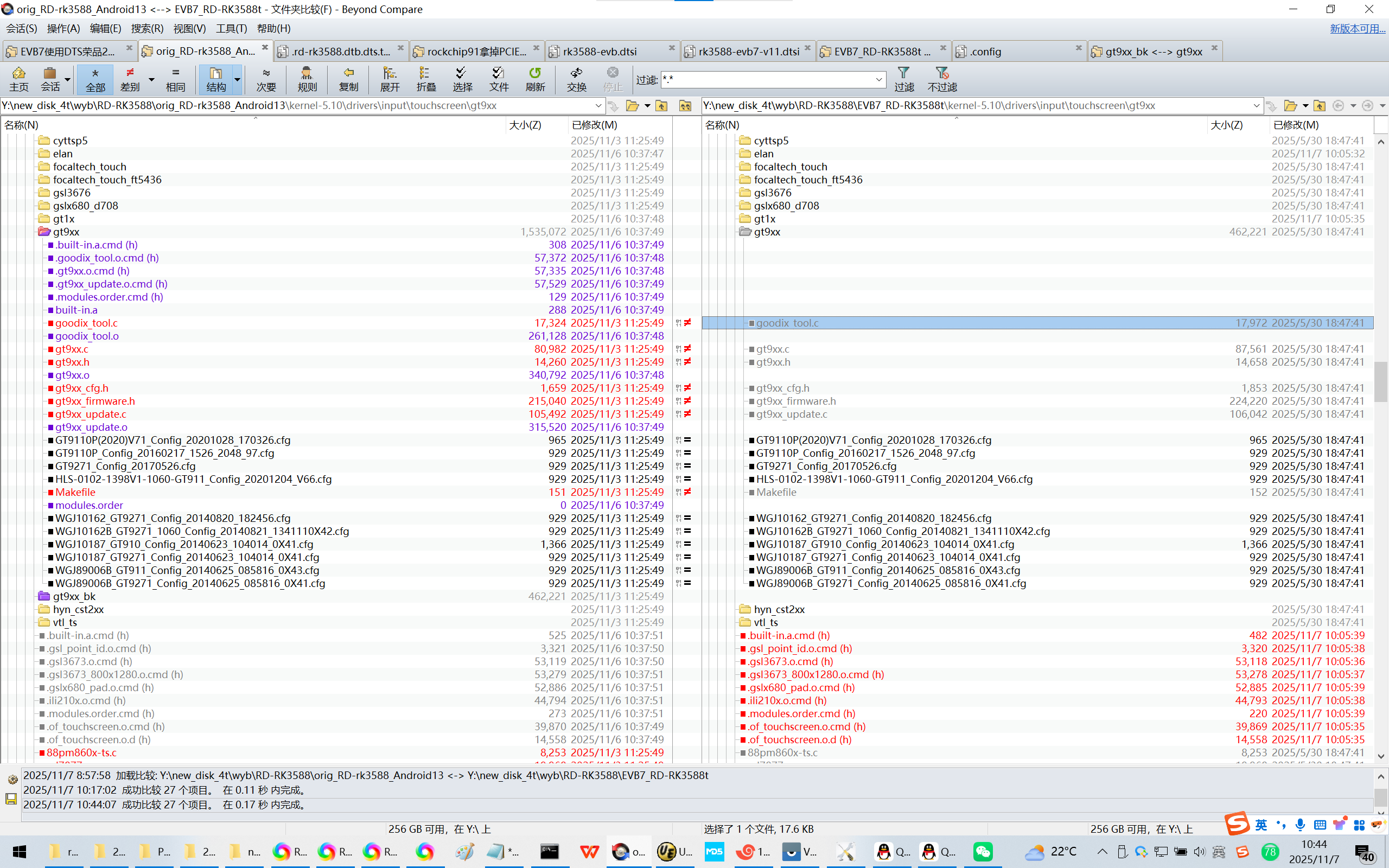

将Rockchip的原厂Android13系统中原版的gt9xx的驱动和 gt9xx_bk备份的比对，完全一致！^_
Y:\new_disk_4t\wyb\RD-RK3588\orig_RD-rk3588_Android13\kernel-5.10\drivers\input\touchscreen\gt9xx_bk\gt9xx.c
Y:\new_disk_4t\wyb\RD-RK3588\EVB7_RD-RK3588t\kernel-5.10\drivers\input\touchscreen\gt9xx\gt9xx.c

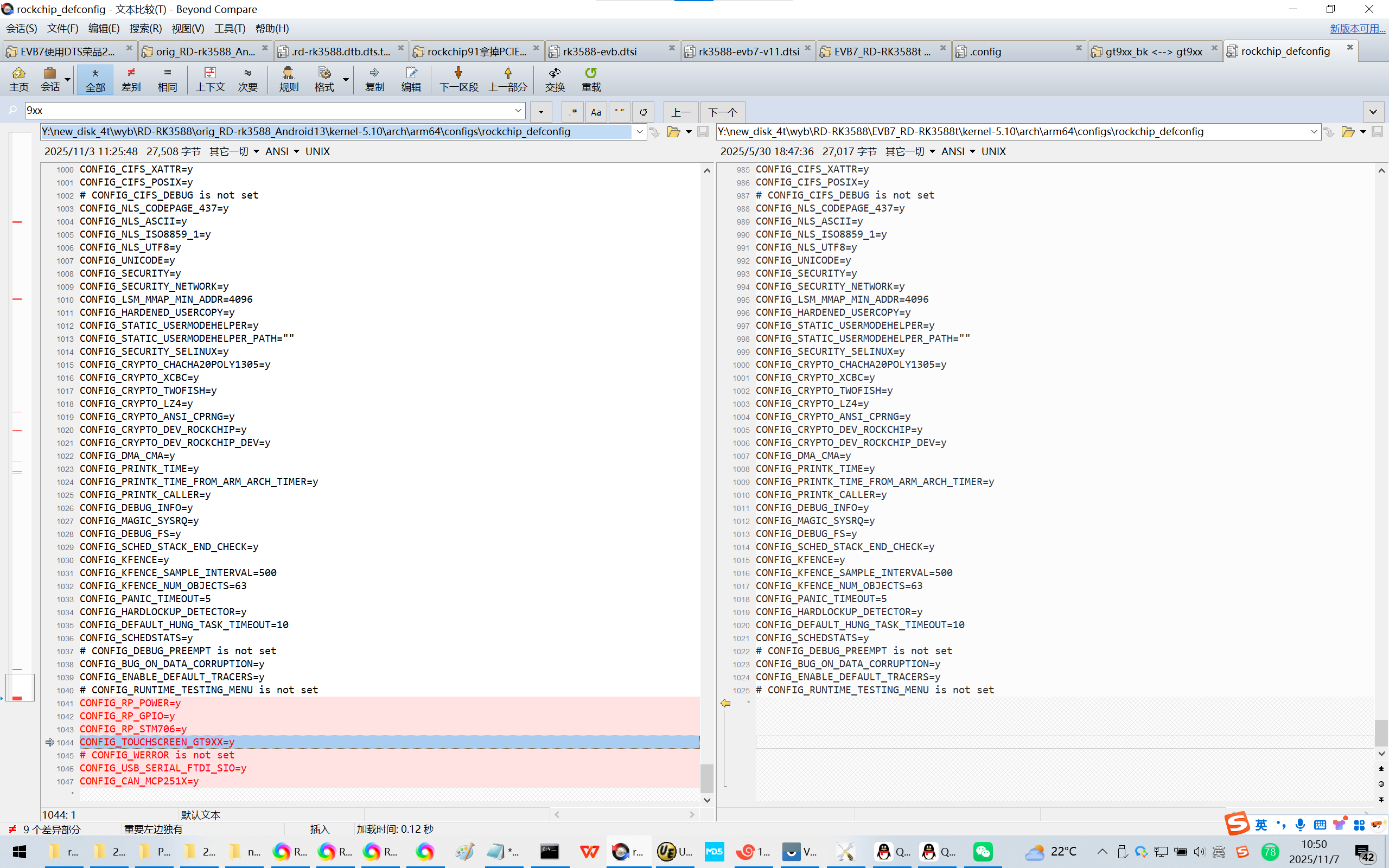

3、加载gt9xx的驱动程序
Y:\new_disk_4t\wyb\RD-RK3588\orig_RD-rk3588_Android13\kernel-5.10\arch\arm64\configs\rockchip_defconfig
Y:\new_disk_4t\wyb\RD-RK3588\EVB7_RD-RK3588t\kernel-5.10\arch\arm64\configs\rockchip_defconfig

# CONFIG_RUNTIME_TESTING_MENU is not set
CONFIG_RP_POWER=y
CONFIG_RP_GPIO=y
CONFIG_RP_STM706=y
CONFIG_TOUCHSCREEN_GT9XX=y
# CONFIG_WERROR is not set
CONFIG_USB_SERIAL_FTDI_SIO=y
CONFIG_CAN_MCP251X=y

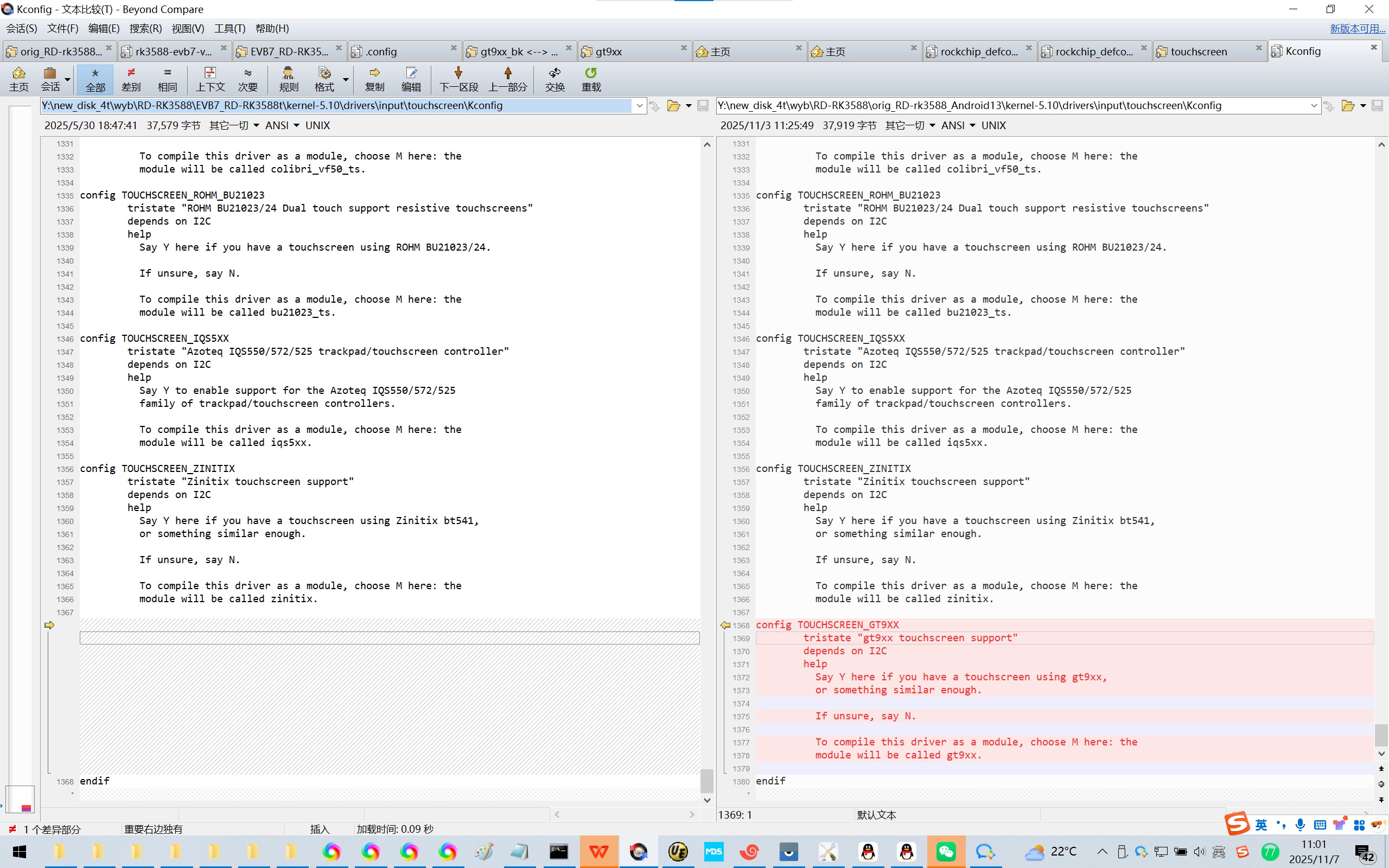

Y:\new_disk_4t\wyb\RD-RK3588\EVB7_RD-RK3588t\kernel-5.10\drivers\input\touchscreen\Kconfig
Y:\new_disk_4t\wyb\RD-RK3588\orig_RD-rk3588_Android13\kernel-5.10\drivers\input\touchscreen\Kconfig

config TOUCHSCREEN_ZINITIX
tristate "Zinitix touchscreen support"
depends on I2C
help
Say Y here if you have a touchscreen using Zinitix bt541,
or something similar enough.

If unsure, say N.

To compile this driver as a module, choose M here: the
module will be called zinitix.

config TOUCHSCREEN_GT9XX
tristate "gt9xx touchscreen support"
depends on I2C
help
Say Y here if you have a touchscreen using gt9xx,
or something similar enough.

If unsure, say N.

To compile this driver as a module, choose M here: the
module will be called gt9xx.

endif

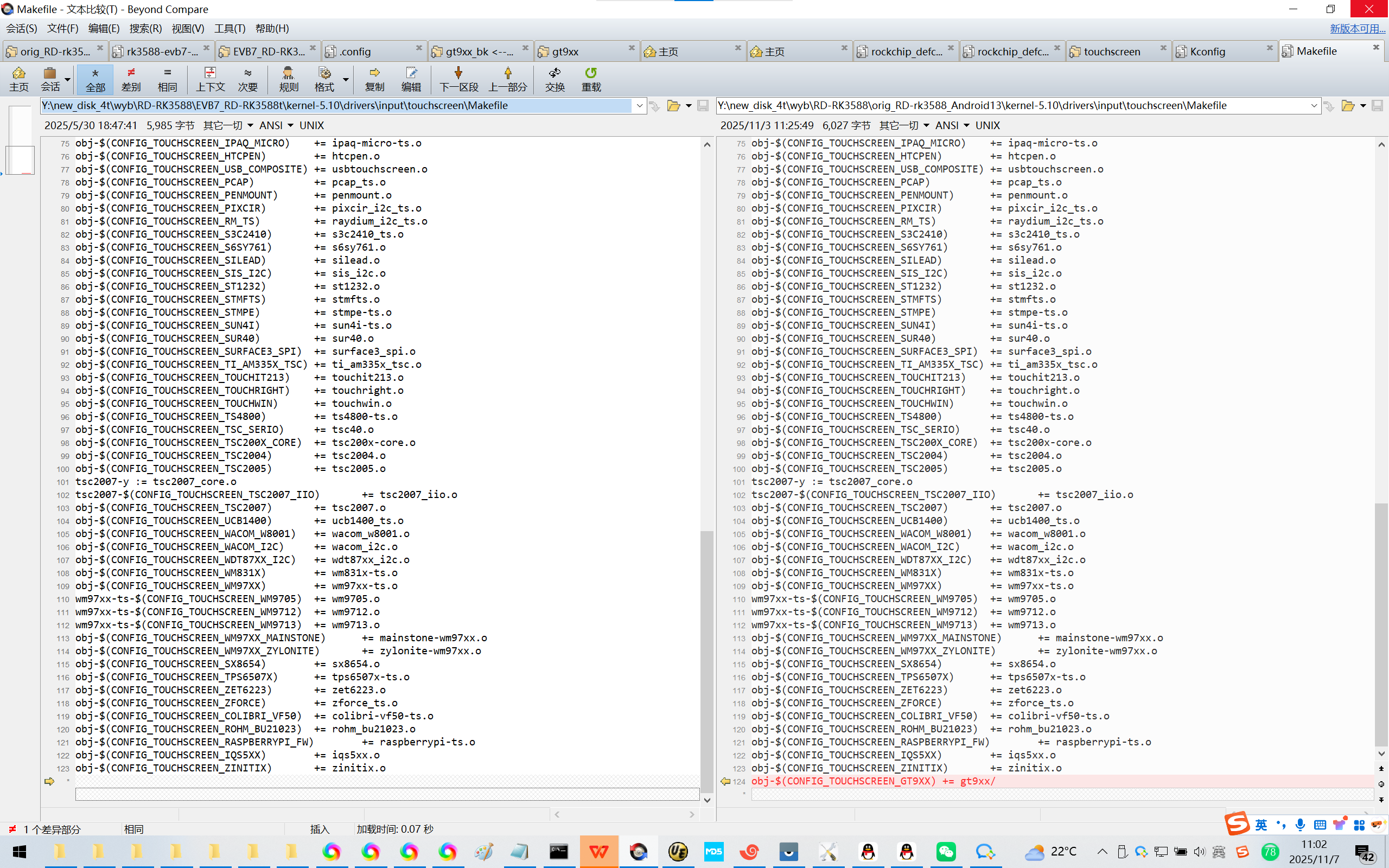

Y:\new_disk_4t\wyb\RD-RK3588\EVB7_RD-RK3588t\kernel-5.10\drivers\input\touchscreen\Makefile
Y:\new_disk_4t\wyb\RD-RK3588\orig_RD-rk3588_Android13\kernel-5.10\drivers\input\touchscreen\Makefile

obj-$(CONFIG_TOUCHSCREEN_ZINITIX) += zinitix.o
obj-$(CONFIG_TOUCHSCREEN_GT9XX) += gt9xx/

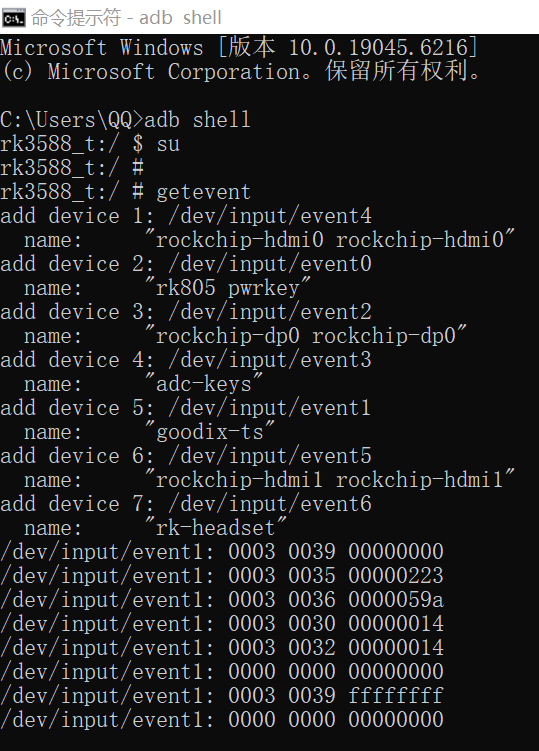

4、通过getevent确认CTP已经挂载了！
Microsoft Windows [版本 10.0.19045.6216]
(c) Microsoft Corporation。保留所有权利。

C:\Users\QQ>adb shell
rk3588_t:/ $ su
rk3588_t:/ #
rk3588_t:/ # getevent
add device 1: /dev/input/event4
name: "rockchip-hdmi0 rockchip-hdmi0"
add device 2: /dev/input/event0
name: "rk805 pwrkey"
add device 3: /dev/input/event2
name: "rockchip-dp0 rockchip-dp0"
add device 4: /dev/input/event3
name: "adc-keys"
add device 5: /dev/input/event1
name: "goodix-ts"
add device 6: /dev/input/event5
name: "rockchip-hdmi1 rockchip-hdmi1"
add device 7: /dev/input/event6
name: "rk-headset"
/dev/input/event1: 0003 0039 00000000
/dev/input/event1: 0003 0035 00000223
/dev/input/event1: 0003 0036 0000059a
/dev/input/event1: 0003 0030 00000014
/dev/input/event1: 0003 0032 00000014
/dev/input/event1: 0000 0000 00000000
/dev/input/event1: 0003 0039 ffffffff
/dev/input/event1: 0000 0000 00000000
^C
130|rk3588_t:/ #
