【第37章】Spring Cloud之Spring Cloud Stream分布式消息队列

---

前言

Spring Cloud Stream是一个框架，用于构建与共享消息传递系统连接的高度可扩展的事件驱动微服务。

入门篇请参考java中使用rabbitmq

接下来我们模拟场景：中秋节，商家给消费者发放大礼包，消费者凭收到信息提示核对中秋大礼包。

---

一、准备

1. 专业术语

• 目的地绑定器(Binders)：负责提供与外部消息系统集成的组件。

• 目标绑定(Bindings)：外部消息传递系统和最终用户提供的应用程序代码（生产者/消费者）之间的桥梁。

• 消息(Message)：生产者和消费者用于与目的地绑定器（以及通过外部消息系统与其他应用程序）通信的规范数据结构。

2. 版本关系

Spring Cloud Stream	Spring Cloud	Spring Boot
4.0.x	2022.0.x aka Kilburn	3.0.x
3.2.x	2021.0.x aka Jubilee	2.6.x, 2.7.x (Starting with 2021.0.3 of Spring Cloud)
3.1.x	2020.0.x aka Ilford	2.4.x, 2.5.x (Starting with 2020.0.3 of Spring Cloud)

3. 引入依赖

我们这里直接使用spring-cloud的starter

<!-- https://mvnrepository.com/artifact/org.springframework.cloud/spring-cloud-starter-stream-rabbit -->
<dependency><groupId>org.springframework.cloud</groupId><artifactId>spring-cloud-starter-stream-rabbit</artifactId>
</dependency>

二、核心服务

后端服务我们分为生产者(商家)和消费者(客户)

1. 生产者

1.1 生产者配置

spring:application:name: provider-servicerabbitmq:host: 192.168.145.128port: 5672username: guestpassword: guestvirtualHost: cloudcloud:stream:binders:rabbit1:type: rabbitenvironment:spring:rabbitmq:host: 192.168.145.128port: 5672username: guestpassword: guestvhost: cloudbindings:send-out-0:destination: zhongqiubinder: rabbit1

1.2 核心代码

package org.example.nacos.provider.controller;import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.stream.function.StreamBridge;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import java.util.concurrent.atomic.AtomicInteger;/*** Create by zjg on 2024/9/17*/
@RestController
@RequestMapping("/producer")
public class ProducerController {private final Logger logger = LoggerFactory.getLogger(TestController.class);@Autowiredprivate StreamBridge streamBridge;@RequestMapping("/send")public String send(@RequestParam("number") int number,@RequestParam("message") String message){logger.debug("本次发放"+number+"中秋大礼包");AtomicInteger count = new AtomicInteger(0);for (int i = 0; i < number; i++) {streamBridge.send("send-out-0",count.incrementAndGet()+" "+message);}return "SUCCESS";}
}

2. 消费者

2.1 消费者配置

spring:application:name: consumer-servicerabbitmq:host: 192.168.145.128port: 5672username: guestpassword: guestvirtualHost: cloudcloud:stream:binders:rabbit1:type: rabbitenvironment:spring:rabbitmq:host: 192.168.145.128port: 5672username: guestpassword: guestvhost: cloudbindings:receive-in-0:destination: zhongqiubinder: rabbit1group: customfunction:definition: receive;

2.2 核心代码

package org.example.nacos.consumer.amqp;import org.example.nacos.consumer.controller.TestController;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.function.Consumer;/*** Create by zjg on 2024/9/17*/
@Configuration
public class RabbitMQConsumer {private final Logger logger = LoggerFactory.getLogger(TestController.class);@Value("${server.port}")private int port;@Beanpublic Consumer<String> receive() {return s -> logger.info(port+":Data received..." + s);}
}

三、单元测试

1. 请求

2. 结果

生产者

2024-09-17 17:43:34.762 [TID: N/A] DEBUG 11124 [provider-service] [nio-9001-exec-5] o.e.n.p.controller.TestController       :23 : 本次发放10中秋大礼包

消费者

2024-09-17 17:49:53.160 [TID:N/A]  INFO 12756 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9003:Data received...2 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.257 [TID:N/A]  INFO 12756 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9003:Data received...4 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.260 [TID:N/A]  INFO 12756 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9003:Data received...6 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.262 [TID:N/A]  INFO 12756 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9003:Data received...9 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。2024-09-17 17:49:53.159 [TID: N/A]  INFO 12436 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9004:Data received...1 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.161 [TID: N/A]  INFO 12436 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9004:Data received...3 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.258 [TID: N/A]  INFO 12436 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9004:Data received...5 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.260 [TID: N/A]  INFO 12436 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9004:Data received...7 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.262 [TID: N/A]  INFO 12436 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9004:Data received...8 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。
2024-09-17 17:49:53.264 [TID: N/A]  INFO 12436 [consumer-service] [ongqiu.custom-1] o.e.n.c.controller.TestController       :23 : 9004:Data received...10 花好月圆,阖家欢乐,恭喜您获得中秋月饼大礼包一份。

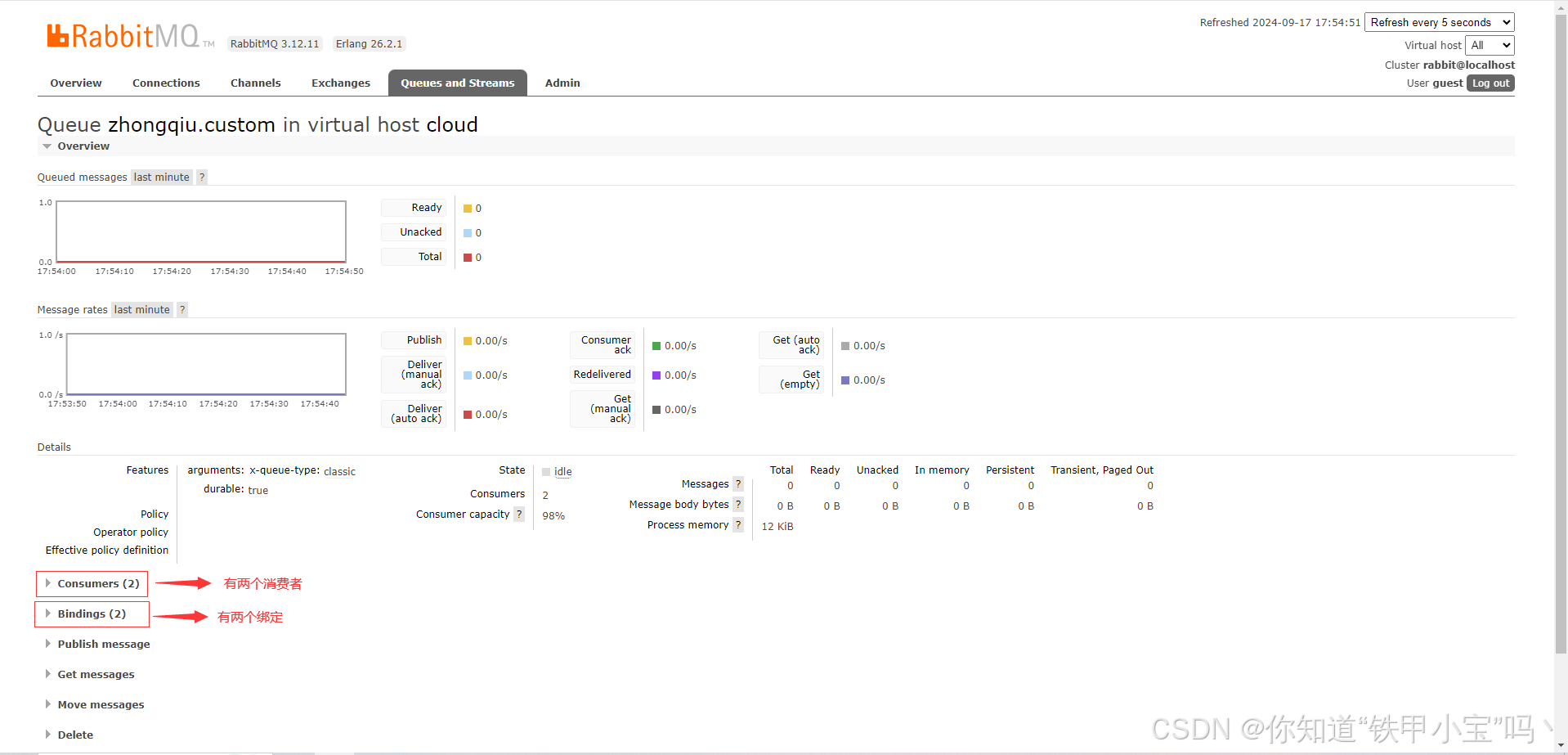

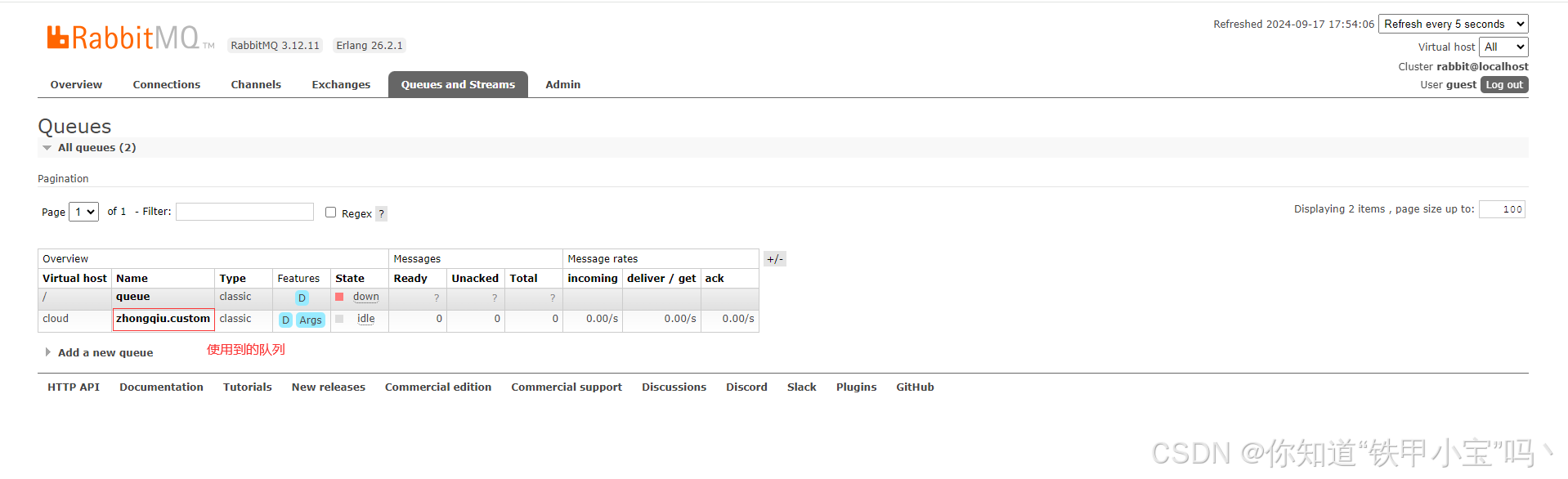

3. 控制台

---

总结

回到顶部
官方网站
官方文档
项目源码
官方案例

在这里祝大家，中秋快乐，阖家幸福，万事如意！
写了有一年了，我记得发布出去了，不晓得为啥在草稿箱，补发。
