STM32项目分享：避障小车设计

news 2025/10/31 15:59:07

“我们不做一锤子买卖，只做技术成长的长期伙伴！”

一、视频展示

二、项目简介

三、原理图设计

四、PCB硬件设计

五、程序设计

六、资料分享

一、视频展示

避障小车设计视频分享https://www.bilibili.com/video/BV1APsmzpEQm/?share_source=copy_web&vd_source=c55e01462f1c123460ecc885775129f8

二、项目简介

避障小车设计
1、能够实现按键控制小车启动、停止;
2、能够设置速度档位;
3、能够设置显示速度档位和行驶状态;
4、能够通过语音控制小车前进、后退、左转、右转、停止;
5、能够实现避障功能:
6、能够通过直流电池供电;
扩展:
1、能够实现手机蓝牙控制:
2、能够实现循迹功能;

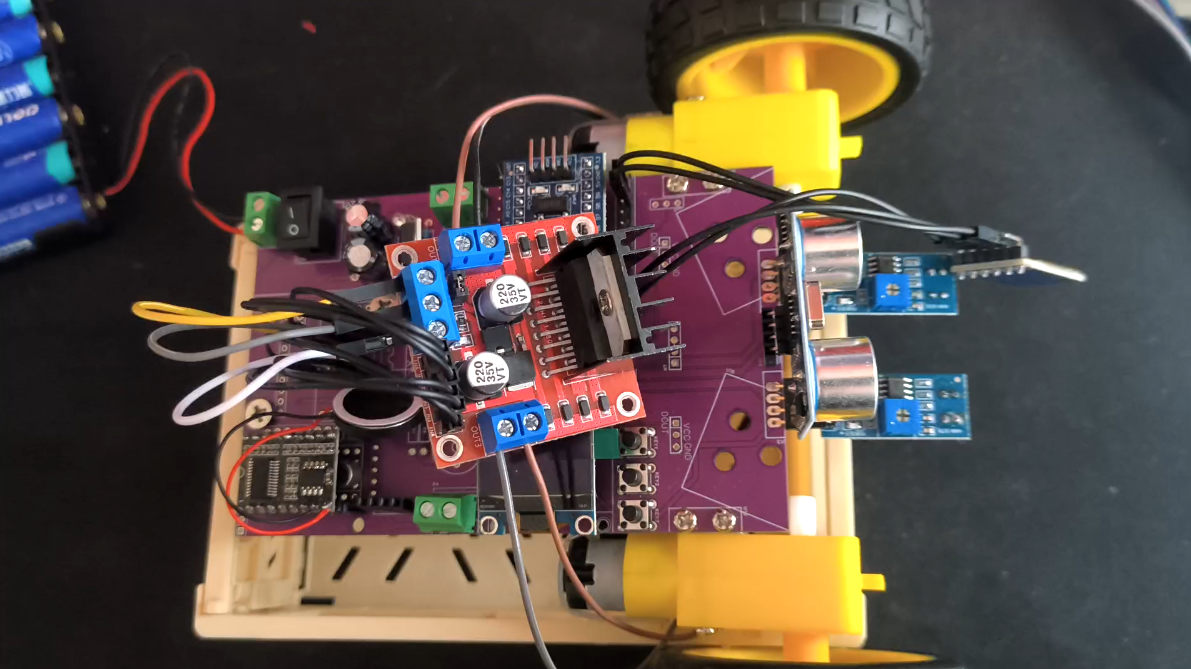

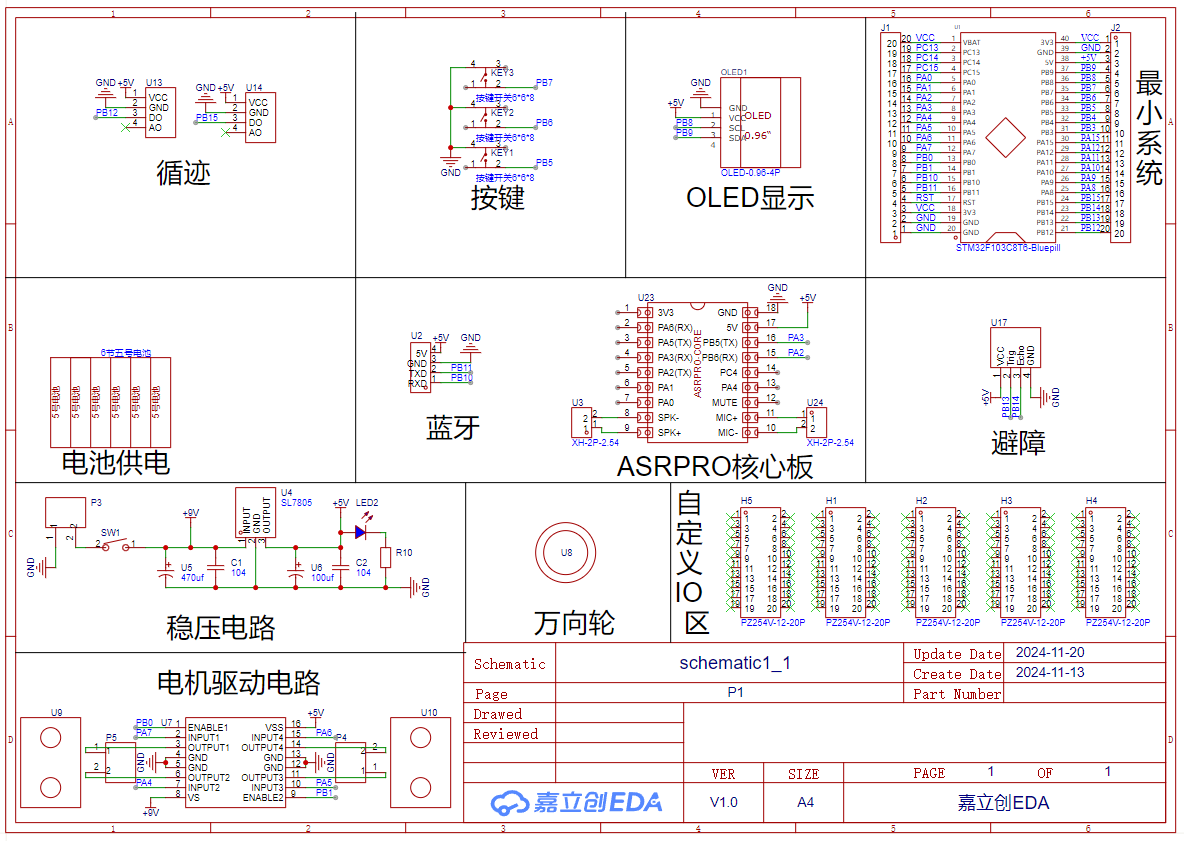

三、原理图设计

四、PCB硬件设计

五、程序设计

#include "stm32f10x.h"                  // Device header
#include "delay.h"
#include "lcd.h"
#include "timer.h"
#include "IOput.h"
#include "HW_Track.h"
#include "wave.h"
#include "usart.h"
#include "IRC.h"
#include "MOTOR.h"extern u8 res,res1;
u8 mode,set,speed,cound,speed_flag;
u8 step=70;void Wave(void)
{length = Senor_Using(); //超声波程序if(length>20){go(step,step);OLED_ShowCH(72,4,"前进");}else{time_count = 0;while(time_count <= 100){back(step,step);OLED_ShowCH(72,4,"后退");}time_count = 0;while(time_count <= 60){turn_left(step,step);OLED_ShowCH(72,4,"左转");}}
}void TrackWave(void)
{if(length>20){HW_Track(); //循迹程序OLED_ShowCH(72,4,"    ");JDQ=0;}else{stop();OLED_ShowCH(72,4,"停止");JDQ=1;}length = Senor_Using(); //超声波程序
