【穿越Effective C++】条款7：为多态基类声明virtual析构函数——C++多态资源管理的基石

news 2025/10/29 17:00:12

这个条款揭示了C++多态体系中最重要的规则之一：通过基类指针删除派生类对象时，如果基类没有虚析构函数，将导致资源泄漏和未定义行为。这是理解C++对象生命周期和多态设计的核心。

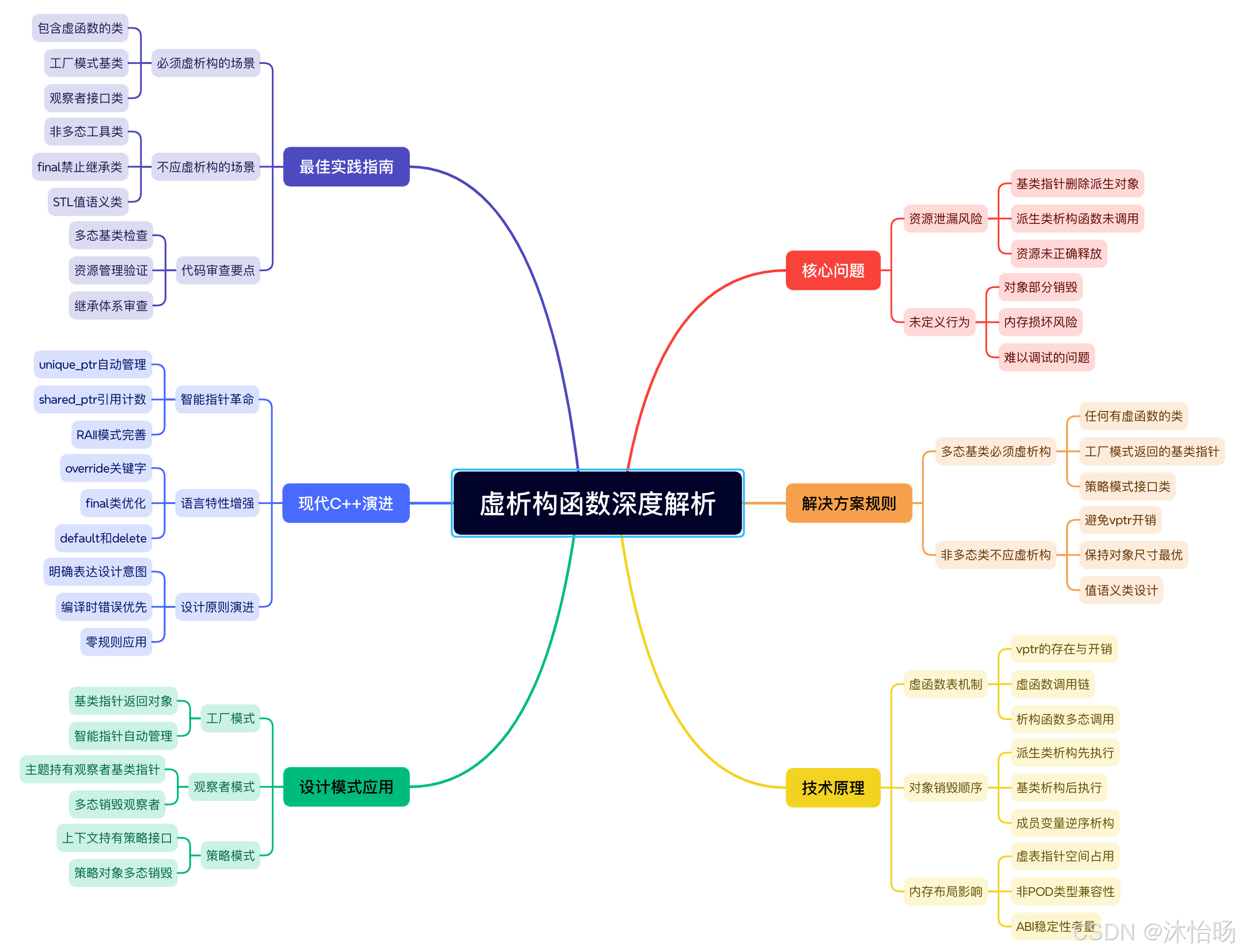

思维导图：虚析构函数的完整体系

在这里插入图片描述

深入解析：虚析构函数的核心价值

1. 问题根源：多态删除的资源泄漏

危险的基类设计：

// 错误示例：多态基类没有虚析构函数
class TimeKeeper {
public:TimeKeeper() = default;~TimeKeeper() { std::cout << "TimeKeeper析构" << std::endl; } // 非虚析构！virtual void getTime() { /* 获取时间 */ }
};class AtomicClock : public TimeKeeper {
private:int* heap_resource;  // 派生类独有的堆资源std::vector<double> data_cache; // 更多派生类资源public:AtomicClock() : heap_resource(new int(42)) {data_cache.resize(1000); // 分配额外资源}~AtomicClock() { delete heap_resource;  // 释放派生类资源std::cout << "AtomicClock析构" << std::endl; }
};void demonstrate_catastrophic_leak() {TimeKeeper* ptk = new AtomicClock();  // 基类指针指向派生类对象ptk->getTime();                       // 多态调用，正常工作delete ptk;  // 灾难！只调用TimeKeeper::~TimeKeeper()// AtomicClock::~AtomicClock()永远不会调用// heap_resource和data_cache内存泄漏！
}

运行结果分析：

TimeKeeper析构

注意：AtomicClock析构永远不会输出，派生类的资源永远泄漏！

2. 解决方案：简单的虚析构声明

正确的基类设计：

// 正确示例：多态基类有虚析构函数
class TimeKeeper {
public:TimeKeeper() = default;virtual ~TimeKeeper() { std::cout << "TimeKeeper析构" << std::endl; } // 虚析构！virtual void getTime() { /* 获取时间 */ }
};class AtomicClock : public TimeKeeper {
private:int* heap_resource;std::vector<double> data_cache;public:AtomicClock() : heap_resource(new int(42)) {data_cache.resize(1000);}~AtomicClock() override { delete heap_resource;  // 正确释放！std::cout << "AtomicClock析构" << std::endl; }
};void demonstrate_correct_behavior() {TimeKeeper* ptk = new AtomicClock();ptk->getTime();delete ptk;  // 正确！调用AtomicClock::~AtomicClock()，然后TimeKeeper::~TimeKeeper()
}

运行结果分析：

AtomicClock析构
TimeKeeper析构

派生类和基类的析构函数都被正确调用，资源完全释放。

技术原理深度解析

1. 虚函数表机制与析构链

对象销毁的多态调用过程：

class Base {
public:virtual ~Base() { std::cout << "Base析构: " << this << std::endl; }virtual void operation() { std::cout << "Base操作" << std::endl; }
};class Derived : public Base {
private:std::string resource;public:Derived(const std::string& res) : resource(res) {}~Derived() override { std::cout << "Derived析构，释放资源: " << resource << std::endl; }void operation() override {std::cout << "Derived操作，使用资源: " << resource << std::endl;}
};// 编译器生成的伪代码大致如下：
void polymorphic_destruction(Base* obj) {// 1. 通过虚表找到正确的析构函数auto vtable = *(void***)obj;  // 获取虚表指针auto destructor = (void(*)(void*))vtable[0]; // 析构函数在虚表第一个位置// 2. 调用派生类析构函数destructor(obj);// 3. 最终释放内存operator delete(obj);
}

2. 纯虚析构函数的特殊用法

抽象基类的设计模式：

// 抽象基类：包含纯虚析构函数
class AbstractDatabase {
public:virtual ~AbstractDatabase() = 0;  // 纯虚析构函数virtual void connect() = 0;virtual void disconnect() = 0;virtual void execute(const std::string& query) = 0;// 非虚接口模式void runTransaction(const std::string& query) {connect();execute(query);disconnect();}
};// 关键：纯虚析构函数必须提供定义！
AbstractDatabase::~AbstractDatabase() {std::cout << "AbstractDatabase基础清理完成" << std::endl;
}class MySQLDatabase : public AbstractDatabase {
private:MYSQL* connection_;std::string connection_string_;public:explicit MySQLDatabase(const std::string& conn_str) : connection_string_(conn_str), connection_(nullptr) {}void connect() override {std::cout << "连接MySQL: " << connection_string_ << std::endl;// 实际连接逻辑}void disconnect() override {std::cout << "断开MySQL连接" << std::endl;// 实际断开逻辑}void execute(const std::string& query) override {std::cout << "执行MySQL查询: " << query << std::endl;// 实际执行逻辑}~MySQLDatabase() override {if (connection_) {disconnect();}std::cout << "MySQLDatabase资源完全释放" << std::endl;}
};

实战案例：现代C++设计模式

案例1：图形系统的多态体系

// 现代图形绘制系统的多态体系
class Drawable {
public:virtual ~Drawable() = default;  // 关键：虚析构函数virtual void draw() const = 0;virtual double area() const = 0;virtual std::string name() const = 0;// C++11现代特性：明确禁止拷贝Drawable(const Drawable&) = delete;Drawable& operator=(const Drawable&) = delete;// 允许移动语义Drawable(Drawable&&) = default;Drawable& operator=(Drawable&&) = default;protected:Drawable() = default;
};class Circle : public Drawable {
private:double radius_;std::vector<double> rendering_cache_;  // 渲染缓存资源mutable std::mutex cache_mutex_;       // 线程安全保护public:explicit Circle(double radius) : radius_(radius) {rendering_cache_.resize(1000);  // 模拟大量渲染资源std::cout << "Circle分配渲染缓存" << std::endl;}void draw() const override {std::lock_guard<std::mutex> lock(cache_mutex_);std::cout << "绘制圆形，半径: " << radius_ << std::endl;}double area() const override {return 3.14159 * radius_ * radius_;}std::string name() const override {return "Circle";}~Circle() override {std::cout << "Circle释放渲染缓存，半径=" << radius_ << std::endl;}
};class Rectangle : public Drawable {
private:double width_, height_;std::unique_ptr<double[]> vertex_data_;  // 顶点数据智能指针管理public:Rectangle(double w, double h) : width_(w), height_(h), vertex_data_(std::make_unique<double[]>(8)) {std::cout << "Rectangle分配顶点数据" << std::endl;}void draw() const override {std::cout << "绘制矩形 " << width_ << "x" << height_ << std::endl;}double area() const override {return width_ * height_;}std::string name() const override {return "Rectangle";}// 不需要显式析构函数 - unique_ptr自动管理
};// 现代工厂模式
class ShapeFactory {
public:static std::unique_ptr<Drawable> createShape(const std::string& type, double param1, double param2 = 0) {if (type == "circle") return std::make_unique<Circle>(param1);if (type == "rectangle") return std::make_unique<Rectangle>(param1, param2);return nullptr;}
};void demonstrate_modern_graphics() {std::vector<std::unique_ptr<Drawable>> scene;// 创建各种图形对象scene.push_back(ShapeFactory::createShape("circle", 10.0));scene.push_back(ShapeFactory::createShape("rectangle", 5.0, 8.0));scene.push_back(ShapeFactory::createShape("circle", 15.0));// 渲染场景for (const auto& shape : scene) {std::cout << "渲染: " << shape->name() << ", 面积: " << shape->area() << std::endl;shape->draw();}std::cout << "场景结束，开始清理..." << std::endl;// scene离开作用域时，所有资源自动正确释放// 因为Drawable有虚析构函数，unique_ptr能正确调用各派生类析构函数
}

案例2：游戏引擎的组件系统

// 游戏引擎实体组件系统
class Component {
public:virtual ~Component() = default;  // 多态基类必须虚析构virtual void update(float deltaTime) = 0;virtual void render() = 0;virtual std::string getType() const = 0;// 现代C++特性Component(const Component&) = delete;Component& operator=(const Component&) = delete;protected:Component() = default;
};class PhysicsComponent : public Component {
private:std::vector<float> collision_data_;std::unique_ptr<class PhysicsBody> physics_body_;public:PhysicsComponent() {collision_data_.resize(256);  // 碰撞数据缓存physics_body_ = std::make_unique<PhysicsBody>();std::cout << "PhysicsComponent初始化物理系统" << std::endl;}void update(float deltaTime) override {std::cout << "物理更新: " << deltaTime << "秒" << std::endl;// 物理模拟逻辑}void render() override {std::cout << "渲染物理调试信息" << std::endl;}std::string getType() const override {return "PhysicsComponent";}~PhysicsComponent() override {std::cout << "PhysicsComponent清理物理资源" << std::endl;}
};class RenderComponent : public Component {
private:std::shared_ptr<class Texture> texture_;std::vector<float> vertex_buffer_;std::vector<uint32_t> index_buffer_;public:RenderComponent() {vertex_buffer_.resize(1024);  // 顶点缓冲区index_buffer_.resize(2048);   // 索引缓冲区std::cout << "RenderComponent分配图形资源" << std::endl;}void update(float deltaTime) override {// 动画更新等std::cout << "渲染组件更新" << std::endl;}void render() override {std::cout << "执行渲染命令" << std::endl;// 实际渲染逻辑}std::string getType() const override {return "RenderComponent";}~RenderComponent() override {std::cout << "RenderComponent释放图形资源" << std::endl;}
};// 游戏实体管理组件
class GameEntity {
private:std::vector<std::unique_ptr<Component>> components_;public:template<typename T, typename... Args>void addComponent(Args&&... args) {components_.push_back(std::make_unique<T>(std::forward<Args>(args)...));}void updateAll(float deltaTime) {for (const auto& component : components_) {component->update(deltaTime);}}void renderAll() {for (const auto& component : components_) {component->render();}}// 自动管理所有组件的生命周期// 因为Component有虚析构函数，所有派生组件都能正确清理
};

不应使用虚析构函数的场景

1. 非多态工具类优化

// 不应使用虚析构函数的场景 - 值语义类
class Vector3D {  // 数学向量类，非多态，值语义
public:Vector3D(double x, double y, double z) : x_(x), y_(y), z_(z) {}// 不需要虚析构函数！避免不必要的虚表指针开销~Vector3D() = default;// 值语义操作Vector3D operator+(const Vector3D& other) const {return Vector3D(x_ + other.x_, y_ + other.y_, z_ + other.z_);}double dot(const Vector3D& other) const {return x_ * other.x_ + y_ * other.y_ + z_ * other.z_;}double length() const {return std::sqrt(x_ * x_ + y_ * y_ + z_ * z_);}private:double x_, y_, z_;
};// 性能敏感的数据结构
class FixedSizeArray {
public:static constexpr size_t SIZE = 1000;FixedSizeArray() {std::fill(data_, data_ + SIZE, 0);}// 明确禁止继承 - 不需要虚析构函数~FixedSizeArray() = default;double& operator[](size_t index) {return data_[index];}private:double data_[SIZE];
};void demonstrate_performance_impact() {std::cout << "Vector3D大小: " << sizeof(Vector3D) << " 字节" << std::endl;          // 24字节 (3*8)class Vector3DWithVirtual {double x, y, z;public:virtual ~Vector3DWithVirtual() = default;  // 不必要的虚析构};std::cout << "Vector3DWithVirtual大小: " << sizeof(Vector3DWithVirtual) << " 字节" << std::endl;  // 32字节 (3*8 + 8虚表指针)// 在大量使用时，24字节 vs 32字节有显著的内存和缓存影响
}

2. STL兼容性和final类优化

// STL风格容器 - 不应使用虚析构函数
template<typename T>
class SimpleVector {
private:T* data_;size_t size_;size_t capacity_;public:SimpleVector() : data_(nullptr), size_(0), capacity_(0) {}~SimpleVector() {  // 非虚析构函数delete[] data_;}// 值语义 - 需要拷贝控制SimpleVector(const SimpleVector& other);SimpleVector& operator=(const SimpleVector& other);// 不应该从这个类继承！
};// C++11 final类优化
class MathUtilities final {  // final类：明确禁止继承
public:static double pi() { return 3.141592653589793; }static double degreesToRadians(double degrees) {return degrees * pi() / 180.0;}// 不需要虚析构函数！~MathUtilities() = default;// 明确禁止构造MathUtilities() = delete;private:// 所有功能通过静态方法提供
};// 错误尝试继承final类
// class ExtendedMath : public MathUtilities { };  // 编译错误

现代C++最佳实践

1. 明确的设计意图表达

// 现代C++多态基类设计模板
class PolymorphicBase {
public:// 明确表达多态意图virtual ~PolymorphicBase() = default;// 明确禁止拷贝（多态对象通常不应拷贝）PolymorphicBase(const PolymorphicBase&) = delete;PolymorphicBase& operator=(const PolymorphicBase&) = delete;// 允许移动（如果合理）PolymorphicBase(PolymorphicBase&&) = default;PolymorphicBase& operator=(PolymorphicBase&&) = default;// 纯虚函数定义接口virtual void perform() = 0;protected:PolymorphicBase() = default;  // 保护构造，只能通过派生类创建
};// 具体实现类使用override明确意图
class ConcreteImplementation : public PolymorphicBase {
public:void perform() override {std::cout << "具体实现工作" << std::endl;}// C++11 override关键字明确析构函数意图~ConcreteImplementation() override = default;
};

2. 智能指针与RAII自动管理

class NetworkConnection {
public:virtual ~NetworkConnection() = default;virtual void send(const std::string& data) = 0;virtual std::string receive() = 0;virtual bool isConnected() const = 0;// 工厂方法返回智能指针static std::unique_ptr<NetworkConnection> createTcp(const std::string& host, int port);static std::unique_ptr<NetworkConnection> createUdp(const std::string& host, int port);
};// 使用现代RAII模式
void modern_network_management() {// 自动生命周期管理auto connection = NetworkConnection::createTcp("example.com", 8080);if (connection->isConnected()) {connection->send("Hello Server");auto response = connection->receive();std::cout << "收到响应: " << response << std::endl;}// 不需要手动delete - 离开作用域时自动调用正确析构函数// 即使NetworkConnection有多个派生类也能正确处理
}
