PVE的current接口分析笔记

news 2025/10/28 13:56:11

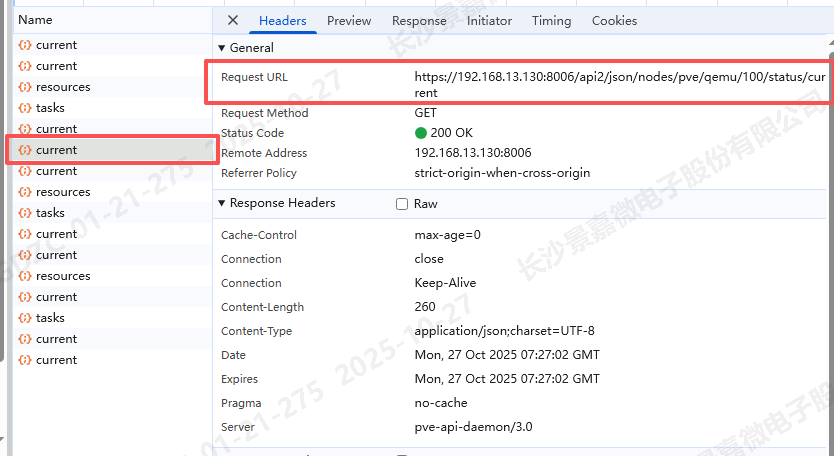

1、收到http的get请求

pve：node的节点名称

100：虚拟机ID

https://192.168.13.130:8006/api2/json/nodes/pve/qemu/100/status/current

2、nodes.pm通过PVE::API2::Qemu引用qemu.pm

__PACKAGE__->register_method({subclass => "PVE::API2::Qemu",path => 'qemu',
});

3、找到status/current注册的函数

代码处理

__PACKAGE__->register_method({name => 'vm_status',path => '{vmid}/status/current',method => 'GET',proxyto => 'node',protected => 1, # qemu pid files are only readable by rootdescription => "Get virtual machine status.",permissions => {check => ['perm', '/vms/{vmid}', ['VM.Audit']],},parameters => {additionalProperties => 0,properties => {node => get_standard_option('pve-node'),vmid => get_standard_option('pve-vmid'),},},returns => {type => 'object',properties => {%$PVE::QemuServer::vmstatus_return_properties,ha => {description => "HA manager service status.",type => 'object',},spice => {description => "QEMU VGA configuration supports spice.",type => 'boolean',optional => 1,},agent => {description => "QEMU Guest Agent is enabled in config.",type => 'boolean',optional => 1,},clipboard => {description => 'Enable a specific clipboard. If not set, depending on'. ' the display type the SPICE one will be added.',type => 'string',enum => ['vnc'],optional => 1,},},},code => sub {my ($param) = @_;# test if VM existsmy $conf = PVE::QemuConfig->load_config($param->{vmid});my $vmstatus = PVE::QemuServer::vmstatus($param->{vmid}, 1);my $status = $vmstatus->{ $param->{vmid} };$status->{ha} = PVE::HA::Config::get_service_status("vm:$param->{vmid}");if ($conf->{vga}) {my $vga = PVE::QemuServer::parse_vga($conf->{vga});my $spice = defined($vga->{type}) && $vga->{type} =~ /^virtio/;$spice ||= PVE::QemuServer::vga_conf_has_spice($conf->{vga});$status->{spice} = 1 if $spice;$status->{clipboard} = $vga->{clipboard};}$status->{agent} = 1 if PVE::QemuServer::get_qga_key($conf, 'enabled');return $status;},
});

返回的内容

{
    "data": {
        "qmpstatus": "stopped",
        "vmid": 100,
        "disk": 0,
        "mem": 0,
        "uptime": 0,
        "maxdisk": 53687091200,
        "status": "stopped",
        "ha": {
            "managed": 0
        },
        "maxmem": 2147483648,
        "diskread": 0,
        "template": 1,
        "cpus": 4,
        "name": "kylin-v10-desktop",
        "netin": 0,
        "cpu": 0,
        "diskwrite": 0,
        "netout": 0
    }
}
