raid恢复之后数据库故障处理(ora-01200,ORA-26101,ORA-600)---惜分飞

一个客户硬件故障,进行了raid恢复之后,数据库启动异常,尝试启动发现一系列错误
先遇到了ORA-01200错误(文件实际大小小于文件头记录的block大小)

SQL> recover database; ORA-00283: 恢复会话因错误而取消 ORA-01110: 数据文件 2: 'H:\BAIDUNETDISK\ORCL\SYSAUX01.DBF' ORA-01122: 数据库文件 2 验证失败 ORA-01110: 数据文件 2: 'H:\BAIDUNETDISK\ORCL\SYSAUX01.DBF' ORA-01200: 2727680 的实际文件大小小于 2728960 块的正确大小

这个错误相对比较简单,通过bbed修改文件大小或者对文件大小进行补全也可以解决,以前有过类似case:
bbed处理ORA-01200故障
记录一次ORA-01200完美恢复
ORA-01122 ORA-01200故障处理
处理好这个故障之后,尝试恢复数据库报ORA-26101

Sat Oct 18 17:15:32 2025 ALTER DATABASE RECOVER  database  Media Recovery Start  started logmerger process Sat Oct 18 17:15:32 2025 WARNING! Recovering data file 1 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 7 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 8 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 12 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 15 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 18 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 19 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 21 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 23 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 26 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 27 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. WARNING! Recovering data file 31 from a fuzzy backup. It might be an online backup taken without entering the begin backup command. Read of datafile 'H:\BAIDUNETDISK\ORCL\ZL9INDEXMTL.DBF' (fno 32) header failed with ORA-26101 Rereading datafile 32 header failed with ORA-26101 Media Recovery failed with error 1110 Sat Oct 18 17:15:32 2025 Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_m000_16516.trc: ORA-00314: 日志 1 (用于线程 1) 要求的 sequence# 112942 与 112939 不匹配 ORA-00312: 联机日志 1 线程 1: 'H:\BAIDUNETDISK\ORCL\REDO01.LOG' Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_m000_16516.trc: ORA-00314: 日志 2 (用于线程 1) 要求的 sequence# 112943 与 112940 不匹配 ORA-00312: 联机日志 2 线程 1: 'H:\BAIDUNETDISK\ORCL\REDO02.LOG' Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_m000_16516.trc: ORA-00314: 日志 3 (用于线程 1) 要求的 sequence# 112941 与 112938 不匹配 ORA-00312: 联机日志 3 线程 1: 'H:\BAIDUNETDISK\ORCL\REDO03.LOG' Recovery Slave PR00 previously exited with exception 283 ORA-283 signalled during: ALTER DATABASE RECOVER  database  ...

ORA-26101错误原因是由于控制文件中的表空间号和数据文件头的不一致

[oracle@iZbp11c0qyuuo1gr7j98upZ ~]$ oerr ora 26101 26101, 00000, "tablespace # in file header is %s rather than %s for file %s" // *Cause:  The tablespace number in the file header is inconsistent //          with that in the control file. // *Action: Check if the control file has been migrated correctly.  Retry //          with the correct control file and data file.

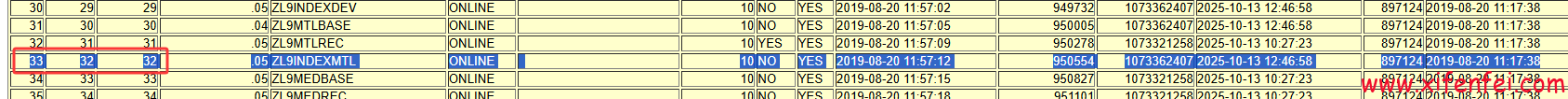

通过Oracle数据库异常恢复检查脚本(Oracle Database Recovery Check)检查结果核对32号文件的表空间信息(分别取自v$datafile和v$datafile_header)




尝试重建控制文件,报ORA-600 2130错误

SQL> alter database backup controlfile to trace as 'd:/ctl.txt'; alter database backup controlfile to trace as 'd:/ctl.txt' * 第 1 行出现错误: ORA-00600: 内部错误代码, 参数: [2130], [52196], [2298], [5], [], [], [], [],[], [], [], []

至此基本上可以确认控制文件可能异常了,使用dbv进行验证,确认控制文件损坏

C:\Users\XFF>dbv file=H:\BaiduNetdisk\orcl\CONTROL01.CTL blocksize=16384 DBVERIFY: Release 11.2.0.4.0 - Production on 星期日 10月 19 15:30:24 2025 Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved. DBVERIFY - 开始验证: FILE = H:\BaiduNetdisk\orcl\CONTROL01.CTL 页 13 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x0000000d (file 0, block 13) Fractured block found during dbv: Data in bad block:  type: 21 format: 2 rdba: 0x0000000d  last change scn: 0x0000.00000000 seq: 0x1 flg: 0x04  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x00b41501  check value in block header: 0xd318  computed block checksum: 0xb4 页 17 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x00000011 (file 0, block 17) Fractured block found during dbv: Data in bad block:  type: 21 format: 2 rdba: 0x00000011  last change scn: 0xffff.00221b1d seq: 0x1 flg: 0x04  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x1b791501  check value in block header: 0x8ee0  computed block checksum: 0x64 页 21 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x00000015 (file 0, block 21) Fractured block found during dbv: Data in bad block:  type: 21 format: 2 rdba: 0x00000015  last change scn: 0xffff.00221b64 seq: 0x1 flg: 0x04  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x1bb41501  check value in block header: 0xdd09  computed block checksum: 0xd0 页 25 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x00000019 (file 0, block 25) Fractured block found during dbv: Data in bad block:  type: 21 format: 2 rdba: 0x00000019  last change scn: 0xffff.00221ba7 seq: 0x1 flg: 0x04  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x1ba31501  check value in block header: 0x47b2  computed block checksum: 0x4 页 29 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x0000001d (file 0, block 29) Fractured block found during dbv: Data in bad block:  type: 0 format: 2 rdba: 0x0000001d  last change scn: 0x0000.000000d4 seq: 0x1 flg: 0x05  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x00000001  check value in block header: 0xc719  computed block checksum: 0xd4 页 277 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x00000115 (file 0, block 277) Fractured block found during dbv: Data in bad block:  type: 0 format: 2 rdba: 0x00000115  last change scn: 0x0000.00000000 seq: 0x1 flg: 0x05  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x009b0001  check value in block header: 0xc615  computed block checksum: 0x9b 页 281 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x00000119 (file 0, block 281) Fractured block found during dbv: Data in bad block:  type: 21 format: 2 rdba: 0x00000119  last change scn: 0xffff.00221bcd seq: 0x1 flg: 0x04  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x1b561501  check value in block header: 0xea78  computed block checksum: 0x9b 页 321 流入 - 很可能是介质损坏 Corrupt block relative dba: 0x00000141 (file 0, block 321) Fractured block found during dbv: Data in bad block:  type: 21 format: 2 rdba: 0x00000141  last change scn: 0xffff.00221b7a seq: 0x1 flg: 0x04  spare1: 0x0 spare2: 0x0 spare3: 0x0  consistency value in tail: 0x1b9a1501  check value in block header: 0xc645  computed block checksum: 0xe0 DBVERIFY - 验证完成 检查的页总数: 624 处理的页总数 (数据): 0 失败的页总数 (数据): 0 处理的页总数 (索引): 0 失败的页总数 (索引): 0 处理的页总数 (其他): 74 处理的总页数 (段)  : 0 失败的总页数 (段)  : 0 空的页总数: 542 标记为损坏的总页数: 8 流入的页总数: 8 加密的总页数        : 0 最高块 SCN            : 2235323 (65535.2235323) C:\Users\XFF>

这样的情况,只能人工构造创建控制文件语句,然后进行重建ctl,然后尝试recover恢复库,结果报ORA-600 3051

SQL> startup nomount pfile='d:/pfile.txt'; ORACLE 例程已经启动。 Total System Global Area 4275781632 bytes Fixed Size                  2288080 bytes Variable Size             939525680 bytes Database Buffers         3321888768 bytes Redo Buffers               12079104 bytes SQL> @H:\BaiduNetdisk\orcl\check_db\rectl.sql 控制文件已创建。 SQL> recover database; ORA-00279: 更改 1073321258 (在 10/13/2025 10:27:23 生成) 对于线程 1 是必需的 ORA-00289: 建议: C:\APP\XFF\PRODUCT\11.2.0.4\DBHOME_1\RDBMS\ARC0000112940_1016795858.0001 ORA-00280: 更改 1073321258 (用于线程 1) 在序列 #112940 中 指定日志: {<RET>=suggested | filename | AUTO | CANCEL} H:\BAIDUNETDISK\ORCL\REDO02.LOG ORA-00363: 日志不是归档版本 ORA-00334: 归档日志: 'H:\BAIDUNETDISK\ORCL\REDO02.LOG' ORA-00600: 内部错误代码, 参数: [3051], [82], [], [], [], [], [], [], [], [],[], []

基于这种情况,数据库无法正常应用日志(数据库非归档部分redo已经覆盖),只能尝试强制打开库

SQL> recover database until cancel; ORA-00279: 更改 1073321258 (在 10/13/2025 10:27:23 生成) 对于线程 1 是必需的 ORA-00289: 建议: C:\APP\XFF\PRODUCT\11.2.0.4\DBHOME_1\RDBMS\ARC0000112940_1016795858.0001 ORA-00280: 更改 1073321258 (用于线程 1) 在序列 #112940 中 指定日志: {<RET>=suggested | filename | AUTO | CANCEL} cancel ORA-01547: 警告: RECOVER 成功但 OPEN RESETLOGS 将出现如下错误 ORA-01194: 文件 1 需要更多的恢复来保持一致性 ORA-01110: 数据文件 1: 'H:\BAIDUNETDISK\ORCL\SYSTEM01.DBF' ORA-01112: 未启动介质恢复 SQL> alter database open resetlogs; alter database open resetlogs * 第 1 行出现错误: ORA-03113: 通信通道的文件结尾 进程 ID: 18848 会话 ID: 1 序列号: 3

强制打开库失败,前端直接报ORA-03113: 通信通道的文件结尾 错误,alert日志主要报ORA-600 4042和ORA-600 kdBlkCheckError错误

Sat Oct 18 17:28:18 2025 alter database open resetlogs RESETLOGS is being done without consistancy checks. This may result in a corrupted database. The database should be recreated. RESETLOGS after incomplete recovery UNTIL CHANGE 1073321258 Resetting resetlogs activation ID 1544625487 (0x5c111d4f) Sat Oct 18 17:28:18 2025 Setting recovery target incarnation to 2 Initializing SCN for created control file Database SCN compatibility initialized to 3 Sat Oct 18 17:28:18 2025 Assigning activation ID 1742624120 (0x67de5578) Thread 1 opened at log sequence 1   Current log# 1 seq# 1 mem# 0: H:\BAIDUNETDISK\ORCL\REDO01.LOG Successful open of redo thread 1 MTTR advisory is disabled because FAST_START_MTTR_TARGET is not set Sat Oct 18 17:28:18 2025 SMON: enabling cache recovery Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_ora_18848.trc  (incident=20564): ORA-00600: 内部错误代码, 参数: [4042], [0], [], [], [], [], [], [], [], [], [], [] Incident details in: C:\APP\XFF\diag\rdbms\orcl\orcl\incident\incdir_20564\orcl_ora_18848_i20564.trc Use ADRCI or Support Workbench to package the incident. See Note 411.1 at My Oracle Support for error and packaging details. Sat Oct 18 17:31:15 2025 Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_ora_13700.trc  (incident=20572): ORA-00600: 内部错误代码, 参数: [kdBlkCheckError], [1], [675], [6401], [], [], [], [], [], [], [], [] Incident details in: C:\APP\XFF\diag\rdbms\orcl\orcl\incident\incdir_20572\orcl_ora_13700_i20572.trc Use ADRCI or Support Workbench to package the incident. See Note 411.1 at My Oracle Support for error and packaging details. Block recovery from logseq 1, block 3 to scn 1074362471 Recovery of Online Redo Log: Thread 1 Group 1 Seq 1 Reading mem 0   Mem# 0: H:\BAIDUNETDISK\ORCL\REDO01.LOG Block recovery stopped at EOT rba 1.4.16 Block recovery completed at rba 1.4.16, scn 0.1074362470 Sat Oct 18 17:31:17 2025 Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_ora_13700.trc  (incident=20573): ORA-01578: ORACLE 数据块损坏 (文件号 1, 块号 675) ORA-01110: 数据文件 1: 'H:\BAIDUNETDISK\ORCL\SYSTEM01.DBF' Sat Oct 18 17:31:18 2025 Sweep [inc][20572]: completed Incident details in: C:\APP\XFF\diag\rdbms\orcl\orcl\incident\incdir_20573\orcl_ora_13700_i20573.trc Sweep [inc][20564]: completed Sweep [inc2][20572]: completed Sat Oct 18 17:31:19 2025 Sweep [inc][20573]: completed Checker run found 1 new persistent data failures Sat Oct 18 17:32:19 2025 Sweep [inc2][20573]: completed Sat Oct 18 17:33:26 2025 Shutting down instance (abort) License high water mark = 22 USER (ospid: 1640): terminating the instance Instance terminated by USER, pid = 1640

通过报错分析,主要是由于file 1 block 675异常导致,通过对该block进行处理,再次尝试打开库

SQL> recover database; 完成介质恢复。 SQL> alter database open ; alter database open * 第 1 行出现错误: ORA-01092: ORACLE instance terminated. Disconnection forced ORA-00600: internal error code, arguments: [25027], [0], [3273132828], [], [], [], [], [], [], [], [], [] 进程 ID: 3124

数据库无法正常打开,报ORA-600 25027错误,对应的alert日志为

Sat Oct 18 17:38:18 2025 alter database open Beginning crash recovery of 1 threads  parallel recovery started with 19 processes Started redo scan Completed redo scan  read 19 KB redo, 0 data blocks need recovery Started redo application at  Thread 1: logseq 2, block 3 Recovery of Online Redo Log: Thread 1 Group 2 Seq 2 Reading mem 0   Mem# 0: H:\BAIDUNETDISK\ORCL\REDO02.LOG Completed redo application of 0.00MB Completed crash recovery at  Thread 1: logseq 2, block 42, scn 1074402517  0 data blocks read, 0 data blocks written, 19 redo k-bytes read Sat Oct 18 17:38:18 2025 Thread 1 advanced to log sequence 3 (thread open) Thread 1 opened at log sequence 3   Current log# 3 seq# 3 mem# 0: H:\BAIDUNETDISK\ORCL\REDO03.LOG Successful open of redo thread 1 MTTR advisory is disabled because FAST_START_MTTR_TARGET is not set Sat Oct 18 17:38:18 2025 SMON: enabling cache recovery Undo initialization finished serial:0 start:29002046 end:29002046 diff:0 (0 seconds) Verifying file header compatibility for 11g tablespace encryption.. Verifying 11g file header compatibility for tablespace encryption completed SMON: enabling tx recovery ********************************************************************* WARNING: The following temporary tablespaces contain no files.          This condition can occur when a backup controlfile has          been restored.  It may be necessary to add files to these          tablespaces.  That can be done using the SQL statement:             ALTER TABLESPACE <tablespace_name> ADD TEMPFILE             Alternatively, if these temporary tablespaces are no longer          needed, then they can be dropped.            Empty temporary tablespace: TEMP            Empty temporary tablespace: ZLTOOLSTMP ********************************************************************* Database Characterset is ZHS16GBK Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_ora_11844.trc  (incident=24166): ORA-00600: 内部错误代码, 参数: [25027], [0], [1600133727], [], [], [], [], [], [], [], [], [] Incident details in: C:\APP\XFF\diag\rdbms\orcl\orcl\incident\incdir_24166\orcl_ora_11844_i24166.trc Use ADRCI or Support Workbench to package the incident. See Note 411.1 at My Oracle Support for error and packaging details. Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_ora_11844.trc: ORA-00600: 内部错误代码, 参数: [25027], [0], [1600133727], [], [], [], [], [], [], [], [], [] Errors in file C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_ora_11844.trc: ORA-00600: 内部错误代码, 参数: [25027], [0], [1600133727], [], [], [], [], [], [], [], [], [] Error 600 happened during db open, shutting down database USER (ospid: 11844): terminating the instance due to error 600 Instance terminated by USER, pid = 11844 ORA-1092 signalled during: alter database open... opiodr aborting process unknown ospid (11844) as a result of ORA-1092

ORA-00600[25027]错误的触发原因是ORACLE检测到一个无效的表空间号TSN Tablespace Number或者相对文件号Relative File Number。
该ORA-00600[25027]的2个变量各代表：
arg[a] Tablespace Number表空间号
arg[b] 十进制的相对数据块号Relative Data Block Address (RDBA)

---

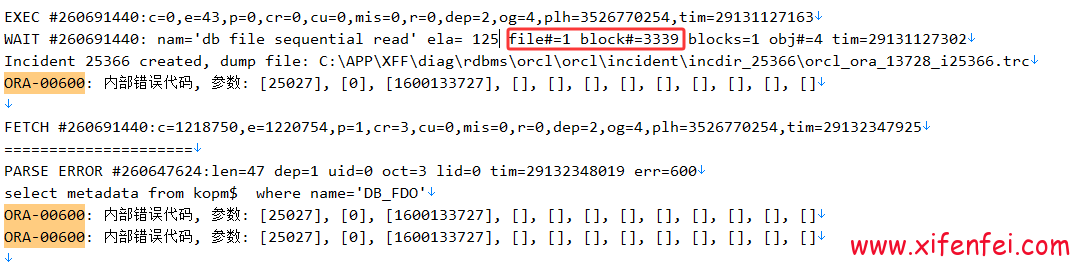

通过trace文件定位具体报错信息

*** 2025-10-18 17:38:18.320 *** SESSION ID:(1.1) 2025-10-18 17:38:18.320 *** CLIENT ID:() 2025-10-18 17:38:18.320 *** SERVICE NAME:(SYS$USERS) 2025-10-18 17:38:18.320 *** MODULE NAME:(sqlplus.exe) 2025-10-18 17:38:18.320 *** ACTION NAME:() 2025-10-18 17:38:18.320 Dump continued from file: C:\APP\XFF\diag\rdbms\orcl\orcl\trace\orcl_ora_11844.trc ORA-00600: 内部错误代码, 参数: [25027], [0], [1600133727], [], [], [], [], [], [], [], [], [] ========= Dump for incident 24166 (ORA 600 [25027]) ======== *** 2025-10-18 17:38:18.322 dbkedDefDump(): Starting incident default dumps (flags=0x2, level=3, mask=0x0) ----- Current SQL Statement for this session (sql_id=1gu8t96d0bdmu) ----- select t.ts#,t.file#,t.block#,nvl(t.bobj#,0),nvl(t.tab#,0),t.intcols,nvl(t.clucols,0),t.audit$,t.flags, t.pctfree$,t.pctused$,t.initrans,t.maxtrans,t.rowcnt,t.blkcnt,t.empcnt,t.avgspc,t.chncnt,t.avgrln, t.analyzetime,t.samplesize,t.cols,t.property,nvl(t.degree,1),nvl(t.instances,1), t.avgspc_flb,t.flbcnt,t.kernelcols,nvl(t.trigflag, 0),nvl(t.spare1,0),nvl(t.spare2,0), t.spare4,t.spare6,ts.cachedblk,ts.cachehit,ts.logicalread from tab$ t, tab_stats$ ts  where t.obj#= :1 and t.obj# = ts.obj# (+)

并确认最终报错block为3339


---

对该坏块进行修复处理,数据库顺利open

alter database open Beginning crash recovery of 1 threads  parallel recovery started with 19 processes Started redo scan Completed redo scan  read 20 KB redo, 0 data blocks need recovery Started redo application at  Thread 1: logseq 6, block 2, scn 1074462651 Recovery of Online Redo Log: Thread 1 Group 3 Seq 6 Reading mem 0   Mem# 0: H:\BAIDUNETDISK\ORCL\REDO03.LOG Completed redo application of 0.00MB Completed crash recovery at  Thread 1: logseq 6, block 43, scn 1074482693  0 data blocks read, 0 data blocks written, 20 redo k-bytes read Sat Oct 18 17:55:22 2025 Thread 1 advanced to log sequence 7 (thread open) Thread 1 opened at log sequence 7   Current log# 1 seq# 7 mem# 0: H:\BAIDUNETDISK\ORCL\REDO01.LOG Successful open of redo thread 1 MTTR advisory is disabled because FAST_START_MTTR_TARGET is not set Sat Oct 18 17:55:22 2025 SMON: enabling cache recovery Undo initialization finished serial:0 start:30026203 end:30026218 diff:15 (0 seconds) Verifying file header compatibility for 11g tablespace encryption.. Verifying 11g file header compatibility for tablespace encryption completed SMON: enabling tx recovery ********************************************************************* WARNING: The following temporary tablespaces contain no files.          This condition can occur when a backup controlfile has          been restored.  It may be necessary to add files to these          tablespaces.  That can be done using the SQL statement:             ALTER TABLESPACE <tablespace_name> ADD TEMPFILE             Alternatively, if these temporary tablespaces are no longer          needed, then they can be dropped.            Empty temporary tablespace: TEMP            Empty temporary tablespace: ZLTOOLSTMP ********************************************************************* Database Characterset is ZHS16GBK Stopping background process MMNL Stopping background process MMON Sat Oct 18 17:55:24 2025 Starting background process MMON Sat Oct 18 17:55:24 2025 MMON started with pid=16, OS id=14036 Starting background process MMNL Sat Oct 18 17:55:24 2025 MMNL started with pid=17, OS id=9384 replication_dependency_tracking turned off (no async multimaster replication found) Completed: alter database open

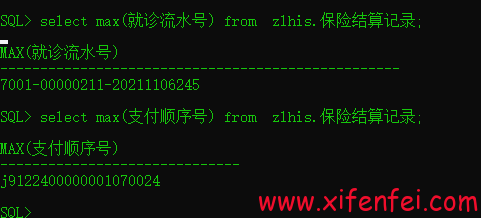

并查询业务数据正常,实现在损坏raid恢复之后最大限度的数据恢复
