webgis-maps

1. 介绍

本模块是一个前端 WebGIS 通用地图框架模型库，目前初步支持 Leaflet 和 Mapbox 两款主流地图引擎的部分 API 功能。基于 TypeScript 对地图相关的业务逻辑进行抽象建模，封装了日常开发中高频使用的地图操作接口，有效减少了地图交互功能的重复编码，显著提升了开发效率。同时，通过统一的 API 设计降低了开发者对特定地图框架（如 XXX）的学习成本和技术门槛。

version:1.0.35-2025815更新：

对mapbox构建style的builder类进行重写,可基于链式调用构建最终的style，操作一气呵成，重写后使用如下：

import React, { useEffect, useState } from "react";
import "./index.scss";
import {MapBoxLayer,MapBoxLayerLayout,MapBoxLayerPaint,MapBoxMap,MapBoxSource,MapBoxStyle,MapBoxStyleBuilder,
} from "../../../src";
import MapBoxLayerTypeConsts from "../../../src/model/mapbox/consts/MapBoxLayerTypeConsts";
import MapBoxSourceConsts from "../../../src/model/mapbox/consts/MapBoxSourceConsts";const MapView = () => {const [map, setMap] = useState(null);useEffect(() => {initMap();}, []);const initMap = () => {initMapBoxMap();};const initMapBoxMap = () => {let vectorServiceId = "sampleDataVec";let vectorUrl ="http://10.x.x.x:8866/xx-xx-xx/sample/data/vectortile?crs=EPSG:3857&l={z}&x={x}&y={y}&cache=false&useTolerance=false";let rasterServiceId = "arcgis";let rasterUrl ="https://server.arcgisonline.com/arcgis/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}";let style = new MapBoxStyleBuilder().config("mapbox-style", {sprite: "http://10.x.x.x:8866/xx-xx-xx/xxx/data/sprite",}).addSource(vectorServiceId, vectorUrl, {type: MapBoxSourceConsts.SOURCE_TYPE_VECTOR,minzoom: 3,maxzoom: 18,scheme: "xyz",}).addSource(rasterServiceId, rasterUrl, {type: MapBoxSourceConsts.SOURCE_TYPE_RASTER,minzoom: 3,maxzoom: 18,scheme: "xyz",}).addLayer(rasterServiceId, MapBoxLayerTypeConsts.RASTER, rasterServiceId).addLayer(vectorServiceId,MapBoxLayerTypeConsts.SYMBOL,vectorServiceId,{sourceLayer: vectorServiceId,layout: {iconAllowOverlap: true,iconImage: ["match",["get", "dataType"],["光学遥感影像"],"ors",["无人机"],"unv",["SAR"],"sar",["图片"],"image",["视频"],"video",["音频"],"sound","ors",],iconSize: 1,},});/** 初始化mapbox地图对象 */let mapBoxMap = new MapBoxMap("map", style.build());mapBoxMap.addNavigationControl(MapBoxMap.CONTROL_POSITION_TOP_LEFT);mapBoxMap.addAttribution(MapBoxMap.CONTROL_POSITION_BOTTOM_RIGHT);setMap(mapBoxMap.getMap());console.log("style.buildOrigin : "+style.buildOrigin());};return <div id="map" className="container"></div>;
};
export default MapView;

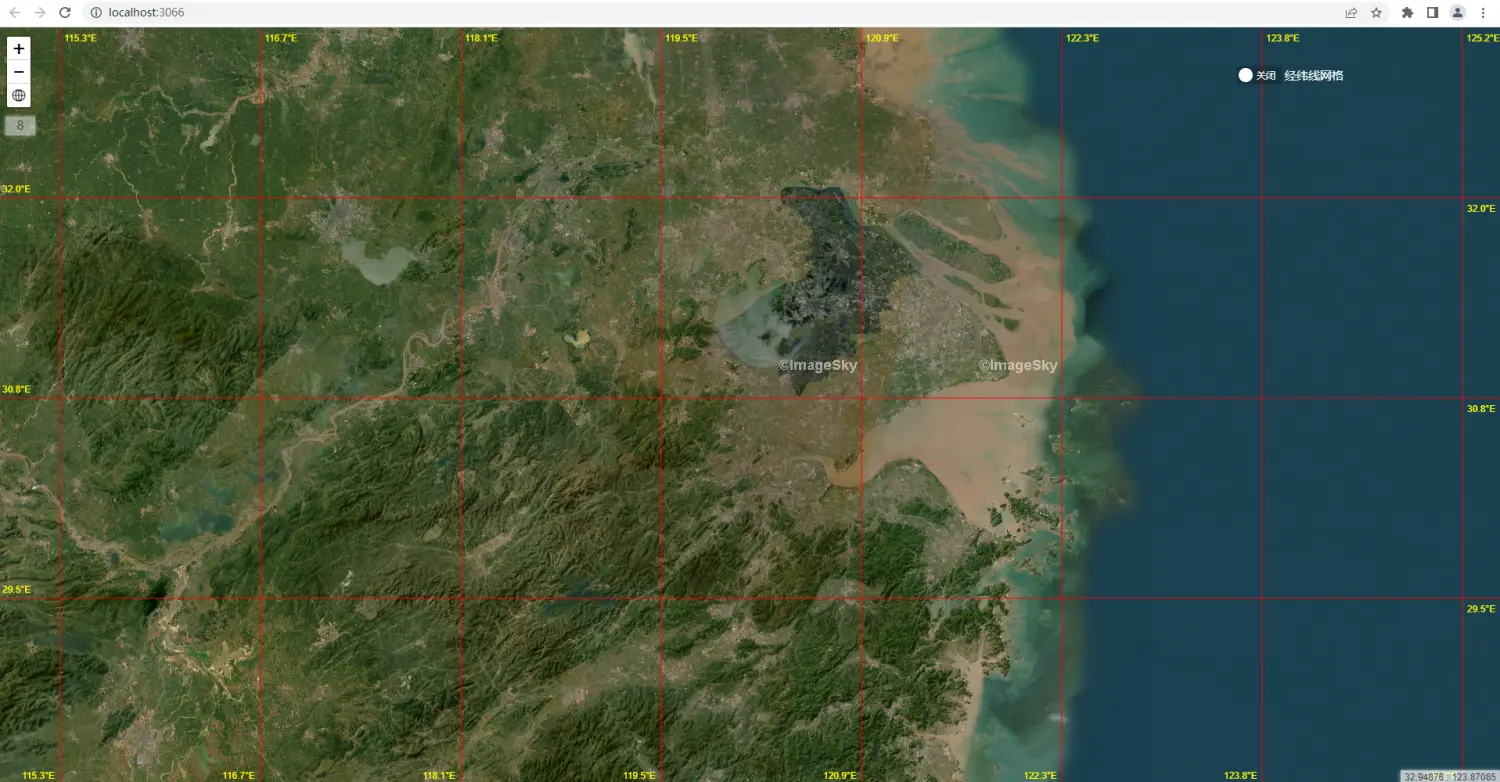

最终效果如下：

在这里插入图片描述

version:1.0.34-2025813更新：

LeafletVectorLayer对应的Canvas和Svg瓦片渲染，对于自定义Icon超出瓦片部分进行特殊处理–》丢弃

version:1.0.30-20250314更新：

LeafletGeoJsonLayer构造器新增bMask参数，对于单面的geojsonData进行遮罩处理，默认false，代码如下：

/*** LeafletGeojsonLayer构造器* @param id 图层字符串ID* @param data 图层geojson字符串数据* @param style 图层样式函数* @param pane 图层面板容器名称* @param bMask 是否为当前数据源构建遮罩效果*/constructor(id: string,data: any,style: StyleFunction,pane: string = "",bMask = false) {super(id, undefined, pane);if (bMask) {let outerRing = [[-180.0, 85.5],[180.0, 85.5],[180.0, -85.5],[-180.0, -85.5],];if (data.geometry) {if (data.geometry.type === "MultiPolygon") {let features = data.geometry.coordinates[0];features.unshift(outerRing);} else if (data.geometry.type === "Polygon") {let features = data.geometry.coordinates;features.unshift(outerRing);}} else {if (data.type === "MultiPolygon") {let features = data.coordinates[0];features.unshift(outerRing);} else if (data.type === "Polygon") {let features = data.coordinates;features.unshift(outerRing);}}this.data = data;} else {this.data = data;}this.style = style;}

测试数据：

{"type": "Polygon","coordinates": [[[117.28583099, 31.59835657],[117.3010303, 31.59604101],[117.30770317, 31.58151486],[117.28286527, 31.57909361],[117.28583099, 31.59835657]]]
}

代码案例：

// 引入数据
import geom from "../geom.json";
// 图层样式
const dataStyles = (feature) => {return {fillColor: "#000",stroke: true,fillOpacity: 0.5,color: "blue",weight: 2,};
};
// 构建地图对象
let leftMap = new LeafletMap("map",{ zoomControl: false },14,[31.59835657, 117.28583099]);
// 构建geojsonLayer
let geosjonLayer = new LeafletGeojsonLayer("geojson", geom, dataStyles,"",true);
leftMap.addLayer(geosjonLayer);

展示效果如下：

version:1.0.28-20250314更新：

AbstractMap地图抽象类新增getLayer方法，用于获取指定layerId的图层对象。

2. 使用

2.1 依赖项

该模块依赖于leaflet和mapbox-gl库，推荐版本如下：

"@types/leaflet": "^1.9.12",
"@types/mapbox-gl": "^2.7.8",
"leaflet": "^1.7.1",
"mapbox-gl": "^2.12.0",

2.2 安装

由于该模块还在不断完善中，npm仓库提交的版本会很频繁，如有检测到最新版本，建议先移除旧版本，然后再安装新版本。

 yarn remove webgis-maps && yarn add webgis-maps

2.3 axios封装

axios简单封装如下（以下只是参考，主要为了配合该模块做的封装，具体情况基于实际开发环境来）：

request.js

import axios from "axios";const apiService = axios.create({timeout: 60 * 1000,
});const axiosFn = {// get请求commonOnGet: (url, params = {}, headers = {}) => {return apiService.get(url, {params: params,headers: headers,});},
};export {apiService,axiosFn};

2.3 leaflet使用案例

index.jsx (初始化路由组件)

import React from "react";
import MapView from "../pages/map-view/MapView";
import {Switch } from "antd";
import { useState } from "react";
import { axiosFn } from "../request";const switchStyle = {position: "absolute",top: "50px",right: "280px",zIndex: 9999999999,borderRadius: "3px",
};const spanStyle = {position: "absolute",top: "50px",right: "200px",zIndex: 9999999999,borderRadius: "3px",fontSize:"15px",color:"white"};const MapIndex = (props) => {const [showGrid, setShowGrid] = useState(false);const onChange = () => {setShowGrid(!showGrid);};return (<div className="App"><MapView showGrid={showGrid} /><Switchstyle={switchStyle}checkedChildren="开启"unCheckedChildren="关闭"defaultCheckedonChange={onChange}></Switch><span style={spanStyle}>经纬线网格</span></div>);
};export default MapIndex;

mapview.css（MapView组件的样式）

.container {width: 100%;height: 100%;position: absolute;overflow: hidden;left: 0;top: 0;
}

MapView.jsx（地图视图组件）

import React, { Component } from "react";
import {LeafletMap, // LeafLet地图模型类LeafletDrawLonlatLine, // LeafLet经纬网格插件类LeafletTileLayer,// LeafLet栅格瓦片图层OgcXmlParser,// ogc服务能力解析类LeafletWmtsLayer,// LeafLet·wmts图层
} from "webgis-maps";
import { axiosFn } from "../../request";
import "./mapview.css";export default class MapView extends Component {constructor(props) {super(props);}componentDidMount() {this.initMap();}componentWillUnmount() {/**释放资源,移除经纬线相关图层和地图事件*/this.lonLatGridLines.removeDrawEvent();}initMap() {/** 构建LeafletMap对象*/const leafletMap = new LeafletMap("map", { zoomControl: false },[30.3634,107.33643]);/** 获取LeafletMap对象中的map对象（leaflet api中的map实例）*/let map = leafletMap.getMap();/** 添加自定义的缩放控件,默认屏幕位置：topleft */leafletMap.addZoomSlider();/** 添加自定义的缩放层级显示span功能，默认屏幕位置：topleft */leafletMap.addZoomLable();/** 添加鼠标滑过动态显示经纬度span功能，默认屏幕位置：bottomright */leafletMap.addMousePosition();/** arcgis xyz服务类型的地址 */let arcgisXYZ = "https://server.arcgisonline.com/arcgis/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}";/** 构建leaflet栅格瓦片图层对象 */let arcgisLayer = new LeafletTileLayer("arcgis", arcgisXYZ);/** 将栅格瓦片图层添加到leafletMap中 */leafletMap.addLayer(arcgisLayer);let suzhouWMTS = "http://10.16.248.40:8080/tile/service/wmts/1572457472291904/0";/** 解析wmts服务（比如：范围、图层、样式、分辨率、瓦片变化矩阵等） */axiosFn.commonOnGet(OgcXmlParser.getWmtsCapabilitiesUrl(suzhouWMTS)).then((res) => {/** 获取wmts服务能力xml描述 */let xmlData = res.data;/** 获取wmts服务图层的配置项 */let options = OgcXmlParser.getWmtsOptions(xmlData);/** 获取wmts服务的范围 */let fitBounds = OgcXmlParser.getFitBounds(xmlData)/** 地图定位到wmts服务所在的范围 */map.fitBounds(fitBounds)/** 构建wmts图层 */let suzhouWMTSLayer = new LeafletWmtsLayer("suzhou", suzhouWMTS);/** 设置wmts图层的配置项 */suzhouWMTSLayer.setWmtsOptions(options);/** 将wmts图层添加到leafletMap中 */leafletMap.addLayer(suzhouWMTSLayer);});/** leaflet·wms服务图层与wmts图层类似！！！ *//**以下仅是额外扩展的leaflet插件功能*/this.lonLatGridLines = new LeafletDrawLonlatLine(map);/**经纬线设置为红色*/this.lonLatGridLines.setLineColor("red");/**经纬线度数文本颜色调整为黄色*/this.lonLatGridLines.setTextColor("yellow");/**经纬线度数文本四个方位（东西南北）均显示*/this.lonLatGridLines.setTextPosition("all");}/**展示经纬格网图层*/doShowGrid(showGrid) {if (!this.lonLatGridLines) {return;}if (showGrid) {/** 添加绘制地图事件（即拖动地图时，清除上一次的图层的同时绘制新的图层）*/this.lonLatGridLines.addDrawEvent();/** 初始化话的时候，触发一次绘制*/this.lonLatGridLines.drawLonlatTileGrid();} else {this.lonLatGridLines.removeDrawEvent();}}render() {let { showGrid } = this.props;this.doShowGrid(showGrid);return <div id="map" className="container"></div>;}
}
