[密码学实战]Java实现TLS 1.2单向认证

一、结果验证

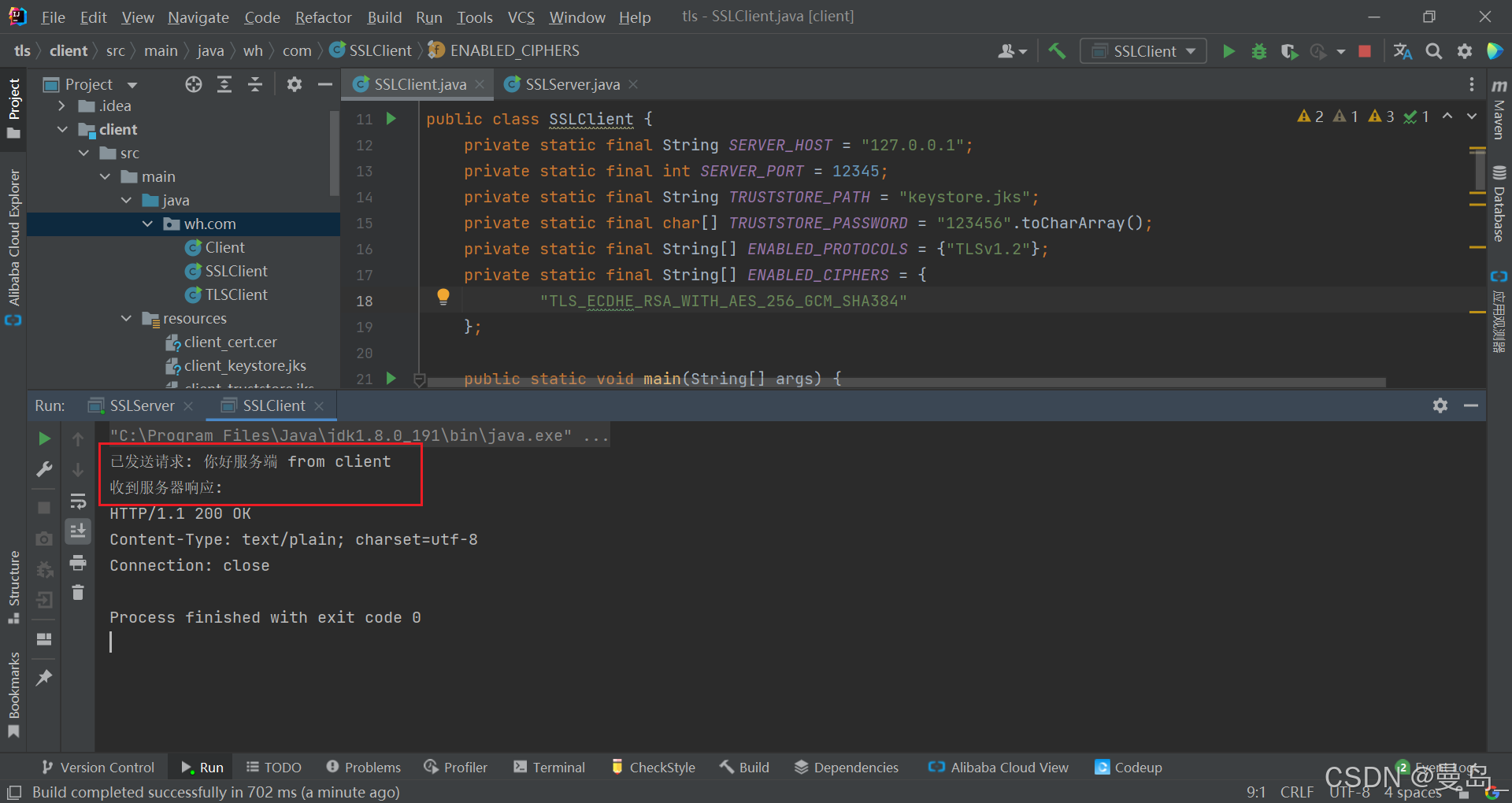

1.1 代码运行客户端

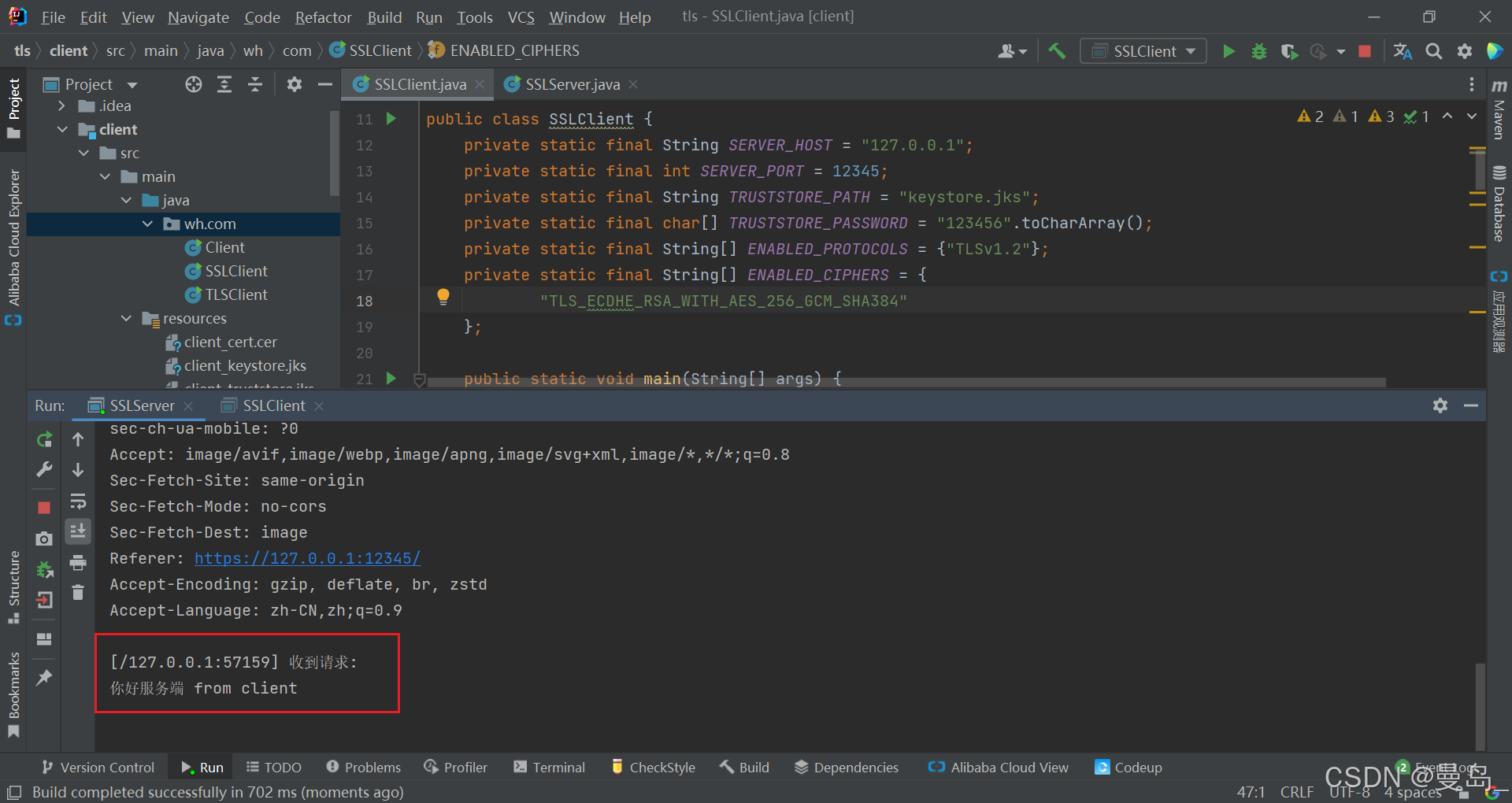

1.2 代码运行服务端

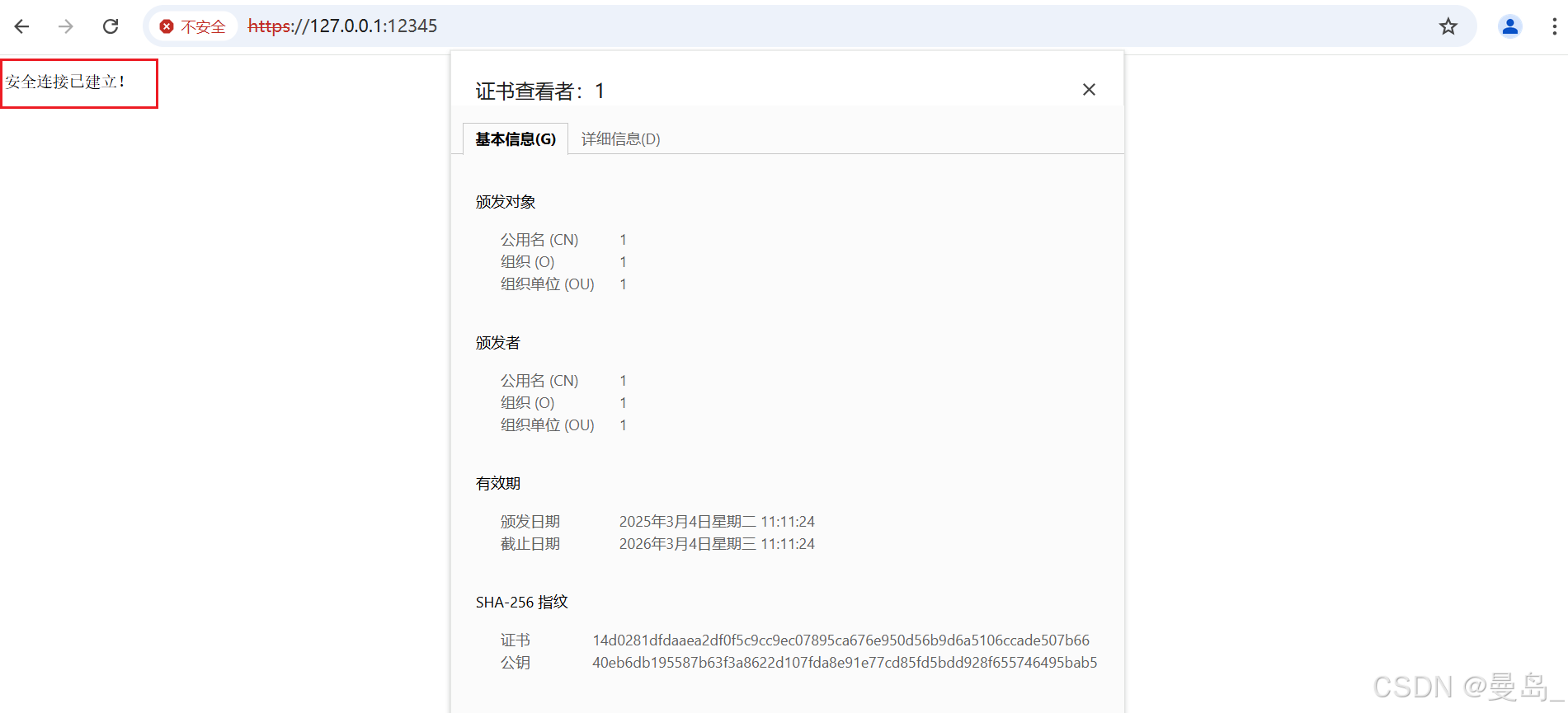

1.3 浏览器访问

二、TLS单向认证核心原理

2.1 TLS协议分层架构

2.2 TLS 1.3单向认证握手流程

2.3 单向认证技术优势

• 性能优化：减少证书交换次数，提升握手速度
• 部署简单：只需服务端维护证书体系
• 兼容性强：适配浏览器等通用客户端

三、单向认证典型应用场景

3.1 HTTPS网站建设

• 电商平台用户数据保护
• 企业官网信息加密传输

3.2 API接口安全

• 移动APP与后端服务通信
• 第三方系统数据对接

3.3 云服务访问控制

• 云主机SSH加密连接
• 对象存储服务安全传输

四、Java实现TLS单向认证完整代码

4.1 证书生成

# 生成密钥对,包含有效期365天，-ext 设置域名

keytool -genkeypair -alias mycert -keyalg RSA -keysize 2048 -keystore keystore.jks -validity 365 -ext SAN=dns:www.test.com,ip:192.168.231.1

# 生成证书请求

keytool -certreq -alias mycert -keystore keystore.jks -file server.csr

# 生成自签名证书

keytool -gencert -alias mycert -keystore keystore.jks -infile server.csr -outfile server.crt -validity 365

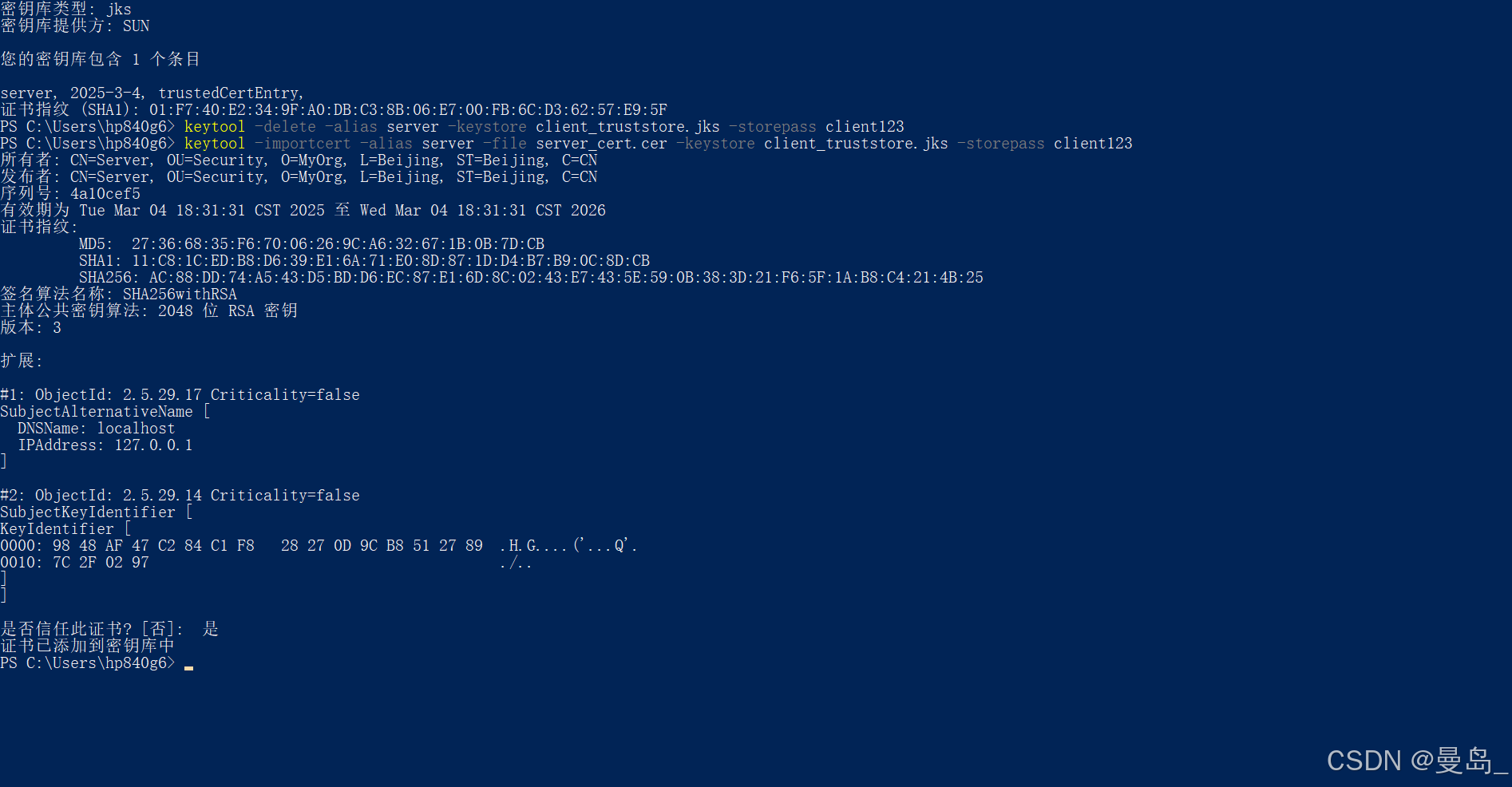

4.2 证书导入

​

4.3 服务端实现

package wh.com;

import javax.net.ssl.*;
import java.io.*;
import java.security.KeyStore;
import java.security.SecureRandom;
import java.util.Arrays;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

import static java.util.concurrent.Executors.newFixedThreadPool;

public class SSLServer {
    // 配置常量
    private static final int SERVER_PORT = 12345;
    private static final String KEYSTORE_PATH = "keystore.jks";
    private static final char[] KEYSTORE_PASSWORD = "123456".toCharArray();
    private static final char[] KEY_PASSWORD = "123456".toCharArray();
    private static final String[] ENABLED_PROTOCOLS = {"TLSv1.2"};
    private static final String[] ENABLED_CIPHERS = {


            "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384"
    };

    public static void main(String[] args) {
        ExecutorService executor =newFixedThreadPool(10);

        try (SSLServerSocket serverSocket = createSSLServerSocket()) {
            System.out.println("SSL服务器已启动，监听端口: " + SERVER_PORT);
            while (!Thread.currentThread().isInterrupted()) {
                SSLSocket clientSocket = (SSLSocket) serverSocket.accept();
                executor.submit(() -> handleClient(clientSocket));
            }
        } catch (Exception e) {
            handleFatalError("服务器启动失败", e);
        } finally {
            executor.shutdown();
        }
    }

    private static SSLServerSocket createSSLServerSocket() throws Exception {
        SSLContext sslContext = createSSLContext();
        SSLServerSocketFactory factory = sslContext.getServerSocketFactory();
        SSLServerSocket serverSocket = (SSLServerSocket) factory.createServerSocket(SERVER_PORT);

        // 安全配置
        serverSocket.setEnabledProtocols(ENABLED_PROTOCOLS);
        serverSocket.setEnabledCipherSuites(ENABLED_CIPHERS);
        serverSocket.setNeedClientAuth(false); // 禁用客户端证书验证

        return serverSocket;
    }

    private static SSLContext createSSLContext() throws Exception {
        SSLContext context = SSLContext.getInstance("TLS");
        context.init(
                createKeyManagers(),
                createTrustManagers(),
                new SecureRandom()
        );
        return context;
    }

    private static KeyManager[] createKeyManagers() throws Exception {
        KeyStore ks = loadKeyStore();
        KeyManagerFactory kmf = KeyManagerFactory.getInstance("SunX509");
        kmf.init(ks, KEY_PASSWORD);
        return kmf.getKeyManagers();
    }

    private static TrustManager[] createTrustManagers() throws Exception {
        // 生产环境应使用正式信任库，此处示例加载相同密钥库
        KeyStore ts = loadKeyStore();
        TrustManagerFactory tmf = TrustManagerFactory.getInstance("SunX509");
        tmf.init(ts);
        return tmf.getTrustManagers();
    }

    private static KeyStore loadKeyStore() throws Exception {
        try (InputStream is = getResourceStream(KEYSTORE_PATH)) {
            KeyStore ks = KeyStore.getInstance("JKS");
            ks.load(is, KEYSTORE_PASSWORD);
            return ks;
        }
    }

    private static InputStream getResourceStream(String path) throws FileNotFoundException {
        InputStream is = SSLServer.class.getClassLoader().getResourceAsStream(path);
        if (is == null) {
            throw new FileNotFoundException("密钥库文件未找到: " + path);
        }
        return is;
    }

    private static void handleClient(SSLSocket socket) {
        try (
             BufferedReader reader = new BufferedReader(new InputStreamReader(socket.getInputStream()));
             BufferedWriter writer = new BufferedWriter(new OutputStreamWriter(socket.getOutputStream()))) {

            // 读取请求头
            StringBuilder request = new StringBuilder();
            String line;
            while ((line = reader.readLine()) != null && !line.isEmpty()) {
                request.append(line).append("\n");
            }

            logRequest(socket, request.toString());
            sendResponse(writer, createSuccessResponse());

        } catch (SSLHandshakeException e) {
            handleHandshakeError(socket, e);
        } catch (IOException e) {
            handleIOError(socket, e);
        }
    }

    private static void logRequest(SSLSocket socket, String request) {
        System.out.printf("[%s] 收到请求:\n%s\n",
                socket.getRemoteSocketAddress(),
                request);
    }

    private static void sendResponse(BufferedWriter writer, String response) throws IOException {
        writer.write(response);
        writer.flush();
    }

    private static String createSuccessResponse() {
        return "HTTP/1.1 200 OK\r\n" +
                "Content-Type: text/plain; charset=utf-8\r\n" +
                "Connection: close\r\n" +
                "\r\n" +
                "安全连接已建立！";
    }

    private static void handleHandshakeError(SSLSocket socket, SSLHandshakeException e) {
        System.err.printf("SSL握手失败 [%s]: %s\n",
                socket.getRemoteSocketAddress(),
                e.getMessage());

        // 调试用：打印协议和密码套件支持情况
        System.out.println("支持的协议: " + Arrays.toString(socket.getEnabledProtocols()));
        System.out.println("支持的密码套件: " + Arrays.toString(socket.getEnabledCipherSuites()));
    }

    private static void handleIOError(SSLSocket socket, IOException e) {
        System.err.printf("客户端通信异常 [%s]: %s\n",
                socket.getRemoteSocketAddress(),
                e.getMessage());
    }

    private static void handleFatalError(String message, Throwable t) {
        System.err.println(message + ": " + t.getMessage());
        t.printStackTrace();
        System.exit(1);
    }
}

4.4 客户端实现

package wh.com;

import javax.net.ssl.*;
import java.io.*;
import java.security.KeyStore;
import java.security.SecureRandom;
import java.util.Arrays;

public class SSLClient {
    private static final String SERVER_HOST = "127.0.0.1";
    private static final int SERVER_PORT = 12345;
    private static final String TRUSTSTORE_PATH = "keystore.jks";
    private static final char[] TRUSTSTORE_PASSWORD = "123456".toCharArray();
    private static final String[] ENABLED_PROTOCOLS = {"TLSv1.2"};
    private static final String[] ENABLED_CIPHERS = {
            "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384"
    };

    public static void main(String[] args) {
        try {
            SSLSocket socket = createSSLSocket();
            configureSocket(socket);
            communicateWithServer(socket);
        } catch (Exception e) {
            handleError("客户端运行异常", e);
        }
    }

    private static SSLSocket createSSLSocket() throws Exception {
        SSLContext context = createSSLContext();
        SSLSocketFactory factory = context.getSocketFactory();
        return (SSLSocket) factory.createSocket(SERVER_HOST, SERVER_PORT);
    }

    private static SSLContext createSSLContext() throws Exception {
        SSLContext context = SSLContext.getInstance("TLS");
        context.init(null, createTrustManagers(), new SecureRandom());
        return context;
    }

    private static TrustManager[] createTrustManagers() throws Exception {
        TrustManagerFactory tmf = TrustManagerFactory.getInstance(
                TrustManagerFactory.getDefaultAlgorithm());
        tmf.init(loadTrustStore());
        return tmf.getTrustManagers();
    }

    private static KeyStore loadTrustStore() throws Exception {
        try (InputStream is = getResourceStream(TRUSTSTORE_PATH)) {
            KeyStore ks = KeyStore.getInstance("JKS");
            ks.load(is, TRUSTSTORE_PASSWORD);
            return ks;
        }
    }

    private static InputStream getResourceStream(String path) throws FileNotFoundException {
        InputStream is = SSLClient.class.getClassLoader().getResourceAsStream(path);
        if (is == null) {
            throw new FileNotFoundException("未找到信任库文件: " + path);
        }
        return is;
    }

    private static void configureSocket(SSLSocket socket) {
        socket.setEnabledProtocols(ENABLED_PROTOCOLS);
        socket.setEnabledCipherSuites(ENABLED_CIPHERS);
        socket.setUseClientMode(true);
    }

    private static void communicateWithServer(SSLSocket socket) {
        try  {
            try (BufferedReader reader = new BufferedReader(new InputStreamReader(socket.getInputStream()))) {
                try (BufferedWriter writer = new BufferedWriter(new OutputStreamWriter(socket.getOutputStream()))) {

                    sendRequest(writer, "你好服务端 from client");
                    String response = readResponse(reader);
                    handleResponse(response);

                }
            }
        } catch (SSLHandshakeException e) {
            handleError("SSL握手失败", e);
        } catch (IOException e) {
            handleError("通信异常", e);
        }
    }

    private static void sendRequest(BufferedWriter writer, String message) throws IOException {
        writer.write(message);
        writer.newLine();
        writer.newLine();  // 结束标记
        writer.flush();
        System.out.println("已发送请求: " + message);
    }

    private static String readResponse(BufferedReader reader) throws IOException {
        StringBuilder response = new StringBuilder();
        String line;
        while ((line = reader.readLine()) != null && !line.isEmpty()) {
            response.append(line).append("\n");
        }
        return response.toString().trim();
    }

    private static void handleResponse(String response) {
        if (!response.isEmpty()) {
            System.out.println("收到服务器响应:\n" + response);
        } else {
            System.out.println("收到空响应");
        }
    }

    private static void handleError(String message, Throwable t) {
        System.err.println(message + ": " + t.getMessage());
        if (t instanceof SSLHandshakeException) {
            System.err.println("可能原因: 证书验证失败或协议不匹配");
        }
        t.printStackTrace();
    }
}

---

五、关键配置解析

5.1 服务端关键配置项

配置项	说明	推荐值
keystore	服务端证书存储文件	server.jks
keyalg	密钥算法	RSA/EC
sslProtocol	启用协议版本	TLSv1.2
cipherSuites	加密套件	TLS_AES_256_GCM_SHA384

5.2 客户端信任库配置

// 自定义信任管理器（可选）
TrustManager[] trustManagers = new TrustManager[] {
    new X509TrustManager() {
        public void checkClientTrusted(X509Certificate[] chain, String authType) {}
        public void checkServerTrusted(X509Certificate[] chain, String authType) {
            // 自定义证书验证逻辑
            if (!chain[0].getSubjectDN().getName().contains("example.com")) {
                throw new CertificateException("Invalid server certificate");
            }
        }
        public X509Certificate[] getAcceptedIssuers() { return new X509Certificate[0]; }
    }
};

六、常见问题与解决方案

6.1 证书链不完整

• 现象：PKIX path building failed
• 解决方案：

  # 导出完整证书链
  keytool -importcert -trustcacerts -alias rootca \
    -file root.cer -keystore client_truststore.jks


6.2 主机名验证失败

• 现象：java.security.cert.CertificateException: No subject alternative names
• 解决方案：

  // 创建自定义主机名验证器
  SSLParameters params = new SSLParameters();
  params.setEndpointIdentificationAlgorithm("HTTPS");
  socket.setSSLParameters(params);


6.3 性能调优建议

1. 会话票证：启用TLS会话恢复

   SSLContext.setDefault(SSLContext.getInstance("TLS"));


2. OCSP装订：减少证书验证延迟
3. HTTP/2支持：提升传输效率

---

七、扩展应用场景

7.1 Spring Boot配置HTTPS

# application.properties
server.port=8443
server.ssl.key-store=classpath:server.jks
server.ssl.key-store-password=123456
server.ssl.key-alias=server
server.ssl.enabled-protocols=TLSv1.2

7.2 Nginx代理配置

server {
    listen 443 ssl;
    ssl_protocols TLSv1.3 TLSv1.2;
    ssl_certificate /path/to/server.crt;
    ssl_certificate_key /path/to/server.key;

    location / {
        proxy_pass http://localhost:8080;
    }
}

通过本文，您已掌握Java实现TLS单向认证的核心技术。建议在生产环境中使用权威CA签发的证书，并定期更新密钥，以保障系统安全性。
