强化学习【Monte Carlo Learning][MC Basic 算法]

news 2025/10/18 7:40:26

前文介绍了基于模型的（model-based）强化学习的两种方法:

值迭代（value-iteration）和策略迭代（policy iteration）。

当环境中状态转移概率未知时，就需要采用无模型（model-free）的强化学习方法。在此，我们介绍一种经典的无模型强化学习方法——蒙特卡洛学习（Monte Carlo Learning），该方法主要包含三种算法：

蒙特卡洛基本算法（MC Basic）
蒙特卡洛起始探索算法（MC Exploring starts）
蒙特卡洛 ε-贪婪算法（MC ε-greedy)

简介

Monte Carlo Policy Evaluation
Policy Imporve
python 代码实现

一简介：

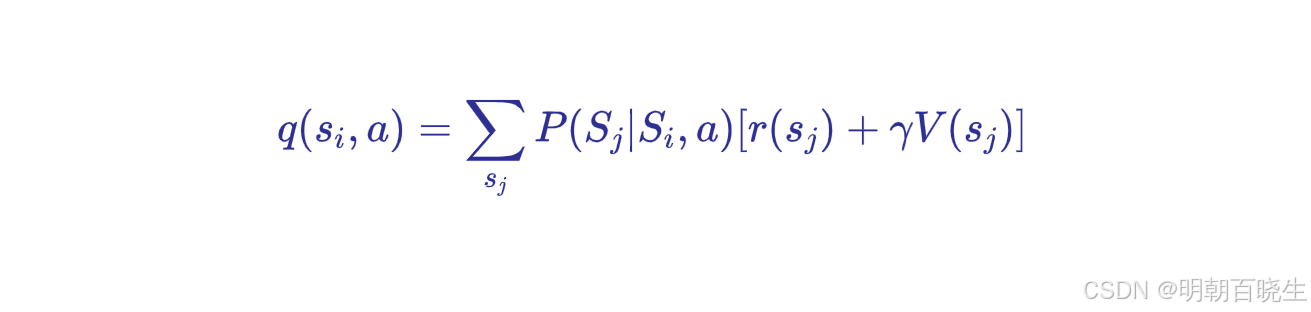

在使用基于模型（model-based）的强化学习方法，特别是进行策略迭代时，我们通常会通过上述公式来求解 状态-动作累积奖赏的数学期望 q。然而， $P(S_j|S_i,a)$ 状态转移概率往往是未知的，在这种情况下，我们通常会采用蒙特卡洛（Monte Carlo）方法进行求解（该方法本质上是通过大数定律来计算数学期望）。

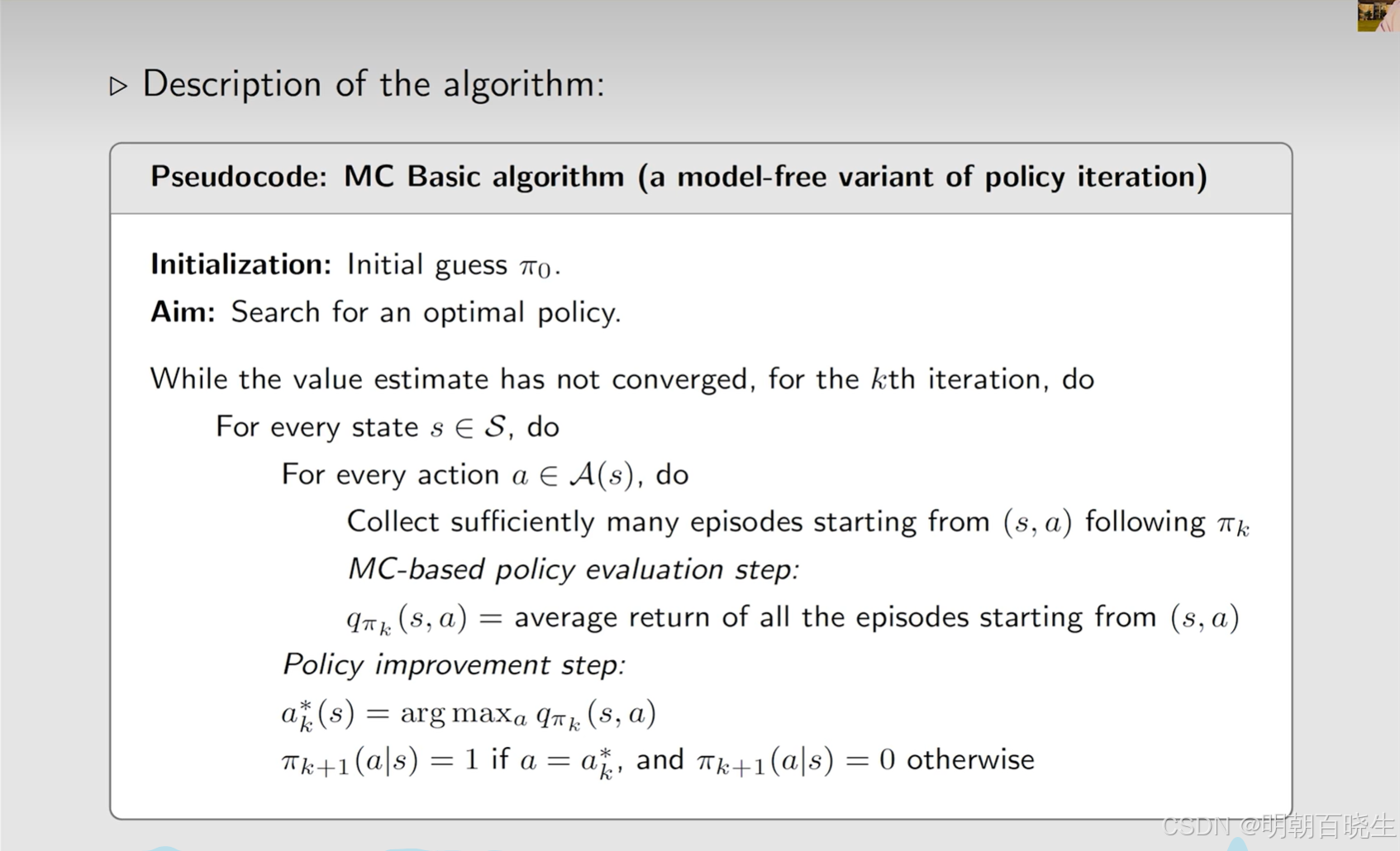

二 MC-Basic 算法

该算法和Policy iteration 流程是一样的,主要是Policy evaluation更换成了Monte Carlo Polciy Evaluation

Policy evaluation(Monte Carlo Polciy Evaluation）
policy improvement

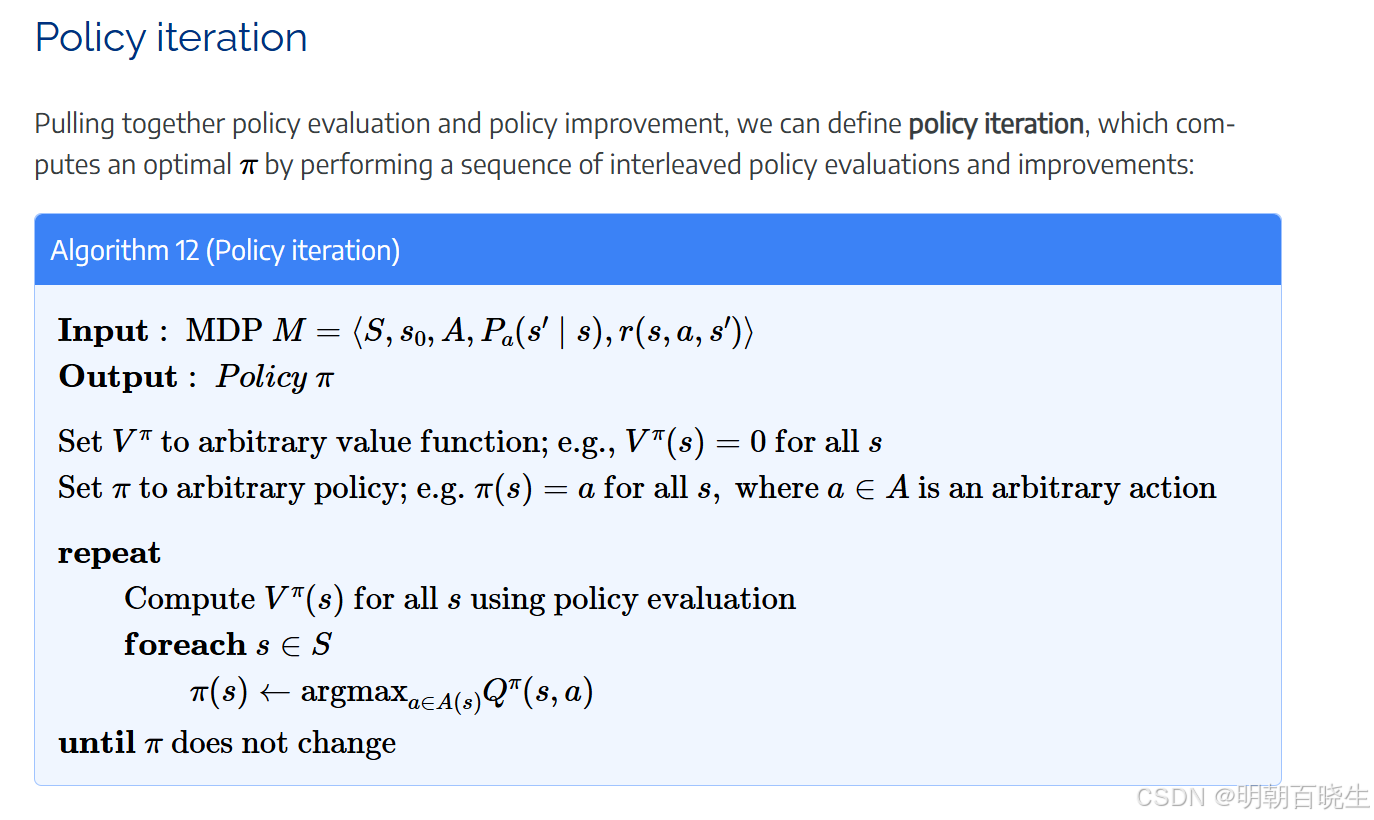

2.1 Policy iteration(model-based)

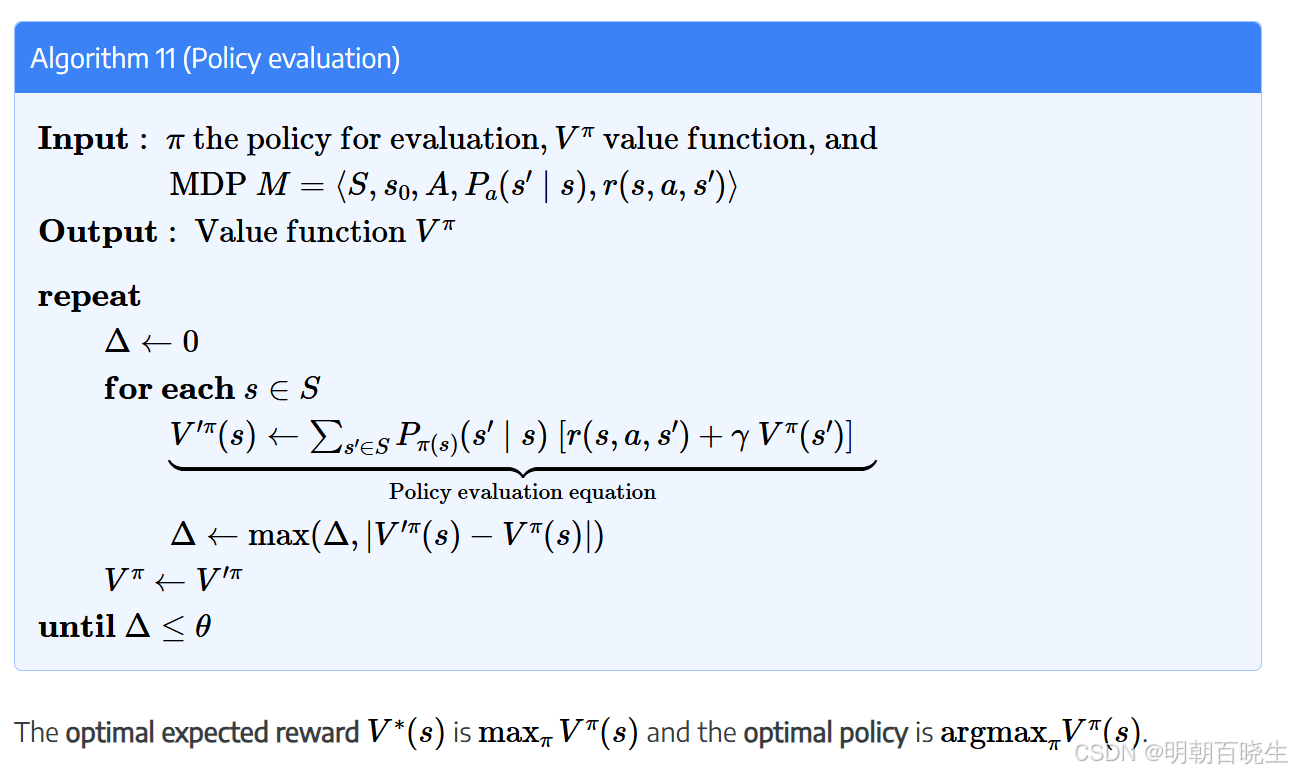

其中 Policy evaluation
在policy iteratoin ,利用了状态转移概率计算了state value

2.2 Monte Carlo Policy Evaluation（model-free)

在 Policy iteration 的时候计算了 state-action 的均值（大数定律里面的切比雪夫不等式）
但是不实用，效率低

# -*- coding: utf-8 -*-
"""
Created on Fri Oct 17 16:42:46 2025@author: chengxf2
"""# -*- coding: utf-8 -*-
"""

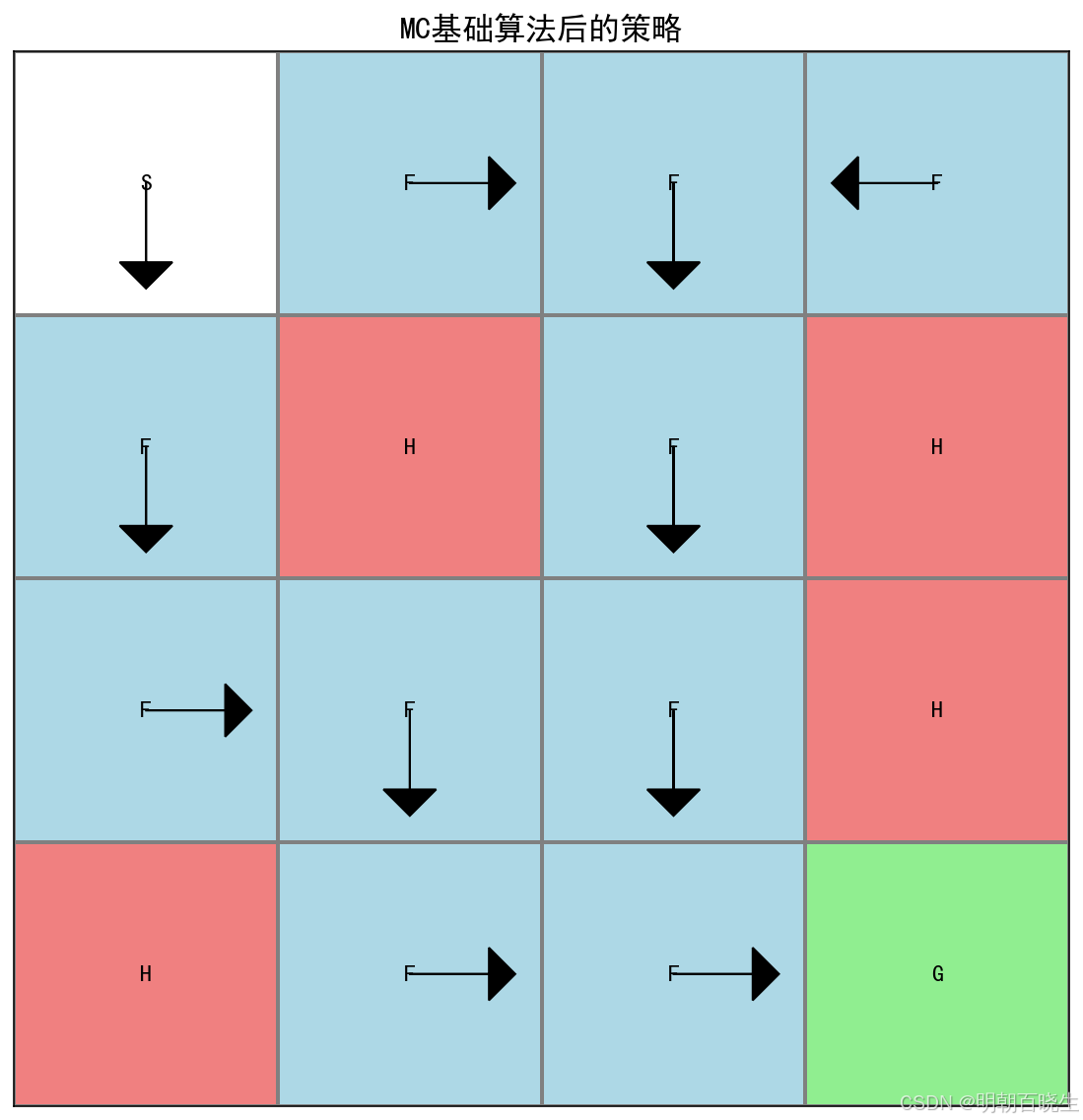

蒙特卡洛学习在网格世界环境中的实现Created on Mon Sep 29 21:37:49 2025
@author: cxf
"""
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap
import random
from matplotlib import rcParams
import matplotlib.font_manager as fm# 添加中文字体支持
rcParams['axes.unicode_minus'] = False
# 添加多个备选中文字体，确保跨平台兼容性
chinese_fonts = ['SimHei', 'Microsoft YaHei', 'WenQuanYi Micro Hei', 'Source Han Sans CN']
available_fonts = [font.name for font in fm.fontManager.ttflist]
valid_fonts = [f for f in chinese_fonts if f in available_fonts]if valid_fonts:rcParams['font.family'] = valid_fonts[0]
else:print("警告：未找到合适的中文字体，中文显示可能异常")class Gridworld:"""网格世界环境，用于蒙特卡洛学习"""def __init__(self, grid, rewards):"""初始化网格世界环境参数:grid: 表示网格世界的二维数组rewards: 映射状态类型到奖励值的字典"""self.grid = np.array(grid)self.rewards = rewardsself.rows, self.cols = self.grid.shapeself.actions = ['up', 'down', 'left', 'right']self.action_effects = {'up': (-1, 0),    # 向上移动'down': (1, 0),   # 向下移动'left': (0, -1),  # 向左移动'right': (0, 1)   # 向右移动}# 初始化特殊状态位置self.start_state = None  # 起始状态self.goal_states = []    # 目标状态列表self.hole_states = []    # 陷阱状态列表self._find_special_states()def _find_special_states(self):"""在网格中识别起始状态、目标状态和陷阱状态"""for row in range(self.rows):for col in range(self.cols):state_type = self.grid[row, col]state_position = (row, col)if state_type == 'S':self.start_state = state_positionelif state_type == 'G':self.goal_states.append(state_position)elif state_type == 'H':self.hole_states.append(state_position)def reset(self):"""重置环境到起始状态"""return self.start_statedef step(self, state, action):"""在环境中执行一步动作参数:state: 当前状态 (行, 列)action: 要执行的动作返回:next_state: 执行动作后的下一个状态reward: 转移的奖励值done: 是否终止回合"""current_row, current_col = staterow_change, col_change = self.action_effects[action]# 计算新位置，确保不超出边界new_row = max(0, min(self.rows - 1, current_row + row_change))new_col = max(0, min(self.cols - 1, current_col + col_change))next_state = (new_row, new_col)# 根据下一个状态类型获取奖励state_type = self.grid[next_state]reward = self.rewards[state_type]# 检查回合是否终止（到达目标、陷阱或无法移动）reached_terminal = state_type in ['G', 'H']stuck_in_position = (current_row == new_row and current_col == new_col)done = reached_terminal or stuck_in_positionreturn next_state, reward, donedef get_state_type(self, state):"""获取状态的类型"""row, col = statereturn self.grid[row, col]def is_terminal(self, state):"""检查状态是否为终止状态（目标或陷阱）"""return self.get_state_type(state) in ['G', 'H']def render(self, values=None, policy=None, title=None):"""可视化网格世界，可选显示价值函数和策略参数:values: 状态价值的二维数组（可选）policy: 策略的二维数组（可选）title: 图表标题（可选）"""figure, axes = plt.subplots(figsize=(8, 8))# 创建网格的颜色映射color_map = ListedColormap(['white', 'lightblue', 'lightcoral', 'lightgreen'])# 创建可视化矩阵visualization_grid = np.zeros_like(self.grid, dtype=float)for row in range(self.rows):for col in range(self.cols):state_type = self.grid[row, col]visualization_grid[row, col] = self._get_state_color_value(state_type)# 显示网格axes.imshow(visualization_grid, cmap=color_map)# 添加文本和策略箭头self._add_grid_annotations(axes, values, policy)# 配置图表外观self._configure_plot_appearance(axes)if title:# 使用本地处理的标题变量确保中文字符正确显示local_title = titletry:axes.set_title(local_title, fontsize=16)except Exception as e:print(f"标题设置失败: {e}")plt.tight_layout()plt.show()#plt.savefig('gridworld_visualization.png')  # 保存为文件确保中文正确显示#plt.close()  # 关闭图形以避免内存泄漏def _get_state_color_value(self, state_type):"""获取状态类型对应的颜色值"""color_mapping = {'S': 0.0,   # 白色 - 起始状态'F': 0.33,  # 浅蓝色 - 自由状态'H': 0.66,  # 浅珊瑚色 - 陷阱状态'G': 1.0    # 浅绿色 - 目标状态}return color_mapping.get(state_type, 0.0)def _add_grid_annotations(self, axes, values, policy):"""向网格可视化添加文本和箭头"""for row in range(self.rows):for col in range(self.cols):state_type = self.grid[row, col]text = state_type# 如果提供了价值函数，添加价值信息if values is not None:# 使用格式化字符串确保数值显示正确text += f'\n{values[row, col]:.2f}'# 尝试使用中文字体添加文本try:axes.text(col, row, text, ha='center', va='center', fontsize=12, fontweight='bold')except Exception as e:print(f"文本添加失败: {e}")# 如果提供了策略，添加策略箭头if policy is not None and not self.is_terminal((row, col)):self._draw_policy_arrow(axes, row, col, policy[row, col])def _draw_policy_arrow(self, axes, row, col, action):"""绘制表示策略动作的箭头"""arrow_vectors = {'up': (0, -0.3),     # 向上箭头'down': (0, 0.3),    # 向下箭头'left': (-0.3, 0),   # 向左箭头'right': (0.3, 0)    # 向右箭头}if action in arrow_vectors:dx, dy = arrow_vectors[action]try:axes.arrow(col, row, dx, dy, head_width=0.2, head_length=0.1, fc='black', ec='black')except Exception as e:print(f"箭头绘制失败: {e}")def _configure_plot_appearance(self, axes):"""配置图表的视觉外观"""# 添加网格线axes.set_xticks(np.arange(-0.5, self.cols, 1), minor=True)axes.set_yticks(np.arange(-0.5, self.rows, 1), minor=True)axes.grid(which="minor", color="gray", linestyle='-', linewidth=2)axes.tick_params(which="minor", size=0)# 移除主刻度axes.set_xticks([])axes.set_yticks([])class MonteCarloBasicAgent:"""蒙特卡洛基础学习智能体"""def __init__(self, environment, discount_factor=0.9):"""初始化蒙特卡洛基础智能体参数:environment: 网格世界环境discount_factor: 未来奖励的折扣因子"""self.environment = environmentself.discount_factor = discount_factorself.actions = environment.actions# 初始化数据结构self.q_values = {}       # 状态 -> 动作价值列表self.returns_data = {}   # (状态, 动作) -> 回报列表self.policy = {}         # 策略：状态 -> 动作self._initialize_policy()def _initialize_policy(self):"""为所有非终止状态初始化随机策略"""for row in range(self.environment.rows):for col in range(self.environment.cols):state = (row, col)if not self.environment.is_terminal(state):self.policy[state] = random.choice(self.actions)def _ensure_state_in_q_values(self, state):"""确保状态存在于Q值字典中，并用零值初始化"""if state not in self.q_values:self.q_values[state] = [0.0] * len(self.actions)def _ensure_state_action_in_returns(self, state, action):"""确保状态-动作对存在于回报字典中"""state_action = (state, action)if state_action not in self.returns_data:self.returns_data[state_action] = []def get_q_value(self, state, action):"""获取状态-动作对的Q值"""self._ensure_state_in_q_values(state)action_index = self.actions.index(action)return self.q_values[state][action_index]def update_q_value(self, state, action, new_value):"""更新状态-动作对的Q值"""self._ensure_state_in_q_values(state)action_index = self.actions.index(action)self.q_values[state][action_index] = new_valuedef add_return_data(self, state, action, return_value):"""为状态-动作对添加回报值"""self._ensure_state_action_in_returns(state, action)self.returns_data[(state, action)].append(return_value)def get_average_return(self, state, action):"""计算状态-动作对的平均回报"""self._ensure_state_action_in_returns(state, action)returns = self.returns_data[(state, action)]if not returns:return 0.0return sum(returns) / len(returns)def _generate_episode_from_state_action(self, start_state, start_action):"""从特定的状态-动作对生成一个回合参数:start_state: 起始状态 (行, 列)start_action: 起始动作返回:episode: (状态, 动作, 奖励) 元组列表"""episode = []current_state = start_state# 第一步：执行指定的动作next_state, reward, done = self.environment.step(current_state, start_action)episode.append((current_state, start_action, reward))#print("\n s1",start_state, start_action, "done",done)if done:#print("\n s2",start_state, start_action, "done",done)return episodecurrent_state = next_stateiter_num = 0max_iter = 50# 后续步骤使用当前策略继续while True:if self.environment.is_terminal(current_state):breakiter_num +=1action = self.policy[current_state]next_state, reward, done = self.environment.step(current_state, action)episode.append((current_state, action, reward))#print("\n s3",next_state, "done",done)if done or iter_num>max_iter:breakcurrent_state = next_statereturn episodedef update_policy(self):"""更新策略为基于Q值的贪婪策略"""for state in self.policy:if not self.environment.is_terminal(state):self._ensure_state_in_q_values(state)state_q_values = self.q_values[state]# 找到最佳动作best_action_index = self._find_best_action_index(state_q_values)self.policy[state] = self.actions[best_action_index]def _find_best_action_index(self, q_values):"""找到具有最大Q值的动作索引"""best_index = 0best_value = q_values[0]for index in range(1, len(q_values)):if q_values[index] > best_value:best_value = q_values[index]best_index = indexreturn best_indexdef learn(self, num_iterations=20, episodes_per_state_action=5):"""蒙特卡洛基础算法参数:num_iterations: 策略迭代步数episodes_per_state_action: 每个状态-动作对生成的回合数"""for iteration in range(num_iterations):print(f"第 {iteration + 1}/{num_iterations} 次迭代")# 策略评估：估计当前策略的Q值# 访问所有状态-动作对state_action_count = 0total_state_actions = 0n = len(self.actions) for row in range(self.environment.rows):for col in range(self.environment.cols):total_state_actions += nfor row in range(self.environment.rows):for col in range(self.environment.cols):state = (row, col)# 跳过终止状态if self.environment.is_terminal(state):continue# 评估该状态的每个动作print(f"处理状态 ({row},{col})")for action in self.actions:state_action_count += 1if state_action_count % 20 == 0:print(f"  处理状态-动作对 {state_action_count}/{total_state_actions}")# 从(状态, 动作)开始生成多个回合for episode_count in range(episodes_per_state_action):episode = self._generate_episode_from_state_action(state, action)self._process_episode_for_state_action(episode, state, action)# 策略改进：更新为基于Q值的贪婪策略self.update_policy()# 打印进度if (iteration + 1) % 5 == 0:print(f"  已完成 {iteration + 1} 次迭代")# 显示当前价值函数current_values = self.get_value_function()print("当前价值函数:")print(current_values)def _process_episode_for_state_action(self, episode, target_state, target_action):"""处理回合以更新特定状态-动作对的Q值参数:episode: (状态, 动作, 奖励) 元组列表target_state: 要评估的目标状态target_action: 要评估的目标动作"""total_return = 0.0found_target = False# 反向处理回合以计算回报for step in reversed(range(len(episode))):state, action, reward = episode[step]total_return = self.discount_factor * total_return + reward# 检查这是否是我们的目标状态-动作对if state == target_state and action == target_action:found_target = Truebreak# 只有在回合中找到目标状态-动作对时才更新if found_target:self.add_return_data(target_state, target_action, total_return)average_return = self.get_average_return(target_state, target_action)self.update_q_value(target_state, target_action, average_return)def get_value_function(self):"""从Q值获取价值函数"""value_function = np.zeros((self.environment.rows, self.environment.cols))for row in range(self.environment.rows):for col in range(self.environment.cols):state = (row, col)if not self.environment.is_terminal(state):if state in self.q_values:value_function[row, col] = max(self.q_values[state])else:value_function[row, col] = 0.0return value_functiondef get_policy_matrix(self):"""获取策略的二维矩阵用于可视化"""policy_matrix = np.empty((self.environment.rows, self.environment.cols), dtype=object)for row in range(self.environment.rows):for col in range(self.environment.cols):state = (row, col)if self.environment.is_terminal(state):policy_matrix[row, col] = ''else:policy_matrix[row, col] = self.policy[state]return policy_matrixdef main():"""主函数：演示网格世界中的蒙特卡洛基础学习"""# 定义网格世界布局grid_layout = [['S', 'F', 'F', 'F'],['F', 'H', 'F', 'H'],['F', 'F', 'F', 'H'],['H', 'F', 'F', 'G']]# 定义每个状态类型的奖励state_rewards = {'S': 0,   # 起始状态'G': 1,   # 目标状态'H': -1,  # 陷阱状态'F': 0    # 自由状态}# 创建环境environment = Gridworld(grid_layout, state_rewards)# 显示初始网格世界print("第一步：初始网格世界:")environment.render(title="初始网格世界")# 创建智能体agent = MonteCarloBasicAgent(environment, discount_factor=0.9)# 运行蒙特卡洛基础算法print("第二步：运行蒙特卡洛基础算法...")agent.learn(num_iterations=10, episodes_per_state_action=3)# 获取价值函数和策略用于可视化value_function = agent.get_value_function()policy_matrix = agent.get_policy_matrix()# 显示结果print("第三步：蒙特卡洛基础算法后的价值函数:")environment.render(values=value_function, title="MC基础算法后的价值函数")print("第四步：蒙特卡洛基础算法后的策略:")environment.render(policy=policy_matrix, title="MC基础算法后的策略")# 打印样本Q值用于检查print("\n第五步：样本Q值:")for row in range(environment.rows):for col in range(environment.cols):state = (row, col)if not environment.is_terminal(state):state_q_values = agent.q_values.get(state, [0.0] * len(agent.actions))q_value_dict = dict(zip(agent.actions, state_q_values))print(f"状态 ({row},{col}): {q_value_dict}")if __name__ == "__main__":main()
