引言

在三维建模和逆向工程中，分层点云数据是常见的几何表示形式。本文将详细介绍如何使用C++和OpenCASCADE库将分层离散的外轮廓点云数据转换为STL实体模型。我们将从基础概念出发，逐步深入探讨实现细节，并提供完整的可运行代码示例。

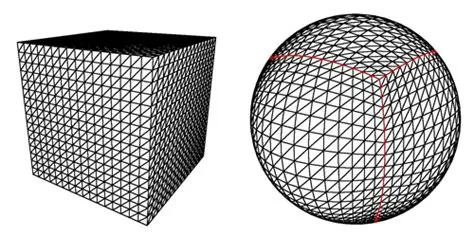

在这里插入图片描述

理论基础

点云分层表示

分层点云数据通常按Z轴方向分层组织，每层包含一个二维轮廓的点集。数学上，我们可以将点云表示为：

$P = \{L_i | i = 1,2,...,n\}$

其中每层 $L_i$ 包含 $m_i$ 个点：

$L_i = \{p_j = (x_j, y_j, z_i) | j = 1,2,...,m_i\}$

STL文件格式

STL（STereoLithography）文件由三角形面片组成，每个面片由三个顶点和一个法向量定义。文件格式有ASCII和二进制两种，本文使用二进制格式以提高存储效率。

环境配置

OpenCASCADE安装

# Ubuntu/Debian
sudo apt-get install libocct-foundation-dev libocct-modeling-dev libocct-data-exchange-dev# 或者从源码编译
git clone https://github.com/Open-CASCADE-SOC/OCCT
cd OCCT
mkdir build && cd build
cmake .. -DUSE_VTK=OFF -DUSE_FFMPEG=OFF
make -j$(nproc)
sudo make install

项目配置

# CMakeLists.txt
cmake_minimum_required(VERSION 3.10)
project(PointCloudToSTL)find_package(OpenCASCADE REQUIRED)set(CMAKE_CXX_STANDARD 11)
set(CMAKE_CXX_STANDARD_REQUIRED ON)add_executable(pointcloud_to_stl main.cpp)
target_link_libraries(pointcloud_to_stl TKernel TKG3d TKBRep TKTopAlgo TKMesh TKSTL TKOffset)

基础实现

点云数据结构

// point_cloud_basic.cpp
#include <iostream>
#include <vector>
#include <cmath>struct Point3D {double x, y, z;Point3D(double x_ = 0, double y_ = 0, double z_ = 0) : x(x_), y(y_), z(z_) {}double distanceTo(const Point3D& other) const {double dx = x - other.x;double dy = y - other.y;double dz = z - other.z;return std::sqrt(dx*dx + dy*dy + dz*dz);}
};class LayeredPointCloud {
private:std::vector<std::vector<Point3D>> layers;std::vector<int> pointsPerLayer;double minZ, maxZ;public:LayeredPointCloud(double minZ_, double maxZ_, int layersCount): minZ(minZ_), maxZ(maxZ_) {layers.resize(layersCount);pointsPerLayer.resize(layersCount, 0);}void addPointToLayer(int layerIndex, const Point3D& point) {if (layerIndex >= 0 && layerIndex < (int)layers.size()) {layers[layerIndex].push_back(point);pointsPerLayer[layerIndex] = (int)layers[layerIndex].size();}}void setLayerPoints(int layerIndex, const std::vector<Point3D>& points) {if (layerIndex >= 0 && layerIndex < (int)layers.size()) {layers[layerIndex] = points;pointsPerLayer[layerIndex] = (int)points.size();}}const std::vector<Point3D>& getLayer(int layerIndex) const {return layers[layerIndex];}int getLayerCount() const { return (int)layers.size(); }int getPointsInLayer(int layerIndex) const {return pointsPerLayer[layerIndex];}
};int main() {// 测试基础点云结构LayeredPointCloud cloud(0, 10, 5);// 添加测试数据for (int layer = 0; layer < 5; ++layer) {std::vector<Point3D> points;for (int i = 0; i < 8; ++i) {double angle = 2 * M_PI * i / 8;points.push_back(Point3D(std::cos(angle), std::sin(angle), layer * 2.0));}cloud.setLayerPoints(layer, points);}std::cout << "点云创建成功，层数: " << cloud.getLayerCount() << std::endl;return 0;
}

几何体创建与离散化

// geometry_creation.cpp
#include <iostream>
#include <vector>
#include <cmath>
#include <algorithm>struct Point3D {double x, y, z;Point3D(double x_ = 0, double y_ = 0, double z_ = 0) : x(x_), y(y_), z(z_) {}
};class LayeredPointCloud {
private:std::vector<std::vector<Point3D>> layers;std::vector<int> pointsPerLayer;double minZ, maxZ;public:LayeredPointCloud(double minZ_, double maxZ_, int layersCount): minZ(minZ_), maxZ(maxZ_) {layers.resize(layersCount);pointsPerLayer.resize(layersCount, 0);}void setLayerPoints(int layerIndex, const std::vector<Point3D>& points) {if (layerIndex >= 0 && layerIndex < (int)layers.size()) {layers[layerIndex] = points;pointsPerLayer[layerIndex] = (int)points.size();}}const std::vector<Point3D>& getLayer(int layerIndex) const {return layers[layerIndex];}int getLayerCount() const { return (int)layers.size(); }int getPointsInLayer(int layerIndex) const {return pointsPerLayer[layerIndex];}
};LayeredPointCloud createCylinderPointCloud(double radius, double height, int numLayers, int pointsPerLayer) {LayeredPointCloud cloud(0, height, numLayers);double layerHeight = height / (numLayers - 1);for (int layer = 0; layer < numLayers; ++layer) {double z = layer * layerHeight;std::vector<Point3D> layerPoints;for (int i = 0; i < pointsPerLayer; ++i) {double angle = 2 * M_PI * i / pointsPerLayer;double x = radius * std::cos(angle);double y = radius * std::sin(angle);layerPoints.push_back(Point3D(x, y, z));}cloud.setLayerPoints(layer, layerPoints);}return cloud;
}LayeredPointCloud createVariableCylinderPointCloud(double baseRadius, double topRadius, double height, int numLayers) {LayeredPointCloud cloud(0, height, numLayers);double layerHeight = height / (numLayers - 1);for (int layer = 0; layer < numLayers; ++layer) {double z = layer * layerHeight;double t = (double)layer / (numLayers - 1);double radius = baseRadius * (1 - t) + topRadius * t;int pointsInThisLayer = (int)(36 * (radius / baseRadius));pointsInThisLayer = std::max(12, std::min(72, pointsInThisLayer));std::vector<Point3D> layerPoints;for (int i = 0; i < pointsInThisLayer; ++i) {double angle = 2 * M_PI * i / pointsInThisLayer;double x = radius * std::cos(angle);double y = radius * std::sin(angle);layerPoints.push_back(Point3D(x, y, z));}cloud.setLayerPoints(layer, layerPoints);}return cloud;
}int main() {// 测试圆柱体创建LayeredPointCloud cylinder = createCylinderPointCloud(5.0, 10.0, 10, 36);std::cout << "圆柱体点云创建成功" << std::endl;// 测试变半径圆柱体LayeredPointCloud variableCylinder = createVariableCyli
