SSM聚合项目部署

news 2025/10/13 19:51:55

以我最近写的项目为例子：

首先介绍各个模块的功能：

ham-file:文件服务器，以war形式打包

ham-parent:主要管理每个子模块的依赖关系、插件版本，以pom形式打包

ham-core:公用模块，负责dao层和service层，以jar形式打包

ham-portal:前台模块，负责控制层，以war形式打包

开始部署

1.在idea中进行打包

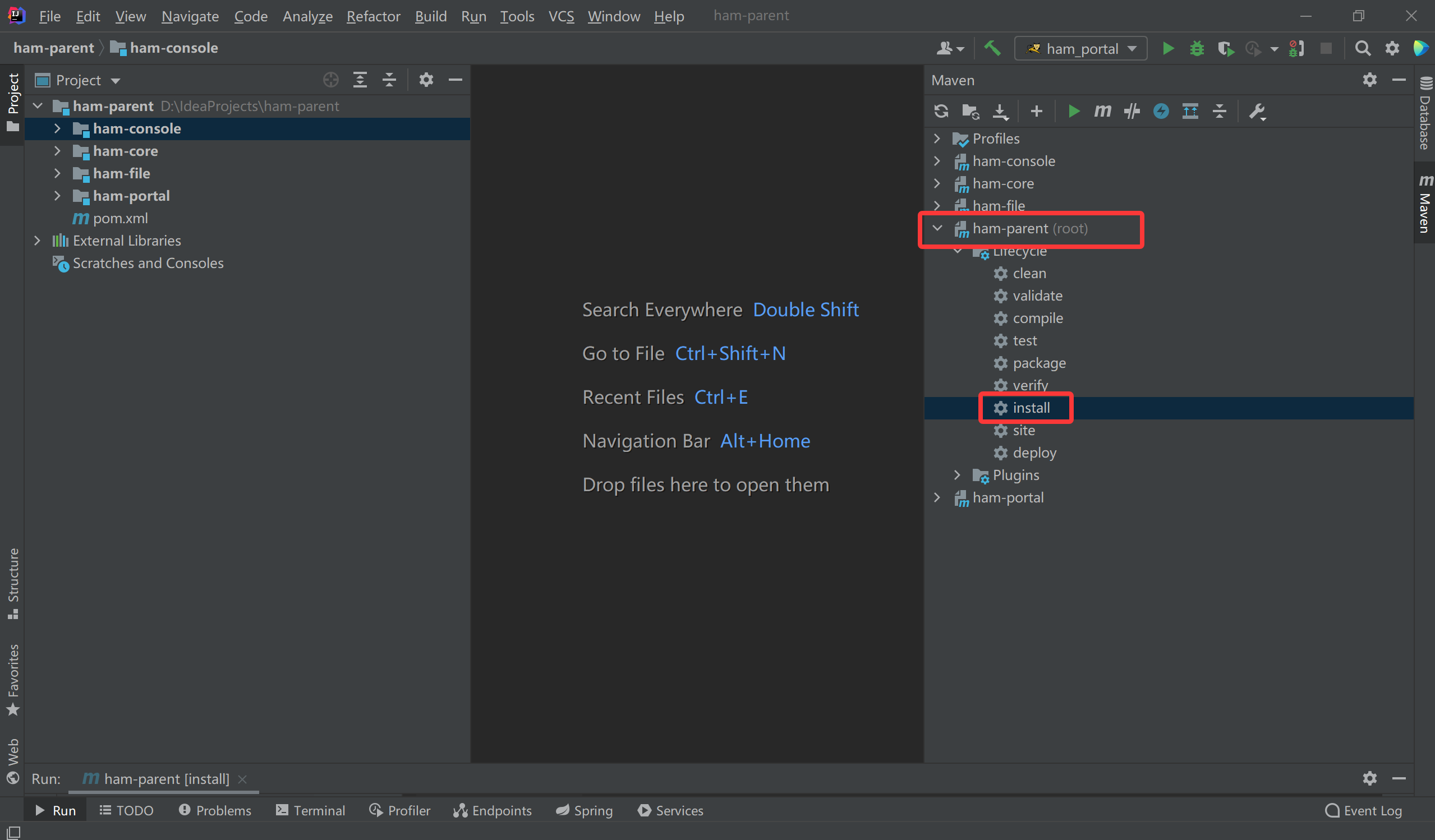

打开idea右侧边栏中的maven栏，找到父模块进行打包。

不要打包其他模块，因为父工程打包完成之后，会自动打包子项目

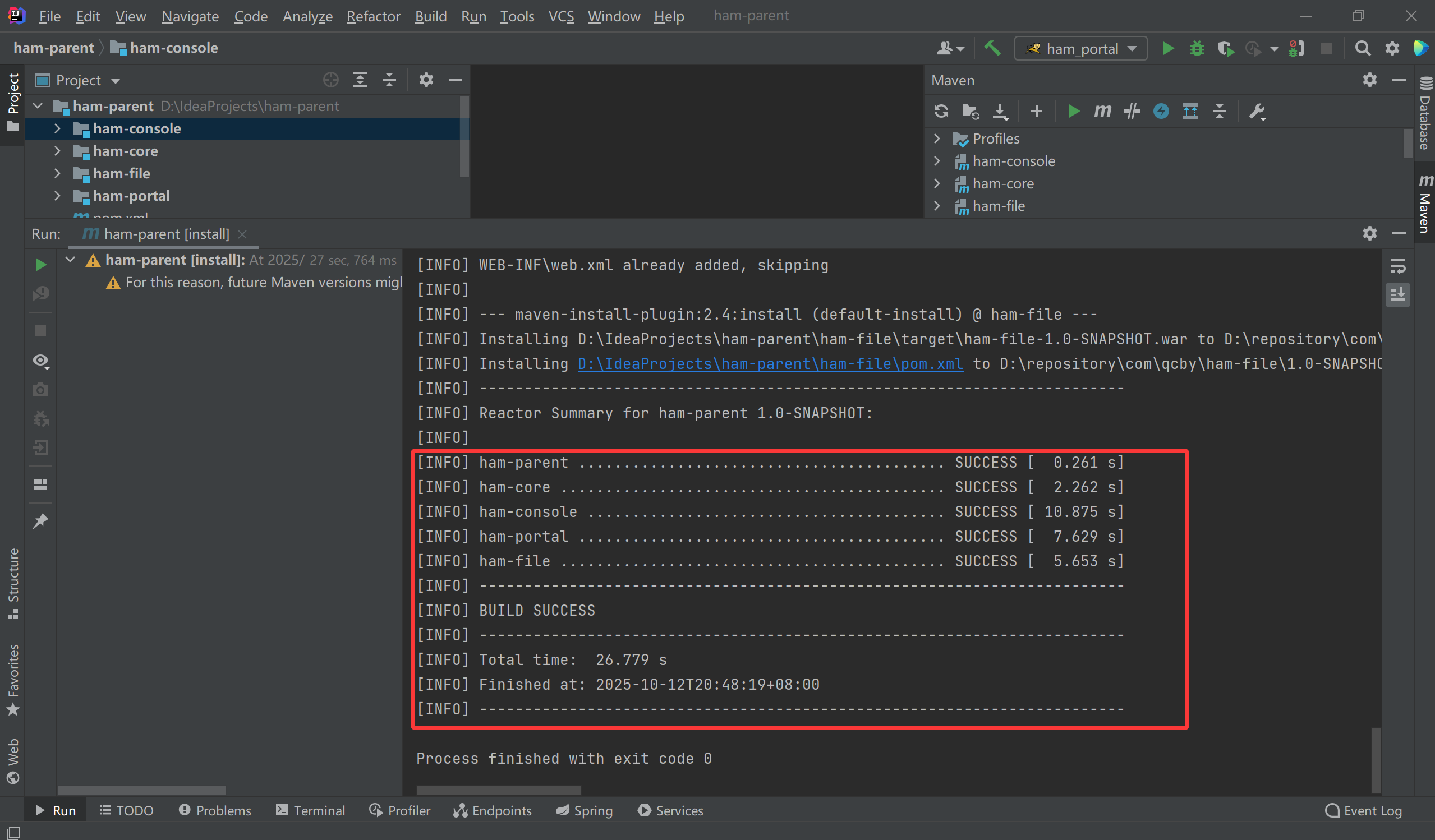

如上图所示，说明打包成功。

2.移动到tomcat

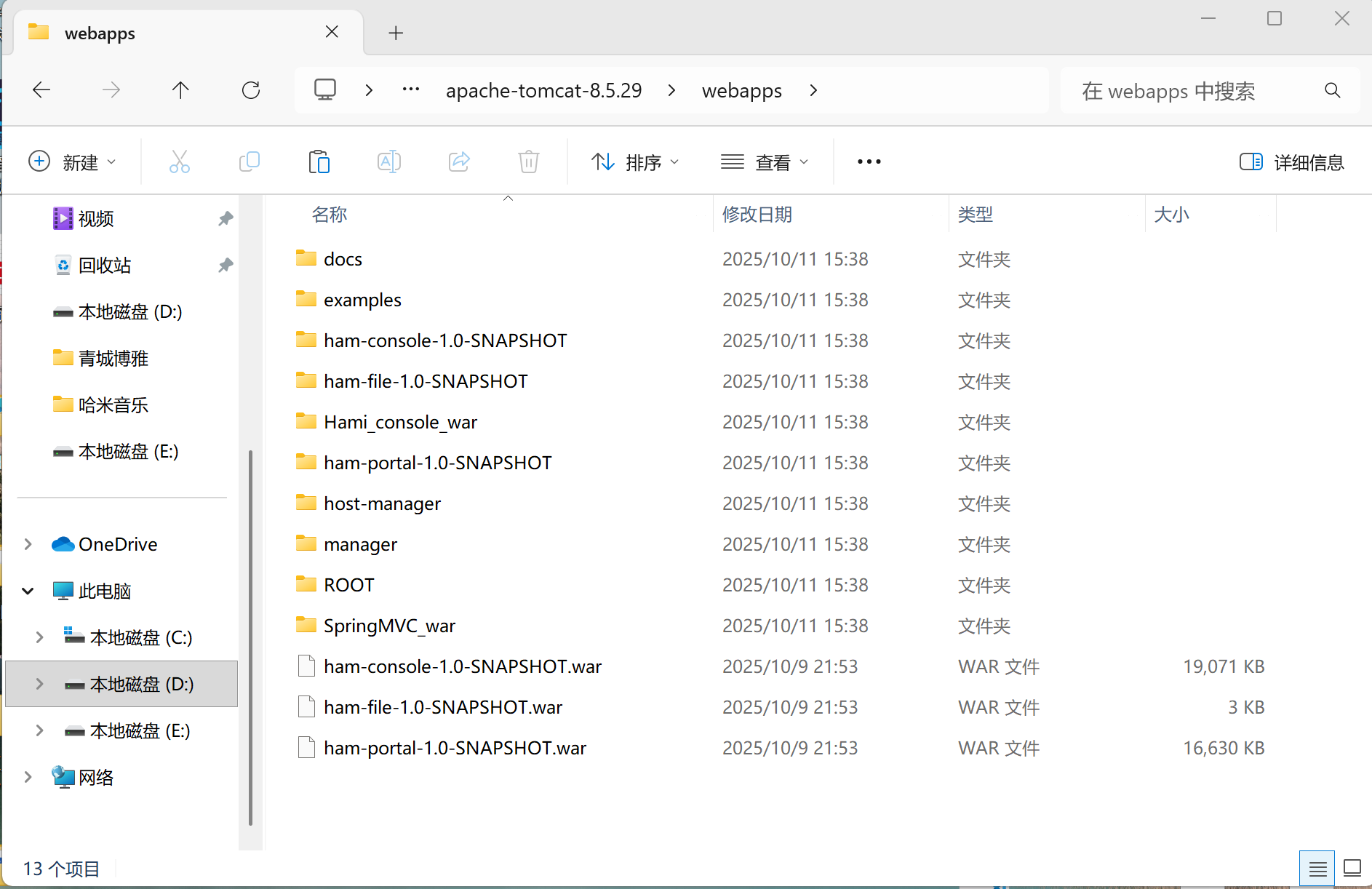

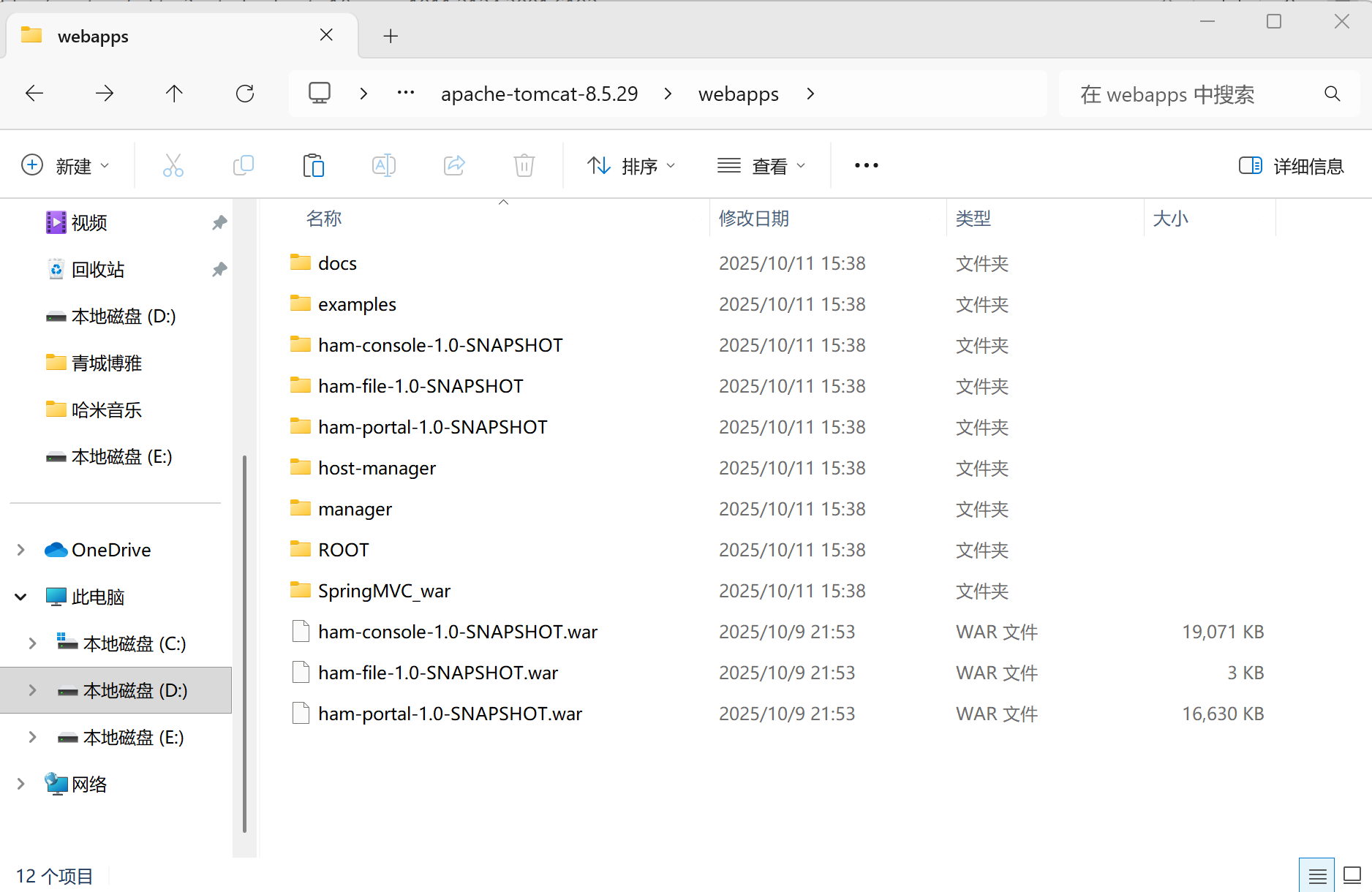

把三个war包复制到tomcat的webapps目录下

jar包在ham-portal的pom文件中有声明，加载时会去本地的maven仓库中找ham-core这个jar包，而我们在install的时候，这个jar包已经到了本地maven仓库里面，所以不用复制过来。

        <dependency><groupId>com.qcby</groupId><version>1.0-SNAPSHOT</version><artifactId>ham-core</artifactId></dependency>

3.修改tomcat的server.xml文件

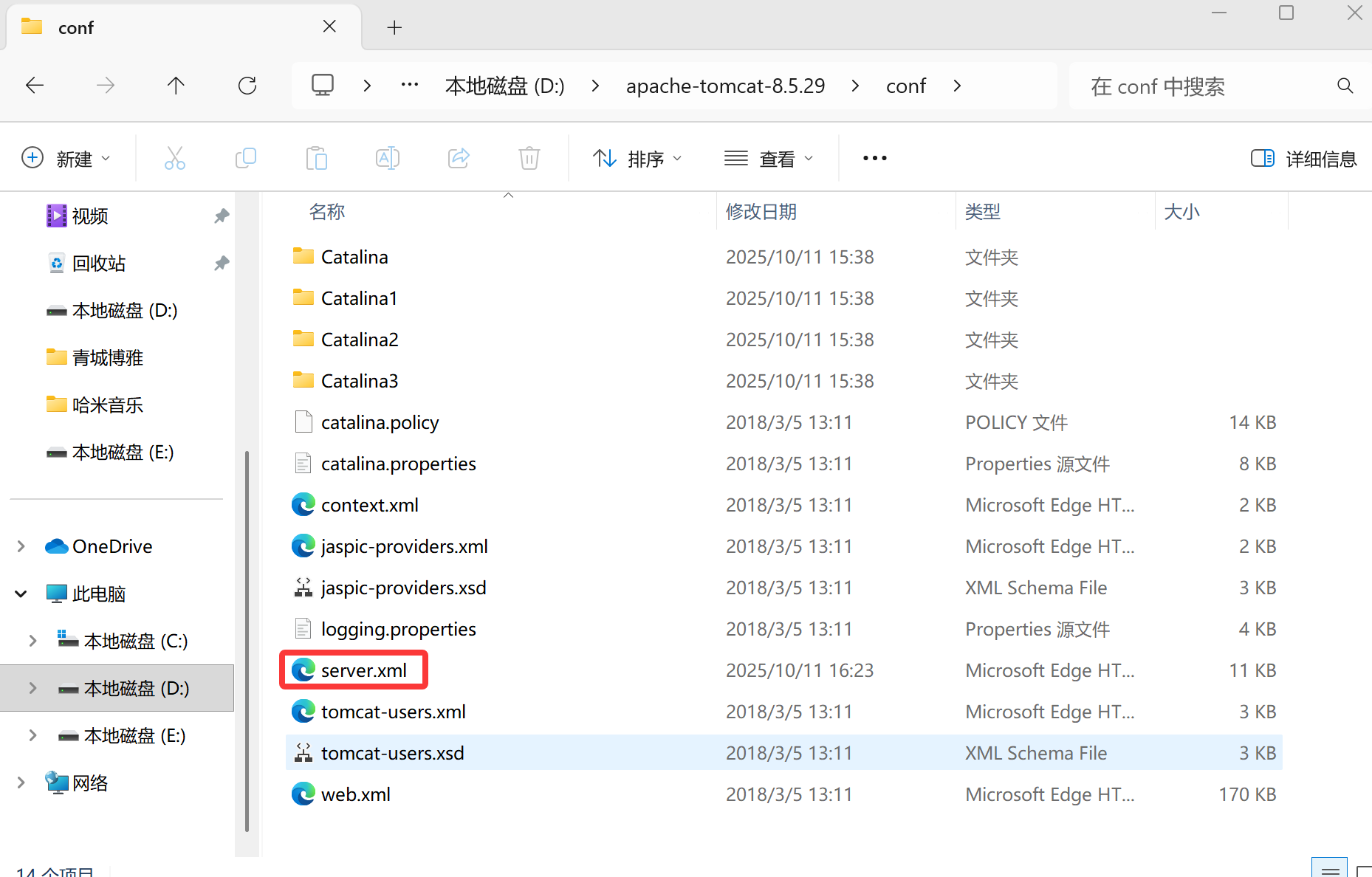

找到conf目录下的server.xml文件：

用同一个tomcat运行多个独立的web服务时，需要为它们分配不同的端口

<?xml version="1.0" encoding="UTF-8"?>
<!--Licensed to the Apache Software Foundation (ASF) under one or morecontributor license agreements.  See the NOTICE file distributed withthis work for additional information regarding copyright ownership.The ASF licenses this file to You under the Apache License, Version 2.0(the "License"); you may not use this file except in compliance withthe License.  You may obtain a copy of the License athttp://www.apache.org/licenses/LICENSE-2.0Unless required by applicable law or agreed to in writing, softwaredistributed under the License is distributed on an "AS IS" BASIS,WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.See the License for the specific language governing permissions andlimitations under the License.
-->
<!-- Note:  A "Server" is not itself a "Container", so you may notdefine subcomponents such as "Valves" at this level.Documentation at /docs/config/server.html-->
<Server port="8005" shutdown="SHUTDOWN"><Listener className="org.apache.catalina.startup.VersionLoggerListener" /><!-- Security listener. Documentation at /docs/config/listeners.html<Listener className="org.apache.catalina.security.SecurityListener" />--><!--APR library loader. Documentation at /docs/apr.html --><Listener className="org.apache.catalina.core.AprLifecycleListener" SSLEngine="on" /><!-- Prevent memory leaks due to use of particular java/javax APIs--><Listener className="org.apache.catalina.core.JreMemoryLeakPreventionListener" /><Listener className="org.apache.catalina.mbeans.GlobalResourcesLifecycleListener" /><Listener className="org.apache.catalina.core.ThreadLocalLeakPreventionListener" /><!-- Global JNDI resourcesDocumentation at /docs/jndi-resources-howto.html--><GlobalNamingResources><!-- Editable user database that can also be used byUserDatabaseRealm to authenticate users--><Resource name="UserDatabase" auth="Container"type="org.apache.catalina.UserDatabase"description="User database that can be updated and saved"factory="org.apache.catalina.users.MemoryUserDatabaseFactory"pathname="conf/tomcat-users.xml" /></GlobalNamingResources><!-- A "Service" is a collection of one or more "Connectors" that sharea single "Container" Note:  A "Service" is not itself a "Container",so you may not define subcomponents such as "Valves" at this level.Documentation at /docs/config/service.html--><Service name="Catalina"><!--The connectors can use a shared executor, you can define one or more named thread pools--><!--<Executor name="tomcatThreadPool" namePrefix="catalina-exec-"maxThreads="150" minSpareThreads="4"/>--><!-- A "Connector" represents an endpoint by which requests are receivedand responses are returned. Documentation at :Java HTTP Connector: /docs/config/http.htmlJava AJP  Connector: /docs/config/ajp.htmlAPR (HTTP/AJP) Connector: /docs/apr.htmlDefine a non-SSL/TLS HTTP/1.1 Connector on port 8080--><Connector port="8080" protocol="HTTP/1.1"connectionTimeout="20000"redirectPort="8443" /><!-- A "Connector" using the shared thread pool--><!--<Connector executor="tomcatThreadPool"port="8080" protocol="HTTP/1.1"connectionTimeout="20000"redirectPort="8443" />--><!-- Define a SSL/TLS HTTP/1.1 Connector on port 8443This connector uses the NIO implementation. The defaultSSLImplementation will depend on the presence of the APR/nativelibrary and the useOpenSSL attribute of theAprLifecycleListener.Either JSSE or OpenSSL style configuration may be used regardless ofthe SSLImplementation selected. JSSE style configuration is used below.--><!--<Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"maxThreads="150" SSLEnabled="true"><SSLHostConfig><Certificate certificateKeystoreFile="conf/localhost-rsa.jks"type="RSA" /></SSLHostConfig></Connector>--><!-- Define a SSL/TLS HTTP/1.1 Connector on port 8443 with HTTP/2This connector uses the APR/native implementation which always usesOpenSSL for TLS.Either JSSE or OpenSSL style configuration may be used. OpenSSL styleconfiguration is used below.--><!--<Connector port="8443" protocol="org.apache.coyote.http11.Http11AprProtocol"maxThreads="150" SSLEnabled="true" ><UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" /><SSLHostConfig><Certificate certificateKeyFile="conf/localhost-rsa-key.pem"certificateFile="conf/localhost-rsa-cert.pem"certificateChainFile="conf/localhost-rsa-chain.pem"type="RSA" /></SSLHostConfig></Connector>--><!-- Define an AJP 1.3 Connector on port 8009 --><Connector port="8009" protocol="AJP/1.3" redirectPort="8443" /><!-- An Engine represents the entry point (within Catalina) that processesevery request.  The Engine implementation for Tomcat stand aloneanalyzes the HTTP headers included with the request, and passes themon to the appropriate Host (virtual host).Documentation at /docs/config/engine.html --><!-- You should set jvmRoute to support load-balancing via AJP ie :<Engine name="Catalina" defaultHost="localhost" jvmRoute="jvm1">--><Engine name="Catalina" defaultHost="localhost"><!--For clustering, please take a look at documentation at:/docs/cluster-howto.html  (simple how to)/docs/config/cluster.html (reference documentation) --><!--<Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"/>--><!-- Use the LockOutRealm to prevent attempts to guess user passwordsvia a brute-force attack --><Realm className="org.apache.catalina.realm.LockOutRealm"><!-- This Realm uses the UserDatabase configured in the global JNDIresources under the key "UserDatabase".  Any editsthat are performed against this UserDatabase are immediatelyavailable for use by the Realm.  --><Realm className="org.apache.catalina.realm.UserDatabaseRealm"resourceName="UserDatabase"/></Realm><Host name="localhost"  appBase="webapps"unpackWARs="true" autoDeploy="true"><!-- SingleSignOn valve, share authentication between web applicationsDocumentation at: /docs/config/valve.html --><!--<Valve className="org.apache.catalina.authenticator.SingleSignOn" />--><!-- Access log processes all example.Documentation at: /docs/config/valve.htmlNote: The pattern used is equivalent to using pattern="common" --><Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"prefix="localhost_access_log" suffix=".txt"pattern="%h %l %u %t &quot;%r&quot; %s %b" /></Host></Engine></Service><Service name="Catalina1"><Connector port="8075" protocol="HTTP/1.1"connectionTimeout="20000"redirectPort="8443" /><Connector port="8010" protocol="AJP/1.3" redirectPort="8443" /><Engine name="Catalina1" defaultHost="localhost"><Realm className="org.apache.catalina.realm.LockOutRealm"><Realm className="org.apache.catalina.realm.UserDatabaseRealm"resourceName="UserDatabase"/></Realm><Host name="localhost"  appBase="webapps"unpackWARs="true" autoDeploy="true"><Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"prefix="localhost_access_log" suffix=".txt"pattern="%h %l %u %t &quot;%r&quot; %s %b" /><Context docBase="ham-console-1.0-SNAPSHOT" path="/" reloadable="true"/></Host></Engine></Service><Service name="Catalina2"><Connector port="8076" protocol="HTTP/1.1"connectionTimeout="20000"redirectPort="8443" /><Connector port="8011" protocol="AJP/1.3" redirectPort="8443" /><Engine name="Catalina2" defaultHost="localhost"><Realm className="org.apache.catalina.realm.LockOutRealm"><Realm className="org.apache.catalina.realm.UserDatabaseRealm"resourceName="UserDatabase"/></Realm><Host name="localhost"  appBase="webapps"unpackWARs="true" autoDeploy="true"><Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"prefix="localhost_access_log" suffix=".txt"pattern="%h %l %u %t &quot;%r&quot; %s %b" /><Context docBase="ham-portal-1.0-SNAPSHOT" path="/" reloadable="true"/></Host></Engine></Service><Service name="Catalina3"><Connector port="8099" protocol="HTTP/1.1"connectionTimeout="20000"redirectPort="8443" /><Connector port="8012" protocol="AJP/1.3" redirectPort="8443" /><Engine name="Catalina3" defaultHost="localhost"><Realm className="org.apache.catalina.realm.LockOutRealm"><Realm className="org.apache.catalina.realm.UserDatabaseRealm"resourceName="UserDatabase"/></Realm><Host name="localhost"  appBase="webapps"unpackWARs="true" autoDeploy="true"><Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"prefix="localhost_access_log" suffix=".txt"pattern="%h %l %u %t &quot;%r&quot; %s %b" /><Context docBase="ham-file-1.0-SNAPSHOT" path="/" reloadable="true"/></Host></Engine></Service>
</Server>

我们拿出其中一个分析：

  <Service name="Catalina3"><Connector port="8099" protocol="HTTP/1.1"connectionTimeout="20000"redirectPort="8443" /><Connector port="8012" protocol="AJP/1.3" redirectPort="8443" /><Engine name="Catalina3" defaultHost="localhost"><Realm className="org.apache.catalina.realm.LockOutRealm"><Realm className="org.apache.catalina.realm.UserDatabaseRealm"resourceName="UserDatabase"/></Realm><Host name="localhost"  appBase="webapps"unpackWARs="true" autoDeploy="true"><Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"prefix="localhost_access_log" suffix=".txt"pattern="%h %l %u %t &quot;%r&quot; %s %b" /><Context docBase="ham-file-1.0-SNAPSHOT" path="/" reloadable="true"/></Host></Engine></Service>

首先要改service名字，名字不可以重复；其次是端口，Http端口和AJP端口；

最后是Context的配置：它定义了一个名为 ham-file-1.0-SNAPSHOT 的Web应用程序，其访问路径为根路径("/")，并且开启了“自动重新加载”功能。Context 是Web 应用的具体配置，它将一个 Web 应用映射到一个 URL 路径上，docBase用于指定 Web 应用的物理路径，path用于指定浏览器访问时的路径名，reloadable用于指定是否自动重载。
