CAN信号通信
这章讲述下can信号收发，先基于回路
1：硬件与环境
keil5.38
stm32f103c8t6
STM32CubeMX 1.19
rt-thread 3.3 (这个不用也可以)
2：CAN 介绍
CAN 相关介绍
CAN时钟频率：STM32中CAN外设的时钟频率，通常来自于APB1总线。
Prescaler：分频系数，用于将CAN时钟分频得到时间量子（Time Quanta，TQ）的频率。
TimeSeg1和TimeSeg2：分别代表位时间段1和位时间段2，以时间量子（TQ）为单位。
注意：一个位时间总共包括Sync_Seg（固定为1TQ）、TimeSeg1和TimeSeg2。所以总TQ数为1+TimeSeg1+TimeSeg2。
SyncJumpWidth（同步跳转宽度），它定义了在重同步时允许的最大时间量子调整量，取值范围从1到4（对应的宏为CAN_SJW_1TQ到CAN_SJW_4TQ)
SyncJumpWidth不能大于TimeSeg21: 核心公式
波特率 = CAN时钟频率 / (Prescaler × 总时间量子数)
总时间量子数 = 1 + TimeSeg1 + TimeSeg22:采样点公式：
采样点位置 = (1 + TimeSeg1) / 总时间量子数
3:Prescaler (预分频器)
作用：将CAN时钟分频得到时间量子(TQ)的频率
公式：TQ频率 = CAN时钟 / Prescaler
范围：1-1024
影响：决定了时间量子的精度4 TimeSeg
1>TimeSeg1 (BS1)
作用：相位缓冲段1 + 传播段
包含：
传播时间段(Prop_Seg)
相位缓冲段1(Phase_Seg1)
范围：1-16个TQ
影响：信号传播补偿和相位误差补偿2>
TimeSeg2 (BS2)
作用：相位缓冲段2
范围：1-8个TQ
影响：相位误差补偿，决定重同步能力5:完整的位时间结构
一个CAN位时间 = SYNC_SEG + TimeSeg1 + TimeSeg2= 1 TQ + BS1 + BS2
SYNC_SEG (1 TQ)：硬同步点，边沿应在此段内
TimeSeg1 (BS1)：补偿物理延迟和相位误差
TimeSeg2 (BS2)：提供重同步的调整空间6: 计算方法和步骤推荐的比例：
TimeSeg1 : TimeSeg2 ≈ 2:1 到 8:1
采样点位置：75% - 90% 之间1>已知参数求波特率
已知：CAN时钟 = 36MHz, Prescaler = 9, BS1 = 13, BS2 = 2
步骤：
1. TQ频率 = 36MHz / 9 = 4MHz
2. 总TQ数 = 1 + 13 + 2 = 16
3. 波特率 = 4MHz / 16 = 250kbps
4. 采样点 = (1 + 13) / 16 = 87.5%

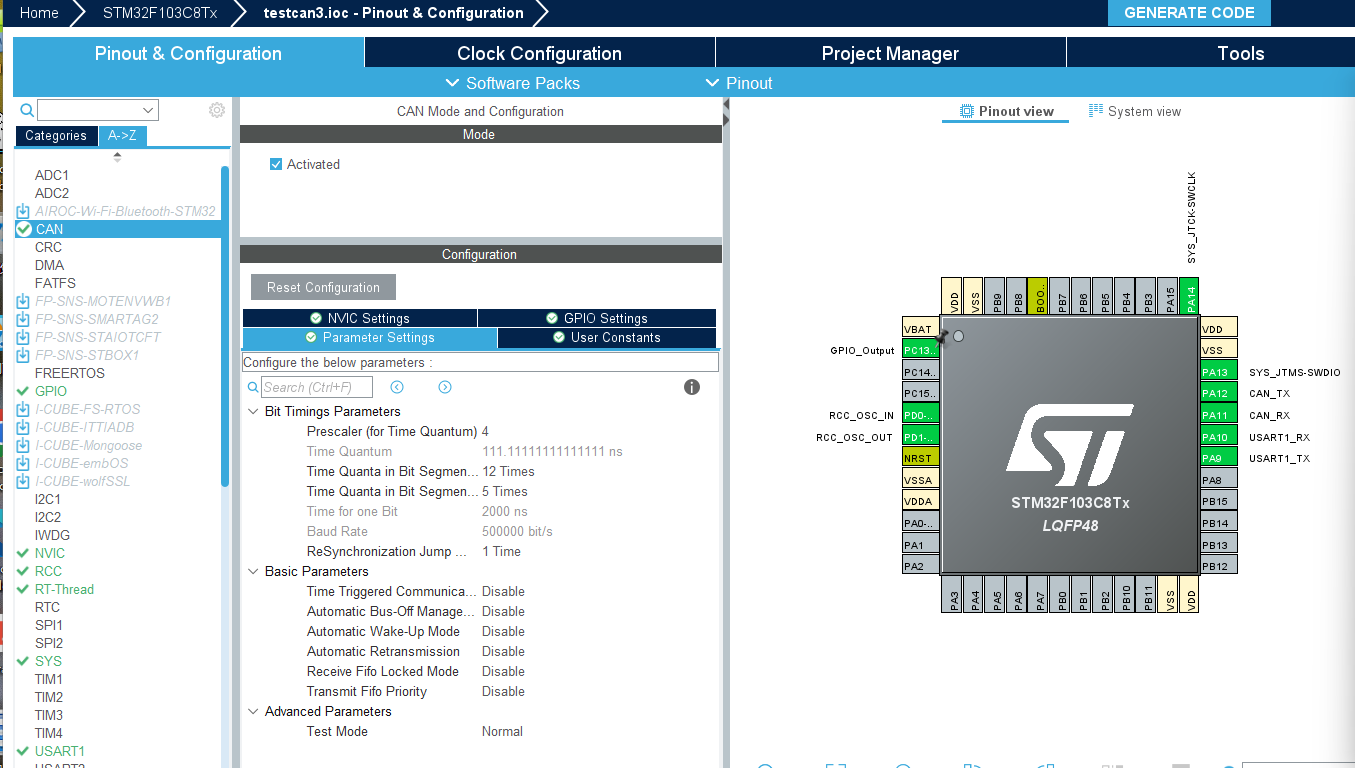

3: CubeMX 配置
4：上代码
main.c main 函数
main.h 定义开关
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "rtthread.h"
#include "usart.h"
#include "can.h"
/* USER CODE END Includes */
/* USER CODE BEGIN EM */
#define CAN_USE_LOOPBACK 1 //1环回模式 0 正常模式
#define SUB_LOOPBACK_QUERY_INTERRUPT 0 //1 查询 0 中断
/* USER CODE END EM */
int main(void)
{/* USER CODE BEGIN 1 *//* USER CODE END 1 *//* MCU Configuration--------------------------------------------------------*//* Reset of all peripherals, Initializes the Flash interface and the Systick. */HAL_Init();/* USER CODE BEGIN Init *//* USER CODE END Init *//* Configure the system clock */SystemClock_Config();/* USER CODE BEGIN SysInit *//* USER CODE END SysInit *//* Initialize all configured peripherals */MX_GPIO_Init();MX_CAN_Init();MX_USART1_UART_Init();/* USER CODE BEGIN 2 */static uint32_t ucount =0;// 用户CAN初始化CAN_Init_Interrupt();rt_tick_t last_print_time = 0;uint8_t tx_data[8] = {0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08};uint8_t counter = 0;rt_kprintf("while start\r\n");rt_thread_delay(1000);HAL_GPIO_WritePin(GPIOC, GPIO_PIN_13, GPIO_PIN_SET); //灭rt_kprintf("while start[1]\r\n");rt_tick_t tick_count = 0;//rt_tick_get(); // 获取当前系统节拍 typedef unsigned long rt_tick_t //32bit
// tick_count = rt_tick_get(); // 获取当前系统节拍
//millisecond = (tick_count * 1000) / RT_TICK_PER_SECOND; // 转换为毫秒 //RT_TICK_PER_SECOND 的值（通常在 rtconfig.h 中定义 // <i>Default: 1000 (1ms)
//#define RT_TICK_PER_SECOND 1000
//rt_tick_from_millisecond()// 开始轮询测试
//#if CAN_USE_LOOPBACK ==1
// CAN_Polling_Test();
//#endif
#if SUB_LOOPBACK_QUERY_INTERRUPT #if CAN_USE_LOOPBACK ==1 // 开始轮询测试CAN_Polling_Test();#endif
#else // 配置CAN中断优先级CAN_Interrupt_Config();
#endif /* USER CODE END 2 *//* Infinite loop *//* USER CODE BEGIN WHILE */while (1){
// HAL_GPIO_TogglePin(GPIOC, GPIO_PIN_13);
// rt_thread_delay(2000); /* ��ʱ 500 �� tick */
// rt_kprintf("led1_thread running,[%d]->\r\n",ucount++);///////////////////////////////////////////////////////////////
#if SUB_LOOPBACK_QUERY_INTERRUPT ==0 // 定期发送测试消息（每2秒）tick_count = rt_tick_get();if (tick_count >last_print_time+ 2000){// 发送CAN消息if (CAN_Send_Msg(0x123, tx_data, 8) == HAL_OK){rt_kprintf("[TX] Sent message ID:0x123 %02X %02X %02X %02X \r\n",tx_data[0],tx_data[1],tx_data[2],tx_data[3]);}// 更新数据for(int i = 0; i < 8; i++){tx_data[i] = counter + i;}counter++;last_print_time = tick_count;}// 处理CAN接收队列// rt_kprintf("CAN_Process_Queue,ready[%d][%d]->\r\n",ucount,counter);CAN_Process_Queue();if((ucount++ &31) ==0){rt_kprintf("CAN_Process_Queue,ready[%d][%d]->\r\n",ucount,counter);}
#endif // 其他任务...// HAL_Delay(10);rt_thread_delay(100);///////////////////////////////////////////////////////////* USER CODE END WHILE *//* USER CODE BEGIN 3 */}/* USER CODE END 3 */
}
can.c 里 MX_CAN_Init 函数
void MX_CAN_Init(void)
{/* USER CODE BEGIN CAN_Init 0 *//* USER CODE END CAN_Init 0 *//* USER CODE BEGIN CAN_Init 1 *//* USER CODE END CAN_Init 1 */hcan.Instance = CAN1;
#if CAN_USE_LOOPBACK hcan.Init.Mode = CAN_MODE_LOOPBACK;//CAN_MODE_LOOPBACK; 环回模式 //CAN_MODE_NORMAL
#elsehcan.Init.Mode = CAN_MODE_NORMAL;
#endifhcan.Init.TimeTriggeredMode = DISABLE;hcan.Init.AutoBusOff = DISABLE;hcan.Init.AutoWakeUp = DISABLE;hcan.Init.AutoRetransmission = ENABLE; //ENABLE;自动重传 //DISABLEhcan.Init.ReceiveFifoLocked = DISABLE;hcan.Init.TransmitFifoPriority = DISABLE;// 波特率配置 - 512kbps (APB1=36MHz)hcan.Init.SyncJumpWidth = CAN_SJW_1TQ;hcan.Init.TimeSeg1 = CAN_BS1_12TQ;hcan.Init.TimeSeg2 = CAN_BS2_5TQ;hcan.Init.Prescaler = 4; // 36MHz/(1+12+5)/4 = 512kHz// 波特率配置 - 1Mbps (APB1=36MHz)
// hcan.Init.SyncJumpWidth = CAN_SJW_1TQ;
// hcan.Init.TimeSeg1 = CAN_BS1_3TQ; // BS1 = 3TQ
// hcan.Init.TimeSeg2 = CAN_BS2_2TQ; // BS2 = 2TQ
// hcan.Init.Prescaler = 6; //// 36MHz/(1+3+2)/6 = 1MHzif (HAL_CAN_Init(&hcan) != HAL_OK){Error_Handler();}/* USER CODE BEGIN CAN_Init 2 *//* USER CODE END CAN_Init 2 */}

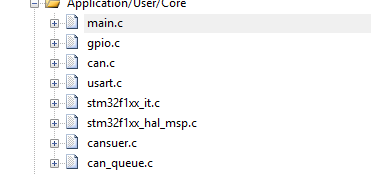

canuser.c
// can.c
#include "canuser.h"//extern CAN_HandleTypeDef hcan;// CAN初始化
// CAN初始化
void CAN_Init_Interrupt(void)
{// 初始化队列can_queue_head = 0;can_queue_tail = 0;can_queue_count = 0;// 配置过滤器CAN_Filter_Config();int falg =0;// 启动CANif (HAL_CAN_Start(&hcan) != HAL_OK){Error_Handler();falg |=1;}#if SUB_LOOPBACK_QUERY_INTERRUPT ==0 // 激活CAN接收中断if (HAL_CAN_ActivateNotification(&hcan, CAN_IT_RX_FIFO0_MSG_PENDING) != HAL_OK){Error_Handler();falg |=2;}
#endif // 启用CAN中断 放到 CAN_Interrupt_Config 函数里// HAL_NVIC_SetPriority(USB_LP_CAN1_RX0_IRQn, 2, 0);// HAL_NVIC_EnableIRQ(USB_LP_CAN1_RX0_IRQn);rt_kprintf("CAN_Init_User %d\r\n",falg);
}// CAN过滤器配置
void CAN_Filter_Config(void)
{CAN_FilterTypeDef can_filter;can_filter.FilterBank = 0;can_filter.FilterMode = CAN_FILTERMODE_IDMASK;can_filter.FilterScale = CAN_FILTERSCALE_32BIT;can_filter.FilterIdHigh = 0x0000;can_filter.FilterIdLow = 0x0000;can_filter.FilterMaskIdHigh = 0x0000;can_filter.FilterMaskIdLow = 0x0000;can_filter.FilterFIFOAssignment = CAN_RX_FIFO0;can_filter.FilterActivation = ENABLE;can_filter.SlaveStartFilterBank = 14;if (HAL_CAN_ConfigFilter(&hcan, &can_filter) != HAL_OK){Error_Handler();rt_kprintf("CAN_Filter_Config error\r\n");}
}// CAN发送函数
HAL_StatusTypeDef CAN_Send_Msg(uint32_t id, uint8_t* data, uint8_t len)
{CAN_TxHeaderTypeDef tx_header;uint32_t tx_mailbox;uint8_t tx_data[8];// 配置发送头tx_header.StdId = id;tx_header.ExtId = 0;tx_header.IDE = CAN_ID_STD;tx_header.RTR = CAN_RTR_DATA;tx_header.DLC = len;tx_header.TransmitGlobalTime = DISABLE;// 复制数据for(int i = 0; i < len && i < 8; i++){tx_data[i] = data[i];}return HAL_CAN_AddTxMessage(&hcan, &tx_header, tx_data, &tx_mailbox);
}// 配置CAN中断优先级（在main函数中调用）
void CAN_Interrupt_Config(void)
{// 设置CAN接收中断优先级// 注意：不要使用优先级0，使用1或2更安全HAL_NVIC_SetPriority(USB_LP_CAN1_RX0_IRQn, 1, 0);HAL_NVIC_EnableIRQ(USB_LP_CAN1_RX0_IRQn);rt_kprintf("CAN Interrupt Configured\r\n");
}// CAN接收函数
HAL_StatusTypeDef CAN_Receive_Msg(CAN_Message* msg)
{CAN_RxHeaderTypeDef rx_header;uint8_t rx_data[8];// 检查是否有接收到的消息if (HAL_CAN_GetRxFifoFillLevel(&hcan, CAN_RX_FIFO0) == 0){return HAL_ERROR;}// 读取消息if (HAL_CAN_GetRxMessage(&hcan, CAN_RX_FIFO0, &rx_header, rx_data) != HAL_OK){return HAL_ERROR;}// 填充消息结构msg->id = rx_header.StdId;msg->len = rx_header.DLC;msg->format = rx_header.RTR;msg->type = rx_header.IDE;for(int i = 0; i < rx_header.DLC; i++){msg->data[i] = rx_data[i];}return HAL_OK;
}// CAN接收FIFO0消息挂起回调函数
//void HAL_CAN_RxFifo0MsgPendingCallback(CAN_HandleTypeDef *hcan)
//{
// CAN_Message received_msg;
//
// if (CAN_Receive_Msg(&received_msg) == HAL_OK)
// {
// // 在这里处理接收到的CAN消息
// // 例如：点亮LED、发送响应等
//
// // 示例：如果收到ID为0x456的消息，则发送响应
// if (received_msg.id == 0x456)
// {
// uint8_t response_data[8] = {0xAA, 0xBB, 0xCC, 0xDD};
// CAN_Send_Msg(0x123, response_data, 4);
// }
// }
//}void HAL_CAN_RxFifo0MsgPendingCallback(CAN_HandleTypeDef *hcan)
{CAN_RxHeaderTypeDef rx_header;CAN_Message received_msg;uint8_t rx_data[8];// HAL_GPIO_WritePin(GPIOC, GPIO_PIN_13, GPIO_PIN_RESET);//亮// 读取消息if (HAL_CAN_GetRxMessage(hcan, CAN_RX_FIFO0, &rx_header, rx_data) == HAL_OK){// 填充消息结构received_msg.id = rx_header.StdId;received_msg.len = rx_header.DLC;received_msg.format = rx_header.RTR;received_msg.type = rx_header.IDE;// received_msg.timestamp = HAL_GetTick(); // 获取时间戳//rt-thread 下用rt_tick_get();received_msg.timestamp =(uint32_t)rt_tick_get();// 复制数据for(int i = 0; i < rx_header.DLC; i++){received_msg.data[i] = rx_data[i];}// 将消息放入队列（非阻塞）CAN_Queue_Put(&received_msg);}
}void CAN_Polling_Test(void)
{CAN_TxHeaderTypeDef TxHeader;CAN_RxHeaderTypeDef RxHeader;uint8_t TxData[8];uint8_t RxData[8];uint32_t TxMailbox;uint32_t test_count = 0;// 配置发送消息头TxHeader.StdId = 0x123; // 标准IDTxHeader.ExtId = 0x00;TxHeader.RTR = CAN_RTR_DATA;TxHeader.IDE = CAN_ID_STD;TxHeader.DLC = 8;TxHeader.TransmitGlobalTime = DISABLE;rt_kprintf("=== CAN Loopback Polling Test Started ===\r\n");while (1){// 准备测试数据for(int i = 0; i < 8; i++){TxData[i] = (test_count * 8) + i;}rt_kprintf("\r\n--- Test Count: %lu ---\r\n", test_count);// 发送消息HAL_StatusTypeDef tx_status = HAL_CAN_AddTxMessage(&hcan, &TxHeader, TxData, &TxMailbox);rt_kprintf("Send Status: %s, Mailbox: %lu\r\n", (tx_status == HAL_OK) ? "OK" : "FAIL", TxMailbox);if (tx_status != HAL_OK){rt_kprintf("Send failed, skipping receive check\r\n");// HAL_Delay(1000);rt_thread_delay(1000);test_count++;continue;}// 短暂延时，确保消息处理完成rt_thread_delay(5);// 检查接收FIFO状态uint32_t fifo_level = HAL_CAN_GetRxFifoFillLevel(&hcan, CAN_RX_FIFO0);rt_kprintf("FIFO0 Message Count: %lu\r\n", fifo_level);if (fifo_level > 0){// 读取消息HAL_StatusTypeDef rx_status = HAL_CAN_GetRxMessage(&hcan, CAN_RX_FIFO0, &RxHeader, RxData);if (rx_status == HAL_OK){rt_kprintf("*** SUCCESS: Message Received! ***\r\n");rt_kprintf("ID: 0x%03X, DLC: %d\r\n", RxHeader.StdId, RxHeader.DLC);rt_kprintf("Data: ");for(int i = 0; i < RxHeader.DLC; i++){rt_kprintf("%02X ", RxData[i]);}rt_kprintf("\r\n");// 验证数据是否正确int data_match = 1;for(int i = 0; i < 8; i++){if (RxData[i] != TxData[i]){data_match = 0;break;}}if (data_match){rt_kprintf("*** DATA VERIFICATION: PASS ***\r\n");}else{rt_kprintf("*** DATA VERIFICATION: FAIL ***\r\n");}}else{rt_kprintf("Receive failed with status: %d\r\n", rx_status);}}else{rt_kprintf("No message received in FIFO0\r\n");// 检查错误状态uint32_t error_code = HAL_CAN_GetError(&hcan);if (error_code != 0){rt_kprintf("CAN Error Code: 0x%08lX\r\n", error_code);}}// 等待一段时间再进行下一次测试rt_thread_delay(2000);test_count++;// 每几次测试改变一次ID，便于观察if (test_count % 3 == 0){TxHeader.StdId++;if (TxHeader.StdId > 0x7FF){TxHeader.StdId = 0x123;}rt_kprintf("Changed CAN ID to: 0x%03X\r\n", TxHeader.StdId);}}
}canuser.h
#ifndef __CANUSER_H
#define __CANUSER_H#include "main.h"
#include "can.h"
#include <string.h>// CAN消息结构体
typedef struct {uint32_t id; // 消息IDuint8_t data[8]; // 数据uint8_t len; // 数据长度uint32_t timestamp; // 时间戳uint8_t format; // 帧格式uint8_t type; // 帧类型
} CAN_Message;// 队列相关定义
#define CAN_QUEUE_SIZE 20// 函数声明
//canuser.c 实现
void CAN_Init_Interrupt(void);
HAL_StatusTypeDef CAN_Send_Msg(uint32_t id, uint8_t* data, uint8_t len);
HAL_StatusTypeDef CAN_Receive_Msg(CAN_Message* msg);
void CAN_Filter_Config(void);// 配置CAN中断优先级（在main函数中调用）
void CAN_Interrupt_Config(void);void CAN_Polling_Test(void);/////////////////////////////////////////////////////
//实现在can_queue.c
void CAN_Process_Queue(void);
uint8_t CAN_Queue_Put(CAN_Message* msg);
uint8_t CAN_Queue_Get(CAN_Message* msg);
uint8_t CAN_Queue_IsEmpty(void);
uint8_t CAN_Queue_IsFull(void);// 外部声明（在main.c中定义）
extern CAN_Message can_queue[CAN_QUEUE_SIZE];
extern volatile uint8_t can_queue_head;
extern volatile uint8_t can_queue_tail;
extern volatile uint8_t can_queue_count;#endif
can_queue.c
// can_queue.c
#include "canuser.h"
#include "stdio.h"
#include "rtthread.h"
// 队列变量定义
CAN_Message can_queue[CAN_QUEUE_SIZE];
volatile uint8_t can_queue_head = 0;
volatile uint8_t can_queue_tail = 0;
volatile uint8_t can_queue_count = 0;// 放入消息到队列
uint8_t CAN_Queue_Put(CAN_Message* msg)
{if (CAN_Queue_IsFull()) {return 0; // 队列已满}// 复制消息到队列memcpy(&can_queue[can_queue_tail], msg, sizeof(CAN_Message));// 更新队列指针can_queue_tail = (can_queue_tail + 1) % CAN_QUEUE_SIZE;// 原子操作增加计数__disable_irq();can_queue_count++;__enable_irq();return 1; // 成功
}// 从队列获取消息
uint8_t CAN_Queue_Get(CAN_Message* msg)
{if (CAN_Queue_IsEmpty()) {return 0; // 队列为空}// 从队列复制消息memcpy(msg, &can_queue[can_queue_head], sizeof(CAN_Message));// 更新队列指针can_queue_head = (can_queue_head + 1) % CAN_QUEUE_SIZE;// 原子操作减少计数__disable_irq();can_queue_count--;__enable_irq();return 1; // 成功
}// 检查队列是否为空
uint8_t CAN_Queue_IsEmpty(void)
{return (can_queue_count == 0);
}// 检查队列是否已满
uint8_t CAN_Queue_IsFull(void)
{return (can_queue_count == CAN_QUEUE_SIZE);
}///////////////////////////////////////////////////
// 处理队列中的CAN消息（在主循环中调用）
void CAN_Process_Queue(void)
{CAN_Message msg;static char buffer[256];int len;// 处理队列中的所有消息while (!CAN_Queue_IsEmpty()){if (CAN_Queue_Get(&msg)){/////////////////////////////////////////////////////////////len = snprintf(buffer, sizeof(buffer), "[RX]CAN ID:0x%03X Len:%d Time:%lums Data:", msg.id, msg.len,msg.timestamp);for(int i = 0; i < msg.len && len < sizeof(buffer)-3; i++){len += snprintf(buffer + len, sizeof(buffer) - len, "%02X ", msg.data[i]);}snprintf(buffer + len, sizeof(buffer) - len, "\r\n");rt_kprintf(buffer);// rt_kprintf("Time:%lums\n", msg.timestamp);///////////////////////////////////////////////////////////// 格式化打印CAN消息
// snprintf(buffer, sizeof(buffer),
// "[CAN] ID:0x%03X Len:%d Data:", msg.id, msg.len);
//
// // 添加到主打印缓冲区
// printf("%s", buffer);
//
// // 打印数据字节
// for(int i = 0; i < msg.len; i++)
// {
// printf("%02X ", msg.data[i]);
// }
//
// // 打印时间戳
// rt_kprintf("Time:%lums\n", msg.timestamp);}}

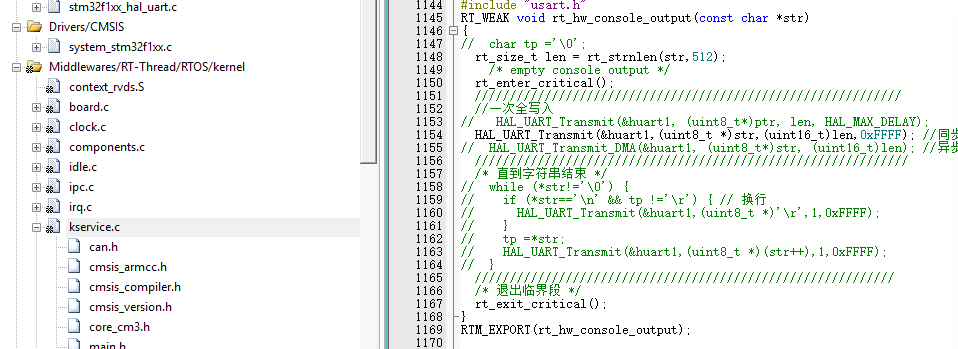

}rt-thread 下串口输出 修改kservice.c

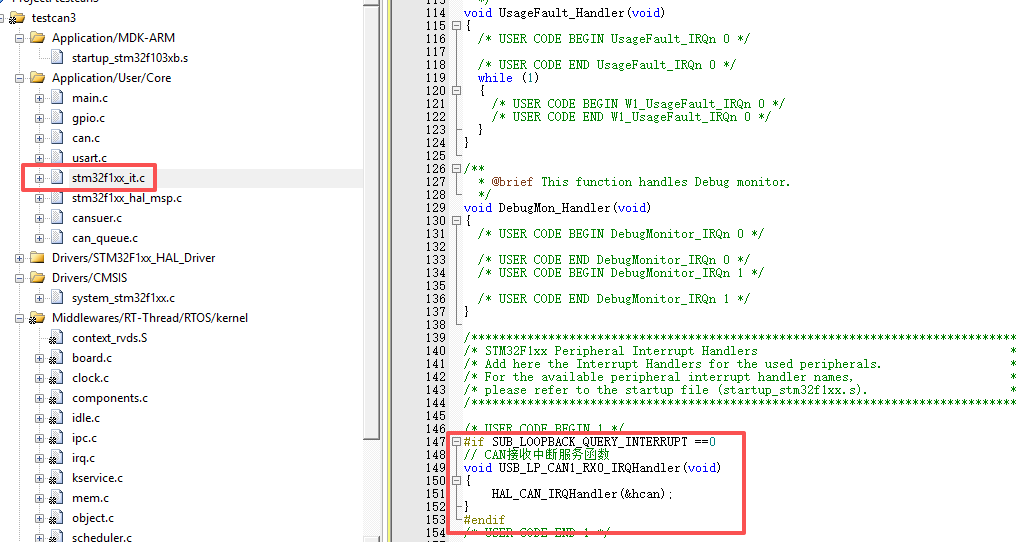

stm32f1xx_it.c
#if SUB_LOOPBACK_QUERY_INTERRUPT ==0
// CAN接收中断服务函数
void USB_LP_CAN1_RX0_IRQHandler(void)
{HAL_CAN_IRQHandler(&hcan);
}
#endif
#include "usart.h"
RT_WEAK void rt_hw_console_output(const char *str)
{
// char tp ='\0';rt_size_t len = rt_strnlen(str,512);/* empty console output */rt_enter_critical();///////////////////////////////////////////////////////////////一次全写入
// HAL_UART_Transmit(&huart1, (uint8_t*)ptr, len, HAL_MAX_DELAY);HAL_UART_Transmit(&huart1,(uint8_t *)str,(uint16_t)len,0xFFFF); //同步
// HAL_UART_Transmit_DMA(&huart1, (uint8_t*)str, (uint16_t)len); //异步///////////////////////////////////////////////////////////////* 直到字符串结束 */
// while (*str!='\0') {
// if (*str=='\n' && tp !='\r') { // 换行
// HAL_UART_Transmit(&huart1,(uint8_t *)'\r',1,0xFFFF);
// }
// tp =*str;
// HAL_UART_Transmit(&huart1,(uint8_t *)(str++),1,0xFFFF);
// }/////////////////////////////////////////////////////////////* 退出临界段 */rt_exit_critical();
}
void HAL_NVIC_SetPriority(IRQn_Type IRQn, uint32_t PreemptPriority, uint32_t SubPriority)

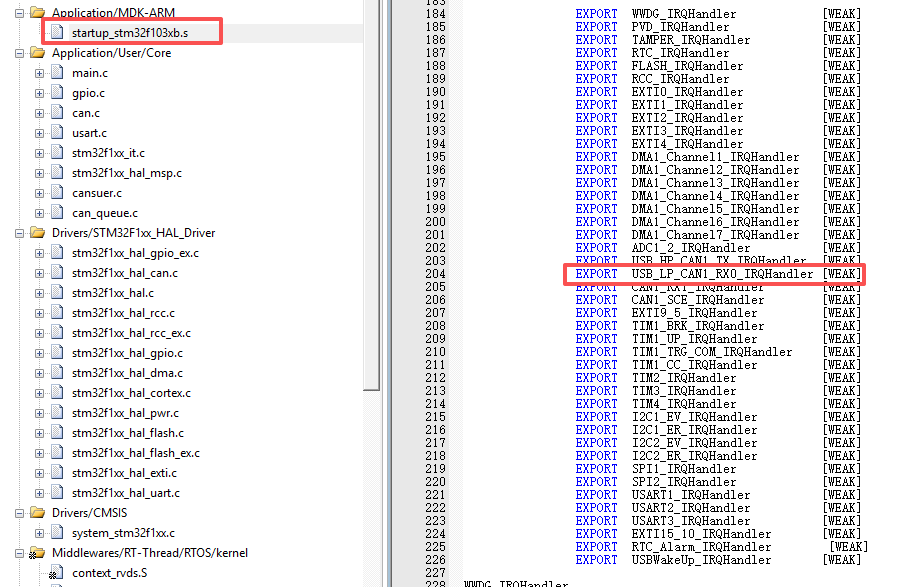

IRQn_Type IRQn 对应相应函数
eg:USB_LP_CAN1_RX0_IRQn ->USB_LP_CAN1_RX0_IRQHandler
弱函数 类试与 c++的虚拟函数，子类重写就调用子类的

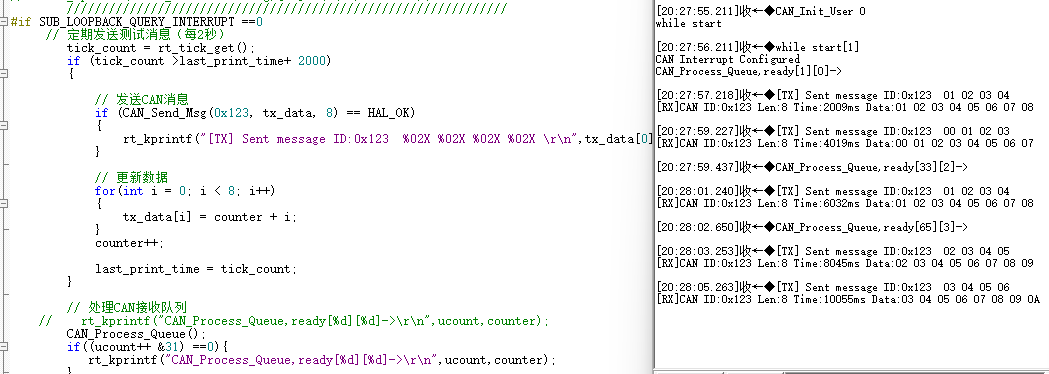

5:测试结果 如果对你又帮助，麻烦点个赞，加个关注
后面用2个机子对接下，测试下CAN通信
