Prometheus运维之路(ES监控接入)

news 2025/10/11 5:30:25

最近公司因为新项目业务需求，接入了ES集群，为了观察ES相关指标所以也接入到了Prometheus当中，这个是我在测试环境中接入单节点的过程。仅供参考。

1. 下载镜像

 root@YD-CN-Service-15963: docker pull quay.io/prometheuscommunity/elasticsearch-exporter:latest

2.连接启动并连接到ES获取状态

root@YD-CN-Service-15963:/usr/local/disk_vdb/elasticsearch# cat docker-compose.yml
services:elasticsearch:image: elasticsearch:7.17.28container_name: elasticsearchports:- "9200:9200"- "9300:9300"environment:- discovery.type=single-node- ES_JAVA_OPTS=-Xms512m -Xmx2048mvolumes:- /usr/local/disk_vdb/elasticsearch/config:/usr/share/elasticsearch/config- /usr/local/disk_vdb/elasticsearch/data:/usr/share/elasticsearch/data- /usr/local/disk_vdb/elasticsearch/plugins:/usr/share/elasticsearch/plugins- /usr/local/disk_vdb/elasticsearch/logs:/usr/share/elasticsearch/logselasticsearch_exporter:image: quay.io/prometheuscommunity/elasticsearch-exporter:latestcommand:- '--es.uri=http://账号:密码@10.0.0.22:9200'restart: alwaysports:- "9114:9114"

3.在Prometheus中引入exporter

root@YD-CN-Service-15963:/usr/local/disk_vdb# cat docker_project/prometheus_monitor/prometheus/prometheus.yml
# ...省略配置- job_name: 'elasticsearch7'static_configs:- targets:- 10.0.0.22:9114

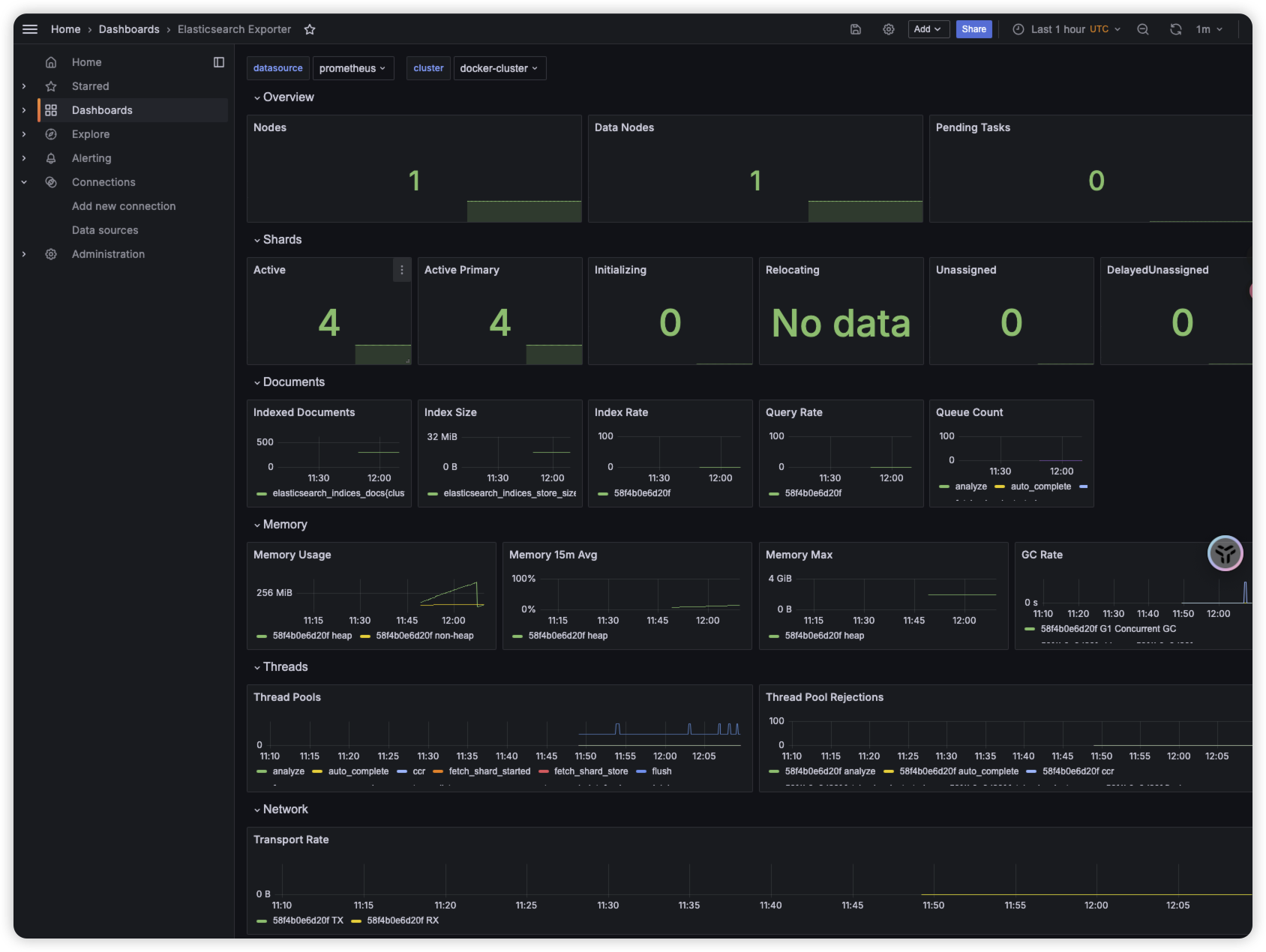

4. 在Prometheus引入模板(直接导入Json)

{"graphTooltip": 1,"panels": [{"collapsed": false,"gridPos": {"h": 1,"w": 24,"x": 0,"y": 0},"id": 1,"panels": [ ],"title": "Overview","type": "row"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 8,"x": 0,"y": 1},"id": 2,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_number_of_nodes{cluster=~\"$cluster\"}\n)\n"}],"title": "Nodes","type": "stat"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 8,"x": 8,"y": 1},"id": 3,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_number_of_data_nodes{cluster=~\"$cluster\"}\n)\n"}],"title": "Data Nodes","type": "stat"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 8,"x": 16,"y": 1},"id": 4,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_number_of_pending_tasks{cluster=~\"$cluster\"}\n)\n"}],"title": "Pending Tasks","type": "stat"},{"collapsed": false,"gridPos": {"h": 1,"w": 24,"x": 0,"y": 5},"id": 5,"panels": [ ],"title": "Shards","type": "row"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 0,"y": 6},"id": 6,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_active_shards{cluster=~\"$cluster\"}\n)\n"}],"title": "Active","type": "stat"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 4,"y": 6},"id": 7,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_active_primary_shards{cluster=~\"$cluster\"}\n)\n"}],"title": "Active Primary","type": "stat"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 8,"y": 6},"id": 8,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_initializing_shards{cluster=~\"$cluster\"}\n)\n"}],"title": "Initializing","type": "stat"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 12,"y": 6},"id": 9,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_reloacting_shards{cluster=~\"$cluster\"}\n)\n"}],"title": "Relocating","type": "stat"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 16,"y": 6},"id": 10,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_unassigned_shards{cluster=~\"$cluster\"}\n)\n"}],"title": "Unassigned","type": "stat"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 20,"y": 6},"id": 11,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(\n  elasticsearch_cluster_health_delayed_unassigned_shards{cluster=~\"$cluster\"}\n)\n"}],"title": "DelayedUnassigned","type": "stat"},{"collapsed": false,"gridPos": {"h": 1,"w": 24,"x": 0,"y": 10},"id": 12,"panels": [ ],"title": "Documents","type": "row"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 0,"y": 11},"id": 13,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "elasticsearch_indices_docs{cluster=~\"$cluster\"}\n"}],"title": "Indexed Documents","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"fieldConfig": {"defaults": {"unit": "bytes"}},"gridPos": {"h": 4,"w": 4,"x": 4,"y": 11},"id": 14,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "elasticsearch_indices_store_size_bytes{cluster=~\"$cluster\"}\n"}],"title": "Index Size","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 8,"y": 11},"id": 15,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "rate(elasticsearch_indices_indexing_index_total{cluster=~\"$cluster\"}[$__rate_interval])\n","legendFormat": "{{name}}"}],"title": "Index Rate","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 12,"y": 11},"id": 16,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "rate(elasticsearch_indices_search_query_total{cluster=~\"$cluster\"}[$__rate_interval])\n","legendFormat": "{{name}}"}],"title": "Query Rate","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 4,"x": 16,"y": 11},"id": 17,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "sum(elasticsearch_thread_pool_queue_count{cluster=~\"$cluster\",type!=\"management\"}) by (type)\n","legendFormat": "{{type}}"}],"title": "Queue Count","type": "timeseries"},{"collapsed": false,"gridPos": {"h": 1,"w": 24,"x": 0,"y": 15},"id": 18,"panels": [ ],"title": "Memory","type": "row"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"fieldConfig": {"defaults": {"unit": "bytes"}},"gridPos": {"h": 4,"w": 6,"x": 0,"y": 16},"id": 19,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "elasticsearch_jvm_memory_used_bytes{cluster=~\"$cluster\"}\n","legendFormat": "{{name}} {{area}}"}],"title": "Memory Usage","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"fieldConfig": {"defaults": {"max": 1,"min": 0,"unit": "percentunit"}},"gridPos": {"h": 4,"w": 6,"x": 6,"y": 16},"id": 20,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "avg_over_time(\n  elasticsearch_jvm_memory_used_bytes{cluster=~\"$cluster\"}[15m]\n) /\nelasticsearch_jvm_memory_max_bytes{cluster=~\"$cluster\"}\n","legendFormat": "{{name}} {{area}}"}],"title": "Memory 15m Avg","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"fieldConfig": {"defaults": {"unit": "bytes"}},"gridPos": {"h": 4,"w": 6,"x": 12,"y": 16},"id": 21,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "elasticsearch_jvm_memory_max_bytes{cluster=~\"$cluster\"}\n","legendFormat": "{{name}} {{area}}"}],"title": "Memory Max","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"fieldConfig": {"defaults": {"unit": "s"}},"gridPos": {"h": 4,"w": 6,"x": 18,"y": 16},"id": 22,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "rate(\n  elasticsearch_jvm_gc_collection_seconds_sum{cluster=~\"$cluster\"}[$__rate_interval]\n)\n","legendFormat": "{{name}} {{gc}}"}],"title": "GC Rate","type": "timeseries"},{"collapsed": false,"gridPos": {"h": 1,"w": 24,"x": 0,"y": 20},"id": 23,"panels": [ ],"title": "Threads","type": "row"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 12,"x": 0,"y": 21},"id": 24,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "elasticsearch_thread_pool_active_count{cluster=~\"$cluster\"}\n","legendFormat": "{{type}}"}],"title": "Thread Pools","type": "timeseries"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"gridPos": {"h": 4,"w": 12,"x": 12,"y": 21},"id": 25,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "elasticsearch_thread_pool_rejected_count{cluster=~\"$cluster\"}\n","legendFormat": "{{name}} {{type}}"}],"title": "Thread Pool Rejections","type": "timeseries"},{"collapsed": false,"gridPos": {"h": 1,"w": 24,"x": 0,"y": 25},"id": 26,"panels": [ ],"title": "Network","type": "row"},{"datasource": {"type": "datasource","uid": "-- Mixed --"},"fieldConfig": {"defaults": {"unit": "bytes"}},"gridPos": {"h": 4,"w": 24,"x": 0,"y": 26},"id": 27,"pluginVersion": "v10.4.0","targets": [{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "rate(\n  elasticsearch_transport_rx_size_bytes_total{cluster=~\"$cluster\"}[$__rate_interval]\n)\n","legendFormat": "{{name}} TX"},{"datasource": {"type": "prometheus","uid": "$datasource"},"expr": "rate(\n  elasticsearch_transport_tx_size_bytes_total{cluster=~\"$cluster\"}[$__rate_interval]\n)\n","legendFormat": "{{name}} RX"}],"title": "Transport Rate","type": "timeseries"}],"refresh": "1m","schemaVersion": 36,"tags": ["elasticsearch-exporter-mixin"],"templating": {"list": [{"name": "datasource","query": "prometheus","type": "datasource"},{"datasource": {"type": "prometheus","uid": "${datasource}"},"name": "cluster","query": "label_values(elasticsearch_cluster_health_status, cluster)","type": "query"}]},"time": {"from": "now-1h","to": "now"},"timezone": "utc","title": "Elasticsearch Exporter /  Cluster"}
