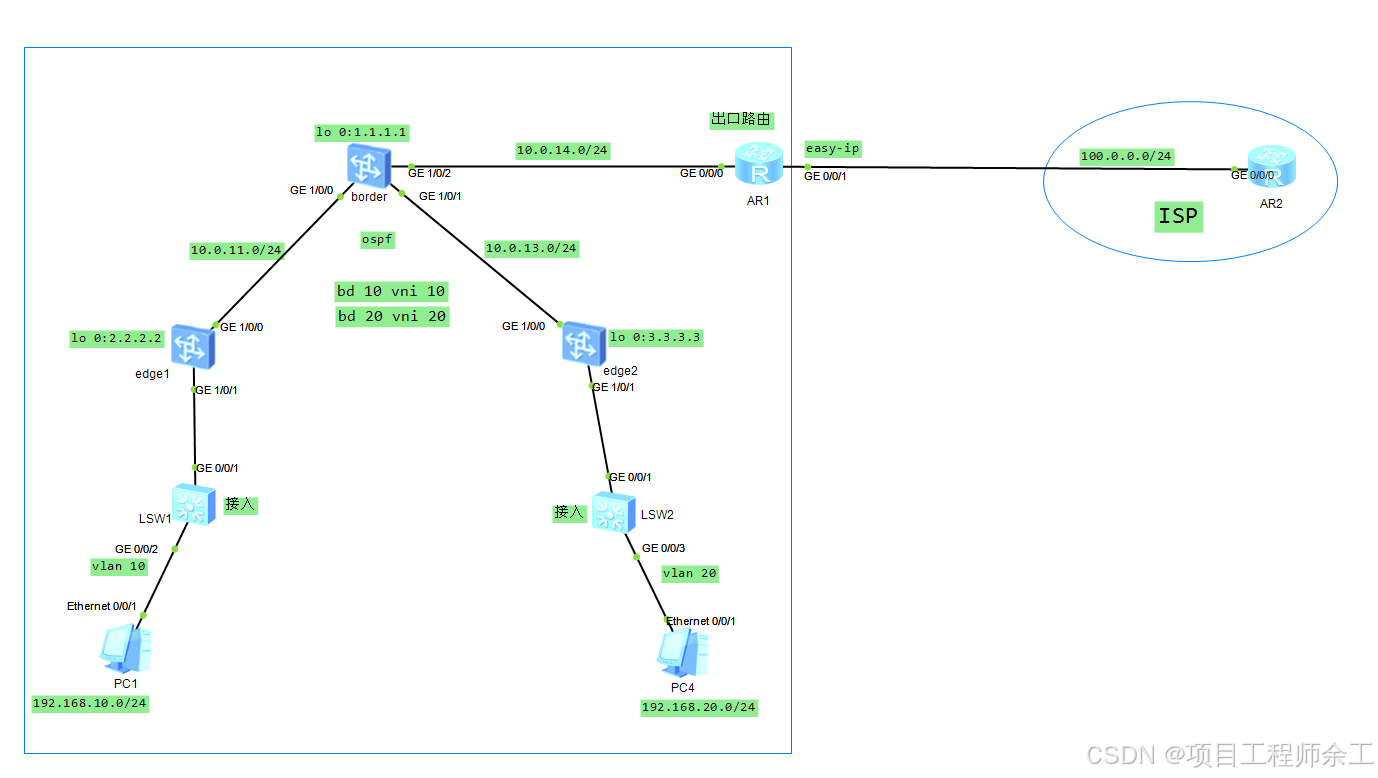

局域网手动vxlan集中式网关整体配置方案

需求分析
1、局域网部署集中式网关
2、底层ospf打通
3、edge1和border之间建立vxlan隧道，edge2和border之间建立vxlan隧道
4、vlan 10和20可以互通，又都能nat上公网

border

router id 1.1.1.1

bridge-domain 10
vxlan vni 10

bridge-domain 20
vxlan vni 20

interface Vbdif10
ip address 192.168.10.254 255.255.255.0

interface Vbdif20
ip address 192.168.20.254 255.255.255.0

interface MEth0/0/0
undo shutdown

interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.11.1 255.255.255.0

interface GE1/0/1
undo portswitch
undo shutdown
ip address 10.0.12.1 255.255.255.0

interface GE1/0/2
undo portswitch
undo shutdown
ip address 10.0.14.2 255.255.255.0

interface LoopBack0
ip address 1.1.1.1 255.255.255.255

interface Nve1
source 1.1.1.1
vni 10 head-end peer-list 2.2.2.2
vni 20 head-end peer-list 3.3.3.3

interface NULL0

ospf 1
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 10.0.11.1 0.0.0.0
network 10.0.12.1 0.0.0.0

ip route-static 0.0.0.0 0.0.0.0 10.0.14.1

edge1

router id 2.2.2.2

bridge-domain 10
vxlan vni 10

interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.11.2 255.255.255.0

interface GE1/0/1
undo shutdown

interface GE1/0/1.10 mode l2
encapsulation dot1q vid 10
bridge-domain 10

interface LoopBack0
ip address 2.2.2.2 255.255.255.255

interface Nve1
source 2.2.2.2
vni 10 head-end peer-list 1.1.1.1

interface NULL0

ospf 1
area 0.0.0.0
network 2.2.2.2 0.0.0.0
network 10.0.11.2 0.0.0.0

edge2

router id 3.3.3.3

bridge-domain 20
vxlan vni 20

interface MEth0/0/0
undo shutdown

interface GE1/0/0
undo portswitch
undo shutdown
ip address 10.0.12.2 255.255.255.0

interface GE1/0/1
undo shutdown

interface GE1/0/1.20 mode l2
encapsulation dot1q vid 20
bridge-domain 20

interface LoopBack0
ip address 3.3.3.3 255.255.255.255

interface Nve1
source 3.3.3.3
vni 20 head-end peer-list 1.1.1.1

interface NULL0

ospf 1
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 10.0.12.2 0.0.0.0

switch1

vlan batch 10

interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 10

interface GigabitEthernet0/0/2
port link-type access
port default vlan 10

swithc2

vlan batch 20

interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 20

interface GigabitEthernet0/0/2
port link-type access

interface GigabitEthernet0/0/3
port link-type access
port default vlan 20

ar1

acl number 2000
rule 5 permit source 192.168.0.0 0.0.255.255

interface GigabitEthernet0/0/0
ip address 10.0.14.1 255.255.255.0

interface GigabitEthernet0/0/1
ip address 100.0.0.2 255.255.255.0
nat outbound 2000

ip route-static 0.0.0.0 0.0.0.0 100.0.0.1
ip route-static 192.168.0.0 255.255.0.0 10.0.14.2

ar2

interface GigabitEthernet0/0/0
ip address 100.0.0.1 255.255.255.0

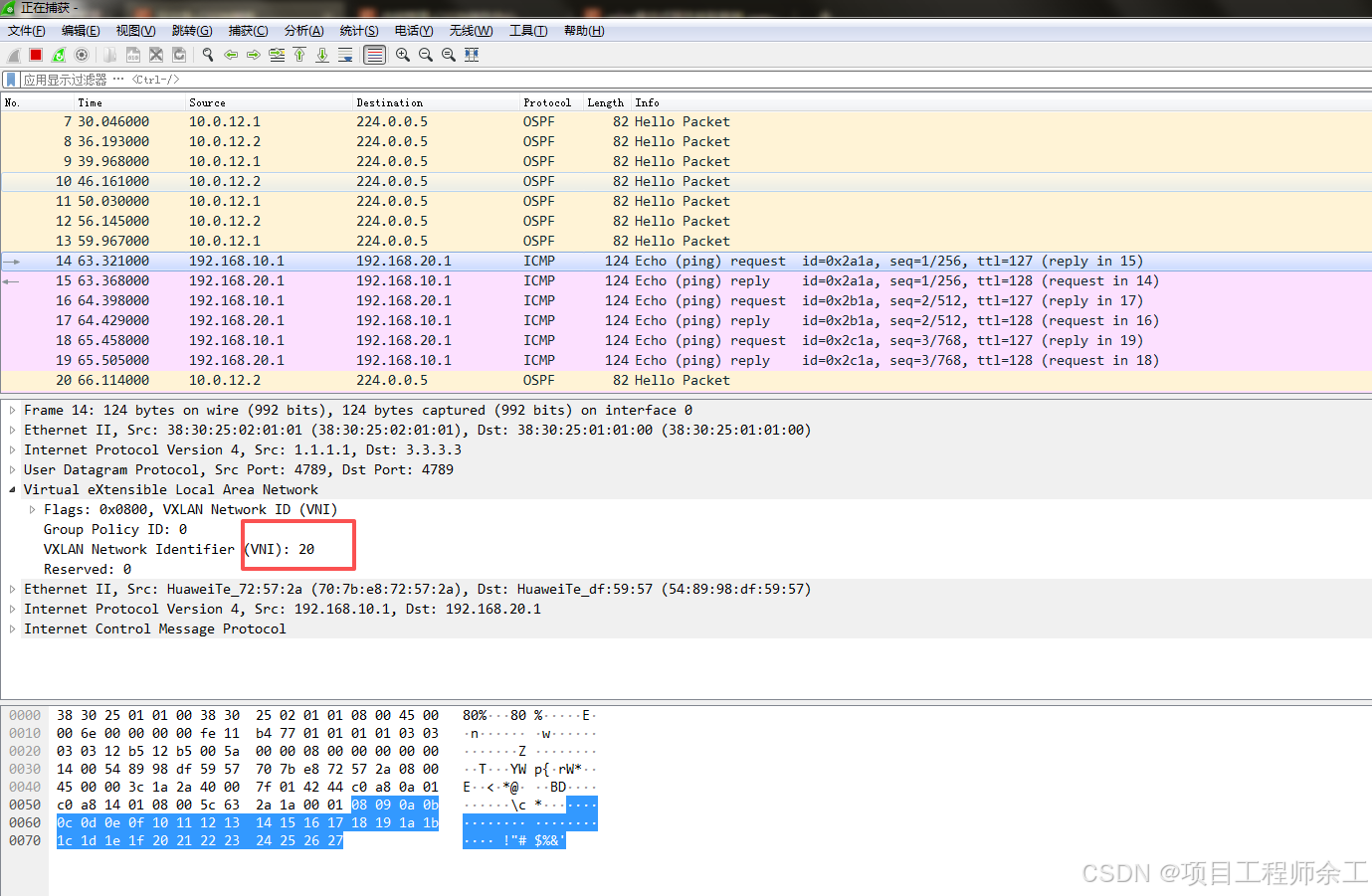

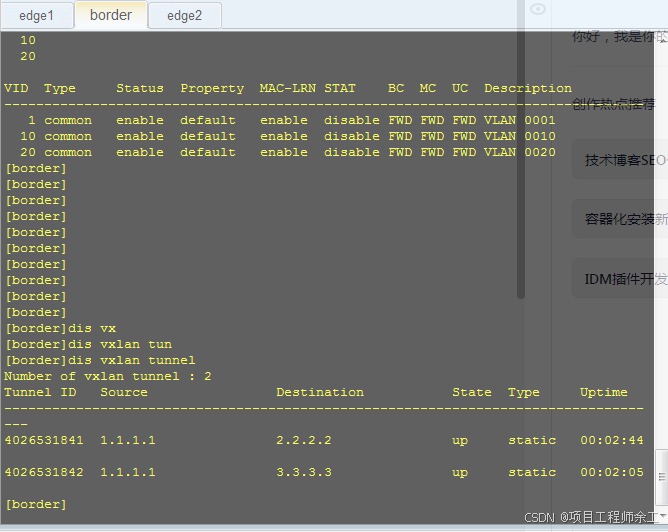

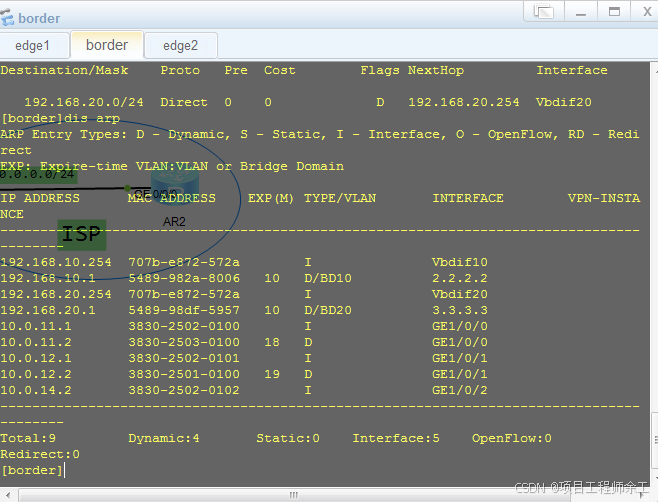

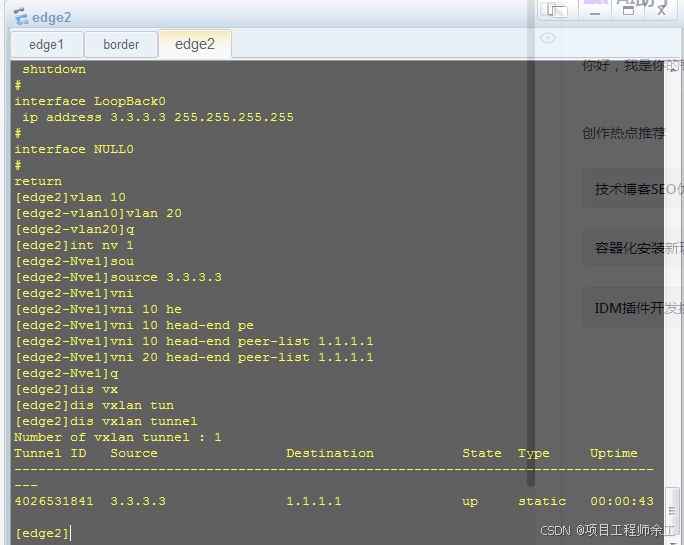

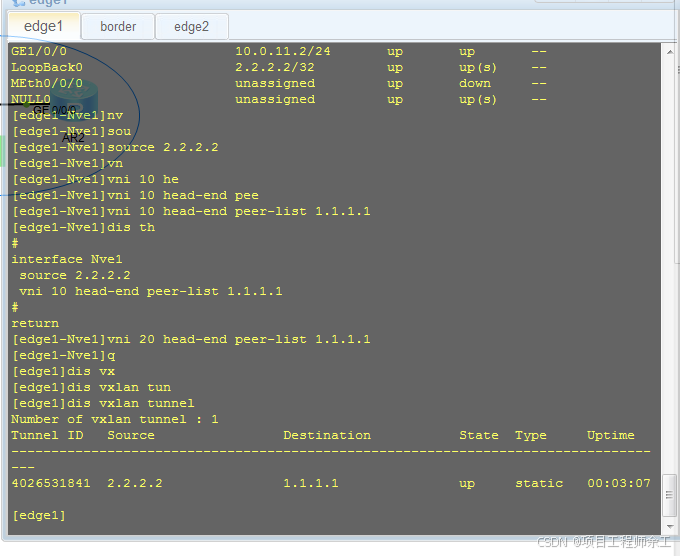

隧道查看

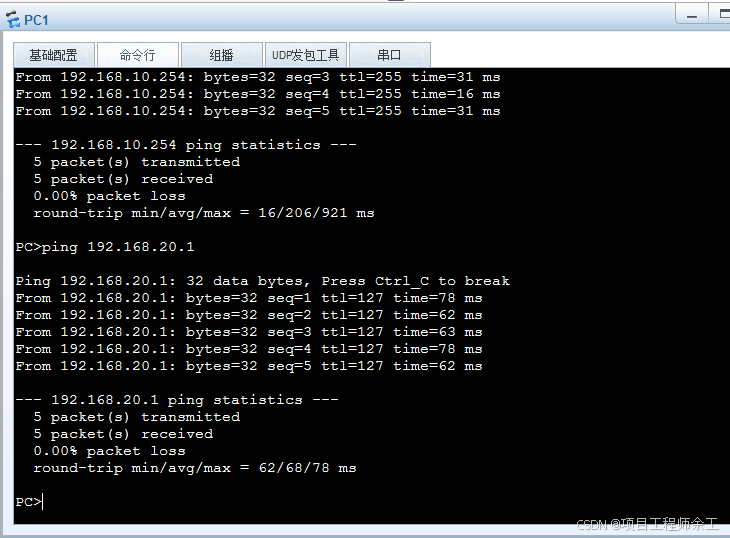

两个vlan 的pc测试联通性

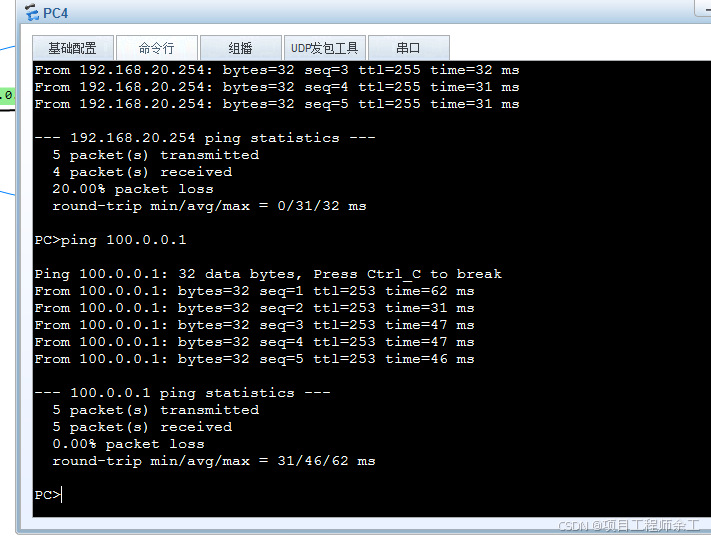

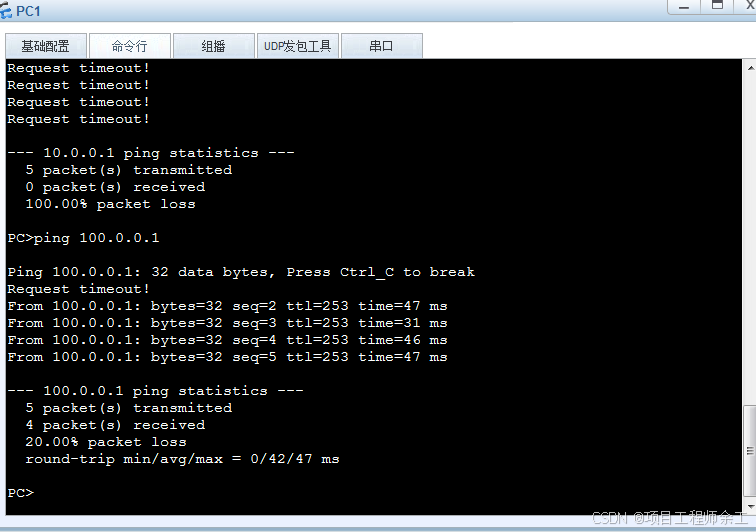

上网ping通
