旁路挂载实验

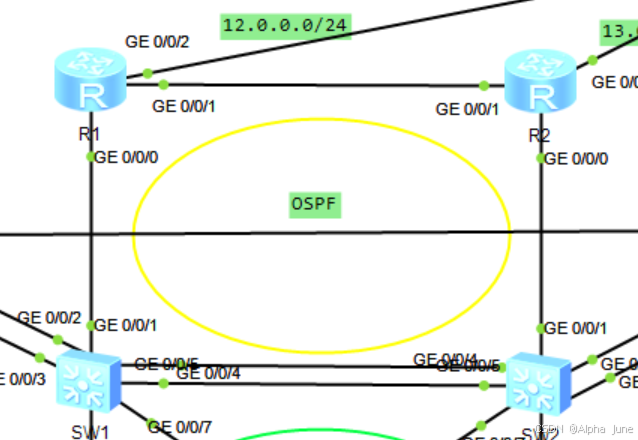

实验topo

需求

	正常情况下：SW1_VRF-->FW1--->SW1_Public--->R5
	故障情况下：SW2_VRF-->FW2--->SW2_Public--->R6
2、SW4的流量
	正常情况下：SW2_VRF-->FW2--->SW2_Public--->R6
	故障情况下：SW1_VRF-->FW1--->SW1_Public--->R5
3、交换网络负载均衡

实验配置

二层交换机

要求

VLAN 2--->SW3,SW4作为备份
VLAN 3--->SW4,SW3作为备份
MSTP设计--->SW3、4、5运行
	实例1：VLAN 2
	实例2：VLAN 3
		SW3是实例1的主根，实例2的备份根；SW4是实例2的主根，实例1的备份根
IP地址规划：
	SW3：
		VLAN 2:192.168.2.1/24
		VLAN 3:192.168.3.1/24
	SW4：
		VLAN 2:192.168.2.2/24
		VLAN 3:192.168.3.2/24
	虚拟IP：
		VLAN 2:192.168.2.254/24
		VLAN 3:192.168.3.254/24

SW3

[SW3]vlan batch 2 3
[SW3]int g 0/0/3
[SW3-GigabitEthernet0/0/3]port link-type trunk
[SW3-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW3]INT G 0/0/4
[SW3-GigabitEthernet0/0/4]port link-type trunk
[SW3-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3

[SW3]stp enable
[SW3]stp mode mstp
[SW3]stp region-configuration
[SW3-mst-region]region-name aa
[SW3-mst-region]instance 1 vlan 2        ----映射vlan2
[SW3-mst-region]instance 2 vlan 3
[SW3-mst-region]active region-configuration  ---激活配置
[SW3]stp instance 1 root primary      ---设置1为主根
[SW3]stp instance 2 root secondary     ---设置2为备根
[SW3]stp instance 0 root primary	  ---让实例0为主根

[SW3]interface vlanif2
[SW3-Vlanif2]ip address 192.168.2.1 24
[SW3-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254 	---设置虚拟IP
[SW3-Vlanif2]vrrp vrid 1 priority 120		---设置抢占延迟时间为20s
[SW3-Vlanif2]vrrp vrid 1 preempt-mode timer delay 20
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15 ---监控上行接口
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 15
[SW3]int vlanif 3
[SW3-Vlanif3]ip add 192.168.3.1 24
[SW3-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254

SW4

[SW4]vlan batch 2 3
[SW4]int g 0/0/3
[SW4-GigabitEthernet0/0/3]port link-type trunk
[SW4-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW4]int g 0/0/4
[SW4-GigabitEthernet0/0/4]port link-type trunk
[SW4-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3

[SW4]STP enable
[SW4]stp mode mstp
[SW4-mst-region]region-name aa
[SW4-mst-region]active region-configuration
[SW4-mst-region]instance 1 vlan 2
[SW4-mst-region]instance 2 vlan 3
[SW4-mst-region]active region-configuration
[SW4]stp instance 1 root secondary
[SW4]stp instance 2 root primary
[SW4]stp instance 0 root secondary
[SW4]int Vlanif 2
[SW4-Vlanif2]ip address 192.168.2.2 24
[SW4-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254
[SW4-Vlanif2]int vlanif3
[SW4-Vlanif3]ip add 192.168.3.2 255.255.255.0
[SW4-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254
[SW4-Vlanif3]vrrp vrid 1 priority 120
[SW4-Vlanif3]vrrp vrid 1 preempt-mode timer delay 20
[SW4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15
[SW4-Vlanif3]vrrp vrid 1 track int GigabitEthernet 0/0/2 reduced 15

STP生成树

测试设备之间的互通

核心层

SW3

[SW3]vlan b 103 203
[SW3-GigabitEthernet0/0/1]port link-type  access
[SW3-GigabitEthernet0/0/1]port default vlan 103
[SW3-GigabitEthernet0/0/1]undo stp enable
[SW3-GigabitEthernet0/0/1]int g 0/0/2
[SW3-GigabitEthernet0/0/2]port link-type access
[SW3-GigabitEthernet0/0/2]port default vlan 203
[SW3-GigabitEthernet0/0/2]undo stp enable

[SW3]int Vlanif 103
[SW3-Vlanif103]ip address 10.10.3.3 24
[SW3]int Vlanif 203
[SW3-Vlanif203]ip address 10.20.3.3 24

[SW3]ospf 1 router-id 3.3.3.3
[SW3-ospf-1]area 0
[SW3-ospf-1-area-0.0.0.0]network 10.10.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 10.20.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.2.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.3.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]silent-interface vlanif 2	---静默接口
[SW3-ospf-1-area-0.0.0.0]silent-interface vlanif 3

SW4

[SW4]vlan b 104 204
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW4]int g 0/0/1
[SW4-GigabitEthernet0/0/1]port link-type access
[SW4-GigabitEthernet0/0/1]port default vlan 204
[SW4-GigabitEthernet0/0/1]undo stp enable
[SW4-GigabitEthernet0/0/1]int g 0/0/2
[SW4-GigabitEthernet0/0/2]port link-type access
[SW4-GigabitEthernet0/0/2]port default vlan 104
[SW4-GigabitEthernet0/0/2]undo stp enable

[SW4-GigabitEthernet0/0/2]int vlanif 104
[SW4-Vlanif104]ip address 10.10.4.4 24
[SW4-Vlanif104]int vlanif 204
[SW4-Vlanif204]ip address 10.20.4.4 24

[SW4]ospf 1 router-id 4.4.4.4
[SW4-ospf-1]area 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 10.10.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 10.20.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 192.168.2.2 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]network 192.168.3.2 0.0.0.0
[SW4-ospf-1]silent-interface vlanif 2
[SW4-ospf-1]silent-interface vlanif 3

创建VRF空间

创建VRF空间用来将SW1和SW2分割为两台设备，分别和上下行设备连接，其中GE0/0/2、5、6、7属于该空间接口

SW1
[SW1]ip vpn-instance VRF
[SW1-vpn-instance-VRF]route-distinguisher  100:1
[SW1-vpn-instance-VRF-af-ipv4]vpn-target  100:1 both

SW2
[SW2]ip vpn-instance VRF
[SW2-vpn-instance-VRF]route-distinguisher  100:1
[SW2-vpn-instance-VRF-af-ipv4]vpn-target  100:1 both

配置VLAN信息

SW1

[SW1]vlan batch 102 103 104
[SW1]int g 0/0/6
[SW1-GigabitEthernet0/0/6]port link-type access
[SW1-GigabitEthernet0/0/6]port default vlan 103
[SW1-GigabitEthernet0/0/6]undo stp enable

[SW1]int g 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW1-GigabitEthernet0/0/5]undo stp enable

[SW1-GigabitEthernet0/0/5]int g 0/0/7
[SW1-GigabitEthernet0/0/7]port link-type access
[SW1-GigabitEthernet0/0/7]port default vlan 104
[SW1-GigabitEthernet0/0/7]undo stp enable

SW2

[SW2]vlan batch 102 203 204

[SW2]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW2-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW2-GigabitEthernet0/0/5]undo stp enable

[SW2]interface GigabitEthernet 0/0/6
[SW2-GigabitEthernet0/0/6]port link-type access
[SW2-GigabitEthernet0/0/6]undo stp enable

[SW2-GigabitEthernet0/0/6]int g 0/0/7
[SW2-GigabitEthernet0/0/7]port link-type access
[SW2-GigabitEthernet0/0/7]port default vlan 203
[SW2-GigabitEthernet0/0/7]undo stp enable

创建vlanif接口

SW1
[SW1]interface Vlanif 102
[SW1-Vlanif102]ip binding vpn-instance VRF
[SW1-Vlanif102]ip address 10.10.2.1 24

[SW1]interface Vlanif 103
[SW1-Vlanif103]ip binding vpn-instance VRF
[SW1-Vlanif103]ip add 10.10.3.1 24

[SW1]interface Vlanif 104
[SW1-Vlanif104]ip binding vpn-instance VRF
[SW1-Vlanif104]ip add 10.10.4.1 24

SW2
[SW2]interface Vlanif 102
[SW2-Vlanif102]ip binding vpn-instance VRF
[SW2-Vlanif102]ip address 10.20.2.2 24

[SW2]interface Vlanif 203
[SW2-Vlanif203]ip binding vpn-instance VRF
[SW2-Vlanif203]ip address 10.20.3.2 24

[SW2]interface Vlanif 204
[SW2-Vlanif204]ip binding vpn-instance VRF
[SW2-Vlanif204]ip add 10.20.4.2 24

测试

VRF空间的OSPF

[SW1]ospf 1 router-id 1.1.1.1 vpn-instance VRF
[SW1-ospf-1]area 0
[SW1-ospf-1-area-0.0.0.0]network 10.10.2.1 0.0.0.0
[SW1-ospf-1-area-0.0.0.0]network 10.10.3.1 0.0.0.0
[SW1-ospf-1-area-0.0.0.0]network 10.10.4.1 0.0.0.0
[SW1-ospf-1]default-route-advertise

[SW2]ospf 1 router-id 2.2.2.2 vpn-instance VRF
[SW2-ospf-1]area 0
[SW2-ospf-1-area-0.0.0.0]network 10.10.2.2 0.0.0.0
[SW2-ospf-1-area-0.0.0.0]network 10.20.3.2 0.0.0.0
[SW2-ospf-1-area-0.0.0.0]network 10.20.4.2 0.0.0.0

因为在要求里面“SW3是实例1的主根，实例2的备份根；SW4是实例2的主根，实例1的备份根”，所以要修改接口开销值避免成为等价路由。（开销值越小，优先级越高）

[SW3]int vlanif 203
[SW3-Vlanif203]ospf cost 5
[SW3-ospf-1-area-0.0.0.0]undo network 192.168.2.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]undo network 192.168.3.1 0.0.0.0

[SW4]int vlanif 104
[SW4-Vlanif104]ospf cost 5
[SW4-ospf-1-area-0.0.0.0]undo network 192.168.2.2 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]undo network 192.168.3.2 0.0.0.0

路由策略

SW3
[SW3]ip ip-prefix aa permit 192.168.2.0 24
[SW3]ip ip-prefix bb permit 192.168.3.0 24

[SW3]route-policy bb permit node 10
[SW3-route-policy]if-match ip-prefix bb
[SW3-route-policy]apply cost 5
[SW3]route-policy bb permit node 20
[SW3-route-policy]if-match ip-prefix aa

[SW3]ospf 1
[SW3-ospf-1]import-route direct route-policy bb

```bash
[SW4]ip ip-prefix aa permit 192.168.2.0 24
[SW4]ip ip-prefix bb permit 192.168.3.0 24

[SW4]route-policy aa permit node 10
Info: New Sequence of this List.
[SW4-route-policy]if-match ip-prefix aa
[SW4-route-policy]apply cost 5
[SW4-route-policy]route-policy aa permit node 20
Info: New Sequence of this List.
[SW4-route-policy]if-match ip-prefix bb

[SW4]ospf 1
[SW4-ospf-1]import-route direct route-policy aa

流量管控之后的对比

交换机和防火墙之间的交互

VRF区域配置

SW1

[SW1]vlan batch 401 402
[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 401 402
[SW1-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402

[SW1]interface Vlanif 401
[SW1-Vlanif401]ip binding vpn-instance VRF
[SW1-Vlanif401]ip address 10.40.1.1 24
[SW1-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW1-Vlanif401]vrrp vrid 1 priority 120
[SW1-Vlanif401]vrrp vrid 1 preempt-mode timer delay 60
[SW1-Vlanif401]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 30

[SW1]interface Vlanif 402
[SW1-Vlanif402]ip binding vpn-instance VRF
[SW1-Vlanif402]ip address 10.40.2.1 24
[SW1-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100

SW2

[SW2]vlan batch 401 402
[SW2]interface GigabitEthernet 0/0/3
[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 401 402
[SW2-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402

[SW2]interface Vlanif 401
[SW2-Vlanif401]ip binding vpn-instance VRF
[SW2-Vlanif401]ip address 10.40.1.2 24
[SW2-Vlanif401]vrrp vrid 2 virtual-ip 10.40.1.100

[SW2]interface Vlanif 402
[SW2-Vlanif402]ip binding vpn-instance VRF
[SW2-Vlanif402]ip address 10.40.2.2 24
[SW2-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100
[SW2-Vlanif402]vrrp vrid 2 priority 120
[SW2-Vlanif402]vrrp vrid 2 preempt-mode timer delay 60
[SW2-Vlanif402]vrrp vrid 2 track interface GigabitEthernet 0/0/3 reduced 30

FW1

[FW1]interface GigabitEthernet 1/0/0
[FW1-GigabitEthernet1/0/0]ip add 10.10.10.1 30
[FW1-GigabitEthernet1/0/0]
[FW1-GigabitEthernet1/0/0]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]ip add 10.40.1.10 24
[FW1-GigabitEthernet1/0/1.401]vlan-type dot1q 401
[FW1-GigabitEthernet1/0/1.401]
[FW1-GigabitEthernet1/0/1.401]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]ip address 10.40.2.10 24
[FW1-GigabitEthernet1/0/1.402]vlan-type dot1q 402
[FW1-GigabitEthernet1/0/1.402]
[FW1-GigabitEthernet1/0/1.402]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]ip address 10.40.3.10 24
[FW1-GigabitEthernet1/0/2.403]vlan-type dot1q 403
[FW1-GigabitEthernet1/0/2.403]
[FW1-GigabitEthernet1/0/2.403]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]ip add 10.40.4.10 24
[FW1-GigabitEthernet1/0/2.404]vlan-type dot1q 404

FW2

[FW2]interface GigabitEthernet 1/0/0
[FW2-GigabitEthernet1/0/0]ip add 10.10.10.2 30
[FW2-GigabitEthernet1/0/0]
[FW2-GigabitEthernet1/0/0]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]ip add 10.40.1.20 24
[FW2-GigabitEthernet1/0/2.401]vlan-type dot1q 401
[FW2-GigabitEthernet1/0/2.401]
[FW2-GigabitEthernet1/0/2.401]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]ip address 10.40.2.20 24
[FW2-GigabitEthernet1/0/2.402]vlan-type dot1q 402
[FW2-GigabitEthernet1/0/2.402]
[FW2-GigabitEthernet1/0/2.402]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]ip address 10.40.3.20 24
[FW2-GigabitEthernet1/0/1.403]vlan-type dot1q 403
[FW2-GigabitEthernet1/0/1.403]
[FW2-GigabitEthernet1/0/1.403]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]ip add 10.40.4.20 24
[FW2-GigabitEthernet1/0/1.404]vlan-type dot1q 404

安全区域规划

FW1

[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.401
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.402
[FW1-zone-trust]
[FW1-zone-trust]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.403
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.404
[FW1-zone-untrust]
[FW1-zone-untrust]firewall zone dmz
[FW1-zone-dmz]add interface GigabitEthernet 1/0/0

FW2

[FW2]firewall zone trust
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.401
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.402
[FW2-zone-trust]
[FW2-zone-trust]firewall zone untrust
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.403
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.404
[FW2-zone-untrust]
[FW2-zone-untrust]firewall zone dmz
[FW2-zone-dmz]add interface GigabitEthernet 1/0/0

SW1\SW2的Public区域

SW1

[SW1]interface GigabitEthernet 0/0/3
[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 403 404
[SW1-GigabitEthernet0/0/3]
[SW1-GigabitEthernet0/0/3]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port link-type trunk
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW1-GigabitEthernet0/0/4]
[SW1-GigabitEthernet0/0/4]interface Vlanif 403
[SW1-Vlanif403]ip address 10.40.3.1 24
[SW1-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW1-Vlanif403]vrrp vrid 3 priority 120
[SW1-Vlanif403]vrrp vrid 3 preempt-mode timer delay 60
[SW1-Vlanif403]vrrp vrid 3 track interface GigabitEthernet 0/0/3 reduced 30
[SW1-Vlanif403]
[SW1-Vlanif403]interface Vlanif 404
[SW1-Vlanif404]ip add 10.40.4.1 24
[SW1-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100

SW2

[SW2]vlan batch 403 404
[SW2]interface GigabitEthernet 0/0/2
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 403 404
[SW2-GigabitEthernet0/0/2]
[SW2-GigabitEthernet0/0/2]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port link-type trunk
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW2-GigabitEthernet0/0/4]
[SW2-GigabitEthernet0/0/4]interface Vlanif 403
[SW2-Vlanif403]ip add 10.40.3.2 24
[SW2-Vlanif403]vrrp vrid 4 virtual-ip 10.40.3.100
[SW2-Vlanif403]
[SW2-Vlanif403]interface Vlanif 404
[SW2-Vlanif404]ip address 10.40.4.2 24
[SW2-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100
[SW2-Vlanif404]vrrp vrid 4 priority 120
[SW2-Vlanif404]vrrp vrid 4 preempt-mode timer delay 60
[SW2-Vlanif404]vrrp vrid 4 track interface GigabitEthernet 0/0/2 reduced 30

针对交换机上下行路由的补充

上行
[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200
[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200 preference 70
下行
[SW1]ip route-static 192.168.0.0 16 10.40.3.200
[SW1]ip route-static 192.168.0.0 16 10.40.4.200 preference 70

上行
[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200
[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200 preference 70
下行
[SW2]ip route-static 192.168.0.0 16 10.40.4.200
[SW2]ip route-static 192.168.0.0 16 10.40.3.200 preference 70

需要先激活FW的1/0/1和1/0/2的接口才能运行

防火墙双机热备

FW1

下行
[FW1]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]vrrp vrid 5 virtual-ip 10.40.1.200 active
[FW1-GigabitEthernet1/0/1.401]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]vrrp vrid 6 virtual-ip 10.40.2.200 standby
上行
[FW1]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]vrrp vrid 7 virtual-ip 10.40.3.200 active
[FW1-GigabitEthernet1/0/2.403]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]vrrp vrid 8 virtual-ip 10.40.4.200 standby

[FW1]hrp mirror session enable
[FW1]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.2
[FW1]hrp enable
上行
HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.3.100
HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.4.100 preference 70
下行
HRP_S[FW1]ip route-static 192.168.0.0 16 10.40.1.100
HRP_S[FW1]ip route-static 192.168.0.0 16 10.40.2.100 preference 70

FW2

下行
[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]vrrp vrid 5 virtual-ip 10.40.1.200 standby
[FW2-GigabitEthernet1/0/2.401]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]vrrp vrid 6 virtual-ip 10.40.2.200 active
上行
[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]vrrp vrid 7 virtual-ip 10.40.3.200 standby
[FW2-GigabitEthernet1/0/1.403]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]vrrp vrid 8 virtual-ip 10.40.4.200 active
[FW2]hrp mirror session enable
[FW2]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.1
[FW2]hrp enable
FW2上行路由配置：
HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.4.100
HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.3.100 preference 70
FW2下行路由配置：
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.2.100
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.1.100 preference 70

安全策略配置

HRP_M[FW1]security-policy  (+B)
HRP_M[FW1-policy-security]rule name trust_to_untrust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]source-zone trust  (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]destination-zone untrust  (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]source-address 192.168.0.0 16 (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]action permit  (+B)

查看在FW2上同步的安全策略

核心到边界

规划：
    SW1-SW2：VLAN 12 --- 10.12.1.0/24
    SW1-R1：VLAN 11 ---- 10.11.1.0/24
    SW2-R2：VLAN 22 ---- 10.22.2.0/24
    R1-R2： 			---- 10.12.2.0/24

    OSPF：（这里的OSPF协议需要通过进程号进行区分）设定为2
        SW1：1.1.1.1
        SW2：2.2.2.2
        R1：3.3.3.3
        R2：4.4.4.4

SW1

[SW1]vlan batch 11 12
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan 11
[SW1-GigabitEthernet0/0/1]undo stp enable
[SW1-GigabitEthernet0/0/1]
[SW1-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW1-GigabitEthernet0/0/4]undo stp enable
[SW1-GigabitEthernet0/0/4]
[SW1-GigabitEthernet0/0/4]interface Vlanif 11
[SW1-Vlanif11]ip address 10.11.1.1 24
[SW1-Vlanif11]interface Vlanif 12
[SW1-Vlanif12]ip add 10.12.1.1 24

[SW1]ospf 2 router-id 1.1.1.1
[SW1-ospf-2]area 0
[SW1-ospf-2-area-0.0.0.0]network 10.11.1.1 0.0.0.0
[SW1-ospf-2-area-0.0.0.0]network 10.12.1.1 0.0.0.0

SW2

[SW2]vlan batch 12 22
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW2]interface GigabitEthernet 0/0/1
[SW2-GigabitEthernet0/0/1]port link-type access
[SW2-GigabitEthernet0/0/1]port default vlan 22
[SW2-GigabitEthernet0/0/1]undo stp enable
[SW2-GigabitEthernet0/0/1]
[SW2-GigabitEthernet0/0/1]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW2-GigabitEthernet0/0/4]undo stp enable
[SW2-GigabitEthernet0/0/4]
[SW2-GigabitEthernet0/0/4]interface Vlanif 12
[SW2-Vlanif12]ip address 10.12.1.2 24
[SW2-Vlanif12]interface Vlanif 22
[SW2-Vlanif22]ip address 10.22.2.1 24

[SW2]ospf 2 router-id 2.2.2.2
[SW2-ospf-2] area 0.0.0.0
[SW2-ospf-2-area-0.0.0.0]  network 10.12.1.2 0.0.0.0
[SW2-ospf-2-area-0.0.0.0]  network 10.22.2.1 0.0.0.0

R1

[R1-GigabitEthernet0/0/0]ip add 10.11.1.2 24
[R1-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip address 10.12.2.1 24
[R1-GigabitEthernet0/0/1]ip address 10.12.2.1 24

[R1]ospf 1 router-id 3.3.3.3
[R1-ospf-1] area 0.0.0.0
[R1-ospf-1-area-0.0.0.0]  network 10.11.1.2 0.0.0.0
[R1-ospf-1-area-0.0.0.0]  network 10.12.2.1 0.0.0.0

R2

[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip add 10.22.2.2 24
[R2-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ip add 10.12.2.2 14
[R2-GigabitEthernet0/0/1]ip add 10.12.2.2 14

[R2]ospf 1 router-id 4.4.4.4
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 10.22.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 10.12.2.2 0.0.0.0

最外层网络

R1

[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]ip add 12.0.0.1 24
[R1-GigabitEthernet0/0/2]ip route-static 0.0.0.0 0 12.0.0.100
[R1]ospf 1
[R1-ospf-1]default-route-advertise
[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R1-acl-basic-2000]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]nat outbound 2000

R2

[R2]interface GigabitEthernet 0/0/2
[R2-GigabitEthernet0/0/2]ip add 13.0.0.1 24
[R2-GigabitEthernet0/0/2]ip route-static 0.0.0.0 0 13.0.0.100
[R2]ospf 1
[R2-ospf-1]default-route-advertise
[R2-ospf-1]acl 2000
[R2-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R2-acl-basic-2000]interface GigabitEthernet 0/0/2
[R2-GigabitEthernet0/0/2]nat outbound 2000

ISP

[ISP]interface GigabitEthernet 0/0/0
[ISP-GigabitEthernet0/0/0]
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.100 24
[ISP-GigabitEthernet0/0/0]
[ISP-GigabitEthernet0/0/0]interface GigabitEthernet 0/0/1
[ISP-GigabitEthernet0/0/1]
[ISP-GigabitEthernet0/0/1]ip add 13.0.0.100 24

[ISP-GigabitEthernet0/0/1]ip add 13.0.0.100 24
[ISP-GigabitEthernet0/0/1]interface LoopBack 0
[ISP-LoopBack0]ip add 100.1.1.1 24

在SW1和SW2的OSPF进程2中引入静态路由

[SW1-ospf-1]import-route static
[SW2-ospf-2]import-route static

测试

正常情况下SW1\2 ping ISP


关闭接口之后还是能ping通
