多模态分类：图文结合的智能识别与代码实战

news 2025/10/2 7:29:39

在人工智能领域，多模态学习正成为解决复杂问题的关键技术。本文将深入探讨多模态分类的概念、应用场景，并通过完整代码示例展示如何实现一个图文结合的分类系统。

什么是多模态分类？

多模态分类是指利用多种不同类型的数据（如图像、文本、音频等）共同完成分类任务的方法。与单一模态相比，多模态方法能够捕捉更丰富的信息，提高分类的准确性和鲁棒性。

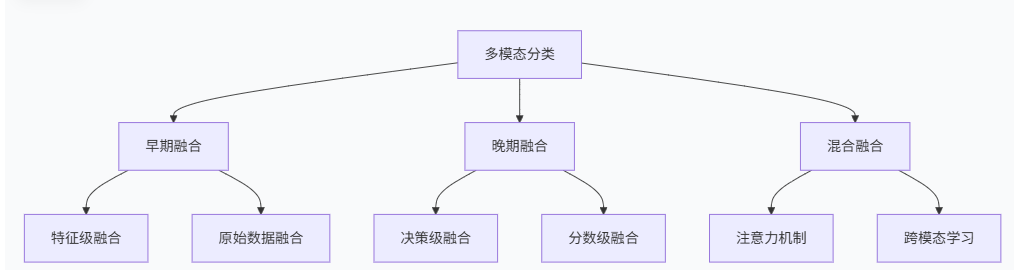

多模态分类的主要类型

多模态分类的优势

信息互补性：不同模态提供互补信息
鲁棒性增强：当某一模态数据缺失或质量较差时，其他模态可以弥补
性能提升：通常比单模态方法获得更好的分类效果
更接近人类认知：人类天然使用多感官信息理解世界

实战：图文多模态分类系统

下面我们将构建一个结合图像和文本的多模态分类模型，用于商品分类任务。

环境准备

python

import torch
import torch.nn as nn
import torchvision.models as models
import torchvision.transforms as transforms
from torch.utils.data import Dataset, DataLoader
from PIL import Image
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from transformers import BertModel, BertTokenizer
import os
from sklearn.metrics import classification_report, confusion_matrix
import seaborn as sns

数据预处理

python

class MultimodalDataset(Dataset):def __init__(self, image_dir, csv_file, transform=None, max_length=128):self.data = pd.read_csv(csv_file)self.image_dir = image_dirself.transform = transformself.tokenizer = BertTokenizer.from_pretrained('bert-base-uncased')self.max_length = max_lengthself.label_map = {'electronics': 0, 'clothing': 1, 'books': 2, 'home': 3}def __len__(self):return len(self.data)def __getitem__(self, idx):item = self.data.iloc[idx]# 图像处理img_path = os.path.join(self.image_dir, item['image_path'])image = Image.open(img_path).convert('RGB')if self.transform:image = self.transform(image)# 文本处理text = str(item['description'])encoding = self.tokenizer(text,truncation=True,padding='max_length',max_length=self.max_length,return_tensors='pt')# 标签label = self.label_map[item['category']]return {'image': image,'input_ids': encoding['input_ids'].flatten(),'attention_mask': encoding['attention_mask'].flatten(),'label': torch.tensor(label, dtype=torch.long)}# 数据变换
transform = transforms.Compose([transforms.Resize((224, 224)),transforms.ToTensor(),transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
])

多模态模型架构

python

class MultimodalClassifier(nn.Module):def __init__(self, num_classes, text_feature_dim=768, image_feature_dim=1000, hidden_dim=512, dropout=0.3):super(MultimodalClassifier, self).__init__()# 图像分支 - 使用预训练的ResNetself.image_encoder = models.resnet50(pretrained=True)self.image_encoder.fc = nn.Linear(self.image_encoder.fc.in_features, image_feature_dim)# 文本分支 - 使用预训练的BERTself.text_encoder = BertModel.from_pretrained('bert-base-uncased')self.text_projection = nn.Linear(text_feature_dim, text_feature_dim)# 融合层self.fusion = nn.Sequential(nn.Linear(image_feature_dim + text_feature_dim, hidden_dim),nn.ReLU(),nn.Dropout(dropout),nn.Linear(hidden_dim, hidden_dim // 2),nn.ReLU(),nn.Dropout(dropout),nn.Linear(hidden_dim // 2, num_classes))# 注意力机制（可选）self.attention = nn.MultiheadAttention(embed_dim=image_feature_dim + text_feature_dim,num_heads=8,dropout=dropout)def forward(self, image, input_ids, attention_mask):# 图像特征提取image_features = self.image_encoder(image)# 文本特征提取text_outputs = self.text_encoder(input_ids=input_ids, attention_mask=attention_mask)text_features = text_outputs.last_hidden_state[:, 0, :]  # [CLS] tokentext_features = self.text_projection(text_features)# 特征融合combined_features = torch.cat([image_features, text_features], dim=1)# 应用注意力（可选）combined_features = combined_features.unsqueeze(0)attended_features, _ = self.attention(combined_features, combined_features, combined_features)combined_features = attended_features.squeeze(0)# 分类output = self.fusion(combined_features)return output# 初始化模型
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model = MultimodalClassifier(num_classes=4).to(device)
print(f"模型参数量: {sum(p.numel() for p in model.parameters()):,}")

训练过程

python

def train_model(model, train_loader, val_loader, criterion, optimizer, num_epochs=10):train_losses = []val_accuracies = []for epoch in range(num_epochs):# 训练阶段model.train()running_loss = 0.0for batch in train_loader:images = batch['image'].to(device)input_ids = batch['input_ids'].to(device)attention_mask = batch['attention_mask'].to(device)labels = batch['label'].to(device)optimizer.zero_grad()outputs = model(images, input_ids, attention_mask)loss = criterion(outputs, labels)loss.backward()optimizer.step()running_loss += loss.item()# 验证阶段model.eval()correct = 0total = 0with torch.no_grad():for batch in val_loader:images = batch['image'].to(device)input_ids = batch['input_ids'].to(device)attention_mask = batch['attention_mask'].to(device)labels = batch['label'].to(device)outputs = model(images, input_ids, attention_mask)_, predicted = torch.max(outputs.data, 1)total += labels.size(0)correct += (predicted == labels).sum().item()epoch_loss = running_loss / len(train_loader)epoch_accuracy = 100 * correct / totaltrain_losses.append(epoch_loss)val_accuracies.append(epoch_accuracy)print(f'Epoch [{epoch+1}/{num_epochs}], Loss: {epoch_loss:.4f}, Accuracy: {epoch_accuracy:.2f}%')return train_losses, val_accuracies# 训练配置
criterion = nn.CrossEntropyLoss()
optimizer = torch.optim.AdamW(model.parameters(), lr=2e-5, weight_decay=1e-4)# 开始训练
train_losses, val_accuracies = train_model(model, train_loader, val_loader, criterion, optimizer, num_epochs=15
)

可视化训练过程

python

def plot_training_history(train_losses, val_accuracies):fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 5))# 损失曲线ax1.plot(train_losses, label='Training Loss')ax1.set_title('Training Loss Over Epochs')ax1.set_xlabel('Epoch')ax1.set_ylabel('Loss')ax1.legend()ax1.grid(True)# 准确率曲线ax2.plot(val_accuracies, label='Validation Accuracy', color='orange')ax2.set_title('Validation Accuracy Over Epochs')ax2.set_xlabel('Epoch')ax2.set_ylabel('Accuracy (%)')ax2.legend()ax2.grid(True)plt.tight_layout()plt.show()plot_training_history(train_losses, val_accuracies)

模型评估

python

def evaluate_model(model, test_loader):model.eval()all_predictions = []all_labels = []with torch.no_grad():for batch in test_loader:images = batch['image'].to(device)input_ids = batch['input_ids'].to(device)attention_mask = batch['attention_mask'].to(device)labels = batch['label'].to(device)outputs = model(images, input_ids, attention_mask)_, predicted = torch.max(outputs.data, 1)all_predictions.extend(predicted.cpu().numpy())all_labels.extend(labels.cpu().numpy())# 分类报告print("Classification Report:")print(classification_report(all_labels, all_predictions, target_names=['electronics', 'clothing', 'books', 'home']))# 混淆矩阵cm = confusion_matrix(all_labels, all_predictions)plt.figure(figsize=(8, 6))sns.heatmap(cm, annot=True, fmt='d', cmap='Blues',xticklabels=['electronics', 'clothing', 'books', 'home'],yticklabels=['electronics', 'clothing', 'books', 'home'])plt.title('Confusion Matrix')plt.xlabel('Predicted')plt.ylabel('Actual')plt.show()evaluate_model(model, test_loader)

单样本预测

python

def predict_single_sample(model, image_path, description, transform, label_map_inv):model.eval()# 处理图像image = Image.open(image_path).convert('RGB')image_tensor = transform(image).unsqueeze(0).to(device)# 处理文本tokenizer = BertTokenizer.from_pretrained('bert-base-uncased')encoding = tokenizer(description,truncation=True,padding='max_length',max_length=128,return_tensors='pt')input_ids = encoding['input_ids'].to(device)attention_mask = encoding['attention_mask'].to(device)with torch.no_grad():output = model(image_tensor, input_ids, attention_mask)probabilities = torch.softmax(output, dim=1)predicted_class = torch.argmax(output, dim=1).item()confidence = torch.max(probabilities).item()# 可视化结果fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))# 显示图像ax1.imshow(image)ax1.set_title(f'Predicted: {label_map_inv[predicted_class]}\nConfidence: {confidence:.2f}')ax1.axis('off')# 显示概率分布classes = list(label_map_inv.values())probabilities = probabilities.cpu().numpy()[0]ax2.barh(classes, probabilities)ax2.set_xlabel('Probability')ax2.set_title('Class Probabilities')ax2.set_xlim(0, 1)plt.tight_layout()plt.show()return label_map_inv[predicted_class], confidence# 反向标签映射
label_map_inv = {0: 'electronics', 1: 'clothing', 2: 'books', 3: 'home'}# 测试预测
predicted_class, confidence = predict_single_sample(model, 'test_image.jpg', 'This is a modern smartphone with high-resolution camera and long battery life',transform,label_map_inv
)

多模态分类的挑战与解决方案

主要挑战

模态对齐：不同模态数据的时间或空间对齐问题
缺失模态：如何处理部分模态数据缺失的情况
计算复杂度：多模态模型通常需要更多计算资源
数据不平衡：不同模态数据质量和数量不一致

解决方案

python

# 处理缺失模态的示例
class RobustMultimodalClassifier(nn.Module):def __init__(self, num_classes, dropout=0.3):super().__init__()# 图像编码器self.image_encoder = models.resnet50(pretrained=True)self.image_encoder.fc = nn.Linear(self.image_encoder.fc.in_features, 512)# 文本编码器self.text_encoder = BertModel.from_pretrained('bert-base-uncased')self.text_projection = nn.Linear(768, 512)# 模态缺失处理self.image_missing_proj = nn.Parameter(torch.randn(512))self.text_missing_proj = nn.Parameter(torch.randn(512))# 分类器self.classifier = nn.Sequential(nn.Linear(1024, 512),nn.ReLU(),nn.Dropout(dropout),nn.Linear(512, num_classes))def forward(self, image=None, input_ids=None, attention_mask=None):# 处理图像模态（支持缺失）if image is not None:image_features = self.image_encoder(image)else:batch_size = input_ids.size(0) if input_ids is not None else 1image_features = self.image_missing_proj.unsqueeze(0).repeat(batch_size, 1)# 处理文本模态（支持缺失）if input_ids is not None:text_outputs = self.text_encoder(input_ids=input_ids, attention_mask=attention_mask)text_features = text_outputs.last_hidden_state[:, 0, :]text_features = self.text_projection(text_features)else:batch_size = image.size(0) if image is not None else 1text_features = self.text_missing_proj.unsqueeze(0).repeat(batch_size, 1)# 特征融合combined_features = torch.cat([image_features, text_features], dim=1)output = self.classifier(combined_features)return output
