Android TabLayout使用记录

目录

一、使用TabLayout做导航栏(图标+标题)​编辑

1、activity布局

2、创建Tab数据类

3、逻辑部分

二、做切换卡片(标题+指示器)​编辑

1、创建相关资源

2.布局中设置指示器和文本样式

3.逻辑

---

详细学习：Android 原生 TabLayout 使用全解析，看这篇就够了_android tablayout-CSDN博客

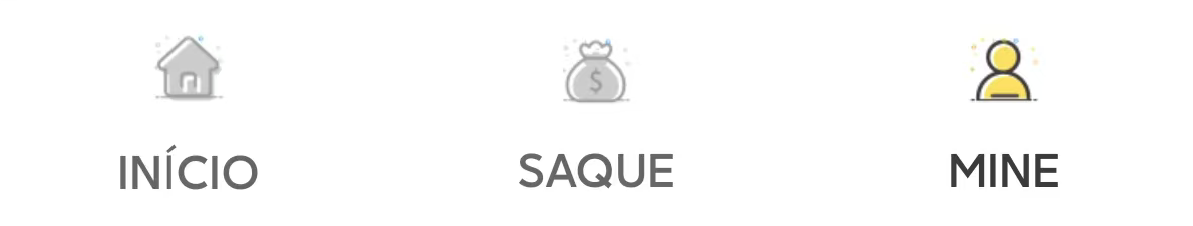

一、使用TabLayout做导航栏(图标+标题)

1、activity布局

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"xmlns:tools="http://schemas.android.com/tools"android:id="@+id/main"android:layout_width="match_parent"android:layout_height="match_parent"><androidx.viewpager2.widget.ViewPager2android:id="@+id/fragment_container"android:layout_width="match_parent"android:layout_height="0dp"app:layout_constraintBottom_toTopOf="@+id/tabLayout"app:layout_constraintEnd_toEndOf="parent"app:layout_constraintStart_toStartOf="parent"app:layout_constraintTop_toTopOf="parent" /><com.google.android.material.tabs.TabLayoutandroid:id="@+id/tabLayout"android:layout_width="match_parent"android:layout_height="74dp"android:clipToPadding="false"app:layout_constraintBottom_toBottomOf="parent"app:layout_constraintStart_toStartOf="parent"app:tabIndicatorHeight="0dp"app:tabMode="fixed"app:tabRippleColor="@color/color_CCCCCC"app:tabSelectedTextColor="@color/color_3E3A39" /></androidx.constraintlayout.widget.ConstraintLayout>

2、创建Tab数据类

import androidx.annotation.DrawableRes
import androidx.annotation.StringRes/*** @param title tab标签* @param iconSelectRes 选中图标* @param iconUnselectRes 未选中图标* @param fragment 显示的Fragment*/data class TabInfo(@StringRes val title: Int,@DrawableRes val iconSelectRes: Int,@DrawableRes val iconUnselectRes: Int,val fragment: Fragment
)

3、逻辑部分

import android.os.Bundle
import android.view.LayoutInflater
import androidx.appcompat.app.AppCompatActivity
import androidx.core.content.ContextCompat
import androidx.fragment.app.Fragment
import androidx.fragment.app.FragmentActivity
import androidx.viewpager2.adapter.FragmentStateAdapter
import com.google.android.material.tabs.TabLayoutMediatorclass MainActivity : AppCompatActivity() {private val binding by lazy {ActivityMainBinding.inflate(LayoutInflater.from(this))}private val tabs by lazy {listOf(TabInfo(R.string.tab_home, R.drawable.ic_home, R.drawable.ic_home_not, HomeFragment()),TabInfo(R.string.tab_withdraw, R.drawable.ic_withdraw, R.drawable.ic_withdraw_not, WithdrawFragment()),TabInfo(R.string.tab_mine, R.drawable.ic_mine, R.drawable.ic_mine_not, MineFragment()))}private var selectTabIndex = 0override fun onCreate(savedInstanceState: Bundle?) {super.onCreate(savedInstanceState)initTab()}fun initTab() {val myAdapter = MyFragmentAdapter(this)binding.fragmentContainer.apply {adapter = myAdapterTabLayoutMediator(binding.tabLayout, this) { tab, position ->val tabInfo = myAdapter.getTabInfo(position)tab.text = getString(tabInfo.title)tab.icon = ContextCompat.getDrawable(this@MainActivity,if (position == selectTabIndex) tabInfo.iconSelectRes else tabInfo.iconUnselectRes)// 添加点击监听tab.view.setOnClickListener {selectTabIndex = positiontabs.forEachIndexed { index, info ->val tab = binding.tabLayout.getTabAt(index)tab?.icon = ContextCompat.getDrawable(this@MainActivity,if (index == selectTabIndex) tabs[index].iconSelectRes else tabs[index].iconUnselectRes)}}}.attach()}}inner class MyFragmentAdapter(fragmentActivity: FragmentActivity) :FragmentStateAdapter(fragmentActivity) {override fun getItemCount(): Int = tabs.sizeoverride fun createFragment(position: Int): Fragment {return tabs[position].fragment}fun getTabInfo(position: Int): TabInfo {return tabs[position]}}
}

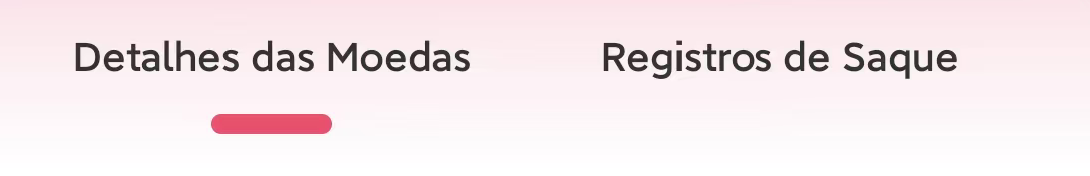

二、做切换卡片(标题+指示器)

1、创建相关资源

指定宽高的指示器drawable文件record_tab_indicator.xml，默认是满TabItem宽度的

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android"><itemandroid:width="37dp"  android:height="6dp"android:gravity="center"><shape><corners android:radius="3dp" /></shape></item>
</layer-list>

在styles.xml中创建标签文本样式

<resources><style name="recordTabText"><item name="android:textSize">18sp</item><item name="android:textStyle">bold</item><item name="android:textColor">@color/color_333333</item></style>
</resources>

2.布局中设置指示器和文本样式

 <com.google.android.material.tabs.TabLayoutandroid:id="@+id/tabLayout"android:layout_width="match_parent"android:layout_height="wrap_content"app:tabIndicator="@drawable/record_tab_indicator"app:tabIndicatorColor="#FC3F6B"app:tabMode="fixed"app:tabTextAppearance="@style/recordTabText"/>

3.逻辑

            binding.tabLayout.apply {addTab(tabLayout.newTab().setText(getString(R.string.gold_record)))addTab(tabLayout.newTab().setText(getString(R.string.withdraw_record)))addOnTabSelectedListener(object : TabLayout.OnTabSelectedListener {override fun onTabSelected(tab: TabLayout.Tab?) {type = tab?.position ?: 0//切换tab逻辑}override fun onTabUnselected(tab: TabLayout.Tab?) {}override fun onTabReselected(tab: TabLayout.Tab?) {}})tabLayout.getTabAt(1)?.select() //指定选中tab }
