Qwen3-Omni多模态prompt输入解析

前言

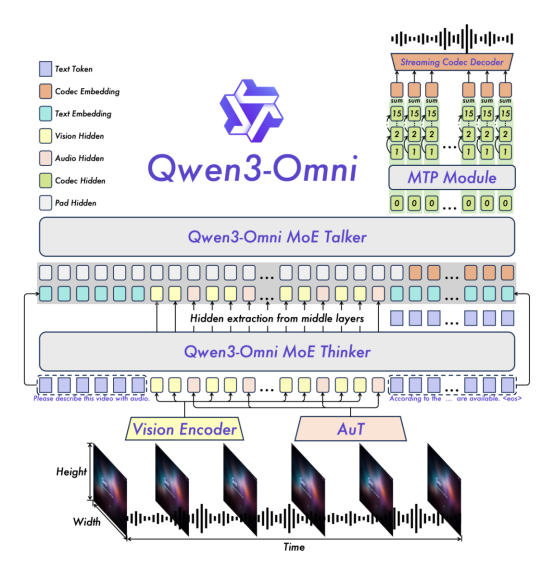

Qwen3-Omni 是一种原生的端到端多语言全模态基础模型。它能够处理文本、图像、音频和视频，并提供实时的文本和自然语音响应。新架构基于MoE的Thinker–Talker设计，加上AuT预训练以生成强大的通用表示，保证低幻觉和高效的生成能力。
这篇文章主要梳理模型对多模态输入内容的处理，关注多模态内容如何进行融合。虽然只是了解输入内容的处理，但是涉及的模块组件也比较多了，这个模型与单模态文本生成模型有着显著的区别，模型架构更像是一个系统，每个组件负责不同的数据处理，有各自的模组。

先看推理代码示例，为避免干扰与乏味会尽量精简代码。官方video输入推理示例，使用场景是视频描述

import os
import torch
import warnings
import numpy as np
……
from qwen_omni_utils import process_mm_info
from transformers import Qwen3OmniMoeProcessorMODEL_PATH = "Qwen/Qwen3-Omni-30B-A3B-Instruct"# 加载模型与输入内容处理器
def _load_model_processor():
if USE_TRANSFORMERS:from transformers import Qwen3OmniMoeForConditionalGeneration……model = LLM(model=MODEL_PATH, trust_remote_code=True, gpu_memory_utilization=0.95,tensor_parallel_size=torch.cuda.device_count(),limit_mm_per_prompt={'image': 1, 'video': 3, 'audio': 3},max_num_seqs=1,max_model_len=32768,seed=1234,)processor = Qwen3OmniMoeProcessor.from_pretrained(MODEL_PATH)return model, processordef run_model(model, processor, messages, return_audio, use_audio_in_video):……from vllm import SamplingParamssampling_params = SamplingParams(temperature=1e-2, top_p=0.1, top_k=1, max_tokens=8192)text = processor.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)audios, images, videos = process_mm_info(messages, use_audio_in_video=use_audio_in_video)inputs = {'prompt': text, 'multi_modal_data': {}, "mm_processor_kwargs": {"use_audio_in_video": use_audio_in_video}}if images is not None: inputs['multi_modal_data']['image'] = imagesif videos is not None: inputs['multi_modal_data']['video'] = videosif audios is not None: inputs['multi_modal_data']['audio'] = audiosoutputs = model.generate(inputs, sampling_params=sampling_params)response = outputs[0].outputs[0].textreturn response, Nonemodel, processor = _load_model_processor()
video_path = "https://qianwen-res.oss-cn-beijing.aliyuncs.com/Qwen3-Omni/cookbook/video1.mp4"messages = [{"role": "user","content": [{"type": "video", "video": video_path},{"type": "text", "text": "Describe the video."} ]}
]display(Video(video_path, width=640, height=360))
response, audio = run_model(model=model, messages=messages, processor=processor, return_audio=RETURN_AUDIO, use_audio_in_video=USE_AUDIO_IN_VIDEO)
Print(response)

根据官方的使用示例可以知晓推理使用的模型类是Qwen3OmniMoeForConditionalGeneration

class Qwen3OmniMoeForConditionalGeneration(Qwen3OmniMoePreTrainedModel, GenerationMixin):config_class = Qwen3OmniMoeConfigdef __init__(self, config: Qwen3OmniMoeConfig):super().__init__(config)self.thinker = Qwen3OmniMoeThinkerForConditionalGeneration._from_config(config.thinker_config)self.has_talker = config.enable_audio_outputif self.has_talker:self.enable_talker()self.post_init()

初始化会引入Qwen3OmniMoeThinkerForConditionalGeneration类，用于思考。如果开启语音输出会导入Qwen3OmniMoeTalkerForConditionalGeneration类。官方文档中提到的两段式，第一段思考，第二段是音频生成。

Qwen3OmniMoePreTrainedModel是一个基础的Omni类，大部分模块类均基于它。配置类Qwen3OmniMoeConfig也是Qwen3OmniMoePreTrainedModel的一个配置属性。用于存储Qwen3OmniMoeForConditionalGeneration的配置。根据指定的子模型配置实例化Qwen3Omni模型，定义模型架构。配置对象继承自PretrainedConfig，可用于控制模型输出。参数：thinker_config：底层思维子模型的配置。talker_config：底层谈话者子模型的配置。code2wav_config：底层code2wav子模型的配置。enable_audio_output：是否启用音频输出并加载谈话者和code2wav模块。

多模态内容处理：
从模型外部接口generate推理函数入口开始梳理代码，input_ids是包含了多模态数据处理过的dict 类型数据，其中含有文本、图片、音频、视频

def generate(self,input_ids: Optional[torch.Tensor] = None,speaker: str = "Ethan",use_audio_in_video: bool = False,return_audio: Optional[bool] = None,thinker_max_new_tokens: int = 1024,thinker_eos_token_id: int = 151645,talker_max_new_tokens: int = 4096,talker_do_sample: bool = True,talker_top_k: int = 50,talker_top_p: float = 1.0,talker_temperature: float = 0.9,talker_repetition_penalty: float = 1.05,**kwargs,):# ……# thinking推理多模态输入thinker_result = self.thinker.generate(input_ids=input_ids, **thinker_kwargs)# 后续处理，推理张量转成音频输出

Thinker实例即class Qwen3OmniMoeThinkerForConditionalGeneration类继承GenerationMixin与nn.Module，通过generate处理输入信息后调用到类的forward函数处理。
模型调用自身forward函数流程，在父类GenerateMixIn中调用generate函数，内部根据生成配置选择具体的解码方法：
generation_mode = generation_config.get_generation_mode(assistant_model)
decoding_method = getattr(type(self), GENERATION_MODES_MAPPING[generation_mode])
获取采样方式，然后调用对应采样的函数prepare_inputs_for_generation准备传入模型前的数据，然后调用模型自身，触发torch的调用__call__ 至forward函数

def forward(self,input_ids=None,input_features=None,pixel_values=None,pixel_values_videos=None,image_grid_thw=None,video_grid_thw=None,attention_mask=None,audio_feature_lengths=None,position_ids=None,past_key_values=None,inputs_embeds=None,use_audio_in_video=None,……video_second_per_grid=None,**kwargs,) -> Union[tuple, Qwen3OmniMoeThinkerCausalLMOutputWithPast]:#……if inputs_embeds is None:# 1. 提取出 embeddingsinputs_embeds = self.get_input_embeddings()(input_ids)visual_embeds_multiscale = Nonevisual_pos_masks = None# 依次对音频、图片、视频占位符替换合并if input_features is not None:audio_features = self.get_audio_features(input_features,feature_attention_mask=feature_attention_mask,audio_feature_lengths=audio_feature_lengths,)audio_features = audio_features.to(inputs_embeds.device, inputs_embeds.dtype)# get_placeholder_mask能获取音频、图片、视频mask_, _, audio_mask = self.get_placeholder_mask(input_ids, inputs_embeds=inputs_embeds)# 使用 masked_scatter 操作将音频特征嵌入到文本输入嵌入的对应位置。inputs_embeds = inputs_embeds.masked_scatter(audio_mask, audio_features)if pixel_values is not None:# 图片占位符处理image_embeds, image_embeds_multiscale = self.get_image_features(pixel_values, image_grid_thw)image_embeds = image_embeds.to(inputs_embeds.device, inputs_embeds.dtype)image_mask, _, _ = self.get_placeholder_mask(input_ids, inputs_embeds=inputs_embeds, image_features=image_embeds)inputs_embeds = inputs_embeds.masked_scatter(image_mask, image_embeds)if pixel_values_videos is not None:# 视频占位符处理video_embeds, video_embeds_multiscale = self.get_video_features(pixel_values_videos, video_grid_thw)video_embeds = video_embeds.to(inputs_embeds.device, inputs_embeds.dtype)_, video_mask, _ = self.get_placeholder_mask(input_ids, inputs_embeds=inputs_embeds, video_features=video_embeds)inputs_embeds = inputs_embeds.masked_scatter(video_mask, video_embeds)# ……# model参数是Qwen3OmniMoeThinkerTextModel类，进入forward推理函数进入token推理生成outputs = self.model(attention_mask=attention_mask,position_ids=position_ids,past_key_values=past_key_values,inputs_embeds=inputs_embeds,use_cache=use_cache,output_router_logits=output_router_logits,cache_position=cache_position,deepstack_visual_embeds=visual_embeds_multiscale,visual_pos_masks=visual_pos_masks,**kwargs,)

根据Qwen3OmniMoeThinkerTextModel继承nn.Module执行forward 函数按层推理

def forward(self,input_ids: Optional[torch.LongTensor] = None,attention_mask: Optional[torch.Tensor] = None,position_ids: Optional[torch.LongTensor] = None,past_key_values: Optional[Cache] = None,inputs_embeds: Optional[torch.FloatTensor] = None,……visual_pos_masks: Optional[torch.Tensor] = None,**kwargs: Unpack[FlashAttentionKwargs],) -> Union[tuple, BaseModelOutputWithPast]:# ……hidden_states = inputs_embeds# 做旋转位置编码position_embeddings = self.rotary_emb(hidden_states, position_ids)# self.layers对应一序列text解码层nn.ModuleList(# [Qwen3OmniMoeThinkerTextDecoderLayer(config, layer_idx) for layer_idx in range(config.num_hidden_layers)]#)for layer_idx, decoder_layer in enumerate(self.layers):layer_outputs = decoder_layer(hidden_states,attention_mask=attention_mask,position_ids=text_position_ids,past_key_values=past_key_values,cache_position=cache_position,position_embeddings=position_embeddings,**kwargs,)hidden_states = layer_outputs ……hidden_states = self.norm(hidden_states)return BaseModelOutputWithPast(last_hidden_state=hidden_states,past_key_values=past_key_values,)

对上述代码Qwen3OmniMoeThinkerTextDecoderLayer代码结构查看，层的包含注意力层、全连接层、归一化层：

class Qwen3OmniMoeThinkerTextDecoderLayer(GradientCheckpointingLayer):def __init__(self, config, layer_idx):super().__init__()self.hidden_size = config.hidden_sizeself.self_attn = Qwen3OmniMoeThinkerTextAttention(config, layer_idx)if (layer_idx not in config.mlp_only_layers) and (config.num_experts > 0 and (layer_idx + 1) % config.decoder_sparse_step == 0):self.mlp = Qwen3OmniMoeThinkerTextSparseMoeBlock(config)else:self.mlp = Qwen3OmniMoeThinkerTextMLP(config, intermediate_size=config.intermediate_size)self.input_layernorm = Qwen3OmniMoeThinkerTextRMSNorm(config.hidden_size, eps=config.rms_norm_eps)self.post_attention_layernorm = Qwen3OmniMoeThinkerTextRMSNorm(config.hidden_size, eps=config.rms_norm_eps)
