FT2000/4核Linux下GPIO中断调试说明
1、背景介绍

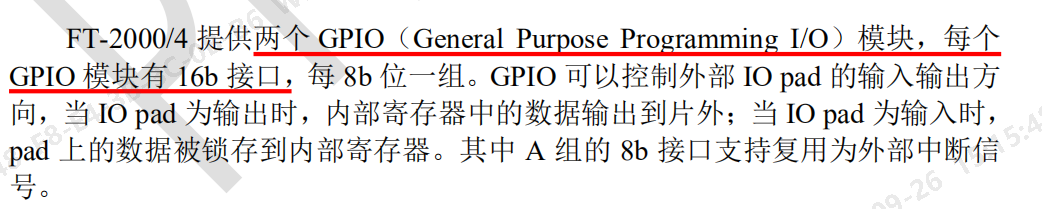

FT2000/4核GPIO接口可以配置为中断方式，在软件编程手册中说明如下：
其中只有A组的8个gpio可以复用为外部中断信号，下面介绍在linux下如何实现GPIO中断响应
2、Pin脚复用配置

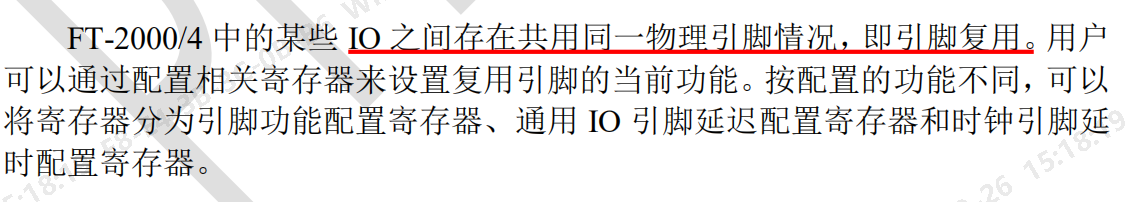

先需要将pin脚的PAD复用类型为GPIO，这里需要参考手册中芯片引脚控制部分

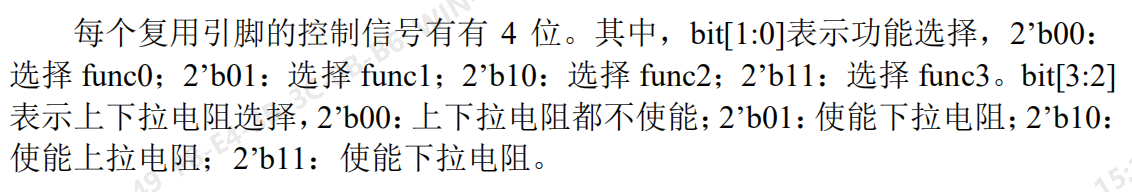

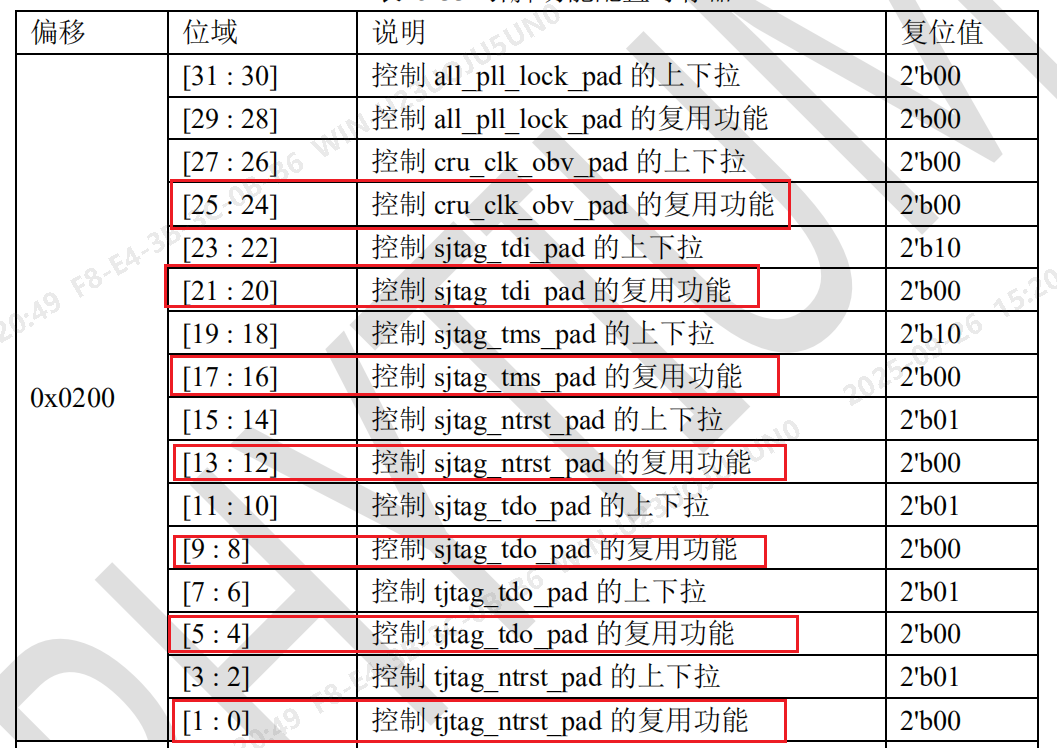

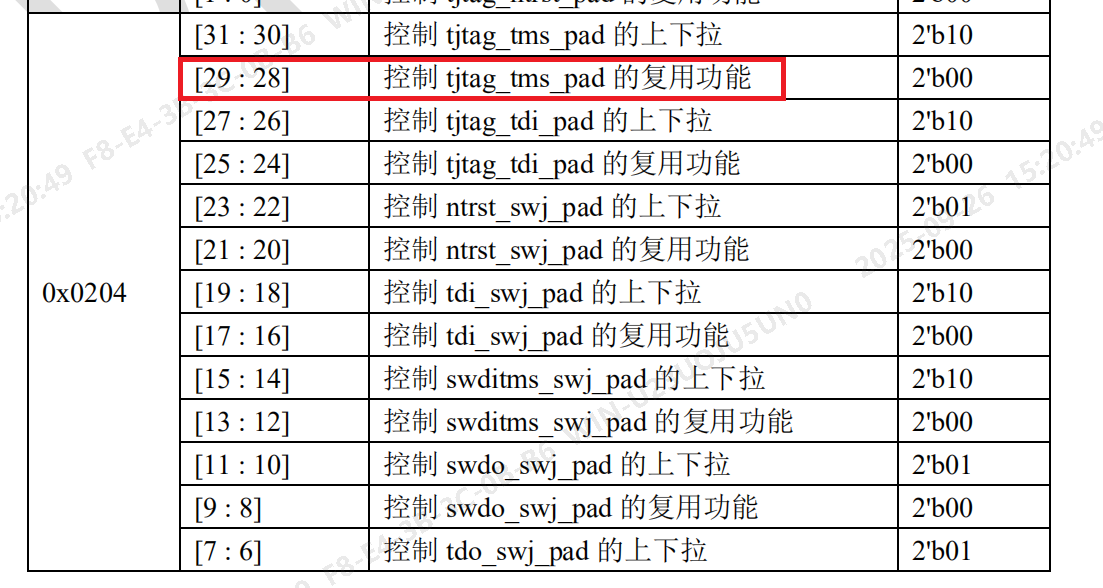

寄存器基地址为0x28180000,配置寄存器列表如下，注意图中红色圈出来的部分，那就是复用的引脚

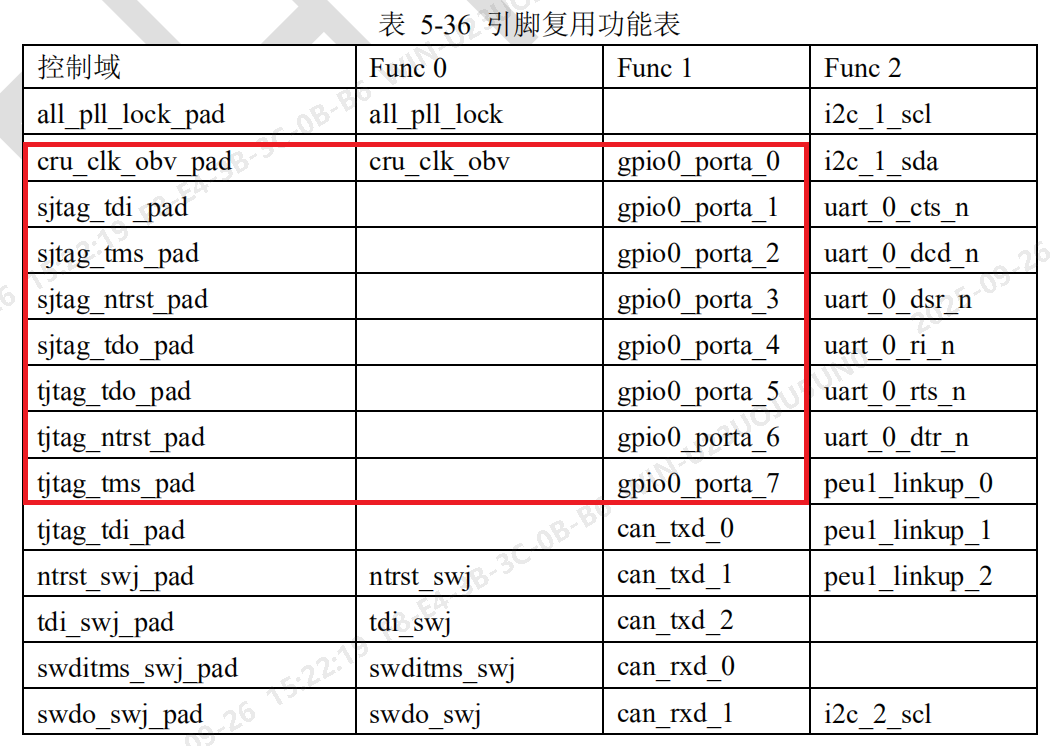

可以复用为GPIO的PIN脚如下
上图中红色圈出来的部分需要与寄存器部分相对应，对应上面偏移0x200,0x204的寄存器中红框圈出的部分。在后面应用代码部分将实现配置。
3、GPIO复用中断信号配置

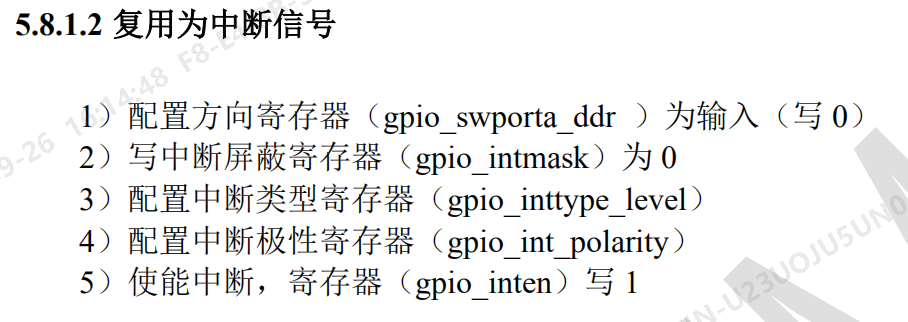

手册中写了复用中断信号的配置过程
在PIN脚复用配置后就可以配置GPIO为复用信号，注意这里只能配置GPIO A组的8位。

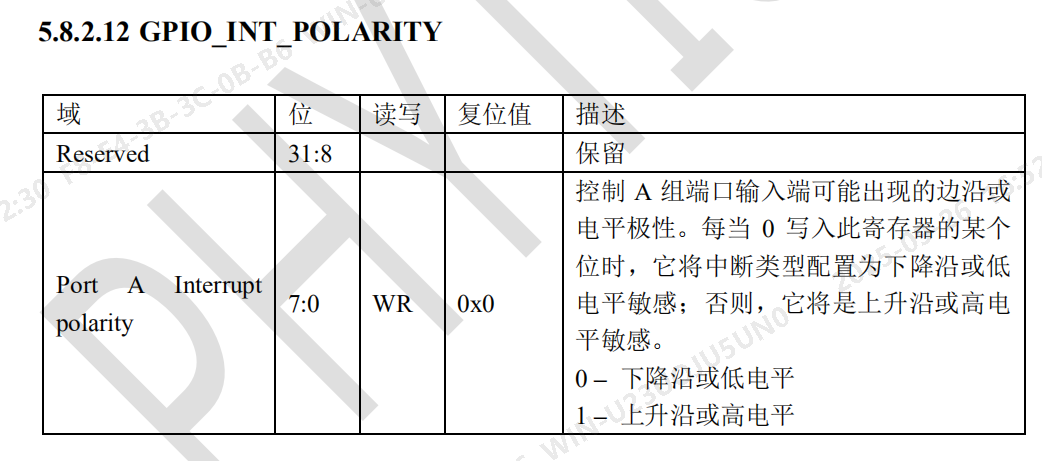

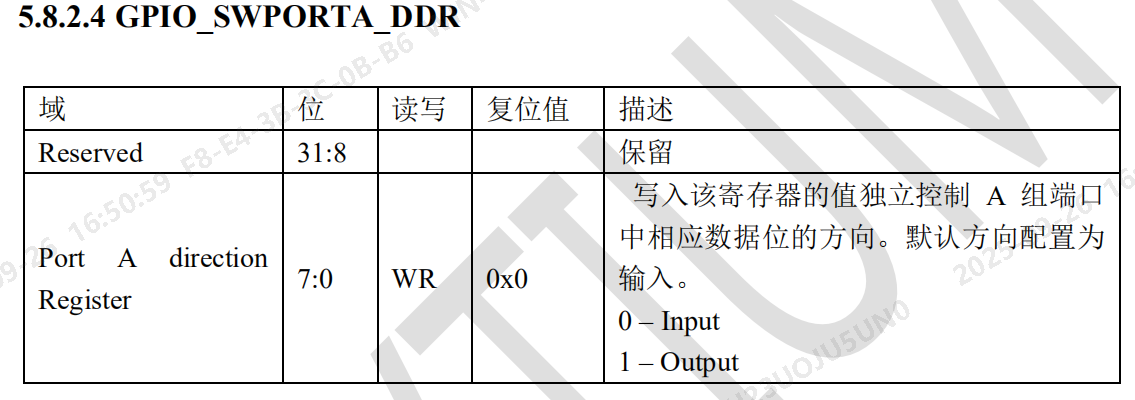

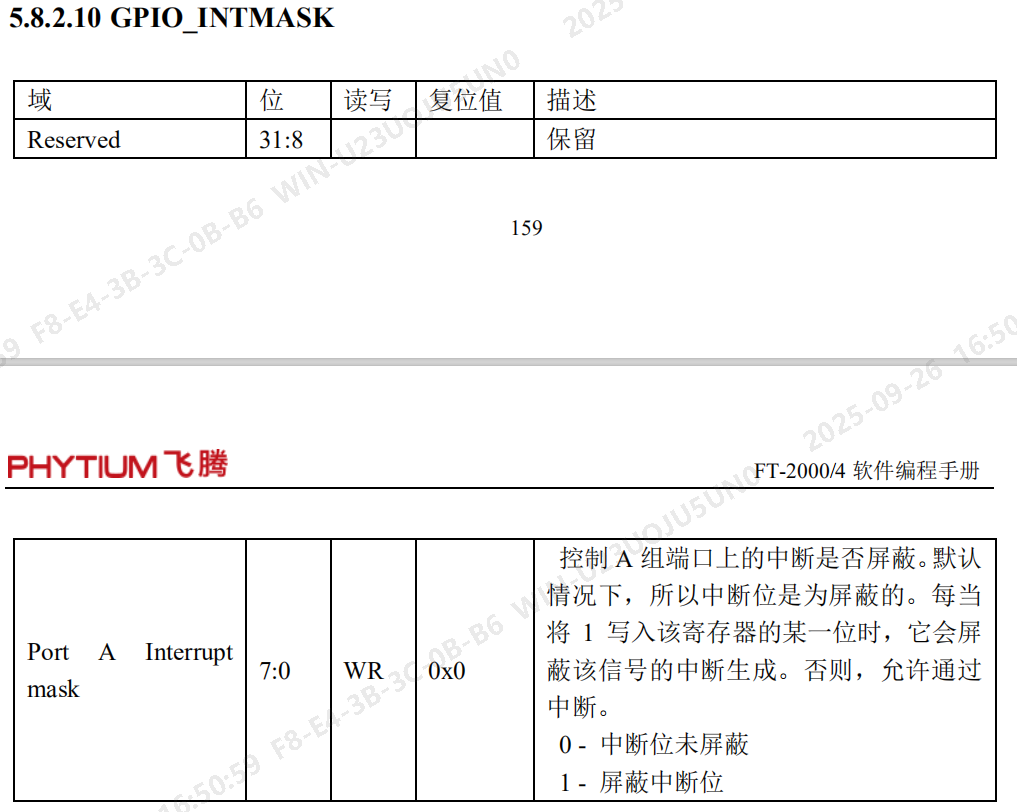

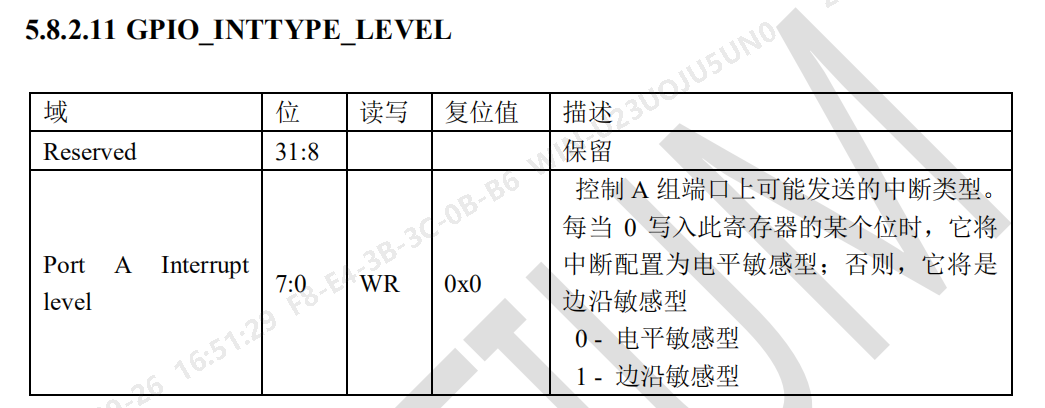

各寄存器信息如下：
在后面应用代码部分将实现配置。
4、驱动代码

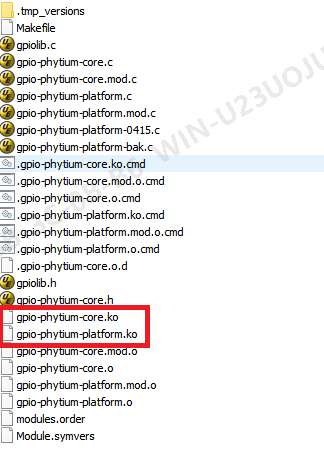

驱动需要加载两个驱动，先加载gpio-phytium-core.ko,然后加载gpio-phytium-platform.ko。
两个驱动的区别deepseek解释如下：
我们可以用一个比喻来理解：
gpio-phytium-platform.ko 就像是一个公司的总务部。它了解公司的整体架构，知道公司有多少个部门（GPIO 控制器），每个部门在哪里办公（内存地址），部门的基本运作规则（寄存器操作）。它的工作是管理整个公司的部门列表。
gpio-phytium-core.ko 就像是一个标准化的部门工作手册。它不关心公司具体是A公司还是B公司，它只定义了一个部门（GPIO控制器）应该如何标准地处理业务（如设置输入/输出方向、读取引脚电平、写入引脚电平）。任何公司的部门只要按照这个手册来工作，就能提供统一的服务接口。
下面进行详细的技术解释。
1. gpio-phytium-platform.ko (平台驱动)
这个驱动是具体于 Phytium 某个或多个 SoC 平台的。
职责：
资源探测：在系统启动时，通过设备树（Device Tree）识别到硬件上存在的 GPIO 控制器。比如，识别到 SoC 内部有两个 GPIO 控制器，分别叫
gpio0和gpio1。资源分配：获取这些 GPIO 控制器所在的内存地址空间（寄存器基地址）、中断号等硬件资源。
平台初始化：对 GPIO 控制器进行一些必要的、平台相关的初始化配置。
注册控制器：最关键的一步，它为一个具体的 GPIO 控制器准备好一个
struct gpio_chip结构体，这个结构体里包含了操作这个控制器所需的所有信息（如寄存器映射地址）和函数指针。然后，它调用gpiochip_add()之类的函数，将这个控制器“注册”到内核的 GPIO 子系统中。特点：
与硬件强相关：代码里会包含很多 Phytium SoC 数据手册里定义的寄存器偏移量、位定义等。
一个驱动对应多个实例：一个
gpio-phytium-platform.ko驱动可以负责管理飞腾某款 SoC 上的所有 GPIO 控制器（例如 gpio0, gpio1, ...）。可以理解为，这个驱动是内核 GPIO 子系统与 Phytium 具体硬件之间的“桥梁”。
2. gpio-phytium-core.ko (核心库/框架)
这个驱动更像一个库 或框架，它实现了 GPIO 控制的通用逻辑。
职责：
提供通用函数：它实现了所有 GPIO 控制器都需要的、标准化的操作函数。例如：
direction_input： 将 GPIO 引脚设置为输入模式。
direction_output： 将 GPIO 引脚设置为输出模式并设置初始电平。
get： 读取输入引脚的电平值。
set： 设置输出引脚的电平值。与 GPIO 子系统接口：这些通用函数是
struct gpio_chip中函数指针的具体实现。当上层应用（比如通过 sysfs 或 libgpiod）想要操作一个 GPIO 时，内核的 GPIO 子系统最终会调用到这些核心函数。抽象硬件差异：它通过接收来自平台驱动（
gpio-phytium-platform.ko）的struct gpio_chip参数，来知道具体要操作哪个控制器的哪个寄存器，从而屏蔽了不同 GPIO 控制器之间的细微差异。特点：
与硬件弱相关：它不直接关心寄存器地址，它只处理“设置第 N 个引脚为输出”这样的逻辑，具体的寄存器读写操作是通过平台驱动传进来的参数完成的。
可重用性：同一个
gpio-phytium-core.ko可以被不同 Phytium 平台驱动（甚至不同系列的 Phytium SoC）所共用，只要它们 GPIO 控制器的基本操作模式相似。可以理解为，这个驱动是 Phytium GPIO 控制器的“标准操作流程”。
协作流程总结
当系统启动时：
gpio-phytium-platform.ko被加载：它从设备树中获取硬件信息，为每个 GPIO 控制器分配并初始化一个struct gpio_chip结构体。这个结构体中的关键函数指针（如.set,.get等）都指向gpio-phytium-core.ko中实现的通用函数。注册控制器：平台驱动调用
gpiochip_add()，将这个gpio_chip注册到内核。上层应用请求：当用户空间程序要操作 GPIO（例如
echo 1 > /sys/class/gpio/gpio100/value）时，内核 GPIO 子系统会找到对应的gpio_chip。调用核心函数：GPIO 子系统调用
gpio_chip->set()函数，这个函数指针实际上指向的是gpio-phytium-core.ko里的phytium_gpio_set()函数。核心函数操作硬件：
phytium_gpio_set()函数根据传入的引脚号，计算出需要操作的具体寄存器，然后结合平台驱动提供的寄存器基地址，最终完成对硬件的写入操作。结论
特性 gpio-phytium-platform.ko gpio-phytium-core.ko 角色 平台特定驱动 通用核心库 职责 探测硬件、分配资源、注册控制器 实现标准的GPIO操作函数（set/get/direction等） 硬件相关性 高，直接对应Phytium SoC 低，提供通用逻辑，通过参数适应不同控制器 依赖关系 依赖 gpio-phytium-core.ko提供的函数被 gpio-phytium-platform.ko调用类比 总务部（管理具体部门） 部门工作手册（定义标准流程） 因此，在飞腾的系统中，这两个模块通常是同时存在、协同工作的。
gpio-phytium-platform.ko负责“找到并描述硬件”，而gpio-phytium-core.ko负责“提供操作硬件的方法”。这种设计符合Linux内核的驱动模型，实现了代码复用和硬件无关性。
代码如下：
gpiolib.h
/** Internal GPIO functions.** Copyright (C) 2013, Intel Corporation* Author: Mika Westerberg <mika.westerberg@linux.intel.com>** This program is free software; you can redistribute it and/or modify* it under the terms of the GNU General Public License version 2 as* published by the Free Software Foundation.*/#ifndef GPIOLIB_H
#define GPIOLIB_H#include <linux/gpio/driver.h>
#include <linux/gpio/consumer.h> /* for enum gpiod_flags */
#include <linux/err.h>
#include <linux/device.h>
#include <linux/module.h>
#include <linux/cdev.h>enum of_gpio_flags;
enum gpio_lookup_flags;
struct acpi_device;/*** struct gpio_device - internal state container for GPIO devices* @id: numerical ID number for the GPIO chip* @dev: the GPIO device struct* @chrdev: character device for the GPIO device* @mockdev: class device used by the deprecated sysfs interface (may be* NULL)* @owner: helps prevent removal of modules exporting active GPIOs* @chip: pointer to the corresponding gpiochip, holding static* data for this device* @descs: array of ngpio descriptors.* @ngpio: the number of GPIO lines on this GPIO device, equal to the size* of the @descs array.* @base: GPIO base in the DEPRECATED global Linux GPIO numberspace, assigned* at device creation time.* @label: a descriptive name for the GPIO device, such as the part number* or name of the IP component in a System on Chip.* @data: per-instance data assigned by the driver* @list: links gpio_device:s together for traversal** This state container holds most of the runtime variable data* for a GPIO device and can hold references and live on after the* GPIO chip has been removed, if it is still being used from* userspace.*/
struct gpio_device {int id;struct device dev;struct cdev chrdev;struct device *mockdev;struct module *owner;struct gpio_chip *chip;struct gpio_desc *descs;int base;u16 ngpio;const char *label;void *data;struct list_head list;#ifdef CONFIG_PINCTRL/** If CONFIG_PINCTRL is enabled, then gpio controllers can optionally* describe the actual pin range which they serve in an SoC. This* information would be used by pinctrl subsystem to configure* corresponding pins for gpio usage.*/struct list_head pin_ranges;
#endif
};/*** struct acpi_gpio_info - ACPI GPIO specific information* @adev: reference to ACPI device which consumes GPIO resource* @flags: GPIO initialization flags* @gpioint: if %true this GPIO is of type GpioInt otherwise type is GpioIo* @polarity: interrupt polarity as provided by ACPI* @triggering: triggering type as provided by ACPI* @quirks: Linux specific quirks as provided by struct acpi_gpio_mapping*/
struct acpi_gpio_info {struct acpi_device *adev;enum gpiod_flags flags;bool gpioint;int polarity;int triggering;unsigned int quirks;
};/* gpio suffixes used for ACPI and device tree lookup */
static __maybe_unused const char * const gpio_suffixes[] = { "gpios", "gpio" };#ifdef CONFIG_OF_GPIO
struct gpio_desc *of_find_gpio(struct device *dev,const char *con_id,unsigned int idx,enum gpio_lookup_flags *flags);
struct gpio_desc *of_get_named_gpiod_flags(struct device_node *np,const char *list_name, int index, enum of_gpio_flags *flags);
int of_gpiochip_add(struct gpio_chip *gc);
void of_gpiochip_remove(struct gpio_chip *gc);
#else
static inline struct gpio_desc *of_find_gpio(struct device *dev,const char *con_id,unsigned int idx,enum gpio_lookup_flags *flags)
{return ERR_PTR(-ENOENT);
}
static inline struct gpio_desc *of_get_named_gpiod_flags(struct device_node *np,const char *list_name, int index, enum of_gpio_flags *flags)
{return ERR_PTR(-ENOENT);
}
static inline int of_gpiochip_add(struct gpio_chip *gc) { return 0; }
static inline void of_gpiochip_remove(struct gpio_chip *gc) { }
#endif /* CONFIG_OF_GPIO */#ifdef CONFIG_ACPI
void acpi_gpiochip_add(struct gpio_chip *chip);
void acpi_gpiochip_remove(struct gpio_chip *chip);void acpi_gpiochip_request_interrupts(struct gpio_chip *chip);
void acpi_gpiochip_free_interrupts(struct gpio_chip *chip);int acpi_gpio_update_gpiod_flags(enum gpiod_flags *flags,struct acpi_gpio_info *info);struct gpio_desc *acpi_find_gpio(struct device *dev,const char *con_id,unsigned int idx,enum gpiod_flags *dflags,enum gpio_lookup_flags *lookupflags);
struct gpio_desc *acpi_node_get_gpiod(struct fwnode_handle *fwnode,const char *propname, int index,struct acpi_gpio_info *info);int acpi_gpio_count(struct device *dev, const char *con_id);bool acpi_can_fallback_to_crs(struct acpi_device *adev, const char *con_id);
#else
static inline void acpi_gpiochip_add(struct gpio_chip *chip) { }
static inline void acpi_gpiochip_remove(struct gpio_chip *chip) { }static inline void
acpi_gpiochip_request_interrupts(struct gpio_chip *chip) { }static inline void
acpi_gpiochip_free_interrupts(struct gpio_chip *chip) { }static inline int
acpi_gpio_update_gpiod_flags(enum gpiod_flags *flags, struct acpi_gpio_info *info)
{return 0;
}static inline struct gpio_desc *
acpi_find_gpio(struct device *dev, const char *con_id,unsigned int idx, enum gpiod_flags *dflags,enum gpio_lookup_flags *lookupflags)
{return ERR_PTR(-ENOENT);
}
static inline struct gpio_desc *
acpi_node_get_gpiod(struct fwnode_handle *fwnode, const char *propname,int index, struct acpi_gpio_info *info)
{return ERR_PTR(-ENXIO);
}
static inline int acpi_gpio_count(struct device *dev, const char *con_id)
{return -ENODEV;
}static inline bool acpi_can_fallback_to_crs(struct acpi_device *adev,const char *con_id)
{return false;
}
#endifstruct gpio_desc *gpiochip_get_desc(struct gpio_chip *chip, u16 hwnum);
int gpiod_get_array_value_complex(bool raw, bool can_sleep,unsigned int array_size,struct gpio_desc **desc_array,int *value_array);
int gpiod_set_array_value_complex(bool raw, bool can_sleep,unsigned int array_size,struct gpio_desc **desc_array,int *value_array);/* This is just passed between gpiolib and devres */
struct gpio_desc *gpiod_get_from_of_node(struct device_node *node,const char *propname, int index,enum gpiod_flags dflags,const char *label);extern struct spinlock gpio_lock;
extern struct list_head gpio_devices;struct gpio_desc {struct gpio_device *gdev;unsigned long flags;
/* flag symbols are bit numbers */
#define FLAG_REQUESTED 0
#define FLAG_IS_OUT 1
#define FLAG_EXPORT 2 /* protected by sysfs_lock */
#define FLAG_SYSFS 3 /* exported via /sys/class/gpio/control */
#define FLAG_ACTIVE_LOW 6 /* value has active low */
#define FLAG_OPEN_DRAIN 7 /* Gpio is open drain type */
#define FLAG_OPEN_SOURCE 8 /* Gpio is open source type */
#define FLAG_USED_AS_IRQ 9 /* GPIO is connected to an IRQ */
#define FLAG_IS_HOGGED 11 /* GPIO is hogged */
#define FLAG_TRANSITORY 12 /* GPIO may lose value in sleep or reset *//* Connection label */const char *label;/* Name of the GPIO */const char *name;
};int gpiod_request(struct gpio_desc *desc, const char *label);
void gpiod_free(struct gpio_desc *desc);
int gpiod_configure_flags(struct gpio_desc *desc, const char *con_id,unsigned long lflags, enum gpiod_flags dflags);
int gpiod_hog(struct gpio_desc *desc, const char *name,unsigned long lflags, enum gpiod_flags dflags);/** Return the GPIO number of the passed descriptor relative to its chip*/
static inline int gpio_chip_hwgpio(const struct gpio_desc *desc)
{return desc - &desc->gdev->descs[0];
}void devprop_gpiochip_set_names(struct gpio_chip *chip,const struct fwnode_handle *fwnode);/* With descriptor prefix */#define gpiod_emerg(desc, fmt, ...) \pr_emerg("gpio-%d (%s): " fmt, desc_to_gpio(desc), desc->label ? : "?",\##__VA_ARGS__)
#define gpiod_crit(desc, fmt, ...) \pr_crit("gpio-%d (%s): " fmt, desc_to_gpio(desc), desc->label ? : "?", \##__VA_ARGS__)
#define gpiod_err(desc, fmt, ...) \pr_err("gpio-%d (%s): " fmt, desc_to_gpio(desc), desc->label ? : "?", \##__VA_ARGS__)
#define gpiod_warn(desc, fmt, ...) \pr_warn("gpio-%d (%s): " fmt, desc_to_gpio(desc), desc->label ? : "?", \##__VA_ARGS__)
#define gpiod_info(desc, fmt, ...) \pr_info("gpio-%d (%s): " fmt, desc_to_gpio(desc), desc->label ? : "?", \##__VA_ARGS__)
#define gpiod_dbg(desc, fmt, ...) \pr_debug("gpio-%d (%s): " fmt, desc_to_gpio(desc), desc->label ? : "?",\##__VA_ARGS__)/* With chip prefix */#define chip_emerg(chip, fmt, ...) \dev_emerg(&chip->gpiodev->dev, "(%s): " fmt, chip->label, ##__VA_ARGS__)
#define chip_crit(chip, fmt, ...) \dev_crit(&chip->gpiodev->dev, "(%s): " fmt, chip->label, ##__VA_ARGS__)
#define chip_err(chip, fmt, ...) \dev_err(&chip->gpiodev->dev, "(%s): " fmt, chip->label, ##__VA_ARGS__)
#define chip_warn(chip, fmt, ...) \dev_warn(&chip->gpiodev->dev, "(%s): " fmt, chip->label, ##__VA_ARGS__)
#define chip_info(chip, fmt, ...) \dev_info(&chip->gpiodev->dev, "(%s): " fmt, chip->label, ##__VA_ARGS__)
#define chip_dbg(chip, fmt, ...) \dev_dbg(&chip->gpiodev->dev, "(%s): " fmt, chip->label, ##__VA_ARGS__)#ifdef CONFIG_GPIO_SYSFSint gpiochip_sysfs_register(struct gpio_device *gdev);
void gpiochip_sysfs_unregister(struct gpio_device *gdev);#elsestatic inline int gpiochip_sysfs_register(struct gpio_device *gdev)
{return 0;
}static inline void gpiochip_sysfs_unregister(struct gpio_device *gdev)
{
}#endif /* CONFIG_GPIO_SYSFS */#endif /* GPIOLIB_H */
gpiolib.c
#include <linux/bitmap.h>
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/interrupt.h>
#include <linux/irq.h>
#include <linux/spinlock.h>
#include <linux/list.h>
#include <linux/device.h>
#include <linux/err.h>
#include <linux/debugfs.h>
#include <linux/seq_file.h>
#include <linux/gpio.h>
#include <linux/of_gpio.h>
#include <linux/idr.h>
#include <linux/slab.h>
#include <linux/acpi.h>
#include <linux/gpio/driver.h>
#include <linux/gpio/machine.h>
#include <linux/pinctrl/consumer.h>
#include <linux/cdev.h>
#include <linux/fs.h>
#include <linux/uaccess.h>
#include <linux/compat.h>
#include <linux/anon_inodes.h>
#include <linux/file.h>
#include <linux/kfifo.h>
#include <linux/poll.h>
#include <linux/timekeeping.h>
#include <uapi/linux/gpio.h>#include "gpiolib.h"#define CREATE_TRACE_POINTS
#include <trace/events/gpio.h>/* Implementation infrastructure for GPIO interfaces.** The GPIO programming interface allows for inlining speed-critical* get/set operations for common cases, so that access to SOC-integrated* GPIOs can sometimes cost only an instruction or two per bit.*//* When debugging, extend minimal trust to callers and platform code.* Also emit diagnostic messages that may help initial bringup, when* board setup or driver bugs are most common.** Otherwise, minimize overhead in what may be bitbanging codepaths.*/
#ifdef DEBUG
#define extra_checks 1
#else
#define extra_checks 0
#endif/* Device and char device-related information */
static DEFINE_IDA(gpio_ida);
static dev_t gpio_devt;
#define GPIO_DEV_MAX 256 /* 256 GPIO chip devices supported */
static struct bus_type gpio_bus_type = {.name = "gpio",
};/** Number of GPIOs to use for the fast path in set array*/
#define FASTPATH_NGPIO CONFIG_GPIOLIB_FASTPATH_LIMIT/* gpio_lock prevents conflicts during gpio_desc[] table updates.* While any GPIO is requested, its gpio_chip is not removable;* each GPIO's "requested" flag serves as a lock and refcount.*/
DEFINE_SPINLOCK(gpio_lock);static DEFINE_MUTEX(gpio_lookup_lock);
static LIST_HEAD(gpio_lookup_list);
LIST_HEAD(gpio_devices);static DEFINE_MUTEX(gpio_machine_hogs_mutex);
static LIST_HEAD(gpio_machine_hogs);static void gpiochip_free_hogs(struct gpio_chip *chip);
static int gpiochip_add_irqchip(struct gpio_chip *gpiochip,struct lock_class_key *lock_key,struct lock_class_key *request_key);
static void gpiochip_irqchip_remove(struct gpio_chip *gpiochip);
static int gpiochip_irqchip_init_valid_mask(struct gpio_chip *gpiochip);
static void gpiochip_irqchip_free_valid_mask(struct gpio_chip *gpiochip);static bool gpiolib_initialized;static inline void desc_set_label(struct gpio_desc *d, const char *label)
{d->label = label;
}/*** gpio_to_desc - Convert a GPIO number to its descriptor* @gpio: global GPIO number** Returns:* The GPIO descriptor associated with the given GPIO, or %NULL if no GPIO* with the given number exists in the system.*/
struct gpio_desc *gpio_to_desc(unsigned gpio)
{struct gpio_device *gdev;unsigned long flags;spin_lock_irqsave(&gpio_lock, flags);list_for_each_entry(gdev, &gpio_devices, list) {if (gdev->base <= gpio &&gdev->base + gdev->ngpio > gpio) {spin_unlock_irqrestore(&gpio_lock, flags);return &gdev->descs[gpio - gdev->base];}}spin_unlock_irqrestore(&gpio_lock, flags);if (!gpio_is_valid(gpio))WARN(1, "invalid GPIO %d\n", gpio);return NULL;
}
EXPORT_SYMBOL_GPL(gpio_to_desc);/*** gpiochip_get_desc - get the GPIO descriptor corresponding to the given* hardware number for this chip* @chip: GPIO chip* @hwnum: hardware number of the GPIO for this chip** Returns:* A pointer to the GPIO descriptor or %ERR_PTR(-EINVAL) if no GPIO exists* in the given chip for the specified hardware number.*/
struct gpio_desc *gpiochip_get_desc(struct gpio_chip *chip,u16 hwnum)
{struct gpio_device *gdev = chip->gpiodev;if (hwnum >= gdev->ngpio)return ERR_PTR(-EINVAL);return &gdev->descs[hwnum];
}/*** desc_to_gpio - convert a GPIO descriptor to the integer namespace* @desc: GPIO descriptor** This should disappear in the future but is needed since we still* use GPIO numbers for error messages and sysfs nodes.** Returns:* The global GPIO number for the GPIO specified by its descriptor.*/
int desc_to_gpio(const struct gpio_desc *desc)
{return desc->gdev->base + (desc - &desc->gdev->descs[0]);
}
EXPORT_SYMBOL_GPL(desc_to_gpio);/*** gpiod_to_chip - Return the GPIO chip to which a GPIO descriptor belongs* @desc: descriptor to return the chip of*/
struct gpio_chip *gpiod_to_chip(const struct gpio_desc *desc)
{if (!desc || !desc->gdev)return NULL;return desc->gdev->chip;
}
EXPORT_SYMBOL_GPL(gpiod_to_chip);/* dynamic allocation of GPIOs, e.g. on a hotplugged device */
static int gpiochip_find_base(int ngpio)
{struct gpio_device *gdev;int base = ARCH_NR_GPIOS - ngpio;list_for_each_entry_reverse(gdev, &gpio_devices, list) {/* found a free space? */if (gdev->base + gdev->ngpio <= base)break;else/* nope, check the space right before the chip */base = gdev->base - ngpio;}if (gpio_is_valid(base)) {pr_debug("%s: found new base at %d\n", __func__, base);return base;} else {pr_err("%s: cannot find free range\n", __func__);return -ENOSPC;}
}/*** gpiod_get_direction - return the current direction of a GPIO* @desc: GPIO to get the direction of** Returns 0 for output, 1 for input, or an error code in case of error.** This function may sleep if gpiod_cansleep() is true.*/
int gpiod_get_direction(struct gpio_desc *desc)
{struct gpio_chip *chip;unsigned offset;int status = -EINVAL;chip = gpiod_to_chip(desc);offset = gpio_chip_hwgpio(desc);/** Open drain emulation using input mode may incorrectly report* input here, fix that up.*/if (test_bit(FLAG_OPEN_DRAIN, &desc->flags) &&test_bit(FLAG_IS_OUT, &desc->flags))return 0;if (!chip->get_direction)return status;status = chip->get_direction(chip, offset);if (status > 0) {/* GPIOF_DIR_IN, or other positive */status = 1;clear_bit(FLAG_IS_OUT, &desc->flags);}if (status == 0) {/* GPIOF_DIR_OUT */set_bit(FLAG_IS_OUT, &desc->flags);}return status;
}
EXPORT_SYMBOL_GPL(gpiod_get_direction);/** Add a new chip to the global chips list, keeping the list of chips sorted* by range(means [base, base + ngpio - 1]) order.** Return -EBUSY if the new chip overlaps with some other chip's integer* space.*/
static int gpiodev_add_to_list(struct gpio_device *gdev)
{struct gpio_device *prev, *next;if (list_empty(&gpio_devices)) {/* initial entry in list */list_add_tail(&gdev->list, &gpio_devices);return 0;}next = list_entry(gpio_devices.next, struct gpio_device, list);if (gdev->base + gdev->ngpio <= next->base) {/* add before first entry */list_add(&gdev->list, &gpio_devices);return 0;}prev = list_entry(gpio_devices.prev, struct gpio_device, list);if (prev->base + prev->ngpio <= gdev->base) {/* add behind last entry */list_add_tail(&gdev->list, &gpio_devices);return 0;}list_for_each_entry_safe(prev, next, &gpio_devices, list) {/* at the end of the list */if (&next->list == &gpio_devices)break;/* add between prev and next */if (prev->base + prev->ngpio <= gdev->base&& gdev->base + gdev->ngpio <= next->base) {list_add(&gdev->list, &prev->list);return 0;}}dev_err(&gdev->dev, "GPIO integer space overlap, cannot add chip\n");return -EBUSY;
}/** Convert a GPIO name to its descriptor*/
static struct gpio_desc *gpio_name_to_desc(const char * const name)
{struct gpio_device *gdev;unsigned long flags;spin_lock_irqsave(&gpio_lock, flags);list_for_each_entry(gdev, &gpio_devices, list) {int i;for (i = 0; i != gdev->ngpio; ++i) {struct gpio_desc *desc = &gdev->descs[i];if (!desc->name || !name)continue;if (!strcmp(desc->name, name)) {spin_unlock_irqrestore(&gpio_lock, flags);return desc;}}}spin_unlock_irqrestore(&gpio_lock, flags);return NULL;
}/** Takes the names from gc->names and checks if they are all unique. If they* are, they are assigned to their gpio descriptors.** Warning if one of the names is already used for a different GPIO.*/
static int gpiochip_set_desc_names(struct gpio_chip *gc)
{struct gpio_device *gdev = gc->gpiodev;int i;if (!gc->names)return 0;/* First check all names if they are unique */for (i = 0; i != gc->ngpio; ++i) {struct gpio_desc *gpio;gpio = gpio_name_to_desc(gc->names[i]);if (gpio)dev_warn(&gdev->dev,"Detected name collision for GPIO name '%s'\n",gc->names[i]);}/* Then add all names to the GPIO descriptors */for (i = 0; i != gc->ngpio; ++i)gdev->descs[i].name = gc->names[i];return 0;
}static unsigned long *gpiochip_allocate_mask(struct gpio_chip *chip)
{unsigned long *p;p = kmalloc_array(BITS_TO_LONGS(chip->ngpio), sizeof(*p), GFP_KERNEL);if (!p)return NULL;/* Assume by default all GPIOs are valid */bitmap_fill(p, chip->ngpio);return p;
}static int gpiochip_alloc_valid_mask(struct gpio_chip *gpiochip)
{
#ifdef CONFIG_OF_GPIOint size;struct device_node *np = gpiochip->of_node;size = of_property_count_u32_elems(np, "gpio-reserved-ranges");if (size > 0 && size % 2 == 0)gpiochip->need_valid_mask = true;
#endifif (!gpiochip->need_valid_mask)return 0;gpiochip->valid_mask = gpiochip_allocate_mask(gpiochip);if (!gpiochip->valid_mask)return -ENOMEM;return 0;
}static int gpiochip_init_valid_mask(struct gpio_chip *gpiochip)
{if (gpiochip->init_valid_mask)return gpiochip->init_valid_mask(gpiochip);return 0;
}static void gpiochip_free_valid_mask(struct gpio_chip *gpiochip)
{kfree(gpiochip->valid_mask);gpiochip->valid_mask = NULL;
}bool gpiochip_line_is_valid(const struct gpio_chip *gpiochip,unsigned int offset)
{/* No mask means all valid */if (likely(!gpiochip->valid_mask))return true;return test_bit(offset, gpiochip->valid_mask);
}
EXPORT_SYMBOL_GPL(gpiochip_line_is_valid);/** GPIO line handle management*//*** struct linehandle_state - contains the state of a userspace handle* @gdev: the GPIO device the handle pertains to* @label: consumer label used to tag descriptors* @descs: the GPIO descriptors held by this handle* @numdescs: the number of descriptors held in the descs array*/
struct linehandle_state {struct gpio_device *gdev;const char *label;struct gpio_desc *descs[GPIOHANDLES_MAX];u32 numdescs;
};#define GPIOHANDLE_REQUEST_VALID_FLAGS \(GPIOHANDLE_REQUEST_INPUT | \GPIOHANDLE_REQUEST_OUTPUT | \GPIOHANDLE_REQUEST_ACTIVE_LOW | \GPIOHANDLE_REQUEST_OPEN_DRAIN | \GPIOHANDLE_REQUEST_OPEN_SOURCE)static long linehandle_ioctl(struct file *filep, unsigned int cmd,unsigned long arg)
{struct linehandle_state *lh = filep->private_data;void __user *ip = (void __user *)arg;struct gpiohandle_data ghd;int vals[GPIOHANDLES_MAX];int i;if (cmd == GPIOHANDLE_GET_LINE_VALUES_IOCTL) {/* NOTE: It's ok to read values of output lines. */int ret = gpiod_get_array_value_complex(false,true,lh->numdescs,lh->descs,vals);if (ret)return ret;memset(&ghd, 0, sizeof(ghd));for (i = 0; i < lh->numdescs; i++)ghd.values[i] = vals[i];if (copy_to_user(ip, &ghd, sizeof(ghd)))return -EFAULT;return 0;} else if (cmd == GPIOHANDLE_SET_LINE_VALUES_IOCTL) {/** All line descriptors were created at once with the same* flags so just check if the first one is really output.*/if (!test_bit(FLAG_IS_OUT, &lh->descs[0]->flags))return -EPERM;if (copy_from_user(&ghd, ip, sizeof(ghd)))return -EFAULT;/* Clamp all values to [0,1] */for (i = 0; i < lh->numdescs; i++)vals[i] = !!ghd.values[i];/* Reuse the array setting function */return gpiod_set_array_value_complex(false,true,lh->numdescs,lh->descs,vals);}return -EINVAL;
}#ifdef CONFIG_COMPAT
static long linehandle_ioctl_compat(struct file *filep, unsigned int cmd,unsigned long arg)
{return linehandle_ioctl(filep, cmd, (unsigned long)compat_ptr(arg));
}
#endifstatic int linehandle_release(struct inode *inode, struct file *filep)
{struct linehandle_state *lh = filep->private_data;struct gpio_device *gdev = lh->gdev;int i;for (i = 0; i < lh->numdescs; i++)gpiod_free(lh->descs[i]);kfree(lh->label);kfree(lh);put_device(&gdev->dev);return 0;
}static const struct file_operations linehandle_fileops = {.release = linehandle_release,.owner = THIS_MODULE,.llseek = noop_llseek,.unlocked_ioctl = linehandle_ioctl,
#ifdef CONFIG_COMPAT.compat_ioctl = linehandle_ioctl_compat,
#endif
};static int linehandle_create(struct gpio_device *gdev, void __user *ip)
{struct gpiohandle_request handlereq;struct linehandle_state *lh;struct file *file;int fd, i, count = 0, ret;u32 lflags;if (copy_from_user(&handlereq, ip, sizeof(handlereq)))return -EFAULT;if ((handlereq.lines == 0) || (handlereq.lines > GPIOHANDLES_MAX))return -EINVAL;lflags = handlereq.flags;/* Return an error if an unknown flag is set */if (lflags & ~GPIOHANDLE_REQUEST_VALID_FLAGS)return -EINVAL;/** Do not allow both INPUT & OUTPUT flags to be set as they are* contradictory.*/if ((lflags & GPIOHANDLE_REQUEST_INPUT) &&(lflags & GPIOHANDLE_REQUEST_OUTPUT))return -EINVAL;/** Do not allow OPEN_SOURCE & OPEN_DRAIN flags in a single request. If* the hardware actually supports enabling both at the same time the* electrical result would be disastrous.*/if ((lflags & GPIOHANDLE_REQUEST_OPEN_DRAIN) &&(lflags & GPIOHANDLE_REQUEST_OPEN_SOURCE))return -EINVAL;/* OPEN_DRAIN and OPEN_SOURCE flags only make sense for output mode. */if (!(lflags & GPIOHANDLE_REQUEST_OUTPUT) &&((lflags & GPIOHANDLE_REQUEST_OPEN_DRAIN) ||(lflags & GPIOHANDLE_REQUEST_OPEN_SOURCE)))return -EINVAL;lh = kzalloc(sizeof(*lh), GFP_KERNEL);if (!lh)return -ENOMEM;lh->gdev = gdev;get_device(&gdev->dev);/* Make sure this is terminated */handlereq.consumer_label[sizeof(handlereq.consumer_label)-1] = '\0';if (strlen(handlereq.consumer_label)) {lh->label = kstrdup(handlereq.consumer_label,GFP_KERNEL);if (!lh->label) {ret = -ENOMEM;goto out_free_lh;}}/* Request each GPIO */for (i = 0; i < handlereq.lines; i++) {u32 offset = handlereq.lineoffsets[i];struct gpio_desc *desc;if (offset >= gdev->ngpio) {ret = -EINVAL;goto out_free_descs;}desc = &gdev->descs[offset];ret = gpiod_request(desc, lh->label);if (ret)goto out_free_descs;lh->descs[i] = desc;count = i + 1;if (lflags & GPIOHANDLE_REQUEST_ACTIVE_LOW)set_bit(FLAG_ACTIVE_LOW, &desc->flags);if (lflags & GPIOHANDLE_REQUEST_OPEN_DRAIN)set_bit(FLAG_OPEN_DRAIN, &desc->flags);if (lflags & GPIOHANDLE_REQUEST_OPEN_SOURCE)set_bit(FLAG_OPEN_SOURCE, &desc->flags);ret = gpiod_set_transitory(desc, false);if (ret < 0)goto out_free_descs;/** Lines have to be requested explicitly for input* or output, else the line will be treated "as is".*/if (lflags & GPIOHANDLE_REQUEST_OUTPUT) {int val = !!handlereq.default_values[i];ret = gpiod_direction_output(desc, val);if (ret)goto out_free_descs;} else if (lflags & GPIOHANDLE_REQUEST_INPUT) {ret = gpiod_direction_input(desc);if (ret)goto out_free_descs;}dev_dbg(&gdev->dev, "registered chardev handle for line %d\n",offset);}/* Let i point at the last handle */i--;lh->numdescs = handlereq.lines;fd = get_unused_fd_flags(O_RDONLY | O_CLOEXEC);if (fd < 0) {ret = fd;goto out_free_descs;}file = anon_inode_getfile("gpio-linehandle",&linehandle_fileops,lh,O_RDONLY | O_CLOEXEC);if (IS_ERR(file)) {ret = PTR_ERR(file);goto out_put_unused_fd;}handlereq.fd = fd;if (copy_to_user(ip, &handlereq, sizeof(handlereq))) {/** fput() will trigger the release() callback, so do not go onto* the regular error cleanup path here.*/fput(file);put_unused_fd(fd);return -EFAULT;}fd_install(fd, file);dev_dbg(&gdev->dev, "registered chardev handle for %d lines\n",lh->numdescs);return 0;out_put_unused_fd:put_unused_fd(fd);
out_free_descs:for (i = 0; i < count; i++)gpiod_free(lh->descs[i]);kfree(lh->label);
out_free_lh:kfree(lh);put_device(&gdev->dev);return ret;
}/** GPIO line event management*//*** struct lineevent_state - contains the state of a userspace event* @gdev: the GPIO device the event pertains to* @label: consumer label used to tag descriptors* @desc: the GPIO descriptor held by this event* @eflags: the event flags this line was requested with* @irq: the interrupt that trigger in response to events on this GPIO* @wait: wait queue that handles blocking reads of events* @events: KFIFO for the GPIO events* @read_lock: mutex lock to protect reads from colliding with adding* new events to the FIFO* @timestamp: cache for the timestamp storing it between hardirq* and IRQ thread, used to bring the timestamp close to the actual* event*/
struct lineevent_state {struct gpio_device *gdev;const char *label;struct gpio_desc *desc;u32 eflags;int irq;wait_queue_head_t wait;DECLARE_KFIFO(events, struct gpioevent_data, 16);struct mutex read_lock;u64 timestamp;
};#define GPIOEVENT_REQUEST_VALID_FLAGS \(GPIOEVENT_REQUEST_RISING_EDGE | \GPIOEVENT_REQUEST_FALLING_EDGE)static __poll_t lineevent_poll(struct file *filep,struct poll_table_struct *wait)
{struct lineevent_state *le = filep->private_data;__poll_t events = 0;poll_wait(filep, &le->wait, wait);if (!kfifo_is_empty(&le->events))events = EPOLLIN | EPOLLRDNORM;return events;
}static ssize_t lineevent_read(struct file *filep,char __user *buf,size_t count,loff_t *f_ps)
{struct lineevent_state *le = filep->private_data;unsigned int copied;int ret;if (count < sizeof(struct gpioevent_data))return -EINVAL;do {if (kfifo_is_empty(&le->events)) {if (filep->f_flags & O_NONBLOCK)return -EAGAIN;ret = wait_event_interruptible(le->wait,!kfifo_is_empty(&le->events));if (ret)return ret;}if (mutex_lock_interruptible(&le->read_lock))return -ERESTARTSYS;ret = kfifo_to_user(&le->events, buf, count, &copied);mutex_unlock(&le->read_lock);if (ret)return ret;/** If we couldn't read anything from the fifo (a different* thread might have been faster) we either return -EAGAIN if* the file descriptor is non-blocking, otherwise we go back to* sleep and wait for more data to arrive.*/if (copied == 0 && (filep->f_flags & O_NONBLOCK))return -EAGAIN;} while (copied == 0);return copied;
}static int lineevent_release(struct inode *inode, struct file *filep)
{struct lineevent_state *le = filep->private_data;struct gpio_device *gdev = le->gdev;free_irq(le->irq, le);gpiod_free(le->desc);kfree(le->label);kfree(le);put_device(&gdev->dev);return 0;
}static long lineevent_ioctl(struct file *filep, unsigned int cmd,unsigned long arg)
{struct lineevent_state *le = filep->private_data;void __user *ip = (void __user *)arg;struct gpiohandle_data ghd;/** We can get the value for an event line but not set it,* because it is input by definition.*/if (cmd == GPIOHANDLE_GET_LINE_VALUES_IOCTL) {int val;memset(&ghd, 0, sizeof(ghd));val = gpiod_get_value_cansleep(le->desc);if (val < 0)return val;ghd.values[0] = val;if (copy_to_user(ip, &ghd, sizeof(ghd)))return -EFAULT;return 0;}return -EINVAL;
}#ifdef CONFIG_COMPAT
static long lineevent_ioctl_compat(struct file *filep, unsigned int cmd,unsigned long arg)
{return lineevent_ioctl(filep, cmd, (unsigned long)compat_ptr(arg));
}
#endifstatic const struct file_operations lineevent_fileops = {.release = lineevent_release,.read = lineevent_read,.poll = lineevent_poll,.owner = THIS_MODULE,.llseek = noop_llseek,.unlocked_ioctl = lineevent_ioctl,
#ifdef CONFIG_COMPAT.compat_ioctl = lineevent_ioctl_compat,
#endif
};static irqreturn_t lineevent_irq_thread(int irq, void *p)
{struct lineevent_state *le = p;struct gpioevent_data ge;int ret, level;/* Do not leak kernel stack to userspace */memset(&ge, 0, sizeof(ge));/** We may be running from a nested threaded interrupt in which case* we didn't get the timestamp from lineevent_irq_handler().*/if (!le->timestamp)ge.timestamp = ktime_get_real_ns();elsege.timestamp = le->timestamp;level = gpiod_get_value_cansleep(le->desc);if (le->eflags & GPIOEVENT_REQUEST_RISING_EDGE&& le->eflags & GPIOEVENT_REQUEST_FALLING_EDGE) {if (level)/* Emit low-to-high event */ge.id = GPIOEVENT_EVENT_RISING_EDGE;else/* Emit high-to-low event */ge.id = GPIOEVENT_EVENT_FALLING_EDGE;} else if (le->eflags & GPIOEVENT_REQUEST_RISING_EDGE && level) {/* Emit low-to-high event */ge.id = GPIOEVENT_EVENT_RISING_EDGE;} else if (le->eflags & GPIOEVENT_REQUEST_FALLING_EDGE && !level) {/* Emit high-to-low event */ge.id = GPIOEVENT_EVENT_FALLING_EDGE;} else {return IRQ_NONE;}ret = kfifo_put(&le->events, ge);if (ret != 0)wake_up_poll(&le->wait, EPOLLIN);return IRQ_HANDLED;
}static irqreturn_t lineevent_irq_handler(int irq, void *p)
{struct lineevent_state *le = p;/** Just store the timestamp in hardirq context so we get it as* close in time as possible to the actual event.*/le->timestamp = ktime_get_real_ns();return IRQ_WAKE_THREAD;
}static int lineevent_create(struct gpio_device *gdev, void __user *ip)
{struct gpioevent_request eventreq;struct lineevent_state *le;struct gpio_desc *desc;struct file *file;u32 offset;u32 lflags;u32 eflags;int fd;int ret;int irqflags = 0;if (copy_from_user(&eventreq, ip, sizeof(eventreq)))return -EFAULT;le = kzalloc(sizeof(*le), GFP_KERNEL);if (!le)return -ENOMEM;le->gdev = gdev;get_device(&gdev->dev);/* Make sure this is terminated */eventreq.consumer_label[sizeof(eventreq.consumer_label)-1] = '\0';if (strlen(eventreq.consumer_label)) {le->label = kstrdup(eventreq.consumer_label,GFP_KERNEL);if (!le->label) {ret = -ENOMEM;goto out_free_le;}}offset = eventreq.lineoffset;lflags = eventreq.handleflags;eflags = eventreq.eventflags;if (offset >= gdev->ngpio) {ret = -EINVAL;goto out_free_label;}/* Return an error if a unknown flag is set */if ((lflags & ~GPIOHANDLE_REQUEST_VALID_FLAGS) ||(eflags & ~GPIOEVENT_REQUEST_VALID_FLAGS)) {ret = -EINVAL;goto out_free_label;}/* This is just wrong: we don't look for events on output lines */if ((lflags & GPIOHANDLE_REQUEST_OUTPUT) ||(lflags & GPIOHANDLE_REQUEST_OPEN_DRAIN) ||(lflags & GPIOHANDLE_REQUEST_OPEN_SOURCE)) {ret = -EINVAL;goto out_free_label;}desc = &gdev->descs[offset];ret = gpiod_request(desc, le->label);if (ret)goto out_free_label;le->desc = desc;le->eflags = eflags;if (lflags & GPIOHANDLE_REQUEST_ACTIVE_LOW)set_bit(FLAG_ACTIVE_LOW, &desc->flags);ret = gpiod_direction_input(desc);if (ret)goto out_free_desc;le->irq = gpiod_to_irq(desc);if (le->irq <= 0) {ret = -ENODEV;goto out_free_desc;}if (eflags & GPIOEVENT_REQUEST_RISING_EDGE)irqflags |= test_bit(FLAG_ACTIVE_LOW, &desc->flags) ?IRQF_TRIGGER_FALLING : IRQF_TRIGGER_RISING;if (eflags & GPIOEVENT_REQUEST_FALLING_EDGE)irqflags |= test_bit(FLAG_ACTIVE_LOW, &desc->flags) ?IRQF_TRIGGER_RISING : IRQF_TRIGGER_FALLING;irqflags |= IRQF_ONESHOT;irqflags |= IRQF_SHARED;INIT_KFIFO(le->events);init_waitqueue_head(&le->wait);mutex_init(&le->read_lock);/* Request a thread to read the events */ret = request_threaded_irq(le->irq,lineevent_irq_handler,lineevent_irq_thread,irqflags,le->label,le);if (ret)goto out_free_desc;fd = get_unused_fd_flags(O_RDONLY | O_CLOEXEC);if (fd < 0) {ret = fd;goto out_free_irq;}file = anon_inode_getfile("gpio-event",&lineevent_fileops,le,O_RDONLY | O_CLOEXEC);if (IS_ERR(file)) {ret = PTR_ERR(file);goto out_put_unused_fd;}eventreq.fd = fd;if (copy_to_user(ip, &eventreq, sizeof(eventreq))) {/** fput() will trigger the release() callback, so do not go onto* the regular error cleanup path here.*/fput(file);put_unused_fd(fd);return -EFAULT;}fd_install(fd, file);return 0;out_put_unused_fd:put_unused_fd(fd);
out_free_irq:free_irq(le->irq, le);
out_free_desc:gpiod_free(le->desc);
out_free_label:kfree(le->label);
out_free_le:kfree(le);put_device(&gdev->dev);return ret;
}/** gpio_ioctl() - ioctl handler for the GPIO chardev*/
static long gpio_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{struct gpio_device *gdev = filp->private_data;struct gpio_chip *chip = gdev->chip;void __user *ip = (void __user *)arg;/* We fail any subsequent ioctl():s when the chip is gone */if (!chip)return -ENODEV;/* Fill in the struct and pass to userspace */if (cmd == GPIO_GET_CHIPINFO_IOCTL) {struct gpiochip_info chipinfo;memset(&chipinfo, 0, sizeof(chipinfo));strncpy(chipinfo.name, dev_name(&gdev->dev),sizeof(chipinfo.name));chipinfo.name[sizeof(chipinfo.name)-1] = '\0';strncpy(chipinfo.label, gdev->label,sizeof(chipinfo.label));chipinfo.label[sizeof(chipinfo.label)-1] = '\0';chipinfo.lines = gdev->ngpio;if (copy_to_user(ip, &chipinfo, sizeof(chipinfo)))return -EFAULT;return 0;} else if (cmd == GPIO_GET_LINEINFO_IOCTL) {struct gpioline_info lineinfo;struct gpio_desc *desc;if (copy_from_user(&lineinfo, ip, sizeof(lineinfo)))return -EFAULT;if (lineinfo.line_offset >= gdev->ngpio)return -EINVAL;desc = &gdev->descs[lineinfo.line_offset];if (desc->name) {strncpy(lineinfo.name, desc->name,sizeof(lineinfo.name));lineinfo.name[sizeof(lineinfo.name)-1] = '\0';} else {lineinfo.name[0] = '\0';}if (desc->label) {strncpy(lineinfo.consumer, desc->label,sizeof(lineinfo.consumer));lineinfo.consumer[sizeof(lineinfo.consumer)-1] = '\0';} else {lineinfo.consumer[0] = '\0';}/** Userspace only need to know that the kernel is using* this GPIO so it can't use it.*/lineinfo.flags = 0;if (test_bit(FLAG_REQUESTED, &desc->flags) ||test_bit(FLAG_IS_HOGGED, &desc->flags) ||test_bit(FLAG_USED_AS_IRQ, &desc->flags) ||test_bit(FLAG_EXPORT, &desc->flags) ||test_bit(FLAG_SYSFS, &desc->flags))lineinfo.flags |= GPIOLINE_FLAG_KERNEL;if (test_bit(FLAG_IS_OUT, &desc->flags))lineinfo.flags |= GPIOLINE_FLAG_IS_OUT;if (test_bit(FLAG_ACTIVE_LOW, &desc->flags))lineinfo.flags |= GPIOLINE_FLAG_ACTIVE_LOW;if (test_bit(FLAG_OPEN_DRAIN, &desc->flags))lineinfo.flags |= (GPIOLINE_FLAG_OPEN_DRAIN |GPIOLINE_FLAG_IS_OUT);if (test_bit(FLAG_OPEN_SOURCE, &desc->flags))lineinfo.flags |= (GPIOLINE_FLAG_OPEN_SOURCE |GPIOLINE_FLAG_IS_OUT);if (copy_to_user(ip, &lineinfo, sizeof(lineinfo)))return -EFAULT;return 0;} else if (cmd == GPIO_GET_LINEHANDLE_IOCTL) {return linehandle_create(gdev, ip);} else if (cmd == GPIO_GET_LINEEVENT_IOCTL) {return lineevent_create(gdev, ip);}return -EINVAL;
}#ifdef CONFIG_COMPAT
static long gpio_ioctl_compat(struct file *filp, unsigned int cmd,unsigned long arg)
{return gpio_ioctl(filp, cmd, (unsigned long)compat_ptr(arg));
}
#endif/*** gpio_chrdev_open() - open the chardev for ioctl operations* @inode: inode for this chardev* @filp: file struct for storing private data* Returns 0 on success*/
static int gpio_chrdev_open(struct inode *inode, struct file *filp)
{struct gpio_device *gdev = container_of(inode->i_cdev,struct gpio_device, chrdev);/* Fail on open if the backing gpiochip is gone */if (!gdev->chip)return -ENODEV;get_device(&gdev->dev);filp->private_data = gdev;return nonseekable_open(inode, filp);
}/*** gpio_chrdev_release() - close chardev after ioctl operations* @inode: inode for this chardev* @filp: file struct for storing private data* Returns 0 on success*/
static int gpio_chrdev_release(struct inode *inode, struct file *filp)
{struct gpio_device *gdev = container_of(inode->i_cdev,struct gpio_device, chrdev);put_device(&gdev->dev);return 0;
}static const struct file_operations gpio_fileops = {.release = gpio_chrdev_release,.open = gpio_chrdev_open,.owner = THIS_MODULE,.llseek = no_llseek,.unlocked_ioctl = gpio_ioctl,
#ifdef CONFIG_COMPAT.compat_ioctl = gpio_ioctl_compat,
#endif
};static void gpiodevice_release(struct device *dev)
{struct gpio_device *gdev = dev_get_drvdata(dev);list_del(&gdev->list);ida_simple_remove(&gpio_ida, gdev->id);kfree_const(gdev->label);kfree(gdev->descs);kfree(gdev);
}static int gpiochip_setup_dev(struct gpio_device *gdev)
{int status;cdev_init(&gdev->chrdev, &gpio_fileops);gdev->chrdev.owner = THIS_MODULE;gdev->dev.devt = MKDEV(MAJOR(gpio_devt), gdev->id);status = cdev_device_add(&gdev->chrdev, &gdev->dev);if (status)return status;chip_dbg(gdev->chip, "added GPIO chardev (%d:%d)\n",MAJOR(gpio_devt), gdev->id);status = gpiochip_sysfs_register(gdev);if (status)goto err_remove_device;/* From this point, the .release() function cleans up gpio_device */gdev->dev.release = gpiodevice_release;pr_debug("%s: registered GPIOs %d to %d on device: %s (%s)\n",__func__, gdev->base, gdev->base + gdev->ngpio - 1,dev_name(&gdev->dev), gdev->chip->label ? : "generic");return 0;err_remove_device:cdev_device_del(&gdev->chrdev, &gdev->dev);return status;
}static void gpiochip_machine_hog(struct gpio_chip *chip, struct gpiod_hog *hog)
{struct gpio_desc *desc;int rv;desc = gpiochip_get_desc(chip, hog->chip_hwnum);if (IS_ERR(desc)) {pr_err("%s: unable to get GPIO desc: %ld\n",__func__, PTR_ERR(desc));return;}if (test_bit(FLAG_IS_HOGGED, &desc->flags))return;rv = gpiod_hog(desc, hog->line_name, hog->lflags, hog->dflags);if (rv)pr_err("%s: unable to hog GPIO line (%s:%u): %d\n",__func__, chip->label, hog->chip_hwnum, rv);
}static void machine_gpiochip_add(struct gpio_chip *chip)
{struct gpiod_hog *hog;mutex_lock(&gpio_machine_hogs_mutex);list_for_each_entry(hog, &gpio_machine_hogs, list) {if (!strcmp(chip->label, hog->chip_label))gpiochip_machine_hog(chip, hog);}mutex_unlock(&gpio_machine_hogs_mutex);
}static void gpiochip_setup_devs(void)
{struct gpio_device *gdev;int err;list_for_each_entry(gdev, &gpio_devices, list) {err = gpiochip_setup_dev(gdev);if (err)pr_err("%s: Failed to initialize gpio device (%d)\n",dev_name(&gdev->dev), err);}
}int gpiochip_add_data_with_key(struct gpio_chip *chip, void *data,struct lock_class_key *lock_key,struct lock_class_key *request_key)
{unsigned long flags;int status = 0;unsigned i;int base = chip->base;struct gpio_device *gdev;/** First: allocate and populate the internal stat container, and* set up the struct device.*/gdev = kzalloc(sizeof(*gdev), GFP_KERNEL);if (!gdev)return -ENOMEM;gdev->dev.bus = &gpio_bus_type;gdev->chip = chip;chip->gpiodev = gdev;if (chip->parent) {gdev->dev.parent = chip->parent;gdev->dev.of_node = chip->parent->of_node;}#ifdef CONFIG_OF_GPIO/* If the gpiochip has an assigned OF node this takes precedence */if (chip->of_node)gdev->dev.of_node = chip->of_node;elsechip->of_node = gdev->dev.of_node;
#endifgdev->id = ida_simple_get(&gpio_ida, 0, 0, GFP_KERNEL);if (gdev->id < 0) {status = gdev->id;goto err_free_gdev;}dev_set_name(&gdev->dev, "gpiochip%d", gdev->id);device_initialize(&gdev->dev);dev_set_drvdata(&gdev->dev, gdev);if (chip->parent && chip->parent->driver)gdev->owner = chip->parent->driver->owner;else if (chip->owner)/* TODO: remove chip->owner */gdev->owner = chip->owner;elsegdev->owner = THIS_MODULE;gdev->descs = kcalloc(chip->ngpio, sizeof(gdev->descs[0]), GFP_KERNEL);if (!gdev->descs) {status = -ENOMEM;goto err_free_ida;}if (chip->ngpio == 0) {chip_err(chip, "tried to insert a GPIO chip with zero lines\n");status = -EINVAL;goto err_free_descs;}if (chip->ngpio > FASTPATH_NGPIO)chip_warn(chip, "line cnt %u is greater than fast path cnt %u\n",chip->ngpio, FASTPATH_NGPIO);gdev->label = kstrdup_const(chip->label ?: "unknown", GFP_KERNEL);if (!gdev->label) {status = -ENOMEM;goto err_free_descs;}gdev->ngpio = chip->ngpio;gdev->data = data;spin_lock_irqsave(&gpio_lock, flags);/** TODO: this allocates a Linux GPIO number base in the global* GPIO numberspace for this chip. In the long run we want to* get *rid* of this numberspace and use only descriptors, but* it may be a pipe dream. It will not happen before we get rid* of the sysfs interface anyways.*/if (base < 0) {base = gpiochip_find_base(chip->ngpio);if (base < 0) {status = base;spin_unlock_irqrestore(&gpio_lock, flags);goto err_free_label;}/** TODO: it should not be necessary to reflect the assigned* base outside of the GPIO subsystem. Go over drivers and* see if anyone makes use of this, else drop this and assign* a poison instead.*/chip->base = base;}gdev->base = base;status = gpiodev_add_to_list(gdev);if (status) {spin_unlock_irqrestore(&gpio_lock, flags);goto err_free_label;}spin_unlock_irqrestore(&gpio_lock, flags);for (i = 0; i < chip->ngpio; i++)gdev->descs[i].gdev = gdev;#ifdef CONFIG_PINCTRLINIT_LIST_HEAD(&gdev->pin_ranges);
#endifstatus = gpiochip_set_desc_names(chip);if (status)goto err_remove_from_list;status = gpiochip_alloc_valid_mask(chip);if (status)goto err_remove_from_list;status = of_gpiochip_add(chip);if (status)goto err_free_gpiochip_mask;status = gpiochip_init_valid_mask(chip);if (status)goto err_remove_of_chip;for (i = 0; i < chip->ngpio; i++) {struct gpio_desc *desc = &gdev->descs[i];if (chip->get_direction && gpiochip_line_is_valid(chip, i)) {if (!chip->get_direction(chip, i))set_bit(FLAG_IS_OUT, &desc->flags);elseclear_bit(FLAG_IS_OUT, &desc->flags);} else {if (!chip->direction_input)set_bit(FLAG_IS_OUT, &desc->flags);elseclear_bit(FLAG_IS_OUT, &desc->flags);}}acpi_gpiochip_add(chip);machine_gpiochip_add(chip);status = gpiochip_irqchip_init_valid_mask(chip);if (status)goto err_remove_acpi_chip;status = gpiochip_add_irqchip(chip, lock_key, request_key);if (status)goto err_remove_irqchip_mask;/** By first adding the chardev, and then adding the device,* we get a device node entry in sysfs under* /sys/bus/gpio/devices/gpiochipN/dev that can be used for* coldplug of device nodes and other udev business.* We can do this only if gpiolib has been initialized.* Otherwise, defer until later.*/if (gpiolib_initialized) {status = gpiochip_setup_dev(gdev);if (status)goto err_remove_irqchip;}return 0;err_remove_irqchip:gpiochip_irqchip_remove(chip);
err_remove_irqchip_mask:gpiochip_irqchip_free_valid_mask(chip);
err_remove_acpi_chip:acpi_gpiochip_remove(chip);
err_remove_of_chip:gpiochip_free_hogs(chip);of_gpiochip_remove(chip);
err_free_gpiochip_mask:gpiochip_free_valid_mask(chip);
err_remove_from_list:spin_lock_irqsave(&gpio_lock, flags);list_del(&gdev->list);spin_unlock_irqrestore(&gpio_lock, flags);
err_free_label:kfree_const(gdev->label);
err_free_descs:kfree(gdev->descs);
err_free_ida:ida_simple_remove(&gpio_ida, gdev->id);
err_free_gdev:/* failures here can mean systems won't boot... */pr_err("%s: GPIOs %d..%d (%s) failed to register, %d\n", __func__,gdev->base, gdev->base + gdev->ngpio - 1,chip->label ? : "generic", status);kfree(gdev);return status;
}
EXPORT_SYMBOL_GPL(gpiochip_add_data_with_key);/*** gpiochip_get_data() - get per-subdriver data for the chip* @chip: GPIO chip** Returns:* The per-subdriver data for the chip.*/
void *gpiochip_get_data(struct gpio_chip *chip)
{return chip->gpiodev->data;
}
EXPORT_SYMBOL_GPL(gpiochip_get_data);/*** gpiochip_remove() - unregister a gpio_chip* @chip: the chip to unregister** A gpio_chip with any GPIOs still requested may not be removed.*/
void gpiochip_remove(struct gpio_chip *chip)
{struct gpio_device *gdev = chip->gpiodev;struct gpio_desc *desc;unsigned long flags;unsigned i;bool requested = false;/* FIXME: should the legacy sysfs handling be moved to gpio_device? */gpiochip_sysfs_unregister(gdev);gpiochip_free_hogs(chip);/* Numb the device, cancelling all outstanding operations */gdev->chip = NULL;gpiochip_irqchip_remove(chip);acpi_gpiochip_remove(chip);gpiochip_remove_pin_ranges(chip);of_gpiochip_remove(chip);gpiochip_free_valid_mask(chip);/** We accept no more calls into the driver from this point, so* NULL the driver data pointer*/gdev->data = NULL;spin_lock_irqsave(&gpio_lock, flags);for (i = 0; i < gdev->ngpio; i++) {desc = &gdev->descs[i];if (test_bit(FLAG_REQUESTED, &desc->flags))requested = true;}spin_unlock_irqrestore(&gpio_lock, flags);if (requested)dev_crit(&gdev->dev,"REMOVING GPIOCHIP WITH GPIOS STILL REQUESTED\n");/** The gpiochip side puts its use of the device to rest here:* if there are no userspace clients, the chardev and device will* be removed, else it will be dangling until the last user is* gone.*/cdev_device_del(&gdev->chrdev, &gdev->dev);put_device(&gdev->dev);
}
EXPORT_SYMBOL_GPL(gpiochip_remove);static void devm_gpio_chip_release(struct device *dev, void *res)
{struct gpio_chip *chip = *(struct gpio_chip **)res;gpiochip_remove(chip);
}static int devm_gpio_chip_match(struct device *dev, void *res, void *data){struct gpio_chip **r = res;if (!r || !*r) {WARN_ON(!r || !*r);return 0;}return *r == data;
}/*** devm_gpiochip_add_data() - Resource manager gpiochip_add_data()* @dev: the device pointer on which irq_chip belongs to.* @chip: the chip to register, with chip->base initialized* @data: driver-private data associated with this chip** Context: potentially before irqs will work** The gpio chip automatically be released when the device is unbound.** Returns:* A negative errno if the chip can't be registered, such as because the* chip->base is invalid or already associated with a different chip.* Otherwise it returns zero as a success code.*/
int devm_gpiochip_add_data(struct device *dev, struct gpio_chip *chip,void *data)
{struct gpio_chip **ptr;int ret;ptr = devres_alloc(devm_gpio_chip_release, sizeof(*ptr),GFP_KERNEL);if (!ptr)return -ENOMEM;ret = gpiochip_add_data(chip, data);if (ret < 0) {devres_free(ptr);return ret;}*ptr = chip;devres_add(dev, ptr);return 0;
}
EXPORT_SYMBOL_GPL(devm_gpiochip_add_data);/*** devm_gpiochip_remove() - Resource manager of gpiochip_remove()* @dev: device for which which resource was allocated* @chip: the chip to remove** A gpio_chip with any GPIOs still requested may not be removed.*/
void devm_gpiochip_remove(struct device *dev, struct gpio_chip *chip)
{int ret;ret = devres_release(dev, devm_gpio_chip_release,devm_gpio_chip_match, chip);WARN_ON(ret);
}
EXPORT_SYMBOL_GPL(devm_gpiochip_remove);/*** gpiochip_find() - iterator for locating a specific gpio_chip* @data: data to pass to match function* @match: Callback function to check gpio_chip** Similar to bus_find_device. It returns a reference to a gpio_chip as* determined by a user supplied @match callback. The callback should return* 0 if the device doesn't match and non-zero if it does. If the callback is* non-zero, this function will return to the caller and not iterate over any* more gpio_chips.*/
struct gpio_chip *gpiochip_find(void *data,int (*match)(struct gpio_chip *chip,void *data))
{struct gpio_device *gdev;struct gpio_chip *chip = NULL;unsigned long flags;spin_lock_irqsave(&gpio_lock, flags);list_for_each_entry(gdev, &gpio_devices, list)if (gdev->chip && match(gdev->chip, data)) {chip = gdev->chip;break;}spin_unlock_irqrestore(&gpio_lock, flags);return chip;
}
EXPORT_SYMBOL_GPL(gpiochip_find);static int gpiochip_match_name(struct gpio_chip *chip, void *data)
{const char *name = data;return !strcmp(chip->label, name);
}static struct gpio_chip *find_chip_by_name(const char *name)
{return gpiochip_find((void *)name, gpiochip_match_name);
}#ifdef CONFIG_GPIOLIB_IRQCHIP/** The following is irqchip helper code for gpiochips.*/static int gpiochip_irqchip_init_valid_mask(struct gpio_chip *gpiochip)
{if (!gpiochip->irq.need_valid_mask)return 0;gpiochip->irq.valid_mask = gpiochip_allocate_mask(gpiochip);if (!gpiochip->irq.valid_mask)return -ENOMEM;return 0;
}static void gpiochip_irqchip_free_valid_mask(struct gpio_chip *gpiochip)
{kfree(gpiochip->irq.valid_mask);gpiochip->irq.valid_mask = NULL;
}bool gpiochip_irqchip_irq_valid(const struct gpio_chip *gpiochip,unsigned int offset)
{if (!gpiochip_line_is_valid(gpiochip, offset))return false;/* No mask means all valid */if (likely(!gpiochip->irq.valid_mask))return true;return test_bit(offset, gpiochip->irq.valid_mask);
}
EXPORT_SYMBOL_GPL(gpiochip_irqchip_irq_valid);/*** gpiochip_set_cascaded_irqchip() - connects a cascaded irqchip to a gpiochip* @gpiochip: the gpiochip to set the irqchip chain to* @irqchip: the irqchip to chain to the gpiochip* @parent_irq: the irq number corresponding to the parent IRQ for this* chained irqchip* @parent_handler: the parent interrupt handler for the accumulated IRQ* coming out of the gpiochip. If the interrupt is nested rather than* cascaded, pass NULL in this handler argument*/
static void gpiochip_set_cascaded_irqchip(struct gpio_chip *gpiochip,struct irq_chip *irqchip,unsigned int parent_irq,irq_flow_handler_t parent_handler)
{unsigned int offset;if (!gpiochip->irq.domain) {chip_err(gpiochip, "called %s before setting up irqchip\n",__func__);return;}if (parent_handler) {if (gpiochip->can_sleep) {chip_err(gpiochip,"you cannot have chained interrupts on a chip that may sleep\n");return;}/** The parent irqchip is already using the chip_data for this* irqchip, so our callbacks simply use the handler_data.*/irq_set_chained_handler_and_data(parent_irq, parent_handler,gpiochip);gpiochip->irq.parent_irq = parent_irq;gpiochip->irq.parents = &gpiochip->irq.parent_irq;gpiochip->irq.num_parents = 1;}/* Set the parent IRQ for all affected IRQs */for (offset = 0; offset < gpiochip->ngpio; offset++) {if (!gpiochip_irqchip_irq_valid(gpiochip, offset))continue;irq_set_parent(irq_find_mapping(gpiochip->irq.domain, offset),parent_irq);}
}/*** gpiochip_set_chained_irqchip() - connects a chained irqchip to a gpiochip* @gpiochip: the gpiochip to set the irqchip chain to* @irqchip: the irqchip to chain to the gpiochip* @parent_irq: the irq number corresponding to the parent IRQ for this* chained irqchip* @parent_handler: the parent interrupt handler for the accumulated IRQ* coming out of the gpiochip. If the interrupt is nested rather than* cascaded, pass NULL in this handler argument*/
void gpiochip_set_chained_irqchip(struct gpio_chip *gpiochip,struct irq_chip *irqchip,unsigned int parent_irq,irq_flow_handler_t parent_handler)
{if (gpiochip->irq.threaded) {chip_err(gpiochip, "tried to chain a threaded gpiochip\n");return;}gpiochip_set_cascaded_irqchip(gpiochip, irqchip, parent_irq,parent_handler);
}
EXPORT_SYMBOL_GPL(gpiochip_set_chained_irqchip);/*** gpiochip_set_nested_irqchip() - connects a nested irqchip to a gpiochip* @gpiochip: the gpiochip to set the irqchip nested handler to* @irqchip: the irqchip to nest to the gpiochip* @parent_irq: the irq number corresponding to the parent IRQ for this* nested irqchip*/
void gpiochip_set_nested_irqchip(struct gpio_chip *gpiochip,struct irq_chip *irqchip,unsigned int parent_irq)
{gpiochip_set_cascaded_irqchip(gpiochip, irqchip, parent_irq,NULL);
}
EXPORT_SYMBOL_GPL(gpiochip_set_nested_irqchip);/*** gpiochip_irq_map() - maps an IRQ into a GPIO irqchip* @d: the irqdomain used by this irqchip* @irq: the global irq number used by this GPIO irqchip irq* @hwirq: the local IRQ/GPIO line offset on this gpiochip** This function will set up the mapping for a certain IRQ line on a* gpiochip by assigning the gpiochip as chip data, and using the irqchip* stored inside the gpiochip.*/
int gpiochip_irq_map(struct irq_domain *d, unsigned int irq,irq_hw_number_t hwirq)
{struct gpio_chip *chip = d->host_data;int err = 0;if (!gpiochip_irqchip_irq_valid(chip, hwirq))return -ENXIO;irq_set_chip_data(irq, chip);/** This lock class tells lockdep that GPIO irqs are in a different* category than their parents, so it won't report false recursion.*/irq_set_lockdep_class(irq, chip->irq.lock_key, chip->irq.request_key);irq_set_chip_and_handler(irq, chip->irq.chip, chip->irq.handler);/* Chips that use nested thread handlers have them marked */if (chip->irq.threaded)irq_set_nested_thread(irq, 1);irq_set_noprobe(irq);if (chip->irq.num_parents == 1)err = irq_set_parent(irq, chip->irq.parents[0]);else if (chip->irq.map)err = irq_set_parent(irq, chip->irq.map[hwirq]);if (err < 0)return err;/** No set-up of the hardware will happen if IRQ_TYPE_NONE* is passed as default type.*/if (chip->irq.default_type != IRQ_TYPE_NONE)irq_set_irq_type(irq, chip->irq.default_type);return 0;
}
EXPORT_SYMBOL_GPL(gpiochip_irq_map);void gpiochip_irq_unmap(struct irq_domain *d, unsigned int irq)
{struct gpio_chip *chip = d->host_data;if (chip->irq.threaded)irq_set_nested_thread(irq, 0);irq_set_chip_and_handler(irq, NULL, NULL);irq_set_chip_data(irq, NULL);
}
EXPORT_SYMBOL_GPL(gpiochip_irq_unmap);static const struct irq_domain_ops gpiochip_domain_ops = {.map = gpiochip_irq_map,.unmap = gpiochip_irq_unmap,/* Virtually all GPIO irqchips are twocell:ed */.xlate = irq_domain_xlate_twocell,
};static int gpiochip_irq_reqres(struct irq_data *d)
{struct gpio_chip *chip = irq_data_get_irq_chip_data(d);int ret;if (!try_module_get(chip->gpiodev->owner))return -ENODEV;ret = gpiochip_lock_as_irq(chip, d->hwirq);if (ret) {chip_err(chip,"unable to lock HW IRQ %lu for IRQ\n",d->hwirq);module_put(chip->gpiodev->owner);return ret;}return 0;
}static void gpiochip_irq_relres(struct irq_data *d)
{struct gpio_chip *chip = irq_data_get_irq_chip_data(d);gpiochip_unlock_as_irq(chip, d->hwirq);module_put(chip->gpiodev->owner);
}static int gpiochip_to_irq(struct gpio_chip *chip, unsigned offset)
{if (!gpiochip_irqchip_irq_valid(chip, offset))return -ENXIO;return irq_create_mapping(chip->irq.domain, offset);
}/*** gpiochip_add_irqchip() - adds an IRQ chip to a GPIO chip* @gpiochip: the GPIO chip to add the IRQ chip to* @lock_key: lockdep class for IRQ lock* @request_key: lockdep class for IRQ request*/
static int gpiochip_add_irqchip(struct gpio_chip *gpiochip,struct lock_class_key *lock_key,struct lock_class_key *request_key)
{struct irq_chip *irqchip = gpiochip->irq.chip;const struct irq_domain_ops *ops;struct device_node *np;unsigned int type;unsigned int i;if (!irqchip)return 0;if (gpiochip->irq.parent_handler && gpiochip->can_sleep) {chip_err(gpiochip, "you cannot have chained interrupts on a chip that may sleep\n");return -EINVAL;}np = gpiochip->gpiodev->dev.of_node;type = gpiochip->irq.default_type;/** Specifying a default trigger is a terrible idea if DT or ACPI is* used to configure the interrupts, as you may end up with* conflicting triggers. Tell the user, and reset to NONE.*/if (WARN(np && type != IRQ_TYPE_NONE,"%s: Ignoring %u default trigger\n", np->full_name, type))type = IRQ_TYPE_NONE;if (has_acpi_companion(gpiochip->parent) && type != IRQ_TYPE_NONE) {acpi_handle_warn(ACPI_HANDLE(gpiochip->parent),"Ignoring %u default trigger\n", type);type = IRQ_TYPE_NONE;}gpiochip->to_irq = gpiochip_to_irq;gpiochip->irq.default_type = type;gpiochip->irq.lock_key = lock_key;gpiochip->irq.request_key = request_key;if (gpiochip->irq.domain_ops)ops = gpiochip->irq.domain_ops;elseops = &gpiochip_domain_ops;gpiochip->irq.domain = irq_domain_add_simple(np, gpiochip->ngpio,gpiochip->irq.first,ops, gpiochip);if (!gpiochip->irq.domain)return -EINVAL;/** It is possible for a driver to override this, but only if the* alternative functions are both implemented.*/if (!irqchip->irq_request_resources &&!irqchip->irq_release_resources) {irqchip->irq_request_resources = gpiochip_irq_reqres;irqchip->irq_release_resources = gpiochip_irq_relres;}if (gpiochip->irq.parent_handler) {void *data = gpiochip->irq.parent_handler_data ?: gpiochip;for (i = 0; i < gpiochip->irq.num_parents; i++) {/** The parent IRQ chip is already using the chip_data* for this IRQ chip, so our callbacks simply use the* handler_data.*/irq_set_chained_handler_and_data(gpiochip->irq.parents[i],gpiochip->irq.parent_handler,data);}}acpi_gpiochip_request_interrupts(gpiochip);return 0;
}/*** gpiochip_irqchip_remove() - removes an irqchip added to a gpiochip* @gpiochip: the gpiochip to remove the irqchip from** This is called only from gpiochip_remove()*/
static void gpiochip_irqchip_remove(struct gpio_chip *gpiochip)
{unsigned int offset;acpi_gpiochip_free_interrupts(gpiochip);if (gpiochip->irq.chip && gpiochip->irq.parent_handler) {struct gpio_irq_chip *irq = &gpiochip->irq;unsigned int i;for (i = 0; i < irq->num_parents; i++)irq_set_chained_handler_and_data(irq->parents[i],NULL, NULL);}/* Remove all IRQ mappings and delete the domain */if (gpiochip->irq.domain) {unsigned int irq;for (offset = 0; offset < gpiochip->ngpio; offset++) {if (!gpiochip_irqchip_irq_valid(gpiochip, offset))continue;irq = irq_find_mapping(gpiochip->irq.domain, offset);irq_dispose_mapping(irq);}irq_domain_remove(gpiochip->irq.domain);}if (gpiochip->irq.chip) {gpiochip->irq.chip->irq_request_resources = NULL;gpiochip->irq.chip->irq_release_resources = NULL;gpiochip->irq.chip = NULL;}gpiochip_irqchip_free_valid_mask(gpiochip);
}/*** gpiochip_irqchip_add_key() - adds an irqchip to a gpiochip* @gpiochip: the gpiochip to add the irqchip to* @irqchip: the irqchip to add to the gpiochip* @first_irq: if not dynamically assigned, the base (first) IRQ to* allocate gpiochip irqs from* @handler: the irq handler to use (often a predefined irq core function)* @type: the default type for IRQs on this irqchip, pass IRQ_TYPE_NONE* to have the core avoid setting up any default type in the hardware.* @threaded: whether this irqchip uses a nested thread handler* @lock_key: lockdep class for IRQ lock* @request_key: lockdep class for IRQ request** This function closely associates a certain irqchip with a certain* gpiochip, providing an irq domain to translate the local IRQs to* global irqs in the gpiolib core, and making sure that the gpiochip* is passed as chip data to all related functions. Driver callbacks* need to use gpiochip_get_data() to get their local state containers back* from the gpiochip passed as chip data. An irqdomain will be stored* in the gpiochip that shall be used by the driver to handle IRQ number* translation. The gpiochip will need to be initialized and registered* before calling this function.** This function will handle two cell:ed simple IRQs and assumes all* the pins on the gpiochip can generate a unique IRQ. Everything else* need to be open coded.*/
int gpiochip_irqchip_add_key(struct gpio_chip *gpiochip,struct irq_chip *irqchip,unsigned int first_irq,irq_flow_handler_t handler,unsigned int type,bool threaded,struct lock_class_key *lock_key,struct lock_class_key *request_key)
{struct device_node *of_node;if (!gpiochip || !irqchip)return -EINVAL;if (!gpiochip->parent) {pr_err("missing gpiochip .dev parent pointer\n");return -EINVAL;}gpiochip->irq.threaded = threaded;of_node = gpiochip->parent->of_node;
#ifdef CONFIG_OF_GPIO/** If the gpiochip has an assigned OF node this takes precedence* FIXME: get rid of this and use gpiochip->parent->of_node* everywhere*/if (gpiochip->of_node)of_node = gpiochip->of_node;
#endif/** Specifying a default trigger is a terrible idea if DT or ACPI is* used to configure the interrupts, as you may end-up with* conflicting triggers. Tell the user, and reset to NONE.*/if (WARN(of_node && type != IRQ_TYPE_NONE,"%pOF: Ignoring %d default trigger\n", of_node, type))type = IRQ_TYPE_NONE;if (has_acpi_companion(gpiochip->parent) && type != IRQ_TYPE_NONE) {acpi_handle_warn(ACPI_HANDLE(gpiochip->parent),"Ignoring %d default trigger\n", type);type = IRQ_TYPE_NONE;}gpiochip->irq.chip = irqchip;gpiochip->irq.handler = handler;gpiochip->irq.default_type = type;gpiochip->to_irq = gpiochip_to_irq;gpiochip->irq.lock_key = lock_key;gpiochip->irq.request_key = request_key;gpiochip->irq.domain = irq_domain_add_simple(of_node,gpiochip->ngpio, first_irq,&gpiochip_domain_ops, gpiochip);if (!gpiochip->irq.domain) {gpiochip->irq.chip = NULL;return -EINVAL;}/** It is possible for a driver to override this, but only if the* alternative functions are both implemented.*/if (!irqchip->irq_request_resources &&!irqchip->irq_release_resources) {irqchip->irq_request_resources = gpiochip_irq_reqres;irqchip->irq_release_resources = gpiochip_irq_relres;}acpi_gpiochip_request_interrupts(gpiochip);return 0;
}
EXPORT_SYMBOL_GPL(gpiochip_irqchip_add_key);#else /* CONFIG_GPIOLIB_IRQCHIP */static inline int gpiochip_add_irqchip(struct gpio_chip *gpiochip,struct lock_class_key *lock_key,struct lock_class_key *request_key)
{return 0;
}static void gpiochip_irqchip_remove(struct gpio_chip *gpiochip) {}
static inline int gpiochip_irqchip_init_valid_mask(struct gpio_chip *gpiochip)
{return 0;
}
static inline void gpiochip_irqchip_free_valid_mask(struct gpio_chip *gpiochip)
{ }#endif /* CONFIG_GPIOLIB_IRQCHIP *//*** gpiochip_generic_request() - request the gpio function for a pin* @chip: the gpiochip owning the GPIO* @offset: the offset of the GPIO to request for GPIO function*/
int gpiochip_generic_request(struct gpio_chip *chip, unsigned offset)
{return pinctrl_gpio_request(chip->gpiodev->base + offset);
}
EXPORT_SYMBOL_GPL(gpiochip_generic_request);/*** gpiochip_generic_free() - free the gpio function from a pin* @chip: the gpiochip to request the gpio function for* @offset: the offset of the GPIO to free from GPIO function*/
void gpiochip_generic_free(struct gpio_chip *chip, unsigned offset)
{pinctrl_gpio_free(chip->gpiodev->base + offset);
}
EXPORT_SYMBOL_GPL(gpiochip_generic_free);/*** gpiochip_generic_config() - apply configuration for a pin* @chip: the gpiochip owning the GPIO* @offset: the offset of the GPIO to apply the configuration* @config: the configuration to be applied*/
int gpiochip_generic_config(struct gpio_chip *chip, unsigned offset,unsigned long config)
{return pinctrl_gpio_set_config(chip->gpiodev->base + offset, config);
}
EXPORT_SYMBOL_GPL(gpiochip_generic_config);#ifdef CONFIG_PINCTRL/*** gpiochip_add_pingroup_range() - add a range for GPIO <-> pin mapping* @chip: the gpiochip to add the range for* @pctldev: the pin controller to map to* @gpio_offset: the start offset in the current gpio_chip number space* @pin_group: name of the pin group inside the pin controller** Calling this function directly from a DeviceTree-supported* pinctrl driver is DEPRECATED. Please see Section 2.1 of* Documentation/devicetree/bindings/gpio/gpio.txt on how to* bind pinctrl and gpio drivers via the "gpio-ranges" property.*/
int gpiochip_add_pingroup_range(struct gpio_chip *chip,struct pinctrl_dev *pctldev,unsigned int gpio_offset, const char *pin_group)
{struct gpio_pin_range *pin_range;struct gpio_device *gdev = chip->gpiodev;int ret;pin_range = kzalloc(sizeof(*pin_range), GFP_KERNEL);if (!pin_range) {chip_err(chip, "failed to allocate pin ranges\n");return -ENOMEM;}/* Use local offset as range ID */pin_range->range.id = gpio_offset;pin_range->range.gc = chip;pin_range->range.name = chip->label;pin_range->range.base = gdev->base + gpio_offset;pin_range->pctldev = pctldev;ret = pinctrl_get_group_pins(pctldev, pin_group,&pin_range->range.pins,&pin_range->range.npins);if (ret < 0) {kfree(pin_range);return ret;}pinctrl_add_gpio_range(pctldev, &pin_range->range);chip_dbg(chip, "created GPIO range %d->%d ==> %s PINGRP %s\n",gpio_offset, gpio_offset + pin_range->range.npins - 1,pinctrl_dev_get_devname(pctldev), pin_group);list_add_tail(&pin_range->node, &gdev->pin_ranges);return 0;
}
EXPORT_SYMBOL_GPL(gpiochip_add_pingroup_range);/*** gpiochip_add_pin_range() - add a range for GPIO <-> pin mapping* @chip: the gpiochip to add the range for* @pinctl_name: the dev_name() of the pin controller to map to* @gpio_offset: the start offset in the current gpio_chip number space* @pin_offset: the start offset in the pin controller number space* @npins: the number of pins from the offset of each pin space (GPIO and* pin controller) to accumulate in this range** Returns:* 0 on success, or a negative error-code on failure.** Calling this function directly from a DeviceTree-supported* pinctrl driver is DEPRECATED. Please see Section 2.1 of* Documentation/devicetree/bindings/gpio/gpio.txt on how to* bind pinctrl and gpio drivers via the "gpio-ranges" property.*/
int gpiochip_add_pin_range(struct gpio_chip *chip, const char *pinctl_name,unsigned int gpio_offset, unsigned int pin_offset,unsigned int npins)
{struct gpio_pin_range *pin_range;struct gpio_device *gdev = chip->gpiodev;int ret;pin_range = kzalloc(sizeof(*pin_range), GFP_KERNEL);if (!pin_range) {chip_err(chip, "failed to allocate pin ranges\n");return -ENOMEM;}/* Use local offset as range ID */pin_range->range.id = gpio_offset;pin_range->range.gc = chip;pin_range->range.name = chip->label;pin_range->range.base = gdev->base + gpio_offset;pin_range->range.pin_base = pin_offset;pin_range->range.npins = npins;pin_range->pctldev = pinctrl_find_and_add_gpio_range(pinctl_name,&pin_range->range);if (IS_ERR(pin_range->pctldev)) {ret = PTR_ERR(pin_range->pctldev);chip_err(chip, "could not create pin range\n");kfree(pin_range);return ret;}chip_dbg(chip, "created GPIO range %d->%d ==> %s PIN %d->%d\n",gpio_offset, gpio_offset + npins - 1,pinctl_name,pin_offset, pin_offset + npins - 1);list_add_tail(&pin_range->node, &gdev->pin_ranges);return 0;
}
EXPORT_SYMBOL_GPL(gpiochip_add_pin_range);/*** gpiochip_remove_pin_ranges() - remove all the GPIO <-> pin mappings* @chip: the chip to remove all the mappings for*/
void gpiochip_remove_pin_ranges(struct gpio_chip *chip)
{struct gpio_pin_range *pin_range, *tmp;struct gpio_device *gdev = chip->gpiodev;list_for_each_entry_safe(pin_range, tmp, &gdev->pin_ranges, node) {list_del(&pin_range->node);pinctrl_remove_gpio_range(pin_range->pctldev,&pin_range->range);kfree(pin_range);}
}
EXPORT_SYMBOL_GPL(gpiochip_remove_pin_ranges);#endif /* CONFIG_PINCTRL *//* These "optional" allocation calls help prevent drivers from stomping* on each other, and help provide better diagnostics in debugfs.* They're called even less than the "set direction" calls.*/
static int gpiod_request_commit(struct gpio_desc *desc, const char *label)
{struct gpio_chip *chip = desc->gdev->chip;int status;unsigned long flags;unsigned offset;if (label) {label = kstrdup_const(label, GFP_KERNEL);if (!label)return -ENOMEM;}spin_lock_irqsave(&gpio_lock, flags);/* NOTE: gpio_request() can be called in early boot,* before IRQs are enabled, for non-sleeping (SOC) GPIOs.*/if (test_and_set_bit(FLAG_REQUESTED, &desc->flags) == 0) {desc_set_label(desc, label ? : "?");status = 0;} else {kfree_const(label);status = -EBUSY;goto done;}if (chip->request) {/* chip->request may sleep */spin_unlock_irqrestore(&gpio_lock, flags);offset = gpio_chip_hwgpio(desc);if (gpiochip_line_is_valid(chip, offset))status = chip->request(chip, offset);elsestatus = -EINVAL;spin_lock_irqsave(&gpio_lock, flags);if (status < 0) {desc_set_label(desc, NULL);kfree_const(label);clear_bit(FLAG_REQUESTED, &desc->flags);goto done;}}if (chip->get_direction) {/* chip->get_direction may sleep */spin_unlock_irqrestore(&gpio_lock, flags);gpiod_get_direction(desc);spin_lock_irqsave(&gpio_lock, flags);}
done:spin_unlock_irqrestore(&gpio_lock, flags);return status;
}/** This descriptor validation needs to be inserted verbatim into each* function taking a descriptor, so we need to use a preprocessor* macro to avoid endless duplication. If the desc is NULL it is an* optional GPIO and calls should just bail out.*/
static int validate_desc(const struct gpio_desc *desc, const char *func)
{if (!desc)return 0;if (IS_ERR(desc)) {pr_warn("%s: invalid GPIO (errorpointer)\n", func);return PTR_ERR(desc);}if (!desc->gdev) {pr_warn("%s: invalid GPIO (no device)\n", func);return -EINVAL;}if (!desc->gdev->chip) {dev_warn(&desc->gdev->dev,"%s: backing chip is gone\n", func);return 0;}return 1;
}#define VALIDATE_DESC(desc) do { \int __valid = validate_desc(desc, __func__); \if (__valid <= 0) \return __valid; \} while (0)#define VALIDATE_DESC_VOID(desc) do { \int __valid = validate_desc(desc, __func__); \if (__valid <= 0) \return; \} while (0)int gpiod_request(struct gpio_desc *desc, const char *label)
{int status = -EPROBE_DEFER;struct gpio_device *gdev;VALIDATE_DESC(desc);gdev = desc->gdev;if (try_module_get(gdev->owner)) {status = gpiod_request_commit(desc, label);if (status < 0)module_put(gdev->owner);elseget_device(&gdev->dev);}if (status)gpiod_dbg(desc, "%s: status %d\n", __func__, status);return status;
}static bool gpiod_free_commit(struct gpio_desc *desc)
{bool ret = false;unsigned long flags;struct gpio_chip *chip;might_sleep();gpiod_unexport(desc);spin_lock_irqsave(&gpio_lock, flags);chip = desc->gdev->chip;if (chip && test_bit(FLAG_REQUESTED, &desc->flags)) {if (chip->free) {spin_unlock_irqrestore(&gpio_lock, flags);might_sleep_if(chip->can_sleep);chip->free(chip, gpio_chip_hwgpio(desc));spin_lock_irqsave(&gpio_lock, flags);}kfree_const(desc->label);desc_set_label(desc, NULL);clear_bit(FLAG_ACTIVE_LOW, &desc->flags);clear_bit(FLAG_REQUESTED, &desc->flags);clear_bit(FLAG_OPEN_DRAIN, &desc->flags);clear_bit(FLAG_OPEN_SOURCE, &desc->flags);clear_bit(FLAG_IS_HOGGED, &desc->flags);ret = true;}spin_unlock_irqrestore(&gpio_lock, flags);return ret;
}void gpiod_free(struct gpio_desc *desc)
{if (desc && desc->gdev && gpiod_free_commit(desc)) {module_put(desc->gdev->owner);put_device(&desc->gdev->dev);} else {WARN_ON(extra_checks);}
}/*** gpiochip_is_requested - return string iff signal was requested* @chip: controller managing the signal* @offset: of signal within controller's 0..(ngpio - 1) range** Returns NULL if the GPIO is not currently requested, else a string.* The string returned is the label passed to gpio_request(); if none has been* passed it is a meaningless, non-NULL constant.** This function is for use by GPIO controller drivers. The label can* help with diagnostics, and knowing that the signal is used as a GPIO* can help avoid accidentally multiplexing it to another controller.*/
const char *gpiochip_is_requested(struct gpio_chip *chip, unsigned offset)
{struct gpio_desc *desc;if (offset >= chip->ngpio)return NULL;desc = &chip->gpiodev->descs[offset];if (test_bit(FLAG_REQUESTED, &desc->flags) == 0)return NULL;return desc->label;
}
EXPORT_SYMBOL_GPL(gpiochip_is_requested);/*** gpiochip_request_own_desc - Allow GPIO chip to request its own descriptor* @chip: GPIO chip* @hwnum: hardware number of the GPIO for which to request the descriptor* @label: label for the GPIO** Function allows GPIO chip drivers to request and use their own GPIO* descriptors via gpiolib API. Difference to gpiod_request() is that this* function will not increase reference count of the GPIO chip module. This* allows the GPIO chip module to be unloaded as needed (we assume that the* GPIO chip driver handles freeing the GPIOs it has requested).** Returns:* A pointer to the GPIO descriptor, or an ERR_PTR()-encoded negative error* code on failure.*/
struct gpio_desc *gpiochip_request_own_desc(struct gpio_chip *chip, u16 hwnum,const char *label)
{struct gpio_desc *desc = gpiochip_get_desc(chip, hwnum);int err;if (IS_ERR(desc)) {chip_err(chip, "failed to get GPIO descriptor\n");return desc;}err = gpiod_request_commit(desc, label);if (err < 0)return ERR_PTR(err);return desc;
}
EXPORT_SYMBOL_GPL(gpiochip_request_own_desc);/*** gpiochip_free_own_desc - Free GPIO requested by the chip driver* @desc: GPIO descriptor to free** Function frees the given GPIO requested previously with* gpiochip_request_own_desc().*/
void gpiochip_free_own_desc(struct gpio_desc *desc)
{if (desc)gpiod_free_commit(desc);
}
EXPORT_SYMBOL_GPL(gpiochip_free_own_desc);/** Drivers MUST set GPIO direction before making get/set calls. In* some cases this is done in early boot, before IRQs are enabled.** As a rule these aren't called more than once (except for drivers* using the open-drain emulation idiom) so these are natural places* to accumulate extra debugging checks. Note that we can't (yet)* rely on gpio_request() having been called beforehand.*//*** gpiod_direction_input - set the GPIO direction to input* @desc: GPIO to set to input** Set the direction of the passed GPIO to input, such as gpiod_get_value() can* be called safely on it.** Return 0 in case of success, else an error code.*/
int gpiod_direction_input(struct gpio_desc *desc)
{struct gpio_chip *chip;int status = 0;VALIDATE_DESC(desc);chip = desc->gdev->chip;if (!chip->get && chip->direction_input) {gpiod_warn(desc,"%s: missing get() and direction_input() operations\n",__func__);return -EIO;}if (chip->direction_input) {status = chip->direction_input(chip, gpio_chip_hwgpio(desc));} else if (chip->get_direction &&(chip->get_direction(chip, gpio_chip_hwgpio(desc)) != 1)) {gpiod_warn(desc,"%s: missing direction_input() operation\n",__func__);return -EIO;}if (status == 0)clear_bit(FLAG_IS_OUT, &desc->flags);trace_gpio_direction(desc_to_gpio(desc), 1, status);return status;
}
EXPORT_SYMBOL_GPL(gpiod_direction_input);static int gpio_set_drive_single_ended(struct gpio_chip *gc, unsigned offset,enum pin_config_param mode)
{unsigned long config = { PIN_CONF_PACKED(mode, 0) };return gc->set_config ? gc->set_config(gc, offset, config) : -ENOTSUPP;
}static int gpiod_direction_output_raw_commit(struct gpio_desc *desc, int value)
{struct gpio_chip *gc = desc->gdev->chip;int val = !!value;int ret = 0;if (!gc->set && !gc->direction_output) {gpiod_warn(desc,"%s: missing set() and direction_output() operations\n",__func__);return -EIO;}if (gc->direction_output) {ret = gc->direction_output(gc, gpio_chip_hwgpio(desc), val);} else {if (gc->get_direction &&gc->get_direction(gc, gpio_chip_hwgpio(desc))) {gpiod_warn(desc,"%s: missing direction_output() operation\n",__func__);return -EIO;}gc->set(gc, gpio_chip_hwgpio(desc), val);}if (!ret)set_bit(FLAG_IS_OUT, &desc->flags);trace_gpio_value(desc_to_gpio(desc), 0, val);trace_gpio_direction(desc_to_gpio(desc), 0, ret);return ret;
}/*** gpiod_direction_output_raw - set the GPIO direction to output* @desc: GPIO to set to output* @value: initial output value of the GPIO** Set the direction of the passed GPIO to output, such as gpiod_set_value() can* be called safely on it. The initial value of the output must be specified* as raw value on the physical line without regard for the ACTIVE_LOW status.** Return 0 in case of success, else an error code.*/
int gpiod_direction_output_raw(struct gpio_desc *desc, int value)
{VALIDATE_DESC(desc);return gpiod_direction_output_raw_commit(desc, value);
}
EXPORT_SYMBOL_GPL(gpiod_direction_output_raw);/*** gpiod_direction_output - set the GPIO direction to output* @desc: GPIO to set to output* @value: initial output value of the GPIO** Set the direction of the passed GPIO to output, such as gpiod_set_value() can* be called safely on it. The initial value of the output must be specified* as the logical value of the GPIO, i.e. taking its ACTIVE_LOW status into* account.** Return 0 in case of success, else an error code.*/
int gpiod_direction_output(struct gpio_desc *desc, int value)
{struct gpio_chip *gc;int ret;VALIDATE_DESC(desc);if (test_bit(FLAG_ACTIVE_LOW, &desc->flags))value = !value;elsevalue = !!value;/* GPIOs used for IRQs shall not be set as output */if (test_bit(FLAG_USED_AS_IRQ, &desc->flags)) {gpiod_err(desc,"%s: tried to set a GPIO tied to an IRQ as output\n",__func__);return -EIO;}gc = desc->gdev->chip;if (test_bit(FLAG_OPEN_DRAIN, &desc->flags)) {/* First see if we can enable open drain in hardware */ret = gpio_set_drive_single_ended(gc, gpio_chip_hwgpio(desc),PIN_CONFIG_DRIVE_OPEN_DRAIN);if (!ret)goto set_output_value;/* Emulate open drain by not actively driving the line high */if (value) {ret = gpiod_direction_input(desc);goto set_output_flag;}}else if (test_bit(FLAG_OPEN_SOURCE, &desc->flags)) {ret = gpio_set_drive_single_ended(gc, gpio_chip_hwgpio(desc),PIN_CONFIG_DRIVE_OPEN_SOURCE);if (!ret)goto set_output_value;/* Emulate open source by not actively driving the line low */if (!value) {ret = gpiod_direction_input(desc);goto set_output_flag;}} else {gpio_set_drive_single_ended(gc, gpio_chip_hwgpio(desc),PIN_CONFIG_DRIVE_PUSH_PULL);}set_output_value:return gpiod_direction_output_raw_commit(desc, value);set_output_flag:/** When emulating open-source or open-drain functionalities by not* actively driving the line (setting mode to input) we still need to* set the IS_OUT flag or otherwise we won't be able to set the line* value anymore.*/if (ret == 0)set_bit(FLAG_IS_OUT, &desc->flags);return ret;
}
EXPORT_SYMBOL_GPL(gpiod_direction_output);/*** gpiod_set_debounce - sets @debounce time for a GPIO* @desc: descriptor of the GPIO for which to set debounce time* @debounce: debounce time in microseconds** Returns:* 0 on success, %-ENOTSUPP if the controller doesn't support setting the* debounce time.*/
int gpiod_set_debounce(struct gpio_desc *desc, unsigned debounce)
{struct gpio_chip *chip;unsigned long config;VALIDATE_DESC(desc);chip = desc->gdev->chip;if (!chip->set || !chip->set_config) {gpiod_dbg(desc,"%s: missing set() or set_config() operations\n",__func__);return -ENOTSUPP;}config = pinconf_to_config_packed(PIN_CONFIG_INPUT_DEBOUNCE, debounce);return chip->set_config(chip, gpio_chip_hwgpio(desc), config);
}
EXPORT_SYMBOL_GPL(gpiod_set_debounce);/*** gpiod_set_transitory - Lose or retain GPIO state on suspend or reset* @desc: descriptor of the GPIO for which to configure persistence* @transitory: True to lose state on suspend or reset, false for persistence** Returns:* 0 on success, otherwise a negative error code.*/
int gpiod_set_transitory(struct gpio_desc *desc, bool transitory)
{struct gpio_chip *chip;unsigned long packed;int gpio;int rc;VALIDATE_DESC(desc);/** Handle FLAG_TRANSITORY first, enabling queries to gpiolib for* persistence state.*/if (transitory)set_bit(FLAG_TRANSITORY, &desc->flags);elseclear_bit(FLAG_TRANSITORY, &desc->flags);/* If the driver supports it, set the persistence state now */chip = desc->gdev->chip;if (!chip->set_config)return 0;packed = pinconf_to_config_packed(PIN_CONFIG_PERSIST_STATE,!transitory);gpio = gpio_chip_hwgpio(desc);rc = chip->set_config(chip, gpio, packed);if (rc == -ENOTSUPP) {dev_dbg(&desc->gdev->dev, "Persistence not supported for GPIO %d\n",gpio);return 0;}return rc;
}
EXPORT_SYMBOL_GPL(gpiod_set_transitory);/*** gpiod_is_active_low - test whether a GPIO is active-low or not* @desc: the gpio descriptor to test** Returns 1 if the GPIO is active-low, 0 otherwise.*/
int gpiod_is_active_low(const struct gpio_desc *desc)
{VALIDATE_DESC(desc);return test_bit(FLAG_ACTIVE_LOW, &desc->flags);
}
EXPORT_SYMBOL_GPL(gpiod_is_active_low);/* I/O calls are only valid after configuration completed; the relevant* "is this a valid GPIO" error checks should already have been done.** "Get" operations are often inlinable as reading a pin value register,* and masking the relevant bit in that register.** When "set" operations are inlinable, they involve writing that mask to* one register to set a low value, or a different register to set it high.* Otherwise locking is needed, so there may be little value to inlining.**------------------------------------------------------------------------** IMPORTANT!!! The hot paths -- get/set value -- assume that callers* have requested the GPIO. That can include implicit requesting by* a direction setting call. Marking a gpio as requested locks its chip* in memory, guaranteeing that these table lookups need no more locking* and that gpiochip_remove() will fail.** REVISIT when debugging, consider adding some instrumentation to ensure* that the GPIO was actually requested.*/static int gpiod_get_raw_value_commit(const struct gpio_desc *desc)
{struct gpio_chip *chip;int offset;int value;chip = desc->gdev->chip;offset = gpio_chip_hwgpio(desc);value = chip->get ? chip->get(chip, offset) : -EIO;value = value < 0 ? value : !!value;trace_gpio_value(desc_to_gpio(desc), 1, value);return value;
}static int gpio_chip_get_multiple(struct gpio_chip *chip,unsigned long *mask, unsigned long *bits)
{if (chip->get_multiple) {return chip->get_multiple(chip, mask, bits);} else if (chip->get) {int i, value;for_each_set_bit(i, mask, chip->ngpio) {value = chip->get(chip, i);if (value < 0)return value;__assign_bit(i, bits, value);}return 0;}return -EIO;
}int gpiod_get_array_value_complex(bool raw, bool can_sleep,unsigned int array_size,struct gpio_desc **desc_array,int *value_array)
{int i = 0;while (i < array_size) {struct gpio_chip *chip = desc_array[i]->gdev->chip;unsigned long fastpath[2 * BITS_TO_LONGS(FASTPATH_NGPIO)];unsigned long *mask, *bits;int first, j, ret;if (likely(chip->ngpio <= FASTPATH_NGPIO)) {mask = fastpath;} else {mask = kmalloc_array(2 * BITS_TO_LONGS(chip->ngpio),sizeof(*mask),can_sleep ? GFP_KERNEL : GFP_ATOMIC);if (!mask)return -ENOMEM;}bits = mask + BITS_TO_LONGS(chip->ngpio);bitmap_zero(mask, chip->ngpio);if (!can_sleep)WARN_ON(chip->can_sleep);/* collect all inputs belonging to the same chip */first = i;do {const struct gpio_desc *desc = desc_array[i];int hwgpio = gpio_chip_hwgpio(desc);__set_bit(hwgpio, mask);i++;} while ((i < array_size) &&(desc_array[i]->gdev->chip == chip));ret = gpio_chip_get_multiple(chip, mask, bits);if (ret) {if (mask != fastpath)kfree(mask);return ret;}for (j = first; j < i; j++) {const struct gpio_desc *desc = desc_array[j];int hwgpio = gpio_chip_hwgpio(desc);int value = test_bit(hwgpio, bits);if (!raw && test_bit(FLAG_ACTIVE_LOW, &desc->flags))value = !value;value_array[j] = value;trace_gpio_value(desc_to_gpio(desc), 1, value);}if (mask != fastpath)kfree(mask);}return 0;
}/*** gpiod_get_raw_value() - return a gpio's raw value* @desc: gpio whose value will be returned** Return the GPIO's raw value, i.e. the value of the physical line disregarding* its ACTIVE_LOW status, or negative errno on failure.** This function should be called from contexts where we cannot sleep, and will* complain if the GPIO chip functions potentially sleep.*/
int gpiod_get_raw_value(const struct gpio_desc *desc)
{VALIDATE_DESC(desc);/* Should be using gpiod_get_raw_value_cansleep() */WARN_ON(desc->gdev->chip->can_sleep);return gpiod_get_raw_value_commit(desc);
}
EXPORT_SYMBOL_GPL(gpiod_get_raw_value);/*** gpiod_get_value() - return a gpio's value* @desc: gpio whose value will be returned** Return the GPIO's logical value, i.e. taking the ACTIVE_LOW status into* account, or negative errno on failure.** This function should be called from contexts where we cannot sleep, and will* complain if the GPIO chip functions potentially sleep.*/
int gpiod_get_value(const struct gpio_desc *desc)
{int value;VALIDATE_DESC(desc);/* Should be using gpiod_get_value_cansleep() */WARN_ON(desc->gdev->chip->can_sleep);value = gpiod_get_raw_value_commit(desc);if (value < 0)return value;if (test_bit(FLAG_ACTIVE_LOW, &desc->flags))value = !value;return value;
}
EXPORT_SYMBOL_GPL(gpiod_get_value);/*** gpiod_get_raw_array_value() - read raw values from an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be read* @value_array: array to store the read values** Read the raw values of the GPIOs, i.e. the values of the physical lines* without regard for their ACTIVE_LOW status. Return 0 in case of success,* else an error code.** This function should be called from contexts where we cannot sleep,* and it will complain if the GPIO chip functions potentially sleep.*/
int gpiod_get_raw_array_value(unsigned int array_size,struct gpio_desc **desc_array, int *value_array)
{if (!desc_array)return -EINVAL;return gpiod_get_array_value_complex(true, false, array_size,desc_array, value_array);
}
EXPORT_SYMBOL_GPL(gpiod_get_raw_array_value);/*** gpiod_get_array_value() - read values from an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be read* @value_array: array to store the read values** Read the logical values of the GPIOs, i.e. taking their ACTIVE_LOW status* into account. Return 0 in case of success, else an error code.** This function should be called from contexts where we cannot sleep,* and it will complain if the GPIO chip functions potentially sleep.*/
int gpiod_get_array_value(unsigned int array_size,struct gpio_desc **desc_array, int *value_array)
{if (!desc_array)return -EINVAL;return gpiod_get_array_value_complex(false, false, array_size,desc_array, value_array);
}
EXPORT_SYMBOL_GPL(gpiod_get_array_value);/** gpio_set_open_drain_value_commit() - Set the open drain gpio's value.* @desc: gpio descriptor whose state need to be set.* @value: Non-zero for setting it HIGH otherwise it will set to LOW.*/
static void gpio_set_open_drain_value_commit(struct gpio_desc *desc, bool value)
{int err = 0;struct gpio_chip *chip = desc->gdev->chip;int offset = gpio_chip_hwgpio(desc);if (value) {err = chip->direction_input(chip, offset);} else {err = chip->direction_output(chip, offset, 0);if (!err)set_bit(FLAG_IS_OUT, &desc->flags);}trace_gpio_direction(desc_to_gpio(desc), value, err);if (err < 0)gpiod_err(desc,"%s: Error in set_value for open drain err %d\n",__func__, err);
}/** _gpio_set_open_source_value() - Set the open source gpio's value.* @desc: gpio descriptor whose state need to be set.* @value: Non-zero for setting it HIGH otherwise it will set to LOW.*/
static void gpio_set_open_source_value_commit(struct gpio_desc *desc, bool value)
{int err = 0;struct gpio_chip *chip = desc->gdev->chip;int offset = gpio_chip_hwgpio(desc);if (value) {err = chip->direction_output(chip, offset, 1);if (!err)set_bit(FLAG_IS_OUT, &desc->flags);} else {err = chip->direction_input(chip, offset);}trace_gpio_direction(desc_to_gpio(desc), !value, err);if (err < 0)gpiod_err(desc,"%s: Error in set_value for open source err %d\n",__func__, err);
}static void gpiod_set_raw_value_commit(struct gpio_desc *desc, bool value)
{struct gpio_chip *chip;chip = desc->gdev->chip;trace_gpio_value(desc_to_gpio(desc), 0, value);chip->set(chip, gpio_chip_hwgpio(desc), value);
}/** set multiple outputs on the same chip;* use the chip's set_multiple function if available;* otherwise set the outputs sequentially;* @mask: bit mask array; one bit per output; BITS_PER_LONG bits per word* defines which outputs are to be changed* @bits: bit value array; one bit per output; BITS_PER_LONG bits per word* defines the values the outputs specified by mask are to be set to*/
static void gpio_chip_set_multiple(struct gpio_chip *chip,unsigned long *mask, unsigned long *bits)
{if (chip->set_multiple) {chip->set_multiple(chip, mask, bits);} else {unsigned int i;/* set outputs if the corresponding mask bit is set */for_each_set_bit(i, mask, chip->ngpio)chip->set(chip, i, test_bit(i, bits));}
}int gpiod_set_array_value_complex(bool raw, bool can_sleep,unsigned int array_size,struct gpio_desc **desc_array,int *value_array)
{int i = 0;while (i < array_size) {struct gpio_chip *chip = desc_array[i]->gdev->chip;unsigned long fastpath[2 * BITS_TO_LONGS(FASTPATH_NGPIO)];unsigned long *mask, *bits;int count = 0;if (likely(chip->ngpio <= FASTPATH_NGPIO)) {mask = fastpath;} else {mask = kmalloc_array(2 * BITS_TO_LONGS(chip->ngpio),sizeof(*mask),can_sleep ? GFP_KERNEL : GFP_ATOMIC);if (!mask)return -ENOMEM;}bits = mask + BITS_TO_LONGS(chip->ngpio);bitmap_zero(mask, chip->ngpio);if (!can_sleep)WARN_ON(chip->can_sleep);do {struct gpio_desc *desc = desc_array[i];int hwgpio = gpio_chip_hwgpio(desc);int value = value_array[i];if (!raw && test_bit(FLAG_ACTIVE_LOW, &desc->flags))value = !value;trace_gpio_value(desc_to_gpio(desc), 0, value);/** collect all normal outputs belonging to the same chip* open drain and open source outputs are set individually*/if (test_bit(FLAG_OPEN_DRAIN, &desc->flags) && !raw) {gpio_set_open_drain_value_commit(desc, value);} else if (test_bit(FLAG_OPEN_SOURCE, &desc->flags) && !raw) {gpio_set_open_source_value_commit(desc, value);} else {__set_bit(hwgpio, mask);if (value)__set_bit(hwgpio, bits);else__clear_bit(hwgpio, bits);count++;}i++;} while ((i < array_size) &&(desc_array[i]->gdev->chip == chip));/* push collected bits to outputs */if (count != 0)gpio_chip_set_multiple(chip, mask, bits);if (mask != fastpath)kfree(mask);}return 0;
}/*** gpiod_set_raw_value() - assign a gpio's raw value* @desc: gpio whose value will be assigned* @value: value to assign** Set the raw value of the GPIO, i.e. the value of its physical line without* regard for its ACTIVE_LOW status.** This function should be called from contexts where we cannot sleep, and will* complain if the GPIO chip functions potentially sleep.*/
void gpiod_set_raw_value(struct gpio_desc *desc, int value)
{VALIDATE_DESC_VOID(desc);/* Should be using gpiod_set_raw_value_cansleep() */WARN_ON(desc->gdev->chip->can_sleep);gpiod_set_raw_value_commit(desc, value);
}
EXPORT_SYMBOL_GPL(gpiod_set_raw_value);/*** gpiod_set_value_nocheck() - set a GPIO line value without checking* @desc: the descriptor to set the value on* @value: value to set** This sets the value of a GPIO line backing a descriptor, applying* different semantic quirks like active low and open drain/source* handling.*/
static void gpiod_set_value_nocheck(struct gpio_desc *desc, int value)
{if (test_bit(FLAG_ACTIVE_LOW, &desc->flags))value = !value;if (test_bit(FLAG_OPEN_DRAIN, &desc->flags))gpio_set_open_drain_value_commit(desc, value);else if (test_bit(FLAG_OPEN_SOURCE, &desc->flags))gpio_set_open_source_value_commit(desc, value);elsegpiod_set_raw_value_commit(desc, value);
}/*** gpiod_set_value() - assign a gpio's value* @desc: gpio whose value will be assigned* @value: value to assign** Set the logical value of the GPIO, i.e. taking its ACTIVE_LOW,* OPEN_DRAIN and OPEN_SOURCE flags into account.** This function should be called from contexts where we cannot sleep, and will* complain if the GPIO chip functions potentially sleep.*/
void gpiod_set_value(struct gpio_desc *desc, int value)
{VALIDATE_DESC_VOID(desc);/* Should be using gpiod_set_value_cansleep() */WARN_ON(desc->gdev->chip->can_sleep);gpiod_set_value_nocheck(desc, value);
}
EXPORT_SYMBOL_GPL(gpiod_set_value);/*** gpiod_set_raw_array_value() - assign values to an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be assigned* @value_array: array of values to assign** Set the raw values of the GPIOs, i.e. the values of the physical lines* without regard for their ACTIVE_LOW status.** This function should be called from contexts where we cannot sleep, and will* complain if the GPIO chip functions potentially sleep.*/
int gpiod_set_raw_array_value(unsigned int array_size,struct gpio_desc **desc_array, int *value_array)
{if (!desc_array)return -EINVAL;return gpiod_set_array_value_complex(true, false, array_size,desc_array, value_array);
}
EXPORT_SYMBOL_GPL(gpiod_set_raw_array_value);/*** gpiod_set_array_value() - assign values to an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be assigned* @value_array: array of values to assign** Set the logical values of the GPIOs, i.e. taking their ACTIVE_LOW status* into account.** This function should be called from contexts where we cannot sleep, and will* complain if the GPIO chip functions potentially sleep.*/
void gpiod_set_array_value(unsigned int array_size,struct gpio_desc **desc_array, int *value_array)
{if (!desc_array)return;gpiod_set_array_value_complex(false, false, array_size, desc_array,value_array);
}
EXPORT_SYMBOL_GPL(gpiod_set_array_value);/*** gpiod_cansleep() - report whether gpio value access may sleep* @desc: gpio to check**/
int gpiod_cansleep(const struct gpio_desc *desc)
{VALIDATE_DESC(desc);return desc->gdev->chip->can_sleep;
}
EXPORT_SYMBOL_GPL(gpiod_cansleep);/*** gpiod_set_consumer_name() - set the consumer name for the descriptor* @desc: gpio to set the consumer name on* @name: the new consumer name*/
int gpiod_set_consumer_name(struct gpio_desc *desc, const char *name)
{VALIDATE_DESC(desc);if (name) {name = kstrdup_const(name, GFP_KERNEL);if (!name)return -ENOMEM;}kfree_const(desc->label);desc_set_label(desc, name);return 0;
}
EXPORT_SYMBOL_GPL(gpiod_set_consumer_name);/*** gpiod_to_irq() - return the IRQ corresponding to a GPIO* @desc: gpio whose IRQ will be returned (already requested)** Return the IRQ corresponding to the passed GPIO, or an error code in case of* error.*/
int gpiod_to_irq(const struct gpio_desc *desc)
{struct gpio_chip *chip;int offset;/** Cannot VALIDATE_DESC() here as gpiod_to_irq() consumer semantics* requires this function to not return zero on an invalid descriptor* but rather a negative error number.*/if (!desc || IS_ERR(desc) || !desc->gdev || !desc->gdev->chip)return -EINVAL;chip = desc->gdev->chip;offset = gpio_chip_hwgpio(desc);if (chip->to_irq) {int retirq = chip->to_irq(chip, offset);/* Zero means NO_IRQ */if (!retirq)return -ENXIO;return retirq;}return -ENXIO;
}
EXPORT_SYMBOL_GPL(gpiod_to_irq);/*** gpiochip_lock_as_irq() - lock a GPIO to be used as IRQ* @chip: the chip the GPIO to lock belongs to* @offset: the offset of the GPIO to lock as IRQ** This is used directly by GPIO drivers that want to lock down* a certain GPIO line to be used for IRQs.*/
int gpiochip_lock_as_irq(struct gpio_chip *chip, unsigned int offset)
{struct gpio_desc *desc;desc = gpiochip_get_desc(chip, offset);if (IS_ERR(desc))return PTR_ERR(desc);/** If it's fast: flush the direction setting if something changed* behind our back*/if (!chip->can_sleep && chip->get_direction) {int dir = gpiod_get_direction(desc);if (dir < 0) {chip_err(chip, "%s: cannot get GPIO direction\n",__func__);return dir;}}if (test_bit(FLAG_IS_OUT, &desc->flags)) {chip_err(chip,"%s: tried to flag a GPIO set as output for IRQ\n",__func__);return -EIO;}set_bit(FLAG_USED_AS_IRQ, &desc->flags);/** If the consumer has not set up a label (such as when the* IRQ is referenced from .to_irq()) we set up a label here* so it is clear this is used as an interrupt.*/if (!desc->label)desc_set_label(desc, "interrupt");return 0;
}
EXPORT_SYMBOL_GPL(gpiochip_lock_as_irq);/*** gpiochip_unlock_as_irq() - unlock a GPIO used as IRQ* @chip: the chip the GPIO to lock belongs to* @offset: the offset of the GPIO to lock as IRQ** This is used directly by GPIO drivers that want to indicate* that a certain GPIO is no longer used exclusively for IRQ.*/
void gpiochip_unlock_as_irq(struct gpio_chip *chip, unsigned int offset)
{struct gpio_desc *desc;desc = gpiochip_get_desc(chip, offset);if (IS_ERR(desc))return;clear_bit(FLAG_USED_AS_IRQ, &desc->flags);/* If we only had this marking, erase it */if (desc->label && !strcmp(desc->label, "interrupt"))desc_set_label(desc, NULL);
}
EXPORT_SYMBOL_GPL(gpiochip_unlock_as_irq);bool gpiochip_line_is_irq(struct gpio_chip *chip, unsigned int offset)
{if (offset >= chip->ngpio)return false;return test_bit(FLAG_USED_AS_IRQ, &chip->gpiodev->descs[offset].flags);
}
EXPORT_SYMBOL_GPL(gpiochip_line_is_irq);bool gpiochip_line_is_open_drain(struct gpio_chip *chip, unsigned int offset)
{if (offset >= chip->ngpio)return false;return test_bit(FLAG_OPEN_DRAIN, &chip->gpiodev->descs[offset].flags);
}
EXPORT_SYMBOL_GPL(gpiochip_line_is_open_drain);bool gpiochip_line_is_open_source(struct gpio_chip *chip, unsigned int offset)
{if (offset >= chip->ngpio)return false;return test_bit(FLAG_OPEN_SOURCE, &chip->gpiodev->descs[offset].flags);
}
EXPORT_SYMBOL_GPL(gpiochip_line_is_open_source);bool gpiochip_line_is_persistent(struct gpio_chip *chip, unsigned int offset)
{if (offset >= chip->ngpio)return false;return !test_bit(FLAG_TRANSITORY, &chip->gpiodev->descs[offset].flags);
}
EXPORT_SYMBOL_GPL(gpiochip_line_is_persistent);/*** gpiod_get_raw_value_cansleep() - return a gpio's raw value* @desc: gpio whose value will be returned** Return the GPIO's raw value, i.e. the value of the physical line disregarding* its ACTIVE_LOW status, or negative errno on failure.** This function is to be called from contexts that can sleep.*/
int gpiod_get_raw_value_cansleep(const struct gpio_desc *desc)
{might_sleep_if(extra_checks);VALIDATE_DESC(desc);return gpiod_get_raw_value_commit(desc);
}
EXPORT_SYMBOL_GPL(gpiod_get_raw_value_cansleep);/*** gpiod_get_value_cansleep() - return a gpio's value* @desc: gpio whose value will be returned** Return the GPIO's logical value, i.e. taking the ACTIVE_LOW status into* account, or negative errno on failure.** This function is to be called from contexts that can sleep.*/
int gpiod_get_value_cansleep(const struct gpio_desc *desc)
{int value;might_sleep_if(extra_checks);VALIDATE_DESC(desc);value = gpiod_get_raw_value_commit(desc);if (value < 0)return value;if (test_bit(FLAG_ACTIVE_LOW, &desc->flags))value = !value;return value;
}
EXPORT_SYMBOL_GPL(gpiod_get_value_cansleep);/*** gpiod_get_raw_array_value_cansleep() - read raw values from an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be read* @value_array: array to store the read values** Read the raw values of the GPIOs, i.e. the values of the physical lines* without regard for their ACTIVE_LOW status. Return 0 in case of success,* else an error code.** This function is to be called from contexts that can sleep.*/
int gpiod_get_raw_array_value_cansleep(unsigned int array_size,struct gpio_desc **desc_array,int *value_array)
{might_sleep_if(extra_checks);if (!desc_array)return -EINVAL;return gpiod_get_array_value_complex(true, true, array_size,desc_array, value_array);
}
EXPORT_SYMBOL_GPL(gpiod_get_raw_array_value_cansleep);/*** gpiod_get_array_value_cansleep() - read values from an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be read* @value_array: array to store the read values** Read the logical values of the GPIOs, i.e. taking their ACTIVE_LOW status* into account. Return 0 in case of success, else an error code.** This function is to be called from contexts that can sleep.*/
int gpiod_get_array_value_cansleep(unsigned int array_size,struct gpio_desc **desc_array,int *value_array)
{might_sleep_if(extra_checks);if (!desc_array)return -EINVAL;return gpiod_get_array_value_complex(false, true, array_size,desc_array, value_array);
}
EXPORT_SYMBOL_GPL(gpiod_get_array_value_cansleep);/*** gpiod_set_raw_value_cansleep() - assign a gpio's raw value* @desc: gpio whose value will be assigned* @value: value to assign** Set the raw value of the GPIO, i.e. the value of its physical line without* regard for its ACTIVE_LOW status.** This function is to be called from contexts that can sleep.*/
void gpiod_set_raw_value_cansleep(struct gpio_desc *desc, int value)
{might_sleep_if(extra_checks);VALIDATE_DESC_VOID(desc);gpiod_set_raw_value_commit(desc, value);
}
EXPORT_SYMBOL_GPL(gpiod_set_raw_value_cansleep);/*** gpiod_set_value_cansleep() - assign a gpio's value* @desc: gpio whose value will be assigned* @value: value to assign** Set the logical value of the GPIO, i.e. taking its ACTIVE_LOW status into* account** This function is to be called from contexts that can sleep.*/
void gpiod_set_value_cansleep(struct gpio_desc *desc, int value)
{might_sleep_if(extra_checks);VALIDATE_DESC_VOID(desc);gpiod_set_value_nocheck(desc, value);
}
EXPORT_SYMBOL_GPL(gpiod_set_value_cansleep);/*** gpiod_set_raw_array_value_cansleep() - assign values to an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be assigned* @value_array: array of values to assign** Set the raw values of the GPIOs, i.e. the values of the physical lines* without regard for their ACTIVE_LOW status.** This function is to be called from contexts that can sleep.*/
int gpiod_set_raw_array_value_cansleep(unsigned int array_size,struct gpio_desc **desc_array,int *value_array)
{might_sleep_if(extra_checks);if (!desc_array)return -EINVAL;return gpiod_set_array_value_complex(true, true, array_size, desc_array,value_array);
}
EXPORT_SYMBOL_GPL(gpiod_set_raw_array_value_cansleep);/*** gpiod_add_lookup_tables() - register GPIO device consumers* @tables: list of tables of consumers to register* @n: number of tables in the list*/
void gpiod_add_lookup_tables(struct gpiod_lookup_table **tables, size_t n)
{unsigned int i;mutex_lock(&gpio_lookup_lock);for (i = 0; i < n; i++)list_add_tail(&tables[i]->list, &gpio_lookup_list);mutex_unlock(&gpio_lookup_lock);
}/*** gpiod_set_array_value_cansleep() - assign values to an array of GPIOs* @array_size: number of elements in the descriptor / value arrays* @desc_array: array of GPIO descriptors whose values will be assigned* @value_array: array of values to assign** Set the logical values of the GPIOs, i.e. taking their ACTIVE_LOW status* into account.** This function is to be called from contexts that can sleep.*/
void gpiod_set_array_value_cansleep(unsigned int array_size,struct gpio_desc **desc_array,int *value_array)
{might_sleep_if(extra_checks);if (!desc_array)return;gpiod_set_array_value_complex(false, true, array_size, desc_array,value_array);
}
EXPORT_SYMBOL_GPL(gpiod_set_array_value_cansleep);/*** gpiod_add_lookup_table() - register GPIO device consumers* @table: table of consumers to register*/
void gpiod_add_lookup_table(struct gpiod_lookup_table *table)
{mutex_lock(&gpio_lookup_lock);list_add_tail(&table->list, &gpio_lookup_list);mutex_unlock(&gpio_lookup_lock);
}
EXPORT_SYMBOL_GPL(gpiod_add_lookup_table);/*** gpiod_remove_lookup_table() - unregister GPIO device consumers* @table: table of consumers to unregister*/
void gpiod_remove_lookup_table(struct gpiod_lookup_table *table)
{mutex_lock(&gpio_lookup_lock);list_del(&table->list);mutex_unlock(&gpio_lookup_lock);
}
EXPORT_SYMBOL_GPL(gpiod_remove_lookup_table);/*** gpiod_add_hogs() - register a set of GPIO hogs from machine code* @hogs: table of gpio hog entries with a zeroed sentinel at the end*/
void gpiod_add_hogs(struct gpiod_hog *hogs)
{struct gpio_chip *chip;struct gpiod_hog *hog;mutex_lock(&gpio_machine_hogs_mutex);for (hog = &hogs[0]; hog->chip_label; hog++) {list_add_tail(&hog->list, &gpio_machine_hogs);/** The chip may have been registered earlier, so check if it* exists and, if so, try to hog the line now.*/chip = find_chip_by_name(hog->chip_label);if (chip)gpiochip_machine_hog(chip, hog);}mutex_unlock(&gpio_machine_hogs_mutex);
}
EXPORT_SYMBOL_GPL(gpiod_add_hogs);static struct gpiod_lookup_table *gpiod_find_lookup_table(struct device *dev)
{const char *dev_id = dev ? dev_name(dev) : NULL;struct gpiod_lookup_table *table;mutex_lock(&gpio_lookup_lock);list_for_each_entry(table, &gpio_lookup_list, list) {if (table->dev_id && dev_id) {/** Valid strings on both ends, must be identical to have* a match*/if (!strcmp(table->dev_id, dev_id))goto found;} else {/** One of the pointers is NULL, so both must be to have* a match*/if (dev_id == table->dev_id)goto found;}}table = NULL;found:mutex_unlock(&gpio_lookup_lock);return table;
}static struct gpio_desc *gpiod_find(struct device *dev, const char *con_id,unsigned int idx,enum gpio_lookup_flags *flags)
{struct gpio_desc *desc = ERR_PTR(-ENOENT);struct gpiod_lookup_table *table;struct gpiod_lookup *p;table = gpiod_find_lookup_table(dev);if (!table)return desc;for (p = &table->table[0]; p->chip_label; p++) {struct gpio_chip *chip;/* idx must always match exactly */if (p->idx != idx)continue;/* If the lookup entry has a con_id, require exact match */if (p->con_id && (!con_id || strcmp(p->con_id, con_id)))continue;chip = find_chip_by_name(p->chip_label);if (!chip) {/** As the lookup table indicates a chip with* p->chip_label should exist, assume it may* still appear later and let the interested* consumer be probed again or let the Deferred* Probe infrastructure handle the error.*/dev_warn(dev, "cannot find GPIO chip %s, deferring\n",p->chip_label);return ERR_PTR(-EPROBE_DEFER);}if (chip->ngpio <= p->chip_hwnum) {dev_err(dev,"requested GPIO %d is out of range [0..%d] for chip %s\n",idx, chip->ngpio, chip->label);return ERR_PTR(-EINVAL);}desc = gpiochip_get_desc(chip, p->chip_hwnum);*flags = p->flags;return desc;}return desc;
}static int dt_gpio_count(struct device *dev, const char *con_id)
{int ret;char propname[32];unsigned int i;for (i = 0; i < ARRAY_SIZE(gpio_suffixes); i++) {if (con_id)snprintf(propname, sizeof(propname), "%s-%s",con_id, gpio_suffixes[i]);elsesnprintf(propname, sizeof(propname), "%s",gpio_suffixes[i]);ret = of_gpio_named_count(dev->of_node, propname);if (ret > 0)break;}return ret ? ret : -ENOENT;
}static int platform_gpio_count(struct device *dev, const char *con_id)
{struct gpiod_lookup_table *table;struct gpiod_lookup *p;unsigned int count = 0;table = gpiod_find_lookup_table(dev);if (!table)return -ENOENT;for (p = &table->table[0]; p->chip_label; p++) {if ((con_id && p->con_id && !strcmp(con_id, p->con_id)) ||(!con_id && !p->con_id))count++;}if (!count)return -ENOENT;return count;
}/*** gpiod_count - return the number of GPIOs associated with a device / function* or -ENOENT if no GPIO has been assigned to the requested function* @dev: GPIO consumer, can be NULL for system-global GPIOs* @con_id: function within the GPIO consumer*/
int gpiod_count(struct device *dev, const char *con_id)
{int count = -ENOENT;if (IS_ENABLED(CONFIG_OF) && dev && dev->of_node)count = dt_gpio_count(dev, con_id);else if (IS_ENABLED(CONFIG_ACPI) && dev && ACPI_HANDLE(dev))count = acpi_gpio_count(dev, con_id);if (count < 0)count = platform_gpio_count(dev, con_id);return count;
}
EXPORT_SYMBOL_GPL(gpiod_count);/*** gpiod_get - obtain a GPIO for a given GPIO function* @dev: GPIO consumer, can be NULL for system-global GPIOs* @con_id: function within the GPIO consumer* @flags: optional GPIO initialization flags** Return the GPIO descriptor corresponding to the function con_id of device* dev, -ENOENT if no GPIO has been assigned to the requested function, or* another IS_ERR() code if an error occurred while trying to acquire the GPIO.*/
struct gpio_desc *__must_check gpiod_get(struct device *dev, const char *con_id,enum gpiod_flags flags)
{return gpiod_get_index(dev, con_id, 0, flags);
}
EXPORT_SYMBOL_GPL(gpiod_get);/*** gpiod_get_optional - obtain an optional GPIO for a given GPIO function* @dev: GPIO consumer, can be NULL for system-global GPIOs* @con_id: function within the GPIO consumer* @flags: optional GPIO initialization flags** This is equivalent to gpiod_get(), except that when no GPIO was assigned to* the requested function it will return NULL. This is convenient for drivers* that need to handle optional GPIOs.*/
struct gpio_desc *__must_check gpiod_get_optional(struct device *dev,const char *con_id,enum gpiod_flags flags)
{return gpiod_get_index_optional(dev, con_id, 0, flags);
}
EXPORT_SYMBOL_GPL(gpiod_get_optional);/*** gpiod_configure_flags - helper function to configure a given GPIO* @desc: gpio whose value will be assigned* @con_id: function within the GPIO consumer* @lflags: gpio_lookup_flags - returned from of_find_gpio() or* of_get_gpio_hog()* @dflags: gpiod_flags - optional GPIO initialization flags** Return 0 on success, -ENOENT if no GPIO has been assigned to the* requested function and/or index, or another IS_ERR() code if an error* occurred while trying to acquire the GPIO.*/
int gpiod_configure_flags(struct gpio_desc *desc, const char *con_id,unsigned long lflags, enum gpiod_flags dflags)
{int status;if (lflags & GPIO_ACTIVE_LOW)set_bit(FLAG_ACTIVE_LOW, &desc->flags);if (lflags & GPIO_OPEN_DRAIN)set_bit(FLAG_OPEN_DRAIN, &desc->flags);else if (dflags & GPIOD_FLAGS_BIT_OPEN_DRAIN) {/** This enforces open drain mode from the consumer side.* This is necessary for some busses like I2C, but the lookup* should *REALLY* have specified them as open drain in the* first place, so print a little warning here.*/set_bit(FLAG_OPEN_DRAIN, &desc->flags);gpiod_warn(desc,"enforced open drain please flag it properly in DT/ACPI DSDT/board file\n");}if (lflags & GPIO_OPEN_SOURCE)set_bit(FLAG_OPEN_SOURCE, &desc->flags);status = gpiod_set_transitory(desc, (lflags & GPIO_TRANSITORY));if (status < 0)return status;/* No particular flag request, return here... */if (!(dflags & GPIOD_FLAGS_BIT_DIR_SET)) {pr_debug("no flags found for %s\n", con_id);return 0;}/* Process flags */if (dflags & GPIOD_FLAGS_BIT_DIR_OUT)status = gpiod_direction_output(desc,!!(dflags & GPIOD_FLAGS_BIT_DIR_VAL));elsestatus = gpiod_direction_input(desc);return status;
}/*** gpiod_get_index - obtain a GPIO from a multi-index GPIO function* @dev: GPIO consumer, can be NULL for system-global GPIOs* @con_id: function within the GPIO consumer* @idx: index of the GPIO to obtain in the consumer* @flags: optional GPIO initialization flags** This variant of gpiod_get() allows to access GPIOs other than the first* defined one for functions that define several GPIOs.** Return a valid GPIO descriptor, -ENOENT if no GPIO has been assigned to the* requested function and/or index, or another IS_ERR() code if an error* occurred while trying to acquire the GPIO.*/
struct gpio_desc *__must_check gpiod_get_index(struct device *dev,const char *con_id,unsigned int idx,enum gpiod_flags flags)
{struct gpio_desc *desc = NULL;int status;enum gpio_lookup_flags lookupflags = 0;/* Maybe we have a device name, maybe not */const char *devname = dev ? dev_name(dev) : "?";dev_dbg(dev, "GPIO lookup for consumer %s\n", con_id);if (dev) {/* Using device tree? */if (IS_ENABLED(CONFIG_OF) && dev->of_node) {dev_dbg(dev, "using device tree for GPIO lookup\n");desc = of_find_gpio(dev, con_id, idx, &lookupflags);} else if (ACPI_COMPANION(dev)) {dev_dbg(dev, "using ACPI for GPIO lookup\n");desc = acpi_find_gpio(dev, con_id, idx, &flags, &lookupflags);}}/** Either we are not using DT or ACPI, or their lookup did not return* a result. In that case, use platform lookup as a fallback.*/if (!desc || desc == ERR_PTR(-ENOENT)) {dev_dbg(dev, "using lookup tables for GPIO lookup\n");desc = gpiod_find(dev, con_id, idx, &lookupflags);}if (IS_ERR(desc)) {dev_dbg(dev, "No GPIO consumer %s found\n", con_id);return desc;}/** If a connection label was passed use that, else attempt to use* the device name as label*/status = gpiod_request(desc, con_id ? con_id : devname);if (status < 0)return ERR_PTR(status);status = gpiod_configure_flags(desc, con_id, lookupflags, flags);if (status < 0) {dev_dbg(dev, "setup of GPIO %s failed\n", con_id);gpiod_put(desc);return ERR_PTR(status);}return desc;
}
EXPORT_SYMBOL_GPL(gpiod_get_index);/*** gpiod_get_from_of_node() - obtain a GPIO from an OF node* @node: handle of the OF node* @propname: name of the DT property representing the GPIO* @index: index of the GPIO to obtain for the consumer* @dflags: GPIO initialization flags* @label: label to attach to the requested GPIO** Returns:* On successful request the GPIO pin is configured in accordance with* provided @dflags. If the node does not have the requested GPIO* property, NULL is returned.** In case of error an ERR_PTR() is returned.*/
struct gpio_desc *gpiod_get_from_of_node(struct device_node *node,const char *propname, int index,enum gpiod_flags dflags,const char *label)
{struct gpio_desc *desc;unsigned long lflags = 0;enum of_gpio_flags flags;bool active_low = false;bool single_ended = false;bool open_drain = false;bool transitory = false;int ret;desc = of_get_named_gpiod_flags(node, propname,index, &flags);if (!desc || IS_ERR(desc)) {/* If it is not there, just return NULL */if (PTR_ERR(desc) == -ENOENT)return NULL;return desc;}active_low = flags & OF_GPIO_ACTIVE_LOW;single_ended = flags & OF_GPIO_SINGLE_ENDED;open_drain = flags & OF_GPIO_OPEN_DRAIN;transitory = flags & OF_GPIO_TRANSITORY;ret = gpiod_request(desc, label);if (ret)return ERR_PTR(ret);if (active_low)lflags |= GPIO_ACTIVE_LOW;if (single_ended) {if (open_drain)lflags |= GPIO_OPEN_DRAIN;elselflags |= GPIO_OPEN_SOURCE;}if (transitory)lflags |= GPIO_TRANSITORY;ret = gpiod_configure_flags(desc, propname, lflags, dflags);if (ret < 0) {gpiod_put(desc);return ERR_PTR(ret);}return desc;
}
EXPORT_SYMBOL(gpiod_get_from_of_node);/*** fwnode_get_named_gpiod - obtain a GPIO from firmware node* @fwnode: handle of the firmware node* @propname: name of the firmware property representing the GPIO* @index: index of the GPIO to obtain for the consumer* @dflags: GPIO initialization flags* @label: label to attach to the requested GPIO** This function can be used for drivers that get their configuration* from opaque firmware.** The function properly finds the corresponding GPIO using whatever is the* underlying firmware interface and then makes sure that the GPIO* descriptor is requested before it is returned to the caller.** Returns:* On successful request the GPIO pin is configured in accordance with* provided @dflags.** In case of error an ERR_PTR() is returned.*/
struct gpio_desc *fwnode_get_named_gpiod(struct fwnode_handle *fwnode,const char *propname, int index,enum gpiod_flags dflags,const char *label)
{struct gpio_desc *desc = ERR_PTR(-ENODEV);unsigned long lflags = 0;int ret;if (!fwnode)return ERR_PTR(-EINVAL);if (is_of_node(fwnode)) {desc = gpiod_get_from_of_node(to_of_node(fwnode),propname, index,dflags,label);return desc;} else if (is_acpi_node(fwnode)) {struct acpi_gpio_info info;desc = acpi_node_get_gpiod(fwnode, propname, index, &info);if (IS_ERR(desc))return desc;acpi_gpio_update_gpiod_flags(&dflags, &info);if (info.polarity == GPIO_ACTIVE_LOW)lflags |= GPIO_ACTIVE_LOW;}/* Currently only ACPI takes this path */ret = gpiod_request(desc, label);if (ret)return ERR_PTR(ret);ret = gpiod_configure_flags(desc, propname, lflags, dflags);if (ret < 0) {gpiod_put(desc);return ERR_PTR(ret);}return desc;
}
EXPORT_SYMBOL_GPL(fwnode_get_named_gpiod);/*** gpiod_get_index_optional - obtain an optional GPIO from a multi-index GPIO* function* @dev: GPIO consumer, can be NULL for system-global GPIOs* @con_id: function within the GPIO consumer* @index: index of the GPIO to obtain in the consumer* @flags: optional GPIO initialization flags** This is equivalent to gpiod_get_index(), except that when no GPIO with the* specified index was assigned to the requested function it will return NULL.* This is convenient for drivers that need to handle optional GPIOs.*/
struct gpio_desc *__must_check gpiod_get_index_optional(struct device *dev,const char *con_id,unsigned int index,enum gpiod_flags flags)
{struct gpio_desc *desc;desc = gpiod_get_index(dev, con_id, index, flags);if (IS_ERR(desc)) {if (PTR_ERR(desc) == -ENOENT)return NULL;}return desc;
}
EXPORT_SYMBOL_GPL(gpiod_get_index_optional);/*** gpiod_hog - Hog the specified GPIO desc given the provided flags* @desc: gpio whose value will be assigned* @name: gpio line name* @lflags: gpio_lookup_flags - returned from of_find_gpio() or* of_get_gpio_hog()* @dflags: gpiod_flags - optional GPIO initialization flags*/
int gpiod_hog(struct gpio_desc *desc, const char *name,unsigned long lflags, enum gpiod_flags dflags)
{struct gpio_chip *chip;struct gpio_desc *local_desc;int hwnum;int status;chip = gpiod_to_chip(desc);hwnum = gpio_chip_hwgpio(desc);local_desc = gpiochip_request_own_desc(chip, hwnum, name);if (IS_ERR(local_desc)) {status = PTR_ERR(local_desc);pr_err("requesting hog GPIO %s (chip %s, offset %d) failed, %d\n",name, chip->label, hwnum, status);return status;}status = gpiod_configure_flags(desc, name, lflags, dflags);if (status < 0) {pr_err("setup of hog GPIO %s (chip %s, offset %d) failed, %d\n",name, chip->label, hwnum, status);gpiochip_free_own_desc(desc);return status;}/* Mark GPIO as hogged so it can be identified and removed later */set_bit(FLAG_IS_HOGGED, &desc->flags);pr_info("GPIO line %d (%s) hogged as %s%s\n",desc_to_gpio(desc), name,(dflags&GPIOD_FLAGS_BIT_DIR_OUT) ? "output" : "input",(dflags&GPIOD_FLAGS_BIT_DIR_OUT) ?(dflags&GPIOD_FLAGS_BIT_DIR_VAL) ? "/high" : "/low":"");return 0;
}/*** gpiochip_free_hogs - Scan gpio-controller chip and release GPIO hog* @chip: gpio chip to act on** This is only used by of_gpiochip_remove to free hogged gpios*/
static void gpiochip_free_hogs(struct gpio_chip *chip)
{int id;for (id = 0; id < chip->ngpio; id++) {if (test_bit(FLAG_IS_HOGGED, &chip->gpiodev->descs[id].flags))gpiochip_free_own_desc(&chip->gpiodev->descs[id]);}
}/*** gpiod_get_array - obtain multiple GPIOs from a multi-index GPIO function* @dev: GPIO consumer, can be NULL for system-global GPIOs* @con_id: function within the GPIO consumer* @flags: optional GPIO initialization flags** This function acquires all the GPIOs defined under a given function.** Return a struct gpio_descs containing an array of descriptors, -ENOENT if* no GPIO has been assigned to the requested function, or another IS_ERR()* code if an error occurred while trying to acquire the GPIOs.*/
struct gpio_descs *__must_check gpiod_get_array(struct device *dev,const char *con_id,enum gpiod_flags flags)
{struct gpio_desc *desc;struct gpio_descs *descs;int count;count = gpiod_count(dev, con_id);if (count < 0)return ERR_PTR(count);descs = kzalloc(struct_size(descs, desc, count), GFP_KERNEL);if (!descs)return ERR_PTR(-ENOMEM);for (descs->ndescs = 0; descs->ndescs < count; ) {desc = gpiod_get_index(dev, con_id, descs->ndescs, flags);if (IS_ERR(desc)) {gpiod_put_array(descs);return ERR_CAST(desc);}descs->desc[descs->ndescs] = desc;descs->ndescs++;}return descs;
}
EXPORT_SYMBOL_GPL(gpiod_get_array);/*** gpiod_get_array_optional - obtain multiple GPIOs from a multi-index GPIO* function* @dev: GPIO consumer, can be NULL for system-global GPIOs* @con_id: function within the GPIO consumer* @flags: optional GPIO initialization flags** This is equivalent to gpiod_get_array(), except that when no GPIO was* assigned to the requested function it will return NULL.*/
struct gpio_descs *__must_check gpiod_get_array_optional(struct device *dev,const char *con_id,enum gpiod_flags flags)
{struct gpio_descs *descs;descs = gpiod_get_array(dev, con_id, flags);if (IS_ERR(descs) && (PTR_ERR(descs) == -ENOENT))return NULL;return descs;
}
EXPORT_SYMBOL_GPL(gpiod_get_array_optional);/*** gpiod_put - dispose of a GPIO descriptor* @desc: GPIO descriptor to dispose of** No descriptor can be used after gpiod_put() has been called on it.*/
void gpiod_put(struct gpio_desc *desc)
{gpiod_free(desc);
}
EXPORT_SYMBOL_GPL(gpiod_put);/*** gpiod_put_array - dispose of multiple GPIO descriptors* @descs: struct gpio_descs containing an array of descriptors*/
void gpiod_put_array(struct gpio_descs *descs)
{unsigned int i;for (i = 0; i < descs->ndescs; i++)gpiod_put(descs->desc[i]);kfree(descs);
}
EXPORT_SYMBOL_GPL(gpiod_put_array);static int __init gpiolib_dev_init(void)
{int ret;/* Register GPIO sysfs bus */ret = bus_register(&gpio_bus_type);if (ret < 0) {pr_err("gpiolib: could not register GPIO bus type\n");return ret;}ret = alloc_chrdev_region(&gpio_devt, 0, GPIO_DEV_MAX, "gpiochip");if (ret < 0) {pr_err("gpiolib: failed to allocate char dev region\n");bus_unregister(&gpio_bus_type);} else {gpiolib_initialized = true;gpiochip_setup_devs();}return ret;
}
core_initcall(gpiolib_dev_init);#ifdef CONFIG_DEBUG_FSstatic void gpiolib_dbg_show(struct seq_file *s, struct gpio_device *gdev)
{unsigned i;struct gpio_chip *chip = gdev->chip;unsigned gpio = gdev->base;struct gpio_desc *gdesc = &gdev->descs[0];int is_out;int is_irq;for (i = 0; i < gdev->ngpio; i++, gpio++, gdesc++) {if (!test_bit(FLAG_REQUESTED, &gdesc->flags)) {if (gdesc->name) {seq_printf(s, " gpio-%-3d (%-20.20s)\n",gpio, gdesc->name);}continue;}gpiod_get_direction(gdesc);is_out = test_bit(FLAG_IS_OUT, &gdesc->flags);is_irq = test_bit(FLAG_USED_AS_IRQ, &gdesc->flags);seq_printf(s, " gpio-%-3d (%-20.20s|%-20.20s) %s %s %s",gpio, gdesc->name ? gdesc->name : "", gdesc->label,is_out ? "out" : "in ",chip->get ? (chip->get(chip, i) ? "hi" : "lo") : "? ",is_irq ? "IRQ" : " ");seq_printf(s, "\n");}
}static void *gpiolib_seq_start(struct seq_file *s, loff_t *pos)
{unsigned long flags;struct gpio_device *gdev = NULL;loff_t index = *pos;s->private = "";spin_lock_irqsave(&gpio_lock, flags);list_for_each_entry(gdev, &gpio_devices, list)if (index-- == 0) {spin_unlock_irqrestore(&gpio_lock, flags);return gdev;}spin_unlock_irqrestore(&gpio_lock, flags);return NULL;
}static void *gpiolib_seq_next(struct seq_file *s, void *v, loff_t *pos)
{unsigned long flags;struct gpio_device *gdev = v;void *ret = NULL;spin_lock_irqsave(&gpio_lock, flags);if (list_is_last(&gdev->list, &gpio_devices))ret = NULL;elseret = list_entry(gdev->list.next, struct gpio_device, list);spin_unlock_irqrestore(&gpio_lock, flags);s->private = "\n";++*pos;return ret;
}static void gpiolib_seq_stop(struct seq_file *s, void *v)
{
}static int gpiolib_seq_show(struct seq_file *s, void *v)
{struct gpio_device *gdev = v;struct gpio_chip *chip = gdev->chip;struct device *parent;if (!chip) {seq_printf(s, "%s%s: (dangling chip)", (char *)s->private,dev_name(&gdev->dev));return 0;}seq_printf(s, "%s%s: GPIOs %d-%d", (char *)s->private,dev_name(&gdev->dev),gdev->base, gdev->base + gdev->ngpio - 1);parent = chip->parent;if (parent)seq_printf(s, ", parent: %s/%s",parent->bus ? parent->bus->name : "no-bus",dev_name(parent));if (chip->label)seq_printf(s, ", %s", chip->label);if (chip->can_sleep)seq_printf(s, ", can sleep");seq_printf(s, ":\n");if (chip->dbg_show)chip->dbg_show(s, chip);elsegpiolib_dbg_show(s, gdev);return 0;
}static const struct seq_operations gpiolib_seq_ops = {.start = gpiolib_seq_start,.next = gpiolib_seq_next,.stop = gpiolib_seq_stop,.show = gpiolib_seq_show,
};static int gpiolib_open(struct inode *inode, struct file *file)
{return seq_open(file, &gpiolib_seq_ops);
}static const struct file_operations gpiolib_operations = {.owner = THIS_MODULE,.open = gpiolib_open,.read = seq_read,.llseek = seq_lseek,.release = seq_release,
};static int __init gpiolib_debugfs_init(void)
{/* /sys/kernel/debug/gpio */(void) debugfs_create_file("gpio", S_IFREG | S_IRUGO,NULL, NULL, &gpiolib_operations);return 0;
}
subsys_initcall(gpiolib_debugfs_init);#endif /* DEBUG_FS */
gpio-phytium-core.h
/* SPDX-License-Identifier: GPL-2.0 */
/** Copyright (C) 2021, Phytium Corporation.*/#ifndef _GPIO_PHYTIUM_H
#define _GPIO_PHYTIUM_H#include <linux/gpio/driver.h>
#include <linux/spinlock.h>#include "gpiolib.h"#define GPIO_SWPORTA_DR 0x00 /* WR Port A Output Data Register */
#define GPIO_SWPORTA_DDR 0x04 /* WR Port A Data Direction Register */
#define GPIO_EXT_PORTA 0x08 /* RO Port A Input Data Register */
#define GPIO_SWPORTB_DR 0x0c /* WR Port B Output Data Register */
#define GPIO_SWPORTB_DDR 0x10 /* WR Port B Data Direction Register */
#define GPIO_EXT_PORTB 0x14 /* RO Port B Input Data Register */#define GPIO_INTEN 0x18 /* WR Port A Interrput Enable Register */
#define GPIO_INTMASK 0x1c /* WR Port A Interrupt Mask Register */
#define GPIO_INTTYPE_LEVEL 0x20 /* WR Port A Interrupt Level Register */
#define GPIO_INT_POLARITY 0x24 /* WR Port A Interrupt Polarity Register */
#define GPIO_INTSTATUS 0x28 /* RO Port A Interrupt Status Register */
#define GPIO_RAW_INTSTATUS 0x2c /* RO Port A Raw Interrupt Status Register */
#define GPIO_LS_SYNC 0x30 /* WR Level-sensitive Synchronization Enable Register */
#define GPIO_DEBOUNCE 0x34 /* WR Debounce Enable Register */
#define GPIO_PORTA_EOI 0x38 /* WO Port A Clear Interrupt Register */#define MAX_NPORTS 2
#define NGPIO_DEFAULT 8
#define NGPIO_MAX 32
#define GPIO_PORT_STRIDE (GPIO_EXT_PORTB - GPIO_EXT_PORTA)struct pin_loc {unsigned int port;unsigned int offset;
};#ifdef CONFIG_PM_SLEEP
struct phytium_gpio_ctx {u32 swporta_dr;u32 swporta_ddr;u32 ext_porta;u32 swportb_dr;u32 swportb_ddr;u32 ext_portb;u32 inten;u32 intmask;u32 inttype_level;u32 int_polarity;u32 intstatus;u32 raw_intstatus;u32 ls_sync;u32 debounce;
};
#endifstruct phytium_gpio {raw_spinlock_t lock;void __iomem *regs;struct gpio_chip gc;unsigned int ngpio[2];int irq;
#ifdef CONFIG_PM_SLEEPstruct phytium_gpio_ctx ctx;
#endif
};int phytium_gpio_get(struct gpio_chip *gc, unsigned int offset);
void phytium_gpio_set(struct gpio_chip *gc, unsigned int offset, int value);int phytium_gpio_get_direction(struct gpio_chip *gc, unsigned int offset);
int phytium_gpio_direction_input(struct gpio_chip *gc, unsigned int offset);
int phytium_gpio_direction_output(struct gpio_chip *gc, unsigned int offset, int value);void phytium_gpio_irq_ack(struct irq_data *d);
void phytium_gpio_irq_mask(struct irq_data *d);
void phytium_gpio_irq_unmask(struct irq_data *d);
int phytium_gpio_irq_set_type(struct irq_data *d, unsigned int flow_type);
void phytium_gpio_irq_enable(struct irq_data *d);
void phytium_gpio_irq_disable(struct irq_data *d);
void phytium_gpio_irq_handler(struct irq_desc *desc);#endif
gpio-phytium-core.c
// SPDX-License-Identifier: GPL-2.0
/** Copyright (c) 2019, Phytium Corporation.* Copyright (c) 2021, Phytium Corporation.*/#include <linux/err.h>
#include <linux/io.h>
#include <linux/irq.h>
#include <linux/module.h>
#include <linux/bitops.h>#include "gpio-phytium-core.h"static int get_pin_location(struct phytium_gpio *gpio, unsigned int offset,struct pin_loc *pl)
{int ret;if (offset < gpio->ngpio[0]) {pl->port = 0;pl->offset = offset;ret = 0;} else if (offset < (gpio->ngpio[0] + gpio->ngpio[1])) {pl->port = 1;pl->offset = offset - gpio->ngpio[0];ret = 0;} else {ret = -EINVAL;}return ret;
}static void phytium_gpio_toggle_trigger(struct phytium_gpio *gpio,unsigned int offset)
{struct gpio_chip *gc;u32 pol;int val;/* Only port A can provide interrupt source */if (offset >= gpio->ngpio[0])return;gc = &gpio->gc;pol = readl(gpio->regs + GPIO_INT_POLARITY);/* Just read the current value right out of the data register */val = gc->get(gc, offset);if (val)pol &= ~BIT(offset);elsepol |= BIT(offset);writel(pol, gpio->regs + GPIO_INT_POLARITY);
}int phytium_gpio_get(struct gpio_chip *gc, unsigned int offset)
{struct phytium_gpio *gpio = gpiochip_get_data(gc);struct pin_loc loc;void __iomem *dat;if (get_pin_location(gpio, offset, &loc))return -EINVAL;dat = gpio->regs + GPIO_EXT_PORTA + (loc.port * GPIO_PORT_STRIDE);return !!(readl(dat) & BIT(loc.offset));
}
EXPORT_SYMBOL_GPL(phytium_gpio_get);void phytium_gpio_set(struct gpio_chip *gc, unsigned int offset, int value)
{struct phytium_gpio *gpio = gpiochip_get_data(gc);struct pin_loc loc;void __iomem *dr;unsigned long flags;u32 mask;if (get_pin_location(gpio, offset, &loc))return;dr = gpio->regs + GPIO_SWPORTA_DR + (loc.port * GPIO_PORT_STRIDE);raw_spin_lock_irqsave(&gpio->lock, flags);if (value)mask = readl(dr) | BIT(loc.offset);elsemask = readl(dr) & ~BIT(loc.offset);writel(mask, dr);raw_spin_unlock_irqrestore(&gpio->lock, flags);
}
EXPORT_SYMBOL_GPL(phytium_gpio_set);int phytium_gpio_direction_input(struct gpio_chip *gc, unsigned int offset)
{struct phytium_gpio *gpio = gpiochip_get_data(gc);struct pin_loc loc;unsigned long flags;void __iomem *ddr;if (get_pin_location(gpio, offset, &loc))return -EINVAL;ddr = gpio->regs + GPIO_SWPORTA_DDR + (loc.port * GPIO_PORT_STRIDE);raw_spin_lock_irqsave(&gpio->lock, flags);writel(readl(ddr) & ~(BIT(loc.offset)), ddr);raw_spin_unlock_irqrestore(&gpio->lock, flags);return 0;
}
EXPORT_SYMBOL_GPL(phytium_gpio_direction_input);int phytium_gpio_direction_output(struct gpio_chip *gc, unsigned int offset,int value)
{struct phytium_gpio *gpio = gpiochip_get_data(gc);struct pin_loc loc;unsigned long flags;void __iomem *ddr;if (get_pin_location(gpio, offset, &loc))return -EINVAL;ddr = gpio->regs + GPIO_SWPORTA_DDR + (loc.port * GPIO_PORT_STRIDE);raw_spin_lock_irqsave(&gpio->lock, flags);writel(readl(ddr) | BIT(loc.offset), ddr);raw_spin_unlock_irqrestore(&gpio->lock, flags);phytium_gpio_set(gc, offset, value);return 0;
}
EXPORT_SYMBOL_GPL(phytium_gpio_direction_output);void phytium_gpio_irq_ack(struct irq_data *d)
{struct gpio_chip *gc = irq_data_get_irq_chip_data(d);struct phytium_gpio *gpio = gpiochip_get_data(gc);u32 val = BIT(irqd_to_hwirq(d));raw_spin_lock(&gpio->lock);writel(val, gpio->regs + GPIO_PORTA_EOI);raw_spin_unlock(&gpio->lock);
}
EXPORT_SYMBOL_GPL(phytium_gpio_irq_ack);void phytium_gpio_irq_mask(struct irq_data *d)
{struct gpio_chip *gc = irq_data_get_irq_chip_data(d);struct phytium_gpio *gpio = gpiochip_get_data(gc);u32 val;/* Only port A can provide interrupt source */if (irqd_to_hwirq(d) >= gpio->ngpio[0])return;raw_spin_lock(&gpio->lock);val = readl(gpio->regs + GPIO_INTMASK);val |= BIT(irqd_to_hwirq(d));writel(val, gpio->regs + GPIO_INTMASK);raw_spin_unlock(&gpio->lock);
}
EXPORT_SYMBOL_GPL(phytium_gpio_irq_mask);void phytium_gpio_irq_unmask(struct irq_data *d)
{struct gpio_chip *gc = irq_data_get_irq_chip_data(d);struct phytium_gpio *gpio = gpiochip_get_data(gc);u32 val;/* Only port A can provide interrupt source */if (irqd_to_hwirq(d) >= gpio->ngpio[0])return;raw_spin_lock(&gpio->lock);val = readl(gpio->regs + GPIO_INTMASK);val &= ~BIT(irqd_to_hwirq(d));writel(val, gpio->regs + GPIO_INTMASK);raw_spin_unlock(&gpio->lock);
}
EXPORT_SYMBOL_GPL(phytium_gpio_irq_unmask);int phytium_gpio_irq_set_type(struct irq_data *d, unsigned int flow_type)
{struct gpio_chip *gc = irq_data_get_irq_chip_data(d);struct phytium_gpio *gpio = gpiochip_get_data(gc);int hwirq = irqd_to_hwirq(d);unsigned long flags, lvl, pol;if (hwirq < 0 || hwirq >= gpio->ngpio[0])return -EINVAL;if ((flow_type & (IRQ_TYPE_LEVEL_HIGH | IRQ_TYPE_LEVEL_LOW)) &&(flow_type & (IRQ_TYPE_EDGE_RISING | IRQ_TYPE_EDGE_FALLING))) {dev_err(gc->parent,"trying to configure line %d for both level and edge detection, choose one!\n",hwirq);return -EINVAL;}raw_spin_lock_irqsave(&gpio->lock, flags);lvl = readl(gpio->regs + GPIO_INTTYPE_LEVEL);pol = readl(gpio->regs + GPIO_INT_POLARITY);switch (flow_type) {case IRQ_TYPE_EDGE_BOTH:lvl |= BIT(hwirq);phytium_gpio_toggle_trigger(gpio, hwirq);irq_set_handler_locked(d, handle_edge_irq);dev_dbg(gc->parent, "line %d: IRQ on both edges\n", hwirq);break;case IRQ_TYPE_EDGE_RISING:lvl |= BIT(hwirq);pol |= BIT(hwirq);irq_set_handler_locked(d, handle_edge_irq);dev_dbg(gc->parent, "line %d: IRQ on RISING edge\n", hwirq);break;case IRQ_TYPE_EDGE_FALLING:lvl |= BIT(hwirq);pol &= ~BIT(hwirq);irq_set_handler_locked(d, handle_edge_irq);dev_dbg(gc->parent, "line %d: IRQ on FALLING edge\n", hwirq);break;case IRQ_TYPE_LEVEL_HIGH:lvl &= ~BIT(hwirq);pol |= BIT(hwirq);irq_set_handler_locked(d, handle_level_irq);dev_dbg(gc->parent, "line %d: IRQ on HIGH level\n", hwirq);break;case IRQ_TYPE_LEVEL_LOW:lvl &= ~BIT(hwirq);pol &= ~BIT(hwirq);irq_set_handler_locked(d, handle_level_irq);dev_dbg(gc->parent, "line %d: IRQ on LOW level\n", hwirq);break;}writel(lvl, gpio->regs + GPIO_INTTYPE_LEVEL);if (flow_type != IRQ_TYPE_EDGE_BOTH)writel(pol, gpio->regs + GPIO_INT_POLARITY);raw_spin_unlock_irqrestore(&gpio->lock, flags);return 0;
}
EXPORT_SYMBOL_GPL(phytium_gpio_irq_set_type);void phytium_gpio_irq_enable(struct irq_data *d)
{struct gpio_chip *gc = irq_data_get_irq_chip_data(d);struct phytium_gpio *gpio = gpiochip_get_data(gc);unsigned long flags;u32 val;/* Only port A can provide interrupt source */if (irqd_to_hwirq(d) >= gpio->ngpio[0])return;raw_spin_lock_irqsave(&gpio->lock, flags);val = readl(gpio->regs + GPIO_INTEN);val |= BIT(irqd_to_hwirq(d));writel(val, gpio->regs + GPIO_INTEN);raw_spin_unlock_irqrestore(&gpio->lock, flags);
}
EXPORT_SYMBOL_GPL(phytium_gpio_irq_enable);void phytium_gpio_irq_disable(struct irq_data *d)
{struct gpio_chip *gc = irq_data_get_irq_chip_data(d);struct phytium_gpio *gpio = gpiochip_get_data(gc);unsigned long flags;u32 val;/* Only port A can provide interrupt source */if (irqd_to_hwirq(d) >= gpio->ngpio[0])return;raw_spin_lock_irqsave(&gpio->lock, flags);val = readl(gpio->regs + GPIO_INTEN);val &= ~BIT(irqd_to_hwirq(d));writel(val, gpio->regs + GPIO_INTEN);raw_spin_unlock_irqrestore(&gpio->lock, flags);
}
EXPORT_SYMBOL_GPL(phytium_gpio_irq_disable);void phytium_gpio_irq_handler(struct irq_desc *desc)
{struct gpio_chip *gc = irq_desc_get_handler_data(desc);struct phytium_gpio *gpio = gpiochip_get_data(gc);struct irq_chip *irqchip = irq_desc_get_chip(desc);unsigned long pending;int offset;chained_irq_enter(irqchip, desc);pending = readl(gpio->regs + GPIO_INTSTATUS);if (pending) {for_each_set_bit(offset, &pending, gpio->ngpio[0]) {int gpio_irq = irq_find_mapping(gc->irq.domain,offset);generic_handle_irq(gpio_irq);if ((irq_get_trigger_type(gpio_irq) &IRQ_TYPE_SENSE_MASK) == IRQ_TYPE_EDGE_BOTH)phytium_gpio_toggle_trigger(gpio, offset);}}chained_irq_exit(irqchip, desc);
}
EXPORT_SYMBOL_GPL(phytium_gpio_irq_handler);int phytium_gpio_get_direction(struct gpio_chip *gc, unsigned int offset)
{struct phytium_gpio *gpio = gpiochip_get_data(gc);struct pin_loc loc;void __iomem *ddr;if (get_pin_location(gpio, offset, &loc))return -EINVAL;ddr = gpio->regs + GPIO_SWPORTA_DDR + (loc.port * GPIO_PORT_STRIDE);return !(readl(ddr) & BIT(loc.offset));
}
EXPORT_SYMBOL_GPL(phytium_gpio_get_direction);MODULE_LICENSE("GPL v2");
MODULE_DESCRIPTION("Phytium GPIO Controller core");
MODULE_VERSION("V1.0.0");
MODULE_AUTHOR("KySec Os");
以上四个代码，实现了phytium的gpio core驱动。
platform驱动中就需要指定使用的GPIO的基地址，创建虚拟设备，并且挂载中断处理函数。这里的中断处理函数中会读寄存器，然后根据不同位给应用送不同的信号量（只用了4个中断40-43）
// SPDX-License-Identifier: GPL-2.0
/** Support functions for Phytium GPIO** Copyright (c) 2019, Phytium Corporation.* Written by Chen Baozi <chenbaozi@phytium.com.cn>** This program is free software; you can redistribute it and/or modify* it under the terms of the GNU General Public License version 2 as* published by the Free Software Foundation.*/#include <linux/acpi.h>
#include <linux/err.h>
#include <linux/interrupt.h>
#include <linux/io.h>
#include <linux/irq.h>
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/of.h>
#include <linux/platform_device.h>
#include <linux/property.h>
#include <linux/sched/signal.h>#include "gpio-phytium-core.h"#define GPIO_IRQ_PORT_ADDR 0x28004000#define GpioGetBit(addr, bitpos) (readl(addr) >> bitpos)&0x1
#define GpioSetBit(addr, bitpos) writel(readl(addr) | (0x1 << bitpos), addr)
#define GpioClrBit(addr, bitpos) writel(readl(addr) & (~(0x1 << bitpos)), addr)#define CMD_SET_PID 0x7B01#define GPIO_SIGNAL1 40
#define GPIO_SIGNAL2 41
#define GPIO_SIGNAL3 42
#define GPIO_SIGNAL4 43static struct irq_chip phytium_gpio_irqchip = {.name = "phytium_gpio",.irq_ack = phytium_gpio_irq_ack,.irq_mask = phytium_gpio_irq_mask,.irq_unmask = phytium_gpio_irq_unmask,.irq_set_type = phytium_gpio_irq_set_type,.irq_enable = phytium_gpio_irq_enable,.irq_disable = phytium_gpio_irq_disable,
};static const struct of_device_id phytium_gpio_of_match[] = {{ .compatible = "phytium,gpio", },{ }
};
MODULE_DEVICE_TABLE(of, phytium_gpio_of_match);static const struct acpi_device_id phytium_gpio_acpi_match[] = {{ "PHYT0001", 0 },{ "FTGP0001", 0 },{ }
};
MODULE_DEVICE_TABLE(acpi, phytium_gpio_acpi_match);static int major = 0;
static struct class *gpio_class = NULL;
static struct device *gpio_device = NULL;
static struct task_struct *my_task = NULL;
static DEFINE_SPINLOCK(hc_gpio_lock);static unsigned int irq_err_times = 0;
long cpld_ioctl(struct file *file, unsigned int cmd, unsigned long arg)
{int g_pid = 0;void __user *pArg;struct pid *pid_struct;struct task_struct *task;unsigned long flags;if(cmd == CMD_SET_PID){pArg = (void __user *)arg;if(copy_from_user((void *)&g_pid, pArg, sizeof(int))){printk("copy_from_user failed\n");}printk("copy_from_user success, g_pid:%d\n", g_pid);pid_struct = find_get_pid(g_pid);if (!pid_struct)return -ESRCH;task = get_pid_task(pid_struct, PIDTYPE_PID);put_pid(pid_struct);spin_lock_irqsave(&hc_gpio_lock, flags);if (my_task)put_task_struct(my_task);my_task = task;irq_err_times = 0;spin_unlock_irqrestore(&hc_gpio_lock, flags);printk("ioctl my_task register success\n");return 0;}return -1;
}static int cpld_open(struct inode * inode, struct file * filp)
{return 0;
}static int cpld_release(struct inode *inode, struct file *file)
{return 0;
}/* File operations struct for character device */
static const struct file_operations gpio_dev_fops = {.owner = THIS_MODULE,.open = cpld_open,.release = cpld_release,.unlocked_ioctl = cpld_ioctl,
};static irqreturn_t phytium_gpio_irq_handler_example(int irq, void *dev_id)
{struct phytium_gpio *gpio = dev_id;unsigned long val;struct task_struct *task;int ret = 1;unsigned long flags;spin_lock_irqsave(&hc_gpio_lock, flags);task = my_task;spin_unlock_irqrestore(&hc_gpio_lock, flags);if (task == NULL || task->exit_state != 0) {writel(0xff, gpio->regs + GPIO_PORTA_EOI);irq_err_times ++;return IRQ_RETVAL(ret);}val = readl(gpio->regs + GPIO_INTSTATUS);if ((val & 0xff) == 0) {irq_err_times ++;writel(0xff, gpio->regs + GPIO_PORTA_EOI);printk("irq_err_times = %d, val=0x%x\n", irq_err_times, val);return IRQ_RETVAL(ret);}if (val & (1 << 0)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 0);printk("gpio0 a0 irq\n");}if (val & (1 << 1)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 1);send_sig_info(GPIO_SIGNAL1, SEND_SIG_FORCED, task);printk("gpio0 a1 irq\n");}if (val & (1 << 2)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 2);send_sig_info(GPIO_SIGNAL2, SEND_SIG_FORCED, task);printk("gpio0 a2 irq\n");}if (val & (1 << 3)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 3);send_sig_info(GPIO_SIGNAL3, SEND_SIG_FORCED, task);printk("gpio0 a3 irq\n");}if (val & (1 << 4)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 4);send_sig_info(GPIO_SIGNAL4, SEND_SIG_FORCED, task);printk("gpio0 a4 irq\n");}if (val & (1 << 5)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 5);printk("gpio0 a5 irq\n");}if (val & (1 << 6)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 6);printk("gpio0 a6 irq\n");}if (val & (1 << 7)) {GpioSetBit(gpio->regs + GPIO_PORTA_EOI, 7);printk("gpio0 a7 irq\n");}return IRQ_HANDLED;
}static int phytium_gpio_probe(struct platform_device *pdev)
{struct device *dev = &pdev->dev;struct resource *res;struct phytium_gpio *gpio;struct fwnode_handle *fwnode;int err;int irq_port_flags = 0;gpio = devm_kzalloc(&pdev->dev, sizeof(*gpio), GFP_KERNEL);if (!gpio)return -ENOMEM;res = platform_get_resource(pdev, IORESOURCE_MEM, 0);gpio->regs = devm_ioremap_resource(&pdev->dev, res);if (IS_ERR(gpio->regs))return PTR_ERR(gpio->regs);if (res->start == GPIO_IRQ_PORT_ADDR) {irq_port_flags = 1;printk("irq_port_flags = 1\n");} else {printk("irq_port_flags = 0\n");}gpio->irq = -ENXIO;gpio->irq = platform_get_irq(pdev, 0);if (gpio->irq < 0)dev_warn(dev, "no irq is found.\n");if (!device_get_child_node_count(dev))return -ENODEV;device_for_each_child_node(dev, fwnode) {int idx;if (fwnode_property_read_u32(fwnode, "reg", &idx) ||idx >= MAX_NPORTS) {dev_err(dev, "missing/invalid port index\n");fwnode_handle_put(fwnode);return -EINVAL;}if (fwnode_property_read_u32(fwnode, "nr-gpios",&gpio->ngpio[idx])) {dev_info(dev,"failed to get number of gpios for Port%c\n",idx ? 'B' : 'A');gpio->ngpio[idx] = NGPIO_DEFAULT;}}/* irq_chip support */raw_spin_lock_init(&gpio->lock);gpio->gc.base = -1;gpio->gc.get_direction = phytium_gpio_get_direction;gpio->gc.direction_input = phytium_gpio_direction_input;gpio->gc.direction_output = phytium_gpio_direction_output;gpio->gc.get = phytium_gpio_get;gpio->gc.set = phytium_gpio_set;gpio->gc.ngpio = gpio->ngpio[0] + gpio->ngpio[1];gpio->gc.label = dev_name(dev);gpio->gc.parent = dev;gpio->gc.owner = THIS_MODULE;err = gpiochip_add_data(&gpio->gc, gpio);if (err) {dev_err(dev, "failed to register gpiochip\n");goto err1;}err = gpiochip_irqchip_add(&gpio->gc, &phytium_gpio_irqchip,0, handle_bad_irq, IRQ_TYPE_NONE);if (err) {dev_info(dev, "could not add irqchip\n");goto err0;}platform_set_drvdata(pdev, gpio);dev_info(dev, "Phytium GPIO controller @%pa registered\n",&res->start);if (irq_port_flags) {err = devm_request_irq(dev, gpio->irq, phytium_gpio_irq_handler_example,0, "phytium_gpio_irq", gpio);if (err) {dev_err(dev, "failed to request IRQ for GPIO %d, err=%d\n", gpio->irq, err);return err;}if ((major = register_chrdev(0, "hc_buttons_dev", &gpio_dev_fops)) < 0){printk("failed to create dev entry.\n");return (0);}printk("register_chrdev successfully.\n");gpio_class = class_create(THIS_MODULE, "hc_buttondev");if (IS_ERR(gpio_class)) {printk("Could not create device class");unregister_chrdev(200, "gpdiohcdev");return EFAULT;}printk("gpio_class create successfully.\n");gpio_device = device_create(gpio_class, NULL, MKDEV(major, 0), NULL, "hc_buttons");printk("device to create ......%d\n",IS_ERR(gpio_device));}return 0;err1:gpiochip_remove(&gpio->gc);
err0:return err;
}static void buttons_dev_exit(void)
{if (gpio_device)device_unregister(gpio_device);gpio_device = NULL;if (gpio_class) class_destroy(gpio_class); gpio_class = NULL;if (major)unregister_chrdev(major, "hc_buttons_dev");major = 0;return;
}static int phytium_gpio_remove(struct platform_device *pdev)
{struct phytium_gpio *gpio = platform_get_drvdata(pdev);buttons_dev_exit();gpiochip_remove(&gpio->gc);return 0;
}#ifdef CONFIG_PM_SLEEP
static int phytium_gpio_suspend(struct device *dev)
{struct platform_device *pdev = to_platform_device(dev);struct phytium_gpio *gpio = platform_get_drvdata(pdev);unsigned long flags;raw_spin_lock_irqsave(&gpio->lock, flags);gpio->ctx.swporta_dr = readl(gpio->regs + GPIO_SWPORTA_DR);gpio->ctx.swporta_ddr = readl(gpio->regs + GPIO_SWPORTA_DDR);gpio->ctx.ext_porta = readl(gpio->regs + GPIO_EXT_PORTA);gpio->ctx.swportb_dr = readl(gpio->regs + GPIO_SWPORTB_DR);gpio->ctx.swportb_ddr = readl(gpio->regs + GPIO_SWPORTB_DDR);gpio->ctx.ext_portb = readl(gpio->regs + GPIO_EXT_PORTB);gpio->ctx.inten = readl(gpio->regs + GPIO_INTEN);gpio->ctx.intmask = readl(gpio->regs + GPIO_INTMASK);gpio->ctx.inttype_level = readl(gpio->regs + GPIO_INTTYPE_LEVEL);gpio->ctx.int_polarity = readl(gpio->regs + GPIO_INT_POLARITY);gpio->ctx.debounce = readl(gpio->regs + GPIO_DEBOUNCE);raw_spin_unlock_irqrestore(&gpio->lock, flags);return 0;
}static int phytium_gpio_resume(struct device *dev)
{struct platform_device *pdev = to_platform_device(dev);struct phytium_gpio *gpio = platform_get_drvdata(pdev);unsigned long flags;raw_spin_lock_irqsave(&gpio->lock, flags);writel(gpio->ctx.swporta_dr, gpio->regs + GPIO_SWPORTA_DR);writel(gpio->ctx.swporta_ddr, gpio->regs + GPIO_SWPORTA_DDR);writel(gpio->ctx.ext_porta, gpio->regs + GPIO_EXT_PORTA);writel(gpio->ctx.swportb_dr, gpio->regs + GPIO_SWPORTB_DR);writel(gpio->ctx.swportb_ddr, gpio->regs + GPIO_SWPORTB_DDR);writel(gpio->ctx.ext_portb, gpio->regs + GPIO_EXT_PORTB);writel(gpio->ctx.inten, gpio->regs + GPIO_INTEN);writel(gpio->ctx.intmask, gpio->regs + GPIO_INTMASK);writel(gpio->ctx.inttype_level, gpio->regs + GPIO_INTTYPE_LEVEL);writel(gpio->ctx.int_polarity, gpio->regs + GPIO_INT_POLARITY);writel(gpio->ctx.debounce, gpio->regs + GPIO_DEBOUNCE);writel(0xffffffff, gpio->regs + GPIO_PORTA_EOI);raw_spin_unlock_irqrestore(&gpio->lock, flags);return 0;
}
#endifstatic SIMPLE_DEV_PM_OPS(phytium_gpio_pm_ops, phytium_gpio_suspend,phytium_gpio_resume);static struct platform_driver phytium_gpio_driver = {.driver = {.name = "gpio-phytium-platform",.pm = &phytium_gpio_pm_ops,.of_match_table = of_match_ptr(phytium_gpio_of_match),.acpi_match_table = ACPI_PTR(phytium_gpio_acpi_match),},.probe = phytium_gpio_probe,.remove = phytium_gpio_remove,
};module_platform_driver(phytium_gpio_driver);MODULE_LICENSE("GPL v2");
MODULE_AUTHOR("Chen Baozi <chenbaozi@phytium.com.cn>");
MODULE_DESCRIPTION("Phytium GPIO driver");
Makefile内容如下
# SPDX-License-Identifier: GPL-2.0obj-m +=gpio-phytium-core.o
obj-m +=gpio-phytium-platform.oKDIR=/lib/modules/$(shell uname -r)/buildall:make -C $(KDIR) M=$(PWD) modulesclean:make -C $(KDIR) M=$(PWD) clean5、应用代码
应用代码中首先需要Pin脚复用配置，然后配置GPIO复用中断信号，初始化信号量，将应用PID传递给驱动，这样驱动才可以发对应信号量给应用。
主要的文件gpio_test.c代码
#define _GNU_SOURCE
#include <sched.h>
#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <unistd.h>
#include <semaphore.h>
#include <error.h>
#include <errno.h>
#include <malloc.h>
#include <assert.h>
#include <fcntl.h>
#include <getopt.h>
#include <stdint.h>
#include <string.h>
#include <time.h>
#include <signal.h>
#include <sys/mman.h>
#include <sys/stat.h>
#include <sys/time.h>
#include <sys/types.h>
#include <sys/select.h>
#include <sys/types.h>
#include <sys/ipc.h>
#include <sys/ioctl.h>
#include <sys/sem.h>
#include <sched.h>#include "ft20004_gpio.h"#define MAP_SIZE ((size_t)getpagesize())
#define PAGE_MASK ((uint64_t) (long)~(MAP_SIZE - 1))#define GPIO_SIGNAL1 40
#define GPIO_SIGNAL2 41
#define GPIO_SIGNAL3 42
#define GPIO_SIGNAL4 43int gpioInit(void)
{int ret;ret = gpio_mem_mmap();if (ret != 0) {printf("gpio memmap failed!\n");return -1;}//配置复用gpio管脚iomux_set_fun(GPIO_A0_MUX_PAD_PIN, FUNC_1); //gpio0_a0iomux_set_fun(GPIO_A1_MUX_PAD_PIN, FUNC_1); //gpio0_a1iomux_set_fun(GPIO_A2_MUX_PAD_PIN, FUNC_1); //gpio0_a2iomux_set_fun(GPIO_A3_MUX_PAD_PIN, FUNC_1); //gpio0_a3iomux_set_fun(GPIO_A4_MUX_PAD_PIN, FUNC_1); //gpio0_a4iomux_set_fun(GPIO_A5_MUX_PAD_PIN, FUNC_1); //gpio0_a5iomux_set_fun(GPIO_A6_MUX_PAD_PIN, FUNC_1); //gpio0_a6iomux_set_fun(GPIO_A7_MUX_PAD_PIN, FUNC_1); //gpio0_a7iomux_set_fun(GPIO_B7_MUX_PAD_PIN, FUNC_2); //gpio0_b7//中断配置gpio_int_falledge(GPIO_ID_0, GPIO_A0_INT_PIN); //设置gpio a0为中断信号gpio_int_falledge(GPIO_ID_0, GPIO_A1_INT_PIN); //设置gpio a1为中断信号gpio_int_falledge(GPIO_ID_0, GPIO_A2_INT_PIN); //设置gpio a2为中断信号gpio_int_falledge(GPIO_ID_0, GPIO_A3_INT_PIN); //设置gpio a3为中断信号gpio_int_falledge(GPIO_ID_0, GPIO_A4_INT_PIN); //设置gpio a4为中断信号gpio_int_falledge(GPIO_ID_0, GPIO_A5_INT_PIN); //设置gpio a5为中断信号gpio_int_falledge(GPIO_ID_0, GPIO_A6_INT_PIN); //设置gpio a6为中断信号gpio_int_falledge(GPIO_ID_0, GPIO_A7_INT_PIN); //设置gpio a7为中断信号return 0; }void bslmysignal_fun(int signum, siginfo_t *info, void *myact)
{static unsigned long tvs1=0,tvs2=0,tvs3=0,tvs4=0;if (signum == GPIO_SIGNAL1 ) { tvs1 ++;printf("IRQ-gpio0-a1 \n");} else if (signum == GPIO_SIGNAL2) { tvs2 ++;printf("IRQ-gpio0-a2 \n");} else if (signum == GPIO_SIGNAL3) { tvs3 ++;printf("IRQ-gpio0-a3 \n");} else if (signum == GPIO_SIGNAL4) { tvs4 ++;printf("IRQ-gpio0-a4 \n");} return;
}int bslSendPid(int pid)
{int ret = 0;int fd;fd = open("/dev/hc_buttons", O_RDWR);if (fd < 0) {printf("can't open /dev/hc_buttons!\n");return -1;}ret = ioctl(fd, CMD_SET_PID, &pid);if (ret == 0) {printf("ft send exe pid suncessfully! pid:%d\n", pid);} else {printf("ft send exe pid unsuncessfully! pid:%d\n", pid);return -1;}close(fd);return 0;
}int bslIrqInit(void){int fd;int pid = 0;struct sigaction sigio_act;sigset_t mask;sigemptyset(&sigio_act.sa_mask);sigio_act.sa_sigaction = bslmysignal_fun;sigio_act.sa_flags = SA_SIGINFO;if(sigaction(GPIO_SIGNAL1, &sigio_act, NULL) < 0){printf("gpio1 error\n");}if(sigaction(GPIO_SIGNAL2, &sigio_act, NULL) < 0){printf("gpio2 error\n");}if(sigaction(GPIO_SIGNAL3, &sigio_act, NULL) < 0){printf("gpio3 error\n");}if(sigaction(GPIO_SIGNAL4, &sigio_act, NULL) < 0){printf("gpio4 error\n");}pid = getpid();printf("call ioctl. pid = %d \n", pid);bslSendPid(pid);printf("set fcntl FASYNC ok!\n");return 0;
}int main()
{ gpioInit();int ret = bslIrqInit();if (ret != 0) {printf("init irq fail!\n");}while(1) {sleep(10);}return 0;
}
gpioInit这个函数完成了2-3部分内容，在ft20004_gpio.h中定义，并在ft20004_gpio.c中实现，代码如下：
ft20004_gpio.h
/** gpio.h** Created on: 2025年3月14日* Author: root*/#ifndef GPIO_H_
#define GPIO_H_#include <stdio.h>#define PINMUX_REG 0x28180000
#define GPIO_0_REG 0x28004000
#define GPIO_1_REG 0x28005000#define PINMUX_OFFSET_BASE 0x200#define GPIO0_A0_PIN 0
#define GPIO0_A1_PIN 1
#define GPIO0_A2_PIN 2
#define GPIO0_A3_PIN 3
#define GPIO0_A4_PIN 4
#define GPIO0_A5_PIN 5
#define GPIO0_A6_PIN 6
#define GPIO0_A7_PIN 7
#define GPIO0_B0_PIN 8
#define GPIO0_B1_PIN 9
#define GPIO0_B2_PIN 10
#define GPIO0_B3_PIN 11
#define GPIO0_B4_PIN 12
#define GPIO0_B5_PIN 13
#define GPIO0_B6_PIN 14
#define GPIO0_B7_PIN 15#define GPIO1_A0_PIN 16
#define GPIO1_A1_PIN 17
#define GPIO1_A2_PIN 18
#define GPIO1_A3_PIN 19
#define GPIO1_A4_PIN 20
#define GPIO1_A5_PIN 21
#define GPIO1_A6_PIN 22
#define GPIO1_A7_PIN 23
#define GPIO1_B0_PIN 24
#define GPIO1_B1_PIN 25
#define GPIO1_B2_PIN 26
#define GPIO1_B3_PIN 27
#define GPIO1_B4_PIN 28
#define GPIO1_B5_PIN 29
#define GPIO1_B6_PIN 30
#define GPIO1_B7_PIN 31#define GPIO_A0_INT_PIN 0
#define GPIO_A1_INT_PIN 1
#define GPIO_A2_INT_PIN 2
#define GPIO_A3_INT_PIN 3
#define GPIO_A4_INT_PIN 4
#define GPIO_A5_INT_PIN 5
#define GPIO_A6_INT_PIN 6
#define GPIO_A7_INT_PIN 7#define PORTNUM_GPIOA 8#define GPIO_A0_MUX_PAD_PIN 6 //fun:1
#define GPIO_A1_MUX_PAD_PIN 5 //fun:1
#define GPIO_A2_MUX_PAD_PIN 4 //fun:1
#define GPIO_A3_MUX_PAD_PIN 3 //fun:1
#define GPIO_A4_MUX_PAD_PIN 2 //fun:1
#define GPIO_A5_MUX_PAD_PIN 1 //fun:1
#define GPIO_A6_MUX_PAD_PIN 0 //fun:1
#define GPIO_A7_MUX_PAD_PIN 15 //fun:1#define GPIO_B5_MUX_PAD_PIN 32 //fun:2
#define GPIO_B6_MUX_PAD_PIN 42 //fun:2
#define GPIO_B7_MUX_PAD_PIN 41 //fun:2#define GPIO_SWPORTA_DR 0x0
#define GPIO_SWPORTA_DDR 0x4
#define GPIO_EXT_PORTA 0x8
#define GPIO_SWPORTB_DR 0xC
#define GPIO_SWPORTB_DDR 0x10
#define GPIO_EXT_PORTB 0x14
#define GPIO_INTEN 0x18
#define GPIO_INTMASK 0x1C
#define GPIO_INTTTYPE_LEVEL 0x20
#define GPIO_INT_POLARITY 0x24
#define GPIO_INTSTATUS 0x28
#define GPIO_RAW_STATUS 0x2C
#define GPIO_IS_SYNC 0x30
#define GPIO_DEBOUNCE 0x34
#define GPIO_PORTA_EOI 0x38#define GPIO_ID_0 0x0
#define GPIO_ID_1 0x1
#define GPIO_GROUP_A 0x0
#define GPIO_GROUP_B 0x1#define PORTNUM_GPIO0 16
#define PORTNUM_GPIO1 16
#define GPIO_DIRECTION_OUTPUT 1
#define GPIO_DIRECTION_INPUT 0#define readl(addr) (*(volatile unsigned int *)(addr))
#define writel(data, addr) (*(volatile unsigned int *)(addr) = (data))
#define GpioGetBit(addr, bitpos) (readl(addr) >> bitpos)&0x1
#define GpioSetBit(addr, bitpos) writel(readl(addr) | (0x1 << bitpos), addr)
#define GpioClrBit(addr, bitpos) writel(readl(addr) & (~(0x1 << bitpos)), addr)#define CMD_SET_PID 0x7B01typedef enum {FUNC_0 = 0,FUNC_1 = 1,FUNC_2 = 2,FUNC_3 = 3,
} FuncType;int gpio_mem_mmap(void);
void gpio_mem_unmmap(void);
void iomux_set_fun(unsigned int pad, unsigned int fun);
int gpio_set_dir(unsigned int pin, unsigned int dir);
void gpio0_int_clear(unsigned int pin);
void gpio1_int_clear(unsigned int pin);
int gpio_set_value(unsigned int pin, unsigned int val);
int gpio_get_value(unsigned int pin);
int gpio_get_ext_port_value(int gpioId, int gpioGroup);
int gpio_int_falledge(int gpioId, unsigned int pin);#endif /* GPIO_H_ */
ft20004_gpio.c
/** gpio.c** Created on: 2025年3月14日* Author: root*/#include <sys/stat.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <sys/mman.h>
#include <sys/time.h>
#include <errno.h>
#include <unistd.h>
#include <sys/types.h>
#include <fcntl.h>
#include <string.h>
#include "ft20004_gpio.h"static void *g_gpioPinMuxBaseAddr = NULL;
static void *g_gpio0BaseAddr = NULL;
static void *g_gpio1BaseAddr = NULL;
static int g_devmemFd = -1;void gpio0_int_clear(unsigned int pin)
{GpioSetBit((g_gpio0BaseAddr + GPIO_PORTA_EOI), pin);return;
}void gpio1_int_clear(unsigned int pin)
{GpioSetBit((g_gpio1BaseAddr + GPIO_PORTA_EOI), pin);return;
}int gpio_set_dir(unsigned int pin, unsigned int dir)
{void * gpio_reg_info;unsigned int *swport_ddr;if(pin >= (PORTNUM_GPIO0 + PORTNUM_GPIO1))return -1;gpio_reg_info = (pin < PORTNUM_GPIO0) ? g_gpio0BaseAddr : g_gpio1BaseAddr;pin = (pin < PORTNUM_GPIO0) ? pin : (pin - PORTNUM_GPIO0);swport_ddr = (pin < PORTNUM_GPIOA) ? (unsigned int *)(gpio_reg_info + GPIO_SWPORTA_DDR):(unsigned int *)(gpio_reg_info + GPIO_SWPORTB_DDR);pin = (pin < PORTNUM_GPIOA) ? pin : (pin - PORTNUM_GPIOA);/*配置方向寄存器*/(dir == GPIO_DIRECTION_INPUT) ? GpioClrBit(swport_ddr, pin) : GpioSetBit(swport_ddr, pin);return 0;
}int gpio_set_value(unsigned int pin, unsigned int val)
{unsigned int *swport_dr;void * gpio_reg_info;if(pin >= (PORTNUM_GPIO0 + PORTNUM_GPIO1))return -1;gpio_reg_info = (pin < PORTNUM_GPIO0) ? g_gpio0BaseAddr : g_gpio1BaseAddr;pin = (pin < PORTNUM_GPIO0) ? pin : (pin - PORTNUM_GPIO0);swport_dr = (pin < PORTNUM_GPIOA) ? (unsigned int *)(gpio_reg_info + GPIO_SWPORTA_DR):(unsigned int *)(gpio_reg_info + GPIO_SWPORTB_DR);pin = (pin < PORTNUM_GPIOA) ? pin : (pin-PORTNUM_GPIOA);/*配置输出寄存器*/(val == 0) ? GpioClrBit(swport_dr, pin) : GpioSetBit(swport_dr, pin);return 0;
}/**GPIO0 a0-a7:pin(0-7)*GPIO0 b0-b7:pin(8-15)*GPIO1 a0-a7:pin(16-23)*GPIO1 b0-b7:pin(24-31)*/
int gpio_get_value(unsigned int pin)
{unsigned int ret = 3;unsigned int *extport_dr;void * gpio_reg_info;if(pin >= (PORTNUM_GPIO0 + PORTNUM_GPIO1))return -1;gpio_reg_info = (pin < PORTNUM_GPIO0) ? g_gpio0BaseAddr : g_gpio1BaseAddr;pin = (pin < PORTNUM_GPIO0) ? pin : (pin-PORTNUM_GPIO0);extport_dr = (pin < PORTNUM_GPIOA) ? (unsigned int *)(gpio_reg_info + GPIO_EXT_PORTA):(unsigned int *)(gpio_reg_info + GPIO_EXT_PORTB);;pin = (pin < PORTNUM_GPIOA) ? pin : (pin-PORTNUM_GPIOA);/*配置输出寄存器*/ret = GpioGetBit(extport_dr, pin);return ret;
}int gpio_get_ext_port_value(int gpioId, int gpioGroup)
{unsigned int ret = 3;unsigned int *extport_dr;void * gpio_reg_info;unsigned int extport_dr_offset;if (gpioId == GPIO_ID_0) {gpio_reg_info = g_gpio0BaseAddr;} else if (gpioId == GPIO_ID_1) {gpio_reg_info = g_gpio1BaseAddr;} else {printf("gpio group id is error!\n");return -1;}if (gpioGroup == GPIO_GROUP_A) {extport_dr_offset = GPIO_EXT_PORTA;} else if (gpioGroup == GPIO_GROUP_B) {extport_dr_offset = GPIO_EXT_PORTB;} else {printf("gpio group id is error!\n");return -2;}extport_dr = (unsigned int *)(gpio_reg_info + extport_dr_offset);ret = readl(extport_dr);return ret;
}//管脚列表 每一项从下往上编号为0-7
void iomux_set_fun(unsigned int pad, unsigned int fun)
{void *addr;unsigned int bitpos;addr = g_gpioPinMuxBaseAddr + 0x0200 + (pad / 8) * 4;bitpos = (pad % 8) * 4;writel(readl(addr) & (~(0x3 << bitpos)) | (fun << bitpos), addr);return;
}//中断设置
int gpio_int_falledge(int gpioId, unsigned int pin)
{void * tmpAddr = NULL;if(pin >= PORTNUM_GPIOA)return -1;if (gpioId == GPIO_ID_0) {tmpAddr = g_gpio0BaseAddr;} else if (gpioId == GPIO_ID_1) {tmpAddr = g_gpio1BaseAddr;} else {printf("gpio group id is error!\n");return -2;}GpioClrBit((unsigned int *)(tmpAddr + GPIO_SWPORTA_DDR), pin); //配置方向寄存器为输入GpioClrBit((unsigned int *)(tmpAddr + GPIO_INTMASK), pin); //中断屏蔽寄存器GpioSetBit((unsigned int *)(tmpAddr + GPIO_INTTTYPE_LEVEL), pin); //配置中断类型寄存器：0-电平触发；1-边沿触发GpioSetBit((unsigned int *)(tmpAddr + GPIO_INT_POLARITY), pin); //配置中断极性寄存器：0-下降沿或低电平；1-上升沿或高电平GpioSetBit((unsigned int *)(tmpAddr + GPIO_INTEN), pin); //使能中断return 0;
}int gpio_mem_mmap(void)
{g_devmemFd = open("/dev/mem", O_RDWR);if (g_devmemFd < 0) {perror("gpio:");return -1;}g_gpioPinMuxBaseAddr = mmap(NULL, 0x10000,PROT_READ|PROT_WRITE,MAP_SHARED,g_devmemFd,PINMUX_REG);if (g_gpioPinMuxBaseAddr == MAP_FAILED) {perror("gpio pinmux:");return -2;}g_gpio0BaseAddr = mmap(NULL, 0x10000,PROT_READ|PROT_WRITE,MAP_SHARED,g_devmemFd,GPIO_0_REG);if (g_gpio0BaseAddr == MAP_FAILED) {perror("gpio pinmux:");return -3;} g_gpio1BaseAddr = mmap(NULL, 0x10000,PROT_READ|PROT_WRITE,MAP_SHARED,g_devmemFd,GPIO_1_REG);if (g_gpio1BaseAddr == MAP_FAILED) {perror("gpio pinmux:");return -4;}return 0;
}void gpio_mem_unmmap(void)
{if (g_devmemFd > 0) {close(g_devmemFd);}if (g_gpioPinMuxBaseAddr != NULL) {munmap(g_gpioPinMuxBaseAddr, 0x10000);}if (g_gpio0BaseAddr != NULL) {munmap(g_gpio0BaseAddr, 0x10000);}if (g_gpio1BaseAddr != NULL) {munmap(g_gpio1BaseAddr, 0x10000);}return;
}以上就实现了FT2000/4核上GPIO中断的响应。
