本章节主要内容是:自定义的波形图控件的使用，主活动随机产生多条曲线。
1.代码分析
2.所有源码
3.效果图
一、代码分析
WaveView自定义View详细函数分析
1. 构造函数和初始化
init(AttributeSet attrs) - 核心初始化函数
private void init(AttributeSet attrs) {waveDataList = new ArrayList<>(); // 初始化波形数据列表// 设置深蓝色科幻风格背景setBackgroundColor(backgroundColor);// 初始化四种不同的画笔initAxisPaint(); // 坐标轴画笔initGridPaint(); // 网格画笔 initTextPaint(); // 文字画笔initGlowPaint(); // 发光效果画笔// 设置默认坐标轴尺寸xAxisSize = 800; // X轴宽度yAxisSize = 400; // Y轴高度// 启用硬件加速提升性能setLayerType(LAYER_TYPE_HARDWARE, null);
}
画笔初始化细节
坐标轴画笔：
颜色：半透明青色 Color.argb(180, 0, 255, 255)
线宽：3像素
样式：描边 Style.STROKE
抗锯齿：开启
网格画笔：
颜色：更透明的青色 Color.argb(80, 0, 255, 255)
线宽：1像素（比坐标轴细）
文字画笔：
字体大小：28sp
对齐方式：居中 Align.CENTER
发光画笔：
特殊效果：阴影层 setShadowLayer(15, 0, 0, Color.argb(150, 0, 255, 255))
阴影半径15像素，产生光晕效果
2. 数据管理函数
addWaveData(String name, int color) - 添加波形通道
public void addWaveData(String name, int color) {WaveData waveData = new WaveData(name, color); // 创建波形数据对象waveDataList.add(waveData); // 添加到列表// 注意：这里没有调用invalidate()，因为只是添加通道还没有数据
}
addDataToWave(String name, float value) - 添加数据点
java
public void addDataToWave(String name, float value) {for (WaveData waveData : waveDataList) {if (waveData.getName().equals(name)) {waveData.addData(value); // 添加数据// FIFO管理：超过200个点移除最旧的数据if (waveData.getData().size() > maxDataPoints) {waveData.getData().remove(0); // 移除第一个元素}break;}}invalidate(); // 触发重绘
}
数据流管理：
查找对应名称的波形通道
添加新数据点
维护固定长度队列（200点）
自动触发界面更新
3. 绘制函数详细分析
onDraw(Canvas canvas) - 主绘制流程
@Override
protected void onDraw(Canvas canvas) {super.onDraw(canvas); // 调用父类绘制（背景色）// 绘制顺序：从底层到顶层if (showGrid) {drawGrid(canvas); // 1. 网格（最底层）}drawAxis(canvas); // 2. 坐标轴drawWaves(canvas); // 3. 波形数据（主要内容）drawLegend(canvas); // 4. 图例（覆盖在波形上）drawBorder(canvas); // 5. 边框（最顶层）
}
drawGrid(Canvas canvas) - 网格绘制
java
private void drawGrid(Canvas canvas) {float startX = 50; // 网格起始X坐标float startY = getHeight() - 50; // 网格起始Y坐标（底部向上50px）float endX = startX + xAxisSize; // 网格结束X坐标float endY = startY - yAxisSize; // 网格结束Y坐标// 水平网格线：gridDensity+1条线（包含边界）for (int i = 0; i <= gridDensity; i++) {float y = startY - (i * yAxisSize / gridDensity); // 等分Y轴canvas.drawLine(startX, y, endX, y, gridPaint); // 绘制水平线}// 垂直网格线：2倍密度，更密的纵向网格for (int i = 0; i <= gridDensity * 2; i++) {float x = startX + (i * xAxisSize / (gridDensity * 2));canvas.drawLine(x, startY, x, endY, gridPaint);}
}
网格特点：
水平线：按gridDensity等分（默认10等分）
垂直线：双倍密度，更细的纵向分割
网格区域：固定位置，距离左边和底部各50像素
drawAxis(Canvas canvas) - 坐标轴绘制
private void drawAxis(Canvas canvas) {float startX = 50; // 坐标原点Xfloat startY = getHeight() - 50; // 坐标原点Yfloat endX = startX + xAxisSize; // X轴终点float endY = startY - yAxisSize; // Y轴终点// 绘制X轴和Y轴主线canvas.drawLine(startX, startY, endX, startY, axisPaint); // X轴canvas.drawLine(startX, startY, startX, endY, axisPaint); // Y轴// 绘制箭头（简化版，只是延长线）drawArrow(canvas, endX, startY, endX + 15, startY); // X轴箭头drawArrow(canvas, startX, endY, startX, endY - 15); // Y轴箭头// X轴刻度（11个刻度：0-10）for (int i = 0; i <= 10; i++) {float x = startX + (i * xAxisSize / 10);canvas.drawLine(x, startY, x, startY - 8, axisPaint); // 刻度线canvas.drawText(String.valueOf(i), x, startY + 25, textPaint); // 刻度值}// Y轴刻度（6个刻度：0-5）for (int i = 0; i <= 5; i++) {float y = startY - (i * yAxisSize / 5);canvas.drawLine(startX, y, startX + 8, y, axisPaint);canvas.drawText(String.valueOf(i), startX - 20, y + 10, textPaint);}// 坐标轴标签（带旋转效果）canvas.drawText("时间 (s)", startX + xAxisSize / 2, startY + 50, textPaint);canvas.save(); // 保存画布状态canvas.rotate(-90, startX - 40, startY - yAxisSize / 2); // 旋转-90度canvas.drawText("幅度 (V)", startX - 40, startY - yAxisSize / 2, textPaint);canvas.restore(); // 恢复画布状态
}
坐标轴特性：
固定刻度数量：X轴11个，Y轴6个
Y轴标签通过旋转实现垂直文字
使用save()/restore()保护画布状态
drawWaves(Canvas canvas) - 核心波形绘制
private void drawWaves(Canvas canvas) {if (waveDataList.isEmpty()) return;float startX = 50; // 波形起始Xfloat startY = getHeight() - 50; // 波形起始Y（坐标原点）float xStep = xAxisSize / (maxDataPoints - 1); // X轴步进（每个数据点间距）for (WaveData waveData : waveDataList) {List<Float> data = waveData.getData();if (data.size() < 2) continue; // 至少需要2个点才能画线// 1. 绘制发光效果（底层）if (showGlowEffect) {drawGlowEffect(canvas, waveData, startX, startY, xStep);}// 2. 绘制渐变填充（中层）drawGradientFill(canvas, waveData, startX, startY, xStep);// 3. 绘制主波形线（上层）drawMainWaveLine(canvas, waveData, startX, startY, xStep);// 4. 绘制数据点（可选）if (data.size() < 50) {drawDataPoints(canvas, waveData, startX, startY, xStep);}}
}
发光效果绘制
// 简化版的发光效果实现
Path glowPath = new Path();
glowPath.moveTo(startX, startY - (data.get(0) * yAxisSize / 5)); // 移动到第一个点for (int i = 1; i < data.size(); i++) {float x = startX + (i * xStep);float y = startY - (data.get(i) * yAxisSize / 5); // 数据映射到坐标glowPath.lineTo(x, y); // 连线到下一个点
}// 使用半透明的宽线条产生发光效果
glowPaint.setAlpha(100); // 半透明
glowPaint.setStrokeWidth(5); // 比主线条粗
canvas.drawPath(glowPath, glowPaint);
渐变填充绘制
java
Path fillPath = new Path();
fillPath.moveTo(startX, startY); // 从坐标原点开始
fillPath.lineTo(startX, startY - (data.get(0) * yAxisSize / 5)); // 到第一个数据点// 连接所有数据点
for (int i = 1; i < data.size(); i++) {float x = startX + (i * xStep);float y = startY - (data.get(i) * yAxisSize / 5);fillPath.lineTo(x, y);
}// 闭合路径：从最后一个点回到坐标原点
fillPath.lineTo(startX + (data.size() - 1) * xStep, startY);
fillPath.close(); // 形成闭合区域// 创建从上到下的渐变
LinearGradient gradient = new LinearGradient(0, startY - yAxisSize, // 渐变起点（顶部）0, startY, // 渐变终点（底部）Color.argb(80, r, g, b), // 顶部颜色（较深）Color.argb(20, r, g, b), // 底部颜色（较浅）Shader.TileMode.CLAMP
);
数据映射公式：
// 将数据值映射到屏幕坐标
float y = startY - (dataValue * yAxisSize / 5);
dataValue：原始数据值（0-5范围）yAxisSize / 5：每个单位对应的像素数startY - ...：因为屏幕坐标系Y轴向下，需要取反drawLegend(Canvas canvas) - 图例绘制
java
private void drawLegend(Canvas canvas) {float startX = 60 + xAxisSize; // 图例在波形区域右侧float startY = getHeight() - 50 - yAxisSize + 30; // 与波形顶部对齐// 绘制半透明背景Paint legendBgPaint = new Paint();legendBgPaint.setColor(Color.argb(150, 0, 30, 60)); // 深蓝色半透明背景canvas.drawRoundRect(startX - 10, startY - 10, startX + 180, startY + waveDataList.size() * 40 + 20, 10, 10, legendBgPaint); // 圆角矩形// 绘制每个波形的图例项for (int i = 0; i < waveDataList.size(); i++) {WaveData waveData = waveDataList.get(i);// 颜色方块canvas.drawRect(startX, startY + (i * 40), startX + 20, startY + (i * 40) + 20, rectPaint);// 波形名称canvas.drawText(waveData.getName(), startX + 100, startY + (i * 40) + 15, textPaint);}
}
4. 辅助函数
配置函数族
java
public void setAxisSize(float xAxisSize, float yAxisSize) {this.xAxisSize = xAxisSize;this.yAxisSize = yAxisSize;invalidate(); // 尺寸改变后立即重绘
}public void setGridDensity(int density) {this.gridDensity = density;invalidate(); // 网格密度改变后重绘
}public void setShowGrid(boolean show) {this.showGrid = show;invalidate(); // 显示状态改变后重绘
}
设计模式：所有改变显示状态的函数都调用invalidate()触发界面更新。
5. 性能优化特性
硬件加速：setLayerType(LAYER_TYPE_HARDWARE, null)
数据量控制：固定200个数据点，避免内存无限增长
条件绘制：数据点少于50时才绘制点状标记
路径绘制：使用Path而非多次drawLine提高效率
6. 坐标系统总结
text
(0,0) ┌────────────────────────────────────────┐
│ Wave View │
│ ┌─────────────────┐ │
│ │ │ 图例区域 │
│ │ 波形区域 │ ┌──────┐ │
│ │ │ │信号1│ │
│ │ │ │信号2│ │
│ └─────────────────┘ └──────┘ │
│ │
└────────────────────────────────────────┘ (width,height)
波形区域坐标：
起点：(50, height-50)
尺寸：800×400 像素
数据范围：X轴0-10秒，Y轴0-5伏特
这个自定义View设计完整，功能丰富，具有良好的可扩展性和性能优化。
二、所有源码

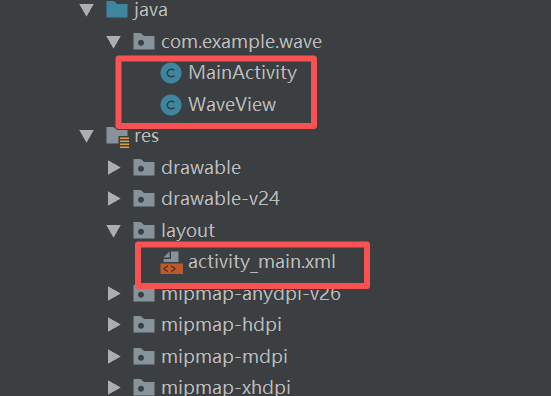

源码总共3部分
1.waveview.java源码
package com.example.wave;import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.LinearGradient;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.Shader;
import android.util.AttributeSet;
import android.view.View;import java.util.ArrayList;
import java.util.List;public class WaveView extends View {private List<WaveData> waveDataList;private Paint axisPaint;private Paint gridPaint;private Paint textPaint;private Paint glowPaint;private float xAxisSize;private float yAxisSize;private int maxDataPoints = 200;private int gridDensity = 10;private boolean showGrid = true;private boolean showGlowEffect = true;// 科幻风格颜色private int gridColor = Color.argb(80, 0, 255, 255); // 半透明青色网格private int axisColor = Color.argb(180, 0, 255, 255); // 青色坐标轴private int backgroundColor = Color.argb(255, 10, 20, 40); // 深蓝色背景private int textColor = Color.argb(200, 0, 255, 255); // 青色文字public WaveView(Context context) {super(context);init(null);}public WaveView(Context context, AttributeSet attrs) {super(context, attrs);init(attrs);}public WaveView(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr);init(attrs);}private void init(AttributeSet attrs) {waveDataList = new ArrayList<>();// 设置背景色setBackgroundColor(backgroundColor);// 初始化坐标轴画笔axisPaint = new Paint();axisPaint.setColor(axisColor);axisPaint.setStrokeWidth(3);axisPaint.setStyle(Paint.Style.STROKE);axisPaint.setAntiAlias(true);// 初始化网格画笔gridPaint = new Paint();gridPaint.setColor(gridColor);gridPaint.setStrokeWidth(1);gridPaint.setStyle(Paint.Style.STROKE);gridPaint.setAntiAlias(true);// 初始化文字画笔textPaint = new Paint();textPaint.setColor(textColor);textPaint.setTextSize(28);textPaint.setAntiAlias(true);textPaint.setTextAlign(Paint.Align.CENTER);// 初始化发光效果画笔glowPaint = new Paint();glowPaint.setStrokeWidth(4);glowPaint.setStyle(Paint.Style.STROKE);glowPaint.setAntiAlias(true);glowPaint.setShadowLayer(15, 0, 0, Color.argb(150, 0, 255, 255));// 默认坐标轴大小xAxisSize = 800;yAxisSize = 400;// 启用硬件加速以获得更好的性能setLayerType(LAYER_TYPE_HARDWARE, null);}public void setAxisSize(float xAxisSize, float yAxisSize) {this.xAxisSize = xAxisSize;this.yAxisSize = yAxisSize;invalidate();}public void setGridDensity(int density) {this.gridDensity = density;invalidate();}public void setShowGrid(boolean show) {this.showGrid = show;invalidate();}public void setShowGlowEffect(boolean show) {this.showGlowEffect = show;invalidate();}public void addWaveData(String name, int color) {WaveData waveData = new WaveData(name, color);waveDataList.add(waveData);}public void addDataToWave(String name, float value) {for (WaveData waveData : waveDataList) {if (waveData.getName().equals(name)) {waveData.addData(value);if (waveData.getData().size() > maxDataPoints) {waveData.getData().remove(0);}break;}}invalidate();}@Overrideprotected void onDraw(Canvas canvas) {super.onDraw(canvas);// 绘制网格if (showGrid) {drawGrid(canvas);}// 绘制坐标轴drawAxis(canvas);// 绘制波形drawWaves(canvas);// 绘制图例drawLegend(canvas);// 绘制边框效果drawBorder(canvas);}private void drawGrid(Canvas canvas) {float startX = 50;float startY = getHeight() - 50;float endX = startX + xAxisSize;float endY = startY - yAxisSize;// 绘制水平网格线for (int i = 0; i <= gridDensity; i++) {float y = startY - (i * yAxisSize / gridDensity);canvas.drawLine(startX, y, endX, y, gridPaint);}// 绘制垂直网格线for (int i = 0; i <= gridDensity * 2; i++) {float x = startX + (i * xAxisSize / (gridDensity * 2));canvas.drawLine(x, startY, x, endY, gridPaint);}}private void drawAxis(Canvas canvas) {float startX = 50;float startY = getHeight() - 50;float endX = startX + xAxisSize;float endY = startY - yAxisSize;// 绘制X轴canvas.drawLine(startX, startY, endX, startY, axisPaint);// 绘制Y轴canvas.drawLine(startX, startY, startX, endY, axisPaint);// 绘制箭头drawArrow(canvas, endX, startY, endX + 15, startY); // X轴箭头drawArrow(canvas, startX, endY, startX, endY - 15); // Y轴箭头// 绘制刻度for (int i = 0; i <= 10; i++) {float x = startX + (i * xAxisSize / 10);canvas.drawLine(x, startY, x, startY - 8, axisPaint);canvas.drawText(String.valueOf(i), x, startY + 25, textPaint);}for (int i = 0; i <= 5; i++) {float y = startY - (i * yAxisSize / 5);canvas.drawLine(startX, y, startX + 8, y, axisPaint);canvas.drawText(String.valueOf(i), startX - 20, y + 10, textPaint);}// 绘制坐标轴标签canvas.drawText("时间 (s)", startX + xAxisSize / 2, startY + 50, textPaint);canvas.save();canvas.rotate(-90, startX - 40, startY - yAxisSize / 2);canvas.drawText("幅度 (V)", startX - 40, startY - yAxisSize / 2, textPaint);canvas.restore();}private void drawArrow(Canvas canvas, float x1, float y1, float x2, float y2) {canvas.drawLine(x1, y1, x2, y2, axisPaint);}private void drawWaves(Canvas canvas) {if (waveDataList.isEmpty()) return;float startX = 50;float startY = getHeight() - 50;float xStep = xAxisSize / (maxDataPoints - 1);for (WaveData waveData : waveDataList) {List<Float> data = waveData.getData();if (data.size() < 2) continue;// 绘制主波形线Paint mainPaint = new Paint();mainPaint.setColor(waveData.getColor());mainPaint.setStrokeWidth(3);mainPaint.setStyle(Paint.Style.STROKE);mainPaint.setAntiAlias(true);// 绘制发光效果if (showGlowEffect) {Paint glowPaint = new Paint();glowPaint.setColor(waveData.getColor());glowPaint.setStrokeWidth(5);glowPaint.setStyle(Paint.Style.STROKE);glowPaint.setAlpha(100);glowPaint.setAntiAlias(true);Path glowPath = new Path();glowPath.moveTo(startX, startY - (data.get(0) * yAxisSize / 5));for (int i = 1; i < data.size(); i++) {float x = startX + (i * xStep);float y = startY - (data.get(i) * yAxisSize / 5);glowPath.lineTo(x, y);}canvas.drawPath(glowPath, glowPaint);}// 绘制渐变填充效果Path fillPath = new Path();fillPath.moveTo(startX, startY);fillPath.lineTo(startX, startY - (data.get(0) * yAxisSize / 5));for (int i = 1; i < data.size(); i++) {float x = startX + (i * xStep);float y = startY - (data.get(i) * yAxisSize / 5);fillPath.lineTo(x, y);}fillPath.lineTo(startX + (data.size() - 1) * xStep, startY);fillPath.close();Paint fillPaint = new Paint();fillPaint.setStyle(Paint.Style.FILL);fillPaint.setShader(new LinearGradient(0, startY - yAxisSize,0, startY,Color.argb(80, Color.red(waveData.getColor()),Color.green(waveData.getColor()),Color.blue(waveData.getColor())),Color.argb(20, Color.red(waveData.getColor()),Color.green(waveData.getColor()),Color.blue(waveData.getColor())),Shader.TileMode.CLAMP));canvas.drawPath(fillPath, fillPaint);// 绘制主波形线Path mainPath = new Path();mainPath.moveTo(startX, startY - (data.get(0) * yAxisSize / 5));for (int i = 1; i < data.size(); i++) {float x = startX + (i * xStep);float y = startY - (data.get(i) * yAxisSize / 5);mainPath.lineTo(x, y);}canvas.drawPath(mainPath, mainPaint);// 绘制数据点（只在数据点较少时显示）if (data.size() < 50) {Paint pointPaint = new Paint();pointPaint.setColor(waveData.getColor());pointPaint.setStyle(Paint.Style.FILL);pointPaint.setAntiAlias(true);for (int i = 0; i < data.size(); i++) {float x = startX + (i * xStep);float y = startY - (data.get(i) * yAxisSize / 5);canvas.drawCircle(x, y, 4, pointPaint);canvas.drawCircle(x, y, 6, glowPaint);}}}}private void drawLegend(Canvas canvas) {float startX = 60 + xAxisSize;float startY = getHeight() - 50 - yAxisSize + 30;Paint legendBgPaint = new Paint();legendBgPaint.setColor(Color.argb(150, 0, 30, 60));legendBgPaint.setStyle(Paint.Style.FILL);legendBgPaint.setAntiAlias(true);// 绘制图例背景float legendWidth = 180;float legendHeight = waveDataList.size() * 40 + 20;canvas.drawRoundRect(startX - 10, startY - 10,startX + legendWidth, startY + legendHeight, 10, 10, legendBgPaint);for (int i = 0; i < waveDataList.size(); i++) {WaveData waveData = waveDataList.get(i);Paint rectPaint = new Paint();rectPaint.setColor(waveData.getColor());rectPaint.setStyle(Paint.Style.FILL);rectPaint.setAntiAlias(true);// 绘制图例颜色块canvas.drawRect(startX, startY + (i * 40),startX + 20, startY + (i * 40) + 20, rectPaint);// 绘制图例文字canvas.drawText(waveData.getName(), startX + 100, startY + (i * 40) + 15, textPaint);}}private void drawBorder(Canvas canvas) {Paint borderPaint = new Paint();borderPaint.setColor(Color.argb(100, 0, 255, 255));borderPaint.setStrokeWidth(2);borderPaint.setStyle(Paint.Style.STROKE);borderPaint.setAntiAlias(true);// 绘制外边框canvas.drawRect(5, 5, getWidth() - 5, getHeight() - 5, borderPaint);// 绘制内发光效果Paint innerGlowPaint = new Paint();innerGlowPaint.setColor(Color.argb(50, 0, 255, 255));innerGlowPaint.setStrokeWidth(1);innerGlowPaint.setStyle(Paint.Style.STROKE);innerGlowPaint.setAntiAlias(true);canvas.drawRect(8, 8, getWidth() - 8, getHeight() - 8, innerGlowPaint);}// 内部类，用于存储波形数据private static class WaveData {private String name;private int color;private List<Float> data;public WaveData(String name, int color) {this.name = name;this.color = color;this.data = new ArrayList<>();}public String getName() {return name;}public int getColor() {return color;}public List<Float> getData() {return data;}public void addData(float value) {data.add(value);}}
}2.MainActivity.java源码
package com.example.wave;import android.graphics.Color;
import android.os.Bundle;
import android.os.Handler;
import android.view.WindowManager;
import android.widget.LinearLayout;import androidx.appcompat.app.AppCompatActivity;import java.util.Random;public class MainActivity extends AppCompatActivity {private WaveView waveView;private Handler handler;private Runnable updateRunnable;private int time = 0;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);// 全屏模式getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,WindowManager.LayoutParams.FLAG_FULLSCREEN);setContentView(R.layout.activity_main);// 获取布局容器LinearLayout container = findViewById(R.id.container);// 创建WaveView实例waveView = new WaveView(this);// 设置科幻风格参数waveView.setShowGrid(true);waveView.setShowGlowEffect(true);waveView.setGridDensity(12);// 使用科幻风格的颜色int[] waveColors = {Color.argb(255, 0, 255, 255), // 青色 - 科幻感Color.argb(255, 255, 0, 255), // 洋红色 - 科幻感Color.argb(255, 0, 255, 0) // 绿色 - 科幻感};// 设置波形图大小waveView.setAxisSize(1600, 500);// 添加波形数据系列waveView.addWaveData("正弦波", waveColors[0]);waveView.addWaveData("余弦波", waveColors[1]);waveView.addWaveData("噪声波", waveColors[2]);// 将WaveView添加到布局中container.addView(waveView);// 创建Handler用于定时更新handler = new Handler();updateRunnable = new Runnable() {@Overridepublic void run() {updateWaveData();handler.postDelayed(this, 1000); // 每秒更新一次}};}@Overrideprotected void onResume() {super.onResume();// 开始定时更新handler.post(updateRunnable);}@Overrideprotected void onPause() {super.onPause();// 停止定时更新handler.removeCallbacks(updateRunnable);}private void updateWaveData() {// 生成正弦波数据float sinValue = (float) Math.sin(time * 0.1);waveView.addDataToWave("正弦波", sinValue * 2 + 2.5f); // 调整幅度和偏移// 生成余弦波数据float cosValue = (float) Math.cos(time * 0.1);waveView.addDataToWave("余弦波", cosValue * 1.5f + 2.5f); // 调整幅度和偏移// 生成带噪声的数据Random random = new Random();float noiseValue = (float) (Math.sin(time * 0.1) + (random.nextFloat() - 0.5f));waveView.addDataToWave("噪声波", noiseValue + 2.5f); // 添加偏移time++;}
}3.activity_main.xml源码
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"android:padding="16dp"><TextViewandroid:id="@+id/titleTextView"android:layout_width="wrap_content"android:layout_height="wrap_content"android:text="多波形显示"android:textSize="24sp"android:textStyle="bold"app:layout_constraintEnd_toEndOf="parent"app:layout_constraintStart_toStartOf="parent"app:layout_constraintTop_toTopOf="parent" /><LinearLayoutandroid:id="@+id/container"android:layout_width="0dp"android:layout_height="0dp"android:orientation="vertical"app:layout_constraintBottom_toBottomOf="parent"app:layout_constraintEnd_toEndOf="parent"app:layout_constraintStart_toStartOf="parent"app:layout_constraintTop_toBottomOf="@+id/titleTextView" /></androidx.constraintlayout.widget.ConstraintLayout>三、效果图

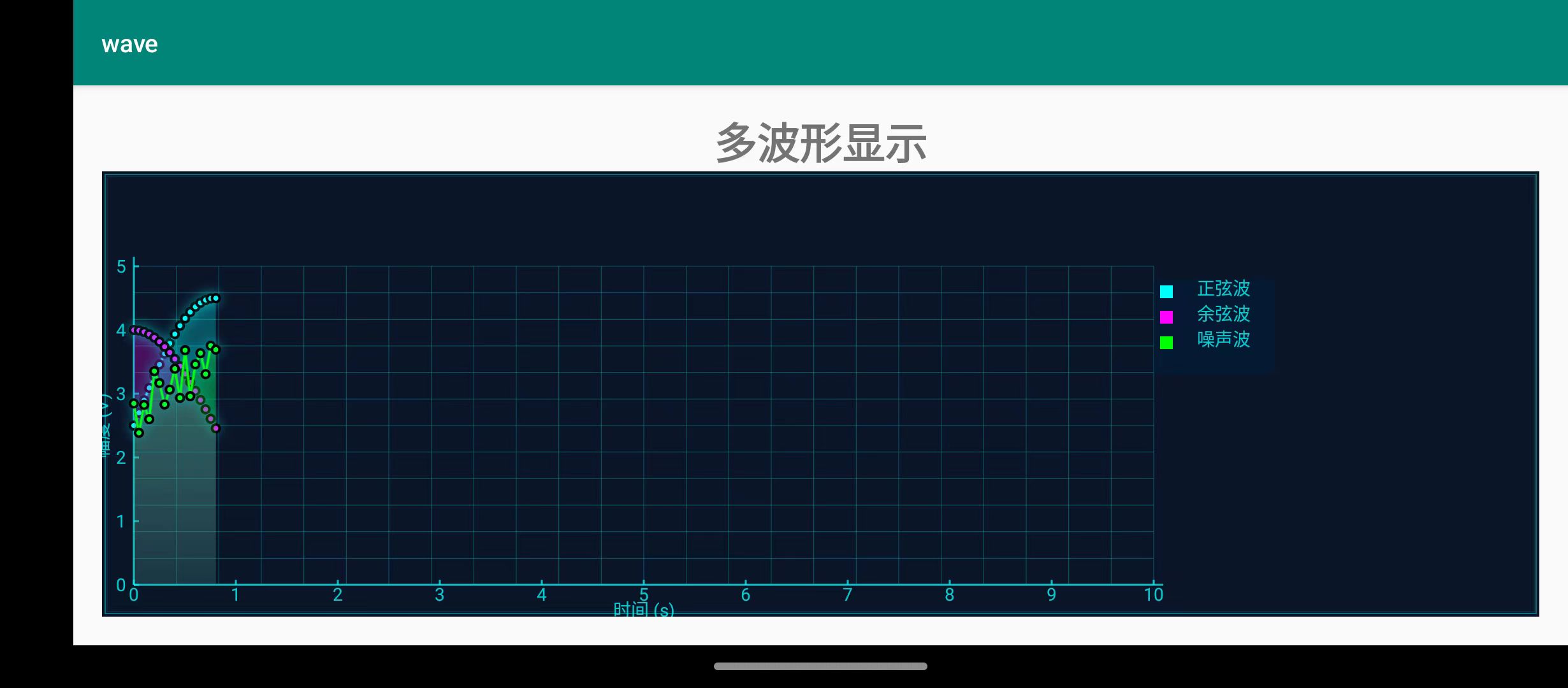

运行后，程序开始绘制3条曲线图。
