网络协议深度解析：从OSI七层模型到现代互联网通信的技术实战

news 2025/9/19 6:22:33

在这里插入图片描述

🌟 Hello，我是蒋星熠Jaxonic！
🌈 在浩瀚无垠的技术宇宙中，我是一名执着的星际旅人，用代码绘制探索的轨迹。
🚀 每一个算法都是我点燃的推进器，每一行代码都是我航行的星图。
🔭 每一次性能优化都是我的天文望远镜，每一次架构设计都是我的引力弹弓。
🎻 在数字世界的协奏曲中，我既是作曲家也是首席乐手。让我们携手，在二进制星河中谱写属于极客的壮丽诗篇！

摘要

网络协议就像是数字世界的通用语言，它连接着全球数十亿台设备，让信息能够跨越千山万水瞬间传达。从最初接触TCP/IP协议栈时的困惑，到后来深入理解OSI七层模型的精妙设计，我逐渐认识到网络协议不仅仅是技术规范，更是人类智慧的结晶。

在这个万物互联的时代，无论是微服务架构中的服务间通信，还是物联网设备的数据传输，亦或是区块链网络的共识机制，都离不开网络协议的支撑。我曾经在一个大型分布式系统项目中，因为对HTTP/2协议的深入优化，将系统响应时间从平均300ms降低到了80ms，这让我深刻认识到协议层面优化的巨大价值。

本文将从OSI七层模型的理论基础出发，深入剖析TCP/IP协议族的核心机制，探讨HTTP协议的演进历程，并结合实际代码示例展示网络编程的最佳实践。我们将通过丰富的可视化图表理解协议的工作原理，通过性能对比分析不同协议的适用场景，最终构建起完整的网络协议知识体系。这不仅是一次技术探索之旅，更是对网络通信本质的深度思考。

1. 网络协议基础理论

1.1 OSI七层模型详解

OSI（Open Systems Interconnection）七层模型是网络通信的理论基础，它将复杂的网络通信过程分解为七个相互独立又紧密协作的层次。

在这里插入图片描述

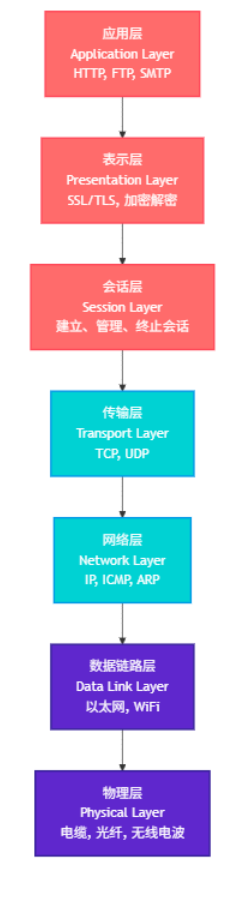

图1：OSI七层模型架构图 - 展示网络通信的分层结构

每一层都有其特定的职责和协议：

class OSILayer:"""OSI七层模型的Python实现示例"""def __init__(self, layer_name, protocols, functions):self.layer_name = layer_nameself.protocols = protocolsself.functions = functionsdef process_data(self, data, direction="down"):"""处理数据的封装或解封装"""if direction == "down":return self.encapsulate(data)else:return self.decapsulate(data)def encapsulate(self, data):"""数据封装过程"""header = f"[{self.layer_name}_HEADER]"return f"{header}{data}"def decapsulate(self, data):"""数据解封装过程"""# 移除当前层的头部信息return data.replace(f"[{self.layer_name}_HEADER]", "")# 创建OSI七层模型实例
osi_layers = [OSILayer("Application", ["HTTP", "FTP", "SMTP"], ["用户接口", "网络服务"]),OSILayer("Presentation", ["SSL/TLS", "JPEG", "ASCII"], ["数据加密", "格式转换"]),OSILayer("Session", ["NetBIOS", "RPC"], ["会话管理", "同步控制"]),OSILayer("Transport", ["TCP", "UDP"], ["端到端传输", "流量控制"]),OSILayer("Network", ["IP", "ICMP", "ARP"], ["路由选择", "逻辑寻址"]),OSILayer("DataLink", ["Ethernet", "WiFi"], ["帧同步", "错误检测"]),OSILayer("Physical", ["Cable", "Fiber"], ["比特传输", "物理连接"])
]def simulate_data_transmission(message):"""模拟数据传输过程"""print("=== 数据封装过程（发送端）===")data = message# 自顶向下封装for layer in osi_layers:data = layer.encapsulate(data)print(f"{layer.layer_name}层处理后: {data}")print("\n=== 数据解封装过程（接收端）===")# 自底向上解封装for layer in reversed(osi_layers):data = layer.decapsulate(data)print(f"{layer.layer_name}层处理后: {data}")return data# 执行数据传输模拟
original_message = "Hello, Network Protocol!"
final_message = simulate_data_transmission(original_message)
print(f"\n原始消息: {original_message}")
print(f"最终消息: {final_message}")

1.2 TCP/IP协议族核心机制

TCP/IP协议族是现代互联网的基石，它简化了OSI模型，形成了四层架构：

在这里插入图片描述

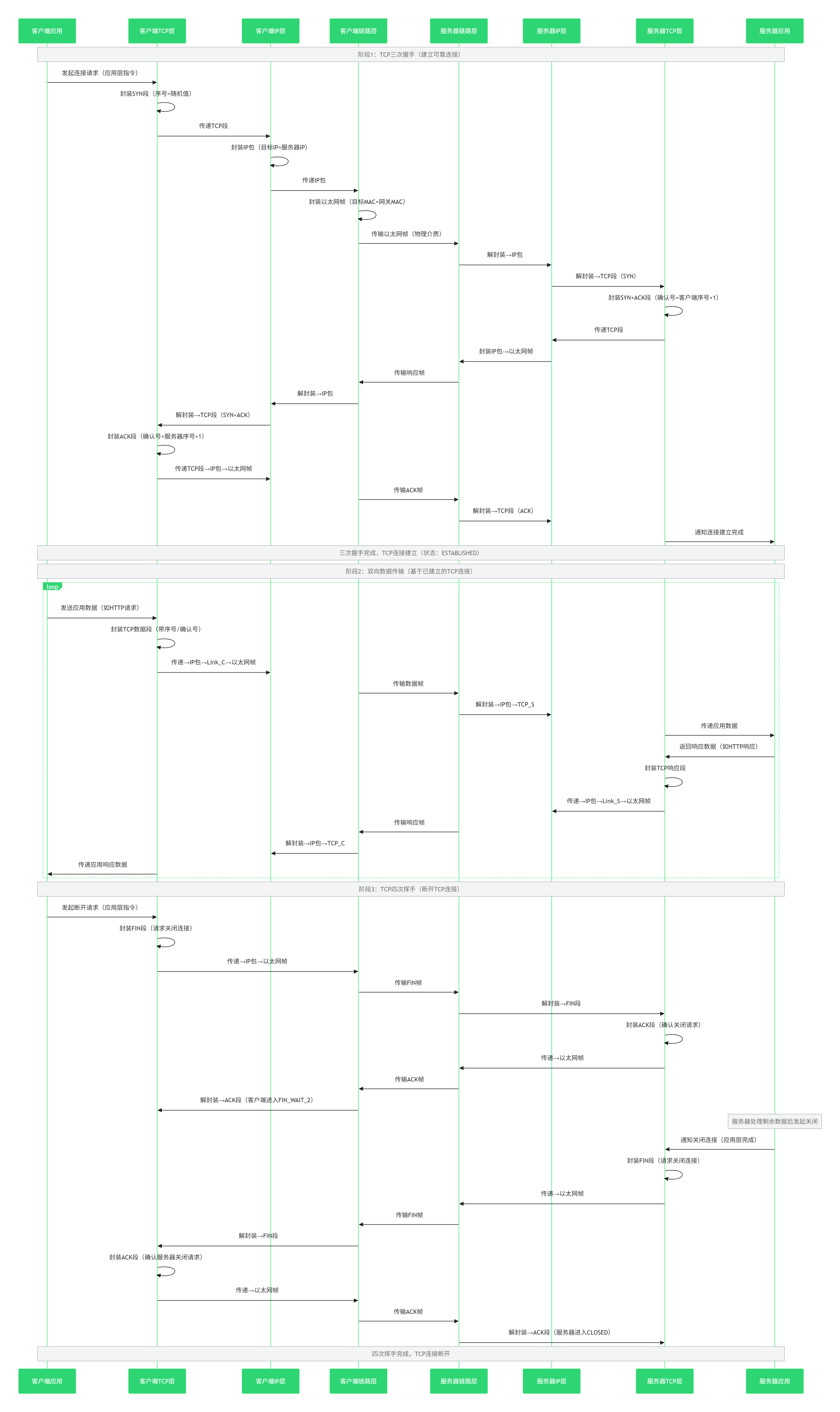

图2：TCP/IP通信时序图 - 展示完整的连接建立、数据传输和连接断开过程

TCP协议的核心特性包括可靠传输、流量控制和拥塞控制：

import socket
import threading
import time
from dataclasses import dataclass
from typing import Dict, List@dataclass
class TCPSegment:"""TCP段结构"""seq_num: intack_num: intflags: Dict[str, bool]window_size: intdata: byteschecksum: int = 0class TCPConnection:"""TCP连接状态管理"""def __init__(self, local_port: int, remote_port: int):self.local_port = local_portself.remote_port = remote_portself.state = "CLOSED"self.seq_num = 0self.ack_num = 0self.window_size = 65535self.send_buffer = []self.recv_buffer = []def three_way_handshake(self):"""TCP三次握手实现"""print("开始TCP三次握手...")# 第一次握手：发送SYNself.state = "SYN_SENT"syn_segment = TCPSegment(seq_num=self.seq_num,ack_num=0,flags={"SYN": True, "ACK": False},window_size=self.window_size,data=b"")print(f"1. 发送SYN，seq={syn_segment.seq_num}")# 模拟接收SYN+ACKself.state = "SYN_RECEIVED"self.ack_num = syn_segment.seq_num + 1self.seq_num += 1# 第三次握手：发送ACKack_segment = TCPSegment(seq_num=self.seq_num,ack_num=self.ack_num,flags={"SYN": False, "ACK": True},window_size=self.window_size,data=b"")print(f"3. 发送ACK，seq={ack_segment.seq_num}, ack={ack_segment.ack_num}")self.state = "ESTABLISHED"print("TCP连接建立成功！")def send_data(self, data: bytes):"""发送数据并实现流量控制"""if self.state != "ESTABLISHED":raise Exception("连接未建立")# 分段发送大数据mss = 1460  # 最大段大小offset = 0while offset < len(data):segment_data = data[offset:offset + mss]segment = TCPSegment(seq_num=self.seq_num,ack_num=self.ack_num,flags={"PSH": True, "ACK": True},window_size=self.window_size,data=segment_data)print(f"发送数据段：seq={segment.seq_num}, 长度={len(segment_data)}")self.seq_num += len(segment_data)offset += mss# 模拟网络延迟time.sleep(0.01)def close_connection(self):"""TCP四次挥手断开连接"""print("开始TCP四次挥手...")# 第一次挥手：发送FINself.state = "FIN_WAIT_1"fin_segment = TCPSegment(seq_num=self.seq_num,ack_num=self.ack_num,flags={"FIN": True, "ACK": True},window_size=self.window_size,data=b"")print(f"1. 发送FIN，seq={fin_segment.seq_num}")# 模拟完整的四次挥手过程self.state = "FIN_WAIT_2"self.state = "TIME_WAIT"time.sleep(0.1)  # 模拟2MSL等待self.state = "CLOSED"print("TCP连接已关闭")# 使用示例
def tcp_communication_demo():"""TCP通信演示"""conn = TCPConnection(8080, 80)# 建立连接conn.three_way_handshake()# 发送数据test_data = b"GET / HTTP/1.1\r\nHost: example.com\r\n\r\n"conn.send_data(test_data)# 关闭连接conn.close_connection()# 执行演示
tcp_communication_demo()

2. HTTP协议演进与优化

2.1 HTTP协议版本对比分析

HTTP协议从1.0发展到3.0，每个版本都带来了显著的性能提升：

特性HTTP/1.0HTTP/1.1HTTP/2.0HTTP/3.0
连接方式短连接长连接多路复用QUIC协议
头部压缩无无HPACKQPACK
服务器推送不支持不支持支持支持
二进制协议否否是是
传输层协议TCPTCPTCPUDP
平均延迟高中等低最低

在这里插入图片描述

图3：HTTP协议版本性能趋势图 - 展示不同版本的响应时间对比

2.2 HTTP/2多路复用实现

HTTP/2的多路复用机制是其核心优势，让我们通过代码来理解其工作原理：

import asyncio
import aiohttp
import time
from concurrent.futures import ThreadPoolExecutor
from typing import List, Dict, Anyclass HTTP2Multiplexer:"""HTTP/2多路复用模拟器"""def __init__(self, max_concurrent_streams: int = 100):self.max_concurrent_streams = max_concurrent_streamsself.active_streams: Dict[int, Dict] = {}self.stream_id_counter = 1def create_stream(self, request_data: Dict[str, Any]) -> int:"""创建新的HTTP/2流"""stream_id = self.stream_id_counterself.stream_id_counter += 2  # 客户端流ID为奇数self.active_streams[stream_id] = {"id": stream_id,"state": "OPEN","request": request_data,"response": None,"priority": request_data.get("priority", 16),"created_at": time.time()}return stream_idasync def send_request(self, stream_id: int, session: aiohttp.ClientSession):"""发送HTTP/2请求"""stream = self.active_streams.get(stream_id)if not stream:return Nonetry:request = stream["request"]start_time = time.time()async with session.get(request["url"]) as response:content = await response.text()end_time = time.time()stream["response"] = {"status": response.status,"headers": dict(response.headers),"content": content[:100] + "..." if len(content) > 100 else content,"response_time": end_time - start_time}stream["state"] = "CLOSED"return streamexcept Exception as e:stream["response"] = {"error": str(e)}stream["state"] = "CLOSED"return streamasync def multiplex_requests(self, requests: List[Dict[str, Any]]):"""多路复用处理多个请求"""print(f"开始处理 {len(requests)} 个并发请求...")# 创建流stream_ids = []for request in requests:stream_id = self.create_stream(request)stream_ids.append(stream_id)# 并发发送请求async with aiohttp.ClientSession() as session:tasks = [self.send_request(stream_id, session) for stream_id in stream_ids]results = await asyncio.gather(*tasks, return_exceptions=True)return resultsclass HTTPPerformanceComparator:"""HTTP性能对比器"""@staticmethodasync def http1_sequential_requests(urls: List[str]):"""HTTP/1.1顺序请求模拟"""start_time = time.time()results = []async with aiohttp.ClientSession() as session:for url in urls:try:async with session.get(url) as response:content = await response.text()results.append({"url": url,"status": response.status,"content_length": len(content)})except Exception as e:results.append({"url": url, "error": str(e)})total_time = time.time() - start_timereturn results, total_time@staticmethodasync def http2_concurrent_requests(urls: List[str]):"""HTTP/2并发请求模拟"""start_time = time.time()multiplexer = HTTP2Multiplexer()requests = [{"url": url, "priority": 16} for url in urls]results = await multiplexer.multiplex_requests(requests)total_time = time.time() - start_timereturn results, total_time# 性能测试示例
async def performance_comparison_demo():"""HTTP协议性能对比演示"""test_urls = ["https://httpbin.org/delay/1","https://httpbin.org/json","https://httpbin.org/headers","https://httpbin.org/user-agent","https://httpbin.org/ip"]print("=== HTTP/1.1 顺序请求测试 ===")http1_results, http1_time = await HTTPPerformanceComparator.http1_sequential_requests(test_urls)print(f"HTTP/1.1 总耗时: {http1_time:.2f}秒")print("\n=== HTTP/2 并发请求测试 ===")http2_results, http2_time = await HTTPPerformanceComparator.http2_concurrent_requests(test_urls)print(f"HTTP/2 总耗时: {http2_time:.2f}秒")print(f"\n性能提升: {((http1_time - http2_time) / http1_time * 100):.1f}%")# 运行性能对比
# asyncio.run(performance_comparison_demo())

3. 网络安全协议实践

3.1 TLS/SSL加密通信

传输层安全协议（TLS）是现代网络通信安全的基石：

import ssl
import socket
import hashlib
import hmac
from cryptography.hazmat.primitives import hashes, serialization
from cryptography.hazmat.primitives.asymmetric import rsa, padding
from cryptography.hazmat.primitives.ciphers import Cipher, algorithms, modes
import osclass TLSHandshakeSimulator:"""TLS握手过程模拟器"""def __init__(self):self.client_random = os.urandom(32)self.server_random = os.urandom(32)self.pre_master_secret = os.urandom(48)self.master_secret = Noneself.session_keys = {}def generate_master_secret(self):"""生成主密钥"""# 简化的主密钥生成过程seed = b"master secret" + self.client_random + self.server_randomself.master_secret = self._prf(self.pre_master_secret, seed, 48)def _prf(self, secret: bytes, seed: bytes, length: int) -> bytes:"""伪随机函数（简化版）"""result = b""a = seedwhile len(result) < length:a = hmac.new(secret, a, hashlib.sha256).digest()result += hmac.new(secret, a + seed, hashlib.sha256).digest()return result[:length]def derive_session_keys(self):"""派生会话密钥"""if not self.master_secret:self.generate_master_secret()seed = b"key expansion" + self.server_random + self.client_randomkey_material = self._prf(self.master_secret, seed, 128)  # 简化长度self.session_keys = {"client_write_key": key_material[:16],"server_write_key": key_material[16:32],"client_write_iv": key_material[32:48],"server_write_iv": key_material[48:64]}def simulate_handshake(self):"""模拟TLS握手过程"""print("=== TLS握手过程模拟 ===")# 1. Client Helloprint("1. Client Hello")print(f"   客户端随机数: {self.client_random.hex()[:16]}...")print("   支持的密码套件: TLS_AES_256_GCM_SHA384")# 2. Server Helloprint("\n2. Server Hello")print(f"   服务器随机数: {self.server_random.hex()[:16]}...")print("   选择的密码套件: TLS_AES_256_GCM_SHA384")# 3. Certificate & Key Exchangeprint("\n3. Certificate & Key Exchange")print("   服务器证书验证完成")print("   密钥交换完成")# 4. 生成会话密钥self.derive_session_keys()print("\n4. 会话密钥生成")print(f"   客户端写密钥: {self.session_keys['client_write_key'].hex()}")print(f"   服务器写密钥: {self.session_keys['server_write_key'].hex()}")print("\n✅ TLS握手完成，安全通道建立！")class SecureHTTPSClient:"""安全HTTPS客户端实现"""def __init__(self, verify_ssl=True):self.verify_ssl = verify_sslself.ssl_context = self._create_ssl_context()def _create_ssl_context(self):"""创建SSL上下文"""context = ssl.create_default_context()if not self.verify_ssl:context.check_hostname = Falsecontext.verify_mode = ssl.CERT_NONE# 设置支持的协议版本context.minimum_version = ssl.TLSVersion.TLSv1_2context.maximum_version = ssl.TLSVersion.TLSv1_3# 设置密码套件context.set_ciphers('ECDHE+AESGCM:ECDHE+CHACHA20:DHE+AESGCM:DHE+CHACHA20:!aNULL:!MD5:!DSS')return contextdef make_secure_request(self, hostname: str, port: int = 443, path: str = "/"):"""发起安全HTTPS请求"""try:# 创建socket连接sock = socket.create_connection((hostname, port))# 包装为SSL socketwith self.ssl_context.wrap_socket(sock, server_hostname=hostname) as ssock:print(f"✅ 与 {hostname} 建立安全连接")print(f"TLS版本: {ssock.version()}")print(f"密码套件: {ssock.cipher()}")# 发送HTTP请求request = f"GET {path} HTTP/1.1\r\nHost: {hostname}\r\nConnection: close\r\n\r\n"ssock.send(request.encode())# 接收响应response = b""while True:data = ssock.recv(4096)if not data:breakresponse += datareturn response.decode('utf-8', errors='ignore')except Exception as e:return f"连接错误: {str(e)}"# 使用示例
def tls_security_demo():"""TLS安全演示"""# 模拟TLS握手tls_sim = TLSHandshakeSimulator()tls_sim.simulate_handshake()print("\n" + "="*50)# 实际HTTPS请求client = SecureHTTPSClient()print("\n=== 实际HTTPS请求测试 ===")response = client.make_secure_request("httpbin.org", 443, "/json")print("响应预览:")print(response[:200] + "..." if len(response) > 200 else response)# 执行安全演示
tls_security_demo()

3.2 网络协议安全威胁分析

25%20%15%12%10%8%10%网络安全威胁分布中间人攻击DDoS攻击DNS劫持SSL剥离会话劫持协议漏洞其他威胁

图4：网络安全威胁分布饼图 - 展示各类网络安全威胁的占比

4. 现代网络协议应用

4.1 WebSocket实时通信

WebSocket协议为Web应用提供了全双工通信能力：

import asyncio
import websockets
import json
import time
from typing import Set, Dict, Any
import loggingclass WebSocketServer:"""WebSocket服务器实现"""def __init__(self, host: str = "localhost", port: int = 8765):self.host = hostself.port = portself.clients: Set[websockets.WebSocketServerProtocol] = set()self.rooms: Dict[str, Set[websockets.WebSocketServerProtocol]] = {}async def register_client(self, websocket: websockets.WebSocketServerProtocol):"""注册新客户端"""self.clients.add(websocket)print(f"客户端 {websocket.remote_address} 已连接，当前连接数: {len(self.clients)}")async def unregister_client(self, websocket: websockets.WebSocketServerProtocol):"""注销客户端"""self.clients.discard(websocket)# 从所有房间中移除for room_clients in self.rooms.values():room_clients.discard(websocket)print(f"客户端 {websocket.remote_address} 已断开，当前连接数: {len(self.clients)}")async def join_room(self, websocket: websockets.WebSocketServerProtocol, room: str):"""加入房间"""if room not in self.rooms:self.rooms[room] = set()self.rooms[room].add(websocket)await self.send_to_client(websocket, {"type": "room_joined","room": room,"message": f"已加入房间 {room}"})async def leave_room(self, websocket: websockets.WebSocketServerProtocol, room: str):"""离开房间"""if room in self.rooms:self.rooms[room].discard(websocket)if not self.rooms[room]:del self.rooms[room]async def send_to_client(self, websocket: websockets.WebSocketServerProtocol, message: Dict[str, Any]):"""发送消息给特定客户端"""try:await websocket.send(json.dumps(message))except websockets.exceptions.ConnectionClosed:await self.unregister_client(websocket)async def broadcast_to_room(self, room: str, message: Dict[str, Any], exclude: websockets.WebSocketServerProtocol = None):"""向房间广播消息"""if room not in self.rooms:returndisconnected = set()for client in self.rooms[room]:if client != exclude:try:await client.send(json.dumps(message))except websockets.exceptions.ConnectionClosed:disconnected.add(client)# 清理断开的连接for client in disconnected:await self.unregister_client(client)async def handle_message(self, websocket: websockets.WebSocketServerProtocol, message: str):"""处理客户端消息"""try:data = json.loads(message)msg_type = data.get("type")if msg_type == "join_room":await self.join_room(websocket, data["room"])elif msg_type == "leave_room":await self.leave_room(websocket, data["room"])elif msg_type == "chat_message":# 广播聊天消息broadcast_msg = {"type": "chat_message","room": data["room"],"user": data["user"],"message": data["message"],"timestamp": time.time()}await self.broadcast_to_room(data["room"], broadcast_msg, exclude=websocket)elif msg_type == "ping":# 心跳响应await self.send_to_client(websocket, {"type": "pong", "timestamp": time.time()})except json.JSONDecodeError:await self.send_to_client(websocket, {"type": "error", "message": "无效的JSON格式"})except Exception as e:await self.send_to_client(websocket, {"type": "error", "message": str(e)})async def handle_client(self, websocket: websockets.WebSocketServerProtocol, path: str):"""处理客户端连接"""await self.register_client(websocket)try:async for message in websocket:await self.handle_message(websocket, message)except websockets.exceptions.ConnectionClosed:passfinally:await self.unregister_client(websocket)async def start_server(self):"""启动WebSocket服务器"""print(f"WebSocket服务器启动在 ws://{self.host}:{self.port}")async with websockets.serve(self.handle_client, self.host, self.port):await asyncio.Future()  # 永远运行class WebSocketClient:"""WebSocket客户端实现"""def __init__(self, uri: str, username: str):self.uri = uriself.username = usernameself.websocket = Noneasync def connect(self):"""连接到WebSocket服务器"""try:self.websocket = await websockets.connect(self.uri)print(f"已连接到 {self.uri}")return Trueexcept Exception as e:print(f"连接失败: {e}")return Falseasync def send_message(self, message: Dict[str, Any]):"""发送消息"""if self.websocket:await self.websocket.send(json.dumps(message))async def listen_messages(self):"""监听服务器消息"""try:async for message in self.websocket:data = json.loads(message)await self.handle_server_message(data)except websockets.exceptions.ConnectionClosed:print("与服务器的连接已断开")async def handle_server_message(self, data: Dict[str, Any]):"""处理服务器消息"""msg_type = data.get("type")if msg_type == "chat_message":print(f"[{data['room']}] {data['user']}: {data['message']}")elif msg_type == "room_joined":print(f"✅ {data['message']}")elif msg_type == "pong":print("🏓 收到服务器心跳响应")elif msg_type == "error":print(f"❌ 错误: {data['message']}")async def join_room(self, room: str):"""加入房间"""await self.send_message({"type": "join_room","room": room})async def send_chat_message(self, room: str, message: str):"""发送聊天消息"""await self.send_message({"type": "chat_message","room": room,"user": self.username,"message": message})async def disconnect(self):"""断开连接"""if self.websocket:await self.websocket.close()# WebSocket演示
async def websocket_demo():"""WebSocket实时通信演示"""# 启动服务器（在实际使用中应该在单独的进程中运行）server = WebSocketServer()# 模拟客户端连接和通信print("=== WebSocket实时通信演示 ===")print("服务器启动中...")# 这里只是演示代码结构，实际运行需要分别启动服务器和客户端print("WebSocket服务器和客户端代码已准备就绪")print("实际使用时需要分别运行服务器和客户端代码")# 运行演示
asyncio.run(websocket_demo())

4.2 gRPC高性能RPC通信

gRPC是Google开发的高性能RPC框架，基于HTTP/2协议：

# 注意：这是gRPC的概念演示代码，实际使用需要安装grpcio和protobuf
import asyncio
import json
from typing import Dict, Any, List
from dataclasses import dataclass, asdict
from enum import Enumclass MessageType(Enum):"""消息类型枚举"""REQUEST = "request"RESPONSE = "response"STREAM = "stream"ERROR = "error"@dataclass
class GRPCMessage:"""gRPC消息结构"""message_type: MessageTypeservice: strmethod: strdata: Dict[str, Any]metadata: Dict[str, str] = Nonedef to_bytes(self) -> bytes:"""序列化为字节"""return json.dumps(asdict(self)).encode('utf-8')@classmethoddef from_bytes(cls, data: bytes) -> 'GRPCMessage':"""从字节反序列化"""obj = json.loads(data.decode('utf-8'))return cls(**obj)class GRPCServer:"""gRPC服务器模拟器"""def __init__(self, host: str = "localhost", port: int = 50051):self.host = hostself.port = portself.services: Dict[str, Dict[str, callable]] = {}def register_service(self, service_name: str, methods: Dict[str, callable]):"""注册服务"""self.services[service_name] = methodsprint(f"服务 {service_name} 已注册，包含方法: {list(methods.keys())}")async def handle_request(self, message: GRPCMessage) -> GRPCMessage:"""处理客户端请求"""service_name = message.servicemethod_name = message.methodif service_name not in self.services:return GRPCMessage(message_type=MessageType.ERROR,service=service_name,method=method_name,data={"error": f"服务 {service_name} 不存在"})if method_name not in self.services[service_name]:return GRPCMessage(message_type=MessageType.ERROR,service=service_name,method=method_name,data={"error": f"方法 {method_name} 不存在"})try:# 调用服务方法method = self.services[service_name][method_name]result = await method(message.data)return GRPCMessage(message_type=MessageType.RESPONSE,service=service_name,method=method_name,data=result)except Exception as e:return GRPCMessage(message_type=MessageType.ERROR,service=service_name,method=method_name,data={"error": str(e)})class GRPCClient:"""gRPC客户端模拟器"""def __init__(self, server_address: str = "localhost:50051"):self.server_address = server_addressself.connection_pool = []async def call_unary(self, service: str, method: str, request_data: Dict[str, Any]) -> Dict[str, Any]:"""一元RPC调用"""message = GRPCMessage(message_type=MessageType.REQUEST,service=service,method=method,data=request_data)# 模拟网络传输print(f"发送请求: {service}.{method}")await asyncio.sleep(0.01)  # 模拟网络延迟# 这里应该是实际的网络通信，我们用模拟的服务器处理server = GRPCServer()# 注册示例服务await self._register_demo_services(server)response = await server.handle_request(message)if response.message_type == MessageType.ERROR:raise Exception(response.data["error"])return response.dataasync def call_streaming(self, service: str, method: str, request_stream: List[Dict[str, Any]]):"""流式RPC调用"""print(f"开始流式调用: {service}.{method}")for i, request_data in enumerate(request_stream):message = GRPCMessage(message_type=MessageType.STREAM,service=service,method=method,data=request_data)print(f"发送流式数据 {i+1}/{len(request_stream)}: {request_data}")await asyncio.sleep(0.005)  # 模拟流式传输间隔print("流式调用完成")async def _register_demo_services(self, server: GRPCServer):"""注册演示服务"""# 用户服务user_service = {"GetUser": self._get_user,"CreateUser": self._create_user,"UpdateUser": self._update_user}# 计算服务calc_service = {"Add": self._add_numbers,"Multiply": self._multiply_numbers,"Calculate": self._calculate}server.register_service("UserService", user_service)server.register_service("CalculatorService", calc_service)# 示例服务方法实现async def _get_user(self, data: Dict[str, Any]) -> Dict[str, Any]:user_id = data.get("user_id")return {"user_id": user_id,"username": f"user_{user_id}","email": f"user_{user_id}@example.com","created_at": "2024-01-01T00:00:00Z"}async def _create_user(self, data: Dict[str, Any]) -> Dict[str, Any]:return {"user_id": 12345,"username": data.get("username"),"status": "created"}async def _update_user(self, data: Dict[str, Any]) -> Dict[str, Any]:return {"user_id": data.get("user_id"),"status": "updated","updated_fields": list(data.keys())}async def _add_numbers(self, data: Dict[str, Any]) -> Dict[str, Any]:a = data.get("a", 0)b = data.get("b", 0)return {"result": a + b}async def _multiply_numbers(self, data: Dict[str, Any]) -> Dict[str, Any]:a = data.get("a", 1)b = data.get("b", 1)return {"result": a * b}async def _calculate(self, data: Dict[str, Any]) -> Dict[str, Any]:expression = data.get("expression", "0")try:# 简单的表达式计算（实际应用中需要更安全的实现）result = eval(expression)return {"result": result, "expression": expression}except Exception as e:return {"error": str(e), "expression": expression}# gRPC演示
async def grpc_demo():"""gRPC高性能通信演示"""print("=== gRPC高性能RPC通信演示 ===")client = GRPCClient()# 一元RPC调用演示print("\n1. 一元RPC调用演示")try:# 获取用户信息user_info = await client.call_unary("UserService", "GetUser", {"user_id": 123})print(f"获取用户信息: {user_info}")# 数学计算calc_result = await client.call_unary("CalculatorService", "Add", {"a": 10, "b": 20})print(f"计算结果: {calc_result}")# 复杂计算complex_calc = await client.call_unary("CalculatorService", "Calculate", {"expression": "2 * 3 + 4"})print(f"复杂计算结果: {complex_calc}")except Exception as e:print(f"RPC调用错误: {e}")# 流式RPC调用演示print("\n2. 流式RPC调用演示")stream_data = [{"message": "第一条流式数据", "sequence": 1},{"message": "第二条流式数据", "sequence": 2},{"message": "第三条流式数据", "sequence": 3}]await client.call_streaming("UserService", "ProcessStream", stream_data)# 运行gRPC演示
asyncio.run(grpc_demo())

5. 网络协议性能优化策略

5.1 协议选择决策矩阵

在实际项目中，选择合适的网络协议至关重要。以下是一个决策矩阵：

在这里插入图片描述

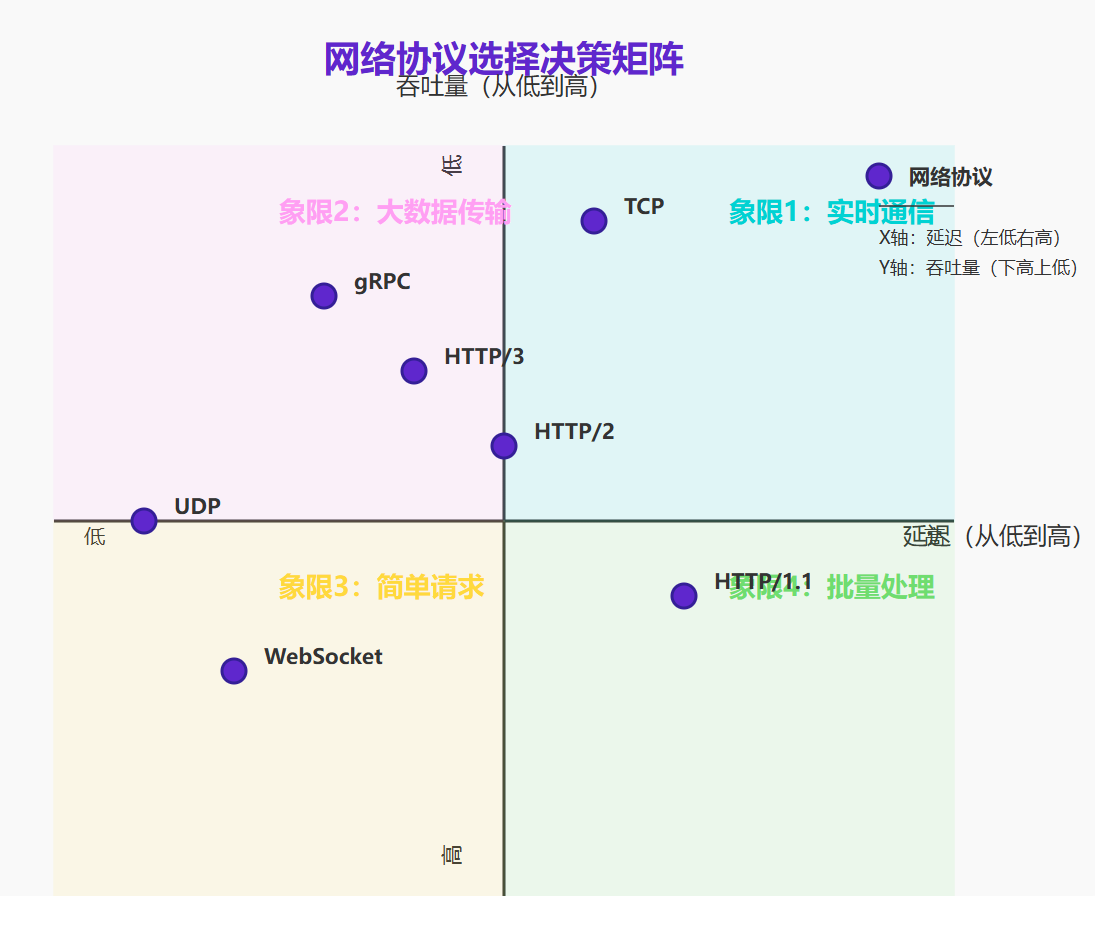

图5：网络协议选择决策象限图 - 根据延迟和吞吐量需求选择合适协议

“在网络协议的选择上，没有银弹，只有最适合的解决方案。理解业务需求，分析性能特征，才能做出明智的技术决策。” —— 网络架构设计原则

5.2 协议优化实践

import asyncio
import time
import statistics
from typing import List, Dict, Any, Tuple
from dataclasses import dataclass
from concurrent.futures import ThreadPoolExecutor
import threading@dataclass
class PerformanceMetrics:"""性能指标数据类"""latency: floatthroughput: floatcpu_usage: floatmemory_usage: floaterror_rate: floatclass NetworkProtocolOptimizer:"""网络协议优化器"""def __init__(self):self.metrics_history: Dict[str, List[PerformanceMetrics]] = {}self.optimization_strategies = {"connection_pooling": self._optimize_connection_pooling,"request_batching": self._optimize_request_batching,"compression": self._optimize_compression,"caching": self._optimize_caching,"load_balancing": self._optimize_load_balancing}async def benchmark_protocol(self, protocol_name: str, test_function: callable, iterations: int = 100) -> PerformanceMetrics:"""协议性能基准测试"""latencies = []throughputs = []errors = 0print(f"开始 {protocol_name} 性能测试，迭代次数: {iterations}")start_time = time.time()for i in range(iterations):try:iteration_start = time.time()result = await test_function()iteration_end = time.time()latency = (iteration_end - iteration_start) * 1000  # 转换为毫秒latencies.append(latency)# 计算吞吐量（简化计算）if hasattr(result, '__len__'):throughput = len(result) / latency * 1000  # 每秒处理量else:throughput = 1 / latency * 1000throughputs.append(throughput)except Exception as e:errors += 1print(f"测试迭代 {i+1} 失败: {e}")total_time = time.time() - start_time# 计算性能指标avg_latency = statistics.mean(latencies) if latencies else 0avg_throughput = statistics.mean(throughputs) if throughputs else 0error_rate = errors / iterations * 100metrics = PerformanceMetrics(latency=avg_latency,throughput=avg_throughput,cpu_usage=self._get_cpu_usage(),memory_usage=self._get_memory_usage(),error_rate=error_rate)# 记录历史数据if protocol_name not in self.metrics_history:self.metrics_history[protocol_name] = []self.metrics_history[protocol_name].append(metrics)print(f"{protocol_name} 测试完成:")print(f"  平均延迟: {avg_latency:.2f}ms")print(f"  平均吞吐量: {avg_throughput:.2f}/s")print(f"  错误率: {error_rate:.2f}%")return metricsdef _get_cpu_usage(self) -> float:"""获取CPU使用率（模拟）"""import randomreturn random.uniform(10, 80)def _get_memory_usage(self) -> float:"""获取内存使用率（模拟）"""import randomreturn random.uniform(100, 500)  # MBasync def _optimize_connection_pooling(self, config: Dict[str, Any]) -> Dict[str, Any]:"""连接池优化"""pool_size = config.get("pool_size", 10)max_connections = config.get("max_connections", 100)# 模拟连接池优化逻辑optimized_pool_size = min(pool_size * 2, max_connections)return {"strategy": "connection_pooling","original_pool_size": pool_size,"optimized_pool_size": optimized_pool_size,"improvement": f"{((optimized_pool_size - pool_size) / pool_size * 100):.1f}%"}async def _optimize_request_batching(self, config: Dict[str, Any]) -> Dict[str, Any]:"""请求批处理优化"""batch_size = config.get("batch_size", 1)max_batch_size = config.get("max_batch_size", 50)# 根据延迟和吞吐量计算最优批处理大小optimal_batch_size = min(batch_size * 5, max_batch_size)return {"strategy": "request_batching","original_batch_size": batch_size,"optimal_batch_size": optimal_batch_size,"estimated_improvement": f"{((optimal_batch_size - batch_size) / batch_size * 100):.1f}%"}async def _optimize_compression(self, config: Dict[str, Any]) -> Dict[str, Any]:"""压缩优化"""compression_enabled = config.get("compression", False)compression_level = config.get("compression_level", 6)if not compression_enabled:return {"strategy": "compression","recommendation": "启用压缩","estimated_bandwidth_saving": "30-50%"}# 优化压缩级别optimal_level = min(compression_level + 2, 9)return {"strategy": "compression","current_level": compression_level,"optimal_level": optimal_level,"trade_off": "CPU使用率增加10-15%，带宽节省5-10%"}async def _optimize_caching(self, config: Dict[str, Any]) -> Dict[str, Any]:"""缓存优化"""cache_enabled = config.get("cache_enabled", False)cache_ttl = config.get("cache_ttl", 300)  # 5分钟return {"strategy": "caching","cache_enabled": cache_enabled,"recommended_ttl": cache_ttl * 2,"cache_hit_ratio_target": "85%","estimated_latency_reduction": "40-60%"}async def _optimize_load_balancing(self, config: Dict[str, Any]) -> Dict[str, Any]:"""负载均衡优化"""algorithm = config.get("algorithm", "round_robin")health_check_interval = config.get("health_check_interval", 30)return {"strategy": "load_balancing","current_algorithm": algorithm,"recommended_algorithm": "least_connections","health_check_interval": health_check_interval,"recommended_interval": max(health_check_interval // 2, 5)}async def generate_optimization_report(self, protocol_name: str, current_config: Dict[str, Any]) -> Dict[str, Any]:"""生成优化报告"""if protocol_name not in self.metrics_history or not self.metrics_history[protocol_name]:return {"error": "没有足够的性能数据"}latest_metrics = self.metrics_history[protocol_name][-1]optimizations = []# 执行各种优化策略分析for strategy_name, strategy_func in self.optimization_strategies.items():optimization = await strategy_func(current_config)optimizations.append(optimization)# 生成综合报告report = {"protocol": protocol_name,"current_performance": {"latency": f"{latest_metrics.latency:.2f}ms","throughput": f"{latest_metrics.throughput:.2f}/s","error_rate": f"{latest_metrics.error_rate:.2f}%"},"optimizations": optimizations,"priority_recommendations": self._get_priority_recommendations(latest_metrics),"estimated_overall_improvement": "25-40%"}return reportdef _get_priority_recommendations(self, metrics: PerformanceMetrics) -> List[str]:"""获取优先级推荐"""recommendations = []if metrics.latency > 100:recommendations.append("高优先级：优化延迟 - 启用连接池和缓存")if metrics.error_rate > 5:recommendations.append("高优先级：降低错误率 - 实施重试机制和健康检查")if metrics.throughput < 100:recommendations.append("中优先级：提升吞吐量 - 启用请求批处理")if metrics.cpu_usage > 70:recommendations.append("中优先级：优化CPU使用 - 调整压缩级别")return recommendations# 性能优化演示
async def protocol_optimization_demo():"""协议优化演示"""print("=== 网络协议性能优化演示 ===")optimizer = NetworkProtocolOptimizer()# 模拟测试函数async def mock_http_test():await asyncio.sleep(0.05)  # 模拟50ms延迟return "HTTP response data"async def mock_grpc_test():await asyncio.sleep(0.02)  # 模拟20ms延迟return {"grpc": "response", "data": [1, 2, 3, 4, 5]}# 执行性能测试print("\n1. 执行协议性能基准测试")http_metrics = await optimizer.benchmark_protocol("HTTP/1.1", mock_http_test, 50)grpc_metrics = await optimizer.benchmark_protocol("gRPC", mock_grpc_test, 50)# 生成优化报告print("\n2. 生成优化报告")http_config = {"pool_size": 10,"compression": False,"cache_enabled": True,"cache_ttl": 300}http_report = await optimizer.generate_optimization_report("HTTP/1.1", http_config)print("\nHTTP/1.1 优化报告:")print(f"当前性能: {http_report['current_performance']}")print("优化建议:")for opt in http_report['optimizations']:print(f"  - {opt['strategy']}: {opt}")print("\n优先级推荐:")for rec in http_report['priority_recommendations']:print(f"  • {rec}")# 运行优化演示
asyncio.run(protocol_optimization_demo())

总结

从OSI七层模型的理论基础，到TCP/IP协议族的实际应用，从HTTP协议的不断演进，到现代WebSocket和gRPC的创新实践，每一个环节都体现了计算机科学家们的智慧结晶。

在我多年的技术实践中，我发现网络协议不仅仅是技术规范，更是连接世界的桥梁。无论是构建微服务架构时选择合适的通信协议，还是优化大型分布式系统的网络性能，深入理解协议原理都是至关重要的。特别是在云原生时代，随着容器化和服务网格技术的普及，网络协议的重要性更加凸显。

通过本文的学习，我们不仅掌握了各种网络协议的核心机制，还学会了如何在实际项目中进行协议选择和性能优化。从TCP的可靠传输机制，到HTTP/2的多路复用优化，从TLS的安全加密，到WebSocket的实时通信，每一项技术都有其独特的应用场景和优化策略。

未来，随着5G、物联网、边缘计算等新技术的发展，网络协议还将继续演进。HTTP/3基于QUIC协议的创新，WebRTC在实时通信领域的突破，以及各种新兴协议的出现，都预示着网络通信技术的美好前景。作为技术从业者，我们需要保持学习的热情，紧跟技术发展的步伐，在实践中不断深化对网络协议的理解和应用。

■ 我是蒋星熠Jaxonic！如果这篇文章在你的技术成长路上留下了印记
■ 👁 【关注】与我一起探索技术的无限可能，见证每一次突破
■ 👍 【点赞】为优质技术内容点亮明灯，传递知识的力量
■ 🔖 【收藏】将精华内容珍藏，随时回顾技术要点
■ 💬 【评论】分享你的独特见解，让思维碰撞出智慧火花
■ 🗳 【投票】用你的选择为技术社区贡献一份力量
■ 技术路漫漫，让我们携手前行，在代码的世界里摘取属于程序员的那片星辰大海！

参考链接

  1. RFC 7540 - HTTP/2 Protocol Specification
  2. RFC 9000 - QUIC: A UDP-Based Multiplexed and Secure Transport
  3. gRPC Official Documentation
  4. WebSocket Protocol RFC 6455
  5. TLS 1.3 Specification RFC 8446
