工业网络异常行为检测与OT协议深度分析 (核电站DCS模拟)

1. 组件概述

network-anomaly-detection-nuclear 组件是一个高级的前端模拟界面，旨在演示工业网络安全监控系统如何检测异常行为，特别是针对核电站集散控制系统 (DCS) 的潜在攻击，并结合操作技术 (OT) 协议的深度包检测 (DPI) 功能。

该组件模拟了一个多区域网络环境（IT, DMZ, PCN, SIS），并动态生成混合了正常和异常（包括模拟的零日攻击）的网络流量。系统会对流量进行分析，识别异常模式和违反安全策略的行为，并进行告警。

2. 核心功能

网络拓扑可视化: 使用简单的块状图展示模拟的核电站网络分区（IT, DMZ, PCN, SIS, Field等）及关键资产（防火墙, 服务器, HMI, PLC, 安全PLC等）。
- 点击节点可查看该资产的详细信息（名称, IP, 类型, 区域, 状态, 描述）。
- 节点边框颜色会根据资产状态（正常/警告/严重）变化。
实时流量监控: 动态滚动显示模拟产生的网络流量包概要信息。
- 包含源/目的 IP、协议类型、简要信息和告警级别。
- 流量条目根据是否为 OT 协议、是否异常、告警级别进行视觉区分。
- 提供流量过滤器（所有、仅 OT、仅异常、仅严重告警）。
OT 协议深度分析 (模拟): 点击流量条目后，在下方区域展示对该数据包（特别是 Modbus/TCP 和 DNP3）的模拟深度解析结果。
- 展示关键协议字段（如功能码、地址、值、DNP3对象等）。
- 如果检测到异常，会高亮显示可疑字段，并附带异常描述。
异常行为检测 (规则引擎模拟): 内置一套简化的规则引擎，用于检测多种异常情况：
- 跨区域违规通信: 如 IT 区直接访问 PCN/SIS 区，非授权设备访问 SIS 区等。
- 非法 OT 操作: 如向安全 PLC 发送写指令、使用无效功能码等。
- 扫描行为: 简单的 ICMP Ping 扫描和 TCP SYN 端口扫描检测。
- 模拟零日攻击场景: 随机触发特定的攻击模式，如向安全PLC发送无效Modbus功能码、对关键地址写入危险值、来自非预期源的DNP3非请求响应、来自DMZ对OT设备的端口扫描等。这些攻击会被标记为严重告警，并附带特殊说明。
分级告警系统: 将检测到的异常根据严重程度分为信息 (Info)、警告 (Warning)、严重 (Critical) 三级，并在告警面板和流量日志中用不同颜色标识。
系统状态指示: 根据当前活动告警的最高级别，动态更新顶部的系统状态（正常/警告/严重告警）。
模拟控制: 提供开始/停止模拟、调整模拟速度的功能。
苹果科技工业风格 & 响应式设计: 界面简洁、专业，并能适应不同屏幕尺寸。

3. 文件结构

安全与维护组件/
└── network-anomaly-detection-nuclear/├── index.html       # 组件的 HTML 结构├── styles.css       # CSS 样式文件├── script.js        # JavaScript 文件，包含模拟核心逻辑└── README.md        # 组件说明文档 (本文件)

4. 使用方法

在浏览器中打开 安全与维护组件/network-anomaly-detection-nuclear/index.html 文件。
点击"开始"按钮启动模拟。
观察实时流量日志和告警面板。
使用流量过滤器查看特定类型的流量。
点击流量条目，在"协议深度分析"区域查看详情。
点击网络拓扑图中的节点，在左下面板查看资产详情。
使用滑块调整模拟速度。
点击"清除"按钮清除告警列表。

5. 模拟说明与限制

简化模型: 网络拓扑、资产细节、协议解析和异常检测规则均为高度简化，旨在演示概念，并非真实世界的精确复现。
协议解析: OT 协议（Modbus, DNP3）的解析是模拟的，仅展示部分关键字段。
异常检测: 检测规则基于简单的逻辑判断，并非复杂的机器学习或行为分析模型。
零日攻击: 模拟的零日攻击是预设的几种特定场景，用于演示系统识别未知威胁的能力概念。
性能: 大量 DOM 操作可能导致在高模拟速度下界面响应变慢，实际应用需要优化渲染逻辑。
数据来源: 所有网络流量和事件均为脚本内部随机生成。

6. 未来扩展方向

真实拓扑导入: 支持加载自定义的网络拓扑结构。
集成 PCAP 数据: 支持读取真实的 PCAP 文件进行分析。
更完善的协议解析: 引入更专业的协议解析库。
高级异常检测算法: 集成基于统计或机器学习的异常检测模型。
可视化增强: 使用 SVG 或 Canvas 库（如 D3.js, Konva.js）绘制更丰富的网络拓扑图和流量动画。
与 SIEM 集成: 提供接口将告警发送到 SIEM 系统。

效果展示

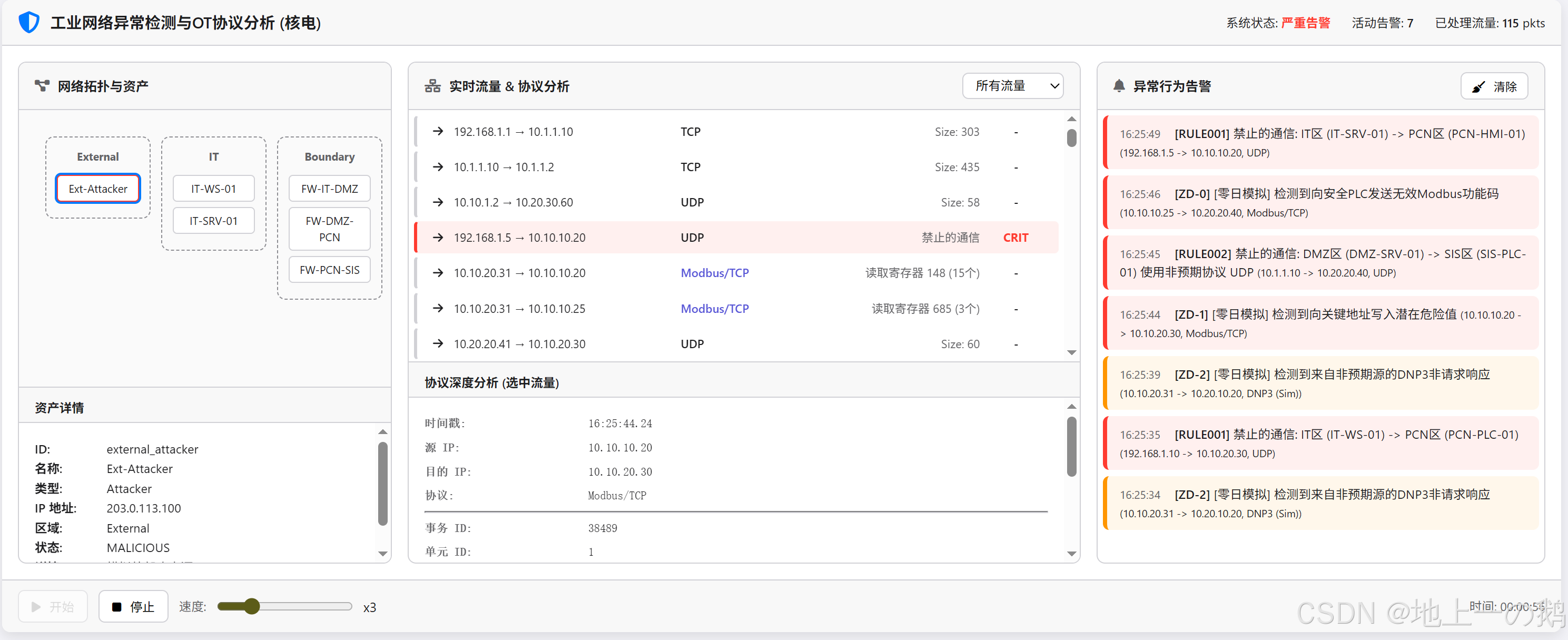

在这里插入图片描述
