TP6用word文档导入数学公式
近期需要做word文档导入试题的功能，试题中含有一些复杂的数学公式，导致word文档读取后直接报错。报错以下：
PhpOffice\Math\Reader\OfficeMathML::getElement :
The tag `m:r` has no tag `m:t` defined1、首先去问了下deepseek，给出的回复如下：
您的报错信息 PhpOffice\Math\Reader\OfficeMathML::getElement :
The tag m:rhas no tagm:t defined 表明 PHPOffice 库在解析 Office MathML 格式的数学公式时，
发现某个 <m:r> 标签内部缺少必需的 <m:t> 标签。按照其给出的方案反复修改依旧无法解决报错问题，最终发现是目前 PHPWord 官方版本（ phpoffice/phpword）对包含数学公式（Office MathML/OMML）的 Word 文档（.docx）的读取支持有限。
2、后来偶然发现，word文档其实就是个打包后重命名的压缩包文件，将本地的.docx文件直接重命名为.zip压缩包，解压缩后可以得到以下目录结构的文件包：

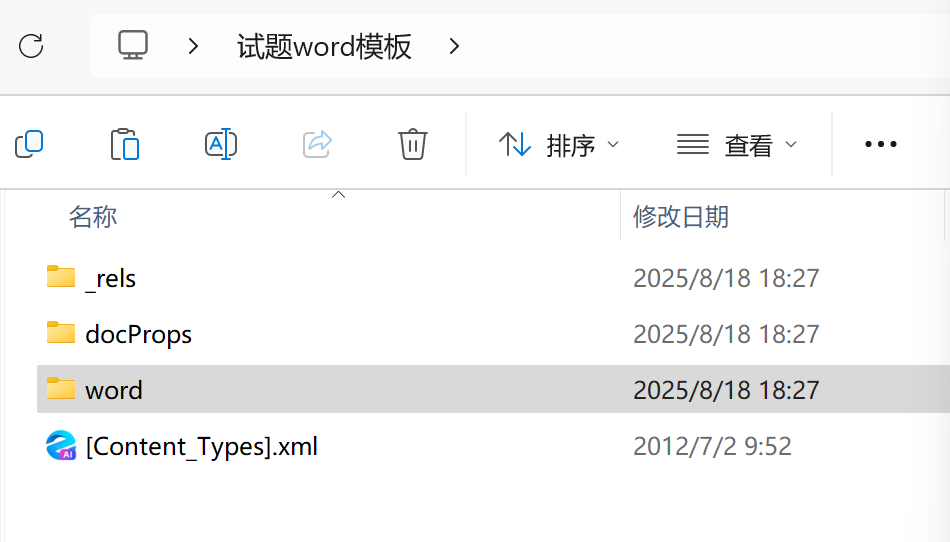

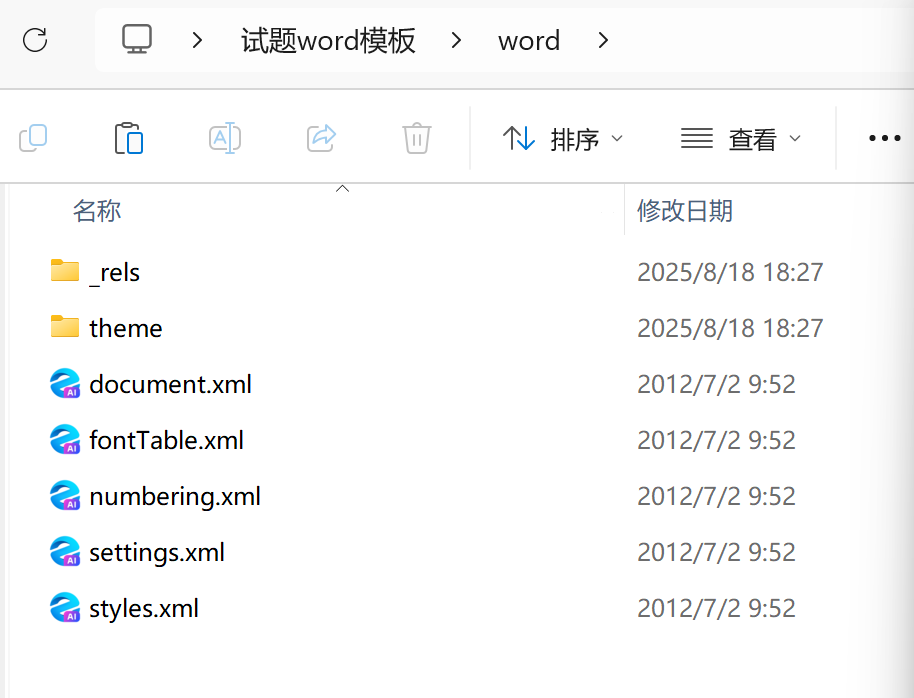

图1 主文件夹 图2 子文件夹
图2 子文件夹中的document.xml文件其实就是word文档的含公式内容。实际需要读取的也就是这个xml文件了。
那么，换个思路，准备不直接读取word了，曲线救国换成读取document.xml这个xml文件试试呗。
还别说，真好使。公式乖乖的蹦出来了。
具体代码结构如下：
1）XmlParserService.php 处理xml试题文件使其以数组形式输出的类文件
<?php
namespace app\common\service;use DOMDocument;
use DOMXPath;
use XSLTProcessor;class XmlParserService
{// 命名空间定义const NS_W = 'http://schemas.openxmlformats.org/wordprocessingml/2006/main';const NS_M = 'http://schemas.openxmlformats.org/officeDocument/2006/math';//数学公式解析const OMML_NAMESPACE = 'http://schemas.openxmlformats.org/officeDocument/2006/math';/*** 解析试题XML* @param string $xmlContent XML内容* @return array*/public function parse($xmlContent){// 关键修复：为XML添加m命名空间定义（如果缺失）$xmlContent = $this->addMissingNamespace($xmlContent);$dom = new DOMDocument();// 禁用错误报告（可选，避免解析时输出警告）libxml_use_internal_errors(true);$dom->loadXML($xmlContent);libxml_clear_errors(); // 清除错误缓存$xpath = new DOMXPath($dom);$xpath->registerNamespace('w', self::NS_W);$xpath->registerNamespace('m', self::NS_M); // 注册m命名空间// 获取所有段落$paragraphs = $xpath->query('//w:body/w:p');$textContent = '';// 遍历所有节和元素，拼接文本内容foreach ($paragraphs as $p) {// 提取段落文本（包含公式处理）$text = $this->getParagraphText($p, $xpath);$textContent .= $text . "\n";}$data = $this->processQuestionContent($textContent);return $data;}/*** 为XML添加缺失的m命名空间定义*/private function addMissingNamespace($xmlContent){$nsDeclaration = 'xmlns:m="http://schemas.openxmlformats.org/officeDocument/2006/math"';// 检查根节点是否已包含m命名空间if (strpos($xmlContent, 'xmlns:m=') === false) {// 在根节点（如<w:document>）添加命名空间$xmlContent = preg_replace('/<w:document([^>]*?)>/',"<w:document$1 $nsDeclaration>",$xmlContent,1);}return $xmlContent;}/*** 提取段落文本并处理公式* @param DOMNode $p 段落节点* @param DOMXPath $xpath* @return string*/private function getParagraphText($p, $xpath){$text = '';// 遍历段落中的所有子节点foreach ($p->childNodes as $node) {if ($node->namespaceURI === self::NS_W && $node->localName === 'r') {// 处理文本节点$tNode = $xpath->query('.//w:t', $node)->item(0);if ($tNode) {$text .= $tNode->nodeValue;}} elseif ($node->namespaceURI === self::NS_M && $node->localName === 'oMath') {$omml = $node->ownerDocument->saveXML($node);//方法一： 处理公式节点 转为 latex
// $turnLatex = new OmmlToLatexConverter();
// $latex = $turnLatex->convert($omml);
// $text .= $latex;//方法二，直接存储 新的读取xml文件方法error_reporting(E_ALL);ini_set('display_errors', 1);// 确保 XSLT 文件存在if (!file_exists('OMML2MML.XSL')) {die("Error: OMML2MML.XSL file not found!");}if (!$omml) {die("No math formulas found!");}// 创建 DOMDocument 并加载 XML$dom = new DOMDocument();// 添加所有必要的命名空间声明到根元素$dom->loadXML('<?xml version="1.0"?>
<root xmlns:m="http://schemas.openxmlformats.org/officeDocument/2006/math"xmlns:w="http://schemas.openxmlformats.org/wordprocessingml/2006/main"xmlns:wpc="http://schemas.microsoft.com/office/word/2010/wordprocessingCanvas"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"xmlns:o="urn:schemas-microsoft-com:office:office"xmlns:r="http://schemas.openxmlformats.org/officeDocument/2006/relationships"xmlns:v="urn:schemas-microsoft-com:vml"xmlns:wp14="http://schemas.microsoft.com/office/word/2010/wordprocessingDrawing"xmlns:wp="http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing"xmlns:w14="http://schemas.microsoft.com/office/word/2010/wordml"xmlns:w10="urn:schemas-microsoft-com:office:word"xmlns:w15="http://schemas.microsoft.com/office/word/2012/wordml"xmlns:wpg="http://schemas.microsoft.com/office/word/2010/wordprocessingGroup"xmlns:wpi="http://schemas.microsoft.com/office/word/2010/wordprocessingInk"xmlns:wne="http://schemas.microsoft.com/office/word/2006/wordml"xmlns:wps="http://schemas.microsoft.com/office/word/2010/wordprocessingShape">' .$omml . '</root>');// 加载 XSLT$xsl = new DOMDocument();$xsl->load('OMML2MML.XSL');// 转换$proc = new XSLTProcessor();$proc->importStyleSheet($xsl);$mathml = $proc->transformToXML($dom);$mathml = mb_convert_encoding($mathml, 'UTF-8', 'UTF-16');// 清理输出$mathml = str_replace(['mml:','mm:'], '', $mathml);$mathml = trim($mathml);$text .= $mathml;}}return trim($text);}/*** 处理题目内容* @param string $text 文本内容* @param array $currentQuestion 当前题目* @param array $questions 题目列表* @param string $type 题型*/private function processQuestionContent(&$text){$paragraphs = self::splitByQuestionTypes($text);// 3. 解析文本为试卷数组//五种题型$examData = [];foreach ($paragraphs as $lineArr) {//1、以题目类型分类$type = $lineArr['key'];//题目类型$line = $lineArr['content'];// echo $line;//方法二： 执行全局匹配（获取所有符合条件的结果） // '/题干：(.*?)(题干：)/s'preg_match_all('/题干：(.*?)(?=题干：|$)/s', $line, $matches);// 提取捕获组1（题干内容），并清理空白$questions = [];if (!empty($matches[1])) {foreach ($matches[1] as $stem) {$cleanStem = trim($stem); // 去除首尾空格和换行if (!empty($cleanStem)) {$questions[] = $cleanStem;}}}$is_choice = false;//2、判断题/填空题/问答题 判断条件if(in_array($type, ['单选', '多选'])) {$is_choice = true;}//3、循环获取单个题目下的内容foreach ($questions as $question) {$childQuestion = $question;//$questionArr['content'];$childQuestions = self::parseQuestionByMarkers($childQuestion, $is_choice);$examData[] = array_merge(['examtype_id' => $type], $childQuestions);}}return $examData;}/*** 处理文本：去除特定字符 + 按题型分割为数组* @param string $text 原始文本* @param array $specificChars 要去除的特定字符（可选，默认去除多余空白）* @return array 分割后的题型块数组*/public function splitByQuestionTypes($text, $pattern= '', $shift=true){// 步骤1：去除特定字符（默认处理多余空白字符，可自定义添加其他字符）// $cleanText = $this->removeSpecificChars($text, $specificChars);// $cleanText = cleanWhitespace($text);$cleanText = self::replaceToOneLine($text);// 步骤2：按【单选题】【多选题】【判断题】分割文本// 正则说明：// 【(单选题|多选题|判断题)】 匹配三种题型标记（捕获组保留标记文本）// PREG_SPLIT_DELIM_CAPTURE 保留分隔符（题型标记）// PREG_SPLIT_NO_EMPTY 排除空元素//'单选题', '多选题', '判断题', '填空题', '问答题'if(!$pattern){$pattern = '/【(单选|多选|判断|填空|问答)】/';}$segments = preg_split($pattern,$cleanText,-1,PREG_SPLIT_DELIM_CAPTURE | PREG_SPLIT_NO_EMPTY);if($shift){array_shift($segments);}// 步骤3：重组数组，将“题型标记”与“内容”对应（如：['【单选题】', '题目内容...']）$result = [];$total = count($segments);for ($i = 0; $i < $total; $i += 2) {// 题型标记（如“单选题”）$type = $segments[$i] ?? '';// 对应内容（下一个元素）$content = $segments[$i + 1] ?? '';if (!empty($type) && !empty($content)) {$result[] = ['key' => $type, // 还原完整标记'content' => trim($content), // 去除内容首尾空白,];}}return $result;}public function parseQuestionByMarkers($content, $is_choice=true){$currentQuestion = [//examtype_id'exambank_question' => '',// exambank_question //content'exambank_select' => [],//exambank_select //options'exambank_answer' => '',//exambank_answer //answer'exambank_describe' => '',//exambank_describe //analysis'exambank_level' => ''//exambank_level //difficulty];$content = trim($content); // 先清理首尾空格if($is_choice){//1. 匹配标题: 提取content（A. 之前的内容） 1、旧正则：'/^(.*?)A\. /s'if (preg_match('/^(.*?)A\./s', $content, $contentMatches)) {// 提取A.之前的内容（包含换行）$currentQuestion['exambank_question'] = self::replaceToOneLine($contentMatches[1]);}// 这是第一题题干01A.第一题选项01B.第一题选项02C. 第一题选项03D.第一题选项04答案：A
// 解析：这是第一题解析难度：非常容易
// 这是第一题题干01A.第一题选项01B.第一题选项02C.第一题选项03D.// print_r($currentQuestion);// 2. 提取options部分（A. 到“答案：”之间） 2、旧正则：'/A\.(.*?)答案：/s'if (preg_match('/A\.(.*?)答案：/s', $content, $optionsMatches)) {// $optionsStr = str_replace('答案：', '', $optionsMatches[0]);// $optionsStr = self::replaceToOneLine($optionsStr);$optionsStr = $optionsMatches[0];// echo $optionsStr;exit;$pattern = '/([A-G])\.(.*?)(?=([A-G])\.|答案：)/s';$options = [];// 执行全局匹配，获取所有符合条件的选项if (preg_match_all($pattern, $optionsStr, $matches, PREG_SET_ORDER)) {// print_r($matches);//exit;foreach ($matches as $match) {$key = $match[1]; // 选项字母（A-G）$value = trim($match[2]); // 选项内容（去除首尾空白）$options[$key] = $value;}}$currentQuestion['exambank_select'] = $options;}}else{//非选择题型 仅有问题没有选项//1. 匹配标题: 提取content（答案： 之前的内容）if (preg_match('/^(.*?)答案：/s', $content, $contentMatches)) {// 提取A.之前的内容（包含换行）$currentQuestion['exambank_question'] = self::replaceToOneLine($contentMatches[1]);}}// 3. 提取answer（“答案：”到“解析：”之间） [解析|难度]if (preg_match('/答案：(.*?)(解析：|难度：)/s', $content, $answerMatches)) {$currentQuestion['exambank_answer'] = trim($answerMatches[1]);}if(!$currentQuestion['exambank_answer'] && !$answerMatches){//假如答案不存在，说明答案后面没有解析也没有难度说明，则重新读取if (preg_match('/答案：(.*)$/', $content, $answerMatches2)) {$currentQuestion['exambank_answer'] = trim($answerMatches2[1]);}}// 4. 提取analysis（“解析：”到“难度：”之间）if (preg_match('/解析：(.*?)(难度：)/s', $content, $analysisMatches)) {$currentQuestion['exambank_describe'] = trim($analysisMatches[1]);}//print_r($analysisMatches);if(!$currentQuestion['exambank_describe'] && !$analysisMatches){//假如不存在，说明它在最后一个，取到最后if (preg_match('/解析：(.*)$/', $content, $analysisMatches2)) {$currentQuestion['exambank_describe'] = trim($analysisMatches2[1]);}}// 5. 提取difficulty（“难度：”之后的内容）if (preg_match('/难度：(.*?)(答案：|解析：)/s', $content, $difficultyMatches)) {$currentQuestion['exambank_level'] = trim($difficultyMatches[1]);}if(!$currentQuestion['exambank_level'] && !$difficultyMatches){//假如不存在，说明它在最后一个，取到最后if (preg_match('/难度：(.*)$/', $content, $difficultyMatches2)) {$currentQuestion['exambank_level'] = trim($difficultyMatches2[1]);}}return $currentQuestion;}//替换多余的空格和换行符public function replaceToOneLine($content){//\r\n|\r|\n$mergedContent = preg_replace('/[\r\n]+/', '', $content);//去除不可见字符$patterns[0] = '/®/';$replacements[0] = '';//零宽字符​$patterns[1] = '/​/';$replacements[1] = '';//零宽字符​$patterns[2] = '#\\\u200b#us';$replacements[2] = '';$patterns[3] = '#\\\u200f#us';$replacements[3] = '';$patterns[4] = '#\\\u200e#us';$replacements[4] = '';$mergedContent = preg_replace($patterns, $replacements, $mergedContent);// 去除首尾空格（可选）return trim($mergedContent);}/*** 处理题目内容* @param string $text 文本内容* @param array $currentQuestion 当前题目* @param array $questions 题目列表* @param string $type 题型*/private function processQuestionContent_old(&$text, &$currentQuestion, &$questions, $type){// 解析题干if (strpos($text, '题干：') === 0) {if (!empty($currentQuestion)) {$questions[] = $currentQuestion;$currentQuestion = [];}$currentQuestion['stem'] = trim(str_replace('题干：', '', $text));$currentQuestion['options'] = []; // 初始化选项数组}// 解析选项（A. B. 等）elseif (preg_match('/^[A-G]\./', $text) && in_array($type, ['单选', '多选'])) {list($key, $option) = explode('.', $text, 2);$currentQuestion['options'][] = trim($option);}// 解析答案elseif (strpos($text, '答案：') === 0) {$currentQuestion['answer'] = trim(str_replace('答案：', '', $text));}// 解析解析elseif (strpos($text, '解析：') === 0) {$currentQuestion['analysis'] = trim(str_replace('解析：', '', $text));}// 解析难度elseif (strpos($text, '难度：') === 0) {$currentQuestion['difficulty'] = trim(str_replace('难度：', '', $text));// 难度是题目最后一个属性，添加到列表$questions[] = $currentQuestion;$currentQuestion = [];}// 处理多行题干或选项elseif (!empty($currentQuestion) && isset($currentQuestion['stem']) && empty($currentQuestion['answer']) && !preg_match('/^[A-G]\./', $text)) {$currentQuestion['stem'] .= $text;}// print_r($currentQuestion);//exit;}/*** OMML转LaTeX* @param string $omml OMML内容* @return string*/private function ommlToLatex($omml){// 简化版OMML解析，实际应用可能需要更完善的处理$dom = new DOMDocument();$dom->loadXML($omml);$xpath = new DOMXPath($dom);$xpath->registerNamespace('m', self::NS_M);// 处理函数、上下标、求和等常见元素$latex = '';// 示例处理：简单识别常见模式并转换// 实际应用建议使用成熟的转换库或更完善的解析逻辑$xmlString = $dom->saveXML();// 处理求和符号if (strpos($xmlString, '<m:naryPr><m:chr m:val="∑"/>') !== false) {$latex .= '\sum';}// 处理分数if (strpos($xmlString, '<m:f>') !== false) {$numerator = $xpath->query('//m:f/m:num/m:t')->item(0)->nodeValue ?? '';$denominator = $xpath->query('//m:f/m:den/m:t')->item(0)->nodeValue ?? '';$latex .= '\frac{' . $numerator . '}{' . $denominator . '}';}// 处理上下标if (strpos($xmlString, '<m:sSub>') !== false) {$base = $xpath->query('//m:sSub/m:e/m:t')->item(0)->nodeValue ?? '';$sub = $xpath->query('//m:sSub/m:sub/m:t')->item(0)->nodeValue ?? '';$latex .= $base . '_{' . $sub . '}';}// 处理三角函数if (strpos($xmlString, '<m:t>sin</m:t>') !== false) {$latex = '\sin' . $latex;}if (strpos($xmlString, '<m:t>cos</m:t>') !== false) {$latex = '\cos' . $latex;}// 处理变量和运算符$textNodes = $xpath->query('//m:t');foreach ($textNodes as $node) {$value = $node->nodeValue;if (!in_array($value, ['sin', 'cos', '∑', '∞'])) {$latex .= $value;}}// 包裹数学公式return '$' . $latex . '$';}/*** 将OMML转换为LaTeX* @param string $omml 包含OMML的XML字符串* @return string 转换后的LaTeX代码*/public function convert($omml) {// 包装OMML以确保命名空间正确$wrappedOmml = $this->wrapOmmlWithNamespace($omml);$dom = new DOMDocument();libxml_use_internal_errors(true);$dom->loadXML($wrappedOmml);libxml_clear_errors();$xpath = new DOMXPath($dom);$xpath->registerNamespace('m', self::OMML_NAMESPACE);// 获取根级公式节点$oMathNode = $xpath->query('//m:oMath')->item(0);if (!$oMathNode) {return '';}return $this->processNode($oMathNode, $xpath);}/*** 为OMML添加命名空间包装*/private function wrapOmmlWithNamespace($omml) {return '<root xmlns:m="' . self::OMML_NAMESPACE . '">' . $omml . '</root>';}/*** 递归处理节点*/private function processNode($node, $xpath) {$latex = '';// 处理子节点foreach ($node->childNodes as $child) {// print_r($child);// 忽略文本节点以外的空白if ($child->nodeType === XML_TEXT_NODE && trim($child->nodeValue) === '') {continue;}// 处理元素节点if ($child->nodeType === XML_ELEMENT_NODE) {$localName = $child->localName;$namespaceUri = $child->namespaceURI;// 仅处理OMML命名空间的节点if ($namespaceUri === self::OMML_NAMESPACE) {switch ($localName) {case 'f': // 分数$latex .= $this->processFraction($child, $xpath);break;case 'sSub': // 下标$latex .= $this->processSubscript($child, $xpath);break;case 'sSup': // 上标$latex .= $this->processSuperscript($child, $xpath);break;case 'nary': // 求和等运算符$latex .= $this->processNary($child, $xpath);break;case 'rad': // 根号$latex .= $this->processRadical($child, $xpath);break;case 't': // 文本/变量$latex .= $this->processText($child);break;case 'r': // 数学运行$latex .= $this->processNode($child, $xpath);break;case 'sin': // 正弦函数$latex .= '\\sin';break;case 'cos': // 余弦函数$latex .= '\\cos';break;case 'tan': // 正切函数$latex .= '\\tan';break;case 'lim': // 极限$latex .= '\\lim';break;case 'int': // 积分$latex .= '\\int';break;default:// 递归处理未知节点$latex .= $this->processNode($child, $xpath);}} else {// 处理其他命名空间的节点$latex .= $this->processNode($child, $xpath);}} elseif ($child->nodeType === XML_TEXT_NODE) {// 处理文本节点$latex .= $this->escapeText($child->nodeValue);}}return $latex;}/*** 处理分数*/private function processFraction($node, $xpath) {$numerator = $xpath->query('.//m:num', $node)->item(0);$denominator = $xpath->query('.//m:den', $node)->item(0);$numLatex = $numerator ? $this->processNode($numerator, $xpath) : '';$denLatex = $denominator ? $this->processNode($denominator, $xpath) : '';return "\\frac{$numLatex}{$denLatex}";}/*** 处理下标*/private function processSubscript($node, $xpath) {$base = $xpath->query('.//m:e', $node)->item(0);$sub = $xpath->query('.//m:sub', $node)->item(0);$baseLatex = $base ? $this->processNode($base, $xpath) : '';$subLatex = $sub ? $this->processNode($sub, $xpath) : '';return "{$baseLatex}_{$subLatex}";}/*** 处理上标*/private function processSuperscript($node, $xpath) {$base = $xpath->query('.//m:e', $node)->item(0);$sup = $xpath->query('.//m:sup', $node)->item(0);$baseLatex = $base ? $this->processNode($base, $xpath) : '';$supLatex = $sup ? $this->processNode($sup, $xpath) : '';return "{$baseLatex}^{$supLatex}";}/*** 处理求和等运算符*/private function processNary($node, $xpath) {$chrNode = $xpath->query('.//m:naryPr/m:chr', $node)->item(0);$base = $xpath->query('.//m:e', $node)->item(0);$sub = $xpath->query('.//m:sub', $node)->item(0);$sup = $xpath->query('.//m:sup', $node)->item(0);$char = $chrNode ? $chrNode->getAttribute('m:val') : '';$baseLatex = $base ? $this->processNode($base, $xpath) : '';$subLatex = $sub ? $this->processNode($sub, $xpath) : '';$supLatex = $sup ? $this->processNode($sup, $xpath) : '';// 映射OMML符号到LaTeX命令$symbolMap = ['∑' => '\\sum','∏' => '\\prod','∐' => '\\coprod'];$symbol = $symbolMap[$char] ?? $char;return "{$symbol}_{$subLatex}^{$supLatex}{$baseLatex}";}/*** 处理根号*/private function processRadical($node, $xpath) {$degree = $xpath->query('.//m:deg', $node)->item(0);$base = $xpath->query('.//m:e', $node)->item(0);$baseLatex = $base ? $this->processNode($base, $xpath) : '';if ($degree) {$degreeLatex = $this->processNode($degree, $xpath);return "\\sqrt[{$degreeLatex}]{$baseLatex}";}return "\\sqrt{$baseLatex}";}/*** 处理文本节点*/private function processText($node) {return $this->escapeText($node->nodeValue);}/*** 转义特殊字符*/private function escapeText($text) {$specialChars = ['#' => '\#','$' => '\$','%' => '\%','&' => '\&','+' => '+','-' => '-','*' => '*','/' => '/','=' => '=','^' => '\^','_' => '\_','{' => '\{','}' => '\}','[' => '[',']' => ']','(' => '(',')' => ')','|' => '|','<' => '<','>' => '>'];return strtr(trim($text), $specialChars);}
}
OMML2MML.XSL(word公式处理源文件)
<?xml version="1.0" encoding="UTF-8" ?>
<xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:mml="http://www.w3.org/1998/Math/MathML"xmlns:m="http://schemas.openxmlformats.org/officeDocument/2006/math"><xsl:output method="xml" encoding="UTF-16" /><!-- %% Global Definitions --><!-- Every single unicode character that is recognized by OMML as an operator --><xsl:variable name="sOperators"select="concat('¨!"#&()+,-./:',';<=>?@[\]^_`{','|}~¡¦¬¯°±²³´·¹¿','×~÷ˇ˘˙˜˝̀́̂̃̄̅̆̇̈̉','̊̋̌̍̎̏̐̑̒̓̔̕','̡̛̖̗̘̙̜̝̞̟̠̚','̢̧̨̣̤̥̦̩̪̫̬̭','̴̵̶̷̸̮̯̰̱̲̳̿','         ‐‒–','—‖†‡•․‥…′″‴‼','⁀⁄⁎⁏⁐⁗⁡⁢⁣⁰⁴⁵','⁶⁷⁸⁹⁺⁻⁼⁽⁾₀₁₂','₃₄₅₆₇₈₉₊₋₌₍₎','⃒⃓⃘⃙⃚⃐⃑⃔⃕⃖⃗⃛','⃜⃝⃞⃟⃠⃡⃤⃥⃦⃨⃧⃩','⃪⅀ⅆ←↑→↓↔↕↖↗↘↙','↚↛↜↝↞↟↠↡↢↣↤↥','↦↧↨↩↪↫↬↭↮↯↰↱','↲↳↶↷↺↻↼↽↾↿⇀⇁','⇂⇃⇄⇅⇆⇇⇈⇉⇊⇋⇌⇍','⇎⇏⇐⇑⇒⇓⇔⇕⇖⇗⇘⇙','⇚⇛⇜⇝⇞⇟⇠⇡⇢⇣⇤⇥','⇦⇧⇨⇩⇳⇴⇵⇶⇷⇸⇹⇺','⇻⇼⇽⇾⇿∀∁∂∃∄∆∇','∈∉∊∋∌∍∏∐∑−∓∔','∕∖∗∘∙√∛∜∝∣∤∥','∦∧∨∩∪∫∬∭∮∯∰∱','∲∳∴∵∶∷∸∹∺∻∼∽','∾≀≁≂≃≄≅≆≇≈≉≊','≋≌≍≎≏≐≑≒≓≔≕≖','≗≘≙≚≛≜≝≞≟≠≡≢','≣≤≥≦≧≨≩≪≫≬≭≮','≯≰≱≲≳≴≵≶≷≸≹≺','≻≼≽≾≿⊀⊁⊂⊃⊄⊅⊆','⊇⊈⊉⊊⊋⊌⊍⊎⊏⊐⊑⊒','⊓⊔⊕⊖⊗⊘⊙⊚⊛⊜⊝⊞','⊟⊠⊡⊢⊣⊥⊦⊧⊨⊩⊪⊫','⊬⊭⊮⊯⊰⊱⊲⊳⊴⊵⊶⊷','⊸⊹⊺⊻⊼⊽⋀⋁⋂⋃⋄⋅','⋆⋇⋈⋉⋊⋋⋌⋍⋎⋏⋐⋑','⋒⋓⋔⋕⋖⋗⋘⋙⋚⋛⋜⋝','⋞⋟⋠⋡⋢⋣⋤⋥⋦⋧⋨⋩','⋪⋫⋬⋭⋮⋯⋰⋱⋲⋳⋴⋵','⋶⋷⋸⋹⋺⋻⋼⋽⋾⋿⌅⌆','⌈⌉⌊⌋⌜⌝⌞⌟⌢⌣〈〉','⌽⌿⎰⎱⏜⏝⏞⏟⏠│├┤','┬┴▁█▒■□▭▲△▴▵','▶▷▸▹▼▽▾▿◀◁◂◃','◄◅◊○◦◫◬◸◹◺◻◼','◽◾◿★☆❲❳⟑⟒⟓⟔⟕','⟖⟗⟘⟙⟚⟛⟜⟝⟞⟟⟠⟡','⟢⟣⟤⟥⟦⟧⟨⟩⟪⟫⟰⟱','⟲⟳⟴⟵⟶⟷⟸⟹⟺⟻⟼⟽','⟾⟿⤀⤁⤂⤃⤄⤅⤆⤇⤈⤉','⤊⤋⤌⤍⤎⤏⤐⤑⤒⤓⤔⤕','⤖⤗⤘⤙⤚⤛⤜⤝⤞⤟⤠⤡','⤢⤣⤤⤥⤦⤧⤨⤩⤪⤫⤬⤭','⤮⤯⤰⤱⤲⤳⤴⤵⤶⤷⤸⤹','⤺⤻⤼⤽⤾⤿⥀⥁⥂⥃⥄⥅','⥆⥇⥈⥉⥊⥋⥌⥍⥎⥏⥐⥑','⥒⥓⥔⥕⥖⥗⥘⥙⥚⥛⥜⥝','⥞⥟⥠⥡⥢⥣⥤⥥⥦⥧⥨⥩','⥪⥫⥬⥭⥮⥯⥰⥱⥲⥳⥴⥵','⥶⥷⥸⥹⥺⥻⥼⥽⥾⥿⦀⦂','⦃⦄⦅⦆⦇⦈⦉⦊⦋⦌⦍⦎','⦏⦐⦑⦒⦓⦔⦕⦖⦗⦘⦙⦚','⦶⦷⦸⦹⧀⧁⧄⧅⧆⧇⧈⧎','⧏⧐⧑⧒⧓⧔⧕⧖⧗⧘⧙⧚','⧛⧟⧡⧢⧣⧤⧥⧦⧫⧴⧵⧶','⧷⧸⧹⧺⧻⧼⧽⧾⧿⨀⨁⨂','⨃⨄⨅⨆⨇⨈⨉⨊⨋⨌⨍⨎','⨏⨐⨑⨒⨓⨔⨕⨖⨗⨘⨙⨚','⨛⨜⨝⨞⨟⨠⨡⨢⨣⨤⨥⨦','⨧⨨⨩⨪⨫⨬⨭⨮⨯⨰⨱⨲','⨳⨴⨵⨶⨷⨸⨹⨺⨻⨼⨽⨾','⨿⩀⩁⩂⩃⩄⩅⩆⩇⩈⩉⩊','⩋⩌⩍⩎⩏⩐⩑⩒⩓⩔⩕⩖','⩗⩘⩙⩚⩛⩜⩝⩞⩟⩠⩡⩢','⩣⩤⩥⩦⩧⩨⩩⩪⩫⩬⩭⩮','⩯⩰⩱⩲⩳⩴⩵⩶⩷⩸⩹⩺','⩻⩼⩽⩾⩿⪀⪁⪂⪃⪄⪅⪆','⪇⪈⪉⪊⪋⪌⪍⪎⪏⪐⪑⪒','⪓⪔⪕⪖⪗⪘⪙⪚⪛⪜⪝⪞','⪟⪠⪡⪢⪣⪤⪥⪦⪧⪨⪩⪪','⪫⪬⪭⪮⪯⪰⪱⪲⪳⪴⪵⪶','⪷⪸⪹⪺⪻⪼⪽⪾⪿⫀⫁⫂','⫃⫄⫅⫆⫇⫈⫉⫊⫋⫌⫍⫎','⫏⫐⫑⫒⫓⫔⫕⫖⫗⫘⫙⫚','⫛⫝̸⫝⫞⫟⫠⫢⫣⫤⫥⫦⫧','⫨⫩⫪⫫⫬⫭⫮⫯⫰⫲⫳⫴','⫵⫶⫷⫸⫹⫺⫻⫼⫽⫾⫿⬄','⬆⬇⬌⬍〔〕〖〗〘〙！＆','（）＋，－．／：；＜＝＞','？＠［＼］＾＿｛｜｝')" /><!-- A string of '-'s repeated exactly as many times as the operators above --><xsl:variable name="sMinuses"><xsl:call-template name="SRepeatChar"><xsl:with-param name="cchRequired" select="string-length($sOperators)" /><xsl:with-param name="ch" select="'-'" /></xsl:call-template></xsl:variable><!-- Every single unicode character that is recognized by OMML as a number --><xsl:variable name="sNumbers" select="'0123456789'" /><!-- A string of '0's repeated exactly as many times as the list of numbers above --><xsl:variable name="sZeros"><xsl:call-template name="SRepeatChar"><xsl:with-param name="cchRequired" select="string-length($sNumbers)" /><xsl:with-param name="ch" select="'0'" /></xsl:call-template></xsl:variable><!-- %%Template: SReplaceReplace all occurences of sOrig in sInput with sReplacementand return the resulting string. --><xsl:template name="SReplace"><xsl:param name="sInput" /><xsl:param name="sOrig" /><xsl:param name="sReplacement" /><xsl:choose><xsl:when test="not(contains($sInput, $sOrig))"><xsl:value-of select="$sInput" /></xsl:when><xsl:otherwise><xsl:variable name="sBefore" select="substring-before($sInput, $sOrig)" /><xsl:variable name="sAfter" select="substring-after($sInput, $sOrig)" /><xsl:variable name="sAfterProcessed"><xsl:call-template name="SReplace"><xsl:with-param name="sInput" select="$sAfter" /><xsl:with-param name="sOrig" select="$sOrig" /><xsl:with-param name="sReplacement" select="$sReplacement" /></xsl:call-template></xsl:variable><xsl:value-of select="concat($sBefore, concat($sReplacement, $sAfterProcessed))" /></xsl:otherwise></xsl:choose></xsl:template><!-- Templates --><xsl:template match="/"><mml:math><xsl:apply-templates select="*" /></mml:math></xsl:template><xsl:template match="m:borderBox"><!-- Get Lowercase versions of properties --><xsl:variable name="sLowerCaseHideTop" select="translate(m:borderBoxPr[last()]/m:hideTop[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseHideBot" select="translate(m:borderBoxPr[last()]/m:hideBot[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseHideLeft" select="translate(m:borderBoxPr[last()]/m:hideLeft[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseHideRight" select="translate(m:borderBoxPr[last()]/m:hideRight[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseStrikeH" select="translate(m:borderBoxPr[last()]/m:strikeH[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseStrikeV" select="translate(m:borderBoxPr[last()]/m:strikeV[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseStrikeBLTR" select="translate(m:borderBoxPr[last()]/m:strikeBLTR[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseStrikeTLBR" select="translate(m:borderBoxPr[last()]/m:strikeTLBR[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="fHideTop"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseHideTop" /></xsl:call-template></xsl:variable><xsl:variable name="fHideBot"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseHideBot" /></xsl:call-template></xsl:variable><xsl:variable name="fHideLeft"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseHideLeft" /></xsl:call-template></xsl:variable><xsl:variable name="fHideRight"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseHideRight" /></xsl:call-template></xsl:variable><xsl:variable name="fStrikeH"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseStrikeH" /></xsl:call-template></xsl:variable><xsl:variable name="fStrikeV"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseStrikeV" /></xsl:call-template></xsl:variable><xsl:variable name="fStrikeBLTR"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseStrikeBLTR" /></xsl:call-template></xsl:variable><xsl:variable name="fStrikeTLBR"><xsl:call-template name="ForceTrueStrVal"><xsl:with-param name="str" select="$sLowerCaseStrikeTLBR" /></xsl:call-template></xsl:variable><xsl:choose><xsl:when test="$fHideTop=1 and $fHideBot=1 and $fHideLeft=1 and $fHideRight=1 and $fStrikeH=0 and $fStrikeV=0 and $fStrikeBLTR=0 and $fStrikeTLBR=0"><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow></xsl:when><xsl:otherwise><mml:menclose><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideTop" select="$fHideTop" /><xsl:with-param name="fHideBot" select="$fHideBot" /><xsl:with-param name="fHideLeft" select="$fHideLeft" /><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /></xsl:call-template><xsl:apply-templates select="m:e[1]" /></mml:menclose></xsl:otherwise></xsl:choose></xsl:template><xsl:template match="*"><xsl:apply-templates select="*" /></xsl:template><!--{ Non-combining, Upper-combining, Lower-combining }{U+02D8, U+0306, U+032E}, // BREVE{U+00B8, U+0312, U+0327}, // CEDILLA{U+0060, U+0300, U+0316}, // GRAVE ACCENT{U+002D, U+0305, U+0332}, // HYPHEN-MINUS/OVERLINE{U+2212, U+0305, U+0332}, // MINUS SIGN/OVERLINE{U+002E, U+0305, U+0323}, // FULL STOP/DOT ABOVE{U+02D9, U+0307, U+0323}, // DOT ABOVE{U+02DD, U+030B, U+02DD}, // DOUBLE ACUTE ACCENT{U+00B4, U+0301, U+0317}, // ACUTE ACCENT{U+007E, U+0303, U+0330}, // TILDE{U+02DC, U+0303, U+0330}, // SMALL TILDE{U+00A8, U+0308, U+0324}, // DIAERESIS{U+02C7, U+030C, U+032C}, // CARON{U+005E, U+0302, U+032D}, // CIRCUMFLEX ACCENT{U+00AF, U+0305, ::::::}, // MACRON{U+005F, ::::::, U+0332}, // LOW LINE{U+2192, U+20D7, U+20EF}, // RIGHTWARDS ARROW{U+27F6, U+20D7, U+20EF}, // LONG RIGHTWARDS ARROW{U+2190, U+20D6, U+20EE}, // LEFT ARROW--><xsl:template name="ToNonCombining"><xsl:param name="ch" /><xsl:choose><!-- BREVE --><xsl:when test="$ch='̆' or $ch='̮'">˘</xsl:when><!-- CEDILLA --><xsl:when test="$ch='̒' or $ch='̧'">¸</xsl:when><!-- GRAVE ACCENT --><xsl:when test="$ch='̀' or $ch='̖'">`</xsl:when><!-- HYPHEN-MINUS/OVERLINE --><xsl:when test="$ch='̅' or $ch='̲'">-</xsl:when><!-- MINUS SIGN/OVERLINE --><xsl:when test="$ch='̅' or $ch='̲'">−</xsl:when><!-- FULL STOP/DOT ABOVE --><xsl:when test="$ch='̅' or $ch='̣'">.</xsl:when><!-- DOT ABOVE --><xsl:when test="$ch='̇' or $ch='̣'">˙</xsl:when><!-- DOUBLE ACUTE ACCENT --><xsl:when test="$ch='̋' or $ch='˝'">˝</xsl:when><!-- ACUTE ACCENT --><xsl:when test="$ch='́' or $ch='̗'">´</xsl:when><!-- TILDE --><xsl:when test="$ch='̃' or $ch='̰'">~</xsl:when><!-- SMALL TILDE --><xsl:when test="$ch='̃' or $ch='̰'">˜</xsl:when><!-- DIAERESIS --><xsl:when test="$ch='̈' or $ch='̤'">¨</xsl:when><!-- CARON --><xsl:when test="$ch='̌' or $ch='̬'">ˇ</xsl:when><!-- CIRCUMFLEX ACCENT --><xsl:when test="$ch='̂' or $ch='̭'">^</xsl:when><!-- MACRON --><xsl:when test="$ch='̅' ">¯</xsl:when><!-- LOW LINE --><xsl:when test=" $ch='̲'">_</xsl:when><!-- RIGHTWARDS ARROW --><xsl:when test="$ch='⃗' or $ch='⃯'">→</xsl:when><!-- LONG RIGHTWARDS ARROW --><xsl:when test="$ch='⃗' or $ch='⃯'">⟶</xsl:when><!-- LEFT ARROW --><xsl:when test="$ch='⃖' or $ch='⃮'">←</xsl:when><xsl:otherwise><xsl:value-of select="$ch"/></xsl:otherwise></xsl:choose></xsl:template><xsl:template match="m:acc"><mml:mover><xsl:attribute name="accent">true</xsl:attribute><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><xsl:variable name="chAcc"><xsl:choose><xsl:when test="not(m:accPr[last()]/m:chr)"><xsl:value-of select="'̂'" /></xsl:when><xsl:otherwise><xsl:value-of select="substring(m:accPr/m:chr/@m:val,1,1)" /></xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="chNonComb"><xsl:call-template name="ToNonCombining"><xsl:with-param name="ch" select="$chAcc" /></xsl:call-template></xsl:variable><xsl:choose><xsl:when test="string-length($chAcc)=0"><mml:mo/></xsl:when><xsl:otherwise><xsl:call-template name="ParseMt"><xsl:with-param name="sToParse" select="$chNonComb" /><xsl:with-param name="scr" select="m:e[1]/*/m:rPr[last()]/m:scr/@m:val" /><xsl:with-param name="sty" select="m:e[1]/*/m:rPr[last()]/m:sty/@m:val" /><xsl:with-param name="nor"><xsl:choose><xsl:when test="count(m:e[1]/*/m:rPr[last()]/m:nor) = 0">0</xsl:when><xsl:otherwise><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="translate(m:e[1]/*/m:rPr[last()]/m:nor/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:with-param></xsl:call-template></xsl:otherwise></xsl:choose></mml:mover></xsl:template><xsl:template name="OutputScript"><xsl:param name="ndCur" select="." /><xsl:choose><!-- Only output contents of $ndCur if $ndCur existsand $ndCur has children --><xsl:when test="count($ndCur/*) > 0"><mml:mrow><xsl:apply-templates select="$ndCur" /></mml:mrow></xsl:when><xsl:otherwise><mml:none /></xsl:otherwise></xsl:choose></xsl:template><xsl:template match="m:sPre"><mml:mmultiscripts><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mprescripts /><xsl:call-template name="OutputScript"><xsl:with-param name="ndCur" select="m:sub[1]"/></xsl:call-template><xsl:call-template name="OutputScript"><xsl:with-param name="ndCur" select="m:sup[1]" /></xsl:call-template></mml:mmultiscripts></xsl:template><xsl:template match="m:m"><mml:mtable><xsl:call-template name="CreateMathMLMatrixAttr"><xsl:with-param name="mcJc" select="m:mPr[last()]/m:mcs/m:mc/m:mcPr[last()]/m:mcJc/@m:val" /></xsl:call-template><xsl:for-each select="m:mr"><mml:mtr><xsl:for-each select="m:e"><mml:mtd><xsl:apply-templates select="." /></mml:mtd></xsl:for-each></mml:mtr></xsl:for-each></mml:mtable></xsl:template><xsl:template name="CreateMathMLMatrixAttr"><xsl:param name="mcJc" /><xsl:variable name="sLowerCaseMcjc" select="translate($mcJc, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:choose><xsl:when test="$sLowerCaseMcjc='left'"><xsl:attribute name="columnalign">left</xsl:attribute></xsl:when><xsl:when test="$sLowerCaseMcjc='right'"><xsl:attribute name="columnalign">right</xsl:attribute></xsl:when></xsl:choose></xsl:template><xsl:template match="m:phant"><xsl:variable name="sLowerCaseZeroWidVal" select="translate(m:phantPr[last()]/m:zeroWid[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseZeroAscVal" select="translate(m:phantPr[last()]/m:zeroAsc[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseZeroDescVal" select="translate(m:phantPr[last()]/m:zeroDesc[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseShowVal" select="translate(m:phantPr[last()]/m:show[last()]/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><!-- The following properties default to 'yes' unless the last value equals 'no' or there isn't any node for the property --><xsl:variable name="fZeroWid"><xsl:choose><xsl:when test="count(m:phantPr[last()]/m:zeroWid[last()]) = 0">0</xsl:when><xsl:otherwise><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="$sLowerCaseZeroWidVal" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="fZeroAsc"><xsl:choose><xsl:when test="count(m:phantPr[last()]/m:zeroAsc[last()]) = 0">0</xsl:when><xsl:otherwise><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="$sLowerCaseZeroAscVal" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="fZeroDesc"><xsl:choose><xsl:when test="count(m:phantPr[last()]/m:zeroDesc[last()]) = 0">0</xsl:when><xsl:otherwise><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="$sLowerCaseZeroDescVal" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:variable><!-- The show property defaults to 'on' unless there exists a show property and its value is 'off' --><xsl:variable name="fShow"><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="$sLowerCaseShowVal" /></xsl:call-template></xsl:variable><xsl:choose><!-- Show the phantom contents, therefore, just use mpadded. --><xsl:when test="$fShow = 1"><xsl:element name="mml:mpadded"><xsl:call-template name="CreateMpaddedAttributes"><xsl:with-param name="fZeroWid" select="$fZeroWid" /><xsl:with-param name="fZeroAsc" select="$fZeroAsc" /><xsl:with-param name="fZeroDesc" select="$fZeroDesc" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:e" /></mml:mrow></xsl:element></xsl:when><!-- Don't show phantom contents, but don't smash anything, therefore, just use mphantom --><xsl:when test="$fZeroWid=0 and $fZeroAsc=0 and $fZeroDesc=0"><xsl:element name="mml:mphantom"><mml:mrow><xsl:apply-templates select="m:e" /></mml:mrow></xsl:element></xsl:when><!-- Combination --><xsl:otherwise><xsl:element name="mml:mphantom"><xsl:element name="mml:mpadded"><xsl:call-template name="CreateMpaddedAttributes"><xsl:with-param name="fZeroWid" select="$fZeroWid" /><xsl:with-param name="fZeroAsc" select="$fZeroAsc" /><xsl:with-param name="fZeroDesc" select="$fZeroDesc" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:e" /></mml:mrow></xsl:element></xsl:element></xsl:otherwise></xsl:choose></xsl:template><xsl:template name="CreateMpaddedAttributes"><xsl:param name="fZeroWid" /><xsl:param name="fZeroAsc" /><xsl:param name="fZeroDesc" /><xsl:if test="$fZeroWid=1"><xsl:attribute name="width">0in</xsl:attribute></xsl:if><xsl:if test="$fZeroAsc=1"><xsl:attribute name="height">0in</xsl:attribute></xsl:if><xsl:if test="$fZeroDesc=1"><xsl:attribute name="depth">0in</xsl:attribute></xsl:if></xsl:template><xsl:template match="m:rad"><xsl:variable name="fDegHide"><xsl:choose><xsl:when test="count(m:radPr[last()]/m:degHide)=0">0</xsl:when><xsl:otherwise><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="translate(m:radPr[last()]/m:degHide/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:variable><xsl:choose><xsl:when test="$fDegHide=1"><mml:msqrt><xsl:apply-templates select="m:e[1]" /></mml:msqrt></xsl:when><xsl:otherwise><mml:mroot><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:deg[1]" /></mml:mrow></mml:mroot></xsl:otherwise></xsl:choose></xsl:template><xsl:template name="OutputNaryMo"><xsl:param name="ndCur" select="." /><xsl:param name="fGrow" select="0" /><mml:mo><xsl:choose><xsl:when test="$fGrow=1"><xsl:attribute name="stretchy">true</xsl:attribute></xsl:when><xsl:otherwise><xsl:attribute name="stretchy">false</xsl:attribute></xsl:otherwise></xsl:choose><xsl:choose><xsl:when test="not($ndCur/m:naryPr[last()]/m:chr/@m:val) or$ndCur/m:naryPr[last()]/m:chr/@m:val=''"><xsl:text>∫</xsl:text></xsl:when><xsl:otherwise><xsl:value-of select="$ndCur/m:naryPr[last()]/m:chr/@m:val" /></xsl:otherwise></xsl:choose></mml:mo></xsl:template><!-- %%Template match m:nary Process an n-ary. Decides, based on which arguments are supplied, betweenusing an mo, msup, msub, or msubsup for the n-ary operator --><xsl:template match="m:nary"><xsl:variable name="sLowerCaseSubHide"><xsl:choose><xsl:when test="count(m:naryPr[last()]/m:subHide) = 0"><xsl:text>off</xsl:text></xsl:when><xsl:otherwise><xsl:value-of select="translate(m:naryPr[last()]/m:subHide/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="sLowerCaseSupHide"><xsl:choose><xsl:when test="count(m:naryPr[last()]/m:supHide) = 0"><xsl:text>off</xsl:text></xsl:when><xsl:otherwise><xsl:value-of select="translate(m:naryPr[last()]/m:supHide/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="sLowerCaseLimLoc"><xsl:value-of select="translate(m:naryPr[last()]/m:limLoc/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:variable><xsl:variable name="sLowerGrow"><xsl:choose><xsl:when test="count(m:naryPr[last()]/m:grow)=0">off</xsl:when><xsl:otherwise><xsl:value-of select="translate(m:naryPr[last()]/m:grow/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="fLimLocSubSup"><xsl:choose><xsl:when test="count(m:naryPr[last()]/m:limLoc)=0 or $sLowerCaseLimLoc='subsup'">1</xsl:when><xsl:otherwise>0</xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="fGrow"><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="$sLowerGrow" /></xsl:call-template></xsl:variable><xsl:variable name="fSupHide"><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="$sLowerCaseSupHide" /></xsl:call-template></xsl:variable><xsl:variable name="fSubHide"><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="$sLowerCaseSubHide" /></xsl:call-template></xsl:variable><mml:mrow><xsl:choose><xsl:when test="$fSupHide=1 and $fSubHide=1"><xsl:call-template name="OutputNaryMo"><xsl:with-param name="ndCur" select="." /><xsl:with-param name="fGrow" select="$fGrow" /></xsl:call-template></xsl:when><xsl:when test="$fSubHide=1"><xsl:choose><xsl:when test="$fLimLocSubSup=1"><mml:msup><xsl:call-template name="OutputNaryMo"><xsl:with-param name="ndCur" select="." /><xsl:with-param name="fGrow" select="$fGrow" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:sup[1]" /></mml:mrow></mml:msup></xsl:when><xsl:otherwise><mml:mover><xsl:call-template name="OutputNaryMo"><xsl:with-param name="ndCur" select="." /><xsl:with-param name="fGrow" select="$fGrow" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:sup[1]" /></mml:mrow></mml:mover></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="$fSupHide=1"><xsl:choose><xsl:when test="$fLimLocSubSup=1"><mml:msub><xsl:call-template name="OutputNaryMo"><xsl:with-param name="ndCur" select="." /><xsl:with-param name="fGrow" select="$fGrow" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:sub[1]" /></mml:mrow></mml:msub></xsl:when><xsl:otherwise><mml:munder><xsl:call-template name="OutputNaryMo"><xsl:with-param name="ndCur" select="." /><xsl:with-param name="fGrow" select="$fGrow" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:sub[1]" /></mml:mrow></mml:munder></xsl:otherwise></xsl:choose></xsl:when><xsl:otherwise><xsl:choose><xsl:when test="$fLimLocSubSup=1"><mml:msubsup><xsl:call-template name="OutputNaryMo"><xsl:with-param name="ndCur" select="." /><xsl:with-param name="fGrow" select="$fGrow" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:sub[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:sup[1]" /></mml:mrow></mml:msubsup></xsl:when><xsl:otherwise><mml:munderover><xsl:call-template name="OutputNaryMo"><xsl:with-param name="ndCur" select="." /><xsl:with-param name="fGrow" select="$fGrow" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:sub[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:sup[1]" /></mml:mrow></mml:munderover></xsl:otherwise></xsl:choose></xsl:otherwise></xsl:choose><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow></mml:mrow></xsl:template><xsl:template match="m:limLow"><mml:munder><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:lim[1]" /></mml:mrow></mml:munder></xsl:template><xsl:template match="m:limUpp"><mml:mover><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:lim[1]" /></mml:mrow></mml:mover></xsl:template><xsl:template match="m:sSub"><mml:msub><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:sub[1]" /></mml:mrow></mml:msub></xsl:template><xsl:template match="m:sSup"><mml:msup><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:sup[1]" /></mml:mrow></mml:msup></xsl:template><xsl:template match="m:sSubSup"><mml:msubsup><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:sub[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:sup[1]" /></mml:mrow></mml:msubsup></xsl:template><xsl:template match="m:groupChr"><xsl:variable name="ndLastGroupChrPr" select="m:groupChrPr[last()]" /><xsl:variable name="sLowerCasePos" select="translate($ndLastGroupChrPr/m:pos/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="sLowerCaseVertJc" select="translate($ndLastGroupChrPr/m:vertJc/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="ndLastChr" select="$ndLastGroupChrPr/m:chr" /><xsl:variable name="chr"><xsl:choose><xsl:when test="$ndLastChr and (not($ndLastChr/@m:val) or string-length($ndLastChr/@m:val) = 0)"></xsl:when><xsl:when test="string-length($ndLastChr/@m:val) >= 1"><xsl:value-of select="substring($ndLastChr/@m:val,1,1)" /></xsl:when><xsl:otherwise><xsl:text>⏟</xsl:text></xsl:otherwise></xsl:choose></xsl:variable><xsl:choose><xsl:when test="$sLowerCasePos = 'top'"><xsl:choose><xsl:when test="$sLowerCaseVertJc = 'bot'"><mml:mover accent="false"><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mo><xsl:value-of select="$chr" /></mml:mo></mml:mover></xsl:when><xsl:otherwise><mml:munder accentunder="false"><mml:mo><xsl:value-of select="$chr" /></mml:mo><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow></mml:munder></xsl:otherwise></xsl:choose></xsl:when><xsl:otherwise><xsl:choose><xsl:when test="$sLowerCaseVertJc = 'bot'"><mml:mover accent="false"><mml:mo><xsl:value-of select="$chr" /></mml:mo><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow></mml:mover></xsl:when><xsl:otherwise><mml:munder accentunder="false"><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mo><xsl:value-of select="$chr" /></mml:mo></mml:munder></xsl:otherwise></xsl:choose></xsl:otherwise></xsl:choose></xsl:template><xsl:template name="fName"><xsl:for-each select="m:fName/*"><xsl:apply-templates select="." /></xsl:for-each></xsl:template><xsl:template match="m:func"><mml:mrow><mml:mrow><xsl:call-template name="fName" /></mml:mrow><mml:mo>⁡</mml:mo><mml:mrow><xsl:apply-templates select="m:e" /></mml:mrow></mml:mrow></xsl:template><!-- %%Template: match m:f m:f maps directly to mfrac. --><xsl:template match="m:f"><xsl:variable name="sLowerCaseType" select="translate(m:fPr[last()]/m:type/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:choose><xsl:when test="$sLowerCaseType='lin'"><mml:mrow><mml:mrow><xsl:apply-templates select="m:num[1]" /></mml:mrow><mml:mo>/</mml:mo><mml:mrow><xsl:apply-templates select="m:den[1]" /></mml:mrow></mml:mrow></xsl:when><xsl:otherwise><mml:mfrac><xsl:call-template name="CreateMathMLFracProp"><xsl:with-param name="type" select="$sLowerCaseType" /></xsl:call-template><mml:mrow><xsl:apply-templates select="m:num[1]" /></mml:mrow><mml:mrow><xsl:apply-templates select="m:den[1]" /></mml:mrow></mml:mfrac></xsl:otherwise></xsl:choose></xsl:template><!-- %%Template: CreateMathMLFracProp Make fraction properties based on supplied parameters.OMML differentiates between a linear fraction and a skewedone. For MathML, we write both as bevelled.--><xsl:template name="CreateMathMLFracProp"><xsl:param name="type" /><xsl:variable name="sLowerCaseType" select="translate($type, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:if test="$sLowerCaseType='skw' or $sLowerCaseType='lin'"><xsl:attribute name="bevelled">true</xsl:attribute></xsl:if><xsl:if test="$sLowerCaseType='nobar'"><xsl:attribute name="linethickness">0pt</xsl:attribute></xsl:if><xsl:choose><xsl:when test="sLowerCaseNumJc='right'"><xsl:attribute name="numalign">right</xsl:attribute></xsl:when><xsl:when test="sLowerCaseNumJc='left'"><xsl:attribute name="numalign">left</xsl:attribute></xsl:when></xsl:choose><xsl:choose><xsl:when test="sLowerCaseDenJc='right'"><xsl:attribute name="numalign">right</xsl:attribute></xsl:when><xsl:when test="sLowerCaseDenJc='left'"><xsl:attribute name="numalign">left</xsl:attribute></xsl:when></xsl:choose></xsl:template><!-- %%Template: match m:e | m:den | m:num | m:lim | m:sup | m:sub These element delinate parts of an expression (like the numerator). --><xsl:template match="m:e | m:den | m:num | m:lim | m:sup | m:sub"><xsl:choose><!-- If there is no scriptLevel specified, just call through --><xsl:when test="not(m:argPr[last()]/m:scrLvl/@m:val)"><xsl:apply-templates select="*" /></xsl:when><!-- Otherwise, create an mstyle and set the script level --><xsl:otherwise><mml:mstyle><xsl:attribute name="scriptlevel"><xsl:value-of select="m:argPr[last()]/m:scrLvl/@m:val" /></xsl:attribute><xsl:apply-templates select="*" /></mml:mstyle></xsl:otherwise></xsl:choose></xsl:template><xsl:template match="m:bar"><xsl:variable name="sLowerCasePos" select="translate(m:barPr/m:pos/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /><xsl:variable name="fTop"><xsl:choose><xsl:when test="$sLowerCasePos='top'">1</xsl:when><xsl:otherwise>0</xsl:otherwise></xsl:choose></xsl:variable><xsl:choose><xsl:when test="$fTop=1"><mml:mover accent="false"><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mo><xsl:text>¯</xsl:text></mml:mo></mml:mover></xsl:when><xsl:otherwise><mml:munder underaccent="false"><mml:mrow><xsl:apply-templates select="m:e[1]" /></mml:mrow><mml:mo><xsl:text>_</xsl:text></mml:mo></mml:munder></xsl:otherwise></xsl:choose></xsl:template><!-- %%Template match m:dProcess a delimiter. --><xsl:template match="m:d"><mml:mfenced><!-- open: default is '(' for both OMML and MathML --><xsl:if test="m:dPr[1]/m:begChr/@m:val and not(m:dPr[1]/m:begChr/@m:val ='(')"><xsl:attribute name="open"><xsl:value-of select="m:dPr[1]/m:begChr/@m:val" /></xsl:attribute></xsl:if><!-- close: default is ')' for both OMML and MathML --><xsl:if test="m:dPr[1]/m:endChr/@m:val and not(m:dPr[1]/m:endChr/@m:val =')')"><xsl:attribute name="close"><xsl:value-of select="m:dPr[1]/m:endChr/@m:val" /></xsl:attribute></xsl:if><!-- separator: the default is ',' for MathML, and '|' for OMML --><xsl:choose><!-- Matches MathML default. Write nothing --><xsl:when test="m:dPr[1]/m:sepChr/@m:val = ','" /><!-- OMML default: | --><xsl:when test="not(m:dPr[1]/m:sepChr/@m:val)"><xsl:attribute name="separators"><xsl:value-of select="'|'" /></xsl:attribute></xsl:when><xsl:otherwise><xsl:attribute name="separators"><xsl:value-of select="m:dPr[1]/m:sepChr/@m:val" /></xsl:attribute></xsl:otherwise></xsl:choose><!-- now write all the children. Put each one into an mrowjust in case it produces multiple runs, etc --><xsl:for-each select="m:e"><mml:mrow><xsl:apply-templates select="." /></mml:mrow></xsl:for-each></mml:mfenced></xsl:template><xsl:template match="m:r"><xsl:variable name="fNor"><xsl:choose><xsl:when test="count(child::m:rPr[last()]/m:nor) = 0">0</xsl:when><xsl:otherwise><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="translate(child::m:rPr[last()]/m:nor/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:variable><xsl:choose><xsl:when test="$fNor=1"><mml:mtext><xsl:variable name="sOutput" select="translate(.//m:t, ' ', ' ')" /><xsl:value-of select="$sOutput" /></mml:mtext></xsl:when><xsl:otherwise><xsl:for-each select=".//m:t"><xsl:call-template name="ParseMt"><xsl:with-param name="sToParse" select="text()" /><xsl:with-param name="scr" select="../m:rPr[last()]/m:scr/@m:val" /><xsl:with-param name="sty" select="../m:rPr[last()]/m:sty/@m:val" /><xsl:with-param name="nor">0</xsl:with-param></xsl:call-template></xsl:for-each></xsl:otherwise></xsl:choose></xsl:template><xsl:template name="CreateTokenAttributes"><xsl:param name="scr" /><xsl:param name="sty" /><xsl:param name="nor" /><xsl:param name="nCharToPrint" /><xsl:param name="sTokenType" /><xsl:choose><xsl:when test="$nor=1"><xsl:attribute name="mathvariant">normal</xsl:attribute></xsl:when><xsl:otherwise><xsl:variable name="mathvariant"><xsl:choose><!-- numbers don't care --><xsl:when test="$sTokenType='mn'" /><xsl:when test="$scr='monospace'">monospace</xsl:when><xsl:when test="$scr='sans-serif' and $sty='i'">sans-serif-italic</xsl:when><xsl:when test="$scr='sans-serif' and $sty='b'">bold-sans-serif</xsl:when><xsl:when test="$scr='sans-serif' and $sty='bi'">sans-serif-bold-italic</xsl:when><xsl:when test="$scr='sans-serif'">sans-serif</xsl:when><xsl:when test="$scr='fraktur' and ($sty='b' or $sty='bi')">bold-fraktur</xsl:when><xsl:when test="$scr='fraktur'">fraktur</xsl:when><xsl:when test="$scr='double-struck'">double-struck</xsl:when><xsl:when test="$scr='script' and ($sty='b' or $sty='bi')">bold-script</xsl:when><xsl:when test="$scr='script'">script</xsl:when><xsl:when test="($scr='roman' or not($scr) or $scr='') and $sty='b'">bold</xsl:when><xsl:when test="($scr='roman' or not($scr) or $scr='') and $sty='i'">italic</xsl:when><xsl:when test="($scr='roman' or not($scr) or $scr='') and $sty='p'">normal</xsl:when><xsl:when test="($scr='roman' or not($scr) or $scr='') and $sty='bi'">bold-italic</xsl:when><xsl:otherwise /></xsl:choose></xsl:variable><xsl:variable name="fontweight"><xsl:choose><xsl:when test="$sty='b' or $sty='bi'">bold</xsl:when><xsl:otherwise>normal</xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="fontstyle"><xsl:choose><xsl:when test="$sty='p' or $sty='b'">normal</xsl:when><xsl:otherwise>italic</xsl:otherwise></xsl:choose></xsl:variable><!-- Writing of attributes begins here --><xsl:choose><!-- Don't write mathvariant for operators unless they want to be normal --><xsl:when test="$sTokenType='mo' and $mathvariant!='normal'" /><!-- A single character within an mi is already italics, don't write --><xsl:when test="$sTokenType='mi' and $nCharToPrint=1 and ($mathvariant='' or $mathvariant='italic')" /><xsl:when test="$sTokenType='mi' and $nCharToPrint > 1 and ($mathvariant='' or $mathvariant='italic')"><xsl:attribute name="mathvariant"><xsl:value-of select="'italic'" /></xsl:attribute></xsl:when><xsl:when test="$mathvariant!='italic' and $mathvariant!=''"><xsl:attribute name="mathvariant"><xsl:value-of select="$mathvariant" /></xsl:attribute></xsl:when><xsl:otherwise><xsl:if test="not($sTokenType='mi' and $nCharToPrint=1) and $fontstyle='italic'"><xsl:attribute name="fontstyle">italic</xsl:attribute></xsl:if><xsl:if test="$fontweight='bold'"><xsl:attribute name="fontweight">bold</xsl:attribute></xsl:if></xsl:otherwise></xsl:choose></xsl:otherwise></xsl:choose></xsl:template><xsl:template match="m:eqArr"><mml:mtable><xsl:for-each select="m:e"><mml:mtr><mml:mtd><xsl:choose><xsl:when test="m:argPr[last()]/m:scrLvl/@m:val!='0' or not(m:argPr[last()]/m:scrLvl/@m:val) or m:argPr[last()]/m:scrLvl/@m:val=''"><mml:mrow><mml:maligngroup /><xsl:call-template name="CreateEqArrRow"><xsl:with-param name="align" select="1" /><xsl:with-param name="ndCur" select="*[1]" /></xsl:call-template></mml:mrow></xsl:when><xsl:otherwise><mml:mstyle><xsl:attribute name="scriptlevel"><xsl:value-of select="m:argPr[last()]/m:scrLvl/@m:val" /></xsl:attribute><mml:maligngroup /><xsl:call-template name="CreateEqArrRow"><xsl:with-param name="align" select="1" /><xsl:with-param name="ndCur" select="*[1]" /></xsl:call-template></mml:mstyle></xsl:otherwise></xsl:choose></mml:mtd></mml:mtr></xsl:for-each></mml:mtable></xsl:template><xsl:template name="CreateEqArrRow"><xsl:param name="align" /><xsl:param name="ndCur" /><xsl:variable name="sAllMt"><xsl:for-each select="$ndCur/m:t"><xsl:value-of select="." /></xsl:for-each></xsl:variable><xsl:choose><xsl:when test="$ndCur/self::m:r"><xsl:call-template name="ParseEqArrMr"><xsl:with-param name="sToParse" select="$sAllMt" /><xsl:with-param name="scr" select="../m:rPr[last()]/m:scr/@m:val" /><xsl:with-param name="sty" select="../m:rPr[last()]/m:sty/@m:val" /><xsl:with-param name="nor"><xsl:choose><xsl:when test="count($ndCur/m:rPr[last()]/m:nor) = 0">0</xsl:when><xsl:otherwise><xsl:call-template name="ForceFalseStrVal"><xsl:with-param name="str" select="translate($ndCur/m:rPr[last()]/m:nor/@m:val, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:with-param><xsl:with-param name="align" select="$align" /></xsl:call-template></xsl:when><xsl:otherwise><xsl:apply-templates select="$ndCur" /></xsl:otherwise></xsl:choose><xsl:if test="count($ndCur/following-sibling::*) > 0"><xsl:variable name="cAmp"><xsl:call-template name="CountAmp"><xsl:with-param name="sAllMt" select="$sAllMt" /><xsl:with-param name="cAmp" select="0" /></xsl:call-template></xsl:variable><xsl:call-template name="CreateEqArrRow"><xsl:with-param name="align" select="($align+($cAmp mod 2)) mod 2" /><xsl:with-param name="ndCur" select="$ndCur/following-sibling::*[1]" /></xsl:call-template></xsl:if></xsl:template><xsl:template name="CountAmp"><xsl:param name="sAllMt" /><xsl:param name="cAmp" /><xsl:choose><xsl:when test="string-length(substring-after($sAllMt, '&')) > 0 or substring($sAllMt, string-length($sAllMt))='&'"><xsl:call-template name="CountAmp"><xsl:with-param name="sAllMt" select="substring-after($sAllMt, '&')" /><xsl:with-param name="cAmp" select="$cAmp+1" /></xsl:call-template></xsl:when><xsl:otherwise><xsl:value-of select="$cAmp" /></xsl:otherwise></xsl:choose></xsl:template><!-- %%Template: ParseEqArrMrSimilar to ParseMt, but this one has to do more for an equation array. In equation arrays & is a special character which denotes alignment.The & in an equation works by alternating between meaning insert alignment spacingand insert alignment mark. For each equation in the equation arraythere is an implied align space at the beginning of the equation. Within each equation,the first & means alignmark, the second, align space, the third, alignmark, etc.For this reason when parsing m:r's in equation arrays it is important to keep track of whatthe next ampersand will mean.$align=0 => Omml's align space, which is similar to MathML's maligngroup.$align=1 => Omml's alignment mark, which is similar to MathML's malignmark.--><xsl:template name="ParseEqArrMr"><xsl:param name="sToParse" /><xsl:param name="sty" /><xsl:param name="scr" /><xsl:param name="nor" /><xsl:param name="align" /><xsl:if test="string-length($sToParse) > 0"><xsl:choose><xsl:when test="substring($sToParse,1,1) = '&'"><xsl:choose><xsl:when test="$align='0'"><mml:maligngroup /></xsl:when><xsl:when test="$align='1'"><mml:malignmark /></xsl:when></xsl:choose><xsl:call-template name="ParseEqArrMr"><xsl:with-param name="sToParse" select="substring($sToParse,2)" /><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="align"><xsl:choose><xsl:when test="$align='1'">0</xsl:when><xsl:otherwise>1</xsl:otherwise></xsl:choose></xsl:with-param></xsl:call-template></xsl:when><xsl:otherwise><xsl:variable name="sRepNumWith0"><xsl:call-template name="SReplaceNumWithZero"><xsl:with-param name="sToParse" select="$sToParse" /></xsl:call-template></xsl:variable><xsl:variable name="sRepOperWith-"><xsl:call-template name="SReplaceOperWithMinus"><xsl:with-param name="sToParse" select="$sRepNumWith0" /></xsl:call-template></xsl:variable><xsl:variable name="iFirstOper" select="string-length($sRepOperWith-) - string-length(substring-after($sRepOperWith-, '-'))" /><xsl:variable name="iFirstNum" select="string-length($sRepOperWith-) - string-length(substring-after($sRepOperWith-, '0'))" /><xsl:variable name="iFirstAmp" select="string-length($sRepOperWith-) - string-length(substring-after($sRepOperWith-, '&'))" /><xsl:variable name="fNumAtPos1"><xsl:choose><xsl:when test="substring($sRepOperWith-,1,1)='0'">1</xsl:when><xsl:otherwise>0</xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="fOperAtPos1"><xsl:choose><xsl:when test="substring($sRepOperWith-,1,1)='-'">1</xsl:when><xsl:otherwise>0</xsl:otherwise></xsl:choose></xsl:variable><xsl:choose><!-- Case I: The string begins with neither a number, nor an operator --><xsl:when test="$fNumAtPos1='0' and $fOperAtPos1='0'"><xsl:choose><xsl:when test="$nor = 0"><mml:mi><xsl:call-template name="CreateTokenAttributes"><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="nCharToPrint" select="1" /><xsl:with-param name="sTokenType" select="'mi'" /></xsl:call-template><xsl:variable name="sOutput" select="translate(substring($sToParse, 1, 1), ' ', ' ')" /><xsl:value-of select="$sOutput" /></mml:mi></xsl:when><xsl:otherwise><mml:mtext><xsl:variable name="sOutput" select="translate(substring($sToParse, 1, 1), ' ', ' ')" /><xsl:value-of select="$sOutput" /></mml:mtext></xsl:otherwise></xsl:choose><xsl:call-template name="ParseEqArrMr"><xsl:with-param name="sToParse" select="substring($sToParse, 2)" /><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="align" select="$align" /></xsl:call-template></xsl:when><!-- Case II: There is an operator at position 1 --><xsl:when test="$fOperAtPos1='1'"><xsl:choose><xsl:when test="$nor = 0"><mml:mo><xsl:call-template name="CreateTokenAttributes"><xsl:with-param name="scr" /><xsl:with-param name="sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="sTokenType" select="'mo'" /></xsl:call-template><xsl:value-of select="substring($sToParse,1,1)" /></mml:mo></xsl:when><xsl:otherwise><mml:mtext><xsl:value-of select="substring($sToParse,1,1)" /></mml:mtext> </xsl:otherwise></xsl:choose><xsl:call-template name="ParseEqArrMr"><xsl:with-param name="sToParse" select="substring($sToParse, 2)" /><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="align" select="$align" /></xsl:call-template></xsl:when><!-- Case III: There is a number at position 1 --><xsl:otherwise><xsl:variable name="sConsecNum"><xsl:call-template name="SNumStart"><xsl:with-param name="sToParse" select="$sToParse" /><xsl:with-param name="sPattern" select="$sRepNumWith0" /></xsl:call-template></xsl:variable><xsl:choose><xsl:when test="$nor = 0"><mml:mn><xsl:call-template name="CreateTokenAttributes"><xsl:with-param name="scr" /><xsl:with-param name="sty" select="'p'"/><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="sTokenType" select="'mn'" /></xsl:call-template><xsl:value-of select="$sConsecNum" /></mml:mn></xsl:when><xsl:otherwise><mml:mtext><xsl:value-of select="$sConsecNum" /></mml:mtext></xsl:otherwise></xsl:choose><xsl:call-template name="ParseEqArrMr"><xsl:with-param name="sToParse" select="substring-after($sToParse, $sConsecNum)" /><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="align" select="$align" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:otherwise></xsl:choose></xsl:if></xsl:template><!-- %%Template: ParseMtProduce a run of text. Technically, OMML makes no distinction between numbers, operators, and other characters in a run. For MathML we need to break these into mi, mn, or mo elements. See also ParseEqArrMr--><xsl:template name="ParseMt"><xsl:param name="sToParse" /><xsl:param name="sty" /><xsl:param name="scr" /><xsl:param name="nor" /><xsl:if test="string-length($sToParse) > 0"><xsl:variable name="sRepNumWith0"><xsl:call-template name="SReplaceNumWithZero"><xsl:with-param name="sToParse" select="$sToParse" /></xsl:call-template></xsl:variable><xsl:variable name="sRepOperWith-"><xsl:call-template name="SReplaceOperWithMinus"><xsl:with-param name="sToParse" select="$sRepNumWith0" /></xsl:call-template></xsl:variable><xsl:variable name="iFirstOper" select="string-length($sRepOperWith-) - string-length(substring-after($sRepOperWith-, '-'))" /><xsl:variable name="iFirstNum" select="string-length($sRepOperWith-) - string-length(substring-after($sRepOperWith-, '0'))" /><xsl:variable name="fNumAtPos1"><xsl:choose><xsl:when test="substring($sRepOperWith-,1,1)='0'">1</xsl:when><xsl:otherwise>0</xsl:otherwise></xsl:choose></xsl:variable><xsl:variable name="fOperAtPos1"><xsl:choose><xsl:when test="substring($sRepOperWith-,1,1)='-'">1</xsl:when><xsl:otherwise>0</xsl:otherwise></xsl:choose></xsl:variable><xsl:choose><!-- Case I: The string begins with neither a number, nor an operator --><xsl:when test="$fOperAtPos1='0' and $fNumAtPos1='0'"><xsl:variable name="nCharToPrint"><xsl:choose><xsl:when test="ancestor::m:fName"><xsl:choose><xsl:when test="($iFirstOper=$iFirstNum) and ($iFirstOper=string-length($sToParse)) and(substring($sRepOperWith-, string-length($sRepOperWith-))!='0') and (substring($sRepOperWith-, string-length($sRepOperWith-))!='-')"><xsl:value-of select="string-length($sToParse)" /></xsl:when><xsl:when test="$iFirstOper < $iFirstNum"><xsl:value-of select="$iFirstOper - 1" /></xsl:when><xsl:otherwise><xsl:value-of select="$iFirstNum - 1" /></xsl:otherwise></xsl:choose></xsl:when><xsl:otherwise>1</xsl:otherwise></xsl:choose></xsl:variable><mml:mi><xsl:call-template name="CreateTokenAttributes"><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="nCharToPrint" select="$nCharToPrint" /><xsl:with-param name="sTokenType" select="'mi'" /></xsl:call-template><xsl:variable name="sWrite" select="translate(substring($sToParse, 1, $nCharToPrint), ' ', ' ')" /><xsl:value-of select="$sWrite" /></mml:mi><xsl:call-template name="ParseMt"><xsl:with-param name="sToParse" select="substring($sToParse, $nCharToPrint+1)" /><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /></xsl:call-template></xsl:when><!-- Case II: There is an operator at position 1 --><xsl:when test="$fOperAtPos1='1'"><mml:mo><xsl:call-template name="CreateTokenAttributes"><xsl:with-param name="scr" /><xsl:with-param name="sty" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="sTokenType" select="'mo'" /></xsl:call-template><xsl:value-of select="substring($sToParse,1,1)" /></mml:mo><xsl:call-template name="ParseMt"><xsl:with-param name="sToParse" select="substring($sToParse, 2)" /><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /></xsl:call-template></xsl:when><!-- Case III: There is a number at position 1 --><xsl:otherwise><xsl:variable name="sConsecNum"><xsl:call-template name="SNumStart"><xsl:with-param name="sToParse" select="$sToParse" /><xsl:with-param name="sPattern" select="$sRepNumWith0" /></xsl:call-template></xsl:variable><mml:mn><xsl:call-template name="CreateTokenAttributes"><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="'p'" /><xsl:with-param name="nor" select="$nor" /><xsl:with-param name="sTokenType" select="'mn'" /></xsl:call-template><xsl:value-of select="$sConsecNum" /></mml:mn><xsl:call-template name="ParseMt"><xsl:with-param name="sToParse" select="substring-after($sToParse, $sConsecNum)" /><xsl:with-param name="scr" select="$scr" /><xsl:with-param name="sty" select="$sty" /><xsl:with-param name="nor" select="$nor" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:if></xsl:template><!-- %%Template: SNumStart Return the longest substring of sToParse starting from the start of sToParse that is a number. In addition, it takes thepattern string, which is sToParse with all of its numbers replaced with a 0. sPattern should be the same length as sToParse --><xsl:template name="SNumStart"><xsl:param name="sToParse" select="''" /><!-- if we don't get anything, take the string itself --><xsl:param name="sPattern" select="'$sToParse'" /><xsl:choose><!-- the pattern says this is a number, recurse with the rest --><xsl:when test="substring($sPattern, 1, 1) = '0'"><xsl:call-template name="SNumStart"><xsl:with-param name="sToParse" select="$sToParse" /><xsl:with-param name="sPattern" select="substring($sPattern, 2)" /></xsl:call-template></xsl:when><!-- the pattern says we've run out of numbers. Take as manycharacters from sToParse as we shaved off sPattern --><xsl:otherwise><xsl:value-of select="substring($sToParse, 1, string-length($sToParse) - string-length($sPattern))" /></xsl:otherwise></xsl:choose></xsl:template><!-- %%Template SRepeatCharAccThe core of SRepeatChar with an accumulator. The currentstring is in param $acc, and we will double and recurse,if we're less than half of the required length or else just add the right amount of characters to the accumulator andreturn--><xsl:template name="SRepeatCharAcc"><xsl:param name="cchRequired" select="1" /><xsl:param name="ch" select="'-'" /><xsl:param name="acc" select="$ch" /><xsl:variable name="cchAcc" select="string-length($acc)" /><xsl:choose><xsl:when test="(2 * $cchAcc) < $cchRequired"><xsl:call-template name="SRepeatCharAcc"><xsl:with-param name="cchRequired" select="$cchRequired" /><xsl:with-param name="ch" select="$ch" /><xsl:with-param name="acc" select="concat($acc, $acc)" /></xsl:call-template></xsl:when><xsl:otherwise><xsl:value-of select="concat($acc, substring($acc, 1, $cchRequired - $cchAcc))" /></xsl:otherwise></xsl:choose></xsl:template><!-- %%Template SRepeatCharGenerates a string nchRequired long by repeating the given character ch--><xsl:template name="SRepeatChar"><xsl:param name="cchRequired" select="1" /><xsl:param name="ch" select="'-'" /><xsl:call-template name="SRepeatCharAcc"><xsl:with-param name="cchRequired" select="$cchRequired" /><xsl:with-param name="ch" select="$ch" /><xsl:with-param name="acc" select="$ch" /></xsl:call-template></xsl:template><!-- %%Template SReplaceOperWithMinusGo through the given string and replace every instanceof an operator with a minus '-'. This helps quickly identifythe first instance of an operator. --><xsl:template name="SReplaceOperWithMinus"><xsl:param name="sToParse" select="''" /><xsl:value-of select="translate($sToParse, $sOperators, $sMinuses)" /></xsl:template><!-- %%Template SReplaceNumWithZeroGo through the given string and replace every instanceof an number with a zero '0'. This helps quickly identifythe first occurence of a number. Considers the '.' and ',' part of a number iff they are sandwiched between two other numbers. 0.3 will be recognized as a number,x.3 will not be. Since these characters can also be an operator, this should be called before SReplaceOperWithMinus.--><xsl:template name="SReplaceNumWithZero"><xsl:param name="sToParse" select="''" /><!-- First do a simple replace. Numbers will all be come 0's.After this point, the pattern involving the . or , that we are looking for will become 0.0 or 0,0 --><xsl:variable name="sSimpleReplace" select="translate($sToParse, $sNumbers, $sZeros)" /><!-- And then, replace 0.0 with just 000. This means that the . will become part of the number --><xsl:variable name="sReplacePeriod"><xsl:call-template name="SReplace"><xsl:with-param name="sInput" select="$sSimpleReplace" /><xsl:with-param name="sOrig" select="'0.0'" /><xsl:with-param name="sReplacement" select="'000'" /></xsl:call-template></xsl:variable><!-- And then, replace 0,0 with just 000. This means that the , will become part of the number --><xsl:call-template name="SReplace"><xsl:with-param name="sInput" select="$sReplacePeriod" /><xsl:with-param name="sOrig" select="'0,0'" /><xsl:with-param name="sReplacement" select="'000'" /></xsl:call-template></xsl:template><!-- Template to translate Word's borderBox properties into the menclose notation attributeThe initial call to this SHOULD NOT pass an sAttribute. Subsequent calls to CreateMencloseNotationAttrFromBorderBoxAttr by CreateMencloseNotationAttrFromBorderBoxAttr willupdate the sAttribute as appropriate.CreateMencloseNotationAttrFromBorderBoxAttr looks at each attribute (fHideTop, fHideBot, etc.) one at a timein the order they are listed and passes a modified sAttribute to CreateMencloseNotationAttrFromBorderBoxAttr.Each successive call to CreateMencloseNotationAttrFromBorderBoxAttr knows which attribute to look at because the previous call should have omitted passing the attribute it just analyzed. This is why as you read lower and lower in the template that each call to CreateMencloseNotationAttrFromBorderBoxAttr has fewer and fewer attributes.--><xsl:template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:param name="fHideTop" /><xsl:param name="fHideBot" /><xsl:param name="fHideLeft" /><xsl:param name="fHideRight" /><xsl:param name="fStrikeH" /><xsl:param name="fStrikeV" /><xsl:param name="fStrikeBLTR" /><xsl:param name="fStrikeTLBR" /><xsl:param name="sAttribute" /><xsl:choose><xsl:when test="string-length($sAttribute) = 0"><xsl:choose><xsl:when test="string-length($fHideTop) > 0and string-length($fHideBot) > 0 and string-length($fHideLeft) > 0and string-length($fHideRight) > 0"><xsl:choose><xsl:when test="$fHideTop = 0 and $fHideBot = 0and $fHideLeft = 0 and $fHideRight = 0"><!-- We can use 'box' instead of top, bot, left, and right. Therefore,replace sAttribute with 'box' and begin analyzing params fStrikeHand below. --><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute"><xsl:text>box</xsl:text></xsl:with-param></xsl:call-template></xsl:when><xsl:otherwise><!-- Can't use 'box', theremore, must analyze all attributes --><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideTop" select="$fHideTop" /><xsl:with-param name="fHideBot" select="$fHideBot" /><xsl:with-param name="fHideLeft" select="$fHideLeft" /><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute"><!-- Assume using all four (left right top bottom). Subsequent callswill remove the sides which aren't to be includes. --><xsl:text>left right top bottom</xsl:text></xsl:with-param></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when></xsl:choose></xsl:when><xsl:otherwise><xsl:choose><xsl:when test="string-length($fHideTop) > 0"><xsl:choose><xsl:when test="$fHideTop=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideBot" select="$fHideBot" /><xsl:with-param name="fHideLeft" select="$fHideLeft" /><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute"><xsl:call-template name="SReplace"><xsl:with-param name="sInput" select="$sAttribute" /><xsl:with-param name="sOrig" select="'top'" /><xsl:with-param name="sReplacement" select="''" /></xsl:call-template></xsl:with-param></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideBot" select="$fHideBot" /><xsl:with-param name="fHideLeft" select="$fHideLeft" /><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="string-length($fHideBot) > 0"><xsl:choose><xsl:when test="$fHideBot=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideLeft" select="$fHideLeft" /><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute"><xsl:call-template name="SReplace"><xsl:with-param name="sInput" select="$sAttribute" /><xsl:with-param name="sOrig" select="'bottom'" /><xsl:with-param name="sReplacement" select="''" /></xsl:call-template></xsl:with-param></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideLeft" select="$fHideLeft" /><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="string-length($fHideLeft) > 0"><xsl:choose><xsl:when test="$fHideLeft=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute"><xsl:call-template name="SReplace"><xsl:with-param name="sInput" select="$sAttribute" /><xsl:with-param name="sOrig" select="'left'" /><xsl:with-param name="sReplacement" select="''" /></xsl:call-template></xsl:with-param></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fHideRight" select="$fHideRight" /><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="string-length($fHideRight) > 0"><xsl:choose><xsl:when test="$fHideRight=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute"><xsl:call-template name="SReplace"><xsl:with-param name="sInput" select="$sAttribute" /><xsl:with-param name="sOrig" select="'right'" /><xsl:with-param name="sReplacement" select="''" /></xsl:call-template></xsl:with-param></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeH" select="$fStrikeH" /><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="string-length($fStrikeH) > 0"><xsl:choose><xsl:when test="$fStrikeH=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="concat($sAttribute, ' horizontalstrike')" /></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeV" select="$fStrikeV" /><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="string-length($fStrikeV) > 0"><xsl:choose><xsl:when test="$fStrikeV=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="concat($sAttribute, ' verticalstrike')" /></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeBLTR" select="$fStrikeBLTR" /><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="string-length($fStrikeBLTR) > 0"><xsl:choose><xsl:when test="$fStrikeBLTR=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="concat($sAttribute, ' updiagonalstrike')" /></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="fStrikeTLBR" select="$fStrikeTLBR" /><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:when test="string-length($fStrikeTLBR) > 0"><xsl:choose><xsl:when test="$fStrikeTLBR=1"><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="sAttribute" select="concat($sAttribute, ' downdiagonalstrike')" /></xsl:call-template></xsl:when><xsl:otherwise><xsl:call-template name="CreateMencloseNotationAttrFromBorderBoxAttr"><xsl:with-param name="sAttribute" select="$sAttribute" /></xsl:call-template></xsl:otherwise></xsl:choose></xsl:when><xsl:otherwise><xsl:attribute name="notation"><xsl:value-of select="normalize-space($sAttribute)" /></xsl:attribute></xsl:otherwise></xsl:choose></xsl:otherwise></xsl:choose></xsl:template><!-- Tristate (true, false, neither) from string value --><xsl:template name="TFromStrVal"><xsl:param name="str" /><xsl:choose><xsl:when test="$str = 'on' or $str = '1' or $str = 'true'">1</xsl:when><xsl:when test="$str = 'off' or $str = '0' or $str = 'false'">0</xsl:when><xsl:otherwise>-1</xsl:otherwise></xsl:choose></xsl:template><!-- Return 0 iff $str is explicitly set to a false value. Return true otherwise --><xsl:template name="ForceFalseStrVal"><xsl:param name="str" /><xsl:variable name="tValue"><xsl:call-template name="TFromStrVal"><xsl:with-param name="str" select="$str"/></xsl:call-template></xsl:variable><xsl:choose><xsl:when test="$tValue = '0'">0</xsl:when><xsl:otherwise>1</xsl:otherwise></xsl:choose></xsl:template><!-- Return 1 iff $str is explicitly set to a true value. Return false otherwise --><xsl:template name="ForceTrueStrVal"><xsl:param name="str" /><xsl:variable name="tValue"><xsl:call-template name="TFromStrVal"><xsl:with-param name="str" select="$str"/></xsl:call-template></xsl:variable><xsl:choose><xsl:when test="$tValue = '1'">1</xsl:when><xsl:otherwise>0</xsl:otherwise></xsl:choose></xsl:template>
</xsl:stylesheet>
2）操作文件 word.php
<?php$file = request()->file();if (!$file) {$this->error(lang('请选择文件'));}//将文件保存到public/uploads目录下面$savePath = Filesystem::putFile( 'upload', $file['file']);//获取文件路径$filePath = ROOT_PATH . 'runtime/storage/' . $savePath;$zip = new ZipArchive();if ($zip->open($filePath) !== true) {$this->error(lang('无法打开Word文件（可能损坏或不是docx格式）'));}// 查找word/document.xml在压缩包中的位置$xmlIndex = $zip->locateName('word/document.xml');if ($xmlIndex === false) {$zip->close();$this->error(lang('Word文件中未找到document.xml'));}// 读取xml内容$xmlContent = $zip->getFromIndex($xmlIndex);$zip->close();if ($xmlContent === false) {$this->error(lang('无法读取document.xml内容'));}$data = model('XmlParserService', 'service')->parse($xmlContent);//$savePath $xmlContent////////////////// 开始读取word中xml文件的内容 End ///////////////////试题入库print_r($data);执行以上操作，可解析出类似以下数组：
Array
(
[0] => Array
(
[examtype_id] => 单选
[exambank_question] => 这是第一题题干01
[exambank_select] => Array
(
[A] => 第一题选项01
[B] => 第一题选项02
[C] => 第一题选项03
[D] => 第一题选项04
)[exambank_answer] => A
[exambank_describe] => 这是第一题解析
[exambank_level] => 非常容易
)[1] => Array
(
[examtype_id] => 判断
[exambank_question] => 这题对么，这道题可能比较长哦，有可能会占用两行距离，也是为了测试题目太长的效果，没办法呀？
[exambank_select] => Array
(
)[exambank_answer] => Y
[exambank_describe] =>
[exambank_level] =>
)[2] => Array
(
[examtype_id] => 填空
[exambank_question] => 这空填写( )空二填写（）？
[exambank_select] => Array
(
)[exambank_answer] => 第一空答案|第二空答案
[exambank_describe] =>
[exambank_level] => 较难
)[3] => Array
(
[examtype_id] => 填空
[exambank_question] => 健康管理师<?xml version="1.0" encoding="UTF-16"?><math xmlns:mml="http://www.w3.org/1998/Math/MathML" xmlns:m="http://schemas.openxmlformats.org/officeDocument/2006/math"><mi>f</mi><mfenced separators="|"><mrow><mi>x</mi></mrow></mfenced><mo>=</mo><msub><mrow><mi>a</mi></mrow><mrow><mn>0</mn></mrow></msub><mo>+</mo><mrow><munderover><mo stretchy="true">∑</mo><mrow><mi>n</mi><mo>=</mo><mn>1</mn></mrow><mrow><mi>∞</mi></mrow></munderover><mrow><mfenced separators="|"><mrow><msub><mrow><mi>a</mi></mrow><mrow><mi>n</mi></mrow></msub><mrow><mrow><mi mathvariant="normal">cos</mi></mrow><mo></mo><mrow><mfrac><mrow><mi>n</mi><mi>π</mi><mi>x</mi></mrow><mrow><mi>L</mi></mrow></mfrac></mrow></mrow><mo>+</mo><msub><mrow><mi>b</mi></mrow><mrow><mi>n</mi></mrow></msub><mrow><mrow><mi mathvariant="normal">sin</mi></mrow><mo></mo><mrow><mfrac><mrow><mi>n</mi><mi>π</mi><mi>x</mi></mrow><mrow><mi>L</mi></mrow></mfrac></mrow></mrow></mrow></mfenced></mrow></mrow></math>分（）个级别？
[exambank_select] => Array
(
)[exambank_answer] => 4
[exambank_describe] => 这是第6题解析
[exambank_level] =>
)[4] => Array
(
[examtype_id] => 问答
[exambank_question] => 健康管理师都有<?xml version="1.0" encoding="UTF-16"?><math xmlns:mml="http://www.w3.org/1998/Math/MathML" xmlns:m="http://schemas.openxmlformats.org/officeDocument/2006/math"><mrow><mrow><mi mathvariant="normal">sin</mi></mrow><mo></mo><mrow><mi>α</mi></mrow></mrow><mo>±</mo><mrow><mrow><mi mathvariant="normal">sin</mi></mrow><mo></mo><mrow><mi>β</mi></mrow></mrow><mo>=</mo><mn>2</mn><mrow><mrow><mi mathvariant="normal">sin</mi></mrow><mo></mo><mrow><mfrac><mrow><mn>1</mn></mrow><mrow><mn>2</mn></mrow></mfrac><mfenced separators="|"><mrow><mi>α</mi><mo>±</mo><mi>β</mi></mrow></mfenced></mrow></mrow><mrow><mrow><mi mathvariant="normal">cos</mi></mrow><mo></mo><mrow><mfrac><mrow><mn>1</mn></mrow><mrow><mn>2</mn></mrow></mfrac><mfenced separators="|"><mrow><mi>α</mi><mo>∓</mo><mi>β</mi></mrow></mfenced></mrow></mrow></math>哪四个级别？
[exambank_select] => Array
(
)[exambank_answer] => 分为三级高级 二级技师 一级高级技师。
[exambank_describe] => 简单题的答案和解析你就尽情写吧，可以多写几行没关系的。简单题的答案和解析你就尽情写吧，可以多写几行没关系的。简单题的答案和解析你就尽情写吧，可以多写几行没关系的。想换个行也没事哒。
[exambank_level] => 较难
)[5] => Array
(
[examtype_id] => 问答
[exambank_question] => 健康管理师最小年<?xml version="1.0" encoding="UTF-16"?><math xmlns:mml="http://www.w3.org/1998/Math/MathML" xmlns:m="http://schemas.openxmlformats.org/officeDocument/2006/math"><msup><mrow><mfenced separators="|"><mrow><mn>1</mn><mo>+</mo><mi>x</mi></mrow></mfenced></mrow><mrow><mi>n</mi></mrow></msup><mo>=</mo><mn>1</mn><mo>+</mo><mfrac><mrow><mi>n</mi><mi>x</mi></mrow><mrow><mn>1</mn><mo>!</mo></mrow></mfrac><mo>+</mo><mfrac><mrow><mi>n</mi><mfenced separators="|"><mrow><mi>n</mi><mo>−</mo><mn>1</mn></mrow></mfenced><msup><mrow><mi>x</mi></mrow><mrow><mn>2</mn></mrow></msup></mrow><mrow><mn>2</mn><mo>!</mo></mrow></mfrac><mo>+</mo><mo>…</mo></math>龄多大可以报考？
[exambank_select] => Array
(
)[exambank_answer] => 健康管理师最小的年龄18岁就可以报。
[exambank_describe] => 简单题的答案和解析你就尽情写吧，可以多写几行没关系的。想换个行也没事哒。
[exambank_level] => 较难
))
3）前端读取公式文件
<!-- 需要在页面头部引入以下js文件 MathJax-master包省略 -->
<script>MathJax = {loader: { load: ["input/mml", "output/svg"] }};
</script>
<script src="js/MathJax-master/tex-mml-svg.js"></script>此处输出含公式的试题内容接口
{$exam_question}至此，word导入的公式就可以完美显示在前台了。如下所示：
报错处理：
1、Class 'XSLTProcessor' not found 此错误为php未开启xsl扩展导致，开启相应扩展即可。
