Unity 游戏提升 Android TargetVersion 相关记录

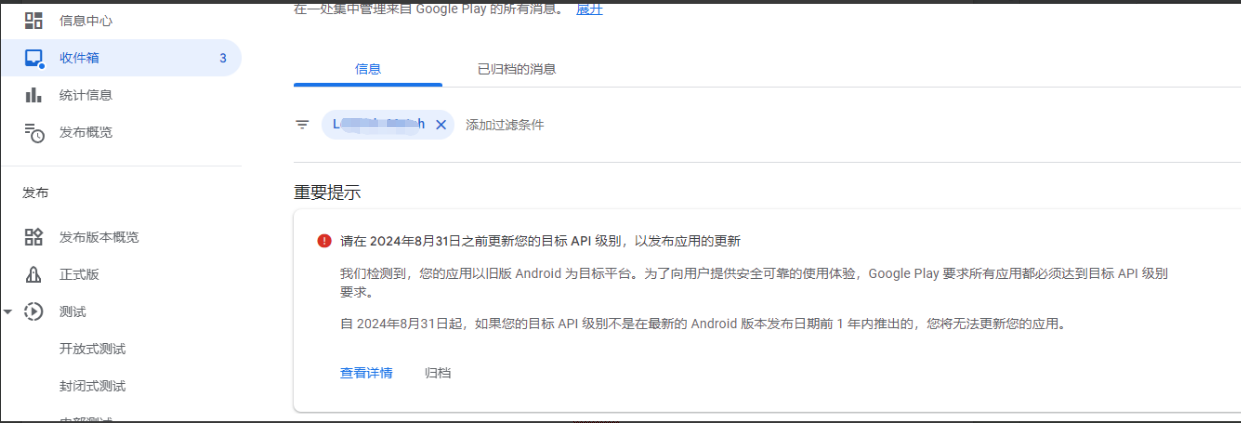

原因：googleplay 要求。

要构建指定 TargetVersion 的App，

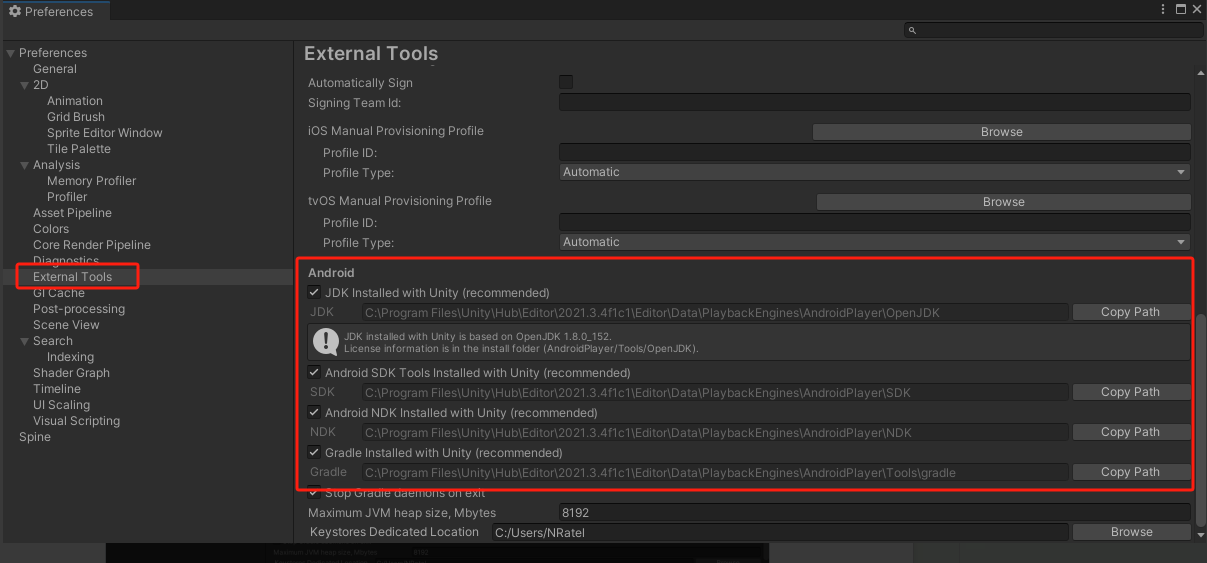

必须使用所需版本的 JDK、Android SDK、Android NDK、Gradle。

只将Unity PlayerSettings/Android/OtherSettings 中，TargetAPILevel 修改为目标版本，然后构建 是不行的！

一般而言，如果 googleplay 有提升要求，Unity会跟进，出对应的 Unity小版本。

直接更换 Unity小版本是成本最小的办法。

但注意，官方可能并不是及时的。可能得半个月左右才会稳定。要是着急必然要趟一些坑。

若要自己在老Unity的基础上替换新的 JDK、Android SDK、Android NDK、Gradle，成本可能是不小的。

----------------------------------------------------------------------------------------------------

这里只记录更换Unity版本的过程。

应注意：

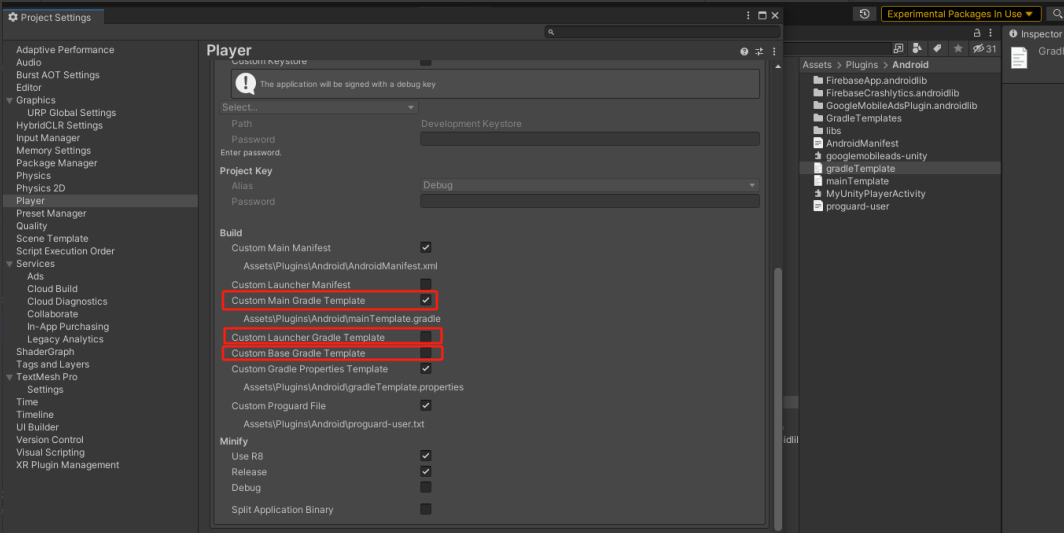

若项目中存在由老版本生成的任何 template.gradle、Manifest、ProguardFile 等文件，则可能需要重新生成/修改。

由于目标gradle版本的差异，这些文件的结构甚至会产生很大变化。
请务必对比这几个新老文件，按需合并，以确保：
其中的数据结构、内容值，与最终所需相符。

最好是由新版本的Unity重新生成，再补充之前需要的内容。

最后，应观察一下导出的安卓工程中的三个gradle 中的 内容是否与所需相符。

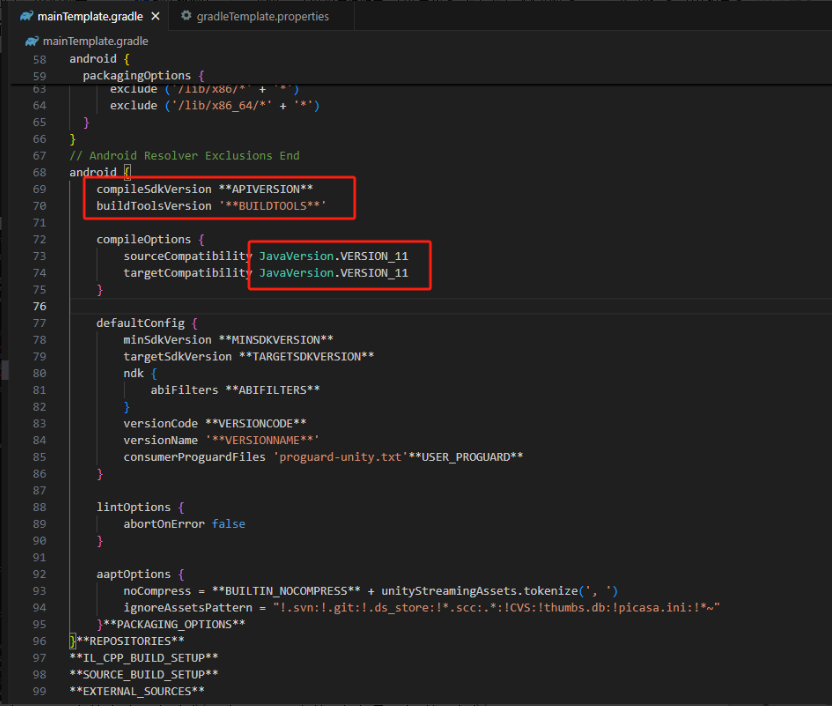

尤其注意compileSdkVersion、buildToolsVersion、JavaVersion。

对比 Unity2021.3.4f1c1 和 Unity2021.3.41f1c1生成的部分模板的差异如下：

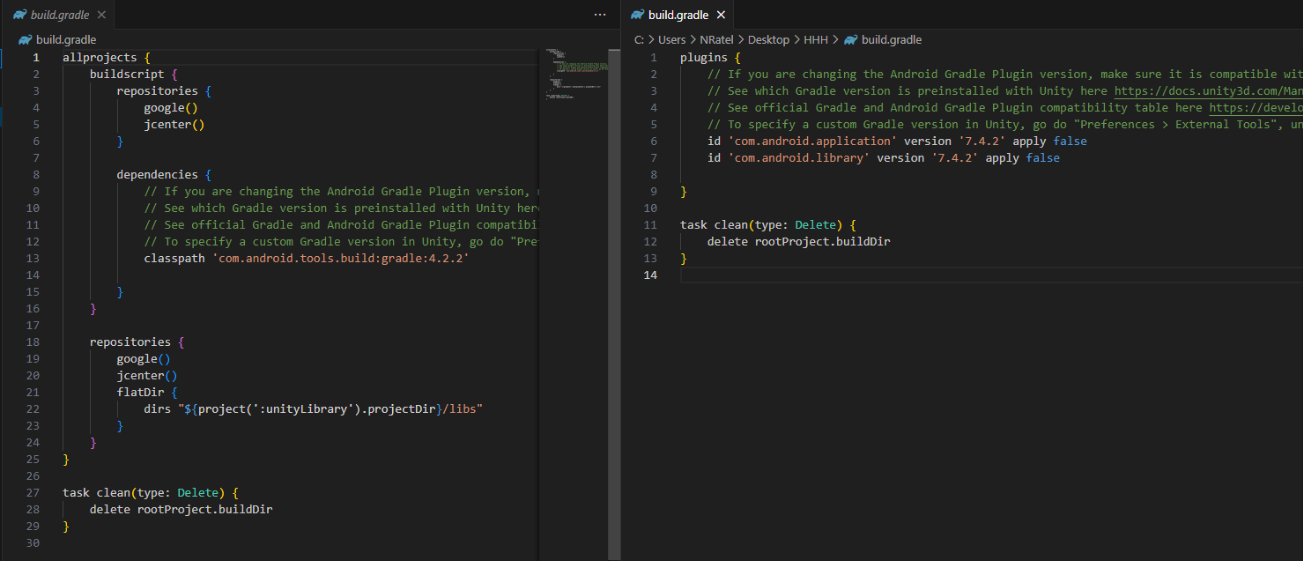

1、根目录的build.gradle：

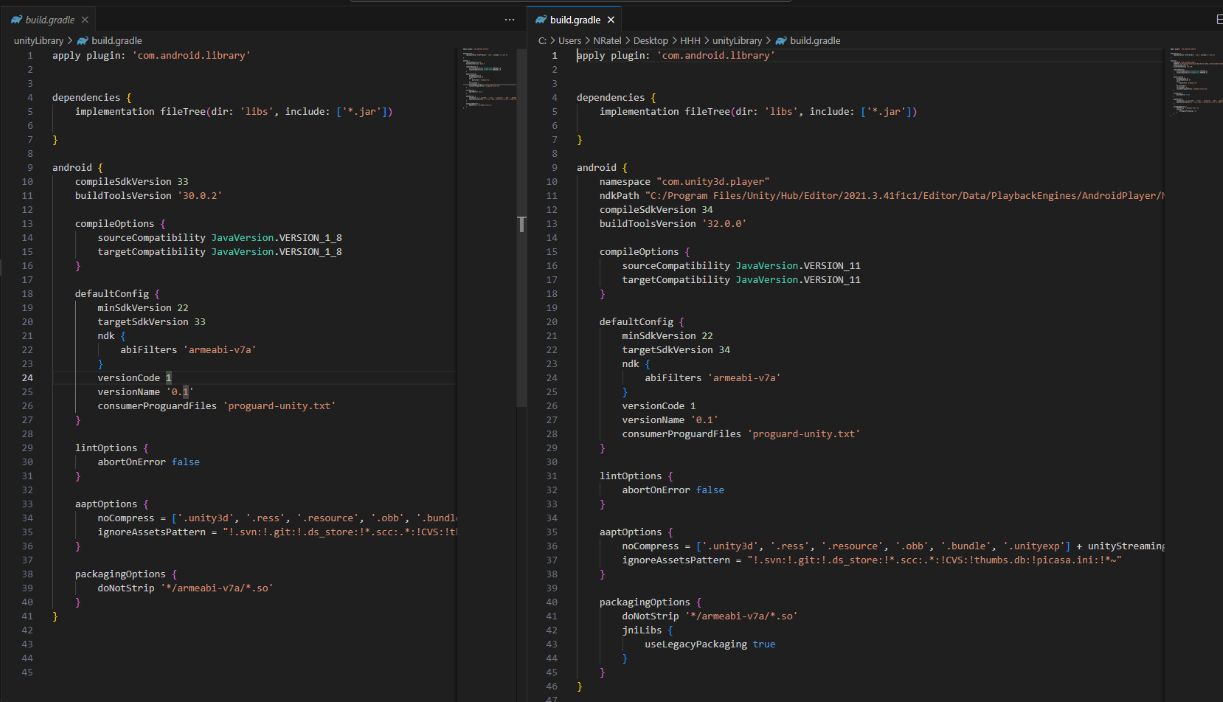

2、unityLibrary 中的 build.gradle：

打包报错：

1、* What went wrong:

A problem occurred configuring root project 'XXXXXX'.

> Could not resolve all files for configuration ':classpath'.

   > Could not resolve com.android.tools.build:gradle:7.4.2.

     Required by:

         project : > com.android.application:com.android.application.gradle.plugin:7.4.2

         project : > com.android.library:com.android.library.gradle.plugin:7.4.2

      > No matching variant of com.android.tools.build:gradle:7.4.2 was found. The consumer was configured to find a runtime of a library compatible with Java 8, packaged as a jar, and its dependencies declared externally, as well as attribute 'org.gradle.plugin.api-version' with value '7.5.1' but:

          - Variant 'apiElements' capability com.android.tools.build:gradle:7.4.2 declares a library, packaged as a jar, and its dependencies declared externally:

              - Incompatible because this component declares an API of a component compatible with Java 11 and the consumer needed a runtime of a component compatible with Java 8

              - Other compatible attribute:

                  - Doesn't say anything about org.gradle.plugin.api-version (required '7.5.1')

          - Variant 'javadocElements' capability com.android.tools.build:gradle:7.4.2 declares a runtime of a component, and its dependencies declared externally:

              - Incompatible because this component declares documentation and the consumer needed a library

              - Other compatible attributes:

                  - Doesn't say anything about its target Java version (required compatibility with Java 8)

                  - Doesn't say anything about its elements (required them packaged as a jar)

                  - Doesn't say anything about org.gradle.plugin.api-version (required '7.5.1')

          - Variant 'runtimeElements' capability com.android.tools.build:gradle:7.4.2 declares a runtime of a library, packaged as a jar, and its dependencies declared externally:

              - Incompatible because this component declares a component compatible with Java 11 and the consumer needed a component compatible with Java 8

              - Other compatible attribute:

                  - Doesn't say anything about org.gradle.plugin.api-version (required '7.5.1')

          - Variant 'sourcesElements' capability com.android.tools.build:gradle:7.4.2 declares a runtime of a component, and its dependencies declared externally:

              - Incompatible because this component declares documentation and the consumer needed a library

              - Other compatible attributes:

                  - Doesn't say anything about its target Java version (required compatibility with Java 8)

                  - Doesn't say anything about its elements (required them packaged as a jar)

                  - Doesn't say anything about org.gradle.plugin.api-version (required '7.5.1')

* Try:

> Run with --stacktrace option to get the stack trace.

> Run with --info or --debug option to get more log output.

> Run with --scan to get full insights.

* Get more help at https://help.gradle.org

BUILD FAILED in 6s

原因：gradle 执行时读取的 JAVA_HOME 中的 JAVA 版本不是需要的 11，而是 8。

在检查确定 build.gradle 中的 JavaVersion 无误后，最终确定是 Jenkins 环境变量未修改。

当然，最好直接将 JAVA_HOME 配到系统环境变量中。

2、* What went wrong:

Execution failed for task ':launcher:checkDebugAarMetadata'.

> Could not resolve all files for configuration ':launcher:debugRuntimeClasspath'.

   > Could not find com.bytedance.applog:RangersAppLog-Lite-cn:6.14.3.

     Required by:

         project :launcher > project :unityLibrary

   > Could not find com.google.firebase:firebase-analytics-unity:11.6.0.

     Required by:

         project :launcher > project :unityLibrary

   > Could not find com.google.firebase:firebase-app-unity:11.6.0.

     Required by:

         project :launcher > project :unityLibrary

   > Could not find com.google.firebase:firebase-crashlytics-unity:11.6.0.

     Required by:

         project :launcher > project :unityLibrary

原因：gradle 7 之后将仓库声明调整至 setting.gradle 中，

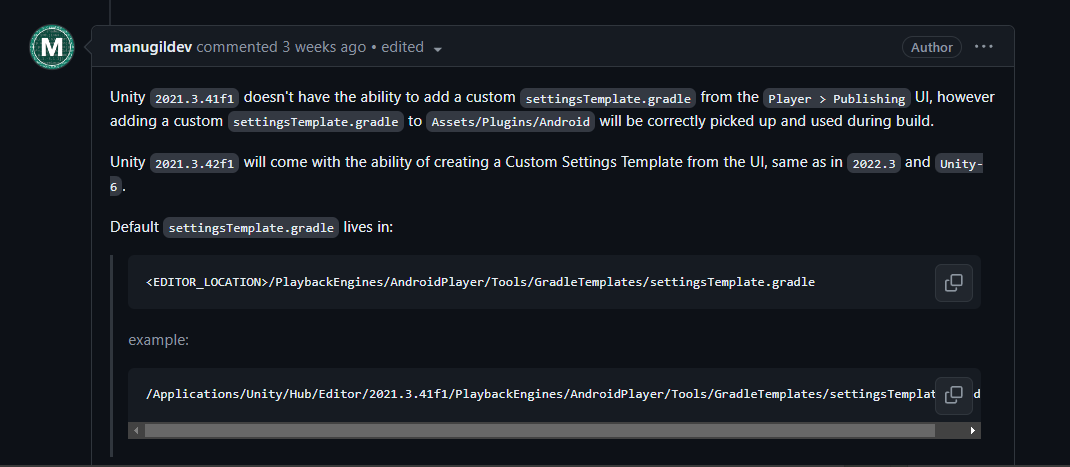

而 Unity 2021.3.41f1c1 中没有将 setting.gradle 暴露出来，EDM4U 还是将 仓库声明生成到了 unityLibray 项目的 build.gradle 中。

https://github.com/googlesamples/unity-jar-resolver/issues/699

解决：提升Unity 版本到 Unity 2021.3.42f1c1，并且更新EDM4U。

另：因Unity版本提升，HybridCLR 也需提升。

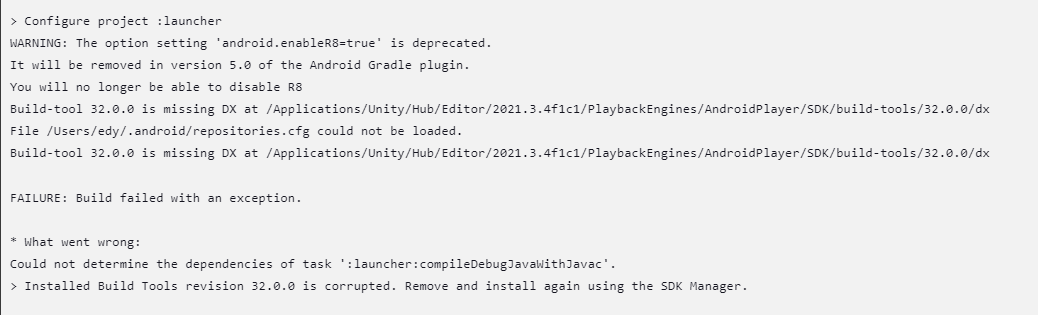

3、WARNING: The option setting 'android.enableR8=true' is deprecated.

It will be removed in version 5.0 of the Android Gradle plugin.

You will no longer be able to disable R8

Build-tool 32.0.0 is missing DX at /Applications/Unity/Hub/Editor/2021.3.4f1c1/PlaybackEngines/AndroidPlayer/SDK/build-tools/32.0.0/dx

File /Users/edy/.android/repositories.cfg could not be loaded.

Build-tool 32.0.0 is missing DX at /Applications/Unity/Hub/Editor/2021.3.4f1c1/PlaybackEngines/AndroidPlayer/SDK/build-tools/32.0.0/dx

FAILURE: Build failed with an exception.

* What went wrong:

Could not determine the dependencies of task ':launcher:compileDebugJavaWithJavac'.

> Installed Build Tools revision 32.0.0 is corrupted. Remove and install again using the SDK Manager.

在尝试使用 32.0.0 代替 30.0.2 目录，并将 launcherTemplate 和 mainTemplate 的 buildToolsVersion =》32.0.0 时报错。

原因：Build Tool 31 以后从SDK内删除了dx工具，使用d8工具来替代dx工具。

解决：把build-tools\30.0.0目录下的dx和lib/dx.jar文件，复制到build-tools\32.0.0目录。

提升 Unity版本，涉及改动：

1. 安装目标版本Unity，同时安装构建 Android和iOS所需模块。
2. 使用此Unity打开老的Unity项目，查看内容变化，确保无报错。
3. 提升开发人员Unity版本，（需提交的ProjectSettings变化、资源meta信息变化）
4. 确认 gradle-plugin版本是否变化，若变化，是否致使 gradle版本变化。
5. 配置打包脚本中指定版本的 unity 和 gradle。
6. 重打资源、重打包

如何查看gradle版本是否变化？

查看根目录中的 build.gradle 中的 classpath。

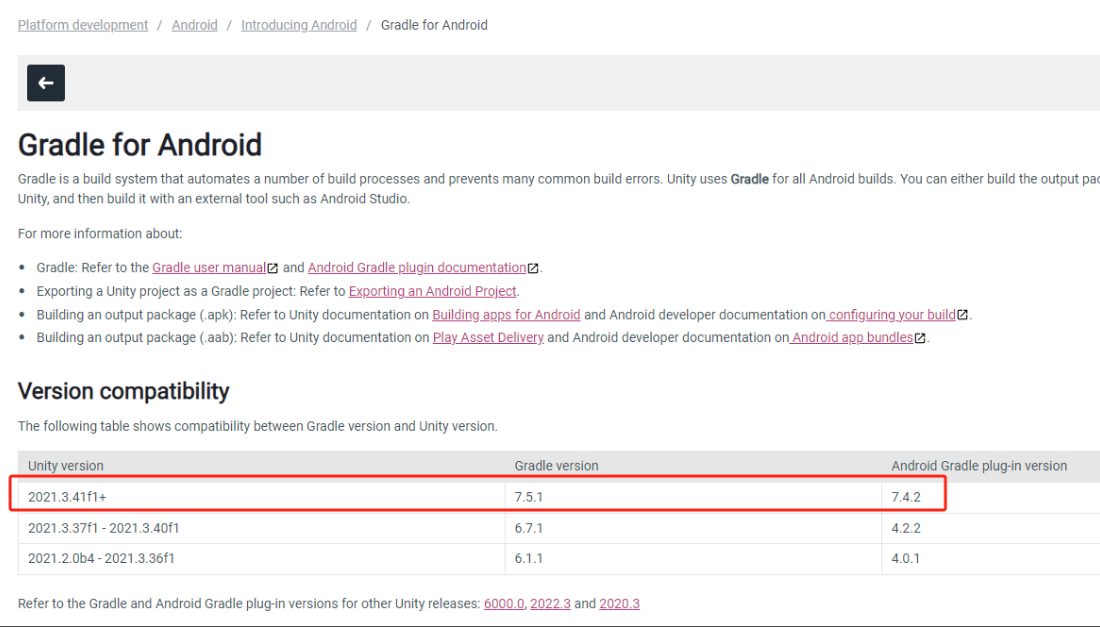

由上方注释地址，查看Unity文档（注意切换到指定Unity版本的文档）

https://docs.unity3d.com/Manual/android-gradle-overview.html

https://docs.unity3d.com/2021.3/Documentation/Manual/android-gradle-overview.html

根据当前要提升的目标Unity版本：
unity 版本：2021.3.41f1c1

gradle-plugin版本：7.4.2

对应的 gradle 版本：7.5.1

在打包机（Mac）上安装指定版本Gradle:

选择对应Gradle版本：Gradle | Releases

按照安装文档：https://docs.gradle.org/7.5.1/userguide/installation.html

环境：需要java 8+

下载 gradle-7.5.1-bin.zip
❯ cd /Users/edy/Downloads //进入下载目录
❯ sudo mkdir /opt/gradle //创建目标目录
❯ sudo unzip -d /opt/gradle gradle-7.5.1-bin.zip //解压到目标目录
❯ ls /opt/gradle/gradle-7.5.1 //验证解压成功
