全方位无限随机地图实现指南

news 2025/8/9 12:08:21

详细实现步骤

1. 场景基础设置

2. TileMap配置

3. 地图生成脚本详解

初始化参数

区块生成算法

4. 性能优化策略

5. 地图元素丰富化

完整优化后的代码实现

实际应用建议

详细实现步骤

1. 场景基础设置

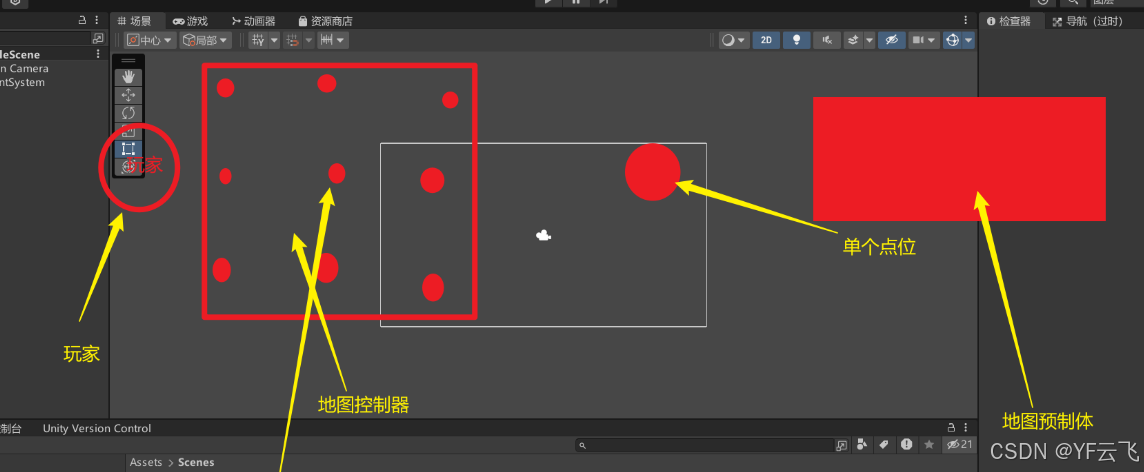

在Unity中创建一个新场景，按以下步骤初始化：

添加主摄像机(Main Camera)，调整至合适的视角
创建玩家对象(Player)，添加必要的组件：
- 角色控制器(Character Controller)
- 刚体(Rigidbody)
- 碰撞体(Collider)
- 玩家控制脚本
创建空游戏对象命名为"MapGenerator"，用于挂载地图生成脚本

2. TileMap配置

创建Tilemap游戏对象：
- 右键Hierarchy面板 → 2D Object → Tilemap
- 添加Tilemap Renderer和Tilemap Collider组件
准备地形图块资源：
- 创建或导入多种地形图块(如：草地、森林、沙漠、水域等)
- 每种地形应包含：
  - 基础图块
  - 过渡边缘图块(用于平滑连接不同地形)
  - 特殊装饰图块(如树木、岩石等)
配置Tile Palette：
- 创建多个Tile Palette面板，按地形类型分类
- 将图块资源拖入对应面板

3. 地图生成脚本详解

TileMapGenerator脚本的核心功能分解：

初始化参数

[Header("基本设置")]
public Tilemap tilemap;  // 引用场景中的Tilemap组件
public Transform player; // 玩家对象引用
public int viewDistance = 5; // 玩家视野范围(区块单位)[Header("地形设置")]
public TileBase[] grassTiles;
public TileBase[] forestTiles;
public TileBase[] desertTiles;
public TileBase[] waterTiles;
public TileBase[] mountainTiles;[Header("生成规则")]
[Range(0, 1)] public float waterFrequency = 0.1f;
[Range(0, 1)] public float mountainFrequency = 0.2f;
public int minSameTerrainSize = 3;
public int maxSameTerrainSize = 7;

区块生成算法

采用分块生成策略，将地图划分为多个区块(Chunk)：

区块坐标系统

private Dictionary<Vector2Int, TerrainType> generatedChunks = new Dictionary<Vector2Int, TerrainType>();
private Vector2Int currentPlayerChunk;void Update()
{// 计算玩家当前所在区块Vector2Int playerChunk = new Vector2Int(Mathf.FloorToInt(player.position.x / chunkSize),Mathf.FloorToInt(player.position.y / chunkSize));// 如果玩家移动到新区块，生成周围区块if(playerChunk != currentPlayerChunk){currentPlayerChunk = playerChunk;GenerateSurroundingChunks(playerChunk);}
}

地形生成规则

TerrainType DetermineTerrainType(Vector2Int chunkCoord)
{// 使用柏林噪声生成自然过渡float noiseValue = Mathf.PerlinNoise(chunkCoord.x * 0.1f, chunkCoord.y * 0.1f);if(noiseValue < waterFrequency) return TerrainType.Water;if(noiseValue < waterFrequency + mountainFrequency) return TerrainType.Mountain;// 其余情况根据位置决定基础地形return (chunkCoord.x + chunkCoord.y) % 2 == 0 ? TerrainType.Grass : TerrainType.Forest;
}

区块生成方法

void GenerateChunk(Vector2Int chunkCoord)
{TerrainType type = DetermineTerrainType(chunkCoord);generatedChunks[chunkCoord] = type;// 计算区块边界int startX = chunkCoord.x * chunkSize;int startY = chunkCoord.y * chunkSize;// 生成地形for(int x = startX; x < startX + chunkSize; x++){for(int y = startY; y < startY + chunkSize; y++){TileBase tile = GetTileForPosition(x, y, type);tilemap.SetTile(new Vector3Int(x, y, 0), tile);}}// 生成装饰物GenerateDecorations(chunkCoord, type);
}

4. 性能优化策略

对象池管理

// 区块对象池
private Queue<GameObject> chunkPool = new Queue<GameObject>();// 获取区块方法
GameObject GetChunkFromPool()
{if(chunkPool.Count > 0){GameObject chunk = chunkPool.Dequeue();chunk.SetActive(true);return chunk;}return Instantiate(chunkPrefab);
}// 回收区块方法
void ReturnChunkToPool(GameObject chunk)
{chunk.SetActive(false);chunkPool.Enqueue(chunk);
}

异步加载

IEnumerator LoadChunksAsync(Vector2Int centerChunk)
{// 计算需要加载的区块范围var chunksToLoad = CalculateChunksToLoad(centerChunk);foreach(var chunkCoord in chunksToLoad){if(!generatedChunks.ContainsKey(chunkCoord)){StartCoroutine(GenerateChunkAsync(chunkCoord));yield return null; // 每帧生成一个区块}}
}IEnumerator GenerateChunkAsync(Vector2Int chunkCoord)
{// 异步生成区块内容...yield return null;
}

5. 地图元素丰富化

环境装饰生成

void GenerateDecorations(Vector2Int chunkCoord, TerrainType type)
{int decorationCount = Random.Range(5, 15);for(int i = 0; i < decorationCount; i++){Vector3 pos = new Vector3(chunkCoord.x * chunkSize + Random.Range(0, chunkSize),chunkCoord.y * chunkSize + Random.Range(0, chunkSize),0);GameObject decoration = null;switch(type){case TerrainType.Grass:decoration = Instantiate(grassDecorations[Random.Range(0, grassDecorations.Length)]);break;case TerrainType.Forest:decoration = Instantiate(forestDecorations[Random.Range(0, forestDecorations.Length)]);break;// 其他地形处理...}if(decoration != null){decoration.transform.position = pos;decoration.transform.SetParent(decorationsParent);}}
}

动态事件点生成

void GenerateSpecialPoints(Vector2Int chunkCoord)
{// 10%几率生成特殊事件点if(Random.value < 0.1f) {Vector3 pos = GetRandomPositionInChunk(chunkCoord);// 随机选择事件类型int eventType = Random.Range(0, 3);switch(eventType){case 0: // 宝箱Instantiate(chestPrefab, pos, Quaternion.identity);break;case 1: // NPCInstantiate(npcPrefab, pos, Quaternion.identity);break;case 2: // 怪物巢穴Instantiate(monsterSpawnerPrefab, pos, Quaternion.identity);break;}}
}

完整优化后的代码实现

using UnityEngine;
using UnityEngine.Tilemaps;
using System.Collections;
using System.Collections.Generic;public class AdvancedTileMapGenerator : MonoBehaviour
{public enum TerrainType { Grass, Forest, Desert, Water, Mountain }[Header("核心设置")]public Tilemap tilemap;public Transform player;public int chunkSize = 16;[Header("地形图块")]public TileBase[] grassTiles;public TileBase[] forestTiles;// 其他地形图块...[Header("生成规则")]public int viewDistance = 3;public float terrainScale = 0.1f;private Dictionary<Vector2Int, TerrainType> generatedChunks = new Dictionary<Vector2Int, TerrainType>();private Vector2Int currentPlayerChunk;private HashSet<Vector2Int> activeChunks = new HashSet<Vector2Int>();private void Start(){currentPlayerChunk = GetChunkCoord(player.position);GenerateInitialChunks();}private void Update(){Vector2Int playerChunk = GetChunkCoord(player.position);if(playerChunk != currentPlayerChunk){currentPlayerChunk = playerChunk;StartCoroutine(UpdateChunks());}}private Vector2Int GetChunkCoord(Vector3 position){return new Vector2Int(Mathf.FloorToInt(position.x / chunkSize),Mathf.FloorToInt(position.y / chunkSize));}private void GenerateInitialChunks(){for(int x = -viewDistance; x <= viewDistance; x++){for(int y = -viewDistance; y <= viewDistance; y++){Vector2Int chunkCoord = currentPlayerChunk + new Vector2Int(x, y);GenerateChunk(chunkCoord);}}}private IEnumerator UpdateChunks(){HashSet<Vector2Int> chunksToKeep = new HashSet<Vector2Int>();// 计算需要保留的区块for(int x = -viewDistance; x <= viewDistance; x++){for(int y = -viewDistance; y <= viewDistance; y++){Vector2Int chunkCoord = currentPlayerChunk + new Vector2Int(x, y);chunksToKeep.Add(chunkCoord);if(!generatedChunks.ContainsKey(chunkCoord)){GenerateChunk(chunkCoord);yield return null; // 分帧生成}}}// 移除视野外的区块var chunksToRemove = new List<Vector2Int>(activeChunks);foreach(var chunk in chunksToRemove){if(!chunksToKeep.Contains(chunk)){ClearChunk(chunk);activeChunks.Remove(chunk);}}}private void GenerateChunk(Vector2Int chunkCoord){TerrainType type = DetermineTerrainType(chunkCoord);generatedChunks[chunkCoord] = type;int startX = chunkCoord.x * chunkSize;int startY = chunkCoord.y * chunkSize;for(int x = startX; x < startX + chunkSize; x++){for(int y = startY; y < startY + chunkSize; y++){TileBase tile = GetTileForPosition(x, y, type);tilemap.SetTile(new Vector3Int(x, y, 0), tile);}}GenerateDecorations(chunkCoord, type);GenerateSpecialPoints(chunkCoord);activeChunks.Add(chunkCoord);}private void ClearChunk(Vector2Int chunkCoord){int startX = chunkCoord.x * chunkSize;int startY = chunkCoord.y * chunkSize;for(int x = startX; x < startX + chunkSize; x++){for(int y = startY; y < startY + chunkSize; y++){tilemap.SetTile(new Vector3Int(x, y, 0), null);}}}// 其他辅助方法...
}
