对 .NET线程异常退出引发程序崩溃的反思

news 2025/8/6 8:53:32

一：背景

1. 讲故事

前天收到了一个.NET程序崩溃的dump，经过一顿分析之后，发现祸根是因为一个.NET托管线程（DBG=XXXX）的异常退出所致，参考如下：


0:011> !t
ThreadCount:      17
UnstartedThread:  0
BackgroundThread: 16
PendingThread:    0
DeadThread:       0
Hosted Runtime:   noLock  DBG   ID     OSID ThreadOBJ           State GC Mode     GC Alloc Context                  Domain           Count Apt Exception0    1     84d8 000001C0801EAC20    26020 Preemptive  0000000000000000:0000000000000000 000001c080266300 -00001 STA 3    2     9d78 000001C0801F8210    2b220 Preemptive  0000000000000000:0000000000000000 000001c080266300 -00001 MTA (Finalizer) 4    4     8760 000001C08466C800  102b220 Preemptive  0000000000000000:0000000000000000 000001c080266300 -00001 MTA (Threadpool Worker) ...44   16     b2fc 000001C08F949450  102b220 Preemptive  0000000000000000:0000000000000000 000001c080266300 -00001 MTA (GC) (Threadpool Worker) 46   15     9904 000001C08F9487B0  102b220 Preemptive  0000000000000000:0000000000000000 000001c080266300 -00001 MTA (Threadpool Worker)
XXXX    3     a23c 000001C08F948E00  102b220 Preemptive  0000000000000000:0000000000000000 000001c080266300 -00001 Ukn (Threadpool Worker)

由于线程异常退出，CLR此时完全不知情，当 GC 触发时会在这个XXXX线程上寻找引用根，由于是一个不存在的线程，所以访问它的空间自然就是访问违例，从 ScanStackRoots 函数调用栈上可以清晰的看到，参考如下：


0:011> .ecxr
rax=00007ffdbefcc8a0 rbx=000000a42007f5f0 rcx=000000a42187f688
rdx=0000000000000000 rsi=000000a42007ee60 rdi=000000a42007f100
rip=00007ffdbec36cbb rsp=000000a42007f828 rbp=000001c08f948e00r8=000000a42007f910  r9=000001c08f948e00 r10=00000fffb7da5860
r11=0555501544555545 r12=ffffffffffffffff r13=0000000000000000
r14=0000000000000000 r15=00007ffdbec14fb0
iopl=0         nv up ei pl nz ac pe cy
cs=0033  ss=002b  ds=002b  es=002b  fs=0053  gs=002b             efl=00010211
coreclr!InlinedCallFrame::FrameHasActiveCall+0x13:
00007ffd`bec36cbb 483b01          cmp     rax,qword ptr [rcx] ds:000000a4`2187f688=????????????????
0:011> k*** Stack trace for last set context - .thread/.cxr resets it# Child-SP          RetAddr               Call Site
00 000000a4`2007f828 00007ffd`bec36c2e     coreclr!InlinedCallFrame::FrameHasActiveCall+0x13 [D:\a\_work\1\s\src\coreclr\vm\frames.h @ 2927]
01 000000a4`2007f830 00007ffd`bec36aef     coreclr!ScanStackRoots+0x3a [D:\a\_work\1\s\src\coreclr\vm\gcenv.ee.cpp @ 121]
02 000000a4`2007f8a0 00007ffd`bec29627     coreclr!GCToEEInterface::GcScanRoots+0x8f [D:\a\_work\1\s\src\coreclr\vm\gcenv.ee.cpp @ 282]
03 (Inline Function) --------`--------     coreclr!GCScan::GcScanRoots+0x73 [D:\a\_work\1\s\src\coreclr\gc\gcscan.cpp @ 152]
04 000000a4`2007f8e0 00007ffd`bec14865     coreclr!WKS::gc_heap::background_mark_phase+0xdf [D:\a\_work\1\s\src\coreclr\gc\gc.cpp @ 37866]
05 000000a4`2007f990 00007ffd`bed286a0     coreclr!WKS::gc_heap::gc1+0x511 [D:\a\_work\1\s\src\coreclr\gc\gc.cpp @ 22315]
06 000000a4`2007f9f0 00007ffd`bed391c1     coreclr!WKS::gc_heap::bgc_thread_function+0x68 [D:\a\_work\1\s\src\coreclr\gc\gc.cpp @ 39244]
07 000000a4`2007fa20 00007ffe`3533e8d7     coreclr!<lambda_7303b2ca2c5f80d5f81ddddfcd2de660>::operator()+0xa1 [D:\a\_work\1\s\src\coreclr\vm\gcenv.ee.cpp @ 1441]
08 000000a4`2007fa50 00007ffe`363f14fc     kernel32!BaseThreadInitThunk+0x17
09 000000a4`2007fa80 00000000`00000000     ntdll!RtlUserThreadStart+0x2c

说实话这种崩溃我见过很多例，但更多的都是 new Thread 创建出来的，所以用 harmony 对它的 Thread.StartCore 进行拦截就能轻松找出，但这次崩溃有一些特殊，它并不是来自于 new Thread 而是线程池散养的线程（ThreadPool），这对问题分析增加了不少难度，既然是反思，那就好好的总结此类问题的解决思路吧。

二：故障重现

1. 问题代码

为了方便演示，我们用 C# 调用 C，然后在 C 中通过 TerminateThread 让程序异常退出，首先看下 C 代码：


extern "C"
{_declspec(dllexport) void dowork();
}#include "iostream"
#include <Windows.h>using namespace std;void dowork()
{DWORD threadId = GetCurrentThreadId();printf("C++：当前线程ID（十进制）：%lu，十六进制：0x%X\n", threadId, threadId);printf("C++：我准备退出了哦。。。\n");TerminateThread(GetCurrentThread(), 1);
}

接下来在 C# 中调用导出的 dowork 方法，参考代码如下：


namespace Example_1_1
{internal class Program{static void Main(string[] args){DoRequest();Console.ReadLine();}static void DoRequest(){Task.Run(() =>{Console.WriteLine("1. 调用 C++ 代码...");try{dowork();Console.WriteLine("2. C++ 代码执行完毕...");}catch (Exception ex){Console.WriteLine($"2. C++ 代码执行异常: {ex.Message}");}});}[DllImport("Example_1_2", CallingConvention = CallingConvention.Cdecl)]public extern static void dowork();}
}

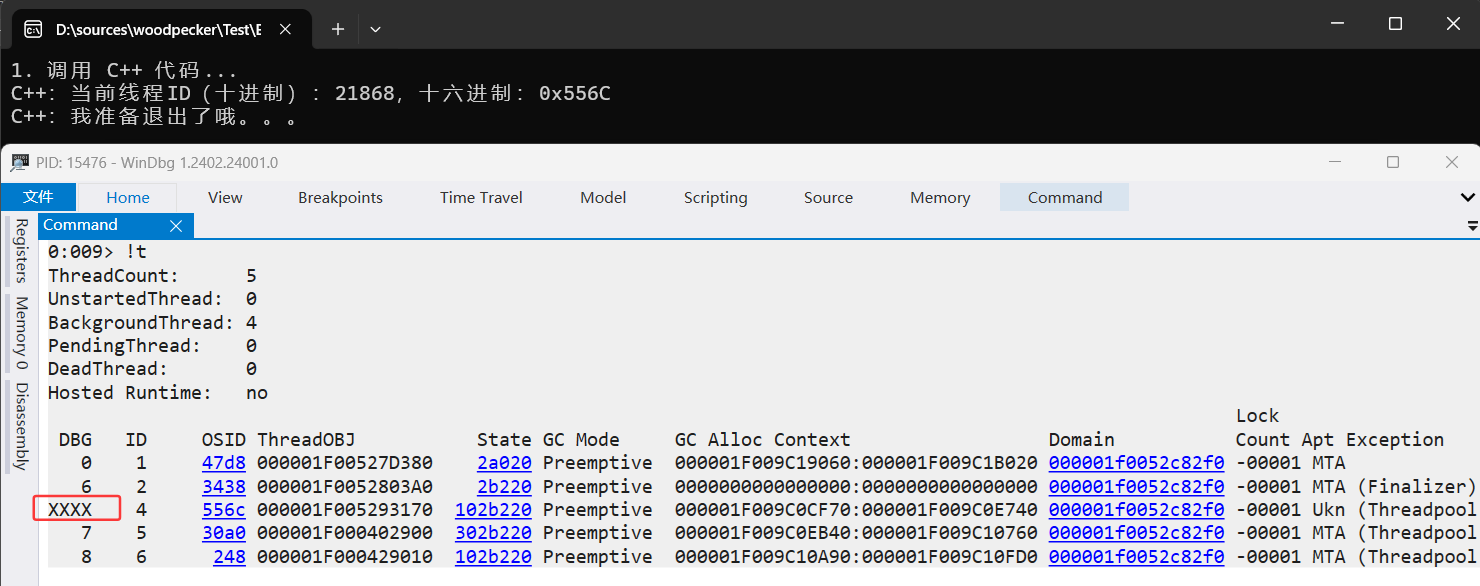

最后将程序运行起来，用windbg附加，可以看到果然有一个 XXXX 线程，截图如下：

故障已经复现，接下来就是寻找到底是谁让 ThreadPool 线程异常退出了。。。

三：如何寻找第一现场

1. process monitor

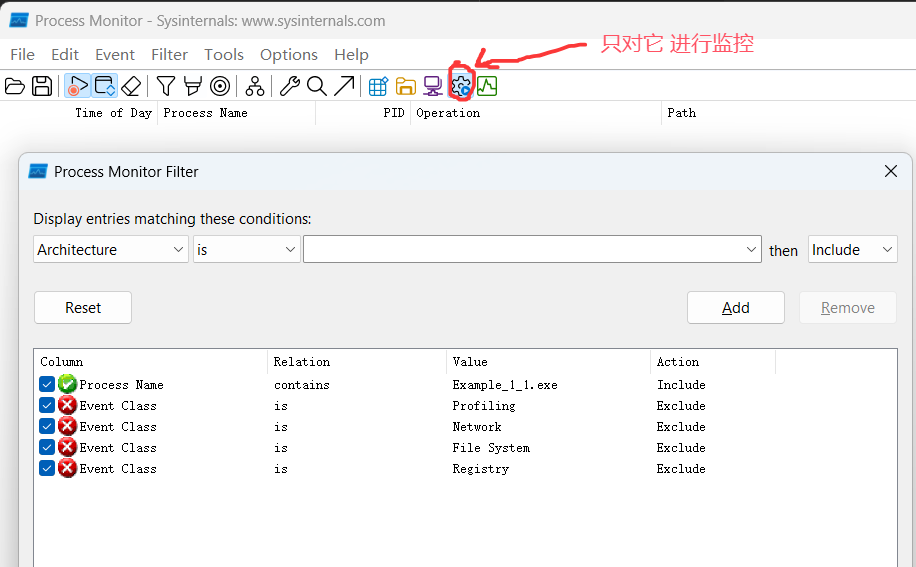

要想找到这个问题的祸根，需要找到调用 TerminateThread 函数的调用栈，一种简单粗暴的方法就是用 process monitor，根据 Windows 的ETW 规则，一个线程退出时会发出一个 Event 事件，这种事件可以被 process monitor 捕获，并且还能记录到调用栈，有了想法之后说干就干，配置界面如下：

接下来运行程序，使用 windbg 附加进程，寻找问题线程ID，参考如下：


0:005> !t
ThreadCount:      5
UnstartedThread:  0
BackgroundThread: 3
PendingThread:    0
DeadThread:       1
Hosted Runtime:   noLock  DBG   ID     OSID ThreadOBJ           State GC Mode     GC Alloc Context                  Domain           Count Apt Exception0    1     153c 00000202C603C240    2a020 Preemptive  00000202CA819060:00000202CA81B020 00000202c6088980 -00001 MTA 3    2      afc 00000202C60F0DB0    2b220 Preemptive  0000000000000000:0000000000000000 00000202c6088980 -00001 MTA (Finalizer)
XXXX    4     4718 00000202C6057D10  102b220 Preemptive  00000202CA80CF70:00000202CA80E740 00000202c6088980 -00001 Ukn (Threadpool Worker) 4    5     4420 00000202C605D510  302b220 Preemptive  00000202CA80EB40:00000202CA810760 00000202c6088980 -00001 MTA (Threadpool Worker)
0:005> ? 4718
Evaluate expression: 18200 = 00000000`00004718

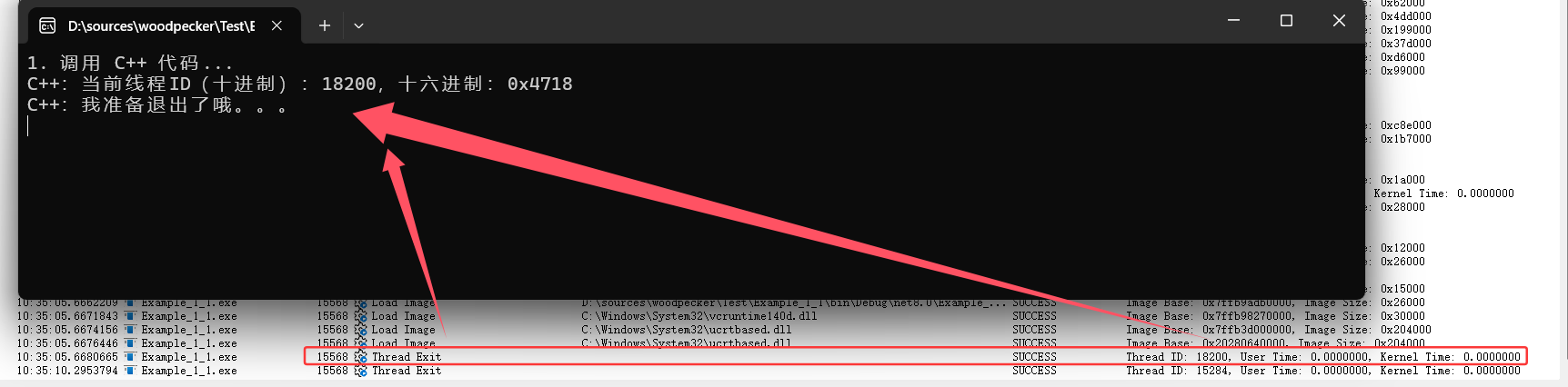

从卦中可以看到是一个叫 osid=18200 的线程异常退出，接下来从 process monitor 界面上果然看到了一个Thread ID:18200 的 Thread Exit 事件，完美，截图如下：

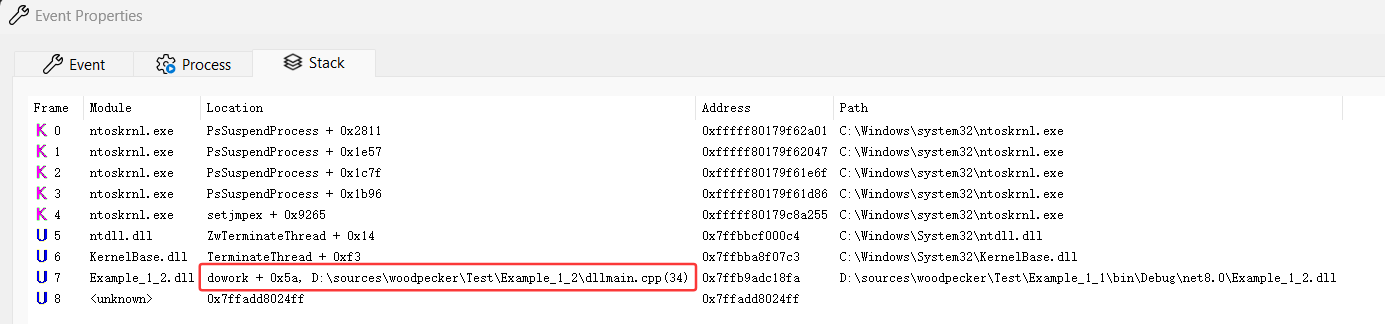

接下来就是双击，打开 Stack 选项卡，可以清晰的看到是有人调用了 Example_1_2!dowork 导致的退出，截图如下：

在真实项目中，我相信你看到 dowork 函数应该知道发生了什么，排查范围是不是一下子就小了很多。。。相信这个问题你能轻松搞定。

2. MinHook 注入

上面的 process monitor 虽好，但也有一个让人不如意的地方，那就是不能显示托管栈，这个确实没办法，那有没有办法让我看到托管栈呢？如果能看到就完美了，做法非常简单，对 kernel32!TerminateThread 进行注入即可，一旦有人执行了这个方法，记录 Terminate 线程的线程ID以及调用栈即可，完整代码如下：


namespace Example_1_1
{internal class Program{static void Main(string[] args){// Install the hook before any TerminateThread calls can occurTerminateThreadHook.InstallHook();Console.WriteLine("Hook installed. Starting test...");DoRequest();// Uninstall hook when doneTerminateThreadHook.UninstallHook();Console.ReadLine();}static void DoRequest(){Task.Run(() =>{Console.WriteLine("1. 调用 C++ 代码...");try{dowork();Console.WriteLine("2. C++ 代码执行完毕...");}catch (Exception ex){Console.WriteLine($"2. C++ 代码执行异常: {ex.Message}");}});}[DllImport("Example_1_2", CallingConvention = CallingConvention.Cdecl)]public extern static void dowork();}public static class TerminateThreadHook{// TerminateThread function signature[UnmanagedFunctionPointer(CallingConvention.StdCall)]private delegate bool TerminateThreadDelegate(IntPtr hThread, uint dwExitCode);private static TerminateThreadDelegate _originalTerminateThread;private static IntPtr _terminateThreadPtr = IntPtr.Zero;public static void InstallHook(){// 1. Get TerminateThread address from kernel32.dll_terminateThreadPtr = MinHook.GetProcAddress(MinHook.GetModuleHandle("kernel32.dll"), "TerminateThread");if (_terminateThreadPtr == IntPtr.Zero){Console.WriteLine("Failed to find TerminateThread address.");return;}// 2. Initialize MinHookvar status = MinHook.MH_Initialize();if (status != MinHook.MH_STATUS.MH_OK){Console.WriteLine($"MH_Initialize failed: {status}");return;}// 3. Create Hookvar detourPtr = Marshal.GetFunctionPointerForDelegate(new TerminateThreadDelegate(HookedTerminateThread));status = MinHook.MH_CreateHook(_terminateThreadPtr, detourPtr, out var originalPtr);if (status != MinHook.MH_STATUS.MH_OK){Console.WriteLine($"MH_CreateHook failed: {status}");return;}_originalTerminateThread = Marshal.GetDelegateForFunctionPointer<TerminateThreadDelegate>(originalPtr);// 4. Enable Hookstatus = MinHook.MH_EnableHook(_terminateThreadPtr);if (status != MinHook.MH_STATUS.MH_OK){Console.WriteLine($"MH_EnableHook failed: {status}");return;}Console.WriteLine("TerminateThread hook installed successfully!");}public static void UninstallHook(){if (_terminateThreadPtr == IntPtr.Zero)return;// 1. Disable Hookvar status = MinHook.MH_DisableHook(_terminateThreadPtr);if (status != MinHook.MH_STATUS.MH_OK)Console.WriteLine($"MH_DisableHook failed: {status}");// 2. Uninitialize MinHookstatus = MinHook.MH_Uninitialize();if (status != MinHook.MH_STATUS.MH_OK)Console.WriteLine($"MH_Uninitialize failed: {status}");_terminateThreadPtr = IntPtr.Zero;Console.WriteLine("Hook uninstalled.");}private static bool HookedTerminateThread(IntPtr hThread, uint dwExitCode){// Get current thread IDuint currentThreadId = GetCurrentThreadId();uint targetThreadId = GetThreadId(hThread);Console.WriteLine($"[HOOK] TerminateThread intercepted!");Console.WriteLine($"  Attempting to terminate thread: 0x{targetThreadId.ToString("X")} (ID: {targetThreadId})");Console.WriteLine($"  Called from thread ID: {currentThreadId}");// Print managed call stackConsole.WriteLine("\n  [Managed Call Stack]:");Console.WriteLine(Environment.StackTrace);return _originalTerminateThread(hThread, dwExitCode);}[DllImport("kernel32.dll")]private static extern uint GetCurrentThreadId();[DllImport("kernel32.dll")]private static extern uint GetThreadId(IntPtr hThread);}public static class MinHook{public enum MH_STATUS{MH_OK = 0,MH_ERROR_ALREADY_INITIALIZED,MH_ERROR_NOT_INITIALIZED,// ... other status codes}[DllImport("MinHook.x64.dll", CallingConvention = CallingConvention.Cdecl)]public static extern MH_STATUS MH_Initialize();[DllImport("MinHook.x64.dll", CallingConvention = CallingConvention.Cdecl)]public static extern MH_STATUS MH_Uninitialize();[DllImport("MinHook.x64.dll", CallingConvention = CallingConvention.Cdecl)]public static extern MH_STATUS MH_CreateHook(IntPtr pTarget, IntPtr pDetour, out IntPtr ppOriginal);[DllImport("MinHook.x64.dll", CallingConvention = CallingConvention.Cdecl)]public static extern MH_STATUS MH_EnableHook(IntPtr pTarget);[DllImport("MinHook.x64.dll", CallingConvention = CallingConvention.Cdecl)]public static extern MH_STATUS MH_DisableHook(IntPtr pTarget);[DllImport("kernel32.dll", CharSet = CharSet.Unicode)]public static extern IntPtr GetModuleHandle(string lpModuleName);[DllImport("kernel32.dll", CharSet = CharSet.Ansi)]public static extern IntPtr GetProcAddress(IntPtr hModule, string lpProcName);}
}

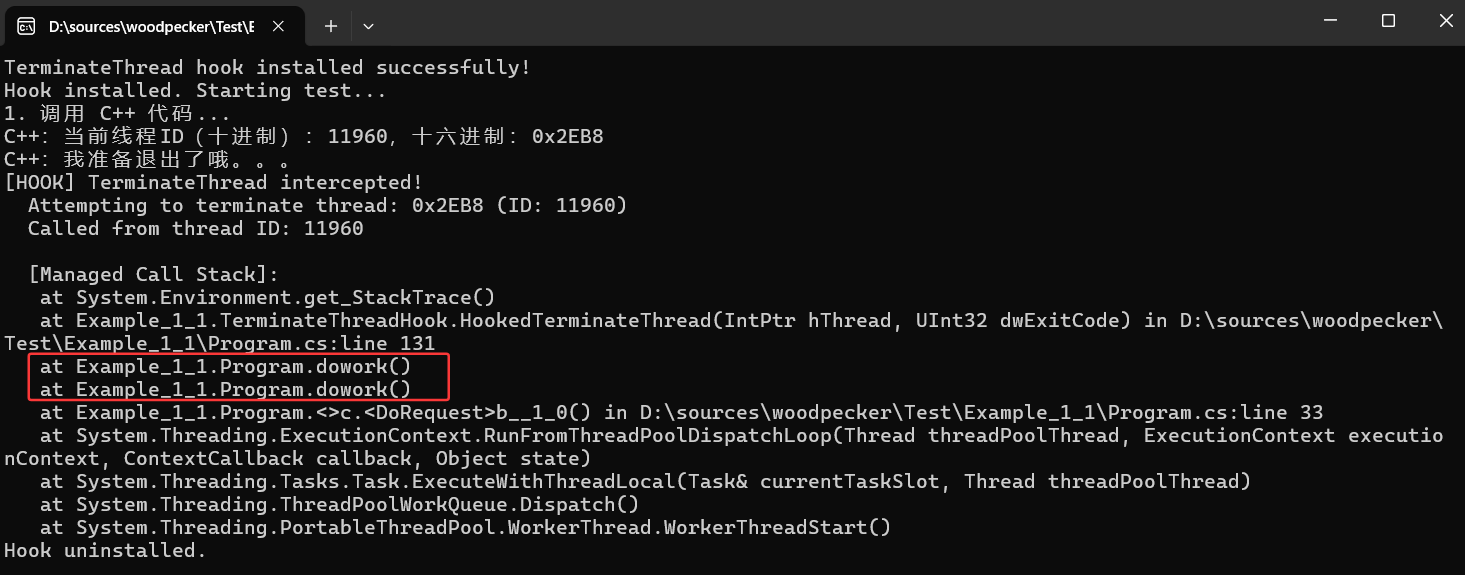

从卦中信息看果然拦截到了，通过 Environment.StackTrace 属性将托管栈完美的展示出来，但这里也有一个小遗憾就是没看到非托管部分，如果真想要的话可以借助 dbghelp.dll，这个就不细说了，总之根据这些调用栈日志再比对 dump 中的异常退出线程，最终就会真相大白。。。
