【音视频】WebRTC 一对一通话-信令服

news 2025/8/6 7:08:15

一、服务器配置

  • 服务器在Ubuntu下搭建，使用C++语言实现，由于需要使用WebSocket和前端通讯，同时需要解析JSON格式，因此引入了第三方库：WebSocketpp和nlonlohmann，这两个库的具体配置方式可以参考我之前的博客，或者自行查找资料

二、WebSocket 连接

这里的WebSocket连接参考案例echo_server改造，具体就是设置好监听端口、对应的回调函数，包括：

  1. 接收到客户端连接
  2. 接收到客户端发送的信息
  3. 接收到客户端断开

对应的框架代码如下：

int main()
{try{// Set logging settings 设置logwebSocket_server.set_access_channels(websocketpp::log::alevel::all);webSocket_server.clear_access_channels(websocketpp::log::alevel::frame_payload);// Initialize Asio 初始化asiowebSocket_server.init_asio();// Register our message handler// 绑定收到消息后的回调webSocket_server.set_message_handler(bind(&on_message, &webSocket_server, ::_1, ::_2));// 当有客户端连接时触发的回调std::function<void(websocketpp::connection_hdl)> f_open;f_open = on_open;webSocket_server.set_open_handler(websocketpp::open_handler(f_open));// 关闭是触发std::function<void(websocketpp::connection_hdl)> f_close(on_close);webSocket_server.set_close_handler(f_close);// Listen on port 9002webSocket_server.listen(LISTEN_PORT); // 监听端口// Start the server accept loopwebSocket_server.start_accept();// Start the ASIO io_service run loopstd::cout << "Server is running on port " << LISTEN_PORT << std::endl;webSocket_server.run();}catch (websocketpp::exception const &e){std::cout << e.what() << std::endl;}catch (...){std::cout << "other exception" << std::endl;}
}

回调函数定义：

void on_close(websocketpp::connection_hdl hdl)
{}void on_open(websocketpp::connection_hdl hdl)
{
}void on_message(server *s, websocketpp::connection_hdl hdl, message_ptr msg)
{
}

三、房间管理

服务器中需要管理每一个房间内部的成员，包括成员的房间号、uid、以及对应的WebSocket连接句柄，因此我们定义这样的一个结构体Client

struct Client
{std::string uid;int roomId;websocketpp::connection_hdl hdl; // 连接句柄
};

每一个房间，都应该对应一个Client列表，因此我们使用std::map将每一个房间映射到一个容器std::vector<Client>中：

std::map<int, std::vector<Client>> room_map; // roomId - client

我们后面介绍信令的时候还会对房间的操作进行讲解，本质上就是根据业务逻辑对房间进行增删改查

四、信令处理

4.1 信令解析

服务器端定义的信令类型与前端一致，我们定义的信令类型如下：

#pragma once
//加入房间
#define SIGNAL_TYPE_JOIN "join"
//告知加入者是谁，发送给加入的人
#define SIGNAL_TYPE_RESP_JOIN "resp_join"
//离开房间
#define SIGNAL_TYPE_LEAVE  "leave"
//新加入者，发送给在房间的人
#define SIGNAL_TYPE_NEW_PEER "new_peer"
//告知离开者是谁
#define SIGNAL_TYPE_PEER_LEAVE "peer_leave"
//发送offer
#define SIGNAL_TYPE_OFFER "offer"
//对端回复
#define SIGNAL_TYPE_ANSWER "answer"
//发送candidate
#define SIGNAL_TYPE_CANDIDATE "candidate"

客户端接收到消息的时候会触发回调函数on_message，前端传来的消息是JSON格式，我们解析cmd字段后可以得到不同的信令类型，然后对不同类型的信令进行不同的逻辑：

// WebSocket服务器收到消息回调
void on_message(server *s, websocketpp::connection_hdl hdl, message_ptr msg)
{// 解析客户端的json消息json JMsg;try{JMsg = json::parse(msg->get_payload());std::cout << "on_message called with hdl: " << hdl.lock().get()<< " and message: " << JMsg.dump() << std::endl;std::string cmd = JMsg["cmd"];if (cmd == SIGNAL_TYPE_JOIN){handleJoin(s, hdl, JMsg); // 加入}else if (cmd == SIGNAL_TYPE_LEAVE){handleLeave(s, hdl, JMsg); // 离开}else if (cmd == SIGNAL_TYPE_OFFER){handleOffer(s, hdl, JMsg); // ice候选}else if (cmd == SIGNAL_TYPE_ANSWER){handleAnswer(s, hdl, JMsg);}else if (cmd == SIGNAL_TYPE_CANDIDATE){handleCandidate(s, hdl, JMsg);}}catch (const std::exception &e){std::cout << "JSON解析失败: " << e.what() << std::endl;return;}
}

4.2 join

接收到join这个信令说明此时有客户端加入服务器了，并且信令中携带加入者的房间号和uid，此时：

  1. 查询房间号是否存在，如果不存在，则创建一个房间，然后创建一个用户Client，在room_map中加入该用户的信息

  2. 房间号存在，那么查询房间的人数是否大于2人，如果大于2人，不予加入

  3. 房间人数为1人：

    • 将这个人加入房间room_map中
    • 告诉房间里面的另一个人加入者的信息，也就是服务器发送信令peer_join信令给房间里面的人，包含加入者的uid
    • 告诉加入者房间里面的人的信息，也就是服务器发送信令resp_join信令给加入者，信令中包括房间里面的人的uid
// 处理加入房间
void handleJoin(server *s, websocketpp::connection_hdl hdl, json JMsg)
{// 解析JSONstd::string uid = JMsg["uid"];std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::cout << "uid = " << uid << " try to join roomId = " << roomId << std::endl;// 获取房间信息// 房间不存在if (!room_map.count(roomId)){Client client = {uid, roomId, hdl};room_map[roomId].push_back(client);}else{// 房间人数>=2，不允许加入if (room_map[roomId].size() >= 2){std::cout << "roomId = " << roomId << "is full" << std::endl;return;}// 房间人数==1，加入房间，通知对端else if (room_map[roomId].size() == 1){Client client = {uid, roomId, hdl};room_map[roomId].push_back(client);// 处理信令Client remoteClient = room_map[roomId][0];// 告知加入者对端的信息json sendMsg;sendMsg["cmd"] = SIGNAL_TYPE_RESP_JOIN;sendMsg["remoteUid"] = remoteClient.uid;std::string sendMsgStr = sendMsg.dump();s->send(client.hdl, sendMsgStr, websocketpp::frame::opcode::text);std::cout << "resp_join uid = " << remoteClient.uid << std::endl;std::cout << "sendMsgStr = " << sendMsgStr << std::endl;// 告知对端加入者的身份json sendMsg2;sendMsg2["cmd"] = SIGNAL_TYPE_NEW_PEER;sendMsg2["remoteUid"] = uid;std::string sendMsgStr2 = sendMsg2.dump();s->send(remoteClient.hdl, sendMsgStr2, websocketpp::frame::opcode::text);std::cout << "new_peer uid = " << uid << std::endl;std::cout << "sendMsgStr = " << sendMsgStr2 << std::endl;}}
}

4.3 offer、answer、candidate

这部分实际上在Web端由浏览器提供的js接口实现具体的媒体协商、网络协商功能，我们的信令服务器只需要实现一件事情：信令转发，我们将收到的消息原封不动的转发给对端即可：

offer：

// offer
void handleOffer(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::string remoteUid = JMsg["remoteUid"];std::cout << "uid = " << uid << " try to send offer to remoteUid = " << remoteUid << std::endl;// 房间号不存在if (!room_map.count(roomId)){std::cout << "roomId = " << roomId << "not exist" << std::endl;return;}// 房间没人else if (room_map[roomId].size() == 0){std::cout << "roomId = " << roomId << "is empty" << std::endl;return;}else{// 转发offer到对端auto remoteClientIter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&remoteUid](const Client &client){ return client.uid == remoteUid; });if (remoteClientIter != room_map[roomId].end()){std::cout << "send offer from " << uid << " to " << remoteUid << std::endl;s->send(remoteClientIter->hdl, JMsg.dump(), websocketpp::frame::opcode::text);}else{std::cout << "remoteUid = " << remoteUid << "not exist" << std::endl;}}
}

answer：


// answer
void handleAnswer(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::string remoteUid = JMsg["remoteUid"];std::cout << "uid = " << uid << " try to send answer to remoteUid = " << remoteUid << std::endl;// 房间号不存在if (!room_map.count(roomId)){std::cout << "roomId = " << roomId << "not exist" << std::endl;return;}// 房间没人else if (room_map[roomId].size() == 0){std::cout << "roomId = " << roomId << "is empty" << std::endl;return;}else{// 转发answer到对端auto remoteClientIter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&remoteUid](const Client &client){ return client.uid == remoteUid; });if (remoteClientIter != room_map[roomId].end()){std::cout << "send answer from " << uid << " to " << remoteUid << std::endl;s->send(remoteClientIter->hdl, JMsg.dump(), websocketpp::frame::opcode::text);}else{std::cout << "remoteUid = " << remoteUid << "not exist" << std::endl;}}
}

candidate：


// candidate
void handleCandidate(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::string remoteUid = JMsg["remoteUid"];std::cout << "uid = " << uid << " try to send candidate to remoteUid = " << remoteUid << std::endl;// 房间号不存在if (!room_map.count(roomId)){std::cout << "roomId = " << roomId << "not exist" << std::endl;return;}// 房间没人else if (room_map[roomId].size() == 0){std::cout << "roomId = " << roomId << "is empty" << std::endl;return;}else{// 转发candidate到对端auto remoteClientIter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&remoteUid](const Client &client){ return client.uid == remoteUid; });if (remoteClientIter != room_map[roomId].end()){std::cout << " send candidate from " << uid << " to " << remoteUid << std::endl;s->send(remoteClientIter->hdl, JMsg.dump(), websocketpp::frame::opcode::text);}else{std::cout << "remoteUid = " << remoteUid << "not exist" << std::endl;}}
}

4.4 leave

当有客户端离开房间的时候，向服务端发送leave信令，此时服务端需要做以下的工作：

  1. 检查房间是否存在，如果房间不存在，则不予处理

  2. 如果房间里面有一个人，那么我们此时直接房间里面这个人以及所在的房间

  3. 如果房间里面有两个人：

    • 我们需要通过查询信令中的uid，并且删除房间里面与uid一样的成员

    • 我们要向在房间里面的那个人发送信令peer_leave，同时包含remoteUid，告诉它房间里面的另一个人离开了

// 处理离开房间
void handleLeave(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::cout << "uid = " << uid << " try to leave roomId = " << roomId << std::endl;// 找不到房间if (!room_map.count(roomId)){std::cout << "房间不存在 !" << std::endl;return;}else{// 房间内只有一个人,删除房间if (room_map[roomId].size() == 1){room_map.erase(roomId);std::cout << "erase roomId = " << roomId << "success" << std::endl;}// 房间有两个人,通知对端离开else if (room_map[roomId].size() == 2){// 删除用户信息auto iter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&uid](const Client &client){ return client.uid == uid; });if (iter != room_map[roomId].end()){room_map[roomId].erase(iter);std::cout << "erase uid = " << uid << "success" << std::endl;}// 发送JSON消息json sendMsg;sendMsg["cmd"] = SIGNAL_TYPE_PEER_LEAVE;sendMsg["remoteUid"] = uid;std::string sendMsgStr = sendMsg.dump();// 只有一个人了，使用room_map[roomId][0]s->send(room_map[roomId][0].hdl, sendMsgStr, websocketpp::frame::opcode::text);std::cout << "resp_leave uid = " << uid << std::endl;std::cout << "sendMsgStr = " << sendMsgStr << std::endl;}}
}

4.5 异常断开

当客户端强制断开的时候，不会向服务器发送leave信令，此时需要在WebSocket的回调函数on_close中处理：

  1. 遍历WebSocket连接链表，断开已经过期或者断开的连接

  2. 遍历room_map，查询出所有房间里面连接句柄与断开句柄一样的Client，找到了就删除它

    • 如果房间里面就只有一个人，那么删除了客户端Client之后，还需要删除这个房间
    • 如果房间里面有两个人，那么删除了它之后还需要告诉另一个人有人离开房间了，那么此时我们要向它发送peer_leave信令，信令中包含离开那个人的uid
// 用户断开连接回调函数
void on_close(websocketpp::connection_hdl hdl)
{std::string msg = "close OK";printf("%s\n", msg.c_str());std::cout << "vgdl size = " << vgdl.size() << std::endl;// 清理连接列表for (auto it = vgdl.begin(); it != vgdl.end();){std::cout << "it = " << it->lock() << std::endl;if (it->expired() || it->lock() == hdl.lock()) //断开自己{it = vgdl.erase(it);std::cout << "vgdl erase" << std::endl;}else{++it;}}// 遍历 room_map，删除对应客户端信息for (auto roomIt = room_map.begin(); roomIt != room_map.end();){auto &clients = roomIt->second;bool isErase = false;for (auto clientIt = clients.begin(); clientIt != clients.end();){if (clientIt->hdl.expired() || clientIt->hdl.lock() == hdl.lock()){ // 连接过期std::cout << "client uid = " << clientIt->uid << " has been removed from roomid = "<< clientIt->roomId << std::endl;clientIt = clients.erase(clientIt);isErase = true;}else{++clientIt;}}if(!isErase){continue;}// 如果房间为空，删除房间if (clients.empty()){std::cout << "roomId = " << (roomIt->first) << " has been removed" << std::endl;roomIt = room_map.erase(roomIt);}else{//向对端发送离开消息json sendMsg;sendMsg["cmd"] = SIGNAL_TYPE_PEER_LEAVE;sendMsg["remoteUid"] = roomIt->second[0].uid;send_msg(&webSocket_server, sendMsg.dump());++roomIt;}}
}

五、测试结果

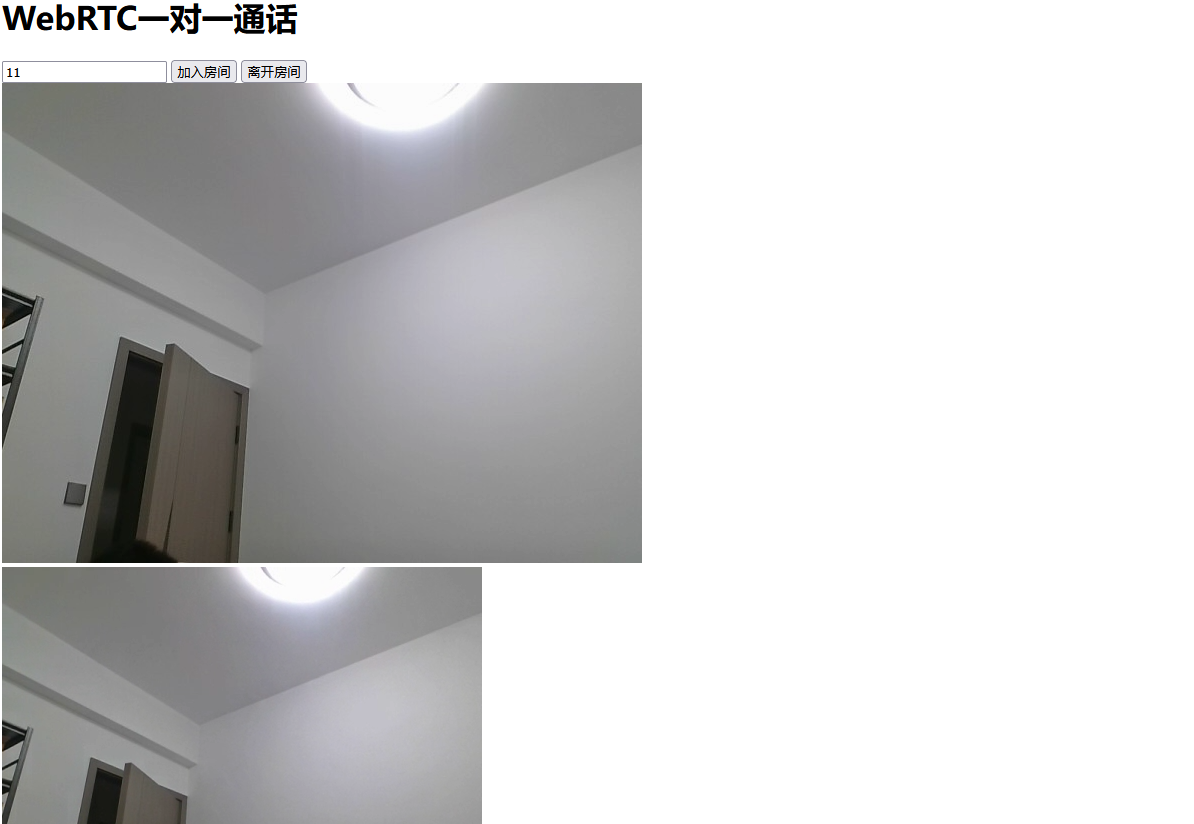

运行服务器，监听在9002，浏览器访问http://localhost:5500/index.html，连接本地两个端，效果如下：

在这里插入图片描述

六、完整代码

6.1 signal_type.h

#pragma once//加入房间
#define SIGNAL_TYPE_JOIN "join"//告知加入者是谁，发送给加入的人
#define SIGNAL_TYPE_RESP_JOIN "resp_join"//离开房间
#define SIGNAL_TYPE_LEAVE  "leave"//新加入者，发送给在房间的人
#define SIGNAL_TYPE_NEW_PEER "new_peer"//告知离开者是谁#define SIGNAL_TYPE_PEER_LEAVE "peer_leave"//发送offer
#define SIGNAL_TYPE_OFFER "offer"//对端回复
#define SIGNAL_TYPE_ANSWER "answer"//发送candidate
#define SIGNAL_TYPE_CANDIDATE "candidate"

6.2 main.cpp

// examples目录是官方的一些例子
// 本次使用的是webSocket_server\webSocket_server.cpp
// 该原程序只支持一对一发送后回复
// 改造后可以通知所有连接上来的客户端。
// 编译 g++ main.cpp -o main -lboost_system -lboost_chrono#include <functional>
#include <iostream>
#include <list>
#include <mutex> // 添加互斥锁头文件
#include <websocketpp/config/asio_no_tls.hpp>
#include <websocketpp/server.hpp>
#include <string>// json解析
#include <nlohmann/json.hpp>#include "signal_type.h"
using json = nlohmann::json;typedef websocketpp::server<websocketpp::config::asio> server;using websocketpp::lib::bind;
using websocketpp::lib::placeholders::_1;
using websocketpp::lib::placeholders::_2;// pull out the type of messages sent by our config
typedef server::message_ptr message_ptr;const int LISTEN_PORT = 9002;
std::list<websocketpp::connection_hdl> vgdl;
std::mutex vgdl_mutex; // 添加互斥锁保护连接列表struct Client
{std::string uid;int roomId;websocketpp::connection_hdl hdl; // 连接句柄
};std::map<int, std::vector<Client>> room_map; // roomId - client// Define a callback to handle incoming messages// Create a server endpoint
server webSocket_server;int totalUser = 0;
void send_msg(server *s, message_ptr msg)
{for (auto it = vgdl.begin(); it != vgdl.end();){if (!it->expired()){try{s->send(*it, msg->get_payload(), msg->get_opcode());}catch (websocketpp::exception const &e){std::cout << "Broadcast failed because: " << e.what()<< std::endl;}++it; // 只有在未删除元素时才递增迭代器}}
}void send_msg(server *s, std::string msg)
{for (auto it = vgdl.begin(); it != vgdl.end();){if (!it->expired()){try{s->send(*it, msg, websocketpp::frame::opcode::text);}catch (websocketpp::exception const &e){std::cout << "Broadcast failed because: " << e.what()<< std::endl;}++it; // 只有在未删除元素时才递增迭代器}}
}// 处理加入房间
void handleJoin(server *s, websocketpp::connection_hdl hdl, json JMsg)
{// 解析JSONstd::string uid = JMsg["uid"];std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::cout << "uid = " << uid << " try to join roomId = " << roomId << std::endl;// 获取房间信息// 房间不存在if (!room_map.count(roomId)){Client client = {uid, roomId, hdl};room_map[roomId].push_back(client);}else{// 房间人数>=2，不允许加入if (room_map[roomId].size() >= 2){std::cout << "roomId = " << roomId << "is full" << std::endl;return;}// 房间人数==1，加入房间，通知对端else if (room_map[roomId].size() == 1){Client client = {uid, roomId, hdl};room_map[roomId].push_back(client);// 处理信令Client remoteClient = room_map[roomId][0];// 告知加入者对端的信息json sendMsg;sendMsg["cmd"] = SIGNAL_TYPE_RESP_JOIN;sendMsg["remoteUid"] = remoteClient.uid;std::string sendMsgStr = sendMsg.dump();s->send(client.hdl, sendMsgStr, websocketpp::frame::opcode::text);std::cout << "resp_join uid = " << remoteClient.uid << std::endl;std::cout << "sendMsgStr = " << sendMsgStr << std::endl;// 告知对端加入者的身份json sendMsg2;sendMsg2["cmd"] = SIGNAL_TYPE_NEW_PEER;sendMsg2["remoteUid"] = uid;std::string sendMsgStr2 = sendMsg2.dump();s->send(remoteClient.hdl, sendMsgStr2, websocketpp::frame::opcode::text);std::cout << "new_peer uid = " << uid << std::endl;std::cout << "sendMsgStr = " << sendMsgStr2 << std::endl;}}
}// 处理离开房间
void handleLeave(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::cout << "uid = " << uid << " try to leave roomId = " << roomId << std::endl;// 找不到房间if (!room_map.count(roomId)){std::cout << "房间不存在 !" << std::endl;return;}else{// 房间内只有一个人,删除房间if (room_map[roomId].size() == 1){room_map.erase(roomId);std::cout << "erase roomId = " << roomId << "success" << std::endl;}// 房间有两个人,通知对端离开else if (room_map[roomId].size() == 2){// 删除用户信息auto iter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&uid](const Client &client){ return client.uid == uid; });if (iter != room_map[roomId].end()){room_map[roomId].erase(iter);std::cout << "erase uid = " << uid << "success" << std::endl;}// 发送JSON消息json sendMsg;sendMsg["cmd"] = SIGNAL_TYPE_PEER_LEAVE;sendMsg["remoteUid"] = uid;std::string sendMsgStr = sendMsg.dump();// 只有一个人了，使用room_map[roomId][0]s->send(room_map[roomId][0].hdl, sendMsgStr, websocketpp::frame::opcode::text);std::cout << "resp_leave uid = " << uid << std::endl;std::cout << "sendMsgStr = " << sendMsgStr << std::endl;}}
}// offer
void handleOffer(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::string remoteUid = JMsg["remoteUid"];std::cout << "uid = " << uid << " try to send offer to remoteUid = " << remoteUid << std::endl;// 房间号不存在if (!room_map.count(roomId)){std::cout << "roomId = " << roomId << "not exist" << std::endl;return;}// 房间没人else if (room_map[roomId].size() == 0){std::cout << "roomId = " << roomId << "is empty" << std::endl;return;}else{// 转发offer到对端auto remoteClientIter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&remoteUid](const Client &client){ return client.uid == remoteUid; });if (remoteClientIter != room_map[roomId].end()){std::cout << "send offer from " << uid << " to " << remoteUid << std::endl;s->send(remoteClientIter->hdl, JMsg.dump(), websocketpp::frame::opcode::text);}else{std::cout << "remoteUid = " << remoteUid << "not exist" << std::endl;}}
}// answer
void handleAnswer(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::string remoteUid = JMsg["remoteUid"];std::cout << "uid = " << uid << " try to send answer to remoteUid = " << remoteUid << std::endl;// 房间号不存在if (!room_map.count(roomId)){std::cout << "roomId = " << roomId << "not exist" << std::endl;return;}// 房间没人else if (room_map[roomId].size() == 0){std::cout << "roomId = " << roomId << "is empty" << std::endl;return;}else{// 转发answer到对端auto remoteClientIter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&remoteUid](const Client &client){ return client.uid == remoteUid; });if (remoteClientIter != room_map[roomId].end()){std::cout << "send answer from " << uid << " to " << remoteUid << std::endl;s->send(remoteClientIter->hdl, JMsg.dump(), websocketpp::frame::opcode::text);}else{std::cout << "remoteUid = " << remoteUid << "not exist" << std::endl;}}
}// candidate
void handleCandidate(server *s, websocketpp::connection_hdl hdl, json JMsg)
{std::string roomStr = JMsg["roomId"];int roomId = stoi(roomStr);std::string uid = JMsg["uid"];std::string remoteUid = JMsg["remoteUid"];std::cout << "uid = " << uid << " try to send candidate to remoteUid = " << remoteUid << std::endl;// 房间号不存在if (!room_map.count(roomId)){std::cout << "roomId = " << roomId << "not exist" << std::endl;return;}// 房间没人else if (room_map[roomId].size() == 0){std::cout << "roomId = " << roomId << "is empty" << std::endl;return;}else{// 转发candidate到对端auto remoteClientIter = std::find_if(room_map[roomId].begin(), room_map[roomId].end(), [&remoteUid](const Client &client){ return client.uid == remoteUid; });if (remoteClientIter != room_map[roomId].end()){std::cout << " send candidate from " << uid << " to " << remoteUid << std::endl;s->send(remoteClientIter->hdl, JMsg.dump(), websocketpp::frame::opcode::text);}else{std::cout << "remoteUid = " << remoteUid << "not exist" << std::endl;}}
}// WebSocket服务器收到消息回调
void on_message(server *s, websocketpp::connection_hdl hdl, message_ptr msg)
{// 解析客户端的json消息json JMsg;try{JMsg = json::parse(msg->get_payload());std::cout << "on_message called with hdl: " << hdl.lock().get()<< " and message: " << JMsg.dump() << std::endl;std::string cmd = JMsg["cmd"];if (cmd == SIGNAL_TYPE_JOIN){handleJoin(s, hdl, JMsg); // 加入}else if (cmd == SIGNAL_TYPE_LEAVE){handleLeave(s, hdl, JMsg); // 离开}else if (cmd == SIGNAL_TYPE_OFFER){handleOffer(s, hdl, JMsg); // ice候选}else if (cmd == SIGNAL_TYPE_ANSWER){handleAnswer(s, hdl, JMsg);}else if (cmd == SIGNAL_TYPE_CANDIDATE){handleCandidate(s, hdl, JMsg);}}catch (const std::exception &e){std::cout << "JSON解析失败: " << e.what() << std::endl;return;}
}// 当有客户端连接时触发的回调
void on_open(websocketpp::connection_hdl hdl)
{vgdl.push_back(hdl);std::cout << "on_open called with hdl: " << hdl.lock().get() << std::endl;
}// 用户断开连接回调函数
void on_close(websocketpp::connection_hdl hdl)
{std::string msg = "close OK";printf("%s\n", msg.c_str());std::cout << "vgdl size = " << vgdl.size() << std::endl;// 清理连接列表for (auto it = vgdl.begin(); it != vgdl.end();){std::cout << "it = " << it->lock() << std::endl;if (it->expired() || it->lock() == hdl.lock()) //断开自己{it = vgdl.erase(it);std::cout << "vgdl erase" << std::endl;}else{++it;}}// 遍历 room_map，删除对应客户端信息for (auto roomIt = room_map.begin(); roomIt != room_map.end();){auto &clients = roomIt->second;bool isErase = false;for (auto clientIt = clients.begin(); clientIt != clients.end();){if (clientIt->hdl.expired() || clientIt->hdl.lock() == hdl.lock()){ // 连接过期std::cout << "client uid = " << clientIt->uid << " has been removed from roomid = "<< clientIt->roomId << std::endl;clientIt = clients.erase(clientIt);isErase = true;}else{++clientIt;}}if(!isErase){continue;}// 如果房间为空，删除房间if (clients.empty()){std::cout << "roomId = " << (roomIt->first) << " has been removed" << std::endl;roomIt = room_map.erase(roomIt);}else{//向对端发送离开消息json sendMsg;sendMsg["cmd"] = SIGNAL_TYPE_PEER_LEAVE;sendMsg["remoteUid"] = roomIt->second[0].uid;send_msg(&webSocket_server, sendMsg.dump());++roomIt;}}
}int main()
{try{// Set logging settings 设置logwebSocket_server.set_access_channels(websocketpp::log::alevel::all);webSocket_server.clear_access_channels(websocketpp::log::alevel::frame_payload);// Initialize Asio 初始化asiowebSocket_server.init_asio();// Register our message handler// 绑定收到消息后的回调webSocket_server.set_message_handler(bind(&on_message, &webSocket_server, ::_1, ::_2));// 当有客户端连接时触发的回调std::function<void(websocketpp::connection_hdl)> f_open;f_open = on_open;webSocket_server.set_open_handler(websocketpp::open_handler(f_open));// 关闭是触发std::function<void(websocketpp::connection_hdl)> f_close(on_close);webSocket_server.set_close_handler(f_close);// Listen on port 9002webSocket_server.listen(LISTEN_PORT); // 监听端口// Start the server accept loopwebSocket_server.start_accept();// Start the ASIO io_service run loopstd::cout << "Server is running on port " << LISTEN_PORT << std::endl;webSocket_server.run();}catch (websocketpp::exception const &e){std::cout << e.what() << std::endl;}catch (...){std::cout << "other exception" << std::endl;}
}

更多资料：https://github.com/0voice
