RK3568 看门狗驱动开发详解

  • 一、Linux 看门狗子系统架构​
  • 二、设备树配置​
  • 三、 看门狗驱动实现
  • 四、验证

看门狗定时器（Watchdog Timer）是保障嵌入式系统可靠性的关键硬件，它通过定期接收 “喂狗” 信号监控系统运行状态，当系统故障导致信号中断时，自动触发硬件复位实现系统自愈。本文以 RK3568 平台为例，全面讲解看门狗驱动的开发流程，包括子系统架构、驱动实现及功能验证。

一、Linux 看门狗子系统架构​

Linux 内核通过看门狗子系统实现对硬件看门狗的标准化管理，架构采用分层设计：

┌─────────────────────────────────────────┐
│              用户空间                    │
│  ┌──────────┐  ┌──────────┐  ┌────────┐ │
│  │ watchdogd│  │ 应用程序  │  │ 工具类  │ │
│  └──────────┘  └──────────┘  └────────┘ │
└───────────────────┬─────────────────────┘│
┌───────────────────▼─────────────────────┐
│              内核空间                    │
│  ┌───────────────────────────────────┐  │
│  │           核心层                   │  │
│  │ (watchdog_core.c、watchdog_dev.c) │  │
│  └───────────────────┬───────────────┘  │
│                      │                  │
│  ┌───────────────────▼───────────────┐  │
│  │           驱动层                   │  │
│  │     (dw_wdt.c 具体实现)            │  │
│  └───────────────────┬───────────────┘  │
└──────────────────────┼──────────────────┘│
┌──────────────────────▼──────────────────┐
│              硬件层                      │
│       RK3568 看门狗定时器硬件              │
└─────────────────────────────────────────┘

核心组件解析​

  1. 核心层： ​
  • 提供统一的struct watchdog_device结构体抽象硬件​
  • 定义标准操作集struct watchdog_ops​
  • 管理/dev/watchdog字符设备节点​
  • 实现用户空间接口（ioctl、write 等）​
  1. 驱动层： ​
  • 实现硬件特定的操作（启动、停止、喂狗等）​
  • 处理硬件中断和复位逻辑​
  • 对接核心层接口完成设备注册​
  1. 关键数据结构：
// 看门狗设备结构体
struct watchdog_device {const struct watchdog_ops *ops;  // 硬件操作函数集struct device *dev;             // 关联设备int id;                         // 设备IDunsigned int timeout;           // 超时时间（秒）unsigned int min_timeout;       // 最小超时时间unsigned int max_timeout;       // 最大超时时间unsigned int flags;             // 设备标志（如WDIOF_KEEPALIVEPING）// 其他成员...
};// 看门狗操作函数集
struct watchdog_ops {int (*start)(struct watchdog_device *wdd);       // 启动看门狗int (*stop)(struct watchdog_device *wdd);        // 停止看门狗int (*ping)(struct watchdog_device *wdd);        // 喂狗int (*set_timeout)(struct watchdog_device *wdd, unsigned int t); // 设置超时// 其他可选操作...
};

二、设备树配置​

RK3568 看门狗设备树节点配置如下：

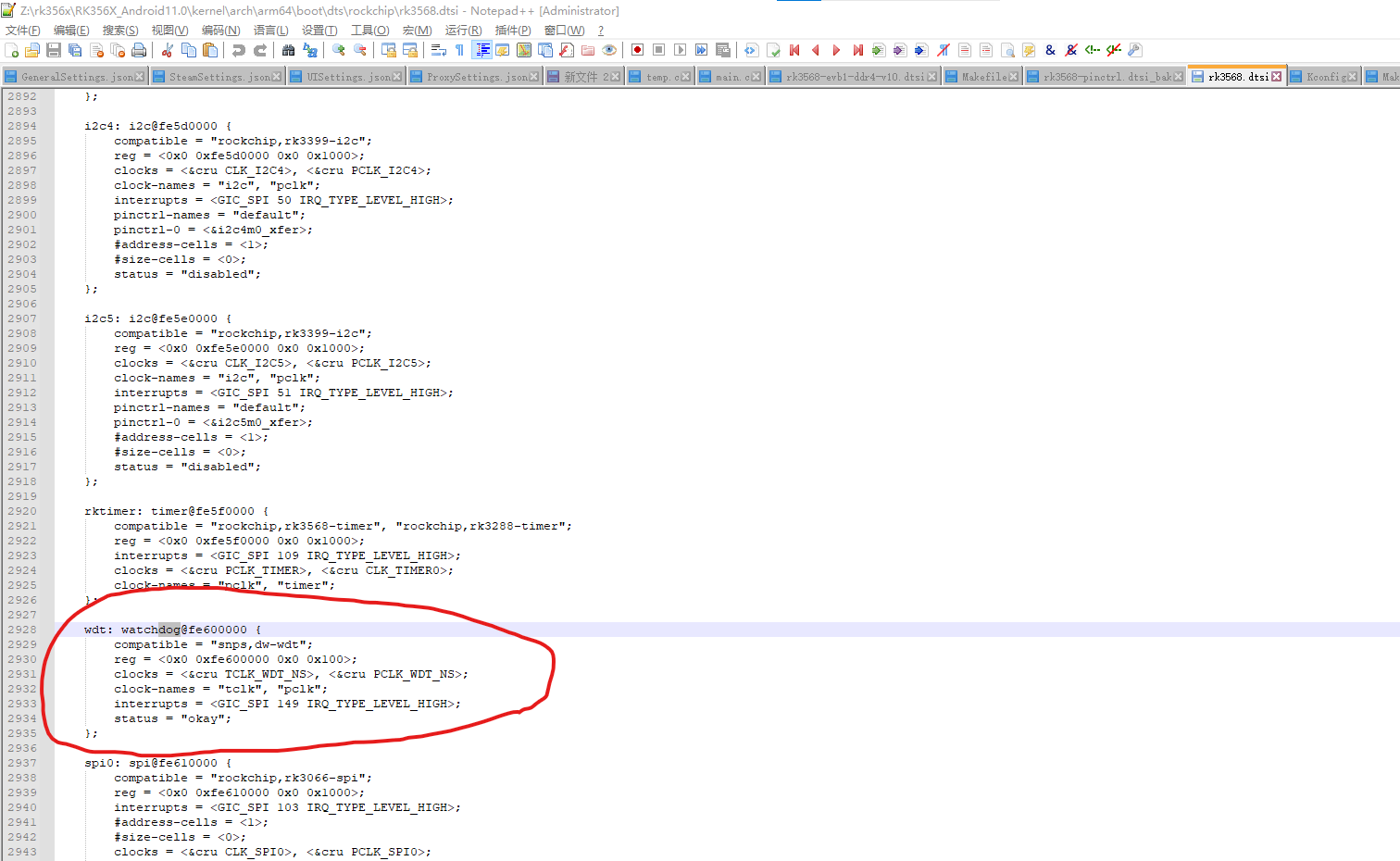

kernel/arch/arm64/boot/dts/rockchip/rk3568.dtsi
在这里插入图片描述

三、 看门狗驱动实现

kernel/drivers/watchdog/dw_wdt.c

/** Copyright 2010-2011 Picochip Ltd., Jamie Iles* http://www.picochip.com** This program is free software; you can redistribute it and/or* modify it under the terms of the GNU General Public License* as published by the Free Software Foundation; either version* 2 of the License, or (at your option) any later version.** This file implements a driver for the Synopsys DesignWare watchdog device* in the many subsystems. The watchdog has 16 different timeout periods* and these are a function of the input clock frequency.** The DesignWare watchdog cannot be stopped once it has been started so we* do not implement a stop function. The watchdog core will continue to send* heartbeat requests after the watchdog device has been closed.*/#define pr_fmt(fmt) KBUILD_MODNAME ": " fmt#include <linux/bitops.h>
#include <linux/clk.h>
#include <linux/delay.h>
#include <linux/err.h>
#include <linux/io.h>
#include <linux/kernel.h>
#include <linux/module.h>
#include <linux/moduleparam.h>
#include <linux/of.h>
#include <linux/pm.h>
#include <linux/platform_device.h>
#include <linux/reset.h>
#include <linux/watchdog.h>#define WDOG_CONTROL_REG_OFFSET		    0x00
#define WDOG_CONTROL_REG_WDT_EN_MASK	    0x01
#define WDOG_CONTROL_REG_RESP_MODE_MASK	    0x02
#define WDOG_TIMEOUT_RANGE_REG_OFFSET	    0x04
#define WDOG_TIMEOUT_RANGE_TOPINIT_SHIFT    4
#define WDOG_CURRENT_COUNT_REG_OFFSET	    0x08
#define WDOG_COUNTER_RESTART_REG_OFFSET     0x0c
#define WDOG_COUNTER_RESTART_KICK_VALUE	    0x76/* The maximum TOP (timeout period) value that can be set in the watchdog. */
#define DW_WDT_MAX_TOP		15#define DW_WDT_DEFAULT_SECONDS	30static bool nowayout = WATCHDOG_NOWAYOUT;
module_param(nowayout, bool, 0);
MODULE_PARM_DESC(nowayout, "Watchdog cannot be stopped once started ""(default=" __MODULE_STRING(WATCHDOG_NOWAYOUT) ")");struct dw_wdt {void __iomem		*regs;struct clk		*clk;struct clk		*pclk;unsigned long		rate;struct watchdog_device	wdd;struct reset_control	*rst;/* Save/restore */u32			control;u32			timeout;
};#define to_dw_wdt(wdd)	container_of(wdd, struct dw_wdt, wdd)static inline int dw_wdt_is_enabled(struct dw_wdt *dw_wdt)
{return readl(dw_wdt->regs + WDOG_CONTROL_REG_OFFSET) &WDOG_CONTROL_REG_WDT_EN_MASK;
}static inline int dw_wdt_top_in_seconds(struct dw_wdt *dw_wdt, unsigned top)
{/** There are 16 possible timeout values in 0..15 where the number of* cycles is 2 ^ (16 + i) and the watchdog counts down.*/return (1U << (16 + top)) / dw_wdt->rate;
}static int dw_wdt_get_top(struct dw_wdt *dw_wdt)
{int top = readl(dw_wdt->regs + WDOG_TIMEOUT_RANGE_REG_OFFSET) & 0xF;return dw_wdt_top_in_seconds(dw_wdt, top);
}static int dw_wdt_ping(struct watchdog_device *wdd)
{struct dw_wdt *dw_wdt = to_dw_wdt(wdd);writel(WDOG_COUNTER_RESTART_KICK_VALUE, dw_wdt->regs +WDOG_COUNTER_RESTART_REG_OFFSET);return 0;
}static int dw_wdt_set_timeout(struct watchdog_device *wdd, unsigned int top_s)
{struct dw_wdt *dw_wdt = to_dw_wdt(wdd);int i, top_val = DW_WDT_MAX_TOP;/** Iterate over the timeout values until we find the closest match. We* always look for >=.*/for (i = 0; i <= DW_WDT_MAX_TOP; ++i)if (dw_wdt_top_in_seconds(dw_wdt, i) >= top_s) {top_val = i;break;}/** Set the new value in the watchdog.  Some versions of dw_wdt* have have TOPINIT in the TIMEOUT_RANGE register (as per* CP_WDT_DUAL_TOP in WDT_COMP_PARAMS_1).  On those we* effectively get a pat of the watchdog right here.*/writel(top_val | top_val << WDOG_TIMEOUT_RANGE_TOPINIT_SHIFT,dw_wdt->regs + WDOG_TIMEOUT_RANGE_REG_OFFSET);wdd->timeout = dw_wdt_top_in_seconds(dw_wdt, top_val);return 0;
}static void dw_wdt_arm_system_reset(struct dw_wdt *dw_wdt)
{u32 val = readl(dw_wdt->regs + WDOG_CONTROL_REG_OFFSET);/* Disable interrupt mode; always perform system reset. */val &= ~WDOG_CONTROL_REG_RESP_MODE_MASK;/* Enable watchdog. */val |= WDOG_CONTROL_REG_WDT_EN_MASK;writel(val, dw_wdt->regs + WDOG_CONTROL_REG_OFFSET);
}static int dw_wdt_start(struct watchdog_device *wdd)
{struct dw_wdt *dw_wdt = to_dw_wdt(wdd);dw_wdt_set_timeout(wdd, wdd->timeout);dw_wdt_ping(&dw_wdt->wdd);dw_wdt_arm_system_reset(dw_wdt);return 0;
}static int dw_wdt_stop(struct watchdog_device *wdd)
{struct dw_wdt *dw_wdt = to_dw_wdt(wdd);if (!dw_wdt->rst) {set_bit(WDOG_HW_RUNNING, &wdd->status);return 0;}reset_control_assert(dw_wdt->rst);reset_control_deassert(dw_wdt->rst);return 0;
}static int dw_wdt_restart(struct watchdog_device *wdd,unsigned long action, void *data)
{struct dw_wdt *dw_wdt = to_dw_wdt(wdd);writel(0, dw_wdt->regs + WDOG_TIMEOUT_RANGE_REG_OFFSET);if (dw_wdt_is_enabled(dw_wdt))writel(WDOG_COUNTER_RESTART_KICK_VALUE,dw_wdt->regs + WDOG_COUNTER_RESTART_REG_OFFSET);elsedw_wdt_arm_system_reset(dw_wdt);/* wait for reset to assert... */mdelay(500);return 0;
}static unsigned int dw_wdt_get_timeleft(struct watchdog_device *wdd)
{struct dw_wdt *dw_wdt = to_dw_wdt(wdd);return readl(dw_wdt->regs + WDOG_CURRENT_COUNT_REG_OFFSET) /dw_wdt->rate;
}static const struct watchdog_info dw_wdt_ident = {.options	= WDIOF_KEEPALIVEPING | WDIOF_SETTIMEOUT |WDIOF_MAGICCLOSE,.identity	= "Synopsys DesignWare Watchdog",
};static const struct watchdog_ops dw_wdt_ops = {.owner		= THIS_MODULE,.start		= dw_wdt_start,.stop		= dw_wdt_stop,.ping		= dw_wdt_ping,.set_timeout	= dw_wdt_set_timeout,.get_timeleft	= dw_wdt_get_timeleft,.restart	= dw_wdt_restart,
};#ifdef CONFIG_PM_SLEEP
static int dw_wdt_suspend(struct device *dev)
{struct dw_wdt *dw_wdt = dev_get_drvdata(dev);dw_wdt->control = readl(dw_wdt->regs + WDOG_CONTROL_REG_OFFSET);dw_wdt->timeout = readl(dw_wdt->regs + WDOG_TIMEOUT_RANGE_REG_OFFSET);clk_disable_unprepare(dw_wdt->pclk);clk_disable_unprepare(dw_wdt->clk);return 0;
}static int dw_wdt_resume(struct device *dev)
{struct dw_wdt *dw_wdt = dev_get_drvdata(dev);int err = clk_prepare_enable(dw_wdt->clk);if (err)return err;err = clk_prepare_enable(dw_wdt->pclk);if (err) {clk_disable_unprepare(dw_wdt->clk);return err;}writel(dw_wdt->timeout, dw_wdt->regs + WDOG_TIMEOUT_RANGE_REG_OFFSET);writel(dw_wdt->control, dw_wdt->regs + WDOG_CONTROL_REG_OFFSET);dw_wdt_ping(&dw_wdt->wdd);return 0;
}
#endif /* CONFIG_PM_SLEEP */static SIMPLE_DEV_PM_OPS(dw_wdt_pm_ops, dw_wdt_suspend, dw_wdt_resume);static int dw_wdt_drv_probe(struct platform_device *pdev)
{struct device *dev = &pdev->dev;struct watchdog_device *wdd;struct dw_wdt *dw_wdt;struct resource *mem;int ret;dw_wdt = devm_kzalloc(dev, sizeof(*dw_wdt), GFP_KERNEL);if (!dw_wdt)return -ENOMEM;mem = platform_get_resource(pdev, IORESOURCE_MEM, 0);dw_wdt->regs = devm_ioremap_resource(dev, mem);if (IS_ERR(dw_wdt->regs))return PTR_ERR(dw_wdt->regs);/** Try to request the watchdog dedicated timer clock source. It must* be supplied if asynchronous mode is enabled. Otherwise fallback* to the common timer/bus clocks configuration, in which the very* first found clock supply both timer and APB signals.*/dw_wdt->clk = devm_clk_get(dev, "tclk");if (IS_ERR(dw_wdt->clk)) {dw_wdt->clk = devm_clk_get(dev, NULL);if (IS_ERR(dw_wdt->clk))return PTR_ERR(dw_wdt->clk);}ret = clk_prepare_enable(dw_wdt->clk);if (ret)return ret;dw_wdt->rate = clk_get_rate(dw_wdt->clk);if (dw_wdt->rate == 0) {ret = -EINVAL;goto out_disable_clk;}/** Request APB clock if device is configured with async clocks mode.* In this case both tclk and pclk clocks are supposed to be specified.* Alas we can't know for sure whether async mode was really activated,* so the pclk phandle reference is left optional. If it couldn't be* found we consider the device configured in synchronous clocks mode.*/dw_wdt->pclk = devm_clk_get_optional(dev, "pclk");if (IS_ERR(dw_wdt->pclk)) {ret = PTR_ERR(dw_wdt->pclk);goto out_disable_clk;}ret = clk_prepare_enable(dw_wdt->pclk);if (ret)goto out_disable_clk;dw_wdt->rst = devm_reset_control_get_optional_shared(&pdev->dev, NULL);if (IS_ERR(dw_wdt->rst)) {ret = PTR_ERR(dw_wdt->rst);goto out_disable_pclk;}reset_control_deassert(dw_wdt->rst);wdd = &dw_wdt->wdd;wdd->info = &dw_wdt_ident;wdd->ops = &dw_wdt_ops;wdd->min_timeout = 1;wdd->max_hw_heartbeat_ms =dw_wdt_top_in_seconds(dw_wdt, DW_WDT_MAX_TOP) * 1000;wdd->parent = dev;watchdog_set_drvdata(wdd, dw_wdt);watchdog_set_nowayout(wdd, nowayout);watchdog_init_timeout(wdd, 0, dev);/** If the watchdog is already running, use its already configured* timeout. Otherwise use the default or the value provided through* devicetree.*/if (dw_wdt_is_enabled(dw_wdt)) {wdd->timeout = dw_wdt_get_top(dw_wdt);set_bit(WDOG_HW_RUNNING, &wdd->status);} else {wdd->timeout = DW_WDT_DEFAULT_SECONDS;watchdog_init_timeout(wdd, 0, dev);}platform_set_drvdata(pdev, dw_wdt);watchdog_set_restart_priority(wdd, 128);ret = watchdog_register_device(wdd);if (ret)goto out_disable_pclk;return 0;out_disable_pclk:clk_disable_unprepare(dw_wdt->pclk);out_disable_clk:clk_disable_unprepare(dw_wdt->clk);return ret;
}static int dw_wdt_drv_remove(struct platform_device *pdev)
{struct dw_wdt *dw_wdt = platform_get_drvdata(pdev);watchdog_unregister_device(&dw_wdt->wdd);reset_control_assert(dw_wdt->rst);clk_disable_unprepare(dw_wdt->pclk);clk_disable_unprepare(dw_wdt->clk);return 0;
}#ifdef CONFIG_OF
static const struct of_device_id dw_wdt_of_match[] = {{ .compatible = "snps,dw-wdt", },{ /* sentinel */ }
};
MODULE_DEVICE_TABLE(of, dw_wdt_of_match);
#endifstatic struct platform_driver dw_wdt_driver = {.probe		= dw_wdt_drv_probe,.remove		= dw_wdt_drv_remove,.driver		= {.name	= "dw_wdt",.of_match_table = of_match_ptr(dw_wdt_of_match),.pm	= &dw_wdt_pm_ops,},
};module_platform_driver(dw_wdt_driver);MODULE_AUTHOR("Jamie Iles");
MODULE_DESCRIPTION("Synopsys DesignWare Watchdog Driver");
MODULE_LICENSE("GPL");

四、验证

#define	WATCHDOG_IOCTL_BASE	'W'#define	WDIOC_KEEPALIVE		_IOR(WATCHDOG_IOCTL_BASE, 5, int)
#define	WDIOC_SETTIMEOUT        _IOWR(WATCHDOG_IOCTL_BASE, 6, int)
extern "C"
JNIEXPORT jint JNICALL
Java_com_example_led9_MainActivity_watchdog(JNIEnv *env, jobject thiz) {int fd;// 打开设备fd = open("/dev/watchdog0", O_RDWR);if (fd == -1) {LOGD("watchdog0 无法打开设备");return -1;}int timeout = 2;if (ioctl(fd, WDIOC_SETTIMEOUT, &timeout) < 0){LOGD("watchdog0 set timeout error.");return -1;}int i = 4;while (i--){if (ioctl(fd, WDIOC_KEEPALIVE, NULL) < 0){LOGD("watchdog0 keep alive error.");return -1;}LOGD("watchdog0 keep alive success = %d", i);sleep(1);}LOGD("watchdog0 exit");close(fd);return 0;}

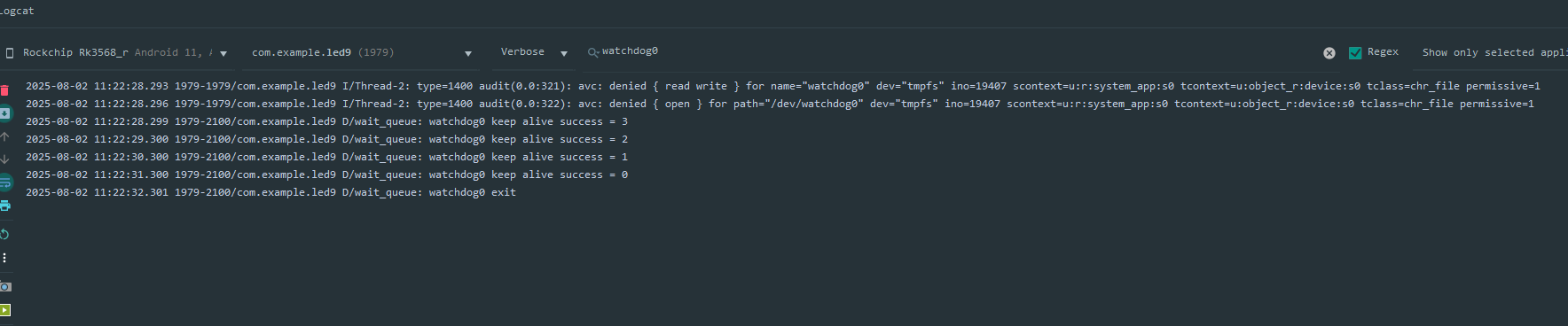

在这里插入图片描述

通过测试程序能发现，在超时时间内没有喂狗的话，系统会自动重启。
