spring boot 使用mybatis简单连接数据库+连表查询

news 2025/8/2 6:33:36

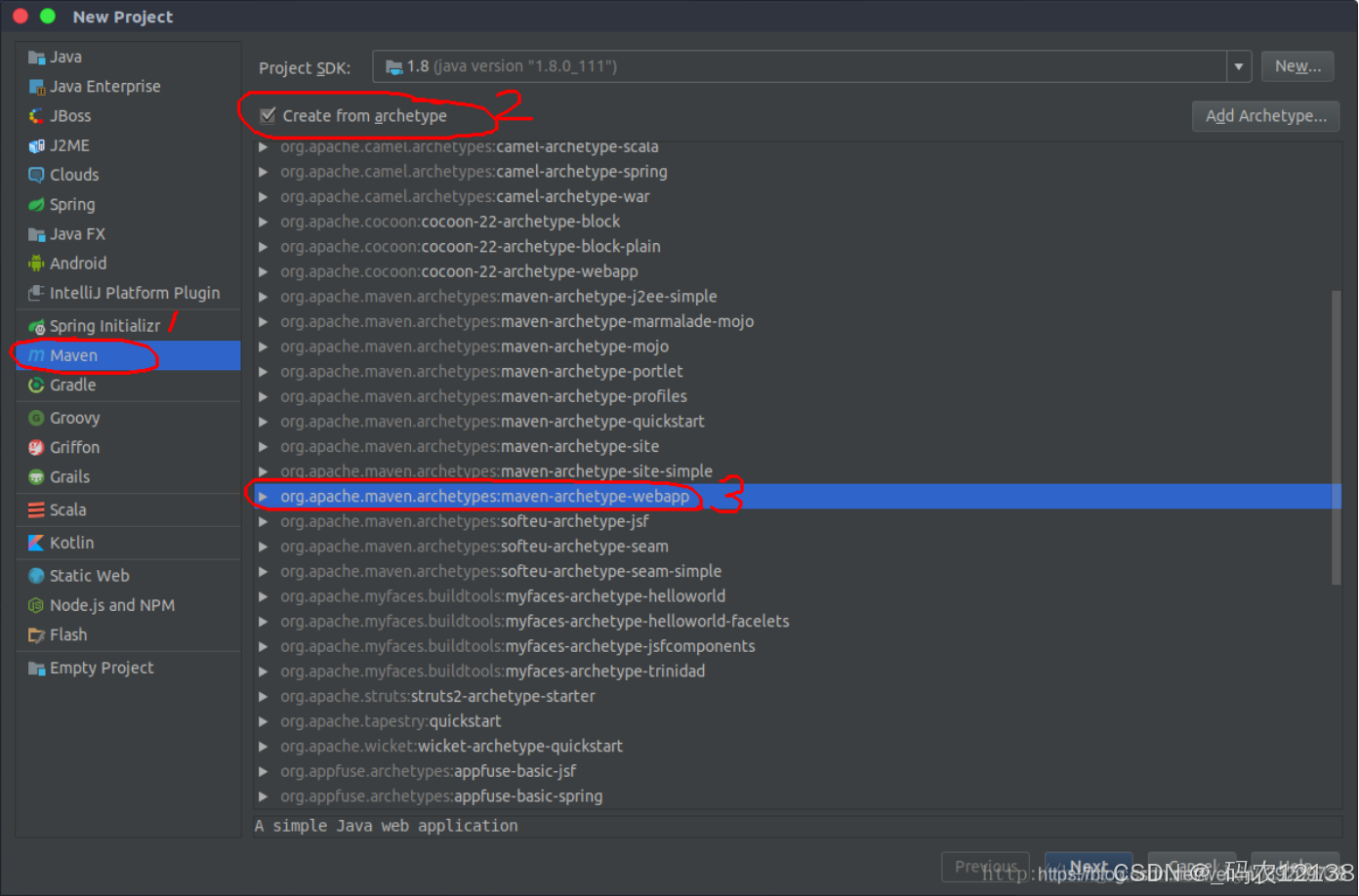

创建maven项目
在这里插入图片描述

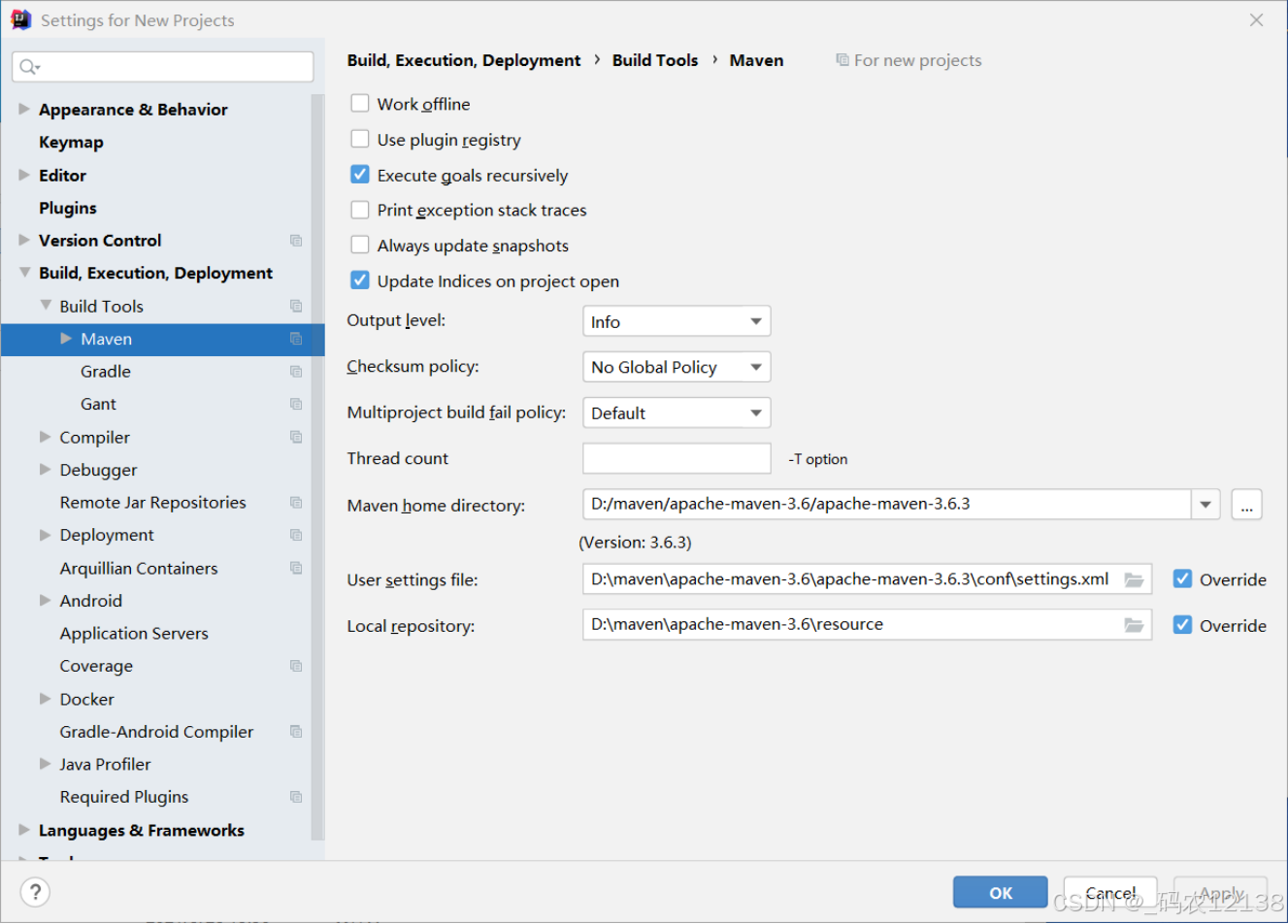

idea配置maven

配置本地仓库

在maven安装目录里找到 conf>settings.xml>
设置本地仓库的绝对路径 <localRepository>本地仓库的路径，也就是存放jar的位置</localRepository>
配置远程仓库
<mirrors> //放到这里面 </mirrors>
设置全局本地仓库。 文件（settings.xml）,copy一份到本地仓库 Copy一份到c盘.2>里面
Pom.xml文件简单介绍
//工程的属性，构建源码的编码方式，编译的时候的版本
<properties></properties>
//工程依赖的jar包的相关描述
<dependencies></dependencies>

目录结构

src\
├── main\
│   ├── java\
│   │   └── com\
│   │       └── qhit\
│   │           └── demo\
│   │               ├── DemoApplication.java
│   │               ├── bean\
│   │               │   ├── Admin.java
│   │               │   ├── Dictionary.java
│   │               │   ├── Mode.java
│   │               │   ├── Register.java
│   │               │   ├── Student.java
│   │               │   └── Vehicles.java
│   │               ├── controller\
│   │               │   ├── StudentController.java
│   │               │   └── TeacherController.java
│   │               ├── dao\
│   │               │   ├── AdminDao.java
│   │               │   ├── DictionaryDao.java
│   │               │   ├── ModeDao.java
│   │               │   ├── RegisterDao.java
│   │               │   ├── StudentDao.java
│   │               │   └── VehiclesDao.java
│   │               ├── exception\
│   │               │   ├── GlobalException.java
│   │               │   └── LoginException.java
│   │               ├── service\
│   │               │   ├── StudentService.java
│   │               │   └── TeacherService.java
│   │               ├── utils\
│   │               │   ├── MD5Util.java
│   │               │   └── UUIDUtil.java
│   │               └── vo\
│   │                   ├── Msg.java
│   │                   └── ReDc.java
│   └── resources\
│       └── application.yml
└── test\└── java\└── com\└── qhit\└── demo\└── DemoApplicationTests.java

创建表语句


-- 1. 管理员表
drop table if exists tbl_admin;
create table tbl_admin (u_id varchar(255) primary key comment '管理员ID',u_name varchar(255) not null comment '管理员姓名',u_password varchar(255) not null comment '管理员密码'
) engine=InnoDB default charset=utf8mb4;-- 2. 外来人信息表
drop table if exists tbl_mode;
create table tbl_mode (m_id varchar(255) primary key comment '外来人ID',m_name varchar(255) not null comment '姓名',m_phone varchar(255) comment '电话',m_relation varchar(255) comment '关系'
) engine=InnoDB default charset=utf8mb4;-- 3. 交通工具表
drop table if exists tbl_vehicles;
create table tbl_vehicles (v_id varchar(255) primary key comment '交通工具ID',v_name varchar(255) not null comment '交通工具名称',v_modeId varchar(255) comment '关联外来人ID',constraint fk_vehicles_mode foreign key (v_modeId) references tbl_mode(m_id)
) engine=InnoDB default charset=utf8mb4;-- 4. 登记表
drop table if exists tbl_register;
create table tbl_register (r_id varchar(255) primary key comment '登记ID',r_name varchar(255) not null comment '姓名',r_startDate varchar(255) comment '回去时间',r_vehiclesId varchar(255) comment '关联交通工具ID',r_endDate varchar(255) comment '归来时间',r_address varchar(255) comment '地址',constraint fk_register_vehicles foreign key (r_vehiclesId) references tbl_vehicles(v_id)
) engine=InnoDB default charset=utf8mb4;-- 5. 学生表
drop table if exists tbl_student;
create table tbl_student (s_id varchar(255) primary key comment '学生ID',s_name varchar(255) not null comment '学生姓名',s_number varchar(255) not null comment '学号',s_password varchar(255) not null comment '密码',s_class varchar(255) comment '班级',s_register_id varchar(255) comment '关联登记表ID',constraint fk_student_register foreign key (s_register_id) references tbl_register(r_id)
) engine=InnoDB default charset=utf8mb4;-- 6. 字典
drop table if exists tbl_student;
create table tbl_student (s_id varchar(255) primary key comment '学生ID',s_name varchar(255) not null comment '学生姓名',s_number varchar(255) not null comment '学号',s_password varchar(255) not null comment '密码',s_class varchar(255) comment '班级',s_register_id varchar(255) comment '关联登记表ID',constraint fk_student_register foreign key (s_register_id) references tbl_register(r_id)
) engine=InnoDB default charset=utf8mb4;

本来想做一个学生出行登记系统，但只做了一部分。记录一下。

根据代码分析，该项目是一个基于Spring Boot的学生管理系统，主要实现以下功能：

核心功能模块

学生管理：包括学生登录（通过学号和密码验证）、学生注册（输入姓名、密码、学号、班级等信息）
管理员管理：管理员登录、查询登记信息（支持分页查询）
登记管理：学生出行登记（记录出行时间、交通工具、归来时间、地址等信息）

技术栈

后端框架：Spring Boot 2.4.4
ORM框架：MyBatis
数据库：MySQL
其他依赖：Fastjson（JSON处理）、PageHelper（分页查询）

数据模型

学生表(tbl_student) ：存储学生基本信息
管理员表(tbl_admin) ：存储管理员账户信息
登记表(tbl_register) ：存储学生出行登记信息
外来人信息表：存储相关外来人员信息
交通工具表：存储交通工具信息
数据字典表：存储字典数据

系统架构

采用经典的三层架构：Controller层（处理请求）、Service层（业务逻辑）、Dao层（数据访问）
使用全局异常处理机制处理业务异常
采用RESTful风格API设计
项目整体用于学校场景下的学生信息管理和出行登记管理，帮助学校实现学生管理的信息化和规范化。

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><parent><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-parent</artifactId><version>2.4.4</version><relativePath/> <!-- lookup parent from repository --></parent><groupId>com.example</groupId><artifactId>demo</artifactId><version>0.0.1-SNAPSHOT</version><name>demo</name><description>Demo project for Spring Boot</description><properties><java.version>1.8</java.version></properties><dependencies><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-web</artifactId></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><scope>runtime</scope></dependency><dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId><scope>test</scope></dependency><dependency><groupId>tk.mybatis</groupId><artifactId>mapper-spring-boot-starter</artifactId><version>2.0.4</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.47</version></dependency><dependency><groupId>com.github.pagehelper</groupId><artifactId>pagehelper-spring-boot-starter</artifactId><version>1.0.0</version></dependency></dependencies><build><plugins><plugin><groupId>org.springframework.boot</groupId><artifactId>spring-boot-maven-plugin</artifactId></plugin></plugins></build></project>

配置文件

application.yml

server:port: 8081
spring:datasource:username: rootpassword: 1234url: jdbc:mysql://127.0.0.1:3306/test
mybatis:type-aliases-package: com.qhit.demo

启动类


package com.qhit.demo;import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import tk.mybatis.spring.annotation.MapperScan;@SpringBootApplication
@MapperScan("com.qhit.demo.dao")
public class DemoApplication {public static void main(String[] args) {System.out.println();SpringApplication.run(DemoApplication.class, args);}}

工具类-uuid工具类

package com.qhit.demo.utils;import java.util.UUID;public class UUIDUtil {public static String getUUID() {return UUID.randomUUID().toString().replaceAll("-", "");}
}

统一返回格式

package com.qhit.demo.vo;import java.util.HashMap;
import java.util.Map;public  class Msg {private int code;private Object msg;//用户要返回给浏览器的数据private Map<String,Object> data = new HashMap<String, Object>();public static Msg success(){Msg result = new Msg();result.setCode(200);result.setMsg("处理成功");return result;}public static Msg fail(){Msg result = new Msg();result.setCode(500);result.setMsg("处理失败");return result;}//链式操作public Msg add(String key, Object value){this.getData().put(key, value);return this;}public int getCode() {return code;}public void setCode(int code) {this.code = code;}public Object getMsg() {return msg;}public void setMsg(Object msg) {this.msg = msg;}public Map<String, Object> getData() {return data;}public void setData(Map<String, Object> data) {this.data = data;}
}

连表查询返回封装

public class ReDc {private String r_id;private String r_name;private String r_startDate;private String d_name;private String r_endDate;private String r_address;/* 忽略get set */
}//dao
import com.qhit.demo.bean.Register;
import com.qhit.demo.vo.ReDc;
import org.apache.ibatis.annotations.Select;
import org.springframework.stereotype.Repository;
import tk.mybatis.mapper.common.Mapper;import java.util.List;@Repository
public interface RegisterDao extends Mapper<Register> {@Select("select r.r_id,r.r_name,r.r_startDate,d.d_name,r.r_endDate,r.r_address from tbl_register as r left join tbl_dictionary as d on r.r_vehiclesId = d.d_id")public List<ReDc> getSelectAll();
}// serviceimport com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.qhit.demo.bean.Admin;
import com.qhit.demo.dao.AdminDao;
import com.qhit.demo.dao.RegisterDao;
import com.qhit.demo.exception.LoginException;
import com.qhit.demo.vo.ReDc;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import tk.mybatis.mapper.entity.Example;
import tk.mybatis.mapper.util.StringUtil;import java.util.List;@Service
public class TeacherService {@AutowiredAdminDao adminDao;@AutowiredRegisterDao registerDao;public  Admin login(Admin admin) throws LoginException {if(StringUtil.isEmpty(admin.getU_id())){throw new LoginException("管理账号为空，请检查账号");}if(StringUtil.isEmpty(admin.getU_password())){throw new LoginException("密码为空，请检查密码");}//select * from student where s_number = n1 and s_password = 123;Example example = new Example(Admin.class);Example.Criteria criteria = example.createCriteria();criteria.andEqualTo("u_id",admin.getU_id());criteria.andEqualTo("u_password",admin.getU_password());return adminDao.selectOneByExample(example);}public PageInfo<ReDc> select(int pageNum, int pageSize) {PageHelper.startPage(pageNum,pageSize);List<ReDc> list = registerDao.getSelectAll();PageInfo<ReDc> pageInfo = new PageInfo<>(list);return pageInfo;}
}// controller
import com.github.pagehelper.PageInfo;
import com.qhit.demo.bean.Admin;
import com.qhit.demo.exception.LoginException;
import com.qhit.demo.service.TeacherService;
import com.qhit.demo.vo.Msg;
import com.qhit.demo.vo.ReDc;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.util.ObjectUtils;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;@RestController
@RequestMapping("teacher")
public class TeacherController {@AutowiredTeacherService teacherService;@PostMapping("doLogin")public Msg doLogin(Admin admin) throws LoginException {Admin admin1 = teacherService.login(admin);if(!ObjectUtils.isEmpty(admin1)){return Msg.success().add("admin",admin1);}else{throw new LoginException("管理员账号或密码不正确");}}@PostMapping("select")public Msg select(@RequestParam(value = "pageNum",defaultValue = "1") int pageNum,@RequestParam(value = "pageSize",defaultValue = "10") int pageSize){PageInfo<ReDc> list = teacherService.select(pageNum,pageSize);return Msg.success().add("list",list);}
}

其他简单的实体类

@Table(name = "tbl_admin")
@NameStyle(Style.normal)
public class Admin {private String u_id;private String u_name;private String u_password;/* 忽略get set */
}/*** 数据字典*/
public class Dictionary {private String d_id;private String d_name;/* 忽略get set */
}
/*** 外来人信息表*/
public class Mode {private String m_id;private String m_name;private String m_phone;private String m_relation;//关系/* 忽略get set */
}
/*** 登记表*/
@Table(name = "tbl_register")
@NameStyle(Style.normal)
public class Register {private String r_id;private String r_name;private String r_startDate;//回去时间private String r_vehiclesId;private String r_endDate;//归来时间private String r_address;//地址/* 忽略get set */}/*** 学生表*/
@Table(name = "tbl_student")
@NameStyle(Style.normal)
public class Student {private String s_id;private String s_name;private String s_number;private String s_password;private String s_class;private String s_register_id;/* 忽略get set */
}/*** 交通工具*/
public class Vehicles {private String v_id;private String v_name;private String v_modeId;/* 忽略get set */
}

dao层

import com.qhit.demo.bean.Admin;
import org.springframework.stereotype.Repository;
import tk.mybatis.mapper.common.Mapper;@Repository
public interface AdminDao extends Mapper<Admin> {Admin login(Admin admin);
}import com.qhit.demo.bean.Dictionary;
import org.springframework.stereotype.Repository;
import tk.mybatis.mapper.common.Mapper;@Repository
public interface DictionaryDao extends Mapper<Dictionary> {
}import com.qhit.demo.bean.Mode;
import org.springframework.stereotype.Repository;
import tk.mybatis.mapper.common.Mapper;@Repository
public interface ModeDao extends Mapper<Mode> {
}import com.qhit.demo.bean.Register;
import com.qhit.demo.vo.ReDc;
import org.apache.ibatis.annotations.Select;
import org.springframework.stereotype.Repository;
import tk.mybatis.mapper.common.Mapper;import java.util.List;@Repository
public interface RegisterDao extends Mapper<Register> {@Select("select r.r_id,r.r_name,r.r_startDate,d.d_name,r.r_endDate,r.r_address from tbl_register as r left join tbl_dictionary as d on r.r_vehiclesId = d.d_id")public List<ReDc> getSelectAll();
}import com.qhit.demo.bean.Student;
import org.springframework.stereotype.Repository;
import tk.mybatis.mapper.common.Mapper;@Repository
public interface StudentDao extends Mapper<Student> {
//    @Select("select * from tbl_student where s_number = ${id}  and s_password = ${password} ")Student login(Student student);
}import com.qhit.demo.bean.Vehicles;
import tk.mybatis.mapper.common.Mapper;public interface VehiclesDao extends Mapper<Vehicles> {
}

service层


import com.qhit.demo.bean.Register;
import com.qhit.demo.bean.Student;import com.qhit.demo.dao.RegisterDao;
import com.qhit.demo.dao.StudentDao;
import com.qhit.demo.exception.LoginException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import tk.mybatis.mapper.entity.Example;
import tk.mybatis.mapper.util.StringUtil;@Service
public class StudentService {@AutowiredStudentDao studentDao;@AutowiredRegisterDao registerDao;public Student login(Student student) throws LoginException {if(StringUtil.isEmpty(student.getS_number())){throw new LoginException("学号为空，请检查学号");}if(StringUtil.isEmpty(student.getS_password())){throw new LoginException("密码为空，请检查密码");}//select * from student where s_number = n1 and s_password = 123;Example example = new Example(Student.class);Example.Criteria criteria = example.createCriteria();criteria.andEqualTo("s_number",student.getS_number());criteria.andEqualTo("s_password",student.getS_password());return studentDao.selectOneByExample(example);}//注册：输入姓名，密码，学号，班级public int registered(Student student){return studentDao.insert(student);}public int doByBus(Register register) {return registerDao.insert(register);}public void insert(Register register) {}
}

controller层

import com.qhit.demo.bean.Register;
import com.qhit.demo.bean.Student;
import com.qhit.demo.exception.LoginException;
import com.qhit.demo.service.StudentService;
import com.qhit.demo.vo.Msg;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.util.ObjectUtils;
import org.springframework.web.bind.annotation.*;@RestController
@RequestMapping("student")
public class StudentController {@AutowiredStudentService studentService;//注册：输入姓名，密码，学号，班级
//    @PostMapping("doRegistered")
//    public Msg doRegistered(Student student){
//
//    }@PostMapping("doLogin")public Msg doLogin(Student student) throws LoginException {Student student1 = studentService.login(student);if (!ObjectUtils.isEmpty(student1)) {return Msg.success().add("student", student1);} else {throw new LoginException("学号或密码不正确");}}@PostMapping("insert")public Msg insert(Student student) throws LoginException {if (student != null) {int registered = studentService.registered(student);return Msg.success().add("success", registered);} else {throw new LoginException("");}}@PostMapping("byBus")public Msg byBus(Register register) {int i = studentService.doByBus(register);return Msg.success().add("success", i);}
}

自定义全局异常

import com.alibaba.fastjson.JSONObject;
import com.qhit.demo.vo.Msg;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;import javax.servlet.http.HttpServletRequest;@ControllerAdvice
public class GlobalException {private static final Logger logger = LoggerFactory.getLogger(com.qhit.demo.exception.GlobalException.class);/*** 处理自定义的业务异常* @param req* @param e* @return*/@ExceptionHandler(value = LoginException.class)@ResponseBodypublic Msg bizExceptionHandler(HttpServletRequest req, LoginException e){e.printStackTrace();logger.error("发生业务异常！原因是：{} ", JSONObject.toJSONString(e.getMessage()));Msg fail = Msg.fail();fail.setMsg(e.getMessage());return fail;}//
//    /**
//     * SQL唯一约束的异常
//     * @param req
//     * @param e
//     * @return
//     */
//    @ExceptionHandler(value = DuplicateKeyException.class)
//    @ResponseBody
//    public Result exceptionHandler(HttpServletRequest req, DuplicateKeyException e){
//        logger.error("SQL唯一约束异常！原因是:{}",e.getMessage());
//        return ResultGenerator.genFailResult("SQL唯一约束异常");
//    }
//
//    /**
//     * SQL外键约束的异常
//     * @param req
//     * @param e
//     * @return
//     */
//    @ExceptionHandler(value = DataIntegrityViolationException.class)
//    @ResponseBody
//    public Result exceptionHandler(HttpServletRequest req, DataIntegrityViolationException e){
//        logger.error("SQL外键约束异常！原因是:{}",e.getMessage());
//        return ResultGenerator.genFailResult("SQL外键约束异常");
//    }
//
//
//    /**
//     * SQL查询的异常
//     * @param req
//     * @param e
//     * @return
//     */
//    @ExceptionHandler(value = TooManyResultsException.class)
//    @ResponseBody
//    public Result exceptionHandler(HttpServletRequest req, TooManyResultsException e){
//        logger.error("SQL查询异常！原因是: {}",e.getMessage());
//        return ResultGenerator.genFailResult("SQL查询异常");
//    }
//
//    /**
//     * MyBatis异常
//     * @param req
//     * @param e
//     * @return
//     */
//    @ExceptionHandler(value = MyBatisSystemException.class)
//    @ResponseBody
//    public Result exceptionHandler(HttpServletRequest req, MyBatisSystemException e){
//        logger.error("MyBatis异常！原因是: {}",e.getMessage());
//        return ResultGenerator.genFailResult("MyBatis异常");
//    }
//
//    /**
//     * 绑定的异常
//     * @param req
//     * @param e
//     * @return
//     */
//    @ExceptionHandler(value = BindException.class)
//    @ResponseBody
//    public Result exceptionHandler(HttpServletRequest req, BindException e){
//        logger.error("绑定异常！原因是:{}",e.getMessage());
//        return ResultGenerator.genFailResult("API接口参数错误");
//    }
//    /**
//     * 处理空指针的异常
//     * @param req
//     * @param e
//     * @return
//     */
//    @ExceptionHandler(value =NullPointerException.class)
//    @ResponseBody
//    public Result exceptionHandler(HttpServletRequest req, NullPointerException e){
//        e.printStackTrace();
//        logger.error("发生空指针异常！原因是:{}",e.getMessage());
//        return ResultGenerator.genFailResult("空指针异常");
//    }
////    /**
////     * 请求头失效的异常
////     * @param req
////     * @param e
////     * @return
////     */
////    @ExceptionHandler(value = ExpiredJwtException.class)
////    @ResponseBody
////    public Result exceptionHandler(HttpServletRequest req,ExpiredJwtException e){
////        logger.error("发生空指针异常！原因是:{}",e.getMessage());
////        return ResultGenerator.genUnauthorizedResult().setMessage("Token失效");
////    }
//
//
//    /**
//     * 处理其他异常
//     * @param req
//     * @param e
//     * @return
//     */
//    @ExceptionHandler(value =Exception.class)
//    @ResponseBody
//    public Result exceptionHandler(HttpServletRequest req, Exception e) {
//        e.printStackTrace();
//        logger.error("未知异常！原因是:{}", e.getMessage());
//        return ResultGenerator.genFailResult("未知异常");
//    }
}

登录异常

public class LoginException extends Exception{public LoginException() {super();}public LoginException(String message) {super(message);}
}

查看全文

http://www.dtcms.com/a/309634.html

向量投影计算，举例说明

LangChain详解

codex体验失败记录

Web3.0如何塑造互联网的未来

[echarts]基础地图

北极圈金融科技革命：奥斯陆证券交易所的绿色跃迁之路 ——从Visma千倍增长到碳信用衍生品，解码挪威资本市场的技术重构

数据结构（11）栈和队列算法题 OVA

基于OpenCV的cv2.solvePnP方法实现头部姿态估计

AJAX快速入门 - 四个核心步骤

DB-GPT 0.7.3 版本更新：支持Qwen3 Embedding和Reranker模型、支持知识库自定义检索策略等

从Web2.0到Web3.0：社交参与方式的重塑与延伸

优化算法专栏——阅读导引

springboot助农平台

【PHP 类常量详解：从入门到精通】

RK3588实现wlan直连

Qt 开发 IDE 插件开发指南

如何在UEFI SHELL下查看UEFI Driver

洛谷P4479第K大斜率

OSPF笔记整理

Transformer架构全解析：搭建AI的“神经网络大厦“

开箱即用的Next.js SSR企业级开发模板

【性能测试】混合业务场景TPS+内存溢出定位分析+调优和分析（详情）

猫眼浏览器：简约安全的 Chrome 内核增强版浏览器

【JVM篇13】：兼顾吞吐量和低停顿的G1垃圾回收器

UniappDay06

wsl /lib/x86_64-linux-gnu/libc.so.6: version GLIBC_2.28‘ not found

【Spring 】Spring Cloud Gateway 直连 Istio 服务网格深度集成方案

使用uniapp开发小程序-【引入字体并全局使用】

软件测试测评公司关于HTTP安全头配置与测试？

07 连锁不平衡和群体结构分析原理

本来想做一个学生出行登记系统，但只做了一部分。记录一下。

相关文章：
