tplink er2260t配置vlan透传iptv

tplink er2260t配置vlan透传iptv

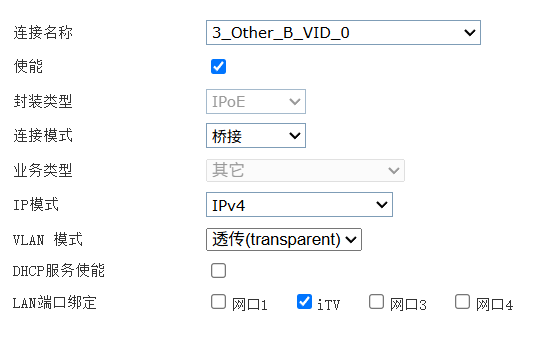

光猫配置

er2260t配置

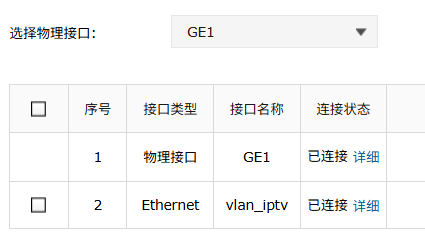

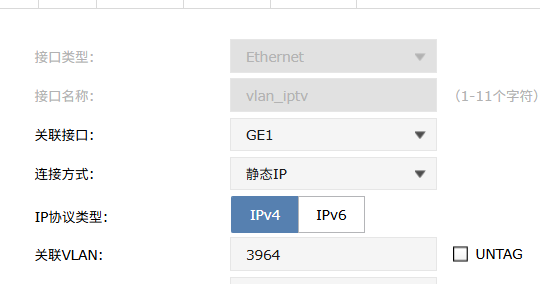

• GE1添加一个vlan接口（北京联通IPTV的VLAN是3964）

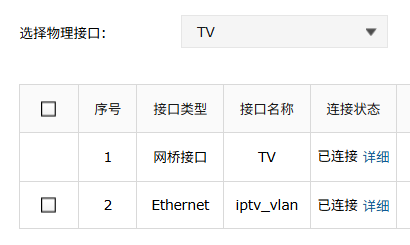

• 添加网桥，绑定vlan和物理接口

  • er2260t官方固件在初次配置完成后就无法新建网桥了，但是可以通过网页修改：

    var req = fetch("http://<根据IP修改>/stok=<根据自己的token修改>/ds", {
    "headers": {
    "accept": "text/plain, */*; q=0.01",
    "accept-language": "zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6",
    "cache-control": "no-cache",
    "content-type": "application/json; charset=UTF-8",
    "pragma": "no-cache",
    "sec-ch-ua": "\"Chromium\";v=\"104\",\" Not A;Brand\";v=\"99\", \"Microsoft Edge\";v=\"104\"",
    "sec-ch-ua-mobile": "?0",
    "sec-ch-ua-platform": "\"Windows\"",
    "sec-fetch-dest": "empty",
    "sec-fetch-mode": "cors",
    "sec-fetch-site": "same-origin",
    "x-requested-with": "XMLHttpRequest"
    },
    "referrer": "https://192.168.1.1/",
    "referrerPolicy": "strict-origin-when-cross-origin",
    "body": '{\"method\":\"add",\"network\":{\"table\":\"bridge\",\"para\":{\"if_name\":\"TV\",\"bindif\":[\"vlan_iptv\",\"GE2\"],\"configif\":\"vlan_iptv\",\"stp\":\"1\"}}}',
    "method": "POST",
    "mode": "cors",
    "credentials": "omit"
    });

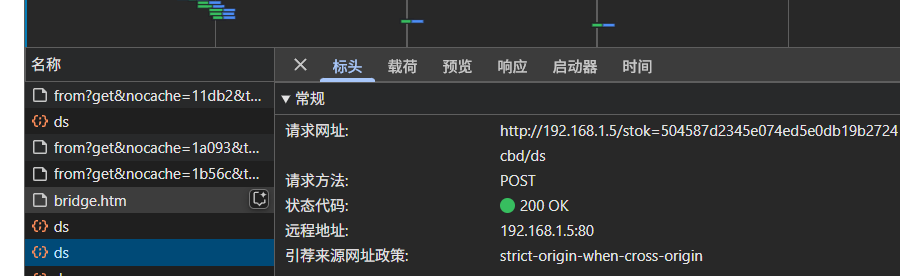

    • 查看Token: 网桥设置界面 > 网页右键 > 检查 > 网络

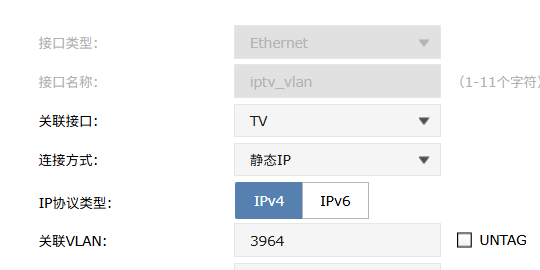

• 在新建的网桥下，添加一个vlan接口，vlan同样设置为3964


• 电视盒子选择DHCP连接方式，即可正常看电视
