IRF 真机实验

交换机3配置：

[H3C]irf member 1 renumber 3

[H3C]quit

<H3C>reboot

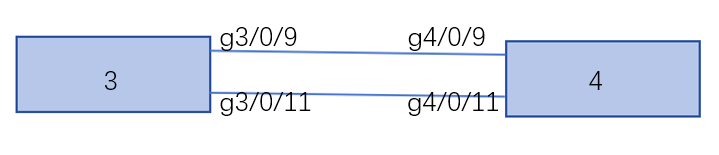

[H3C]int range g3/0/9 g3/0/11
[H3C-if-range]shutdown
[H3C-if-range]quit
[H3C]irf-port 3/1
[H3C-irf-port3/1]port group int g3/0/9
[H3C-irf-port3/1]port group int g3/0/11
[H3C-irf-port3/1]quit
[H3C]int range g3/0/9 g3/0/11
[H3C-if-range]undo shutdown
[H3C-if-range]quit

<H3C>save

[H3C]irf-port-configuration active

交换机4配置：

[H3C]irf member 2 renumber 4

[H3C]quit

<H3C>reboot

[H3C]int range g4/0/9 g4/0/11
[H3C-if-range]shutdown
[H3C-if-range]quit
[H3C]irf-port 4/2
[H3C-irf-port3/1]port group int g4/0/9
[H3C-irf-port3/1]port group int g4/0/11
[H3C-irf-port3/1]quit
[H3C]int range g4/0/9 g4/0/11
[H3C-if-range]undo shutdown
[H3C-if-range]quit

<H3C>save

[H3C]irf-port-configuration active
