Sequential 损失函数 反向传播 优化器 模型的使用修改保存加载

Sequential & example1

感觉和compose()好像

串联起来 方便调用

def __init()__(self):super(Net,self).__init__()self.model1 = Sequential(Conv2d(3,32,5,padding=2),MaxPool2d(2),Conv2d(32,32,5,padding=2),MaxPool2d(2),Conv2d(32,64,5,padding=2),MaxPool2d(2),Flatten(),Linear(1024,64),Linear(64,10))def forward(self,x):x = self.model1(x)return x

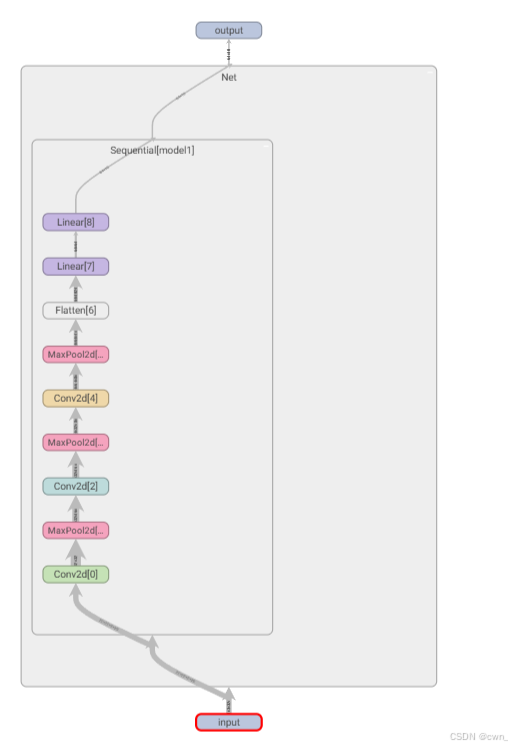

可以输出graph查看：

writer = SummaryWriter('../logs')
writer.add_graph(net,input)
writer.close()

终于明白好多论文上的图是怎么来的了 好权威啊

完整版代码：

code：

import torch
from torch import nn
from torch.nn import Sequential, Conv2d, MaxPool2d, Flatten, Linear
from torch.utils.tensorboard import SummaryWriterclass Net(nn.Module):def __init__(self):super(Net,self).__init__()self.model1 = Sequential(Conv2d(3, 32, 5, padding=2),MaxPool2d(2),Conv2d(32, 32, 5, padding=2),MaxPool2d(2),Conv2d(32, 64, 5, padding=2),MaxPool2d(2),Flatten(),Linear(1024, 64),Linear(64, 10))def forward(self,x):x = self.model1(x)return xnet = Net()
print(net)
input = torch.ones((64,3,32,32))
output = net(input)
print(output.shape)writer = SummaryWriter('../logs')
writer.add_graph(net,input)
writer.close()

损失函数 反向传播

损失函数：

import torch
from torch import float32
from torch.nn import L1Loss
from torch import nninputs = torch.tensor([1,2,3],dtype=float32)
targets = torch.tensor([1,2,5],dtype=float32)inputs = torch.reshape(inputs,(1,1,1,3))
targets = torch.reshape(targets,(1,1,1,3))loss = L1Loss()
result = loss(inputs,targets)
print(result)loss = nn.MSELoss()
result = loss(inputs,targets)
print(result)x = torch.tensor([0.1,0.2,0.3])
y = torch.tensor([1])
x = torch.reshape(x,(1,3))
loss_cross = nn.CrossEntropyLoss()
result_cross = loss_cross(x,y)
print(result_cross)

损失函数例子+反向传播（更新参数）

import torch
from torch import nn
from torch.nn import Sequential, Conv2d, MaxPool2d, Flatten, Linear
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from torchvision.datasets import ImageFolder#数据预处理
transform = transforms.Compose([transforms.Resize((32,32)),transforms.ToTensor(),transforms.Normalize(mean = [0.5,0.5,0.5],std = [0.5,0.5,0.5])
])#加载数据集
folder_path = '../images'
dataset = ImageFolder(folder_path,transform=transform)
dataloader = DataLoader(dataset,batch_size=1)class Net(nn.Module):def __init__(self):super(Net,self).__init__()self.model1 = Sequential(Conv2d(3, 32, 5, padding=2),MaxPool2d(2),Conv2d(32, 32, 5, padding=2),MaxPool2d(2),Conv2d(32, 64, 5, padding=2),MaxPool2d(2),Flatten(),Linear(1024, 64),Linear(64, 10))def forward(self,x):x = self.model1(x)return xnet = Net()
loss = nn.CrossEntropyLoss()for data in dataloader:img,label = dataprint(img.shape)output = net(img)result_loss = loss(output,label)print(result_loss)result_loss.backward()

优化器

随机梯度下降SGD

import torch
from torch import nn
from torch.nn import Sequential, Conv2d, MaxPool2d, Flatten, Linear
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms
from torchvision.datasets import ImageFolder#数据预处理
transform = transforms.Compose([transforms.Resize((32,32)),transforms.ToTensor(),transforms.Normalize(mean = [0.5,0.5,0.5],std = [0.5,0.5,0.5])
])#加载数据集
folder_path = '../images'
dataset = ImageFolder(folder_path,transform=transform)
dataloader = DataLoader(dataset,batch_size=1)class Net(nn.Module):def __init__(self):super(Net,self).__init__()self.model1 = Sequential(Conv2d(3, 32, 5, padding=2),MaxPool2d(2),Conv2d(32, 32, 5, padding=2),MaxPool2d(2),Conv2d(32, 64, 5, padding=2),MaxPool2d(2),Flatten(),Linear(1024, 64),Linear(64, 10))def forward(self,x):x = self.model1(x)return xnet = Net()
loss = nn.CrossEntropyLoss()
optim = torch.optim.SGD(net.parameters(),lr=0.01)

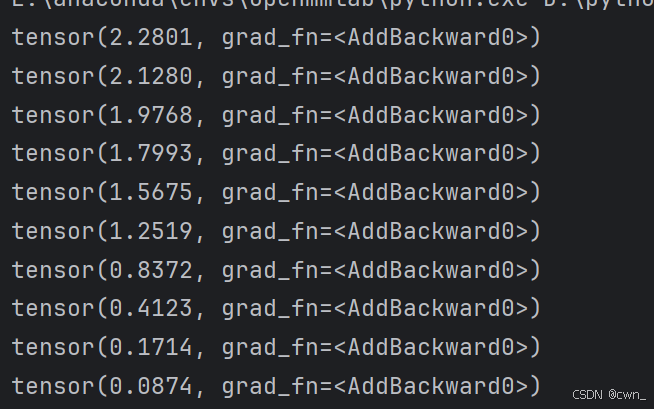

for epoch in range(10):running_loss = 0.0for data in dataloader:img, label = dataoutput = net(img)result_loss = loss(output, label)optim.zero_grad()result_loss.backward()optim.step()#每次训练数据的损失和running_loss += result_lossprint(running_loss)

现有模型的使用和修改

maybe可以称为迁移学习？？？

example net: vgg16

#不预训练
vgg16_false = torchvision.models.vgg16(pretrained=False)
#预训练
vgg16_true = torchvision.models.vgg16(pretrained=True)print(vgg16_true)#添加一个模块 在vgg16的classifier里面加一个
vgg16_true.classifier.add_module('add_linear',nn.Linear(1000,10))
#修改模块中的数据
vgg16_false.classifier[6] = nn.Linear(4096,10)

模型保存和加载

1. 现有模型：vgg16

   vgg16 = torchvision.models.vgg16(pretrained=False)


   #保存：模型结构+参数
   torch.save(vgg16,"vgg16_method1.pth")
   #加载：
   model = torch.load("vgg16_method1.pth")


   #保存：模型参数（官推）
   #保存成字典模式
   torch.save(vgg16.state_dict(),"vgg16_method2.pth")
   #加载
   vgg16 = torchvision.models.vgg16(pretrained=False)
   vgg16.load_state_dict(torch.load("vgg16_method2.pth"))


2. 自定义模型

   #保存
   class Net(nn.Module):......
   net = Net()
   torch.save(net,"net.pth")


   #加载
   class Net(nn.Module):......
   model = torch.load("net.pth")
