Android S - 重复播放按键音（上下左右、OK）

news 来源：原创 2025/6/14 6:23:45

问题描述：

自定义按键音播放，在Launcher上按上下左右和OK 按键发现会播放两次按键提示音，其他的都是正常的。

首先找一下播放的是哪个文件，在下面的README中有定义

frameworks/base/data/sounds/README.txtTouch sounds
------------effects/Effect_Tick.oggold, referenced by AudioPackage[2345].mk OriginalAudio.mkeffects/ogg/Effect_Tick.oggnew, referenced by AudioPackage[6789].mk AudioPackage7alt.mk AudioPackage10.mkeffects/ogg/Effect_Tick_48k.oggoggdec -o temp.wav ogg/Effect_Tick.oggsox temp.wav -r 48000 temp48k.wavoggenc -b 80 -o ogg/Effect_Tick_48k.ogg temp48k.waveffects/wav/Effect_Tick.wavdoes not appear to be related to the other files in any obvious way

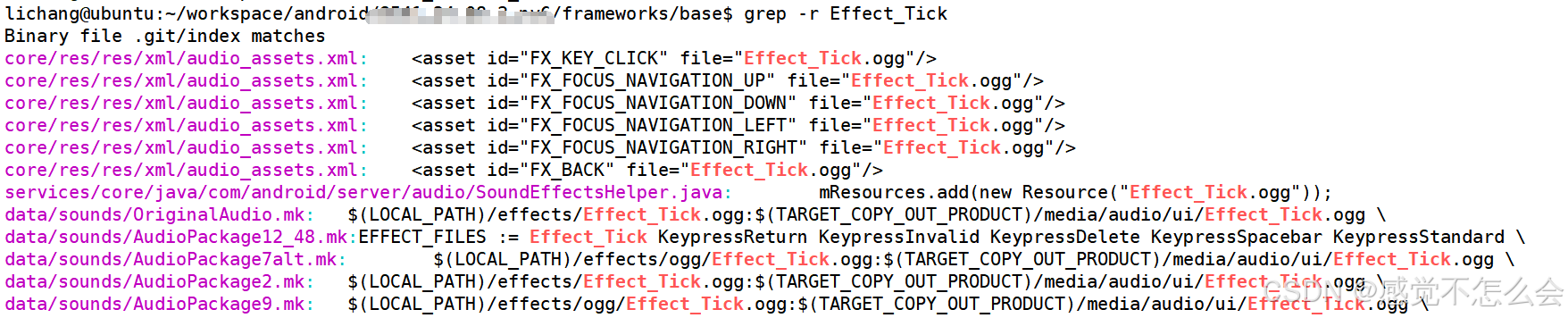

也就是触摸和点击事件都是播放的 Effect_Tick 这个音频文件。直接检索这个在哪里调用。

xml文件是为了替换默认声音资源，并且可以看到很多需要的如上下左右都在这里定义了，并且播放的都是Effect_Tick。

framework/base/core/res/res/xml/audio_assets.xml<!-- Mapping of UI sound effects to audio assets under /system/media/audio/ui.Modify this file to override default sound assets.
--><audio_assets version="1.0"><asset id="FX_KEY_CLICK" file="Effect_Tick.ogg"/><asset id="FX_FOCUS_NAVIGATION_UP" file="Effect_Tick.ogg"/><asset id="FX_FOCUS_NAVIGATION_DOWN" file="Effect_Tick.ogg"/><asset id="FX_FOCUS_NAVIGATION_LEFT" file="Effect_Tick.ogg"/><asset id="FX_FOCUS_NAVIGATION_RIGHT" file="Effect_Tick.ogg"/><asset id="FX_KEYPRESS_STANDARD" file="KeypressStandard.ogg"/><asset id="FX_KEYPRESS_SPACEBAR" file="KeypressSpacebar.ogg"/><asset id="FX_KEYPRESS_DELETE" file="KeypressDelete.ogg"/><asset id="FX_KEYPRESS_RETURN" file="KeypressReturn.ogg"/><asset id="FX_KEYPRESS_INVALID" file="KeypressInvalid.ogg"/><asset id="FX_BACK

再根据 SoundEffectsHelper.java 找到实现播放的方法 void playSoundEffect(int effect, int volume)

其实是在 AudioService.java 定义的

    /** @see AudioManager#playSoundEffect(int) */public void playSoundEffect(int effectType) {playSoundEffectVolume(effectType, -1.0f);}/** @see AudioManager#playSoundEffect(int, float) */public void playSoundEffectVolume(int effectType, float volume) {// do not try to play the sound effect if the system stream is mutedif (isStreamMute(STREAM_SYSTEM)) {return;}if (effectType >= AudioManager.NUM_SOUND_EFFECTS || effectType < 0) {Log.w(TAG, "AudioService effectType value " + effectType + " out of range");return;}sendMsg(mAudioHandler, MSG_PLAY_SOUND_EFFECT, SENDMSG_QUEUE,effectType, (int) (volume * 1000), null, 0);}

根据注释，可以确定是通过 AudioManager 调用的。目前已经确定了播放按键提示音的调用方法。再次检索。

是在这里实现的播放

    @Overridepublic void playSoundEffect(@SoundEffectConstants.SoundEffect int effectId) {checkThread();try {final AudioManager audioManager = getAudioManager();if (mFastScrollSoundEffectsEnabled&& SoundEffectConstants.isNavigationRepeat(effectId)) {audioManager.playSoundEffect(SoundEffectConstants.nextNavigationRepeatSoundEffectId());return;}if (true) {Log.e(TAG, "lichang playSoundEffect avoid click tone");return;}switch (effectId) {case SoundEffectConstants.CLICK:audioManager.playSoundEffect(AudioManager.FX_KEY_CLICK);return;case SoundEffectConstants.NAVIGATION_DOWN:case SoundEffectConstants.NAVIGATION_REPEAT_DOWN:audioManager.playSoundEffect(AudioManager.FX_FOCUS_NAVIGATION_DOWN);return;case SoundEffectConstants.NAVIGATION_LEFT:case SoundEffectConstants.NAVIGATION_REPEAT_LEFT:audioManager.playSoundEffect(AudioManager.FX_FOCUS_NAVIGATION_LEFT);return;case SoundEffectConstants.NAVIGATION_RIGHT:case SoundEffectConstants.NAVIGATION_REPEAT_RIGHT:audioManager.playSoundEffect(AudioManager.FX_FOCUS_NAVIGATION_RIGHT);return;case SoundEffectConstants.NAVIGATION_UP:case SoundEffectConstants.NAVIGATION_REPEAT_UP:audioManager.playSoundEffect(AudioManager.FX_FOCUS_NAVIGATION_UP);return;default:throw new IllegalArgumentException("unknown effect id " + effectId +" not defined in " + SoundEffectConstants.class.getCanonicalName());}} catch (IllegalStateException e) {// Exception thrown by getAudioManager() when mView is nullLog.e(mTag, "FATAL EXCEPTION when attempting to play sound effect: " + e);e.printStackTrace();}}

直接屏蔽掉即可。或者其实从 framework/base/core/res/res/xml/audio_assets.xml 也可以看到有方向键等音频资源，可以通过检索直接定位到位置。

只在framework下检索是因为对日志进行分析，过滤Audiotrack

11:42:03.414 AudioTrack I start mClientAttributionSource.uid:1000 mClientAttributionSource.pid:1013 mSessionId:129 app name:system_server
11:42:03.433 AudioTrack I start mClientAttributionSource.uid:1000 mClientAttributionSource.pid:1013 mSessionId:145 app name:system_server
11:42:03.525 AudioTrack I stop mClientAttributionSource.uid:1000 mClientAttributionSource.pid:1013 mSessionId:129 app name:system_server
11:42:03.553 AudioTrack I stop mClientAttributionSource.uid:1000 mClientAttributionSource.pid:1013 mSessionId:145 app name:system_server
可以看到这两次声音播放都是 system_server 这个进程调用的。

补充，由于是自定义按键音播放的，因此需要实现原生的按键音开关功能，增加条件

if (System.getInt(context.getContentResolver(), System.SOUND_EFFECTS_ENABLED, 1) == 1)
playEffect(context);

结束
