Genio 1200 Evaluation MT8395平台安装ubuntu

官网教程：

Getting Started with Genio 1200 Evaluation Kit — Ubuntu on Genio documentation

Windows PC工具：

Setup Tool Environment (Windows) — IoT Yocto documentation

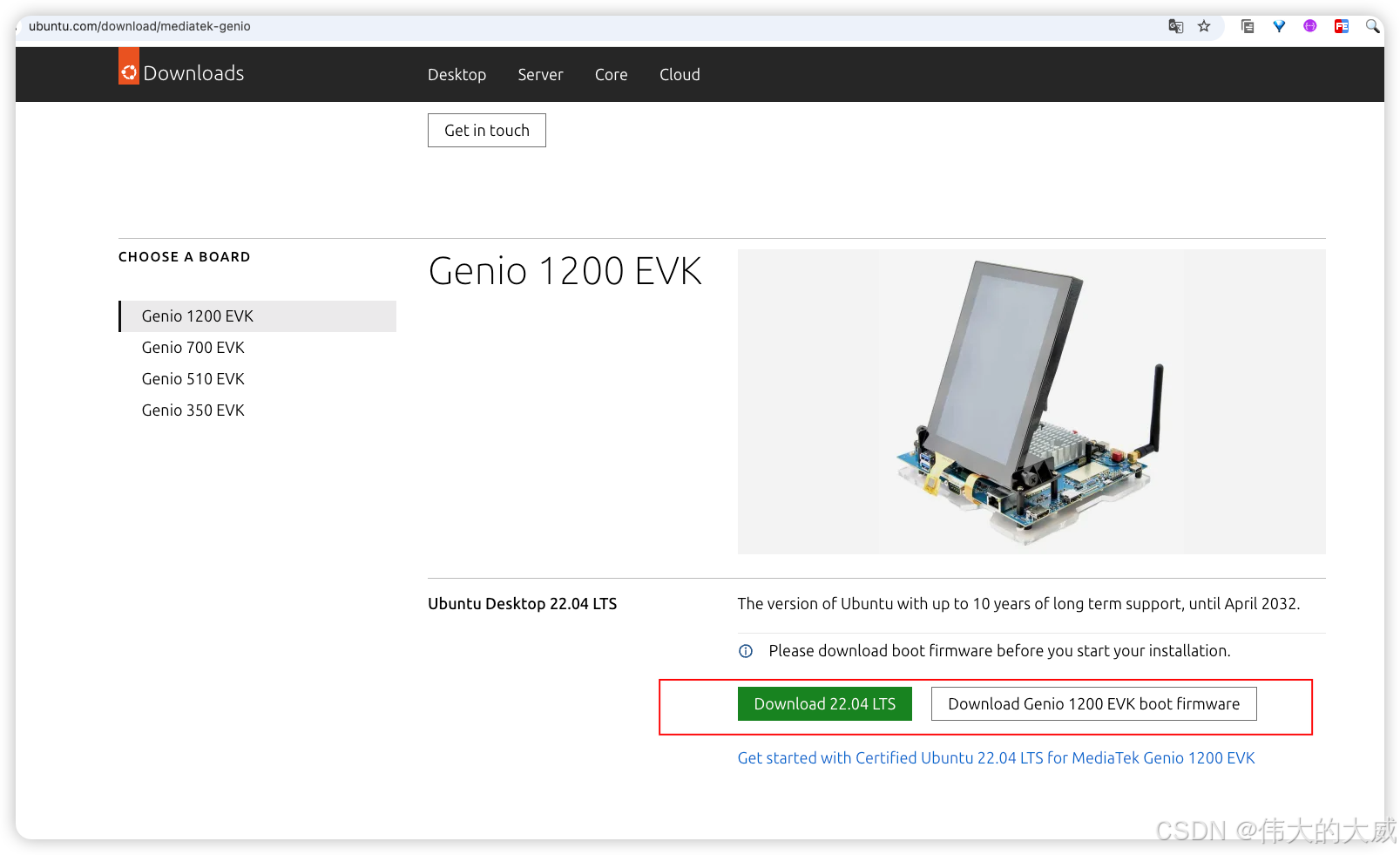

镜像下载地址：

Install Ubuntu on MediaTek Genio | Ubuntu

刷机步骤：

下载镜像

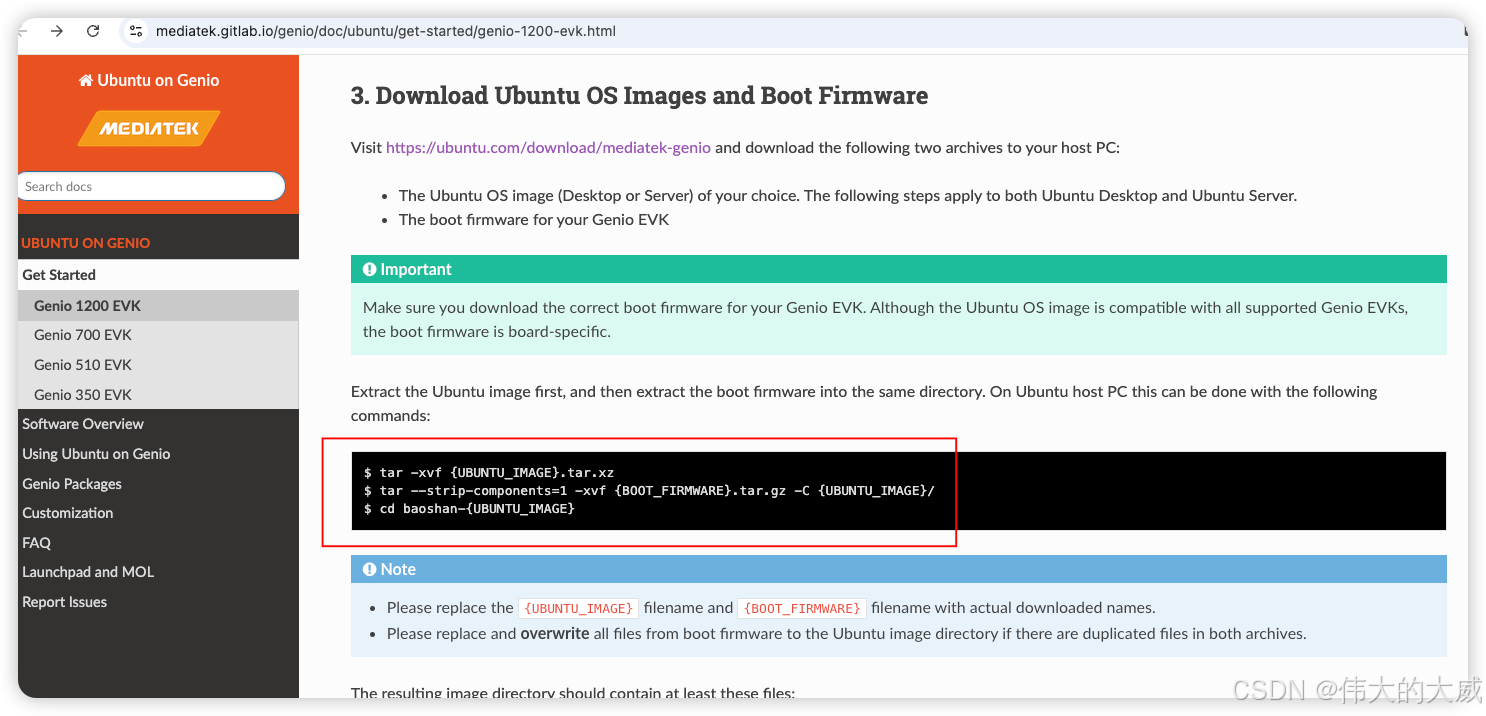

制造镜像包

tar -xvf {UBUNTU_IMAGE}.tar.xz
tar --strip-components=1 -xvf {BOOT_FIRMWARE}.tar.gz -C {UBUNTU_IMAGE}/
cd baoshan-{UBUNTU_IMAGE}

修改镜像配置

由于H0871设备是4GB内存，镜像默认配置8GB内存，刷机后会报错 pte not found。

NOTICE: MT8195 mcupm_init
NOTICE: mtk_init_mcu: Loaded (and reset) mcupm.bin: (122544 bytes)
NOTICE: MT8195 sspm_init
NOTICE: mtk_init_mcu: Loaded (and reset) sspm.bin: (137348 bytes)
NOTICE: MT8195 spm_boot_init
NOTICE: [APUSYS] apusys_init +
NOTICE: [APUSYS] apusys_init -
...
<debug_uart>
U-Boot 2022.10-gf7a807b03b (Dec 23 2024 - 11:06:43 +0000)
CPU: MediaTek MT8395
DRAM: 8 GiB
pte not found
resetting ...
System reset not supported on this platform
### ERROR ### Please RESET the board ###

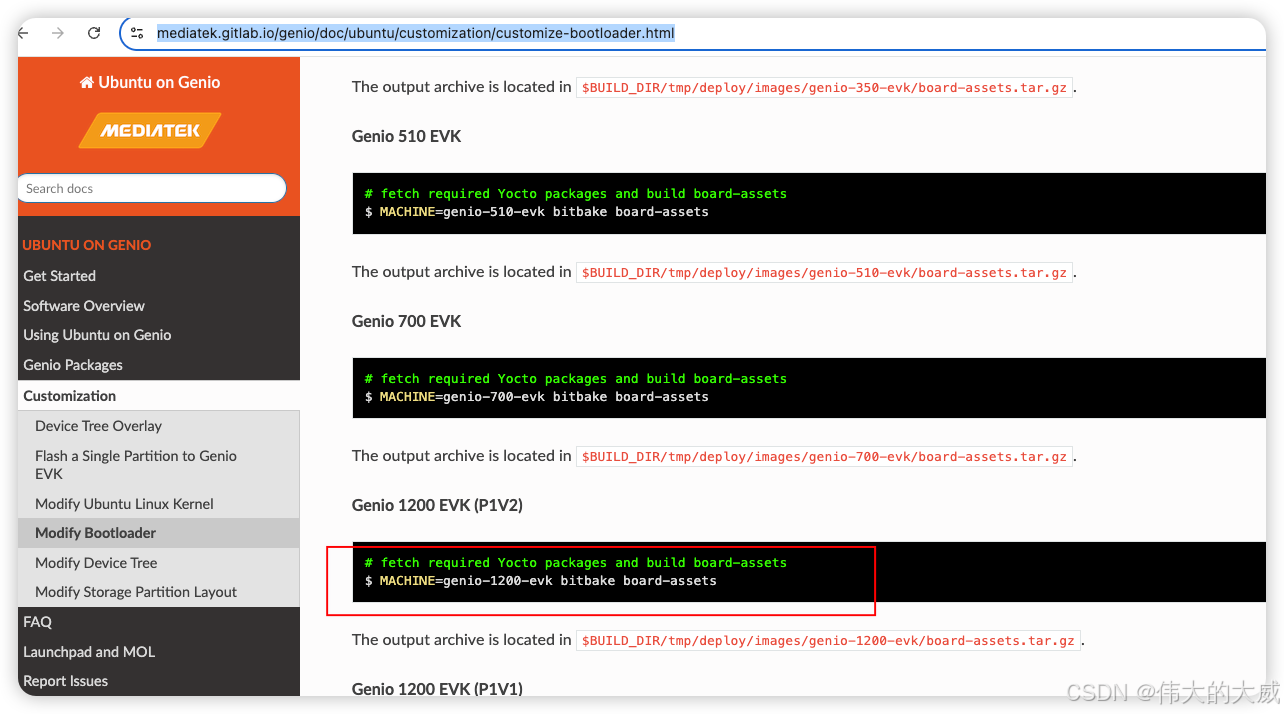

配置修改Bootloader环境：

Modify Bootloader — Ubuntu on Genio documentation

使用aws海外的ubuntu 22.04服务器配置：

构建 Genio EVK 板

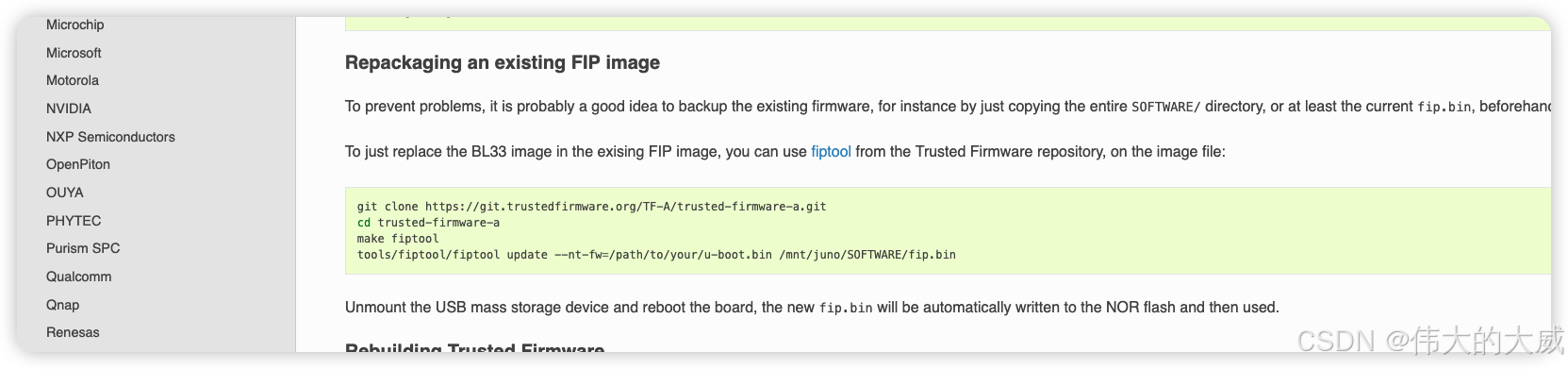

重新打包现有的 FIP 映像

Arm Juno development platform — Das U-Boot unknown version documentation

# 1. 提取u-boot源代码
cd ~/iot-yocto/build
MACHINE=genio-1200-evk devtool modify u-boot
# 2. 进入u-boot源代码目录
cd workspace/sources/u-boot
# 3. 查找并修改内存配置
find . -name "*genio*" -o -name "*mt8395*" | grep -E "\.(dts|dtsi|h)$"
# 4. 修改相关文件中的内存配置
# 例如在设备树中：
# memory@40000000 {
#     device_type = "memory";
#     reg = <0 0x40000000 0 0x100000000>; // 4GB
# };
# 修改为使用 1 0x00000000 来表示4GB
sed -i 's/reg = <0 0x40000000 0 0x100000000>;/reg = <0 0x40000000 1 0x00000000>;/' arch/arm/dts/genio-1200-evk.dts
sed -i 's/reg = <0 0x40000000 0 0x100000000>;/reg = <0 0x40000000 1 0x00000000>;/' arch/arm/dts/genio-1200-evk-ufs.dts
# 5. 提交修改
git add .
git commit -m "Fix memory configuration for 4GB variant"
# 6. 重新构建u-boot
cd ~/iot-yocto/build
MACHINE=genio-1200-evk bitbake u-boot
# 7. 重新构建trusted-firmware-a以生成新的fip.bin
MACHINE=genio-1200-evk bitbake trusted-firmware-a
# 进入trusted-firmware-a目录
cd ~/iot-yocto/trusted-firmware-a
# 使用实际路径更新fip.bin
tools/fiptool/fiptool update \--nt-fw=/home/ubuntu/iot-yocto/build/tmp/deploy/images/genio-1200-evk/u-boot.bin \/home/ubuntu/iot-yocto/fip.bin
# 验证更新成功
tools/fiptool/fiptool info /home/ubuntu/iot-yocto/build/tmp/deploy/images/genio-1200-evk/fip.bin

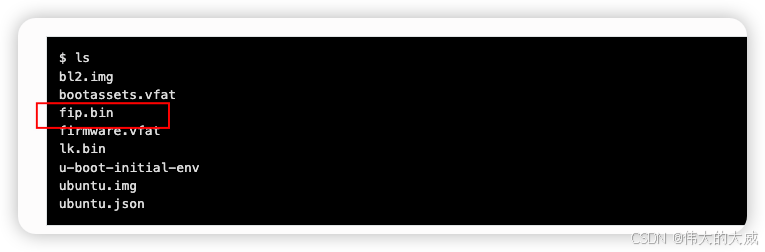

改为4GB后的fip.bin合入刷机文件中

u-boot-initial-env 文件修改8G改为4G

arch=arm
baudrate=921600
board=mt8195
board_name=mt8195
boot_a_script=load ${devtype} ${devnum}:${distro_bootpart} ${scriptaddr} ${prefix}${script}; source ${scriptaddr}
boot_efi_binary=load ${devtype} ${devnum}:${distro_bootpart} ${kernel_addr_r} efi/boot/bootaa64.efi; if fdt addr -q ${fdt_addr_r}; then bootefi ${kernel_addr_r} ${fdt_addr_r};else bootefi ${kernel_addr_r} ${fdtcontroladdr};fi
boot_efi_bootmgr=if fdt addr -q ${fdt_addr_r}; then bootefi bootmgr ${fdt_addr_r};else bootefi bootmgr;fi
boot_extlinux=sysboot ${devtype} ${devnum}:${distro_bootpart} any ${scriptaddr} ${prefix}${boot_syslinux_conf}
boot_net_usb_start=usb start
boot_prefixes=/ /boot/
boot_script_dhcp=boot.scr.uimg
boot_syslinux_conf=extlinux/extlinux.conf
bootcmd=run distro_bootcmd
bootcmd_embedded=bootembedded
bootcmd_mmc0=devnum=0; run mmc_boot
bootcmd_mmc1=devnum=1; run mmc_boot
bootcmd_usb0=devnum=0; run usb_boot
bootdelay=2
cpu=armv8
efi_dtb_prefixes=/ /dtb/ /dtb/current/
env_fdt_path=/config/environment
fdt_addr_r=0x44000000
fdt_resize=10240
fdtfile=genio-1200-evk.dtb
fdtoverlay_addr_r=0x44c00000
kernel_addr_r=0x49000000
load_efi_dtb=load ${devtype} ${devnum}:${distro_bootpart} ${fdt_addr_r} ${prefix}${efi_fdtfile}
loadaddr=0x4c000000
mmc_boot=if mmc dev ${devnum}; then devtype=mmc; run scan_dev_for_boot_part; fi
ramdisk_addr_r=0x46000000
scan_dev_for_boot=echo Scanning ${devtype} ${devnum}:${distro_bootpart}...; for prefix in ${boot_prefixes}; do run scan_dev_for_extlinux; run scan_dev_for_scripts; done;run scan_dev_for_efi;
scan_dev_for_boot_part=part list ${devtype} ${devnum} -bootable devplist; env exists devplist || setenv devplist 1; for distro_bootpart in ${devplist}; do if fstype ${devtype} ${devnum}:${distro_bootpart} bootfstype; then run scan_dev_for_boot; fi; done; setenv devplist
scan_dev_for_extlinux=if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}${boot_syslinux_conf}; then echo Found ${prefix}${boot_syslinux_conf}; run boot_extlinux; echo SCRIPT FAILED: continuing...; fi
scan_dev_for_scripts=for script in ${core_boot_scripts}; do if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}${script}; then echo Found U-Boot script ${prefix}${script}; run boot_a_script; echo SCRIPT FAILED: continuing...; sleep 3; reset; fi; done
scriptaddr=0x40000000
soc=mediatek
splashdevpart=0#bootassets
splashimage=0x4c000000
splashpos=m,m
splashsource=mmc_fs
usb_boot=usb start; if usb dev ${devnum}; then devtype=usb; run scan_dev_for_boot_part; fi
vendor=mediatek
dtb_path=/FIRMWARE/mediatek/genio-1200-evk/
efi_dtb_prefixes=${dtb_path} / /dtb/ /dtb/current/
check_fastboot_entry=setenv fastboot_entry 0
boot_conf=#conf-ddr-4g.dtbo
list_dtbo=ddr-4g.dtbo
storage=mmc
storage_dev=0
boot_scripts=fitImage
boot_targets=mmc0
bootargs=console=ttyS0,921600 console=tty1 mem=4G
core_boot_scripts=boot.scr.fit boot.scr
distro_bootcmd=for target in ${boot_targets}; do if test "${target}" != "embedded"; then dtbprobe ${storage} ${storage_dev} ${dtb_path}; fi; run bootcmd_${target}; done
scan_dev_for_efi=run boot_efi_bootmgr;if test -e ${devtype} ${devnum}:${distro_bootpart} efi/boot/bootaa64.efi; then echo Found EFI removable media binary efi/boot/bootaa64.efi; run boot_efi_binary; echo EFI LOAD FAILED: continuing...; fi
ethaddr=00:55:7b:b5:7d:f7

连接下载线

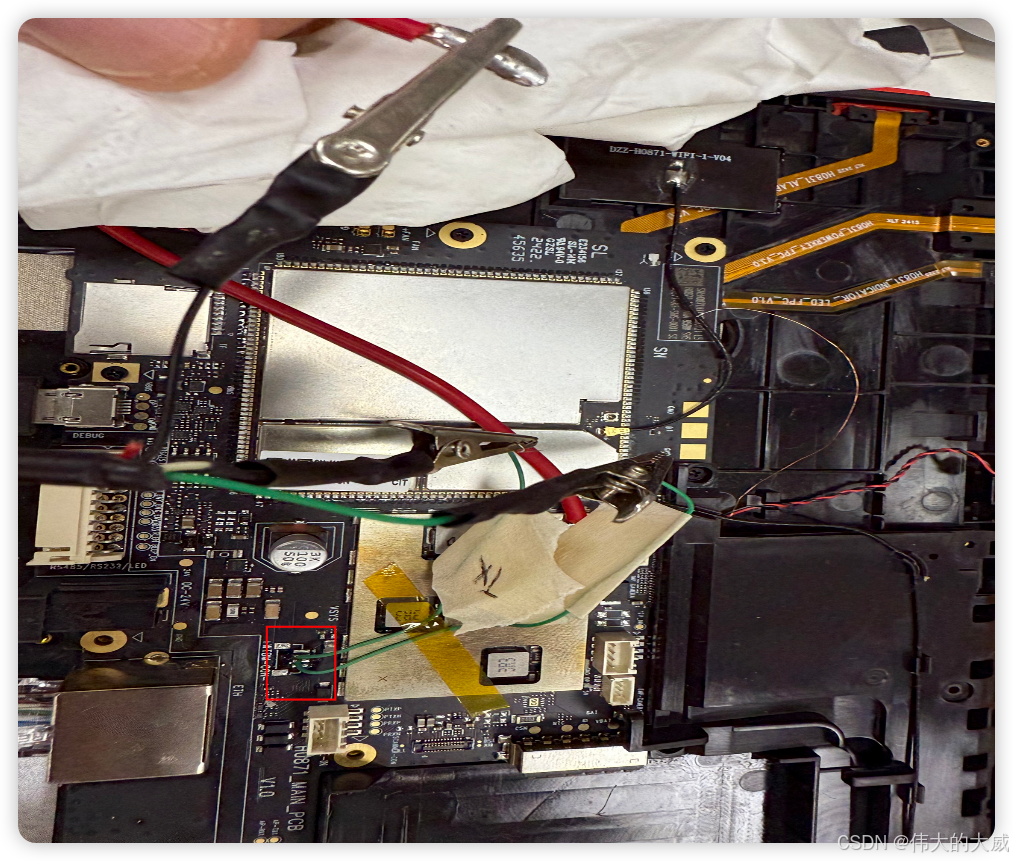

串口飞线

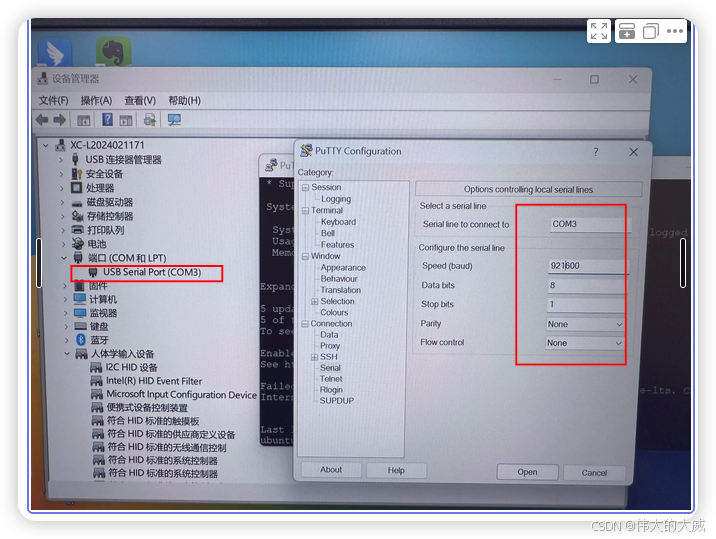

连接串口到PC

执行刷机命令

genio-flash

强制下载按钮

先按住强制下载按钮，再通电

开始刷机等待刷机成功

EFI stub: Booting Linux Kernel... EFI stub: EFI_RNG_PROTOCOL unavailable EFI stub: Using DTB from configuration table EFI stub: Exiting boot services... [ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x412fd050] [ 0.000000] Linux version 5.15.0-1037-mtk (buildd@bos03-arm64-100) (gcc (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0, GNU ld (GNU Binutils for Ubuntu) 2.38) #44-Ubuntu SMP PREEMPT Fri Feb 21 03:10:36 UTC 2025 (Ubuntu 5.15.0-1037.44-mtk 5.15.168) [ 0.000000] Machine model: MediaTek Genio 1200 EVK-P1V2-EMMC [ 0.000000] efi: EFI v2.90 by Das U-Boot [ 0.000000] efi: ESRT=0xfe9c6040 RTPROP=0xfe9c8040 SMBIOS=0xfe9c4000 MOKvar=0xfe9b9000 MEMRESERVE=0xfe9aa040 [ 0.000000] secureboot: Secure boot disabled [ 0.000000] esrt: Reserving ESRT space from 0x00000000fe9c6040 to 0x00000000fe9c6118. [ 0.000000] Reserved memory: created DMA memory pool at 0x0000000050000000, size 41 MiB [ 0.000000] OF: reserved mem: initialized node scp_mem_region, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x0000000053000000, size 20 MiB [ 0.000000] OF: reserved mem: initialized node vpu-reserve-memory, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x0000000060000000, size 17 MiB [ 0.000000] OF: reserved mem: initialized node snd_dma_mem_region, compatible id shared-dma-pool [ 0.000000] Reserved memory: created DMA memory pool at 0x0000000062000000, size 20 MiB [ 0.000000] OF: reserved mem: initialized node apu-reserve-memory, compatible id shared-dma-pool [ 0.000000] NUMA: No NUMA configuration found [ 0.000000] NUMA: Faking a node at [mem 0x0000000040000000-0x000000013fffffff] [ 0.000000] NUMA: NODE_DATA [mem 0x13f795140-0x13f797fff] [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000040000000-0x00000000ffffffff] [ 0.000000] DMA32 empty [ 0.000000] Normal [mem 0x0000000100000000-0x000000013fffffff] [ 0.000000] Device empty [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000040000000-0x00000000431fffff] [ 0.000000] node 0: [mem 0x0000000043200000-0x0000000043dfffff] [ 0.000000] node 0: [mem 0x0000000043e00000-0x000000004fffffff] [ 0.000000] node 0: [mem 0x0000000050000000-0x00000000528fffff] [ 0.000000] node 0: [mem 0x0000000052900000-0x00000000545fffff] [ 0.000000] node 0: [mem 0x0000000054600000-0x00000000547fffff] [ 0.000000] node 0: [mem 0x0000000054800000-0x000000005fffffff] [ 0.000000] node 0: [mem 0x0000000060000000-0x00000000610fffff] [ 0.000000] node 0: [mem 0x0000000061100000-0x00000000fe9b8fff] [ 0.000000] node 0: [mem 0x00000000fe9b9000-0x00000000fe9b9fff] [ 0.000000] node 0: [mem 0x00000000fe9ba000-0x00000000fe9c3fff] [ 0.000000] node 0: [mem 0x00000000fe9c4000-0x00000000fe9c4fff] [ 0.000000] node 0: [mem 0x00000000fe9c5000-0x00000000fe9c7fff] [ 0.000000] node 0: [mem 0x00000000fe9c8000-0x00000000fe9c8fff] [ 0.000000] node 0: [mem 0x00000000fe9c9000-0x00000000fe9cbfff] [ 0.000000] node 0: [mem 0x00000000fe9cc000-0x00000000fe9cdfff] [ 0.000000] node 0: [mem 0x00000000fe9ce000-0x00000000fe9cefff] [ 0.000000] node 0: [mem 0x00000000fe9cf000-0x00000000fe9d2fff] [ 0.000000] node 0: [mem 0x00000000fe9d3000-0x00000000ffeeffff] [ 0.000000] node 0: [mem 0x00000000ffef0000-0x00000000ffefffff] [ 0.000000] node 0: [mem 0x00000000fff00000-0x000000013fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000013fffffff] [ 0.000000] cma: Reserved 32 MiB at 0x00000000fc800000 [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: Trusted OS migration not required [ 0.000000] psci: SMC Calling Convention v1.2 [ 0.000000] percpu: Embedded 31 pages/cpu s87448 r8192 d31336 u126976 [ 0.000000] Detected VIPT I-cache on CPU0 [ 0.000000] CPU features: detected: GIC system register CPU interface [ 0.000000] CPU features: detected: Virtualization Host Extensions [ 0.000000] CPU features: kernel page table isolation forced ON by KASLR [ 0.000000] CPU features: detected: Kernel page table isolation (KPTI) [ 0.000000] CPU features: detected: Qualcomm erratum 1009, or ARM erratum 1286807, 2441009 [ 0.000000] CPU features: detected: ARM errata 1165522, 1319367, or 1530923 [ 0.000000] alternatives: patching kernel code [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 1032192 [ 0.000000] Policy zone: Normal [ 0.000000] Kernel command line: BOOT_IMAGE=/boot/vmlinuz-5.15.0-1037-mtk root=LABEL=writable ro console=tty1 console=ttyAMA0 console=ttyS0,921600 console=tty1 vt.handoff=2 [ 0.000000] Unknown kernel command line parameters "BOOT_IMAGE=/boot/vmlinuz-5.15.0-1037-mtk", will be passed to user space. [ 0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear) [ 0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear) [ 0.000000] mem auto-init: stack:off, heap alloc:on, heap free:off [ 0.000000] software IO TLB: mapped [mem 0x00000000ed500000-0x00000000f1500000] (64MB) [ 0.000000] Memory: 3779260K/4194304K available (19200K kernel code, 5108K rwdata, 16524K rodata, 11200K init, 1178K bss, 382276K reserved, 32768K cma-reserved) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1 [ 0.000000] ftrace: allocating 62192 entries in 243 pages [ 0.000000] ftrace: allocated 243 pages with 6 groups [ 0.000000] trace event string verifier disabled [ 0.000000] rcu: Preemptible hierarchical RCU implementation. [ 0.000000] rcu: RCU event tracing is enabled. [ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=256 to nr_cpu_ids=8. [ 0.000000] Trampoline variant of Tasks RCU enabled. [ 0.000000] Rude variant of Tasks RCU enabled. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies. [ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=8 [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode [ 0.000000] GICv3: 864 SPIs implemented [ 0.000000] GICv3: 0 Extended SPIs implemented [ 0.000000] GICv3: Distributor has no Range Selector support [ 0.000000] Root IRQ handler: gic_handle_irq [ 0.000000] GICv3: 16 PPIs implemented [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c040000 [ 0.000000] GICv3: GIC: PPI partition interrupt-partition-0[0] { /cpus/cpu@0[0] /cpus/cpu@100[1] /cpus/cpu@200[2] /cpus/cpu@300[3] } [ 0.000000] GICv3: GIC: PPI partition interrupt-partition-1[1] { /cpus/cpu@400[4] /cpus/cpu@500[5] /cpus/cpu@600[6] /cpus/cpu@700[7] } [ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns [ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns [ 0.001556] Console: colour dummy device 80x25 [ 0.002017] printk: console [tty1] enabled [ 0.002105] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=52000) [ 0.002122] pid_max: default: 32768 minimum: 301 [ 0.002255] LSM: Security Framework initializing [ 0.002293] landlock: Up and running. [ 0.002300] Yama: becoming mindful. [ 0.002377] AppArmor: AppArmor initialized [ 0.002531] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.002556] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.004599] rcu: Hierarchical SRCU implementation. [ 0.008414] Remapping and enabling EFI services. [ 0.009003] smp: Bringing up secondary CPUs ... [ 0.009606] Detected VIPT I-cache on CPU1 [ 0.009641] GICv3: CPU1: found redistributor 100 region 0:0x000000000c060000 [ 0.009672] CPU1: Bon 0:0x000000000c0a0000 [ 0.011771] CPU3: Booted secondary processor 0x0000000300 [0x412fd050] [ 0.012845] CPU features: detected: Spectre-v4 [ 0.012850] CPU features: detected: Spectre-BHB [ 0.012854] CPU features: detected: SSBS not fully self-synchronizing [ 0.012856] Detected PIPT I-cache on CPU4 [ 0.012874] GICv3: CPU4: found redistributor 400 region 0:0x000000000c0c0000 [ 0.012893] CPU4: Booted secondary processor 0x0000000400 [0x411fd410] [ 0.013872] Detected PIPT I-cache on CPU5 [ 0.013893] GICv3: CPU5: found redistributor 500 region 0:0x000000000c0e0000 [ 0.013911] CPU5: Booted secondary processor 0x0000000500 [0x411fd410] [ 0.014932] Detected PIPT I-cache on CPU6 [ 0.014953] GICv3: CPU6: found redistributor 600 region 0:0x000000000c100000 [ 0.014971] CPU6: Booted secondary processor 0x0000000600 [0x411fd410] [ 0.015983] Detected PIPT I-cache on CPU7 [ 0.016005] GICv3: CPU7: found redistributor 700 region 0:0x000000000c120000 [ 0.016022] CPU7: Booted secondary processor 0x0000000700 [0x411fd410] [ 0.016117] smp: Brought up 1 node, 8 CPUs [ 0.016347] SMP: Total of 8 processors activated. [ 0.016362] CPU features: detected: 32-bit EL0 Support [ 0.016375] CPU features: detected: Data cache clean to the PoU not required for I/D coherence [ 0.016394] CPU features: detected: Common not Private translations [ 0.016408] CPU features: detected: CRC32 instructions [ 0.016421] CPU features: detected: Data cache clean to Point of Persistence [ 0.016458] CPU features: detected: RCpc load-acquire (LDAPR) [ 0.016472] CPU features: detected: LSE atomic instructions [ 0.016486] CPU features: detected: Privileged Access Never [ 0.016499] CPU features: detected: RAS Extension Support [ 0.016513] CPU features: detected: Speculative Store Bypassing Safe (SSBS) [ 0.052083] CPU: All CPU(s) started at EL2 [ 0.054999] devtmpfs: initialized [ 0.063713] KASLR disabled due to lack of seed [ 0.063881] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns [ 0.063915] futex hash table entries: 2048 (order: 5, 131072 bytes, linear) [ 0.064378] pinctrl core: initialized pinctrl subsystem [ 0.064733] SMBIOS 3.0 present. [ 0.064744] DMI: Unknown Unknown Product/Unknown Product, BIOS 2022.10 10/01/2022 [ 0.065125] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.066689] DMA: preallocated 512 KiB GFP_KERNEL pool for atomic allocations [ 0.066869] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations [ 0.067125] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations [ 0.067174] audit: initializing netlink subsys (disabled) [ 0.067334] audit: type=2000 audit(0.064:1): state=initialized audit_enabled=0 res=1 [ 0.068248] thermal_sys: Registered thermal governor 'fair_share' [ 0.068254] thermal_sys: Registered thermal governor 'bang_bang' [ 0.068265] thermal_sys: Registered thermal governor 'step_wise' [ 0.068273] thermal_sys: Registered thermal governor 'user_space' [ 0.068280] thermal_sys: Registered thermal governor 'power_allocator' [ 0.068439] thermal thermal_zone1: power_allocator: sustainable_power will be estimated [ 0.068487] thermal thermal_zone2: power_allocator: sustainable_power will be estimated [ 0.068521] thermal thermal_zone3: power_allocator: sustainable_power will be estimated [ 0.068570] thermal thermal_zone4: power_allocator: sustainable_power will be estimated [ 0.068609] thermal thermal_zone5: power_allocator: sustainable_power will be estimated [ 0.068647] thermal thermal_zone6: power_allocator: sustainable_power will be estimated [ 0.068685] thermal thermal_zone7: power_allocator: sustainable_power will be estimated [ 0.068727] thermal thermal_zone8: power_allocator: sustainable_power will be estimated [ 0.068765] thermal thermal_zone9: power_allocator: sustainable_power will be estimated [ 0.068803] thermal thermal_zone10: power_allocator: sustainable_power will be estimated [ 0.068835] thermal thermal_zone11: power_allocator: sustainable_power will be estimated [ 0.068877] thermal thermal_zone12: power_allocator: sustainable_power will be estimated [ 0.068914] thermal thermal_zone13: power_allocator: sustainable_power will be estimated [ 0.068952] thermal thermal_zone14: power_allocator: sustainable_power will be estimated [ 0.068998] thermal thermal_zone15: power_allocator: sustainable_power will be estimated [ 0.069042] thermal thermal_zone16: power_allocator: sustainable_power will be estimated [ 0.069089] thermal thermal_zone17: power_allocator: sustainable_power will be estimated [ 0.069125] cpuidle: using governor ladder [ 0.069140] cpuidle: using governor menu [ 0.069259] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers. [ 0.069403] ASID allocator initialised with 32768 entries [ 0.070189] Serial: AMBA PL011 UART driver [ 0.115667] platform 1c300000.hdmi: Fixing up cyclic dependency with 1c112000.disp_dpi1 [ 0.123261] HugeTLB registered 1.00 GiB page size, pre-allocated 0 pages [ 0.123273] HugeTLB registered 32.0 MiB page size, pre-allocated 0 pages [ 0.123278] HugeTLB registered 2.00 MiB page size, pre-allocated 0 pages [ 0.123283] HugeTLB registered 64.0 KiB page size, pre-allocated 0 pages [ 0.128853] fbcon: Taking over console [ 0.128885] ACPI: Interpreter disabled. [ 0.130832] iommu: Default domain type: Translated [ 0.130846] iommu: DMA domain TLB invalidation policy: strict mode [ 0.131521] SCSI subsystem initialized [ 0.131721] vgaarb: loaded [ 0.131803] usbcore: registered new interface driver usbfs [ 0.131828] usbcore: registered new interface driver hub [ 0.131847] usbcore: registered new device driver usb [ 0.132231] pps_core: LinuxPPS API ver. 1 registered [ 0.132237] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <[e-mail]> [ 0.132246] PTP clock support registered [ 0.132520] EDAC MC: Ver: 3.0.0 [ 0.133301] Registered efivars operations [ 0.134763] Advanced Linux Sound Architecture Driver Initialized. [ 0.135059] NetLabel: Initializing [ 0.135066] NetLabel: domain hash size = 128 [ 0.135071] NetLabel: protocols = UNLABELED CIPSOv4 CALIPSO [ 0.135112] NetLabel: unlabeled traffic allowed by default [ 0.135430] clocksource: Switched to clocksource arch_sys_counter [ 0.171037] VFS: Disk quotas dquot_6.6.0 [ 0.171086] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes) [ 0.171500] AppArmor: AppArmor Filesystem Enabled [ 0.171550] pnp: PnP ACPI: disabled [ 0.174956] NET: Registered PF_INET protocol family [ 0.175080] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear) [ 0.176435] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear) [ 0.176487] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.176526] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear) [ 0.176628] TCP bind hash table entries: 32768 (order: 7, 524288 bytes, linear) [ 0.176704] TCP: Hash tables configured (established 32768 bind 32768) [ 0.176853] MPTCP token hash table entries: 4096 (order: 4, 98304 bytes, linear) [ 0.176903] UDP hash table entries: 2048 (order: 4, 65536 bytes, linear) [ 0.176931] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes, linear) [ 0.177056] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.177073] NET: Registered PF_XDP protocol family [ 0.177081] PCI: CLS 0 bytes, default 64 [ 0.177410] Trying to unpack rootfs image as initramfs... [ 0.186348] hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 counters available [ 0.186606] hw perfevents: enabled with armv8_cortex_a78 PMU driver, 7 counters available [ 0.187075] kvm [1]: IPA Size Limit: 40 bits [ 0.187093] kvm [1]: GICv3: no GICV resource entry [ 0.187098] kvm [1]: disabling GICv2 emulation [ 0.187115] kvm [1]: GIC system register CPU interface enabled [ 0.187269] kvm [1]: vgic interrupt IRQ18 [ 0.187446] kvm [1]: VHE mode initialized successfully [ 0.188359] Initialise system trusted keyrings [ 0.188402] Key type blacklist registered [ 0.188553] workingset: timestamp_bits=42 max_order=20 bucket_order=0 [ 0.191226] zbud: loaded [ 0.191996] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.192364] fuse: init (API version 7.34) [ 0.192693] integrity: Platform Keyring initialized [ 0.214237] Key type asymmetric registered [ 0.214247] Asymmetric key parser 'x509' registered [ 0.214295] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 241) [ 0.214408] io scheduler mq-deadline registered [ 0.220199] mediatek-mipi-tx 11c80000.mipi-dphy0: can't get nvmem_cell_get, ignore it [ 0.264773] mt-pmic-pwrap 10024000.pwrap: there is not valid maps for state default [ 0.276846] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled [ 0.278517] printk: console [ttyS0] disabled [ 0.298700] 11001100.serial: ttyS0 at MMIO 0x11001100 (irq = 288, base_baud = 1625000) is a ST16650V2 [ 0.494524] printk: console [ttyS0] enabled [ 0.515670] 11001200.serial: ttyS1 at MMIO 0x11001200 (irq = 289, base_baud = 1625000) is a ST16650V2 [ 0.518148] SuperH (H)SCI(F) driver initialized [ 0.519622] msm_serial: driver initialized [ 0.528331] loop: module loaded [ 0.542822] vcn33_2_bt: Bringing 3500000uV into 3300000-3300000uV [ 0.550203] SPI driver altr_a10sr has no spi_device_id for altr,a10sr [ 0.560931] tun: Universal TUN/TAP device driver, 1.6 [ 0.563159] PPP generic driver version 2.4.2 [ 0.564345] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver [ 0.565182] ehci-pci: EHCI PCI platform driver [ 0.565772] ehci-orion: EHCI orion driver [ 0.566437] ehci-exynos: EHCI Exynos driver [ 0.567098] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver [ 0.567901] ohci-pci: OHCI PCI platform driver [ 0.568480] ohci-exynos: OHCI Exynos driver [ 0.569145] uhci_hcd: USB Universal Host Controller Interface driver [ 0.570345] mousedev: PS/2 mouse device common for all mice [ 0.572021] mt6397-rtc mt6359-rtc: registered as rtc0 [ 0.572714] mt6397-rtc mt6359-rtc: setting system clock to 2010-01-01T00:01:46 UTC (1262304106) [ 0.574750] i2c_dev: i2c /dev entries driver [ 0.584518] mt6360-regulator mt6360-regulator.6.auto: assign downstream regulator desc [ 0.585814] mt6360,buck1: supplied by regulator-dummy [ 0.606369] mt6360,buck2: supplied by regulator-dummy [ 0.627031] mt6360,ldo6: supplied by mt6360,buck2 [ 0.636922] mt6360,ldo7: supplied by mt6360,buck2 [ 0.647866] mt6360,ldo1: supplied by regulator-dummy [ 0.658912] mt6360,ldo2: supplied by regulator-dummy [ 0.669326] mt6360,ldo3: supplied by regulator-dummy [ 0.679706] mt6360,ldo5: supplied by regulator-dummy [ 0.688876] platform mt6360-tcpc.7.auto: Fixing up cyclic dependency with 11201000.usb [ 0.692028] Goodix-TS 3-005d: supply VDDIO not found, using dummy regulator [ 0.791585] Goodix-TS 3-005d: i2c test failed attempt 1: -6 [ 0.819574] Goodix-TS 3-005d: i2c test failed attempt 2: -6 [ 0.847437] Goodix-TS 3-005d: I2C communication failure: -6 [ 0.851839] mt6360-chg mt6360-chg.4.auto: DMA mask not set [ 0.868426] mt6360-chg mt6360-chg.4.auto: assign downstream regulator desc [ 0.871393] mtk-soc-temp-lvts 1100b000.lvts: [lvts_cal] golden_temp = 60 [ 0.872268] mtk-soc-temp-lvts 1100b000.lvts: [lvts_cal] num:g_count:g_count_rc 0:35474:2452 1:35494:0 2:35422:2477 3:35437:0 4:35261:2462 5:35235:0 6:35218:0 7:35206:0 8:35353:2450 9:35294:0 10:35316:2448 11:35367:0 12:35435:2473 13:35418:0 14:35425:0 15:35174:2445 16:35130:0 [ 0.876991] mtk-soc-temp-lvts 1100b000.lvts: set_polling_speed 0, LVTSMONCTL1_0= 0x10000c,LVTSMONCTL2_0= 0x10001 [ 0.878275] mtk-soc-temp-lvts 1100b000.lvts: set_hw_filter 0, LVTSMSRCTL0_0= 0x492 [ 0.879228] mtk-soc-temp-lvts 1100b000.lvts: lvts0: read all 2 sensors in 1120 us, one in 444 us [ 0.880362] mtk-soc-temp-lvts 1100b000.lvts: set_polling_speed 1, LVTSMONCTL1_0= 0x10000c,LVTSMONCTL2_0= 0x10001 [ 0.881643] mtk-soc-temp-lvts 1100b000.lvts: set_hw_filter 1, LVTSMSRCTL0_0= 0x492 [ 0.882594] mtk-soc-temp-lvts 1100b000.lvts: lvts1: read all 2 sensors in 1120 us, one in 444 us [ 0.883728] mtk-soc-temp-lvts 1100b000.lvts: set_polling_speed 2, LVTSMONCTL1_0= 0x10000c,LVTSMONCTL2_0= 0x10001 [ 0.885008] mtk-soc-temp-lvts 1100b000.lvts: set_hw_filter 2, LVTSMSRCTL0_0= 0x492 [ 0.885960] mtk-soc-temp-lvts 1100b000.lvts: lvts2: read all 4 sensors in 2240 us, one in 444 us [ 0.887086] mtk-soc-temp-lvts 1100b000.lvts: set_polling_speed 3, LVTSMONCTL1_0= 0x10000c,LVTSMONCTL2_0= 0x10001 [ 0.888373] mtk-soc-temp-lvts 1100b000.lvts: set_hw_filter 3, LVTSMSRCTL0_0= 0x492 [ 0.889324] mtk-soc-temp-lvts 1100b000.lvts: lvts3: read all 2 sensors in 1120 us, one in 444 us [ 0.890452] mtk-soc-temp-lvts 1100b000.lvts: set_polling_speed 4, LVTSMONCTL1_0= 0x10000c,LVTSMONCTL2_0= 0x10001 [ 0.891738] mtk-soc-temp-lvts 1100b000.lvts: set_hw_filter 4, LVTSMSRCTL0_0= 0x492 [ 0.892690] mtk-soc-temp-lvts 1100b000.lvts: lvts4: read all 2 sensors in 1120 us, one in 444 us [ 0.893817] mtk-soc-temp-lvts 1100b000.lvts: set_polling_speed 5, LVTSMONCTL1_0= 0x10000c,LVTSMONCTL2_0= 0x10001 [ 0.895096] mtk-soc-temp-lvts 1100b000.lvts: set_hw_filter 5, LVTSMSRCTL0_0= 0x492 [ 0.896053] mtk-soc-temp-lvts 1100b000.lvts: lvts5: read all 3 sensors in 1680 us, one in 444 us [ 0.897180] mtk-soc-temp-lvts 1100b000.lvts: set_polling_speed 6, LVTSMONCTL1_0= 0x10000c,LVTSMONCTL2_0= 0x10001 [ 0.898459] mtk-soc-temp-lvts 1100b000.lvts: set_hw_filter 6, LVTSMSRCTL0_0= 0x492 [ 0.899410] mtk-soc-temp-lvts 1100b000.lvts: lvts6: read all 2 sensors in 1120 us, one in 444 us [ 0.900521] mtk-soc-temp-lvts 1100b000.lvts: set_tc_hw_reboot_threshold: LVTS0, the dominator sensing point= 1 [ 0.901781] mtk-soc-temp-lvts 1100b000.lvts: set_tc_hw_reboot_threshold: LVTS1, the dominator sensing point= 0 [ 0.903039] mtk-soc-temp-lvts 1100b000.lvts: set_tc_hw_reboot_threshold: LVTS2, the dominator sensing point= 0 [ 0.904301] mtk-soc-temp-lvts 1100b000.lvts: set_tc_hw_reboot_threshold: LVTS3, the dominator sensing point= 0 [ 0.905560] mtk-soc-temp-lvts 1100b000.lvts: set_tc_hw_reboot_threshold: LVTS4, the dominator sensing point= 1 [ 0.906818] mtk-soc-temp-lvts 1100b000.lvts: set_tc_hw_reboot_threshold: LVTS5, the dominator sensing point= 1 [ 0.908080] mtk-soc-temp-lvts 1100b000.lvts: set_tc_hw_reboot_threshold: LVTS6, the dominator sensing point= 0 [ 0.910596] mtk-wdt 10007000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0) [ 0.912150] device-mapper: core: CONFIG_IMA_DISABLE_HTABLE is disabled. Duplicate IMA measurements will not be recorded in the IMA log. [ 0.913762] device-mapper: uevent: version 1.0.3 [ 0.914491] device-mapper: ioctl: 4.45.0-ioctl (2021-03-22) initialised: [e-mail] [ 0.916332] cpu cpu0: supply cpu not found, using dummy regulator [ 0.917186] cpu cpu1: supply cpu not found, using dummy regulator [ 0.918018] cpu cpu2: supply cpu not found, using dummy regulator [ 0.918857] cpu cpu3: supply cpu not found, using dummy regulator [ 0.919710] cpu cpu4: supply cpu not found, using dummy regulator [ 0.920572] cpu cpu5: supply cpu not found, using dummy regulator [ 0.921397] cpu cpu6: supply cpu not found, using dummy regulator [ 0.922219] cpu cpu7: supply cpu not found, using dummy regulator [ 0.926258] cpu cpu0: EM: created perf domain [ 0.927167] cpu cpu4: EM: created perf domain [ 0.932641] mtk-msdc 11240000.mmc: supply dvfsrc-vcore not found, using dummy regulator [ 0.933918] ledtrig-cpu: registered to indicate activity on CPUs [ 0.934246] mtk-msdc 11230000.mmc: supply dvfsrc-vcore not found, using dummy regulator [ 0.935960] SMCCC: SOC_ID: ID = jep106:0426:8195 Revision = 0x00000000 [ 0.939291] mt6359-sound mt6359-sound: mt6359_parse_dt() failed to read dmic-mode, use default (0) [ 0.940962] drop_monitor: Initializing network drop monitor service [ 0.941962] NET: Registered PF_INET6 protocol family [ 1.035215] Freeing initrd memory: 66112K [ 1.062645] Segment Routing with IPv6 [ 1.063320] In-situ OAM (IOAM) with IPv6 [ 1.064050] NET: Registered PF_PACKET protocol family [ 1.065110] Key type dns_resolver registered [ 1.067753] registered taskstats version 1 [ 1.069208] Loading compiled-in X.509 certificates [ 1.073005] Loaded X.509 cert 'Build time autogenerated kernel key: e311b70717bf1c9e7777ce6ded9fefe0cf09aa77' [ 1.077621] Loaded X.509 cert 'Canonical Ltd. Live Patch Signing: 14df34d1a87cf37625abec039ef2bf521249b969' [ 1.083349] Loaded X.509 cert 'Canonical Ltd. Kernel Module Signing: 88f752e560a1e0737e31163a466ad7b70a850c19' [ 1.084666] blacklist: Loading compiled-in revocation X.509 certificates [ 1.085661] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing: 61482aa2830d0ab2ad5af10b7250da9033ddcef0' [ 1.086539] mtk-msdc 11230000.mmc: phase: [map:00000000fffffc0f] [maxlen:22] [final:21] [ 1.087037] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing (2017): 242ade75ac4a15e50d50c84b0d45ff3eae707a03' [ 1.089383] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing (ESM 2018): 365188c1d374d6b07c3c8f240f8ef722433d6a8b' [ 1.090870] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing (2019): c0746fd6c5da3ae827864651ad66ae47fe24b3e8' [ 1.092310] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing (2021 v1): a8d54bbb3825cfb94fa13c9f8a594a195c107b8d' [ 1.093190] mtk-msdc 11230000.mmc: phase: [map:00000000ffffff80] [maxlen:25] [final:19] [ 1.093787] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing (2021 v2): 4cf046892d6fd3c9a5b03f98d845f90851dc6a8c' [ 1.094683] mtk-msdc 11230000.mmc: Final PAD_DS_TUNE: 0x14c11 [ 1.096197] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing (2021 v3): 100437bb6de6e469b581e61cd66bce3ef4ed53af' [ 1.097060] mmc0: new HS400 MMC card at address 0001 [ 1.098230] Loaded X.509 cert 'Canonical Ltd. Secure Boot Signing (Ubuntu Core 2019): c1d57b8f6b743f23ee41f4f7ee292f06eecadfb9' [ 1.101296] zswap: loaded using pool lzo/zbud [ 1.101332] mmcblk0: mmc0:0001 A3A561 57.6 GiB [ 1.104421] Key type .fscrypt registered [ 1.104951] Key type fscrypt-provisioning registered [ 1.107242] mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 [ 1.109911] mmcblk0boot0: mmc0:0001 A3A561 4.00 MiB [ 1.112333] mmcblk0boot1: mmc0:0001 A3A561 4.00 MiB [ 1.114234] mmcblk0rpmb: mmc0:0001 A3A561 16.0 MiB, chardev (234:0) [ 1.135057] cryptd: max_cpu_qlen set to 1000 [ 1.153328] Key type encrypted registered [ 1.153872] AppArmor: AppArmor sha1 policy hashing enabled [ 1.154775] integrity: Loading X.509 certificate: UEFI:MokListRT (MOKvar table) [ 1.157285] integrity: Loaded X.509 cert 'Canonical Ltd. Master Certificate Authority: ad91990bc22ab1f517048c23b6655a268e345a63' [ 1.158767] ima: No TPM chip found, activating TPM-bypass! [ 1.159504] Loading compiled-in module X.509 certificates [ 1.162590] Loaded X.509 cert 'Build time autogenerated kernel key: e311b70717bf1c9e7777ce6ded9fefe0cf09aa77' [ 1.163884] ima: Allocated hash algorithm: sha1 [ 1.164489] ima: No architecture policies found [ 1.165178] evm: Initialising EVM extended attributes: [ 1.165834] evm: security.selinux [ 1.166261] evm: security.SMACK64 [ 1.166685] evm: security.SMACK64EXEC [ 1.167152] evm: security.SMACK64TRANSMUTE [ 1.167696] evm: security.SMACK64MMAP [ 1.168165] evm: security.apparmor [ 1.168600] evm: security.ima [ 1.168980] evm: security.capability [ 1.169434] evm: HMAC attrs: 0x1 [ 1.218547] mediatek-hdmi-phy 11d5f000.hdmi-phy: Using default TX DRV impedance: 4.2k/36 [ 1.235366] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/ovl@1c000000 [ 1.236684] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/rdma@1c002000 [ 1.237851] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/color@1c003000 [ 1.239021] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/ccorr@1c004000 [ 1.240226] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/aal@1c005000 [ 1.241368] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/gamma@1c006000 [ 1.242707] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/dsi0@1c008000 [ 1.244031] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/ovl@1c00a000 [ 1.245179] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/rdma@1c00c000 [ 1.246342] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/color@1c00d000 [ 1.247535] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/ccorr@1c00e000 [ 1.248698] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/aal@1c00f000 [ 1.249825] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/gamma@1c010000 [ 1.251083] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/merge0@1c014000 [ 1.252540] mediatek-drm mediatek-drm.9.auto: Adding component match for /soc/disp_dpi1@1c112000 [ 1.262128] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: type: 2, alias: 0 might not be part of ovl adaptor [ 1.263552] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: Skipping unknown component /soc/merge0@1c014000 [ 1.265813] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: type: 2, alias: 5 might not be part of ovl adaptor [ 1.267218] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: Skipping unknown component /soc/vpp-merge@1c110000 [ 1.271758] mediatek-drm mediatek-drm.11.auto: Adding component match for /soc/vpp-merge@1c110000 [ 1.280636] mtu3 11201000.usb: supply vbus not found, using dummy regulator [ 1.281552] mtu3 11201000.usb: dr_mode: 3, is_u3_dr: 1, drd: auto [ 1.282318] mtu3 11201000.usb: u2p_dis_msk: 0, u3p_dis_msk: 0 [ 1.283202] mtu3 11201000.usb: irq 346 [ 1.283684] mtu3 11201000.usb: IP version 0x1006(U3 IP) [ 1.284342] mtu3 11201000.usb: max_speed: super-speed-plus [ 1.285151] mtu3 11201000.usb: fifosz/epnum: Tx=0x4000/8, Rx=0x4000/8 [ 1.285974] mtu3 11201000.usb: dma mask: 36 bits [ 1.287261] xhci-mtk 11200000.xhci: supply vbus not found, using dummy regulator [ 1.288251] xhci-mtk 11200000.xhci: supply vusb33 not found, using dummy regulator [ 1.289231] xhci-mtk 11200000.xhci: backwards compatible for rxfifo_depth, might be overwritten [ 1.290370] xhci-mtk 11200000.xhci: xHCI Host Controller [ 1.291042] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 1 [ 1.292069] xhci-mtk 11200000.xhci: hcc params 0x01400f99 hci version 0x110 quirks 0x0000000020210010 [ 1.293242] xhci-mtk 11200000.xhci: irq 397, io mem 0x11200000 [ 1.294030] xhci-mtk 11200000.xhci: xHCI Host Controller [ 1.294700] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 2 [ 1.295646] xhci-mtk 11200000.xhci: Host supports USB 3.2 Enhanced SuperSpeed [ 1.296599] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.15 [ 1.297637] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.298544] usb usb1: Product: xHCI Host Controller [ 1.299157] usb usb1: Manufacturer: Linux 5.15.0-1037-mtk xhci-hcd [ 1.299939] usb usb1: SerialNumber: 11200000.xhci [ 1.300961] hub 1-0:1.0: USB hub found [ 1.301451] hub 1-0:1.0: 1 port detected [ 1.302062] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 1.303114] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.15 [ 1.304166] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.305072] usb usb2: Product: xHCI Host Controller [ 1.305685] usb usb2: Manufacturer: Linux 5.15.0-1037-mtk xhci-hcd [ 1.306461] usb usb2: SerialNumber: 11200000.xhci [ 1.307413] hub 2-0:1.0: USB hub found [ 1.307919] hub 2-0:1.0: 1 port detected [ 1.308528] mtu3 11201000.usb: xHCI platform device register success... [ 1.309850] mtu3 112a1000.usb: supply vbus not found, using dummy regulator [ 1.310760] mtu3 112a1000.usb: dr_mode: 3, is_u3_dr: 0, drd: auto [ 1.311537] mtu3 112a1000.usb: u2p_dis_msk: 0, u3p_dis_msk: 0 [ 1.312335] mtu3 112a1000.usb: irq 348 [ 1.312809] mtu3 112a1000.usb: IP version 0x1006(U2 IP) [ 1.313466] mtu3 112a1000.usb: max_speed: high-speed [ 1.314093] mtu3 112a1000.usb: fifosz/epnum: Tx=0x2000/8, Rx=0x2000/8 [ 1.314910] mtu3 112a1000.usb: dma mask: 36 bits [ 1.316148] xhci-mtk 112a0000.xhci: supply vbus not found, using dummy regulator [ 1.317196] xhci-mtk 112a0000.xhci: xHCI Host Controller [ 1.317868] xhci-mtk 112a0000.xhci: new USB bus registered, assigned bus number 3 [ 1.318856] xhci-mtk 112a0000.xhci: USB3 root hub has no ports [ 1.319600] xhci-mtk 112a0000.xhci: hcc params 0x01400f99 hci version 0x110 quirks 0x0000000020210010 [ 1.320771] xhci-mtk 112a0000.xhci: irq 398, io mem 0x112a0000 [ 1.321597] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.15 [ 1.322635] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.323554] usb usb3: Product: xHCI Host Controller [ 1.324168] usb usb3: Manufacturer: Linux 5.15.0-1037-mtk xhci-hcd [ 1.324943] usb usb3: SerialNumber: 112a0000.xhci [ 1.325925] hub 3-0:1.0: USB hub found [ 1.326413] hub 3-0:1.0: 1 port detected [ 1.327279] mtu3 112a1000.usb: xHCI platform device register success... [ 1.328538] xhci-mtk 112b0000.xhci: supply vbus not found, using dummy regulator [ 1.329605] xhci-mtk 112b0000.xhci: uwk - reg:0x400, version:106 [ 1.330447] xhci-mtk 112b0000.xhci: xHCI Host Controller [ 1.331121] xhci-mtk 112b0000.xhci: new USB bus registered, assigned bus number 4 [ 1.332131] xhci-mtk 112b0000.xhci: USB3 root hub has no ports [ 1.332865] xhci-mtk 112b0000.xhci: hcc params 0x01400f99 hci version 0x110 quirks 0x0000000020210010 [ 1.334040] xhci-mtk 112b0000.xhci: irq 349, io mem 0x112b0000 [ 1.334860] usb usb4: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.15 [ 1.335904] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.336811] usb usb4: Product: xHCI Host Controller [ 1.337423] usb usb4: Manufacturer: Linux 5.15.0-1037-mtk xhci-hcd [ 1.338197] usb usb4: SerialNumber: 112b0000.xhci [ 1.339129] hub 4-0:1.0: USB hub found [ 1.339632] hub 4-0:1.0: 1 port detected [ 1.353865] [drm] hdmi-audio-codec driver bound to HDMI [ 1.366457] mt8195-audio 10890000.mt8195-afe-pcm: mtk_afe_combine_sub_dai(), num of dai 29 [ 1.367606] mt8195-audio 10890000.mt8195-afe-pcm: No cache defaults, reading back from HW [ 1.377206] dmic-codec dmic-codec: ASoC: sink widget DMIC AIF overwritten [ 1.383805] mt8195-audio 10890000.mt8195-afe-pcm: mt8195_mt6359_mtkaif_calibration(), start [ 1.385655] mt8195-audio 10890000.mt8195-afe-pcm: mt8195_mt6359_mtkaif_calibration(), end, calibration ok 1 [ 1.390884] input: mt8395-evk HDMI Jack as /devices/platform/mt8195-sound/sound/card0/input0 [ 1.393130] mali 13000000.mali: Kernel DDK version r43p0-01eac0 [ 1.395415] mali 13000000.mali: Detected G-57 variant with GPU ID 90930010. Changing the ID to 90910010. [ 1.396680] mali 13000000.mali: GPU identified as 0x1 arch 9.0.9 r0p1 status 0 [ 1.397988] mali 13000000.mali: No priority control manager is configured [ 1.398887] mali 13000000.mali: No memory group manager is configured [ 1.400406] mali 13000000.mali: OPP 0 : opp_freq=880000000 core_mask=50045 [ 1.401277] mali 13000000.mali: OPP 1 : opp_freq=850000000 core_mask=50045 [ 1.402140] mali 13000000.mali: OPP 2 : opp_freq=820000000 core_mask=50045 [ 1.403003] mali 13000000.mali: OPP 3 : opp_freq=790000000 core_mask=50045 [ 1.403881] mali 13000000.mali: OPP 4 : opp_freq=760000000 core_mask=50045 [ 1.404743] mali 13000000.mali: OPP 5 : opp_freq=730000000 core_mask=50045 [ 1.405605] mali 13000000.mali: OPP 6 : opp_freq=700000000 core_mask=50045 [ 1.406468] mali 13000000.mali: OPP 7 : opp_freq=670000000 core_mask=50045 [ 1.407330] mali 13000000.mali: OPP 8 : opp_freq=640000000 core_mask=50045 [ 1.408196] mali 13000000.mali: OPP 9 : opp_freq=598000000 core_mask=50045 [ 1.409060] mali 13000000.mali: OPP 10 : opp_freq=556000000 core_mask=50045 [ 1.409933] mali 13000000.mali: OPP 11 : opp_freq=515000000 core_mask=50045 [ 1.410806] mali 13000000.mali: OPP 12 : opp_freq=473000000 core_mask=50045 [ 1.411682] mali 13000000.mali: OPP 13 : opp_freq=431000000 core_mask=50045 [ 1.412555] mali 13000000.mali: OPP 14 : opp_freq=410000000 core_mask=50045 [ 1.413428] mali 13000000.mali: OPP 15 : opp_freq=390000000 core_mask=50045 [ 1.415071] mali 13000000.mali: Probed as mali0 [ 1.417499] mtk-pcie 112f0000.pcie: host bridge /soc/pcie@112f0000 ranges: [ 1.418405] mtk-pcie 112f0000.pcie: IO 0x0020000000..0x00201fffff -> 0x0020000000 [ 1.419452] mtk-pcie 112f0000.pcie: MEM 0x0020200000..0x0023ffffff -> 0x0020200000 [ 1.527816] devfreq 13000000.mali: Couldn't update frequency transition information. [ 1.627671] mtk-pcie 112f0000.pcie: PCIe link down, ltssm reg val: 0x1 [ 1.628731] mtk-pcie: probe of 112f0000.pcie failed with error -110 [ 1.642928] mediatek-dpi 1c112000.disp_dpi1: Found bridge node: /soc/hdmi@1c300000 [ 1.651007] xhci-mtk 11290000.xhci: supply vbus not found, using dummy regulator [ 1.652240] xhci-mtk 11290000.xhci: backwards compatible for rxfifo_depth, might be overwritten [ 1.653354] xhci-mtk 11290000.xhci: uwk - reg:0x400, version:104 [ 1.654446] xhci-mtk 11290000.xhci: xHCI Host Controller [ 1.655131] xhci-mtk 11290000.xhci: new USB bus registered, assigned bus number 5 [ 1.656355] xhci-mtk 11290000.xhci: hcc params 0x01400f99 hci version 0x110 quirks 0x0000000020210010 [ 1.657570] xhci-mtk 11290000.xhci: irq 347, io mem 0x11290000 [ 1.658450] xhci-mtk 11290000.xhci: xHCI Host Controller [ 1.659129] xhci-mtk 11290000.xhci: new USB bus registered, assigned bus number 6 [ 1.660106] xhci-mtk 11290000.xhci: Host supports USB 3.2 Enhanced SuperSpeed [ 1.661141] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.15 [ 1.662189] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.663103] usb usb5: Product: xHCI Host Controller [ 1.663733] usb usb5: Manufacturer: Linux 5.15.0-1037-mtk xhci-hcd [ 1.664515] usb usb5: SerialNumber: 11290000.xhci [ 1.665648] hub 5-0:1.0: USB hub found [ 1.666150] hub 5-0:1.0: 1 port detected [ 1.666920] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM. [ 1.668049] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.15 [ 1.669097] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 1.670010] usb usb6: Product: xHCI Host Controller [ 1.670628] usb usb6: Manufacturer: Linux 5.15.0-1037-mtk xhci-hcd [ 1.671409] usb usb6: SerialNumber: 11290000.xhci [ 1.672502] hub 6-0:1.0: USB hub found [ 1.673004] hub 6-0:1.0: 1 port detected [ 1.689048] mtk-iommu 14018000.iommu: bound 1c019000.larb (ops mtk_smi_larb_component_ops) [ 1.690110] mtk-iommu 14018000.iommu: bound 1c103000.larb (ops mtk_smi_larb_component_ops) [ 1.691157] mtk-iommu 14018000.iommu: bound 14013000.larb (ops mtk_smi_larb_component_ops) [ 1.692237] mtk-iommu 14018000.iommu: bound 14f03000.larb (ops mtk_smi_larb_component_ops) [ 1.693285] mtk-iommu 14018000.iommu: bound 14e05000.larb (ops mtk_smi_larb_component_ops) [ 1.694332] mtk-iommu 14018000.iommu: bound 15340000.larb (ops mtk_smi_larb_component_ops) [ 1.695379] mtk-iommu 14018000.iommu: bound 16002000.larb (ops mtk_smi_larb_component_ops) [ 1.696439] mtk-iommu 14018000.iommu: bound 16012000.larb (ops mtk_smi_larb_component_ops) [ 1.697486] mtk-iommu 14018000.iommu: bound 17201000.larb (ops mtk_smi_larb_component_ops) [ 1.698534] mtk-iommu 14018000.iommu: bound 1b010000.larb (ops mtk_smi_larb_component_ops) [ 1.699594] mtk-iommu 14018000.iommu: bound 1803e000.larb (ops mtk_smi_larb_component_ops) [ 1.700642] mtk-iommu 14018000.iommu: bound 1800e000.larb (ops mtk_smi_larb_component_ops) [ 1.701689] mtk-iommu 14018000.iommu: bound 16142000.larb (ops mtk_smi_larb_component_ops) [ 1.702735] mtk-iommu 14018000.iommu: bound 16014000.larb (ops mtk_smi_larb_component_ops) [ 1.705137] mtk-iommu 1c01f000.iommu: bound 1c018000.larb (ops mtk_smi_larb_component_ops) [ 1.706184] mtk-iommu 1c01f000.iommu: bound 1c102000.larb (ops mtk_smi_larb_component_ops) [ 1.707223] mtk-iommu 1c01f000.iommu: bound 14f02000.larb (ops mtk_smi_larb_component_ops) [ 1.708274] mtk-iommu 1c01f000.iommu: bound 14e04000.larb (ops mtk_smi_larb_component_ops) [ 1.709312] mtk-iommu 1c01f000.iommu: bound 15001000.larb (ops mtk_smi_larb_component_ops) [ 1.710349] mtk-iommu 1c01f000.iommu: bound 15120000.larb (ops mtk_smi_larb_component_ops) [ 1.711386] mtk-iommu 1c01f000.iommu: bound 15230000.larb (ops mtk_smi_larb_component_ops) [ 1.712486] mtk-iommu 1c01f000.iommu: bound 16001000.larb (ops mtk_smi_larb_component_ops) [ 1.713524] mtk-iommu 1c01f000.iommu: bound 16013000.larb (ops mtk_smi_larb_component_ops) [ 1.714562] mtk-iommu 1c01f000.iommu: bound 1a010000.larb (ops mtk_smi_larb_component_ops) [ 1.715650] mtk-iommu 1c01f000.iommu: bound 1802e000.larb (ops mtk_smi_larb_component_ops) [ 1.716689] mtk-iommu 1c01f000.iommu: bound 1800d000.larb (ops mtk_smi_larb_component_ops) [ 1.717726] mtk-iommu 1c01f000.iommu: bound 16141000.larb (ops mtk_smi_larb_component_ops) [ 1.718762] mtk-iommu 1c01f000.iommu: bound 16015000.larb (ops mtk_smi_larb_component_ops) [ 1.720039] mediatek-disp-ovl 1c000000.ovl: Adding to iommu group 0 [ 1.721249] mediatek-disp-ovl 1c00a000.ovl: Adding to iommu group 0 [ 1.722269] mediatek-disp-rdma 1c002000.rdma: Adding to iommu group 0 [ 1.723288] mediatek-disp-rdma 1c00c000.rdma: Adding to iommu group 0 [ 1.724327] mediatek-disp-ethdr 1c114000.hdr-engine: Adding to iommu group 0 [ 1.725511] mediatek-mdp-rdma 1c104000.rdma: Adding to iommu group 0 [ 1.726511] mediatek-mdp-rdma 1c105000.rdma: Adding to iommu group 0 [ 1.727511] mediatek-mdp-rdma 1c106000.rdma: Adding to iommu group 0 [ 1.728488] mediatek-mdp-rdma 1c107000.rdma: Adding to iommu group 0 [ 1.729481] mediatek-mdp-rdma 1c108000.rdma: Adding to iommu group 0 [ 1.730456] mediatek-mdp-rdma 1c109000.rdma: Adding to iommu group 0 [ 1.731526] mediatek-mdp-rdma 1c10a000.rdma: Adding to iommu group 0 [ 1.732505] mediatek-mdp-rdma 1c10b000.rdma: Adding to iommu group 0 [ 1.733329] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c104000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.734749] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c105000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.736182] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c106000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.737600] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c107000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.739016] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c108000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.740438] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c109000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.741855] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c10a000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.743271] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c10b000.rdma (ops mtk_mdp_rdma_component_ops) [ 1.744692] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c10c000.vpp-merge (ops mtk_disp_merge_component_ops) [ 1.746187] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c10d000.vpp-merge (ops mtk_disp_merge_component_ops) [ 1.747750] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c10e000.vpp-merge (ops mtk_disp_merge_component_ops) [ 1.749244] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c10f000.vpp-merge (ops mtk_disp_merge_component_ops) [ 1.750737] mediatek-disp-ovl-adaptor mediatek-disp-ovl-adaptor.12.auto: bound 1c114000.hdr-engine (ops mtk_ethdr_component_ops) [ 1.753904] clk: Disabling unused clocks [ 1.754984] ALSA device list: [ 1.755363] #0: Unknown-UnknownProduct- [ 1.758671] Freeing unused kernel memory: 11200K [ 1.766951] Checked W+X mappings: passed, no W+X pages found [ 1.767684] Run /init as init process [ 2.210059] pwm-backlight backlight-lcd1: supply power not found, using dummy regulator [ 2.210366] input: gpio-keys as /devices/platform/gpio-keys/input/input1 [ 2.261454] pwm-backlight backlight-lcd1: supply power not found, using dummy regulator [ 2.292666] input: mtk-pmic-keys as /devices/platform/soc/10024000.pwrap/10024000.pwrap:pmic/mtk-pmic-keys/input/input2 [ 2.298608] mtk_rng 1020f000.rng: registered RNG driver [ 2.298983] random: crng init done [ 2.303920] pwm-backlight backlight-lcd1: supply power not found, using dummy regulator [ 2.315706] pwm-backlight backlight-lcd1: supply power not found, using dummy regulator [ 2.320206] pwm-backlight backlight-lcd1: supply power not found, using dummy regulator [ 2.332250] dwmac-mediatek 11021000.ethernet: IRQ eth_wake_irq not found [ 2.333101] dwmac-mediatek 11021000.ethernet: IRQ eth_lpi not found [ 2.333980] dwmac-mediatek 11021000.ethernet: Cannot get CSR clock [ 2.334882] dwmac-mediatek 11021000.ethernet: User ID: 0x11, Synopsys ID: 0x51 [ 2.335830] dwmac-mediatek 11021000.ethernet: DWMAC4/5 [ 2.336488] dwmac-mediatek 11021000.ethernet: DMA HW capability register supported [ 2.337437] dwmac-mediatek 11021000.ethernet: RX Checksum Offload Engine supported [ 2.338385] dwmac-mediatek 11021000.ethernet: TX Checksum insertion supported [ 2.339691] dwmac-mediatek 11021000.ethernet: Wake-Up On Lan supported [ 2.340572] dwmac-mediatek 11021000.ethernet: TSO supported [ 2.341277] dwmac-mediatek 11021000.ethernet: Enabled L3L4 Flow TC (entries=4) [ 2.342184] dwmac-mediatek 11021000.ethernet: Enabled RFS Flow TC (entries=8) [ 2.343079] dwmac-mediatek 11021000.ethernet: Using 35 bits DMA width [ 2.460866] pwm-backlight backlight-lcd1: supply power not found, using dummy regulator [ 3.783422] raid6: neonx8 gen() 8612 MB/s [ 3.851424] raid6: neonx8 xor() 8107 MB/s [ 3.919510] raid6: neonx4 gen() 10291 MB/s [ 3.987513] raid6: neonx4 xor() 7681 MB/s [ 4.055526] raid6: neonx2 gen() 9282 MB/s [ 4.123421] raid6: neonx2 xor() 7594 MB/s [ 4.191420] raid6: neonx1 gen() 9636 MB/s [ 4.259421] raid6: neonx1 xor() 8693 MB/s [ 4.327420] raid6: int64x8 gen() 7131 MB/s [ 4.395423] raid6: int64x8 xor() 3870 MB/s [ 4.463423] raid6: int64x4 gen() 6970 MB/s [ 4.531421] raid6: int64x4 xor() 3816 MB/s [ 4.599421] raid6: int64x2 gen() 5798 MB/s [ 4.667421] raid6: int64x2 xor() 3169 MB/s [ 4.735420] raid6: int64x1 gen() 4605 MB/s [ 4.803514] raid6: int64x1 xor() 2560 MB/s [ 4.804060] raid6: using algorithm neonx4 gen() 10291 MB/s [ 4.804758] raid6: .... xor() 7681 MB/s, rmw enabled [ 4.805387] raid6: using neon recovery algorithm [ 4.811788] xor: measuring software checksum speed [ 4.813167] 8regs : 4335 MB/sec [ 4.814350] 32regs : 5239 MB/sec [ 4.815476] arm64_neon : 5726 MB/sec [ 4.816030] xor: using function: arm64_neon (5726 MB/sec) [ 4.817798] async_tx: api initialized (async) [ 4.952851] Btrfs loaded, crc32c=crc32c-generic, zoned=yes, fsverity=yes [ 5.098724] EXT4-fs (mmcblk0p9): INFO: recovery required on readonly filesystem [ 5.099692] EXT4-fs (mmcblk0p9): write access will be enabled during recovery [ 5.191278] EXT4-fs (mmcblk0p9): recovery complete [ 5.192382] EXT4-fs (mmcblk0p9): mounted filesystem with ordered data mode. Opts: (null). Quota mode: none. [ 5.591174] systemd[1]: System time before build time, advancing clock. [ 5.613243] systemd[1]: Inserted module 'autofs4' [ 5.652651] systemd[1]: systemd 249.11-0ubuntu3.12 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT +GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY -P11KIT -QRENCODE +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -XKBCOMMON +UTMP +SYSVINIT default-hierarchy=unified) [ 5.658144] systemd[1]: Detected architecture arm64. [ 5.661009] systemd[1]: Hostname set to <mtk-genio>. [ 6.056015] systemd[1]: Configuration file /run/systemd/system/netplan-ovs-cleanup.service is marked world-inaccessible. This has no effect as configuration data is accessible via APIs without restrictions. Proceeding anyway. [ 6.144115] systemd[1]: /lib/systemd/system/snapd.service:23: Unknown key name 'RestartMode' in section 'Service', ignoring. [ 6.243539] systemd[1]: Queued start job for default target Graphical Interface. [ 6.246284] systemd[1]: Created slice Slice /system/modprobe. [ 6.247768] systemd[1]: Created slice Slice /system/serial-getty. [ 6.249002] systemd[1]: Created slice Slice /system/systemd-fsck. [ 6.250105] systemd[1]: Created slice User and Session Slice. [ 6.250981] systemd[1]: Started Forward Password Requests to Wall Directory Watch. [ 6.252304] systemd[1]: Set up automount Arbitrary Executable File Formats File System Automount Point. [ 6.253631] systemd[1]: Reached target Slice Units. [ 6.254306] systemd[1]: Reached target Mounting snaps. [ 6.255007] systemd[1]: Reached target Swaps. [ 6.255665] systemd[1]: Reached target Local Verity Protected Volumes. [ 6.256634] systemd[1]: Listening on Device-mapper event daemon FIFOs. [ 6.257675] systemd[1]: Listening on LVM2 poll daemon socket. [ 6.258638] systemd[1]: Listening on multipathd control socket. [ 6.259640] systemd[1]: Listening on Syslog Socket. [ 6.260461] systemd[1]: Listening on fsck to fsckd communication Socket. [ 6.261448] systemd[1]: Listening on initctl Compatibility Named Pipe. [ 6.262613] systemd[1]: Listening on Journal Audit Socket. [ 6.263528] systemd[1]: Listening on Journal Socket (/dev/log). [ 6.264530] systemd[1]: Listening on Journal Socket. [ 6.265454] systemd[1]: Listening on udev Control Socket. [ 6.266330] systemd[1]: Listening on udev Kernel Socket. [ 6.268340] systemd[1]: Mounting Huge Pages File System... [ 6.270363] systemd[1]: Mounting POSIX Message Queue File System... [ 6.272546] systemd[1]: Mounting Kernel Debug File System... [ 6.274624] systemd[1]: Mounting Kernel Trace File System... [ 6.278010] systemd[1]: Starting Journal Service... [ 6.280542] systemd[1]: Starting Set the console keyboard layout... [ 6.282731] systemd[1]: Starting Create List of Static Device Nodes... [ 6.284801] systemd[1]: Starting Monitoring of LVM2 mirrors, snapshots etc. using dmeventd or progress polling... [ 6.286262] systemd[1]: Condition check resulted in LXD - agent being skipped. [ 6.288808] systemd[1]: Starting Load Kernel Module configfs... [ 6.291090] systemd[1]: Starting Load Kernel Module drm... [ 6.293862] systemd[1]: Starting Load Kernel Module efi_pstore... [ 6.296419] systemd[1]: Starting Load Kernel Module fuse... [ 6.299970] systemd[1]: Starting File System Check on Root Device... [ 6.306916] systemd[1]: Starting Load Kernel Modules... [ 6.309084] systemd[1]: Starting Coldplug All udev Devices... [ 6.311868] systemd[1]: Mounted Huge Pages File System. [ 6.312776] systemd[1]: Mounted POSIX Message Queue File System. [ 6.313726] systemd[1]: Mounted Kernel Debug File System. [ 6.314582] systemd[1]: Mounted Kernel Trace File System. [ 6.315850] systemd[1]: Finished Create List of Static Device Nodes. [ 6.317186] systemd[1]: [e-mail]: Deactivated successfully. [ 6.318438] systemd[1]: Finished Load Kernel Module configfs. [ 6.319615] systemd[1]: [e-mail]: Deactivated successfully. [ 6.320817] systemd[1]: Finished Load Kernel Module drm. [ 6.321929] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully. [ 6.323187] systemd[1]: Finished Load Kernel Module efi_pstore. [ 6.324406] systemd[1]: [e-mail]: Deactivated successfully. [ 6.325580] systemd[1]: Finished Load Kernel Module fuse. [ 6.327647] systemd[1]: Mounting FUSE Control File System... [ 6.329723] systemd[1]: Mounting Kernel Configuration File System... [ 6.331335] misc dma_buf_te: dma_buf_te ready [ 6.331931] systemd[1]: Started File System Check Daemon to report status. [ 6.334234] systemd[1]: Finished File System Check on Root Device. [ 6.336293] systemd[1]: Finished Load Kernel Modules. [ 6.337233] systemd[1]: Mounted FUSE Control File System. [ 6.338108] systemd[1]: Mounted Kernel Configuration File System. [ 6.340195] systemd[1]: Starting Remount Root and Kernel File Systems... [ 6.342300] systemd[1]: Starting Apply Kernel Variables... [ 6.347036] systemd[1]: Started Journal Service. [ 6.353116] EXT4-fs (mmcblk0p9): re-mounted. Opts: discard,errors=remount-ro. Quota mode: none. [ 8.538814] mcp251xfd spi0.0 (unnamed net_device) (uninitialized): Failed to detect MCP2518FD (osc=0x00000000). [ 13.902240] RTL8211F Gigabit Ethernet stmmac-0:01: phy_poll_reset failed: -110 [ 13.907606] dwmac-mediatek 11021000.ethernet eth0: no phy found [ 13.912832] dwmac-mediatek 11021000.ethernet eth0: stmmac_open: Cannot attach to PHY (error: -19) [ 14.543298] RTL8211F Gigabit Ethernet stmmac-0:01: phy_poll_reset failed: -110 [ 14.547185] dwmac-mediatek 11021000.ethernet eth0: no phy found [ 14.550784] dwmac-mediatek 11021000.ethernet eth0: stmmac_open: Cannot attach to PHY (error: -19) [ 15.200645] RTL8211F Gigabit Ethernet stmmac-0:01: phy_poll_reset failed: -110 [ 15.207683] dwmac-mediatek 11021000.ethernet eth0: no phy found [ 15.215809] dwmac-mediatek 11021000.ethernet eth0: stmmac_open: Cannot attach to PHY (error: -19) [ 15.873975] RTL8211F Gigabit Ethernet stmmac-0:01: phy_poll_reset failed: -110 [ 15.880452] dwmac-mediatek 11021000.ethernet eth0: no phy found [ 15.886315] dwmac-mediatek 11021000.ethernet eth0: stmmac_open: Cannot attach to PHY (error: -19) [ 16.553779] RTL8211F Gigabit Ethernet stmmac-0:01: phy_poll_reset failed: -110 [ 16.565853] dwmac-mediatek 11021000.ethernet eth0: no phy found [ 16.577531] dwmac-mediatek 11021000.ethernet eth0: stmmac_open: Cannot attach to PHY (error: -19) Ubuntu 22.04.5 LTS
mtk-genio ttyS0 mtk-genio login:
