Python打卡第51天

@浙大疏锦行

作业：

day43的时候我们安排大家对自己找的数据集用简单cnn训练，现在可以尝试下借助这几天的知识来实现精度的进一步提高

import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader
from torchvision import datasets, transforms, models
import torch.nn.functional as F
from PIL import Image
import os
import numpy as np
import matplotlib.pyplot as plt
from tqdm import tqdm
import cv2
import random# 设置随机种子确保结果可复现
torch.manual_seed(42)
np.random.seed(42)
random.seed(42)# 设置中文字体支持
plt.rcParams["font.family"] = ["SimHei"]
plt.rcParams['axes.unicode_minus'] = False  # 解决负号显示问题# 数据集路径
data_dir = r"D:\archive (1)\MY_data"# 数据预处理和增强
train_transform = transforms.Compose([transforms.RandomResizedCrop(224),transforms.RandomHorizontalFlip(),transforms.RandomRotation(10),transforms.ColorJitter(brightness=0.1, contrast=0.1, saturation=0.1),transforms.ToTensor(),transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
])test_transform = transforms.Compose([transforms.Resize(256),transforms.CenterCrop(224),transforms.ToTensor(),transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225])
])# 加载数据集
train_dataset = datasets.ImageFolder(os.path.join(data_dir, 'train'), transform=train_transform)
test_dataset = datasets.ImageFolder(os.path.join(data_dir, 'test'), transform=test_transform)# 创建数据加载器
batch_size = 32
train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, num_workers=4)
test_loader = DataLoader(test_dataset, batch_size=batch_size, shuffle=False, num_workers=4)# 获取类别名称
classes = train_dataset.classes
print(f"类别: {classes}")# CBAM注意力机制实现
class ChannelAttention(nn.Module):def __init__(self, in_channels, reduction_ratio=16):super(ChannelAttention, self).__init__()self.avg_pool = nn.AdaptiveAvgPool2d(1)self.max_pool = nn.AdaptiveMaxPool2d(1)self.fc = nn.Sequential(nn.Conv2d(in_channels, in_channels // reduction_ratio, 1, bias=False),nn.ReLU(),nn.Conv2d(in_channels // reduction_ratio, in_channels, 1, bias=False))self.sigmoid = nn.Sigmoid()def forward(self, x):avg_out = self.fc(self.avg_pool(x))max_out = self.fc(self.max_pool(x))out = avg_out + max_outreturn self.sigmoid(out)class SpatialAttention(nn.Module):def __init__(self, kernel_size=7):super(SpatialAttention, self).__init__()self.conv = nn.Conv2d(2, 1, kernel_size, padding=kernel_size//2, bias=False)self.sigmoid = nn.Sigmoid()def forward(self, x):avg_out = torch.mean(x, dim=1, keepdim=True)max_out, _ = torch.max(x, dim=1, keepdim=True)x_cat = torch.cat([avg_out, max_out], dim=1)out = self.conv(x_cat)return self.sigmoid(out)class CBAM(nn.Module):def __init__(self, in_channels, reduction_ratio=16, kernel_size=7):super(CBAM, self).__init__()self.channel_attention = ChannelAttention(in_channels, reduction_ratio)self.spatial_attention = SpatialAttention(kernel_size)def forward(self, x):x = x * self.channel_attention(x)x = x * self.spatial_attention(x)return x# 定义改进的CNN模型（支持多种预训练模型和CBAM注意力机制）
class EnhancedFruitClassifier(nn.Module):def __init__(self, num_classes=10, model_name='resnet18', use_cbam=True):super(EnhancedFruitClassifier, self).__init__()self.use_cbam = use_cbam# 根据选择加载不同的预训练模型if model_name == 'resnet18':self.model = models.resnet18(pretrained=True)in_features = self.model.fc.in_features# 保存原始层以便后续使用self.features = nn.Sequential(*list(self.model.children())[:-2])self.avgpool = self.model.avgpoolelif model_name == 'resnet50':self.model = models.resnet50(pretrained=True)in_features = self.model.fc.in_featuresself.features = nn.Sequential(*list(self.model.children())[:-2])self.avgpool = self.model.avgpoolelif model_name == 'efficientnet_b0':self.model = models.efficientnet_b0(pretrained=True)in_features = self.model.classifier[1].in_featuresself.features = nn.Sequential(*list(self.model.children())[:-1])self.avgpool = nn.AdaptiveAvgPool2d(1)else:raise ValueError(f"不支持的模型: {model_name}")# 冻结大部分预训练层for param in list(self.model.parameters())[:-5]:param.requires_grad = False# 添加CBAM注意力机制if use_cbam:self.cbam = CBAM(in_features)# 修改最后一层以适应我们的分类任务self.fc = nn.Linear(in_features, num_classes)def forward(self, x):# 特征提取x = self.features(x)# 应用CBAM注意力机制if self.use_cbam:x = self.cbam(x)# 全局池化x = self.avgpool(x)x = torch.flatten(x, 1)# 分类x = self.fc(x)return x# 初始化模型 - 可以选择不同的预训练模型和是否使用CBAM
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
model = EnhancedFruitClassifier(num_classes=len(classes),model_name='resnet18',  # 可选: 'resnet18', 'resnet50', 'efficientnet_b0'use_cbam=True
).to(device)# 定义损失函数和优化器
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(filter(lambda p: p.requires_grad, model.parameters()), lr=0.001)
scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=5, gamma=0.1)# 训练模型
def train_model(model, train_loader, criterion, optimizer, scheduler, device, epochs=10):model.train()for epoch in range(epochs):running_loss = 0.0correct = 0total = 0progress_bar = tqdm(enumerate(train_loader), total=len(train_loader))for i, (inputs, labels) in progress_bar:inputs, labels = inputs.to(device), labels.to(device)optimizer.zero_grad()outputs = model(inputs)loss = criterion(outputs, labels)loss.backward()optimizer.step()running_loss += loss.item()_, predicted = outputs.max(1)total += labels.size(0)correct += predicted.eq(labels).sum().item()progress_bar.set_description(f"Epoch {epoch+1}/{epochs}, "f"Loss: {running_loss/(i+1):.4f}, "f"Acc: {100.*correct/total:.2f}%")scheduler.step()print(f"Epoch {epoch+1}/{epochs}, "f"Train Loss: {running_loss/len(train_loader):.4f}, "f"Train Acc: {100.*correct/total:.2f}%")return model# 评估模型
def evaluate_model(model, test_loader, device):model.eval()correct = 0total = 0class_correct = list(0. for i in range(len(classes)))class_total = list(0. for i in range(len(classes)))with torch.no_grad():for inputs, labels in test_loader:inputs, labels = inputs.to(device), labels.to(device)outputs = model(inputs)_, predicted = outputs.max(1)total += labels.size(0)correct += predicted.eq(labels).sum().item()# 计算每个类别的准确率for i in range(len(labels)):label = labels[i]class_correct[label] += (predicted[i] == label).item()class_total[label] += 1print(f"测试集整体准确率: {100.*correct/total:.2f}%")# 打印每个类别的准确率for i in range(len(classes)):if class_total[i] > 0:print(f"{classes[i]} 类别的准确率: {100.*class_correct[i]/class_total[i]:.2f}%")else:print(f"{classes[i]} 类别的样本数为0")return 100.*correct/total# Grad-CAM实现
class GradCAM:def __init__(self, model, target_layer):self.model = modelself.target_layer = target_layerself.gradients = Noneself.activations = None# 注册钩子self.hook_handles = []# 保存梯度的钩子def backward_hook(module, grad_in, grad_out):self.gradients = grad_out[0]return None# 保存激活值的钩子def forward_hook(module, input, output):self.activations = outputreturn Noneself.hook_handles.append(target_layer.register_forward_hook(forward_hook))self.hook_handles.append(target_layer.register_backward_hook(backward_hook))def __call__(self, x, class_idx=None):# 前向传播model_output = self.model(x)if class_idx is None:class_idx = torch.argmax(model_output, dim=1)# 构建one-hot向量one_hot = torch.zeros_like(model_output)one_hot[0, class_idx] = 1# 反向传播self.model.zero_grad()model_output.backward(gradient=one_hot, retain_graph=True)# 计算权重（全局平均池化梯度）weights = torch.mean(self.gradients, dim=(2, 3), keepdim=True)# 加权组合激活映射cam = torch.sum(weights * self.activations, dim=1).squeeze()# ReLU激活，因为我们只关心对类别有正贡献的区域cam = F.relu(cam)# 归一化if torch.max(cam) > 0:cam = cam / torch.max(cam)# 调整大小到输入图像尺寸cam = F.interpolate(cam.unsqueeze(0).unsqueeze(0), size=(x.size(2), x.size(3)), mode='bilinear', align_corners=False).squeeze()return cam.detach().cpu().numpy(), class_idx.item()def remove_hooks(self):for handle in self.hook_handles:handle.remove()# 可视化Grad-CAM结果
def visualize_gradcam(img_path, model, target_layer, classes, device):# 加载并预处理图像img = Image.open(img_path).convert('RGB')img_tensor = test_transform(img).unsqueeze(0).to(device)# 初始化Grad-CAMgrad_cam = GradCAM(model, target_layer)# 获取Grad-CAM热力图cam, pred_class = grad_cam(img_tensor)# 反归一化图像以便显示img_np = img_tensor.squeeze().cpu().numpy().transpose((1, 2, 0))img_np = img_np * np.array([0.229, 0.224, 0.225]) + np.array([0.485, 0.456, 0.406])img_np = np.clip(img_np, 0, 1)# 调整热力图大小heatmap = cv2.resize(cam, (img_np.shape[1], img_np.shape[0]))# 创建彩色热力图heatmap = np.uint8(255 * heatmap)heatmap = cv2.applyColorMap(heatmap, cv2.COLORMAP_JET)heatmap = cv2.cvtColor(heatmap, cv2.COLOR_BGR2RGB)heatmap = np.float32(heatmap) / 255# 叠加原始图像和热力图superimposed_img = heatmap * 0.4 + img_npsuperimposed_img = np.clip(superimposed_img, 0, 1)# 显示结果plt.figure(figsize=(15, 5))plt.subplot(131)plt.imshow(img_np)plt.title('原始图像')plt.axis('off')plt.subplot(132)plt.imshow(cam, cmap='jet')plt.title('Grad-CAM热力图')plt.axis('off')plt.subplot(133)plt.imshow(superimposed_img)plt.title(f'叠加图像\n预测类别: {classes[pred_class]}')plt.axis('off')plt.tight_layout()plt.show()# 预测函数
def predict_image(img_path, model, classes, device):# 加载并预处理图像img = Image.open(img_path).convert('RGB')img_tensor = test_transform(img).unsqueeze(0).to(device)# 预测model.eval()with torch.no_grad():outputs = model(img_tensor)probs = F.softmax(outputs, dim=1)top_probs, top_classes = probs.topk(5, dim=1)# 打印预测结果print(f"图像: {os.path.basename(img_path)}")print("预测结果:")for i in range(top_probs.size(1)):print(f"{classes[top_classes[0, i]]}: {top_probs[0, i].item() * 100:.2f}%")return top_classes[0, 0].item()# 主函数
def main():# 训练模型print("开始训练模型...")trained_model = train_model(model, train_loader, criterion, optimizer, scheduler, device, epochs=5)# 评估模型print("\n评估模型...")evaluate_model(trained_model, test_loader, device)# 保存模型model_path = "fruit_classifier.pth"torch.save(trained_model.state_dict(), model_path)print(f"\n模型已保存至: {model_path}")# 可视化Grad-CAM结果print("\n可视化Grad-CAM结果...")# 从测试集中随机选择几张图像进行可视化predict_dir = os.path.join(data_dir, 'predict')if os.path.exists(predict_dir):# 使用predict目录中的图像image_files = [os.path.join(predict_dir, f) for f in os.listdir(predict_dir) if f.lower().endswith(('.png', '.jpg', '.jpeg'))]if len(image_files) > 0:# 随机选择2张图像sample_images = random.sample(image_files, min(2, len(image_files)))for img_path in sample_images:print(f"\n处理图像: {img_path}")# 预测图像类别pred_class = predict_image(img_path, trained_model, classes, device)# 可视化Grad-CAMif hasattr(trained_model, 'model') and hasattr(trained_model.model, 'layer4'):# 对于ResNet系列模型visualize_gradcam(img_path, trained_model, trained_model.model.layer4[-1].conv2, classes, device)else:# 对于其他模型，使用最后一个特征层visualize_gradcam(img_path, trained_model, list(trained_model.features.children())[-1], classes, device)else:print(f"predict目录为空，无法进行可视化")else:print(f"predict目录不存在，无法进行可视化")if __name__ == "__main__":main()

类别: ['Apple', 'Banana', 'avocado', 'cherry', 'kiwi', 'mango', 'orange', 'pinenapple', 'strawberries', 'watermelon']
开始训练模型...
Epoch 1/5, Loss: 0.8748, Acc: 74.23%: 100%|██████████| 72/72 [00:08<00:00,  8.66it/s]
Epoch 1/5, Train Loss: 0.8748, Train Acc: 74.23%
Epoch 2/5, Loss: 0.4802, Acc: 83.83%: 100%|██████████| 72/72 [00:07<00:00, 10.02it/s]
Epoch 2/5, Train Loss: 0.4802, Train Acc: 83.83%
Epoch 3/5, Loss: 0.4239, Acc: 86.35%: 100%|██████████| 72/72 [00:07<00:00,  9.69it/s]
Epoch 3/5, Train Loss: 0.4239, Train Acc: 86.35%
Epoch 4/5, Loss: 0.4179, Acc: 85.96%: 100%|██████████| 72/72 [00:07<00:00,  9.64it/s]
Epoch 4/5, Train Loss: 0.4179, Train Acc: 85.96%
Epoch 5/5, Loss: 0.3747, Acc: 87.44%: 100%|██████████| 72/72 [00:07<00:00,  9.68it/s]
Epoch 5/5, Train Loss: 0.3747, Train Acc: 87.44%评估模型...
测试集整体准确率: 66.83%
Apple 类别的准确率: 80.90%
Banana 类别的准确率: 0.00%
avocado 类别的准确率: 1.89%
cherry 类别的准确率: 93.33%
kiwi 类别的准确率: 93.33%
mango 类别的准确率: 48.57%
orange 类别的准确率: 97.94%
pinenapple 类别的准确率: 96.19%
strawberries 类别的准确率: 90.29%

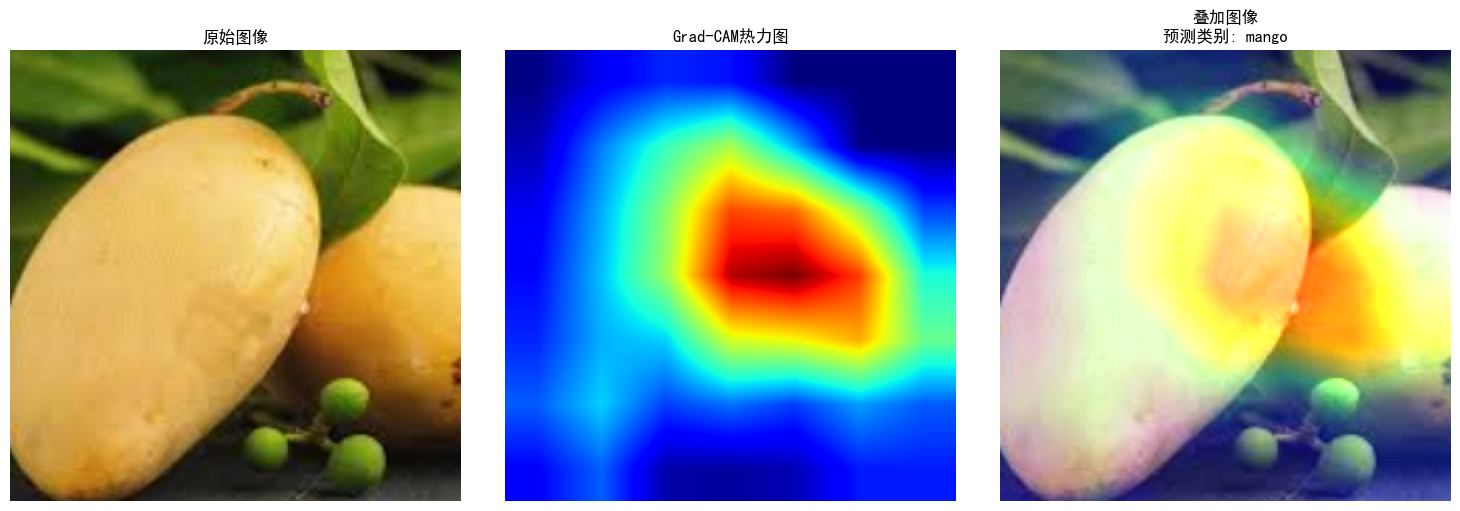

watermelon 类别的准确率: 71.43%模型已保存至: fruit_classifier.pth可视化Grad-CAM结果...处理图像: D:\archive (1)\MY_data\predict\img_341.jpeg
图像: img_341.jpeg
预测结果:
mango: 90.52%
orange: 3.99%
kiwi: 2.45%
avocado: 1.86%
Apple: 0.98%

处理图像: D:\archive (1)\MY_data\predict\1.jpeg
图像: 1.jpeg
预测结果:
Apple: 95.86%
cherry: 2.94%
Banana: 0.71%
avocado: 0.24%
strawberries: 0.19%
