transformer(4):FFN 编码器块

FFN

1.目的

注意力机制捕捉了序列里面不同位置的相关关系，并没有加强非线性表达能力，所以添加FFN用于增强非线性表达能力。

2.代码

class Pos_FFN(nn.Module):
    def __init__(self, *args, **kwargs) -> None:
        super(Pos_FFN, self).__init__(*args, **kwargs)
        self.lin_1 = nn.Linear(num_hiddens, 1024, bias=False)
        self.relu1 = nn.ReLU()
        self.lin_2 = nn.Linear(1024, num_hiddens, bias=False)
        self.relu2 = nn.ReLU()

    def forward(self, X):
        X = self.lin_1(X)
        X = self.relu1(X)
        X = self.lin_2(X)
        X = self.relu2(X)  # 可写可不写
        return X

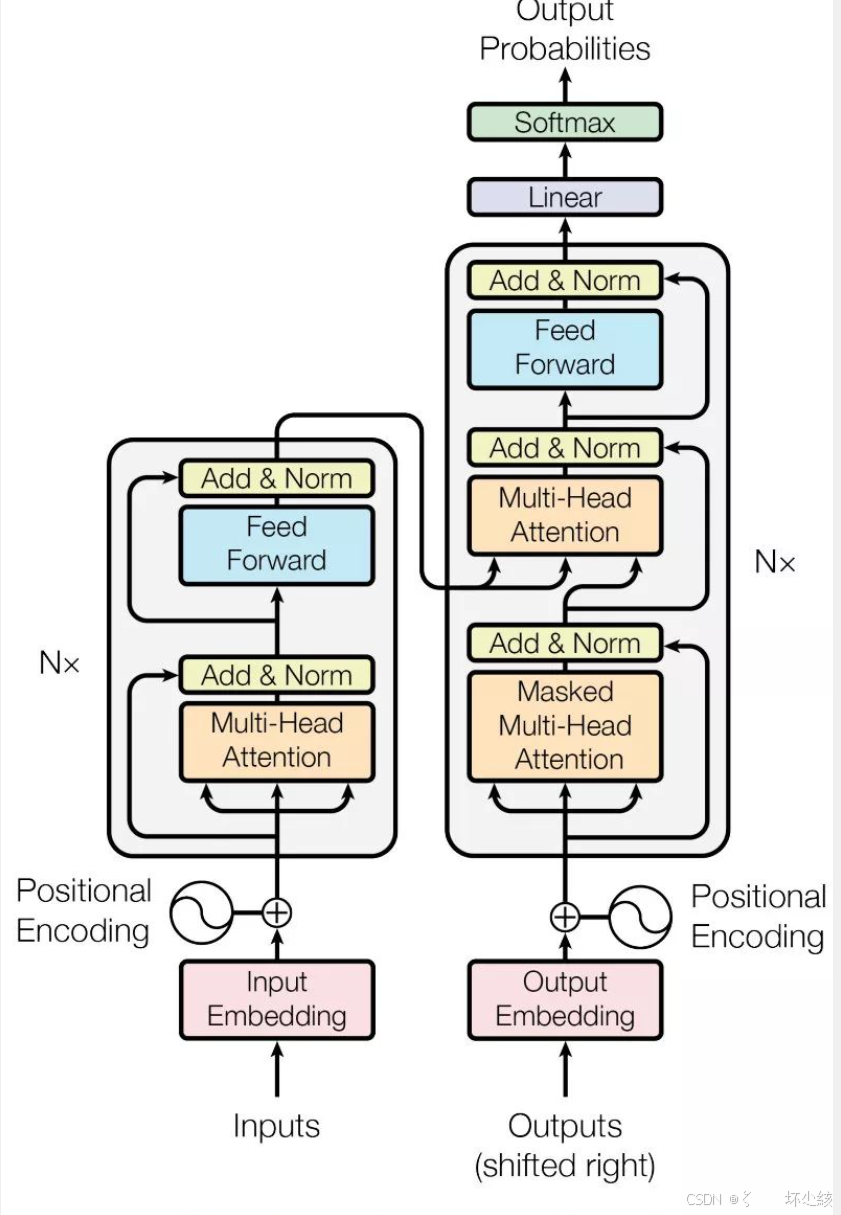

编码器块

class Encoder_block(nn.Module):
    def __init__(self, *args, **kwargs) -> None:
        super(Encoder_block, self).__init__(*args, **kwargs)
        self.attention = Attention_block()
        self.add_norm_1 = AddNorm()
        self.FFN = Pos_FFN()
        self.add_norm_2 = AddNorm()

    def forward(self, X, I_m):
        I_m = I_m.unsqueeze(-2)
        X_1 = self.attention(X, I_m)
        X = self.add_norm_1(X, X_1)
        X_1 = self.FFN(X)
        X = self.add_norm_2(X, X_1)
        return X
