前言

Hovernet按svs格式的WSI分别识别图像类型，速度慢。因此，尝试将整图WSI转为png进行细胞识别（纯属个人试试）并进行RGB可视化。

RGB可视化这步属于Development and interpretation of a pathomics-driven ensemble model for predicting the response to immunotherapy in gastric cancer中三种特征提取方式之一的部分实操复现（如下图红框位置）。

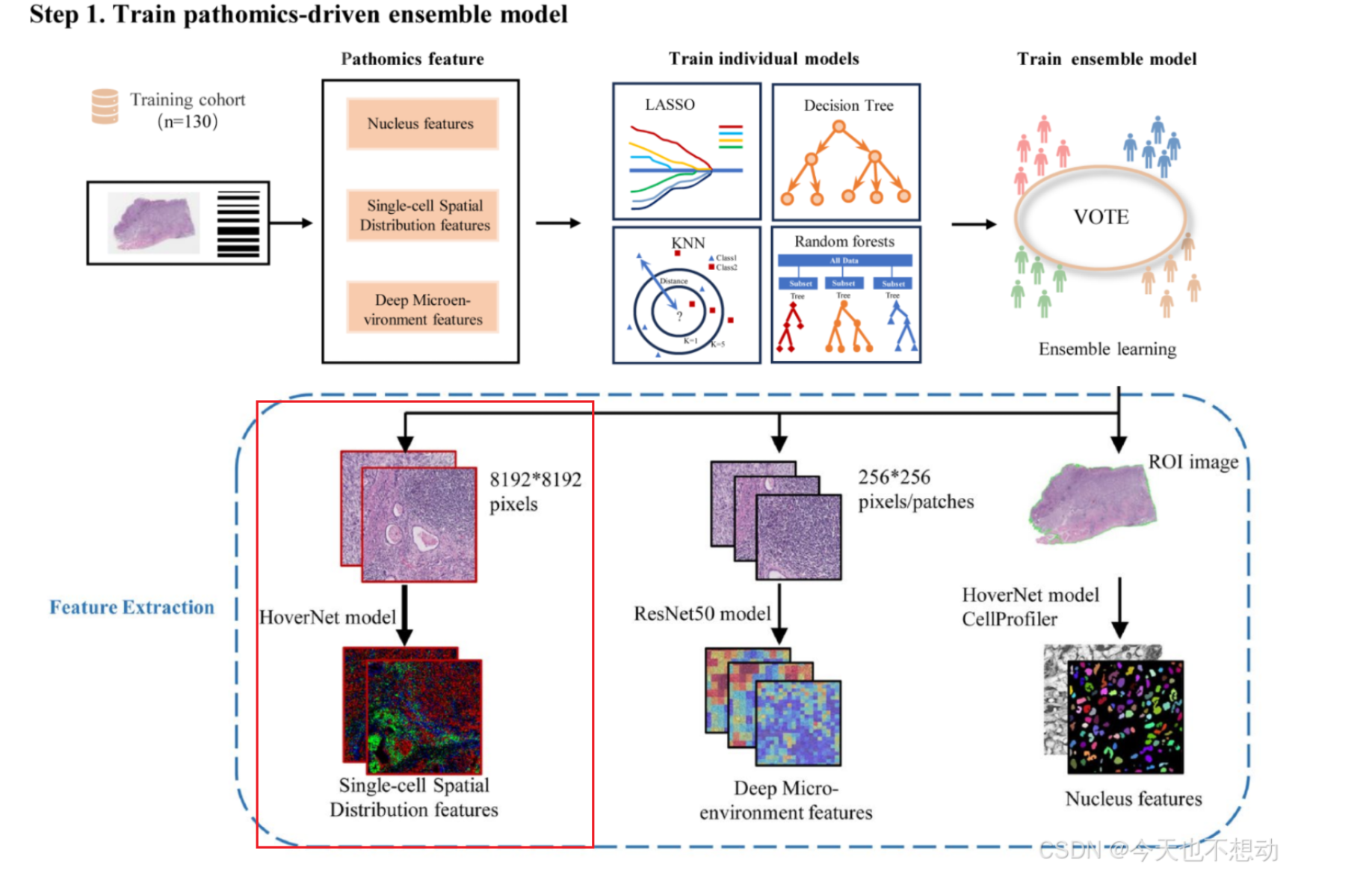

在这里插入图片描述

具体代码实现

Step1：统计病理切片属性信息

import openslide
import matplotlib.pyplot as plt
import os
import numpy as np
import pandas as pddata_dir ="../input_dataset/"dir_lst = os.listdir(data_dir)
dir_lst = [i for i in dir_lst if i.endswith("ndpi")]
print(len(dir_lst))df_wsi = pd.DataFrame(columns = ["Slide name","Level_0_magnification", "Dimensions","Level count", "Level dimensions","Level downsamples"])
for file in dir_lst:svs_file_path = data_dir + fileslide = openslide.OpenSlide(svs_file_path)downsample_lst = [int(i) for i in list(slide.level_downsamples)]app_mag = slide.properties.get('aperio.AppMag', 40)  # 如果不存在，返回 'Unknown'
#     print(app_mag,svs_file_path)info = [file,int(app_mag),slide.dimensions,slide.level_count,slide.level_dimensions ,downsample_lst ]df_wsi.loc[len(df_wsi)] = info
# df_wsi.to_csv("slide_stat.csv",index=False)
df_wsi.head()

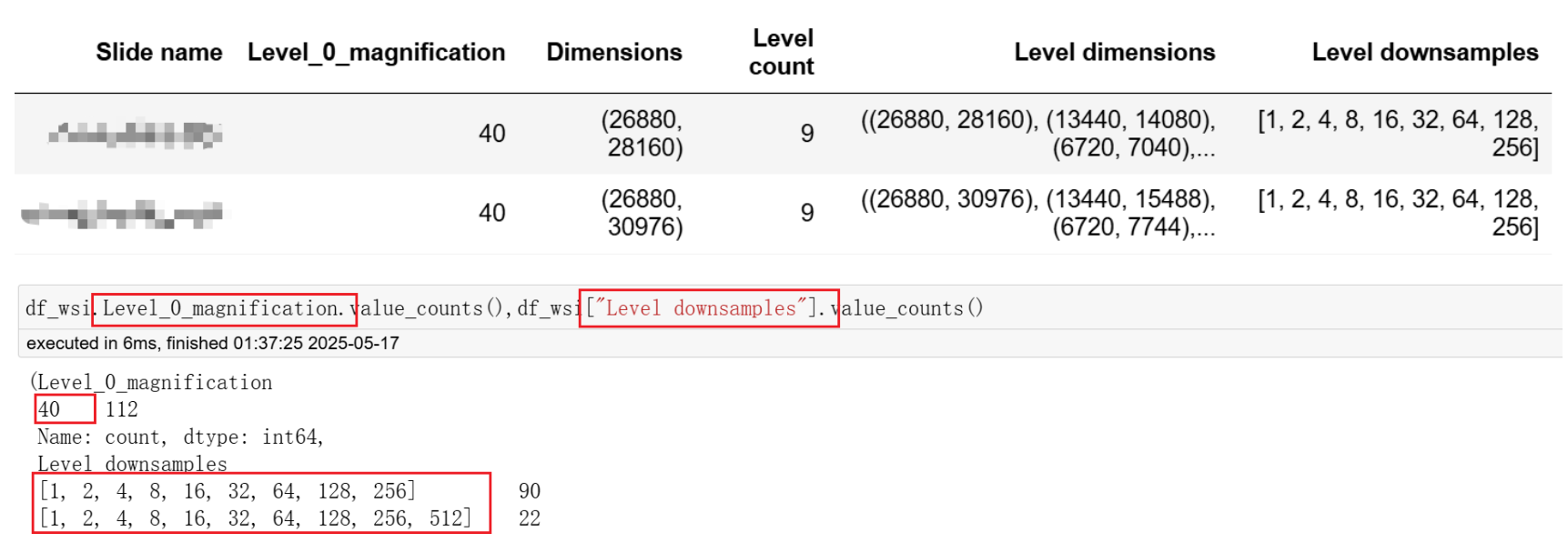

在这里插入图片描述

结果表示所有图像最大分辨率为40X，下采样级别为[1,2,4,8…]。代表可以获得放大倍数为40X，20X,10X等的图像。

这步的目的是明确图像的属性，不同批次的病理切片属性不一样，分析时需要注意。

Step2： WSI转png，（尽量）去除非组织部分（减少文件大小）

转svs为png

import openslide
import numpy as np
from PIL import Image
import osdef convert_svs_to_png(svs_path, output_folder):slide = openslide.open_slide(svs_path)# 获取最大分辨率下的图像尺寸
#     width, height = slide.dimensionspatch_level = 2 # 这里是20xwidth, height = list(df_wsi[df_wsi["Slide name"]==os.path.basename(svs_path)]["Level dimensions"])[0][patch_level]img = slide.read_region((0, 0), patch_level, (width, height)) # 坐标 层级（层级 0 是最高分辨率）读取的图像区域的宽度和高度img = slide.read_region((0, 0), patch_level, (width, height))img_array = np.array(img)# 保存为 PNG 格式output_path = os.path.join(output_folder, os.path.basename(svs_path).replace('.ndpi', '.png'))Image.fromarray(img_array).save(output_path)output_dir = './png_Level_0_magnification'
if not os.path.exists(output_dir):os.makedirs(output_dir)
for svs_file in os.listdir(data_dir):if not os.path.isfile(os.path.join(output_dir,svs_file.replace('.ndpi', '.png'))):svs_file = data_dir + svs_fileprint(svs_file)convert_svs_to_png(svs_file, output_dir)

保留组织块，且像素长宽能被16整除

import cv2
import numpy as npdef remove_whitespace_from_image(image_path, output_path):# 读取图像image = cv2.imread(image_path)if image is None:print("无法读取图像，请检查路径是否正确。")return# 转换为灰度图像gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)# 使用阈值分割去除偏白色区域（可根据实际调整阈值）_, thresh = cv2.threshold(gray, 240, 255, cv2.THRESH_BINARY)# 反转图像，将白色背景变为黑色，组织区域变为白色thresh = cv2.bitwise_not(thresh)# 寻找轮廓contours, _ = cv2.findContours(thresh, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)# 获取最大轮廓（假设组织区域是最大的连通区域）if contours:max_contour = max(contours, key=cv2.contourArea)x, y, w, h = cv2.boundingRect(max_contour)# 裁剪图像cropped_image = image[y:y+h, x:x+w]# 保证裁剪后的图像尺寸能被 16 整除height, width = cropped_image.shape[:2]# 计算需要裁剪的像素数量width_remainder = width % 16height_remainder = height % 16# 如果宽度不能被 16 整除，则从左右两侧均匀裁剪if width_remainder != 0:width_crop_left = width_remainder // 2width_crop_right = width_remainder - width_crop_leftcropped_image = cropped_image[:, width_crop_left:width - width_crop_right]# 如果高度不能被 16 整除，则从上下两侧均匀裁剪if height_remainder != 0:height_crop_top = height_remainder // 2height_crop_bottom = height_remainder - height_crop_topcropped_image = cropped_image[height_crop_top:height - height_crop_bottom, :]cv2.imwrite(output_path, cropped_image)print(f"处理完成，裁剪后的图像已保存到 {output_path}, 像素大小为 {cropped_image.shape}, 宽能被16整除吗: {cropped_image.shape[1] % 16 == 0}, 高能被16整除吗: {cropped_image.shape[0] % 16 == 0}")else:print("未找到组织区域，请检查图像或调整阈值。")# 示例运行
from tqdm import tqdm
for png_file in tqdm(os.listdir(output_dir)):if png_file.endswith('.png') and '_tissue' not in png_file and not os.path.exists(os.path.join(output_dir,png_file.replace('.png','_tissue.png'))):input_image_path = os.path.join(output_dir, png_file)output_image_path  = os.path.join(output_dir, png_file.replace('.png','_tissue.png'))print(input_image_path)print(output_image_path)remove_whitespace_from_image(input_image_path, output_image_path)

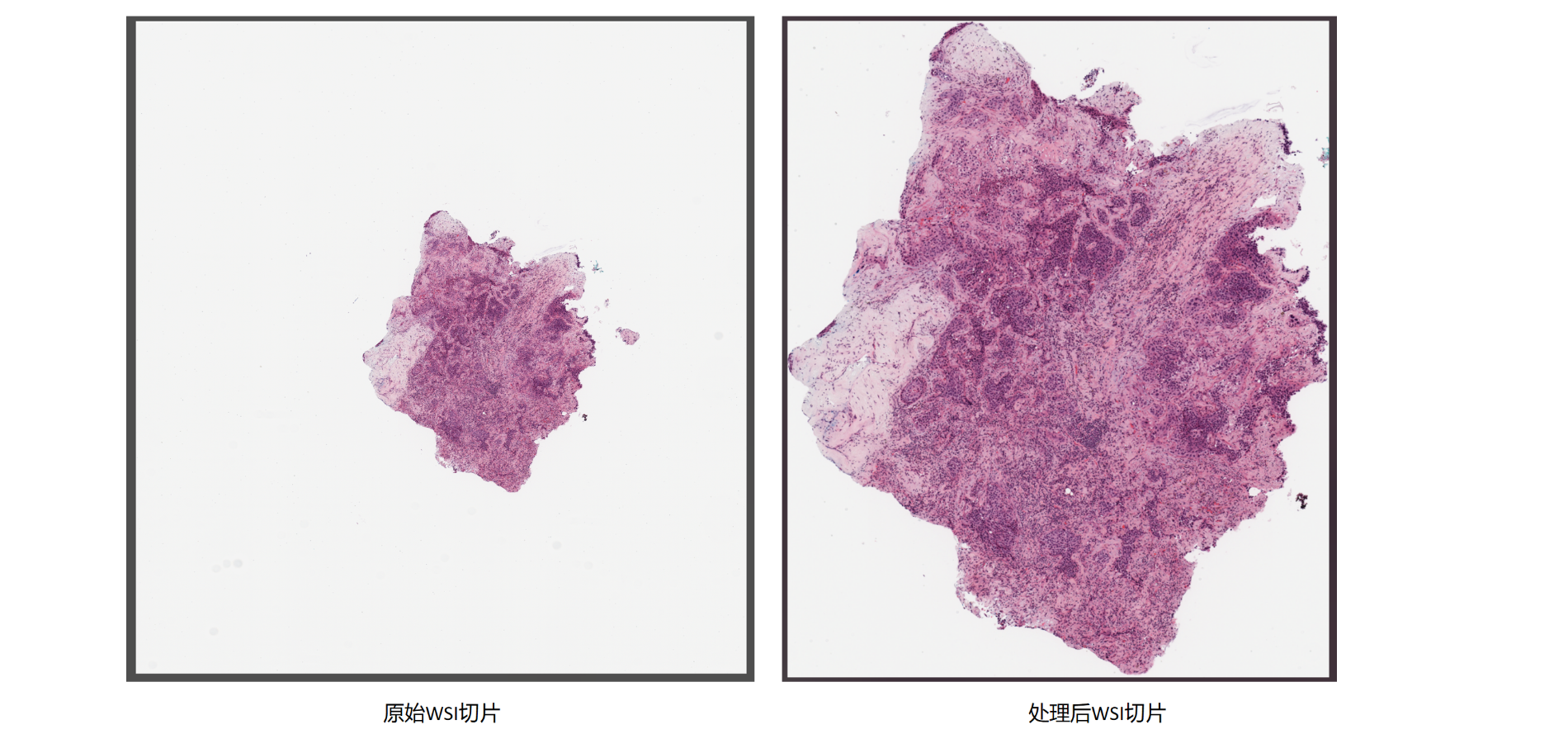

在这里插入图片描述

Step3：采用hovernet tile模型进行细胞类型识别

## input_dataset_tiles为放置输入图片（png）的文件夹。执行细胞分割识别任务时，自动生成输出文件output_tiles_Pannuke ### 在run_infer.py文件中加入下续命令
import torch.multiprocessing
torch.multiprocessing.set_sharing_strategy('file_system')# 执行细胞分割任务
python run_infer.py --gpu='0' --nr_types=6 --type_info_path='type_info_pannuke.json'  --model_path='./hover-net-pytorch-weights/hovernet_fast_pannuke_type_tf2pytorch.tar' --model_mode='fast' --nr_inference_workers=8 --nr_post_proc_workers=16 --batch_size=1  tile --input_dir='./input_dataset_tiles/' --output_dir='./output_tiles_Pannuke/' --mem_usage=0.1 --draw_dot --save_qupath# 若报错一次可执行下述命令再运行
ls output_tiles_Pannuke/overlay/ | while read i;do rm input_dataset_tiles/$i; done
python run_infer.py --gpu='0' --nr_types=6 --type_info_path='type_info_pannuke.json'  --model_path='./hover-net-pytorch-weights/hovernet_fast_pannuke_type_tf2pytorch.tar' --model_mode='fast' --nr_inference_workers=8 --nr_post_proc_workers=16 --batch_size=1  tile --input_dir='./input_dataset_tiles/' --output_dir='./output_tiles_Pannuke_tmp/' --mem_usage=0.1 --draw_dot --save_qupath# 若再再报错，先执行下续命令，再依次执行上述两行命令
rsync -av --include '*/' --include '*.*' --exclude '*' ./output_tiles_Pannuke_tmp/ ./output_tiles_Pannuke/ # 递归的将./output_tiles_Pannuke_tmp/目录的文件转移到./output_tiles_Pannuke/中

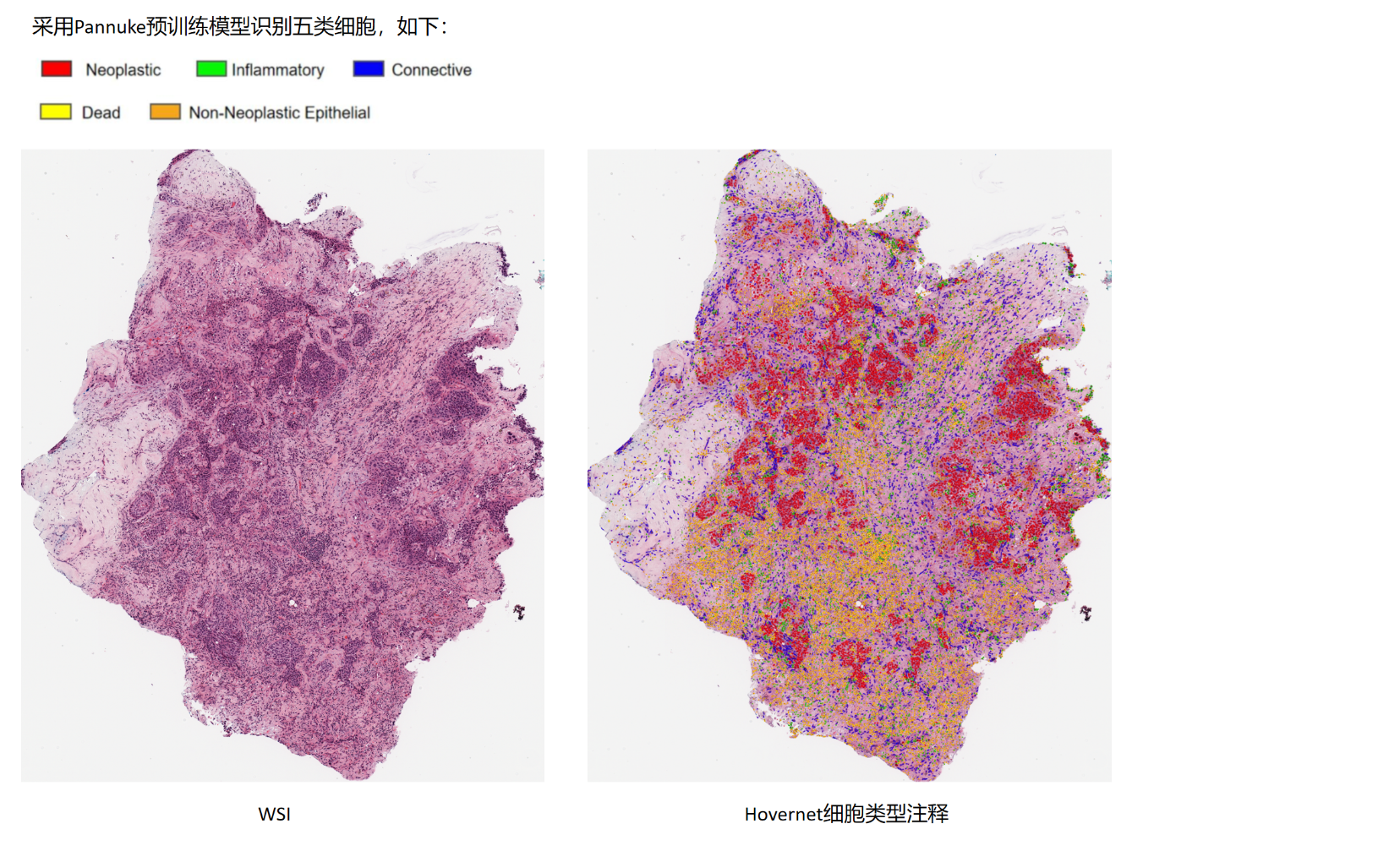

在这里插入图片描述

Step4：RGB可视化

实现思路：在图片按64*64的方格进行滑窗，计算每个滑窗内不同类型细胞的数量。RGB图三层三种颜色分别代表一种细胞类型，颜色可区分细胞类型，亮度可区分细胞密度。

单张图片示例如下：

# load the librariesimport sys
sys.path.append('../hover_net/')import numpy as np
import pandas as pd
import os
import glob
import matplotlib.pyplot as plt
import scipy.io as sio
import cv2
import json
import openslide
import shutil
import os
from misc.wsi_handler import get_file_handler
from misc.viz_utils import visualize_instances_dicttile_path = './hover_net/input_dataset_tiles///'
tile_json_path = './hover_net/output_tiles_Pannuke//json/'
tile_mat_path = './hover_net/output_tiles_Pannuke//mat/'
tile_overlay_path  = './hover_net/output_tiles_Pannuke//overlay/'Single_cell_spatial_distribution_map_dir = "./Single_cell_spatial_distribution_map/"
if os.path.exists(Single_cell_spatial_distribution_map_dir):shutil.rmtree(Single_cell_spatial_distribution_map_dir)
os.makedirs(Single_cell_spatial_distribution_map_dir)from PIL import Imageimage_path = tile_overlay_path +"C3L-01663-21_tissue.png"
image = Image.open(image_path)width, height = image.size
print(width, height)
# 获取图片的DPI（如果存在）
dpi = info.get("dpi", (64, 64))  # 默认值为64/32 DPI
print(dpi)

import numpy as np
import cv2
import json  # 用于加载 JSON 格式的 HoverNet 输出def create_rgb_density_map_from_hovernet(hovernet_output, image_size=(256, 256), grid_size=(16, 16)):"""基于 HoverNet 输出创建 RGB 密度图。Args:hovernet_output (dict): HoverNet 的输出，包含细胞位置和类型信息。image_size (tuple): 图像的尺寸 (width, height)。grid_size (tuple): 网格的尺寸 (width, height)。Returns:numpy.ndarray:RGB 图像 (NumPy 数组)。"""# 1. 细胞类型映射cell_type_map = {1: "tumor",  # 假设 1 代表肿瘤细胞3: "stromal",  # 假设 2 代表基质细胞2: "lymphocyte",  # 假设 4 代表淋巴细胞# 可以根据实际 HoverNet 输出添加更多类型}# 2. 创建网格num_grid_rows = image_size[1] // grid_size[1]  # 256 // 64 = 4num_grid_cols = image_size[0] // grid_size[0]  # 256 // 64 = 4# 3. 初始化网格计数器grid_counts = np.zeros((num_grid_rows, num_grid_cols, 3), dtype=np.int32)  # [R,G,B]# 4. 统计细胞数量for cell_id, cell_info in hovernet_output['nuc'].items(): # 遍历每个细胞cell_type_id = cell_info['type']if cell_type_id in cell_type_map: #只统计我们关心的细胞类型cell_type = cell_type_map[cell_type_id]centroid = cell_info['centroid']  # 获取细胞质心坐标 (x, y)x, y = int(centroid[0]), int(centroid[1])if 0 <= x < image_size[0] and 0 <= y < image_size[1]:grid_col = x // grid_size[0]grid_row = y // grid_size[1]if 0 <= grid_row < num_grid_rows and 0 <= grid_col < num_grid_cols:if cell_type == "tumor":grid_counts[grid_row, grid_col, 0] += 1elif cell_type == "lymphocyte":grid_counts[grid_row, grid_col, 1] += 1elif cell_type == "stromal":grid_counts[grid_row, grid_col, 2] += 1# 5. 创建 RGB 图像rgb_image = np.zeros((num_grid_rows, num_grid_cols, 3), dtype=np.uint8)# 遍历每个网格for i in range(num_grid_rows):for j in range(num_grid_cols):# 获取当前网格的细胞数量tumor_count = grid_counts[i, j, 0]lymphocyte_count = grid_counts[i, j, 1]stromal_count = grid_counts[i, j, 2]# 映射细胞数量到 RGB 值 (0-255)# 这里可以根据需求调整映射方式max_count = 2  # 设置一个最大细胞数量阈值，超过这个阈值的都设为 255red = min(int(tumor_count * (255 / max_count)), 255)green = min(int(lymphocyte_count * (255 / max_count)), 255)blue = min(int(stromal_count * (255 / max_count)), 255)rgb_image[i, j] = [blue, green, red]  # 注意 OpenCV 的颜色通道顺序是 BGR# 将图像放大到原始尺寸，方便可视化rgb_image = cv2.resize(rgb_image, image_size, interpolation=cv2.INTER_NEAREST)  # 使用最近邻插值print("Image size:", image_size)print("Grid size:", grid_size)print("Number of grid rows and cols:", num_grid_rows, num_grid_cols)return rgb_image

# 示例用法：
if __name__ == '__main__':# 1. 加载 HoverNet 输出 (假设保存在 JSON 文件中)hovernet_output_file = "./hover_net/output_tiles_Pannuke//json/C3L-01663-21_tissue.json"  # 替换为你的文件名with open(hovernet_output_file, 'r') as f:hovernet_output = json.load(f)# 使用你提供的 HoverNet 输出作为示例image_path = tile_overlay_path + "C3L-01663-21_tissue.png"image = Image.open(image_path)image_size = image.sizeprint(image_size)grid_size = (16, 16)# 2. 创建 RGB 密度图rgb_image = create_rgb_density_map_from_hovernet(hovernet_output, image_size, grid_size)# 3. 保存图像outfile = Single_cell_spatial_distribution_map_dir + os.path.basename(hovernet_output_file).replace(".json",".png")cv2.imwrite(outfile, rgb_image)print("RGB density map saved as ", outfile)

在这里插入图片描述

Step5：深度学习预训练模型提取图片特征

细胞注释RGB可视化后，可参考文献 “Development and interpretation of a pathomics-driven ensemble model for predicting the response to immunotherapy in gastric cancer” 采用深度学习方法进行特征 (Single-cell_spatial_distribution_pathomics_features) 提取。
