fpga系列 HDL : Microchip FPGA开发软件 Libero Soc 项目仿真示例
-

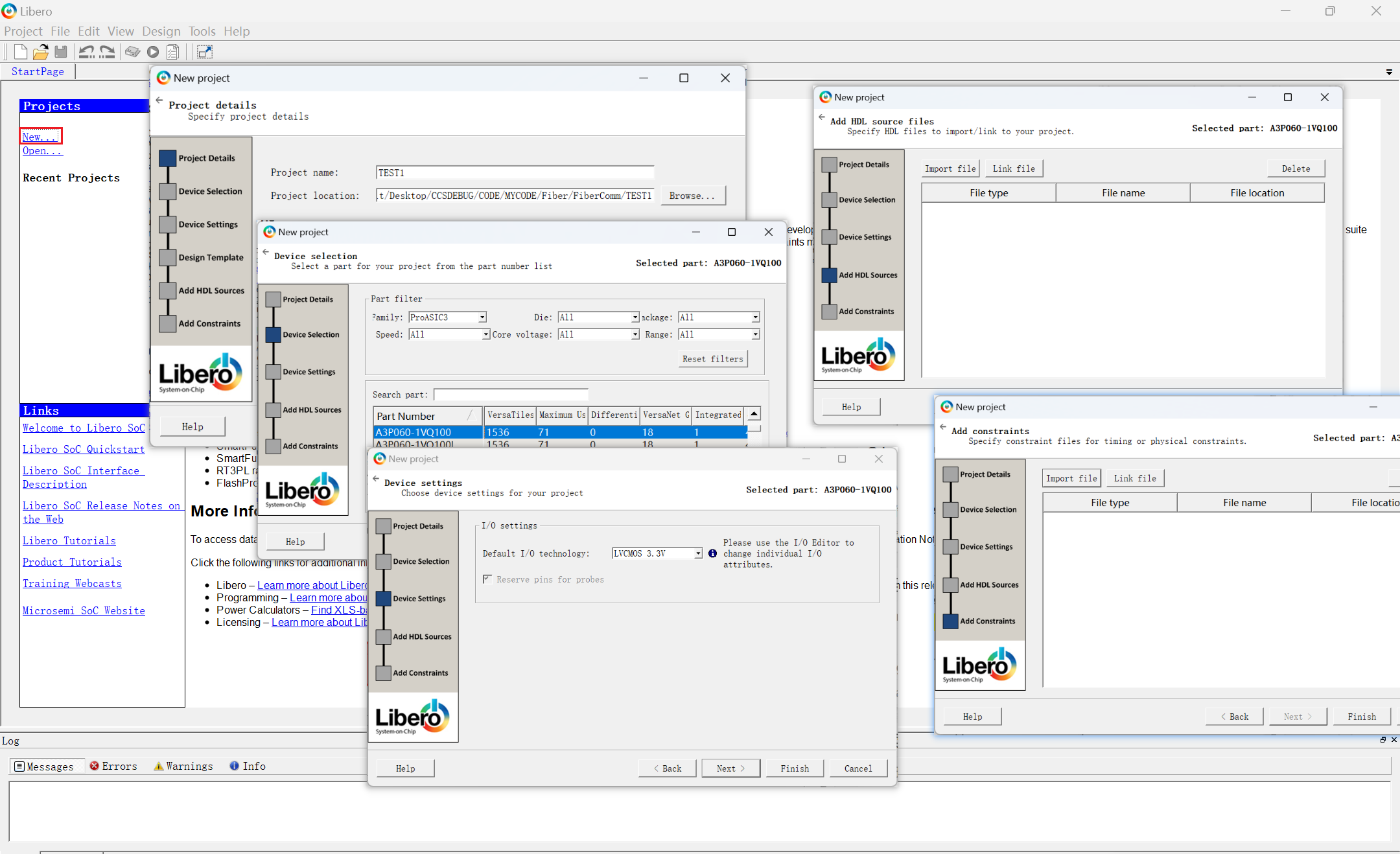

新建项目
-
项目初始界面中创建或导入设计文件：
-

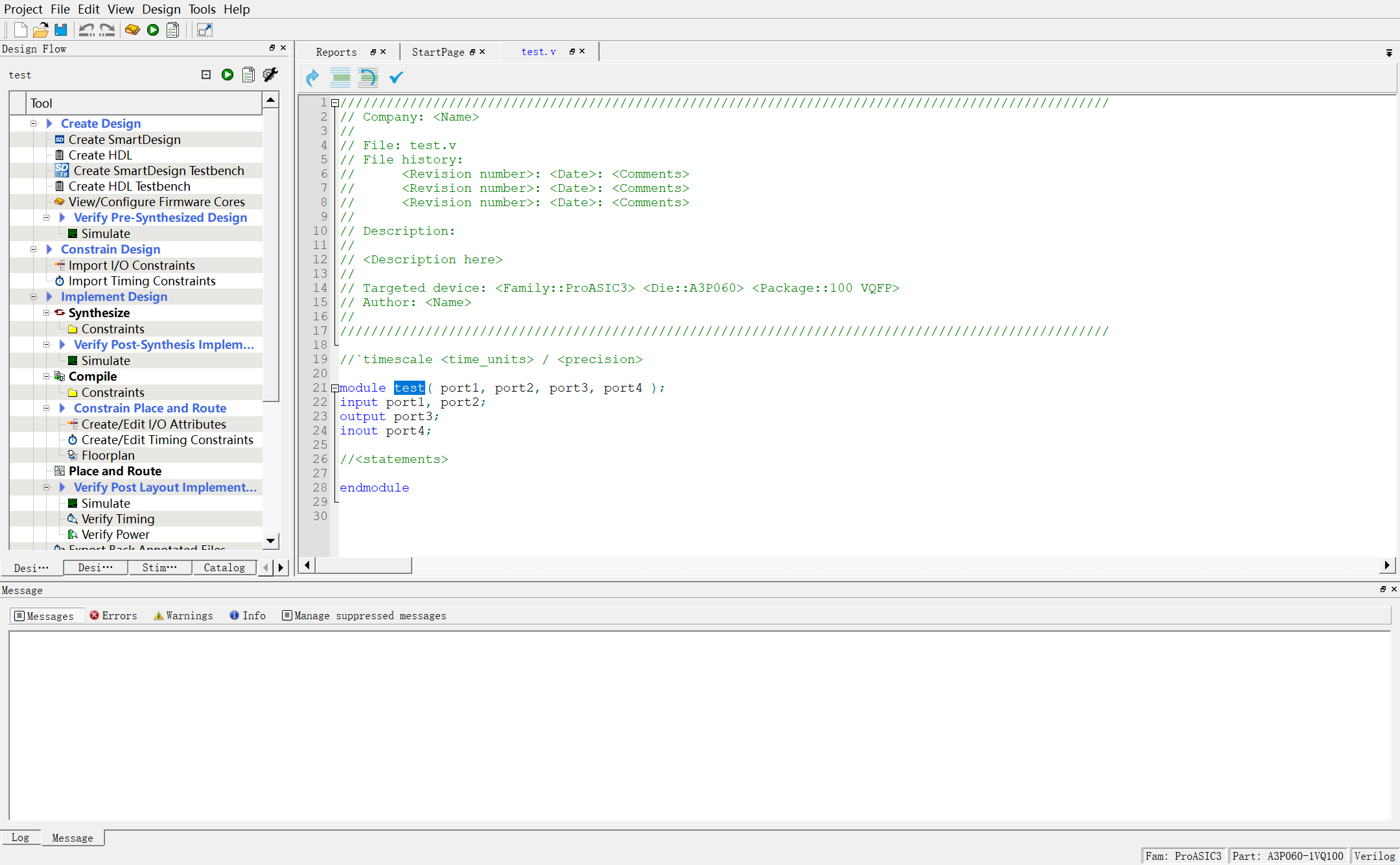

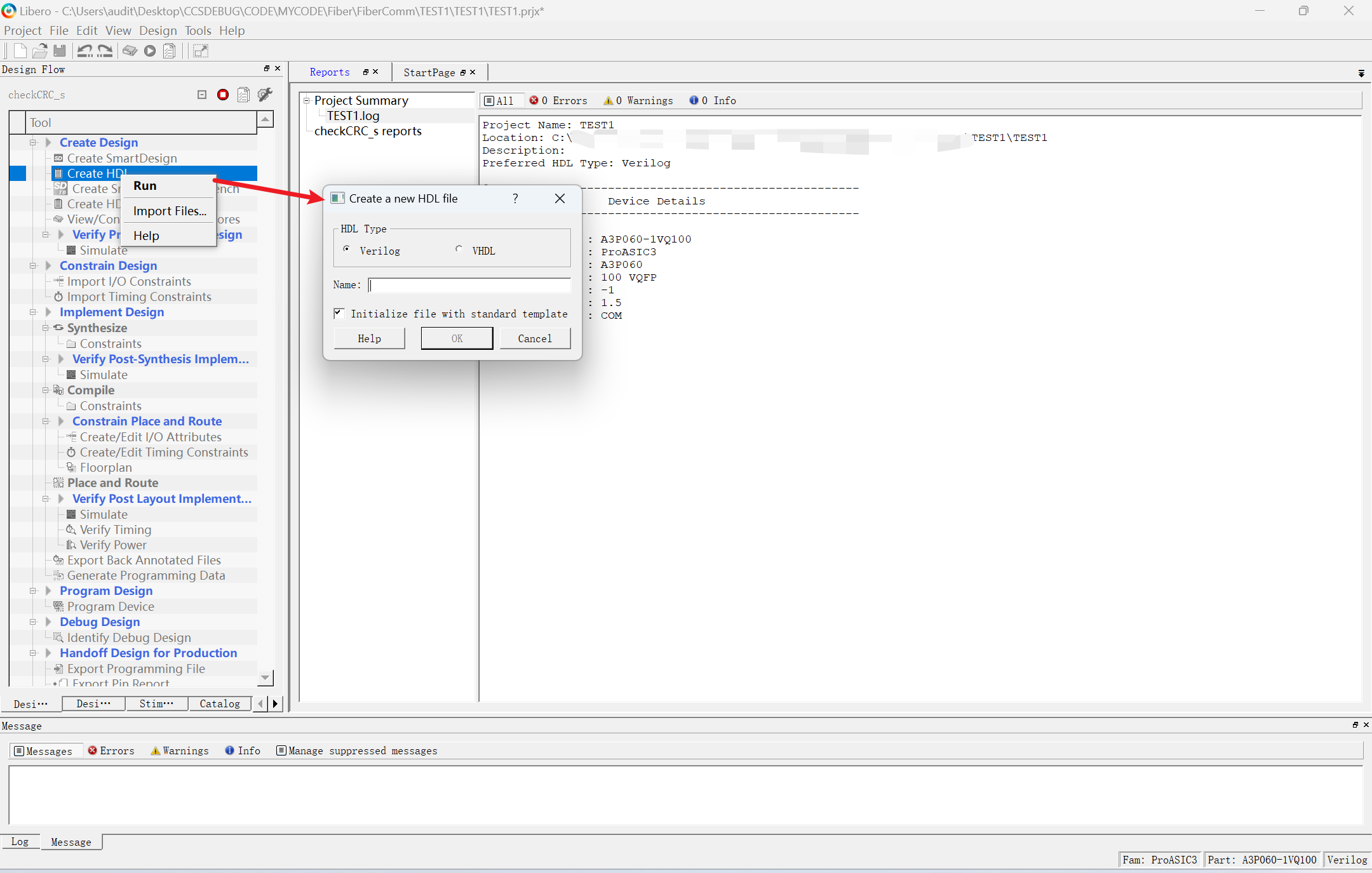

新建HDL文件
module test (input [3:0] a,input [3:0] b,output reg [3:0] sum,output reg carry_out
);always @(*) begin{carry_out, sum} = a + b;
endendmodule
-

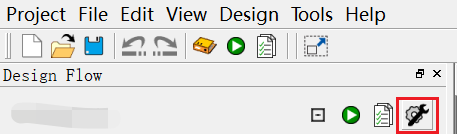

点击此按钮可进行项目信息的重新配置：
-
综合：
-
Libero Soc RTL Viewer

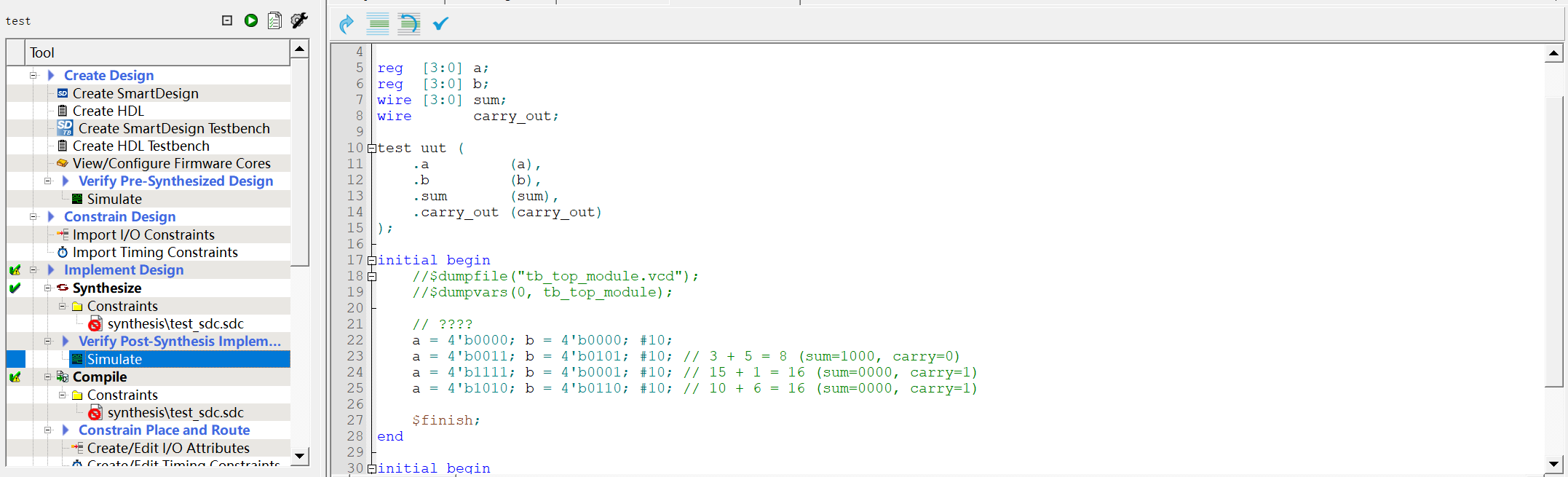

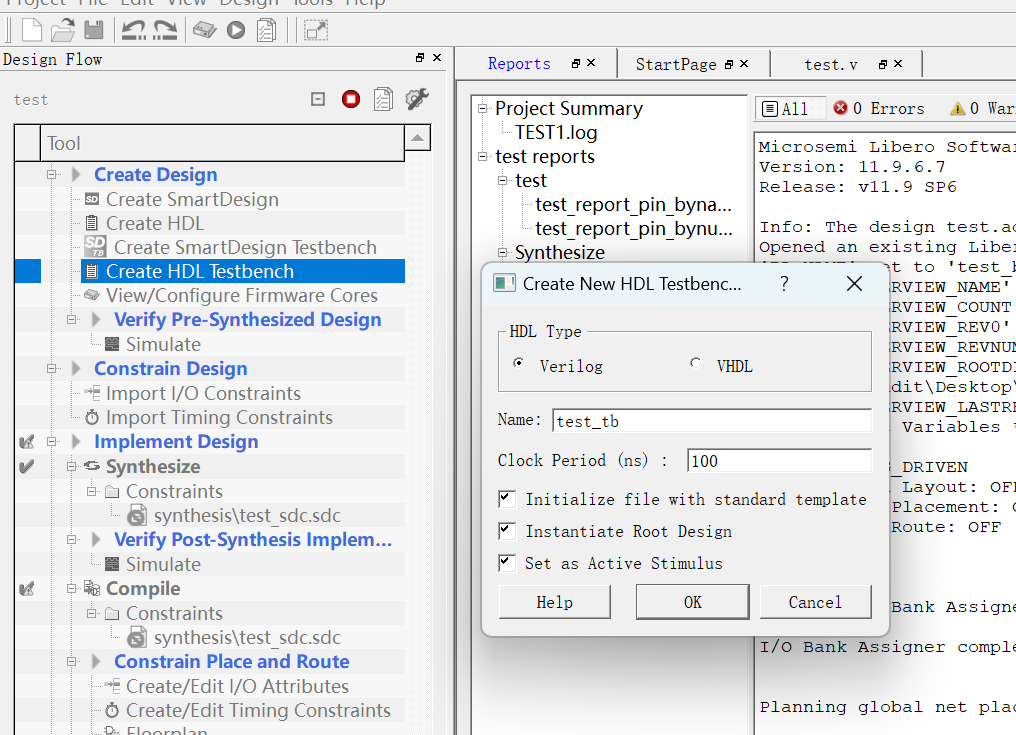

`timescale 1 ns / 1 psmodule test_tb;reg [3:0] a;
reg [3:0] b;
wire [3:0] sum;
wire carry_out;test uut (.a (a),.b (b),.sum (sum),.carry_out (carry_out)
);initial begina = 4'b0000; b = 4'b0000; #10;a = 4'b0011; b = 4'b0101; #10; // 3 + 5 = 8 (sum=1000, carry=0)a = 4'b1111; b = 4'b0001; #10; // 15 + 1 = 16 (sum=0000, carry=1)a = 4'b1010; b = 4'b0110; #10; // 10 + 6 = 16 (sum=0000, carry=1)$finish;
endinitial begin$monitor("At time %t: a=%b (%d), b=%b (%d) => sum=%b (%d), carry_out=%b",$time, a, a, b, b, sum, sum, carry_out);
endendmodule

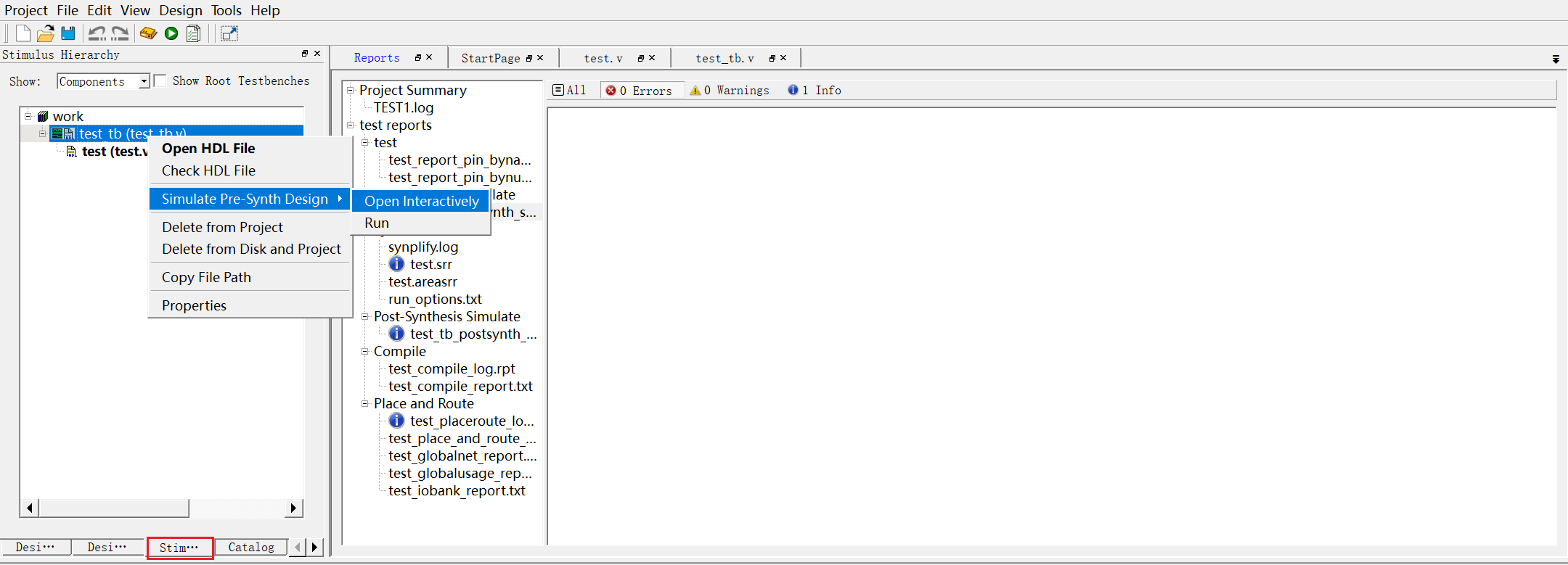

- 或者
