端口隔离实验

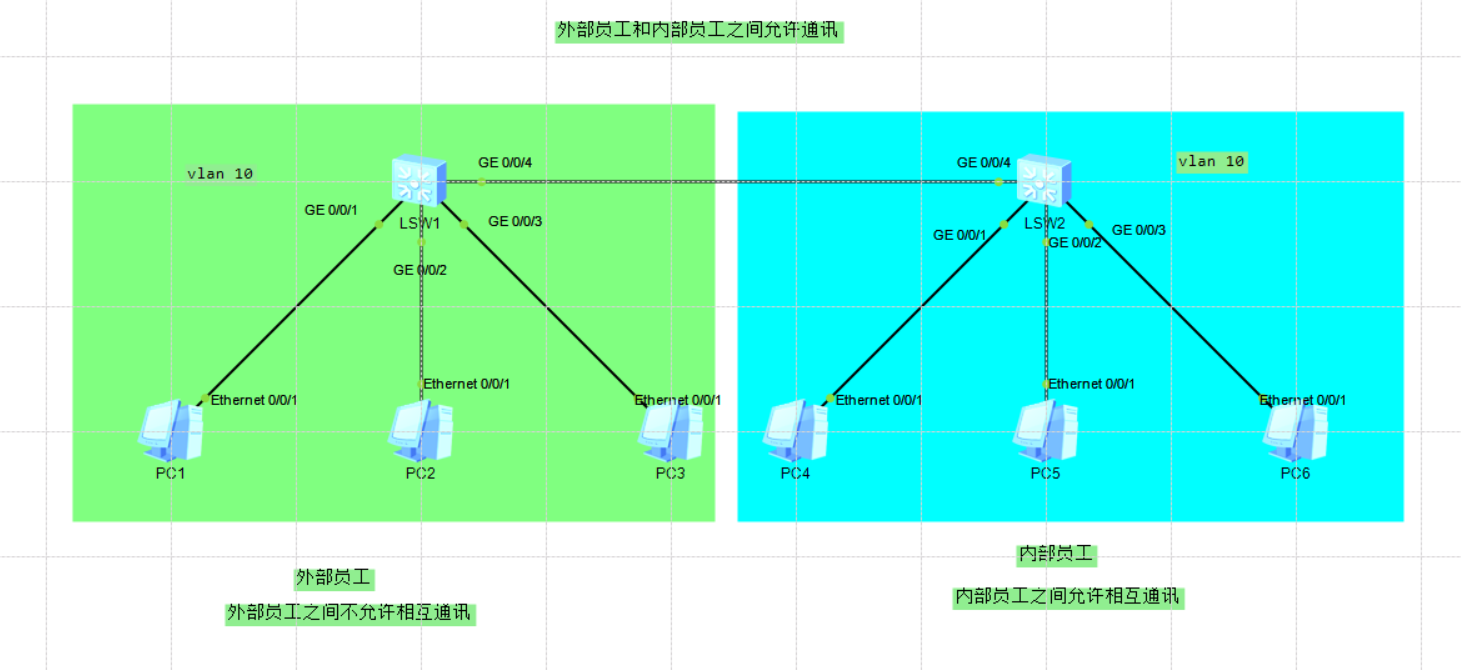

注:要求按照top图上显示

外部员工之间不允许相互通讯;

内部员工之间允许通讯;

外部员工和内部员工之间允许通讯.

[SW1]int g0/0/1
[SW1-GigabitEthernet0/0/1]di th
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 10port-isolate enable group 1
#
return
[SW1-GigabitEthernet0/0/1]int g0/0/2
[SW1-GigabitEthernet0/0/2]di th
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 10port-isolate enable group 1
#
return
[SW1-GigabitEthernet0/0/2]int g0/0/3
[SW1-GigabitEthernet0/0/3]di th
#
interface GigabitEthernet0/0/3port link-type accessport default vlan 10port-isolate enable group 1
#
return

[SW2-GigabitEthernet0/0/1]di th
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 10
#
return
[SW2-GigabitEthernet0/0/2]di th
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 10
#
return
[SW2-GigabitEthernet0/0/3]di th
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 10
#
return
