SUPER-VLAN基础配置

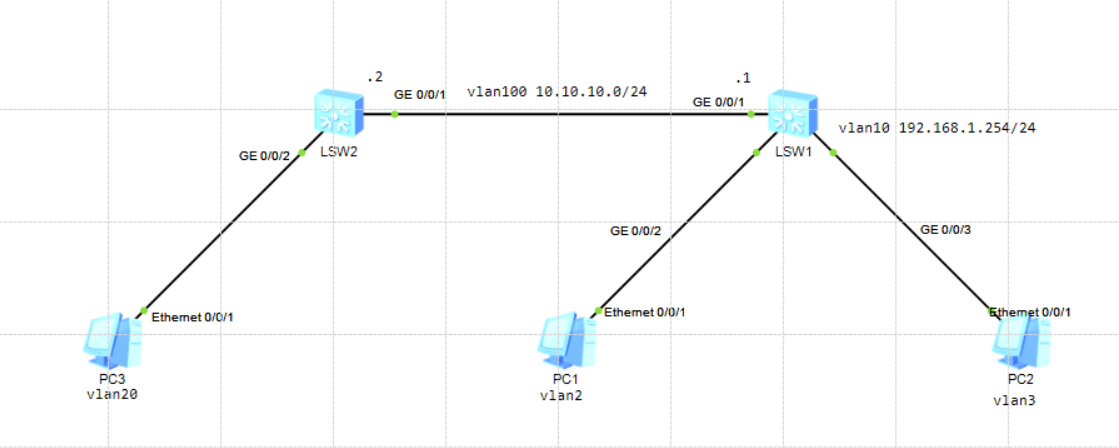

1.top图

2.交换机配置

sysname sw1
#
undo info-center enable
#
vlan batch 2 to 3 10 100
#
vlan 10aggregate-vlanaccess-vlan 2 to 3
#
interface Vlanif10ip address 192.168.1.254 255.255.255.0arp-proxy inter-sub-vlan-proxy enable
#
interface Vlanif100ip address 10.10.10.1 255.255.255.0
#
interface GigabitEthernet0/0/1port link-type accessport default vlan 100
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 2
#
interface GigabitEthernet0/0/3port link-type accessport default vlan 3

#
sysname sw2
#
undo info-center enable
#
vlan batch 20 100
#
interface Vlanif20ip address 172.16.1.254 255.255.255.0
#
interface Vlanif100ip address 10.10.10.2 255.255.255.0
interface GigabitEthernet0/0/1port link-type accessport default vlan 20
#
interface GigabitEthernet0/0/2port link-type accessport default vlan 100



3.验证ping图
