ComputeShader绘制全屏纯色纹理

news 来源：原创 2025/5/1 8:06:46

参考

Getting Started With Compute Shaders In Unity

环境

Win10
Unity20194.40

全屏纯色纹理示例

使用ComputerShader逐个像素设置颜色

ComputeShader脚本
设置纹理颜色

#pragma kernel CSMainRWTexture2D<float4> Result;//纹理
half4 solidColor;//颜色[numthreads(8,8,1)]
void CSMain (uint3 id : SV_DispatchThreadID)
{Result[id.xy] = solidColor;//设置颜色 id.xy对应屏幕上的像素点
}

UseSolidComputeShader脚本
调用ComputeShader,绘制纯色纹理

using UnityEngine;
public class UseSolidComputeShader : MonoBehaviour
{[SerializeField] ComputeShader computeShader;RenderTexture renderTexture;int functionId;int groupsX;int groupsY;public RenderTexture Texture => renderTexture;public void Init(int width, int height){renderTexture = new RenderTexture(width, height, 24, RenderTextureFormat.ARGB32, RenderTextureReadWrite.Default);renderTexture.enableRandomWrite = true;renderTexture.Create();functionId = computeShader.FindKernel("CSMain");groupsX = Mathf.CeilToInt(renderTexture.width / 8f);//向上取整，避免小于纹理的宽度groupsY = Mathf.CeilToInt(renderTexture.height / 8f);computeShader.SetTexture(functionId, "Result", renderTexture);}public void Draw(Color color){computeShader.SetVector("solidColor", color);computeShader.Dispatch(functionId, groupsX, groupsY, 1);}
}

TestSolidColor脚本

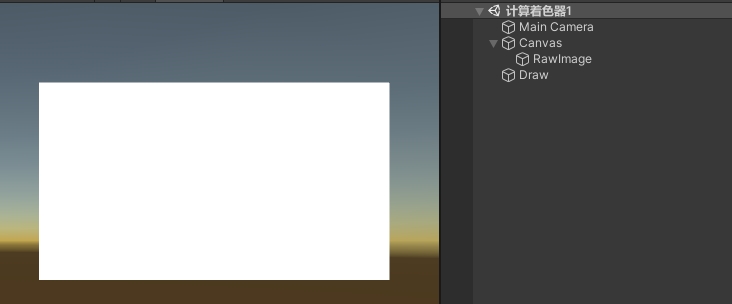

按下D键，绘制纯色纹理，显示在Rawimage上

using UnityEngine;
using UnityEngine.Profiling;
using UnityEngine.UI;
public class TestSolidColor : MonoBehaviour
{[SerializeField] UseSolidComputeShader useSolidComputeShader;[SerializeField] RawImage rawImage;private void Awake(){useSolidComputeShader.Init(Screen.width, Screen.height);rawImage.texture = useSolidComputeShader.Texture;}private void Update(){if (Input.GetKeyDown(KeyCode.D)){Profiler.BeginSample("Random Solid Color");useSolidComputeShader.Draw(Random.ColorHSV());Profiler.EndSample();}}
}
