改进系列（10）：基于SwinTransformer+CBAM+多尺度特征融合+FocalLoss改进：自动驾驶地面路况识别

news 来源：原创 2025/5/1 5:26:00

1.代码介绍

1. 主训练脚本train.py

2. 工具函数与模型定义utils.py

3. GUI界面应用infer_QT.py

2.自动驾驶地面路况识别

3.训练过程

4.推理

5.下载

代码已经封装好，对小白友好。

想要更换数据集，参考readme文件摆放好数据集即可，可以一键训练！！

1.代码介绍

整体特点:

技术先进性：结合了Swin Transformer和注意力机制，利用了当前先进的深度学习技术。
完整流程：覆盖了从数据准备、模型训练到应用部署的完整流程。
模块化设计：各组件职责明确，耦合度低，便于维护和扩展。
可视化丰富：提供多种训练过程和数据分布的可视化，便于模型分析和调试。
用户友好：通过GUI界面降低了使用门槛，使技术成果更易于实际应用。
文档完整：代码结构清晰，注释充分，便于理解和二次开发。

这套系统适合作为图像分类任务的基础框架，可以根据具体需求进行调整和扩展，具有较强的实用性和灵活性。

1. 主训练脚本train.py

train.py是系统的核心训练脚本，实现了完整的深度学习模型训练流程。

该脚本基于PyTorch框架，结合了Swin Transformer和CBAM注意力机制、多尺度特征融合，构建了一个强大的图像分类系统。

class SwinTransformerWithCBAM(nn.Module):def __init__(self, num_classes=10, pretrained=False):super(SwinTransformerWithCBAM, self).__init__()self.swin = models.swin_b(weights='IMAGENET1K_V1' if pretrained else None)# 获取各stage的实际输出通道数self.stage_channels = [128, 256, 512, 1024]# 添加CBAM模块self.cbam1 = CBAM(self.stage_channels[0])self.cbam2 = CBAM(self.stage_channels[1])self.cbam3 = CBAM(self.stage_channels[2])self.cbam4 = CBAM(self.stage_channels[3])# 多尺度特征融合self.multi_scale_fusion = MultiScaleFusion(in_channels_list=self.stage_channels,out_channels=256)# 分类头self.avgpool = nn.AdaptiveAvgPool2d(1)self.head = nn.Linear(256, num_classes)def forward(self, x):features = []# Stage 0: Patch Embeddingx = self.swin.features[0](x)# Stage 1x = self.swin.features[1](x)x = x.permute(0, 3, 1, 2)  # (B, C, H, W)x = self.cbam1(x)features.append(x)x = x.permute(0, 2, 3, 1)  # (B, H, W, C)# Stage 2x = self.swin.features[2](x)  # Patch Mergingx = self.swin.features[3](x)  # Stage2 blocksx = x.permute(0, 3, 1, 2)x = self.cbam2(x)features.append(x)x = x.permute(0, 2, 3, 1)# Stage 3x = self.swin.features[4](x)  # Patch Mergingx = self.swin.features[5](x)  # Stage3 blocksx = x.permute(0, 3, 1, 2)x = self.cbam3(x)features.append(x)x = x.permute(0, 2, 3, 1)# Stage 4x = self.swin.features[6](x)  # Patch Mergingx = self.swin.features[7](x)  # Stage4 blocksx = x.permute(0, 3, 1, 2)x = self.cbam4(x)features.append(x)# 多尺度特征融合fused_features = self.multi_scale_fusion(features)# 分类x = self.avgpool(fused_features[-1])x = torch.flatten(x, 1)x = self.head(x)return x

主要功能包括：

参数配置与初始化：使用argparse模块处理命令行参数，包括模型选择、训练参数、数据路径等。创建保存结果的目录结构，记录训练配置信息。
数据准备：通过data_trans()函数定义训练和验证数据的预处理流程，包括随机旋转、中心裁剪等增强操作。get_data()函数加载ImageFolder格式的数据集，并生成数据加载器。
模型构建：调用create_model()函数创建Swin Transformer与CBAM、多尺度特征融合结合的混合模型，计算并记录模型参数量和计算量(FLOPs)。
训练流程：
- 使用Focal Loss作为损失函数，解决类别不平衡问题
- 实现余弦退火学习率调度策略
- 记录训练过程中的损失、准确率等指标
- 保存最佳模型和最后模型
评估与可视化：

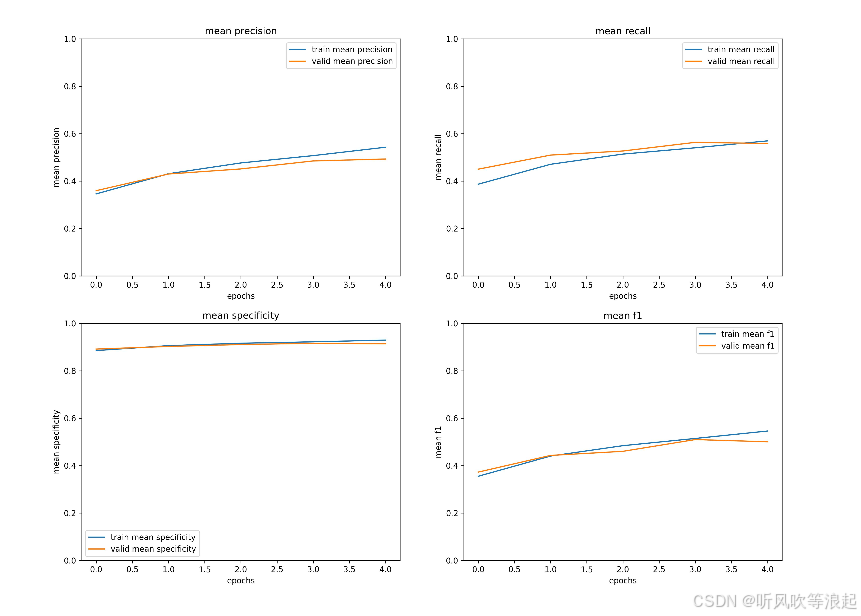

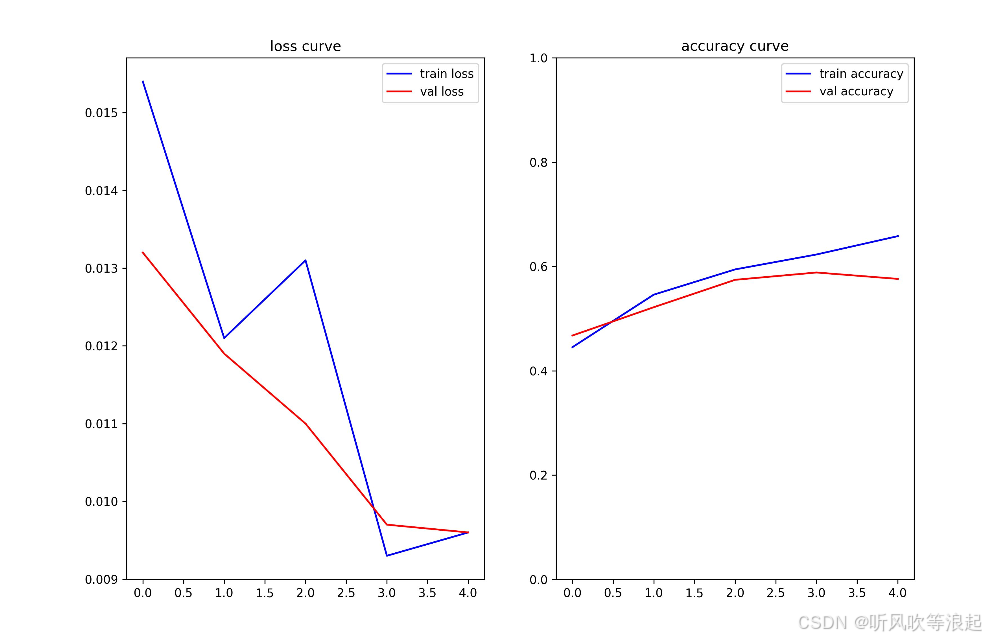

- 绘制训练/验证的损失和准确率曲线

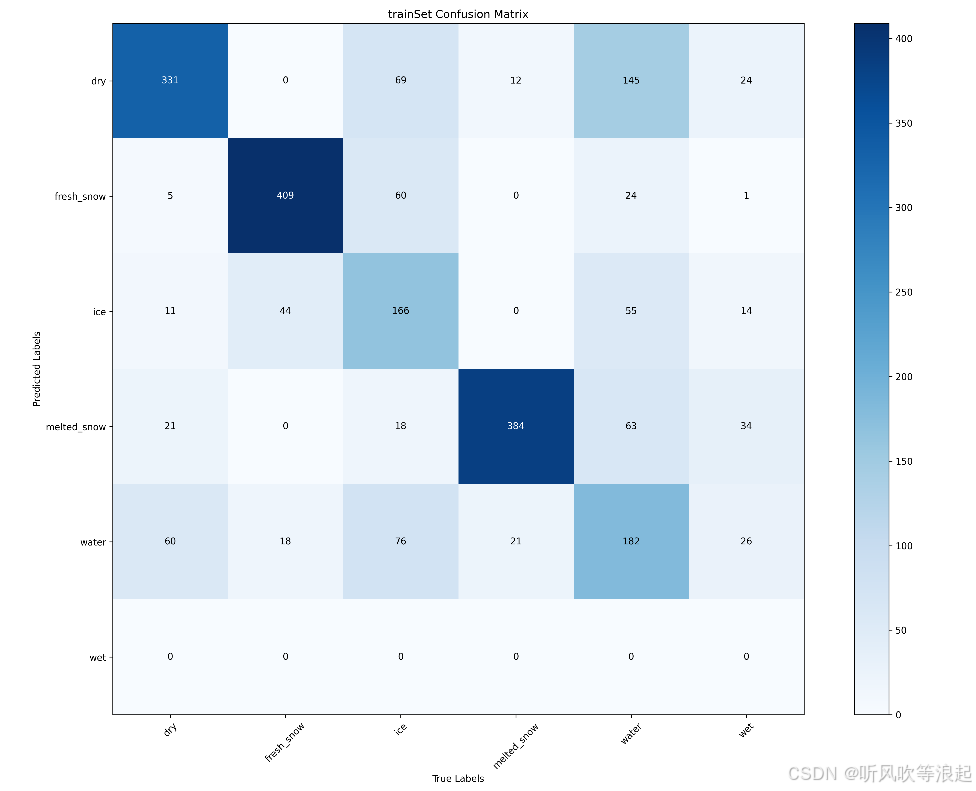

- 生成混淆矩阵

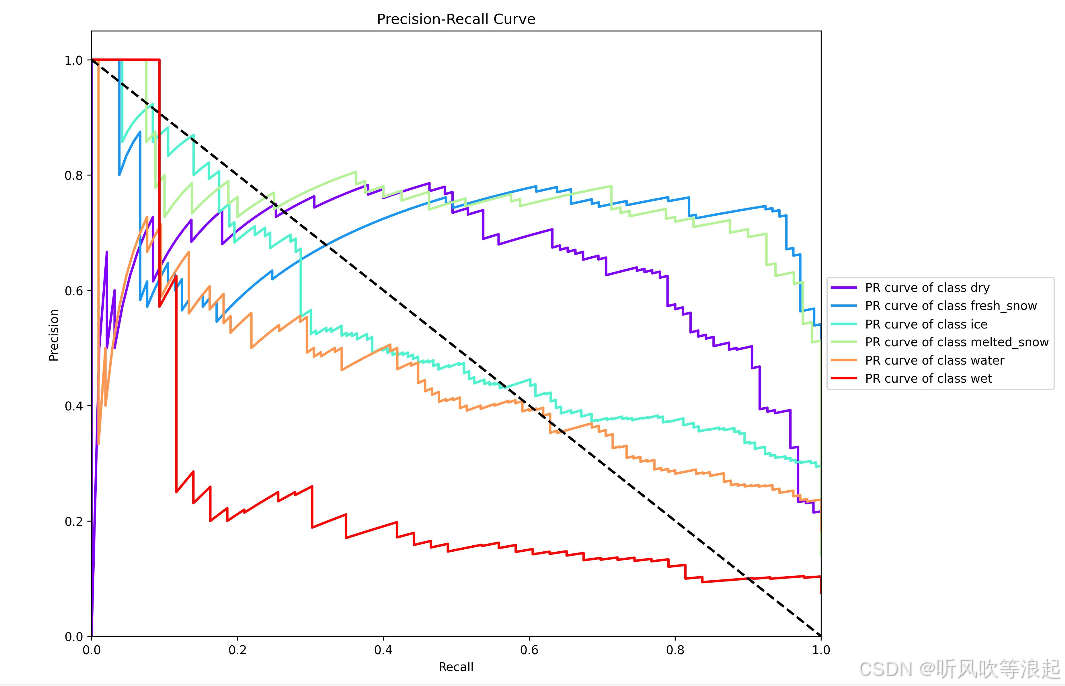

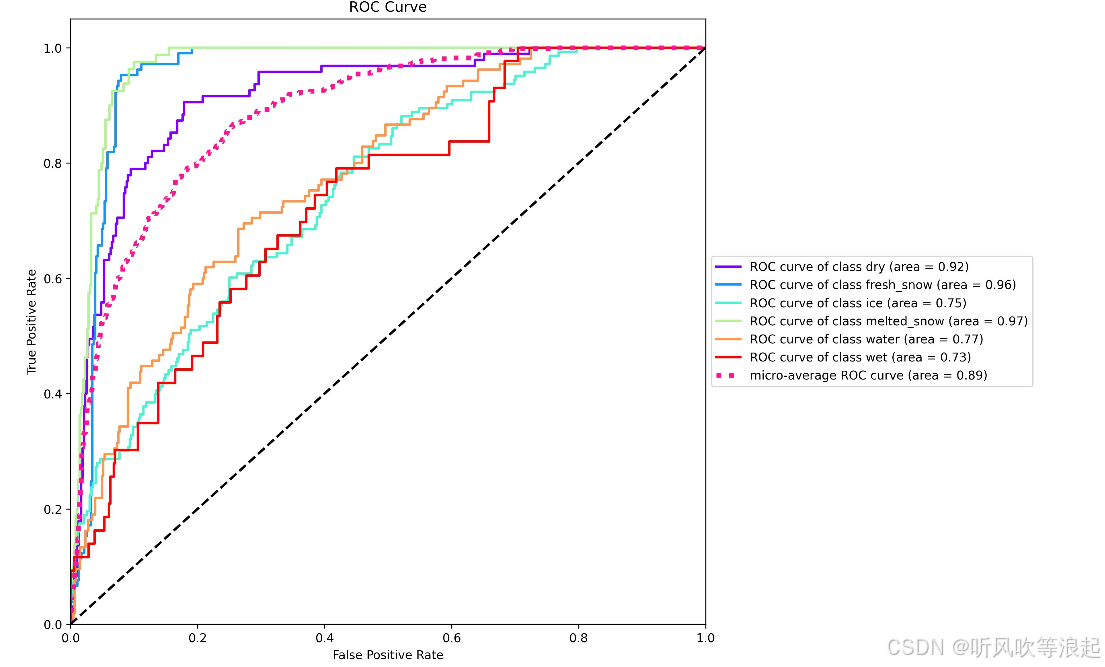

- 计算并绘制ROC曲线和PR曲线
- 可视化数据集分布
测试功能：可选地加载测试集进行最终评估，保存测试结果。

该脚本设计完整，包含了从数据准备到模型评估的完整流程，并提供了丰富的可视化功能，便于分析模型性能。

2. 工具函数与模型定义utils.py

utils.py包含了系统的主要工具函数和模型定义，是train和qt推理的基础支持模块。

主要组成部分：

注意力机制模块：
- ChannelAttention：通道注意力模块，学习不同通道的重要性
- SpatialAttention：空间注意力模块，学习空间位置的重要性
- CBAM：结合通道和空间注意力的混合模块
多尺度特征融合：MultiScaleFusion类实现了自顶向下的多尺度特征融合策略，增强模型对不同尺度特征的捕捉能力。
核心模型定义：SwinTransformerWithCBAM类将Swin Transformer与CBAM注意力机制结合：
- 使用预训练的Swin Transformer作为主干网络
- 在各阶段输出后添加CBAM模块
- 实现多尺度特征融合
- 自定义分类头
工具函数：
- 数据预处理(data_trans)
- 数据集加载(get_data)
- 训练和评估函数(train_one_epoch, evaluate)
- 混淆矩阵计算(ConfusionMatrix)
- 各种可视化函数(损失曲线、ROC曲线等)
- Focal Loss实现
辅助功能：
- 目录创建(mkdir)
- 设备获取(get_device)
- 信息保存(save_info)
- 数据集分布可视化(plot_dataset_distribution)

该文档提供了模型的核心实现和各种辅助工具，设计上注重模块化和可重用性，各组件可以方便地被其他脚本调用。

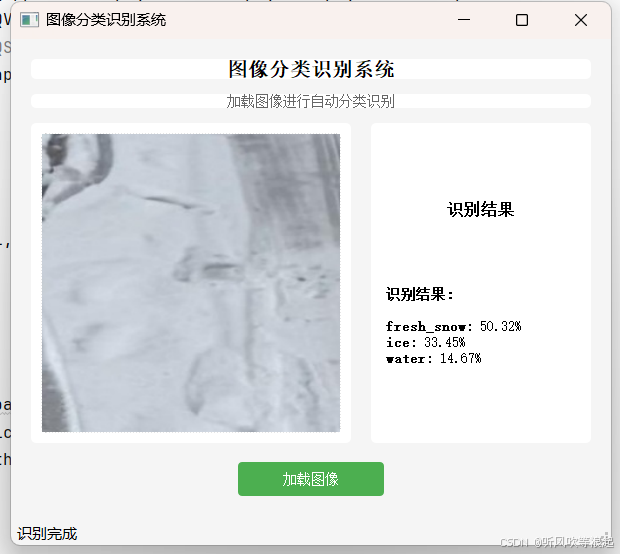

3. GUI界面应用infer_QT.py

infer_QT.py基于PyQt5实现了用户友好的图形界面，使训练好的模型可以方便地用于实际图像分类任务。

主要特点：

模型封装：ImageClassifier类封装了模型加载和预测功能：
- 从文件加载训练好的模型权重
- 加载类别标签映射文件
- 实现图像预处理和预测接口
GUI设计：
- 主窗口(MainWindow)包含图像显示区、结果展示区和控制按钮
- 响应式布局，适应不同窗口大小
- 现代简洁的界面风格
- 状态栏显示操作状态
功能实现：
- 文件对话框选择图像
- 图像显示与自适应缩放
- 模型预测与结果显示(支持多类别概率展示)
- 错误处理和状态反馈
用户体验优化：
- 清晰的界面分区
- 操作状态反馈
- 美观的样式设计
- 详细的识别结果展示

该GUI应用使非技术用户也能方便地使用训练好的模型进行图像分类，提高了系统的实用性和易用性。

2.自动驾驶地面路况识别

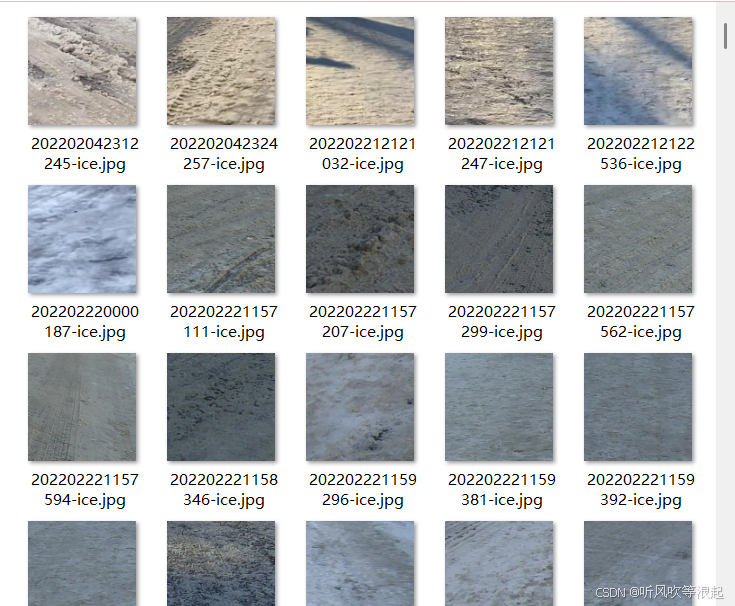

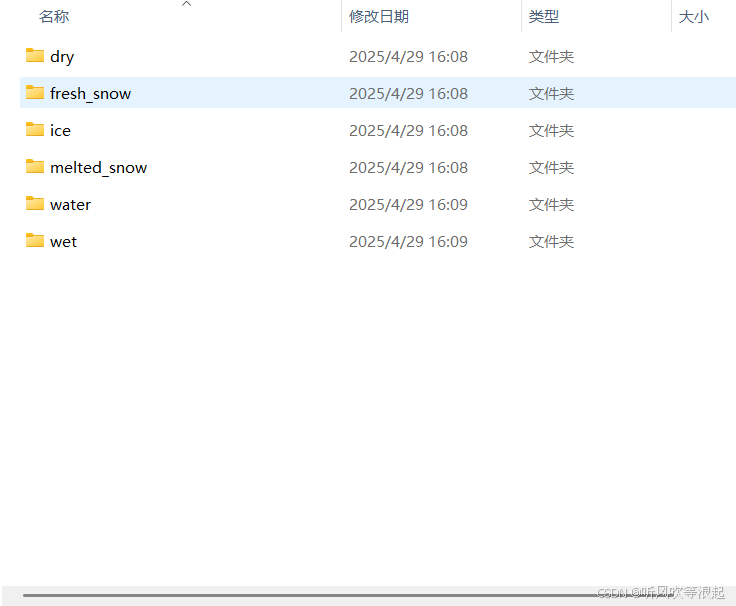

数据集如下：

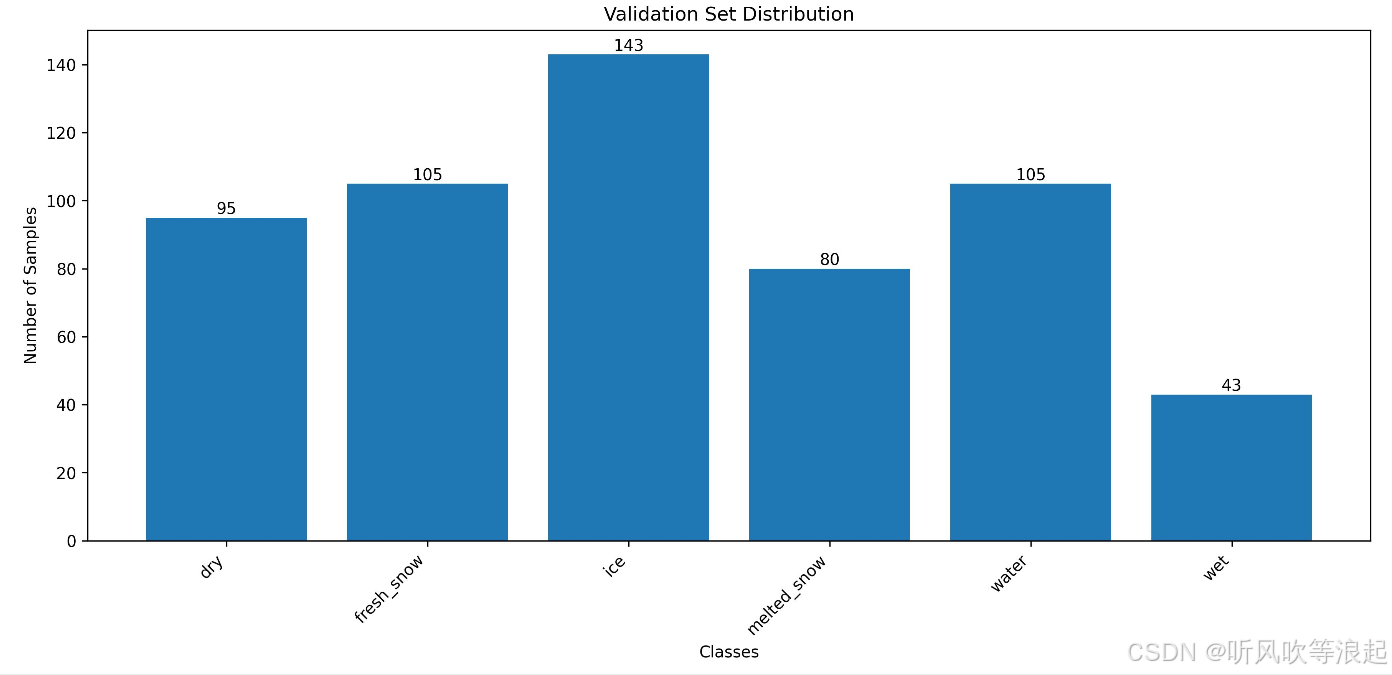

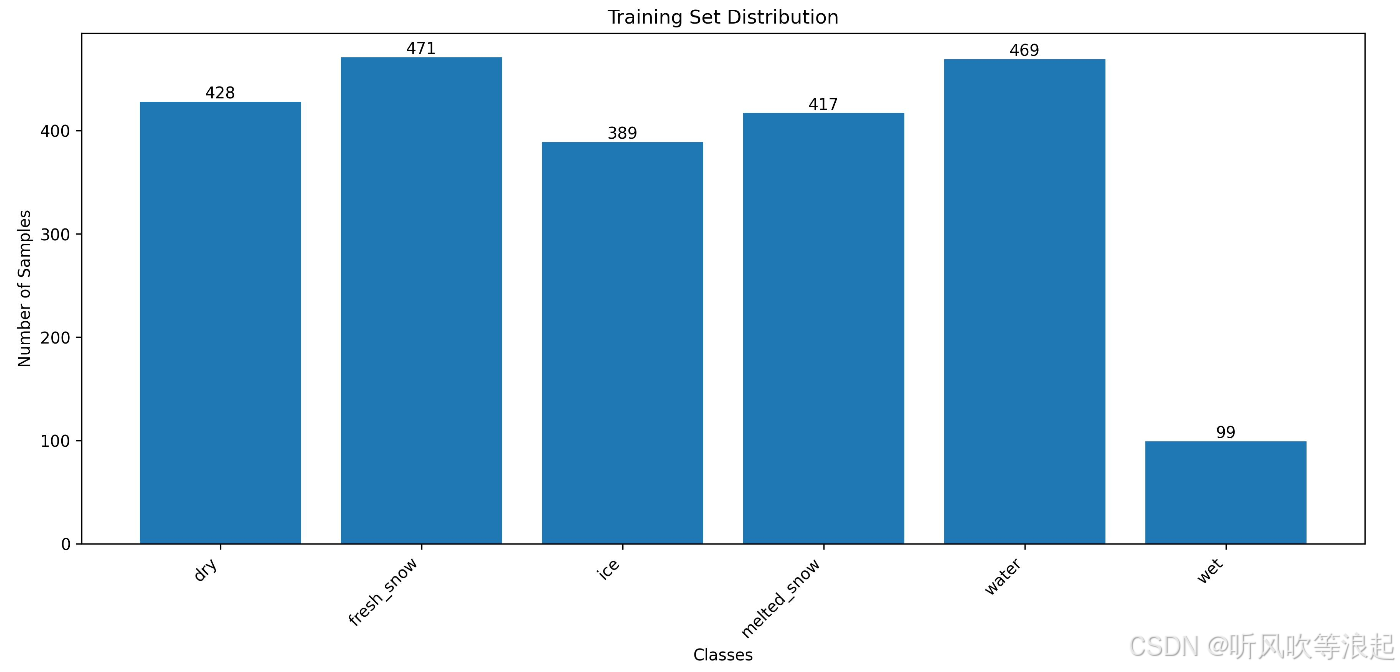

训练集和验证集的样本数量：【代码自动生成】

json标签：【代码自动生成】

{"0": "dry","1": "fresh_snow","2": "ice","3": "melted_snow","4": "water","5": "wet"
}

3.训练过程

参数如下：其实都很好理解的，就是常见的调参，这里不多介绍了

    parser.add_argument("--model", default='swin-vit', type=str,help='swin-vit')parser.add_argument("--pretrained", default=False, type=bool)       # 采用官方权重parser.add_argument("--batch-size", default=16, type=int)parser.add_argument("--epochs", default=5, type=int)parser.add_argument("--optim", default='Adam', type=str,help='SGD,Adam,AdamW')         # 优化器选择parser.add_argument('--lr', default=0.0001, type=float)parser.add_argument('--lrf',default=0.0001,type=float)                  # 最终学习率 = lr * lrfparser.add_argument('--save_ret', default='runs', type=str)             # 保存结果parser.add_argument('--data_train',default='./data/train',type=str)           # 训练集路径parser.add_argument('--data_val',default='./data/val',type=str)# 测试集parser.add_argument("--data-test", default=True, type=bool, help='if exists test sets')

数据集的文件摆放，有测试集的话，设置为true，代码会自动测试【参考readme文件】
--data--train--- 训练集的图像
--data--val--- 验证集的图像
--data--test--- 测试集的图像（如果有的话）

这里的loss采用focal loss：

class FocalLoss(nn.Module):def __init__(self, alpha=0.25, gamma=2.0, reduction='mean'):# 增大 gamma 会更强调难分类样本# 调整 alpha 可以平衡不同类别的权重super(FocalLoss, self).__init__()self.alpha = alphaself.gamma = gammaself.reduction = reductiondef forward(self, inputs, targets):ce_loss = F.cross_entropy(inputs, targets, reduction='none')pt = torch.exp(-ce_loss)focal_loss = self.alpha * (1-pt)**self.gamma * ce_lossif self.reduction == 'mean':return focal_loss.mean()elif self.reduction == 'sum':return focal_loss.sum()else:return focal_loss

训练日志：这里进行简单训练

Namespace(batch_size=16, data_test=True, data_train='./data/train', data_val='./data/val', epochs=5, lr=0.0001, lrf=0.0001, model='swin-vit', optim='Adam', pretrained=False, save_ret='runs')
Using device is:  cuda
Using dataloader workers is : 8
trainSet number is : 2273 valSet number is : 571
model output is : 6
SwinTransformerWithCBAM((swin): SwinTransformer((features): Sequential((0): Sequential((0): Conv2d(3, 128, kernel_size=(4, 4), stride=(4, 4))(1): Permute()(2): LayerNorm((128,), eps=1e-05, elementwise_affine=True))(1): Sequential((0): SwinTransformerBlock((norm1): LayerNorm((128,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=128, out_features=384, bias=True)(proj): Linear(in_features=128, out_features=128, bias=True))(stochastic_depth): StochasticDepth(p=0.0, mode=row)(norm2): LayerNorm((128,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=128, out_features=512, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=512, out_features=128, bias=True)(4): Dropout(p=0.0, inplace=False)))(1): SwinTransformerBlock((norm1): LayerNorm((128,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=128, out_features=384, bias=True)(proj): Linear(in_features=128, out_features=128, bias=True))(stochastic_depth): StochasticDepth(p=0.021739130434782608, mode=row)(norm2): LayerNorm((128,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=128, out_features=512, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=512, out_features=128, bias=True)(4): Dropout(p=0.0, inplace=False))))(2): PatchMerging((reduction): Linear(in_features=512, out_features=256, bias=False)(norm): LayerNorm((512,), eps=1e-05, elementwise_affine=True))(3): Sequential((0): SwinTransformerBlock((norm1): LayerNorm((256,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=256, out_features=768, bias=True)(proj): Linear(in_features=256, out_features=256, bias=True))(stochastic_depth): StochasticDepth(p=0.043478260869565216, mode=row)(norm2): LayerNorm((256,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=256, out_features=1024, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=1024, out_features=256, bias=True)(4): Dropout(p=0.0, inplace=False)))(1): SwinTransformerBlock((norm1): LayerNorm((256,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=256, out_features=768, bias=True)(proj): Linear(in_features=256, out_features=256, bias=True))(stochastic_depth): StochasticDepth(p=0.06521739130434782, mode=row)(norm2): LayerNorm((256,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=256, out_features=1024, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=1024, out_features=256, bias=True)(4): Dropout(p=0.0, inplace=False))))(4): PatchMerging((reduction): Linear(in_features=1024, out_features=512, bias=False)(norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True))(5): Sequential((0): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.08695652173913043, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(1): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.10869565217391304, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(2): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.13043478260869565, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(3): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.15217391304347827, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(4): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.17391304347826086, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(5): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.1956521739130435, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(6): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.21739130434782608, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(7): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.2391304347826087, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(8): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.2608695652173913, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(9): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.2826086956521739, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(10): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.30434782608695654, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(11): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.32608695652173914, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(12): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.34782608695652173, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(13): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.3695652173913043, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(14): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.391304347826087, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(15): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.41304347826086957, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(16): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.43478260869565216, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False)))(17): SwinTransformerBlock((norm1): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=512, out_features=1536, bias=True)(proj): Linear(in_features=512, out_features=512, bias=True))(stochastic_depth): StochasticDepth(p=0.45652173913043476, mode=row)(norm2): LayerNorm((512,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=512, out_features=2048, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=2048, out_features=512, bias=True)(4): Dropout(p=0.0, inplace=False))))(6): PatchMerging((reduction): Linear(in_features=2048, out_features=1024, bias=False)(norm): LayerNorm((2048,), eps=1e-05, elementwise_affine=True))(7): Sequential((0): SwinTransformerBlock((norm1): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=1024, out_features=3072, bias=True)(proj): Linear(in_features=1024, out_features=1024, bias=True))(stochastic_depth): StochasticDepth(p=0.4782608695652174, mode=row)(norm2): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=1024, out_features=4096, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=4096, out_features=1024, bias=True)(4): Dropout(p=0.0, inplace=False)))(1): SwinTransformerBlock((norm1): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)(attn): ShiftedWindowAttention((qkv): Linear(in_features=1024, out_features=3072, bias=True)(proj): Linear(in_features=1024, out_features=1024, bias=True))(stochastic_depth): StochasticDepth(p=0.5, mode=row)(norm2): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)(mlp): MLP((0): Linear(in_features=1024, out_features=4096, bias=True)(1): GELU(approximate='none')(2): Dropout(p=0.0, inplace=False)(3): Linear(in_features=4096, out_features=1024, bias=True)(4): Dropout(p=0.0, inplace=False)))))(norm): LayerNorm((1024,), eps=1e-05, elementwise_affine=True)(permute): Permute()(avgpool): AdaptiveAvgPool2d(output_size=1)(flatten): Flatten(start_dim=1, end_dim=-1)(head): Linear(in_features=1024, out_features=1000, bias=True))(cbam1): CBAM((ca): ChannelAttention((avg_pool): AdaptiveAvgPool2d(output_size=1)(max_pool): AdaptiveMaxPool2d(output_size=1)(fc1): Conv2d(128, 8, kernel_size=(1, 1), stride=(1, 1), bias=False)(relu1): ReLU()(fc2): Conv2d(8, 128, kernel_size=(1, 1), stride=(1, 1), bias=False)(sigmoid): Sigmoid())(sa): SpatialAttention((conv): Conv2d(2, 1, kernel_size=(7, 7), stride=(1, 1), padding=(3, 3), bias=False)(sigmoid): Sigmoid()))(cbam2): CBAM((ca): ChannelAttention((avg_pool): AdaptiveAvgPool2d(output_size=1)(max_pool): AdaptiveMaxPool2d(output_size=1)(fc1): Conv2d(256, 16, kernel_size=(1, 1), stride=(1, 1), bias=False)(relu1): ReLU()(fc2): Conv2d(16, 256, kernel_size=(1, 1), stride=(1, 1), bias=False)(sigmoid): Sigmoid())(sa): SpatialAttention((conv): Conv2d(2, 1, kernel_size=(7, 7), stride=(1, 1), padding=(3, 3), bias=False)(sigmoid): Sigmoid()))(cbam3): CBAM((ca): ChannelAttention((avg_pool): AdaptiveAvgPool2d(output_size=1)(max_pool): AdaptiveMaxPool2d(output_size=1)(fc1): Conv2d(512, 32, kernel_size=(1, 1), stride=(1, 1), bias=False)(relu1): ReLU()(fc2): Conv2d(32, 512, kernel_size=(1, 1), stride=(1, 1), bias=False)(sigmoid): Sigmoid())(sa): SpatialAttention((conv): Conv2d(2, 1, kernel_size=(7, 7), stride=(1, 1), padding=(3, 3), bias=False)(sigmoid): Sigmoid()))(cbam4): CBAM((ca): ChannelAttention((avg_pool): AdaptiveAvgPool2d(output_size=1)(max_pool): AdaptiveMaxPool2d(output_size=1)(fc1): Conv2d(1024, 64, kernel_size=(1, 1), stride=(1, 1), bias=False)(relu1): ReLU()(fc2): Conv2d(64, 1024, kernel_size=(1, 1), stride=(1, 1), bias=False)(sigmoid): Sigmoid())(sa): SpatialAttention((conv): Conv2d(2, 1, kernel_size=(7, 7), stride=(1, 1), padding=(3, 3), bias=False)(sigmoid): Sigmoid()))(multi_scale_fusion): MultiScaleFusion((lateral_convs): ModuleList((0): Conv2d(128, 256, kernel_size=(1, 1), stride=(1, 1))(1): Conv2d(256, 256, kernel_size=(1, 1), stride=(1, 1))(2): Conv2d(512, 256, kernel_size=(1, 1), stride=(1, 1))(3): Conv2d(1024, 256, kernel_size=(1, 1), stride=(1, 1)))(fusion_convs): ModuleList((0-3): 4 x Conv2d(256, 256, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))))(avgpool): AdaptiveAvgPool2d(output_size=1)(head): Linear(in_features=256, out_features=6, bias=True)
)
[INFO] Register count_convNd() for <class 'torch.nn.modules.conv.Conv2d'>.
[INFO] Register count_normalization() for <class 'torch.nn.modules.normalization.LayerNorm'>.
[INFO] Register zero_ops() for <class 'torch.nn.modules.container.Sequential'>.
[INFO] Register count_linear() for <class 'torch.nn.modules.linear.Linear'>.
[INFO] Register zero_ops() for <class 'torch.nn.modules.dropout.Dropout'>.
[INFO] Register count_adap_avgpool() for <class 'torch.nn.modules.pooling.AdaptiveAvgPool2d'>.
[INFO] Register zero_ops() for <class 'torch.nn.modules.pooling.AdaptiveMaxPool2d'>.
[INFO] Register zero_ops() for <class 'torch.nn.modules.activation.ReLU'>.
Total parameters is:90.80 M
Train parameters is:90797102
Flops:12872.67 M
use optim is :  Adam开始训练...
train: 100%|██████████| 143/143 [01:32<00:00,  1.54it/s, accuracy=0.445, loss=0.174]
valid: 100%|██████████| 36/36 [00:29<00:00,  1.21it/s, accuracy=0.468, loss=0.0589]
[epoch:0/5]
train loss:0.0154 	 train accuracy:0.4452
val loss:0.0132 	 val accuracy:0.4676train: 100%|██████████| 143/143 [01:31<00:00,  1.57it/s, accuracy=0.546, loss=0.121]
valid: 100%|██████████| 36/36 [00:29<00:00,  1.21it/s, accuracy=0.522, loss=0.0504]
train:   0%|          | 0/143 [00:00<?, ?it/s][epoch:1/5]
train loss:0.0121 	 train accuracy:0.5460
val loss:0.0119 	 val accuracy:0.5219train: 100%|██████████| 143/143 [01:28<00:00,  1.62it/s, accuracy=0.594, loss=0.442]
valid: 100%|██████████| 36/36 [00:29<00:00,  1.24it/s, accuracy=0.574, loss=0.0512]
train:   0%|          | 0/143 [00:00<?, ?it/s][epoch:2/5]
train loss:0.0131 	 train accuracy:0.5944
val loss:0.0110 	 val accuracy:0.5744train: 100%|██████████| 143/143 [01:27<00:00,  1.63it/s, accuracy=0.623, loss=0.0327]
valid: 100%|██████████| 36/36 [00:28<00:00,  1.24it/s, accuracy=0.588, loss=0.0539]
train:   0%|          | 0/143 [00:00<?, ?it/s][epoch:3/5]
train loss:0.0093 	 train accuracy:0.6230
val loss:0.0097 	 val accuracy:0.5884train: 100%|██████████| 143/143 [01:27<00:00,  1.63it/s, accuracy=0.658, loss=0.202]
valid: 100%|██████████| 36/36 [00:29<00:00,  1.23it/s, accuracy=0.576, loss=0.0476]
[epoch:4/5]
train loss:0.0096 	 train accuracy:0.6582
val loss:0.0096 	 val accuracy:0.5762训练结束!!!
best epoch: 4
100%|██████████| 143/143 [00:37<00:00,  3.82it/s]
100%|██████████| 36/36 [00:25<00:00,  1.42it/s]
roc curve: 100%|██████████| 36/36 [00:25<00:00,  1.43it/s]
train finish!
验证集上表现最好的epoch为: 4
通过网络在测试集上进行测试valid:   0%|          | 0/19 [00:00<?, ?it/s]6
['dry', 'fresh_snow', 'ice', 'melted_snow', 'water', 'wet']
valid: 100%|██████████| 19/19 [00:04<00:00,  4.13it/s, accuracy=0.543, loss=0.0382]
{'accuracy': 0.5427631578768828, 'dry': {'Precision': 0.5663, 'Recall': 0.7966, 'Specificity': 0.8531, 'F1 score': 0.662}, 'fresh_snow': {'Precision': 0.6481, 'Recall': 0.9211, 'Specificity': 0.9286, 'F1 score': 0.7609}, 'ice': {'Precision': 0.1429, 'Recall': 0.0435, 'Specificity': 0.9535, 'F1 score': 0.0667}, 'melted_snow': {'Precision': 0.6456, 'Recall': 0.8226, 'Specificity': 0.8843, 'F1 score': 0.7234}, 'water': {'Precision': 0.4054, 'Recall': 0.4478, 'Specificity': 0.8143, 'F1 score': 0.4255}, 'wet': {'Precision': 0.0, 'Recall': 0.0, 'Specificity': 1.0, 'F1 score': 0.0}, 'mean precision': 0.40138333333333326, 'mean recall': 0.5052666666666666, 'mean specificity': 0.9056333333333333, 'mean f1 score': 0.43975000000000003}
测试集的结果保存在---->test_results.json

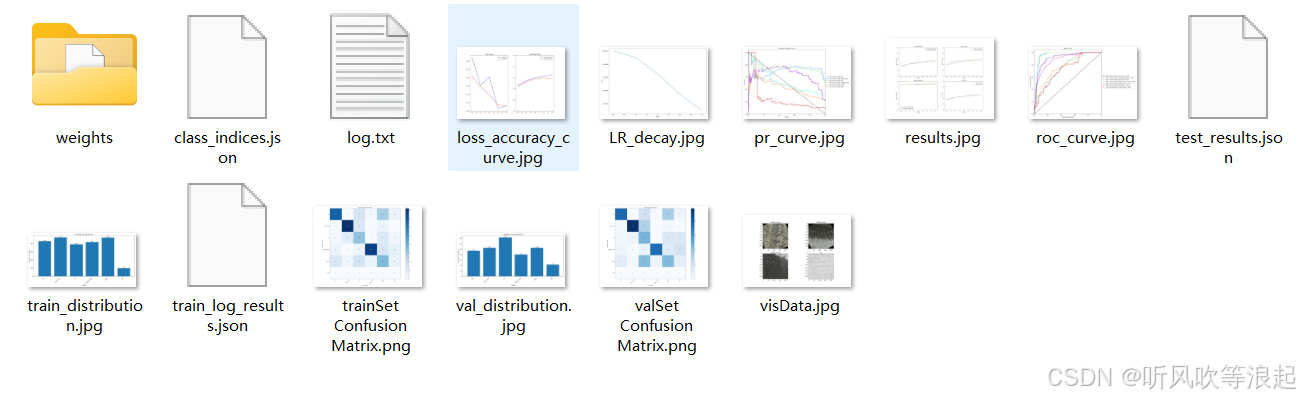

训练生成的文件：

{"train parameters": {"model version": "swin-vit","pretrained": false,"batch_size": 16,"epochs": 5,"optim": "Adam","lr": 0.0001,"lrf": 0.0001,"save_folder": "runs"},"dataset": {"trainset number": 2273,"valset number": 571,"number classes": 6},"model": {"total parameters": 90797102,"train parameters": 90797102,"flops": 12872672746.0},"epoch:0": {"train info": {"accuracy": 0.4452265728093039,"dry": {"Precision": 0.3983,"Recall": 0.4486,"Specificity": 0.8428,"F1 score": 0.422},"fresh_snow": {"Precision": 0.4553,"Recall": 0.6815,"Specificity": 0.7869,"F1 score": 0.5459},"ice": {"Precision": 0.3458,"Recall": 0.2134,"Specificity": 0.9167,"F1 score": 0.2639},"melted_snow": {"Precision": 0.6075,"Recall": 0.8129,"Specificity": 0.882,"F1 score": 0.6953},"water": {"Precision": 0.2683,"Recall": 0.1642,"Specificity": 0.8836,"F1 score": 0.2037},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 0.9995,"F1 score": 0.0},"mean precision": 0.3458666666666666,"mean recall": 0.3867666666666667,"mean specificity": 0.8852500000000001,"mean f1 score": 0.3551333333333333,"train loss": 0.0154},"valid info": {"accuracy": 0.46760070051720487,"dry": {"Precision": 0.4667,"Recall": 0.7368,"Specificity": 0.8319,"F1 score": 0.5714},"fresh_snow": {"Precision": 0.401,"Recall": 0.7905,"Specificity": 0.7339,"F1 score": 0.5321},"ice": {"Precision": 0.5301,"Recall": 0.3077,"Specificity": 0.9089,"F1 score": 0.3894},"melted_snow": {"Precision": 0.5929,"Recall": 0.8375,"Specificity": 0.9063,"F1 score": 0.6943},"water": {"Precision": 0.1667,"Recall": 0.0286,"Specificity": 0.9678,"F1 score": 0.0488},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.35956666666666665,"mean recall": 0.4501833333333333,"mean specificity": 0.8914666666666666,"mean f1 score": 0.37266666666666665,"val loss": 0.0132}},"epoch:1": {"train info": {"accuracy": 0.5459744830596306,"dry": {"Precision": 0.5168,"Recall": 0.5748,"Specificity": 0.8753,"F1 score": 0.5443},"fresh_snow": {"Precision": 0.6277,"Recall": 0.8662,"Specificity": 0.8657,"F1 score": 0.7279},"ice": {"Precision": 0.4167,"Recall": 0.2185,"Specificity": 0.9368,"F1 score": 0.2867},"melted_snow": {"Precision": 0.678,"Recall": 0.8585,"Specificity": 0.9084,"F1 score": 0.7576},"water": {"Precision": 0.347,"Recall": 0.307,"Specificity": 0.8498,"F1 score": 0.3258},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.4310333333333334,"mean recall": 0.47083333333333327,"mean specificity": 0.906,"mean f1 score": 0.44038333333333335,"train loss": 0.0121},"valid info": {"accuracy": 0.5218914185547829,"dry": {"Precision": 0.6087,"Recall": 0.5895,"Specificity": 0.9244,"F1 score": 0.5989},"fresh_snow": {"Precision": 0.5611,"Recall": 0.9619,"Specificity": 0.8305,"F1 score": 0.7088},"ice": {"Precision": 0.4222,"Recall": 0.1329,"Specificity": 0.9393,"F1 score": 0.2022},"melted_snow": {"Precision": 0.6228,"Recall": 0.8875,"Specificity": 0.9124,"F1 score": 0.732},"water": {"Precision": 0.3643,"Recall": 0.4857,"Specificity": 0.809,"F1 score": 0.4163},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.42985000000000007,"mean recall": 0.5095833333333334,"mean specificity": 0.9026000000000001,"mean f1 score": 0.4430333333333334,"val loss": 0.0119}},"epoch:2": {"train info": {"accuracy": 0.594368675756294,"dry": {"Precision": 0.5344,"Recall": 0.6893,"Specificity": 0.8607,"F1 score": 0.602},"fresh_snow": {"Precision": 0.6926,"Recall": 0.8896,"Specificity": 0.8968,"F1 score": 0.7788},"ice": {"Precision": 0.5,"Recall": 0.2751,"Specificity": 0.9432,"F1 score": 0.3549},"melted_snow": {"Precision": 0.728,"Recall": 0.8921,"Specificity": 0.9251,"F1 score": 0.8017},"water": {"Precision": 0.4041,"Recall": 0.3369,"Specificity": 0.8708,"F1 score": 0.3675},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.4765166666666667,"mean recall": 0.5138333333333334,"mean specificity": 0.9161000000000001,"mean f1 score": 0.48415,"train loss": 0.0131},"valid info": {"accuracy": 0.5744308231072779,"dry": {"Precision": 0.491,"Recall": 0.8632,"Specificity": 0.8214,"F1 score": 0.626},"fresh_snow": {"Precision": 0.8333,"Recall": 0.7143,"Specificity": 0.9678,"F1 score": 0.7692},"ice": {"Precision": 0.4762,"Recall": 0.6993,"Specificity": 0.743,"F1 score": 0.5666},"melted_snow": {"Precision": 0.7071,"Recall": 0.875,"Specificity": 0.9409,"F1 score": 0.7821},"water": {"Precision": 0.2,"Recall": 0.0095,"Specificity": 0.9914,"F1 score": 0.0181},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.4512666666666667,"mean recall": 0.5268833333333334,"mean specificity": 0.9107500000000001,"mean f1 score": 0.4603333333333333,"val loss": 0.011}},"epoch:3": {"train info": {"accuracy": 0.6229652441679588,"dry": {"Precision": 0.5638,"Recall": 0.785,"Specificity": 0.8591,"F1 score": 0.6563},"fresh_snow": {"Precision": 0.7576,"Recall": 0.8429,"Specificity": 0.9295,"F1 score": 0.798},"ice": {"Precision": 0.5523,"Recall": 0.3393,"Specificity": 0.9432,"F1 score": 0.4204},"melted_snow": {"Precision": 0.7421,"Recall": 0.9041,"Specificity": 0.9294,"F1 score": 0.8151},"water": {"Precision": 0.4286,"Recall": 0.371,"Specificity": 0.8714,"F1 score": 0.3977},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.5074,"mean recall": 0.5403833333333333,"mean specificity": 0.9221,"mean f1 score": 0.5145833333333333,"train loss": 0.0093},"valid info": {"accuracy": 0.5884413309879433,"dry": {"Precision": 0.5714,"Recall": 0.8,"Specificity": 0.8803,"F1 score": 0.6666},"fresh_snow": {"Precision": 0.7293,"Recall": 0.9238,"Specificity": 0.9227,"F1 score": 0.8151},"ice": {"Precision": 0.561,"Recall": 0.3217,"Specificity": 0.9159,"F1 score": 0.4089},"melted_snow": {"Precision": 0.6607,"Recall": 0.925,"Specificity": 0.9226,"F1 score": 0.7708},"water": {"Precision": 0.3874,"Recall": 0.4095,"Specificity": 0.8541,"F1 score": 0.3981},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.4849666666666666,"mean recall": 0.5633333333333334,"mean specificity": 0.9159333333333334,"mean f1 score": 0.5099166666666667,"val loss": 0.0097}},"epoch:4": {"train info": {"accuracy": 0.6581610206746231,"dry": {"Precision": 0.5916,"Recall": 0.7921,"Specificity": 0.8732,"F1 score": 0.6773},"fresh_snow": {"Precision": 0.8298,"Recall": 0.9108,"Specificity": 0.9512,"F1 score": 0.8684},"ice": {"Precision": 0.6278,"Recall": 0.3599,"Specificity": 0.9559,"F1 score": 0.4575},"melted_snow": {"Precision": 0.7451,"Recall": 0.9113,"Specificity": 0.93,"F1 score": 0.8199},"water": {"Precision": 0.4622,"Recall": 0.4435,"Specificity": 0.8659,"F1 score": 0.4527},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.54275,"mean recall": 0.5696,"mean specificity": 0.9293666666666667,"mean f1 score": 0.5459666666666667,"train loss": 0.0096},"valid info": {"accuracy": 0.5761821365923611,"dry": {"Precision": 0.5652,"Recall": 0.8211,"Specificity": 0.8739,"F1 score": 0.6695},"fresh_snow": {"Precision": 0.7252,"Recall": 0.9048,"Specificity": 0.9227,"F1 score": 0.8051},"ice": {"Precision": 0.6078,"Recall": 0.2168,"Specificity": 0.9533,"F1 score": 0.3196},"melted_snow": {"Precision": 0.7087,"Recall": 0.9125,"Specificity": 0.9389,"F1 score": 0.7978},"water": {"Precision": 0.3514,"Recall": 0.4952,"Specificity": 0.794,"F1 score": 0.4111},"wet": {"Precision": 0.0,"Recall": 0.0,"Specificity": 1.0,"F1 score": 0.0},"mean precision": 0.49305,"mean recall": 0.5584000000000001,"mean specificity": 0.9138000000000001,"mean f1 score": 0.5005166666666666,"val loss": 0.0096}}
}
